Embraer C-390 Millennium

Embraer C-390 Millennium
Country	Brazil
Role	Medium-sized transport aircraft
Produced	2014–present
Built	5

The Embraer C-390 Millennium is a medium-size, twin-engine jet-powered military transport aircraft in production by Brazilian aerospace manufacturer Embraer, able to perform aerial refuelling and to transport cargo and troops. It is the heaviest aircraft the company has made to date, and will be able to transport up to 26 tonnes (29 tons) of cargo, including wheeled armoured fighting vehicles.

Source: Embraer C-390 Millennium on Wikipedia

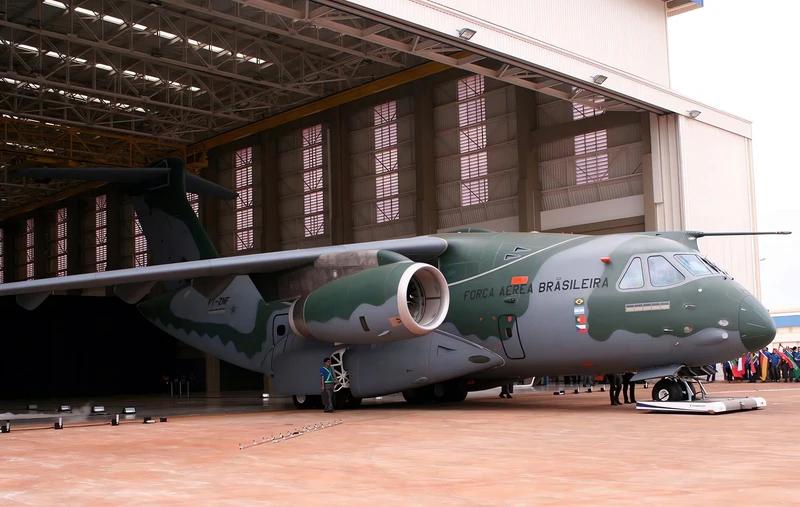

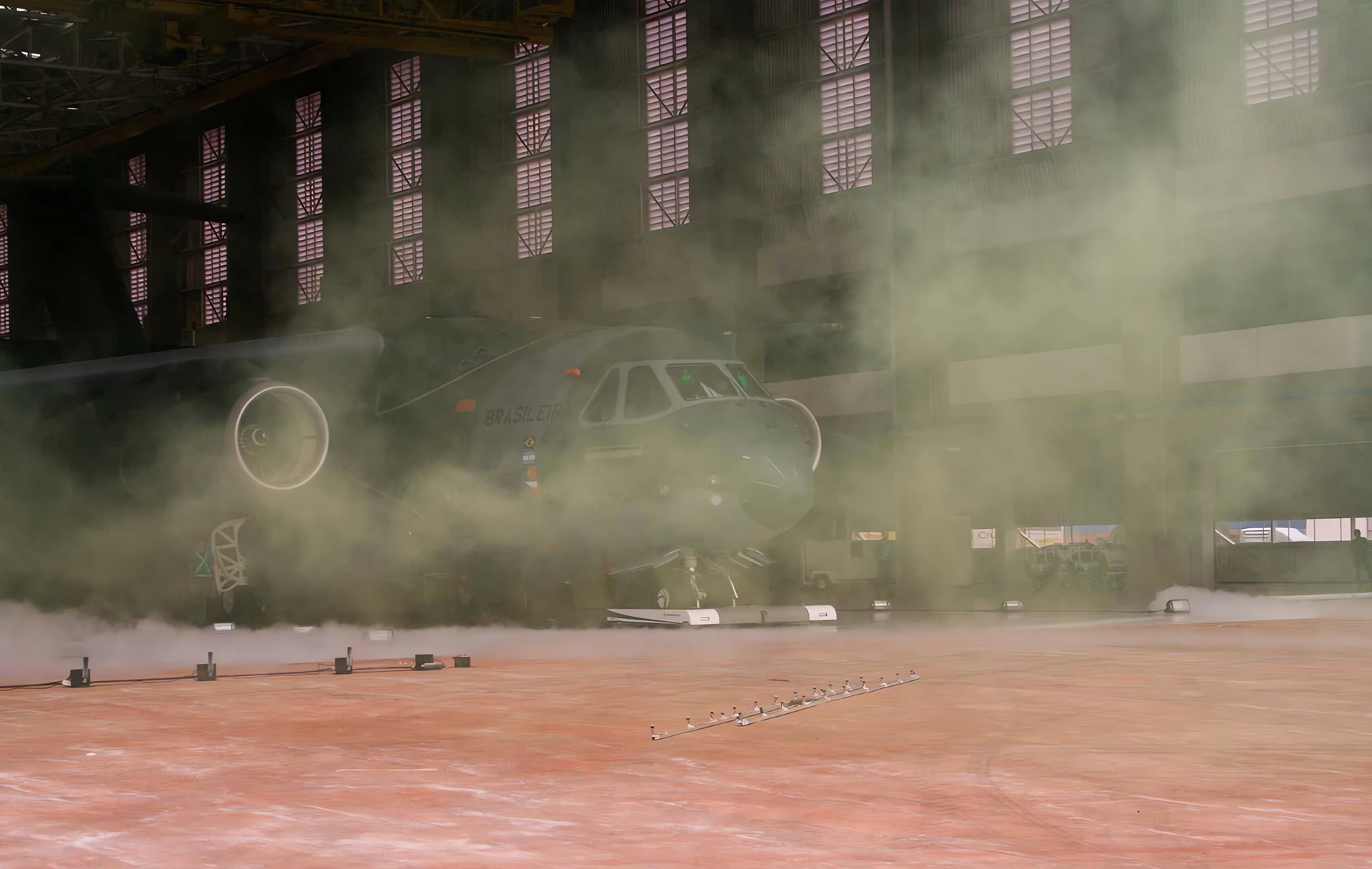

Rollout Embraer KC-390 Walk Around
Photographer	Gino Marcomini
Localisation	Unknow
Photos	172

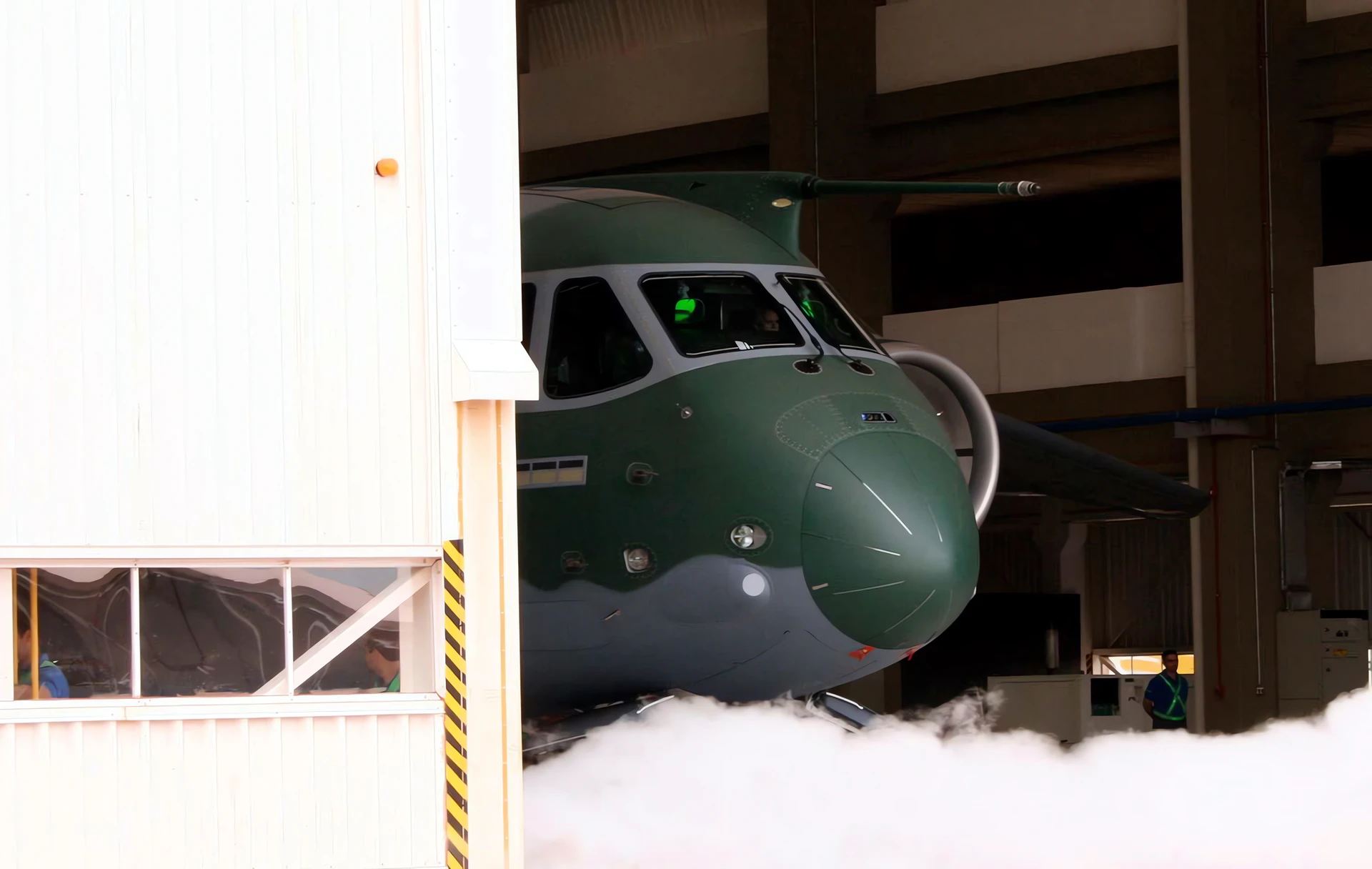

Embraer KC-390 01

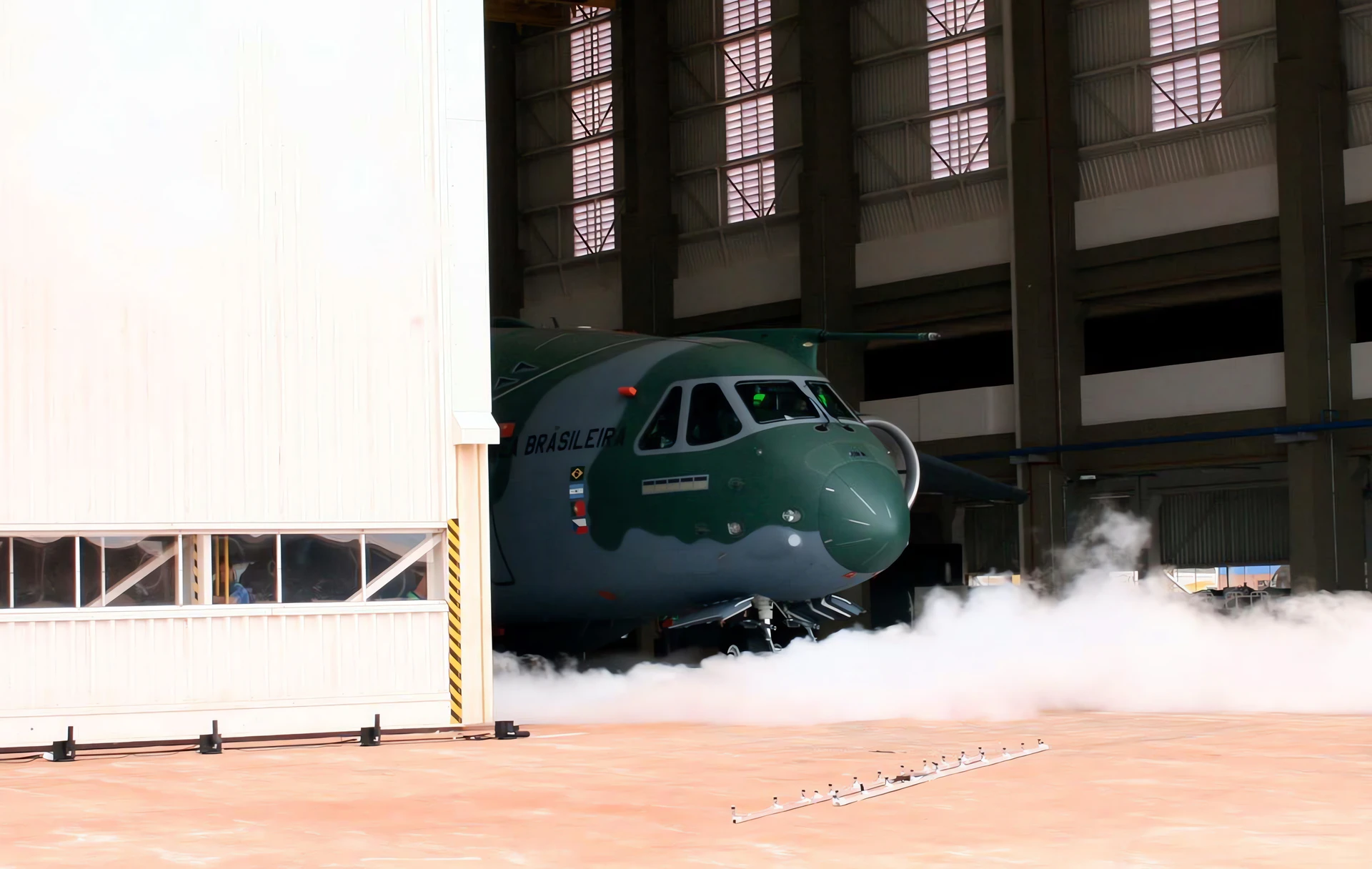

Embraer KC-390 02

Embraer KC-390 03

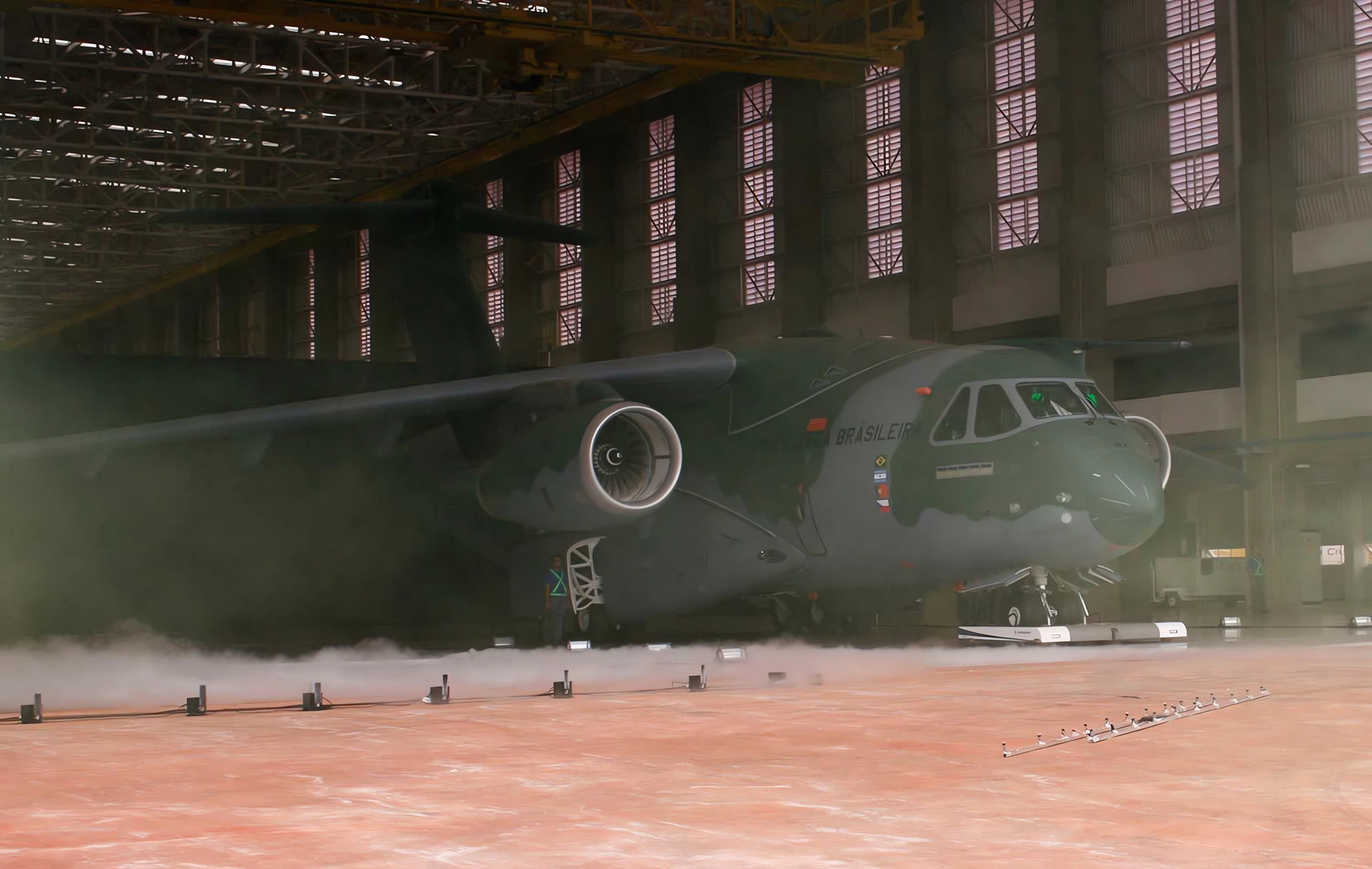

Embraer KC-390 04

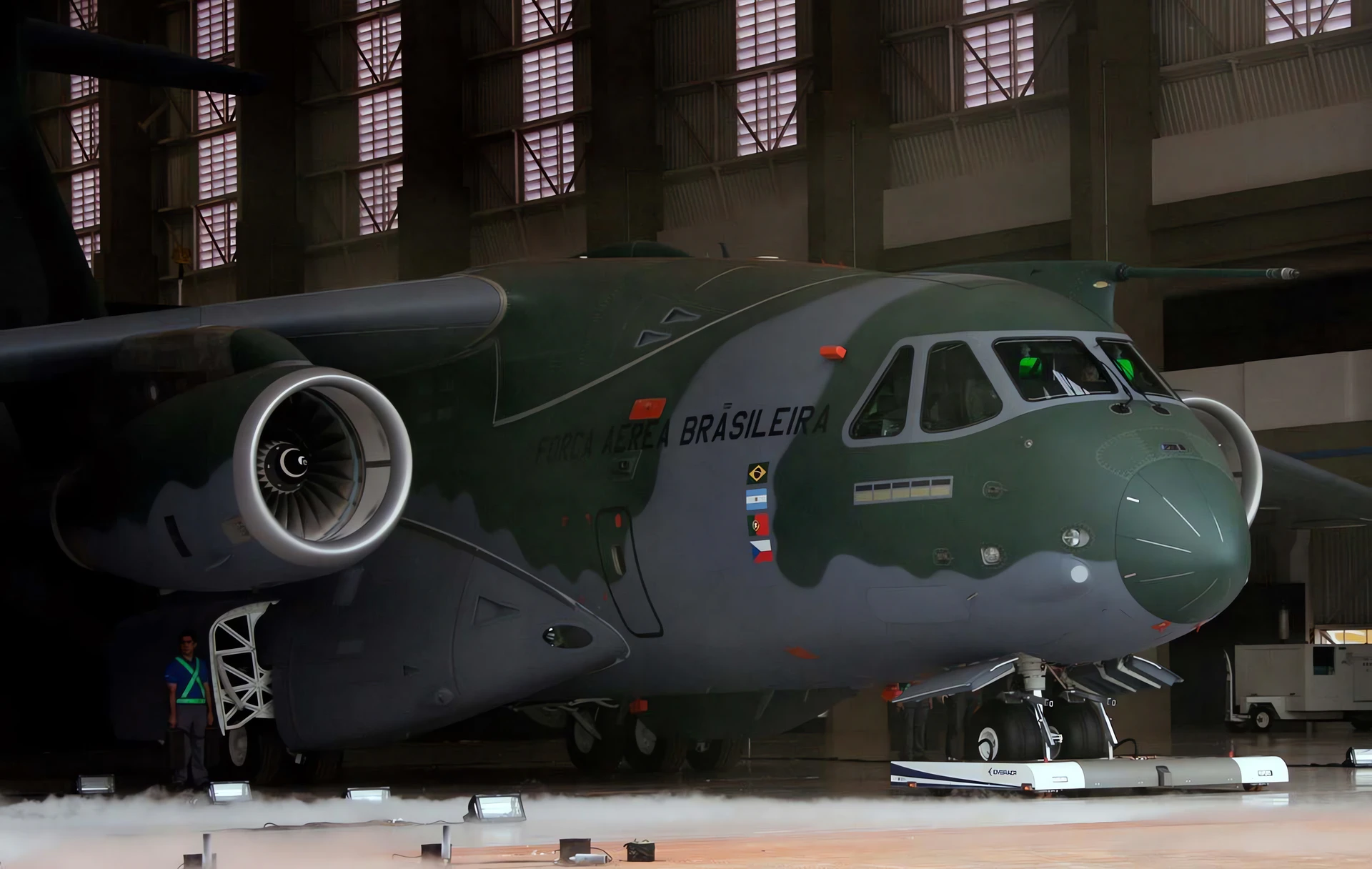

Embraer KC-390 05

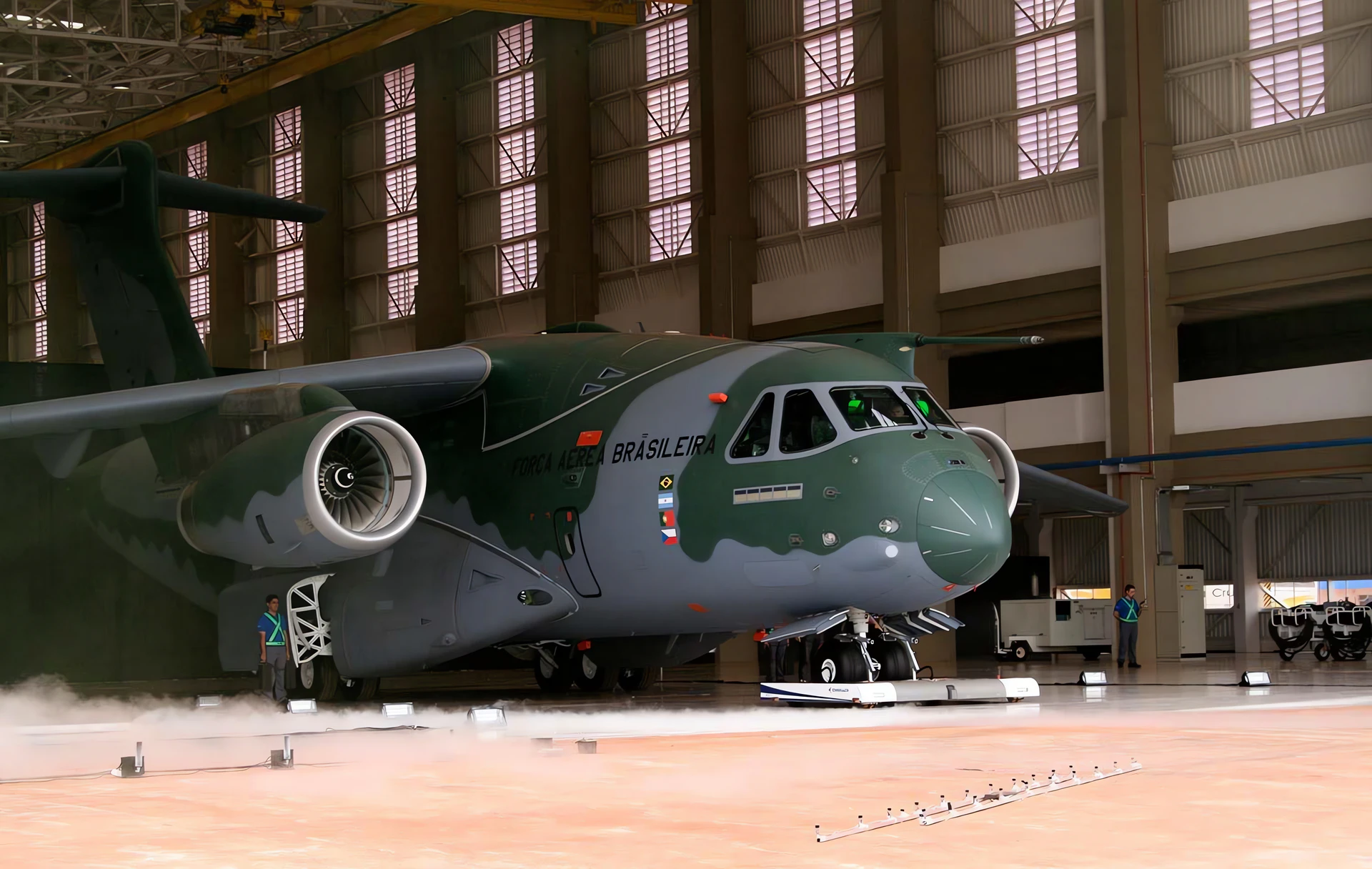

Embraer KC-390 06

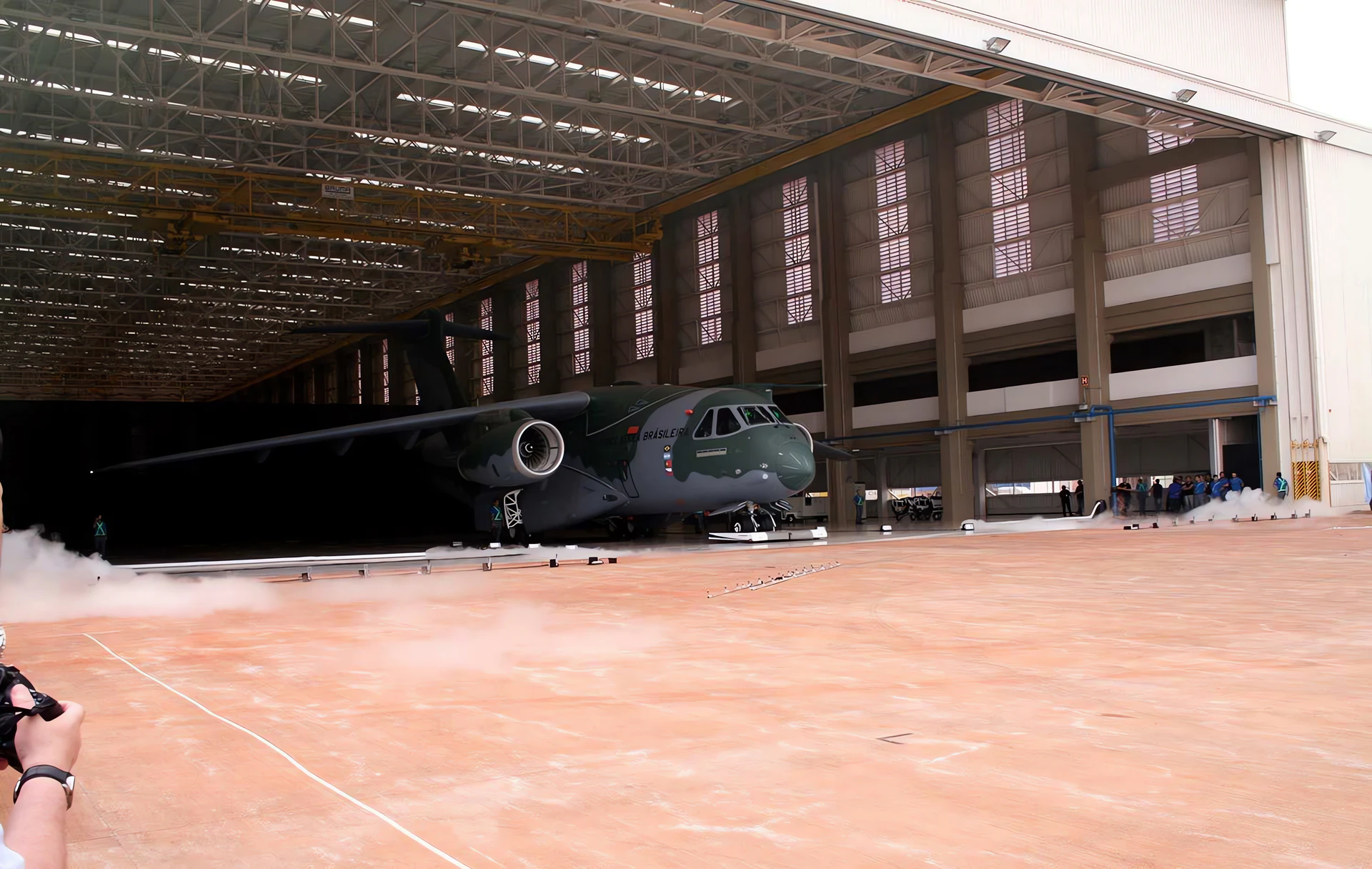

Embraer KC-390 07

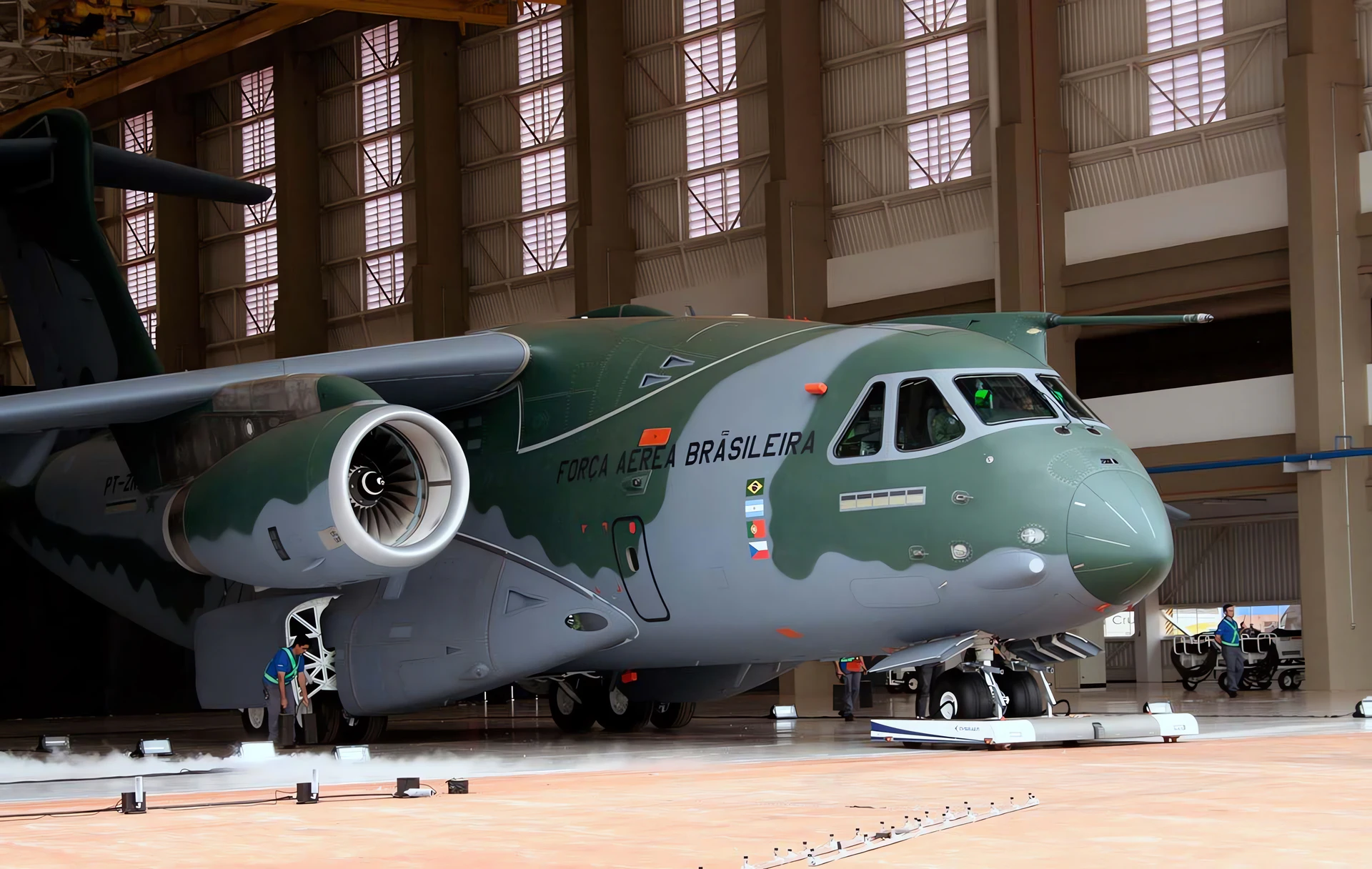

Embraer KC-390 08

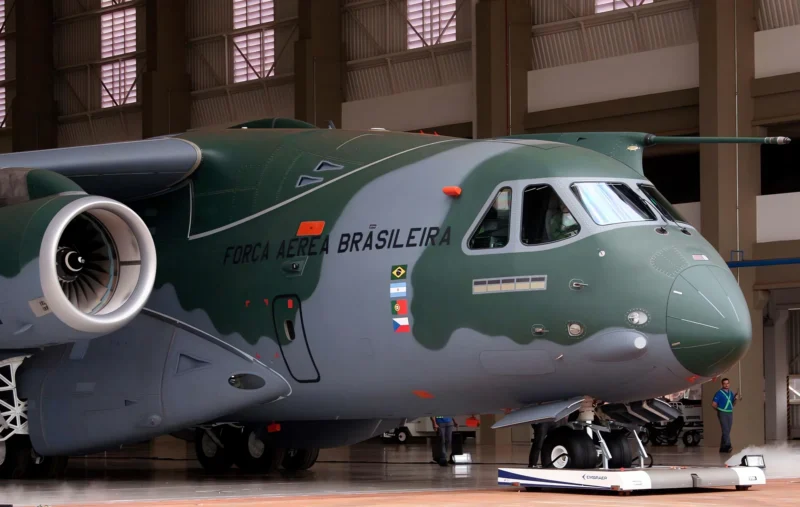

Embraer KC-390 09

Click on a photo and use the mouse scroll to view all photos

Wait, Searching Sherpa Light for you…

General Characteristics

The Embraer KC-390 Millennium (originally designated KC-390) is a Brazilian twin-engine jet-powered military transport and aerial refueling aircraft. Developed by Embraer, it is designed to replace older turboprop platforms like the **Lockheed C-130 Hercules** by offering superior speed, range, and payload capacity. Unlike most medium airlifters that use turboprops, the KC-390 uses turbofan engines, allowing it to fly faster and higher. It is a highly versatile aircraft, equipped with a full fly-by-wire system and rugged landing gear that allows operations from semi-prepared and damaged runways. The KC-390 designation is used for the variant configured for air-to-air refueling (Tanker – K) missions.

Property	Typical Value (C-390 Millennium)
Role	Tactical/Strategic Airlifter, Air-to-Air Refueling (Tanker)
National Origin	Brazil
Manufacturer	Embraer Defence and Space
First Flight	February 3, 2015
Service Entry	2019 (Brazilian Air Force)
Crew	3 (2 Pilots, 1 Loadmaster) + optional mission crew
Length	35.2 m (115 ft 6 in)
Wingspan	35.05 m (115 ft 0 in)
Max Takeoff Weight	87,000 kg (191,800 lb)

Powerplant and Performance

Engine: 2 x **International Aero Engines (IAE) V2500-E5** turbofan engines.
Power Output (each): 139 kN (31,330 lbf) of thrust.
Maximum Cruise Speed: 470 knots (870 km/h; Mach 0.80).
Altitude Ceiling: 11,000 m (36,000 ft).
Range (with 23 tonne / 50,700 lb payload): 2,720 km (1,690 mi / 1,470 nm).
Ferry Range (with internal auxiliary tanks): Up to 8,460 km (5,260 mi / 4,570 nm).
Takeoff Distance (5,000 ft at CFL, SL, ISA, 23t payload): 1,524 m (5,000 ft).
Systems: Features a full fly-by-wire flight control system, reducing pilot workload and enabling precision maneuvers.

Cargo and Multi-Mission Capability

Maximum Payload: 26,000 kg (57,320 lb).
Cargo Hold Dimensions: Length 18.5 m (including ramp); Width 3.45 m; Height 2.95 m.
Personnel/Cargo Capacity:
- Troops: Up to 80 fully equipped soldiers.
- Paratroopers: 66 paratroopers.
- Pallets: Up to 7 **463L master pallets**.
- Vehicles: Can carry one **Sikorsky H-60 Black Hawk** helicopter or one **Boxer** Armored Vehicle.
- MEDEVAC: Up to 74 stretchers with 8 attendants.
Aerial Refueling (KC-390): Equipped with two wing-mounted probe-and-drogue pods, capable of refueling both fixed-wing and rotary-wing aircraft.
Self-Protection: Includes a comprehensive suite of **Self-Protection System (SPS)** devices, such as Radar/Laser/Missile Warning Systems (RWR, LWS, MAWS) and chaff/flare dispensers, enhancing survivability in hostile environments.
