SPAD S.XI | |
|---|---|
| Land | Frankrike |
| Rolle | Rekognoseringsfly |
| Første flytur | Unknow |
| Bygget | 1000 |
Den SPAD S.XI eller SPAD 11 var et fransk to-seters biplan rekognoseringsfly fra første verdenskrig. SPAD 11 var et verk av Louis Béchereau, sjefsdesigner for Société Pour L'Aviation et ses Dérivés (SPAD), som også konstruerte de svært vellykkede SPAD 7 og SPAD 13 enseters jagerfly.
Kilde: SPAD S.XI på Wikipedia

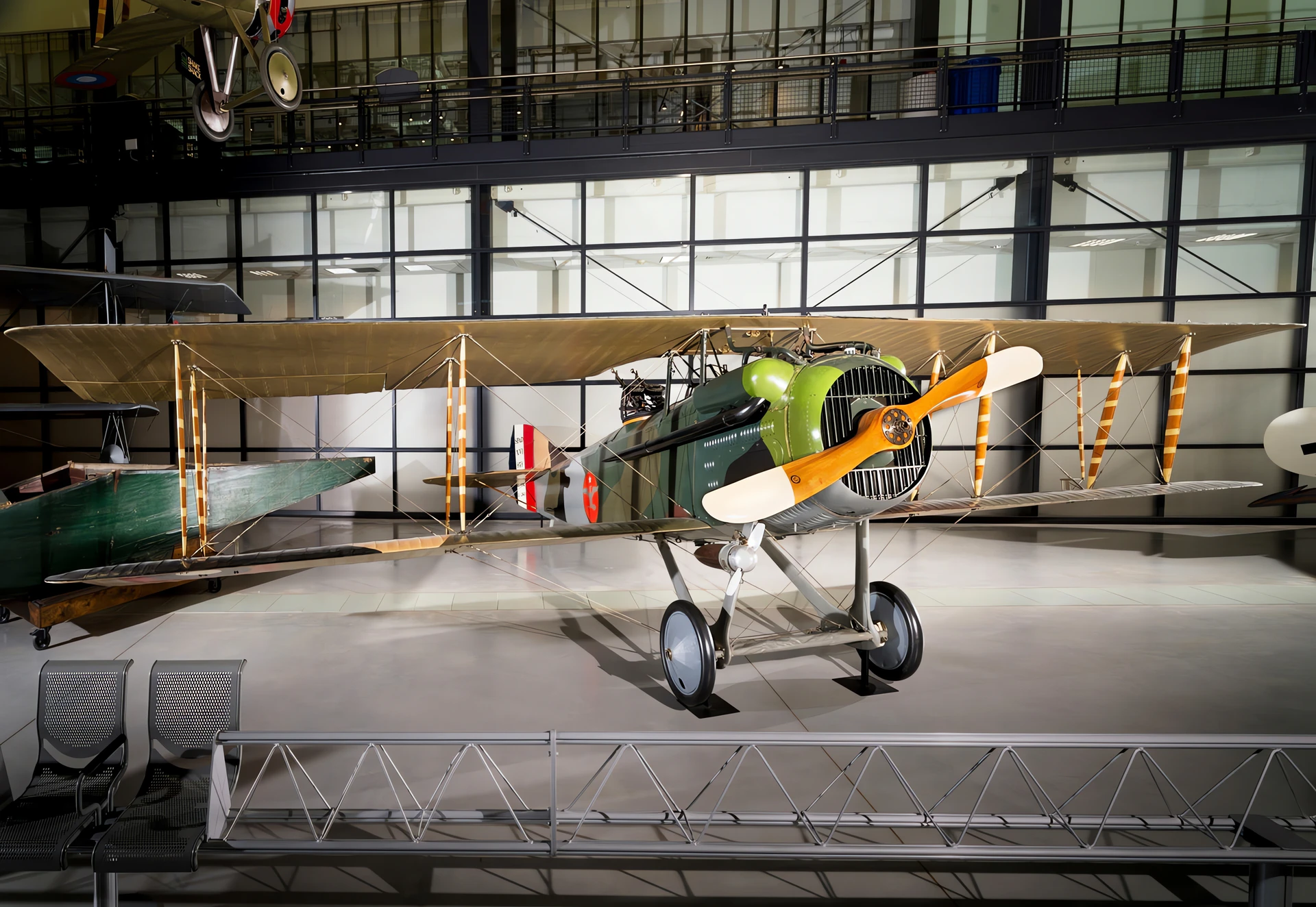

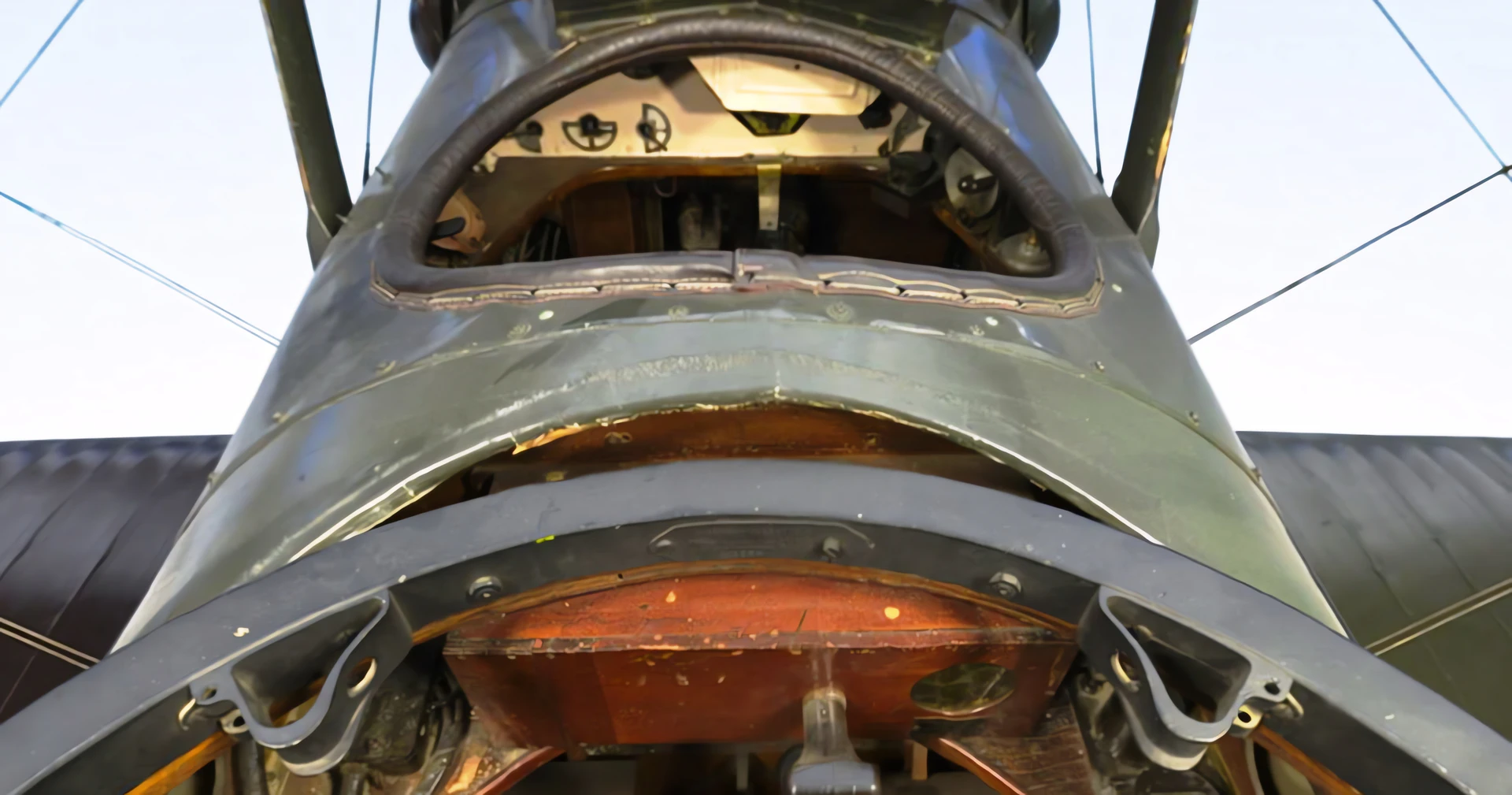

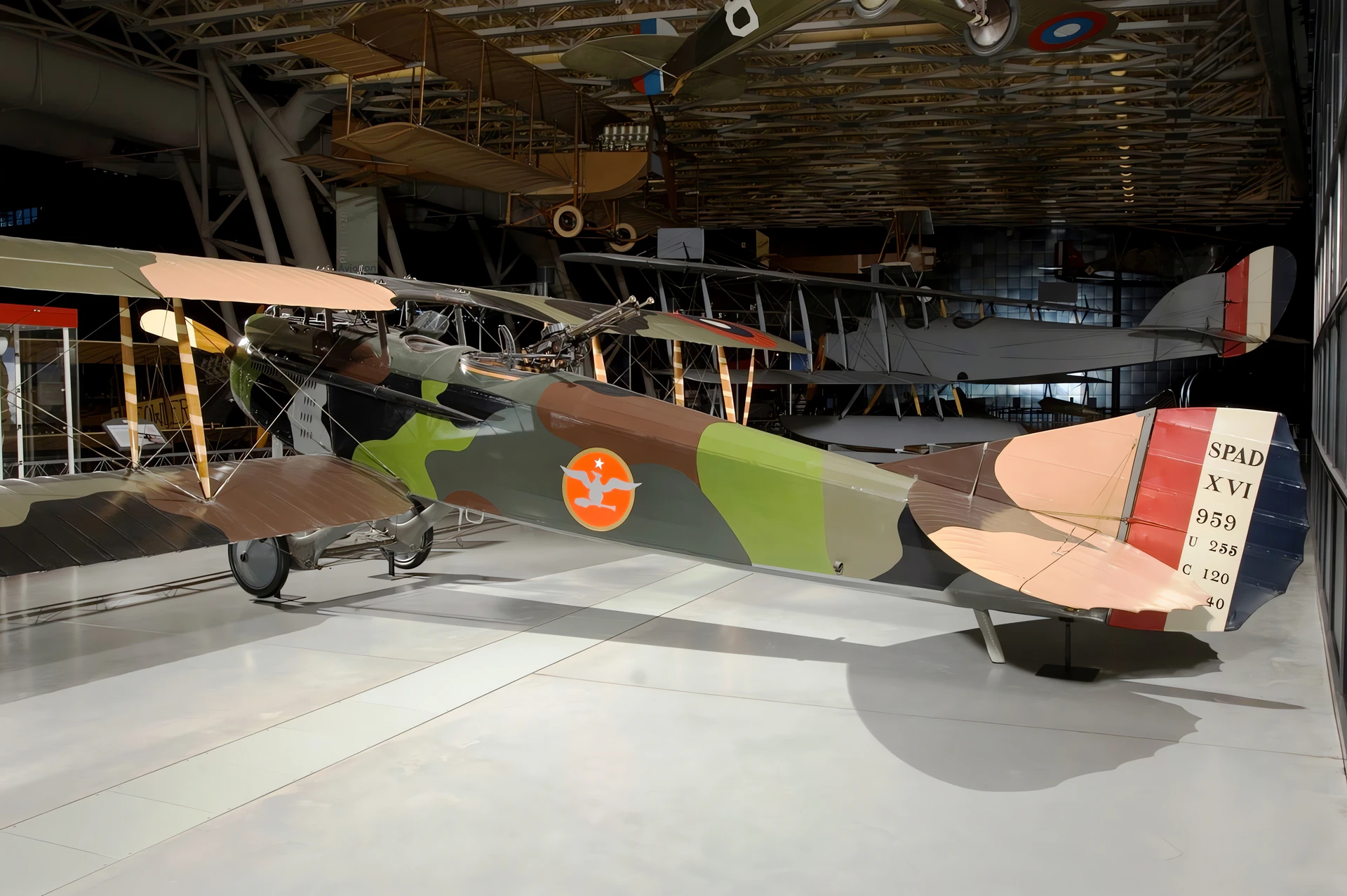

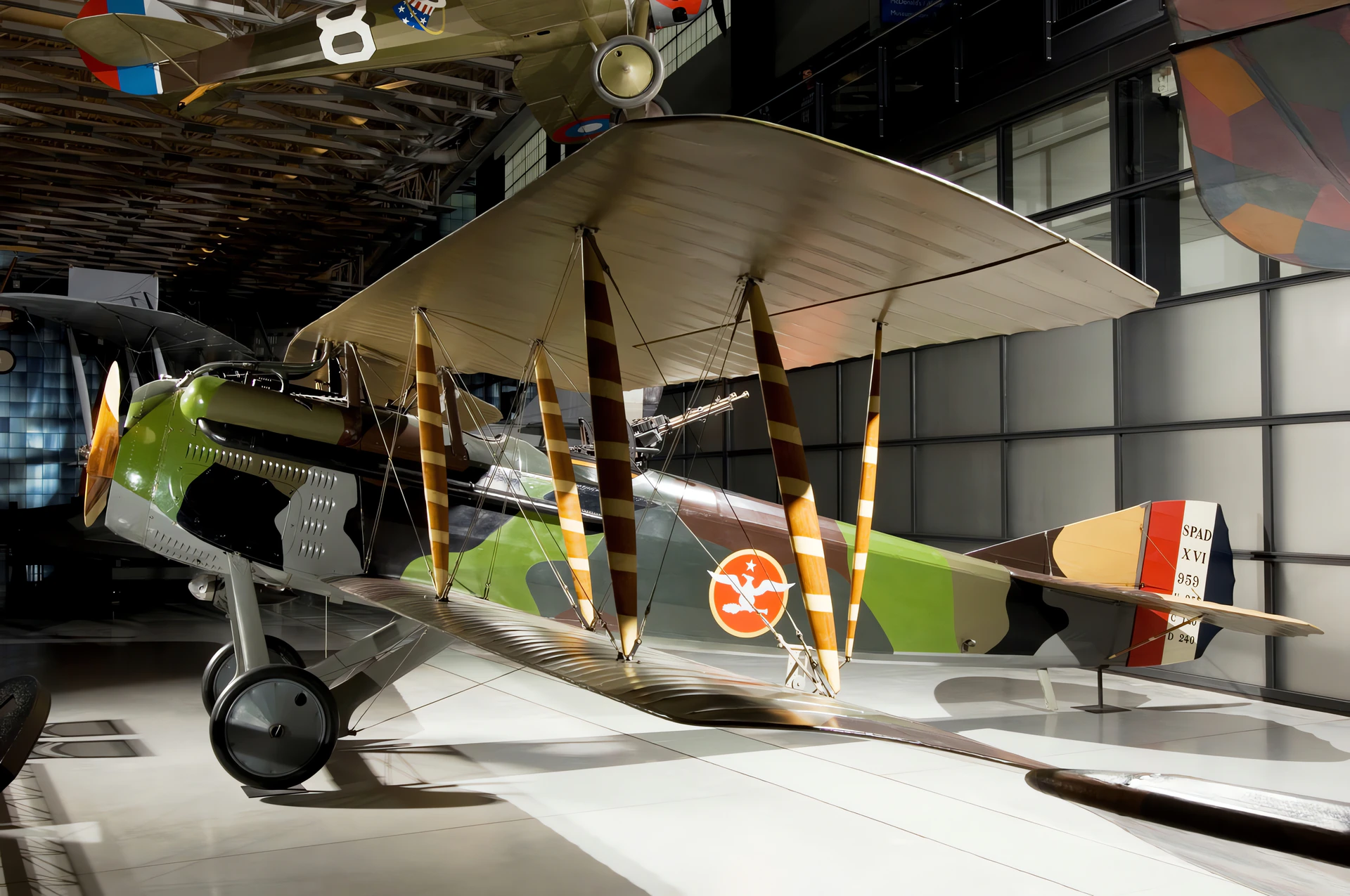

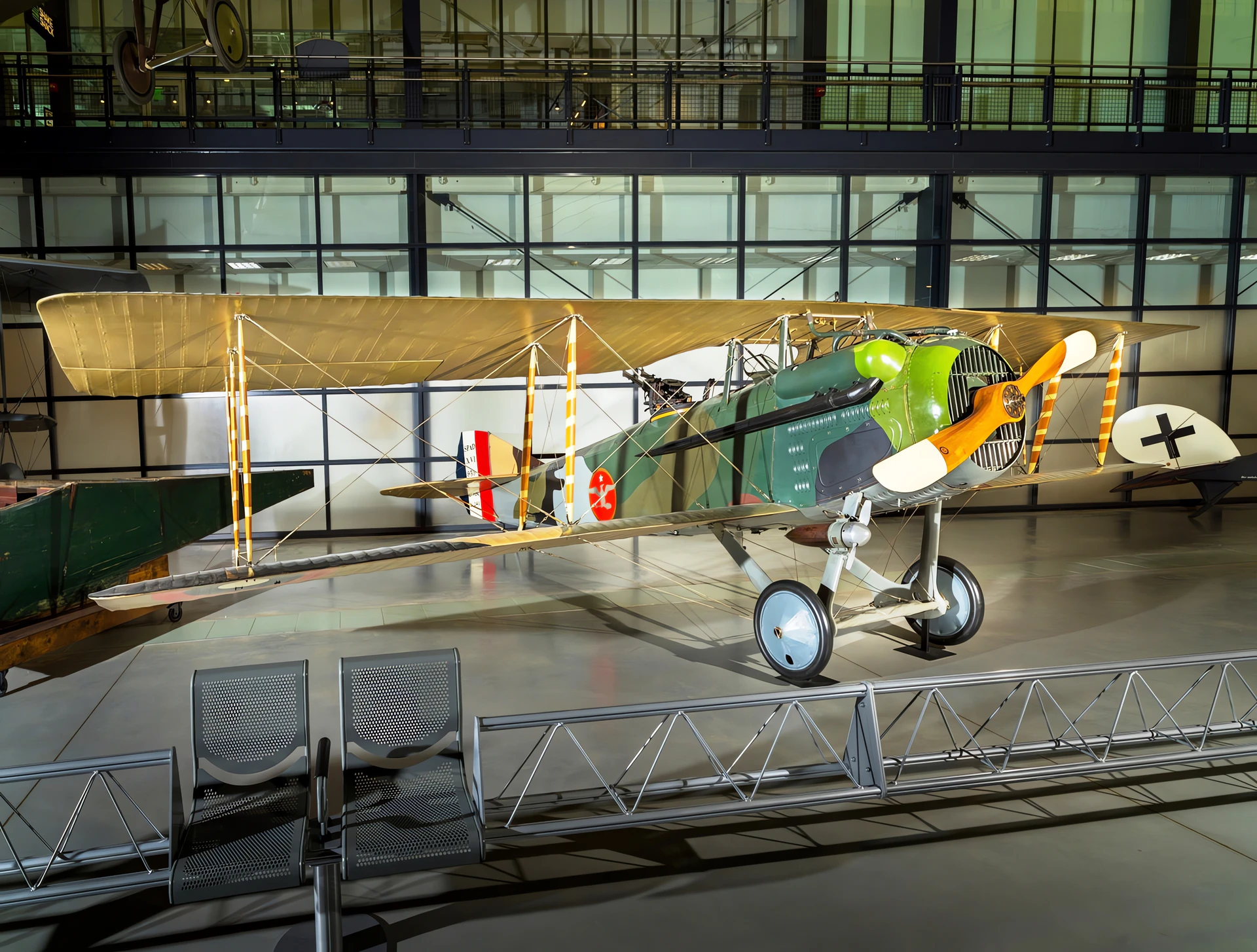

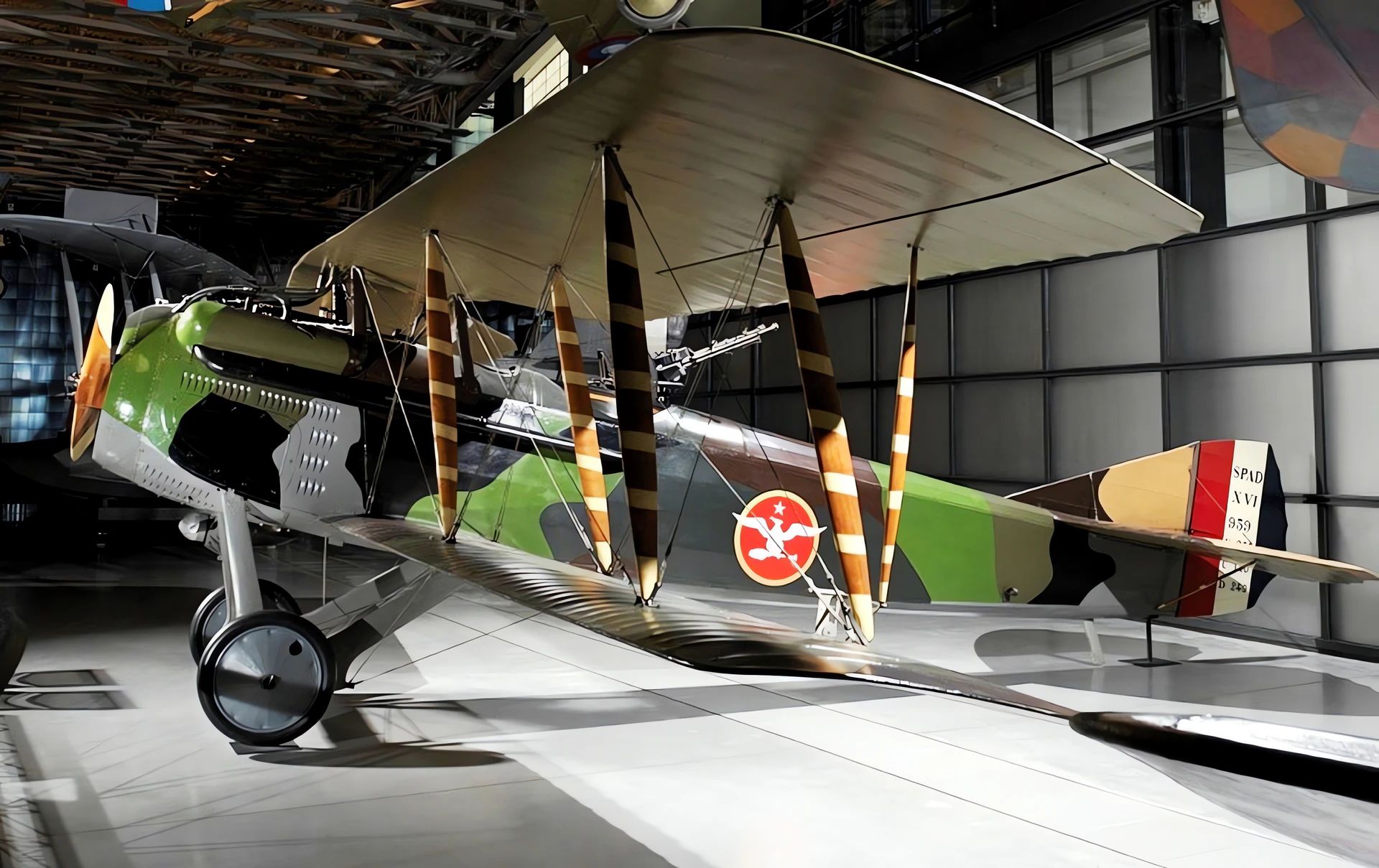

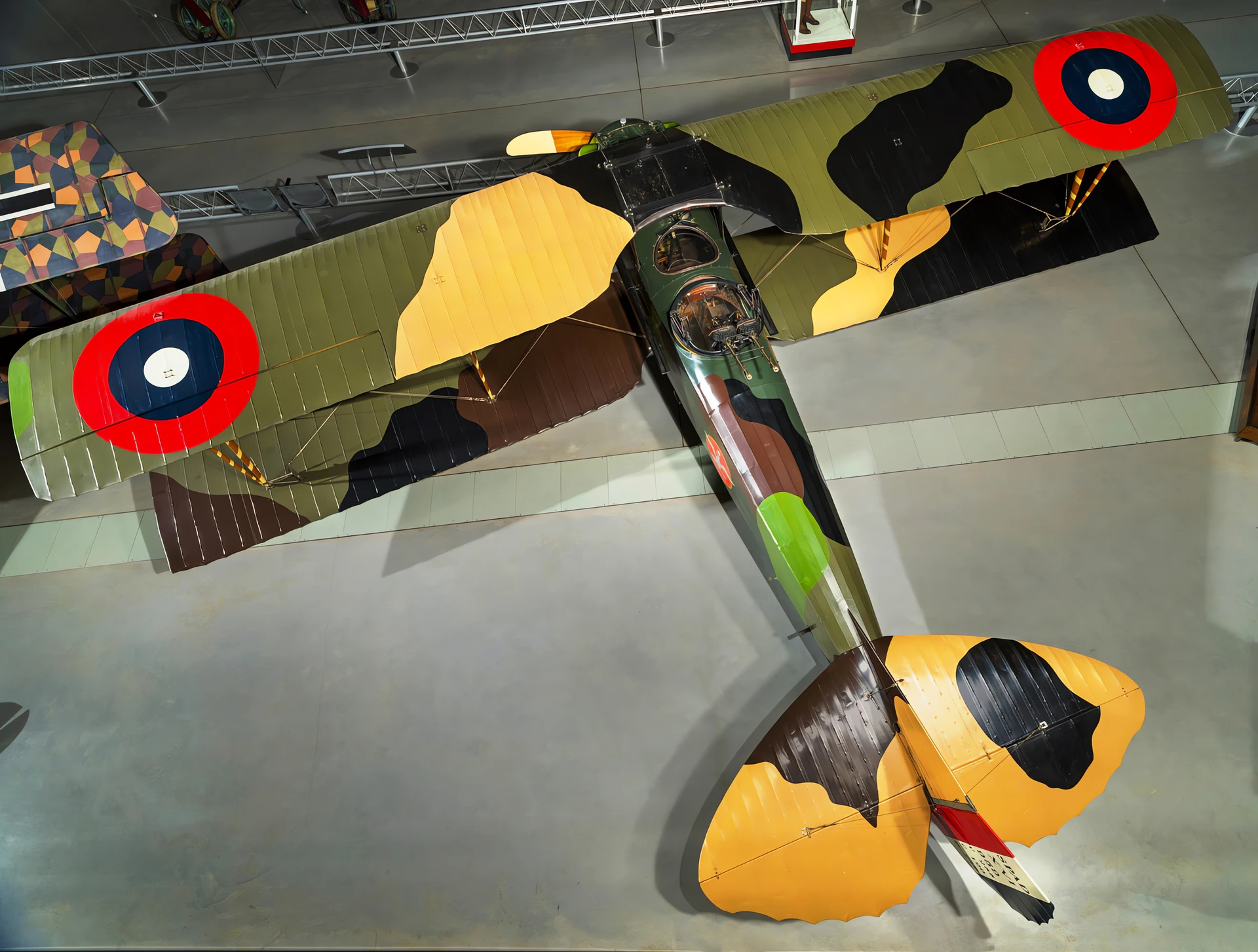

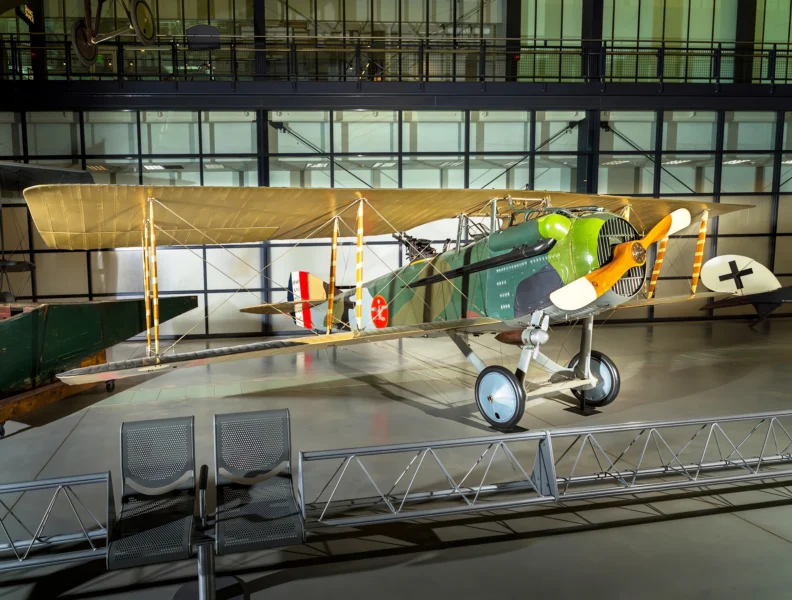

| Spad XVI Walk Around | |
|---|---|
| Photographer | Unkonx |
| Localisation | Unkonx |
| Photos | 23 |
Les også:
General Characteristics
The SPAD S.XVI was a French two-seat reconnaissance and light bomber biplane of World War I, introduced in early 1918. It was a derivative of the earlier SPAD S.XI, but was re-engined to address reliability issues found in its predecessor’s engine. Though it offered only marginal performance improvements and retained poor handling, approximately 1,000 units were built and it served with 32 French escadrilles by the time of the Armistice.
| Property | Typical Value (S.XVI A2) |
|---|---|
| Rolle | Reconnaissance / Light Bomber (A2 designation) |
| Produsenten | SPAD (Société Pour L’Aviation et ses Dérivés) |
| Operational Service | January 1918 – Post-War |
| No. Built | Approx. 1,000 |
| Mannskapet | 2 (Pilot and Observer/Gunner) |
| Lengde | 7.70 m (25 ft 3 in) to 7.84 m (25 ft 9 in) |
| Vingespenn | 11.28 m (36 ft 9 in) |
| Max Takeoff Weight | 1,290 kg (2,844 lb) |
Design and Powerplant
- Engine: One Lorraine-Dietrich 8Bb 8-cylinder, water-cooled V-8 piston engine.
- Power Output: 186 kW (250 hp) (some sources cite 240 hp).
- Construction: Predominantly wooden airframe with fabric covering. It was a conventional two-bay biplane with fixed landing gear.

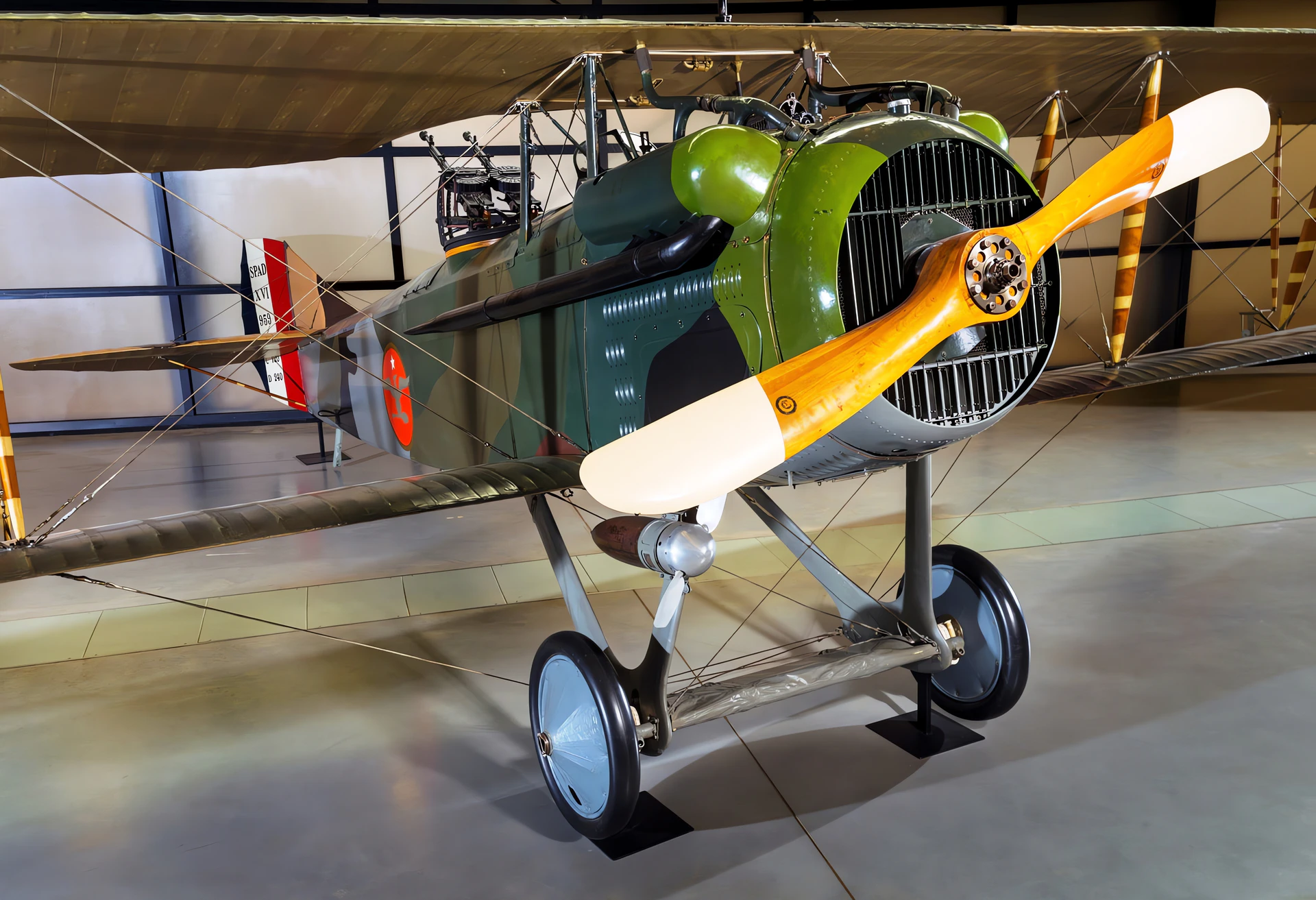

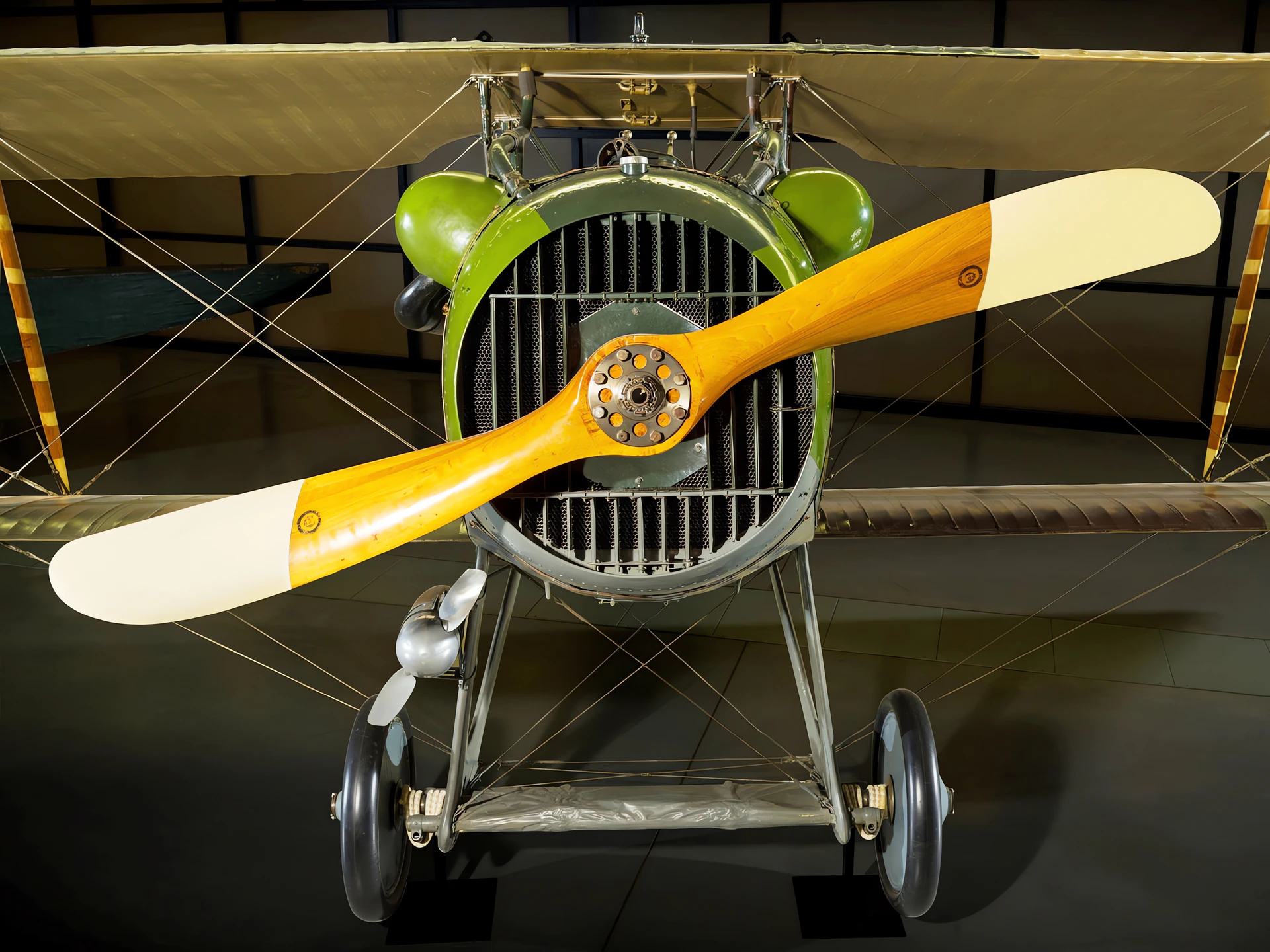

- Design Features: Featured a slight sweep-back on both wings and ailerons only on the upper wing. The engine cowling included two characteristic protruding bulges necessitated by the size of the Lorraine engine, distinguishing it from the earlier SPAD XI.
- Safety: Had a provision for dumping the fuel from the main tank (located under the pilot’s seat) in the event of fire.
Performance and Armament
- Maximum Speed: Approximately 185 km/h (115 mph, 100 knots) at sea level.
- Service Ceiling: 4,700 m (15,400 ft).
- Range: 460 km (288 mi, 250 nmi).
- Climb Rate: Time to 2,000 m (6,560 ft) in approximately 9 minutes 15 seconds.
- Fixed Armament (Pilot): One fixed, forward-firing, synchronized 7.7 mm (.303 in) Vickers machine gun.
- Flexible Armament (Observer): One or two flexible 7.7 mm (.303 in) Lewis machine guns on a flexible ring mount in the rear cockpit.
- Ordnance Load: Could carry approximately 70 kg (154 lb) of small bombs slung beneath the lower wings.
