Sistema di movimentazione del carico HEMTT M1120 - Foto e video

M1120 HEMTT Load Handling System
Paese	Usa
Ruolo	Camion tattico pesante da 10 tonnellate ×8 tonnellate
Prodotto	Dal 1999 ad oggi
Costruito	35000

Le M1120 HEMTT LHS (Sistema di movimentazione del carico) è un camion tattico m977 a mobilità espansa pesante con un sistema di movimentazione del carico al posto di un letto piatto. L'HEMTT è un camion tattico a otto ruote motrici, alimentato a diesel, utilizzato dall'esercito statunitense e da altri. L'HEMTT è prodotto dalla Oshkosh Defense ed è entrato in servizio nell'esercito nel 1982, con la variante M1120 prodotta per la prima volta nel 1999.

fonte: M1120 HEMTT Load Handling System su Wikipedia

M1120 HEMTT LHS Walk Around
Fotografo	Michael Benolkin
Localizzazione	Inconsapevole
Foto	34

M1120 HEMTT LHS 01

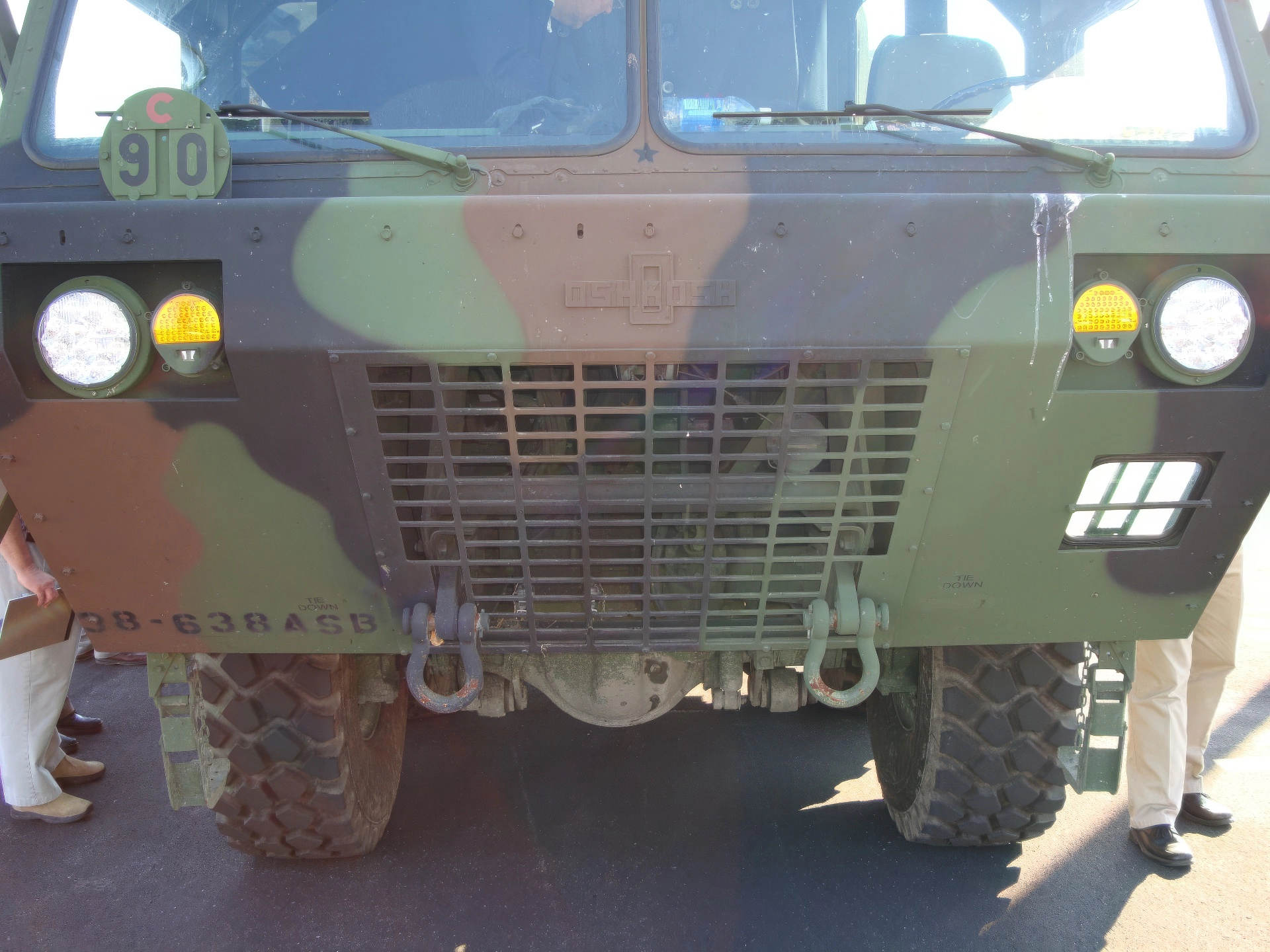

M1120 HEMTT LHS 02

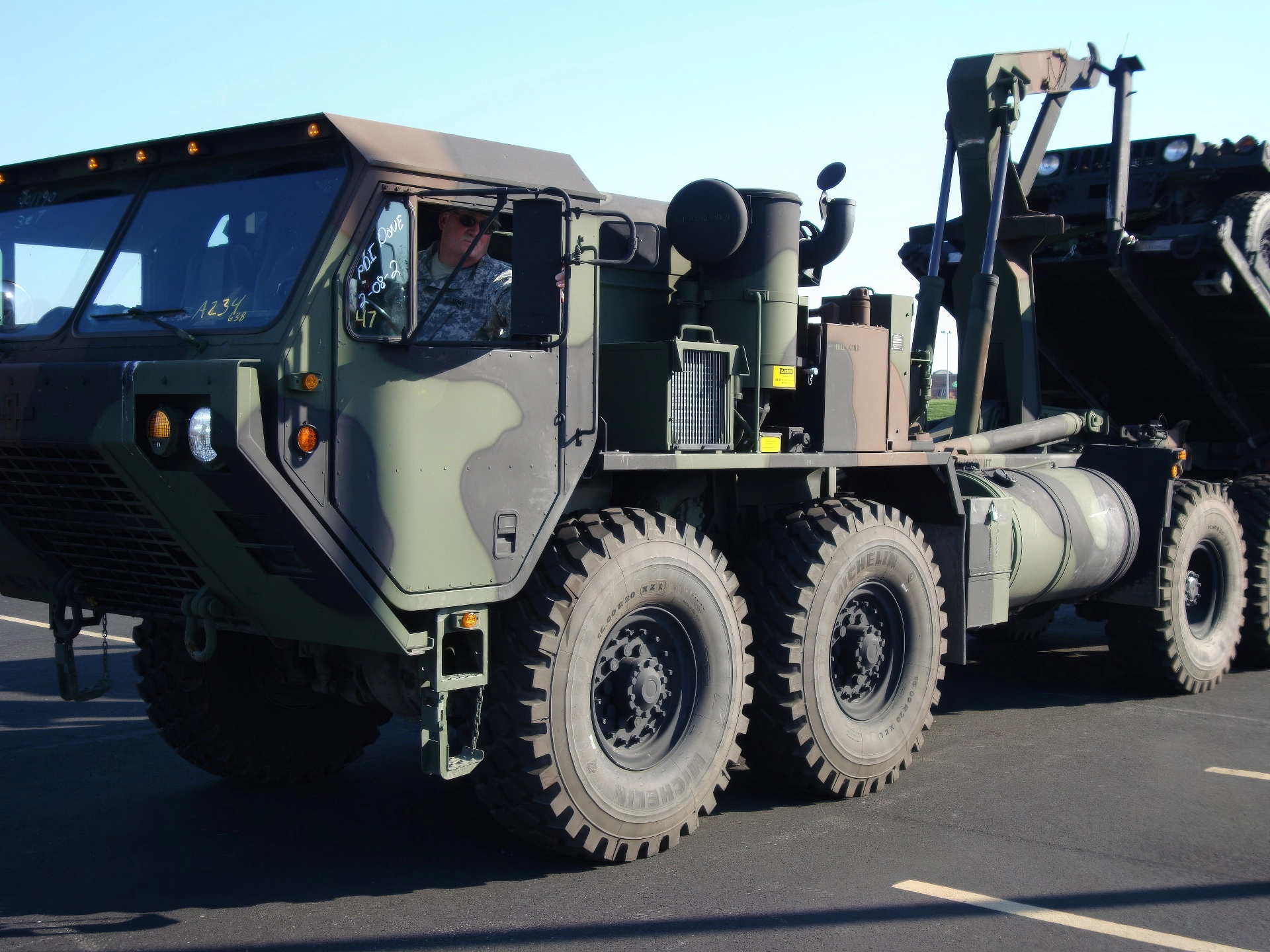

M1120 HEMTT LHS 03

M1120 HEMTT LHS 04

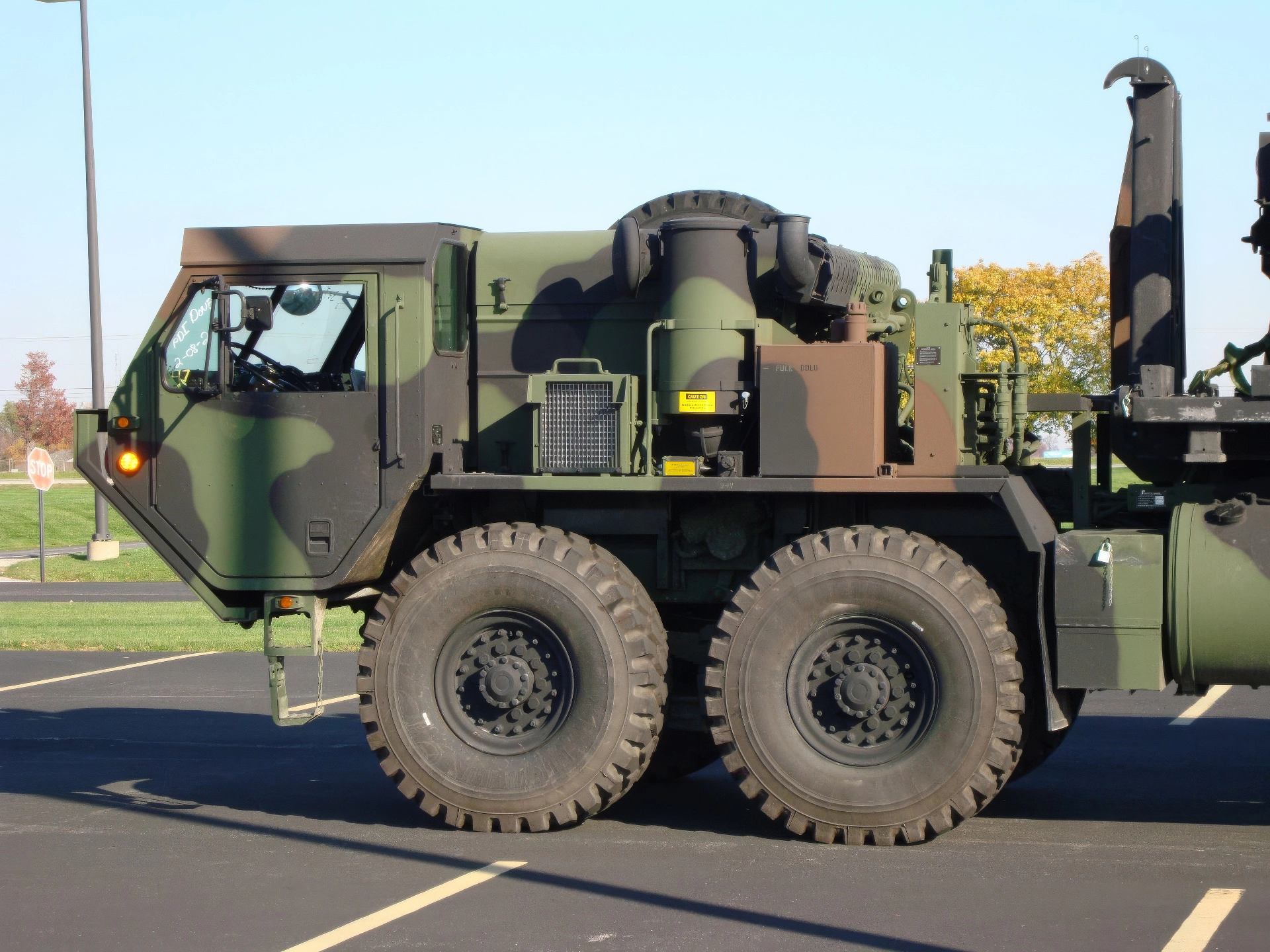

M1120 HEMTT LHS 05

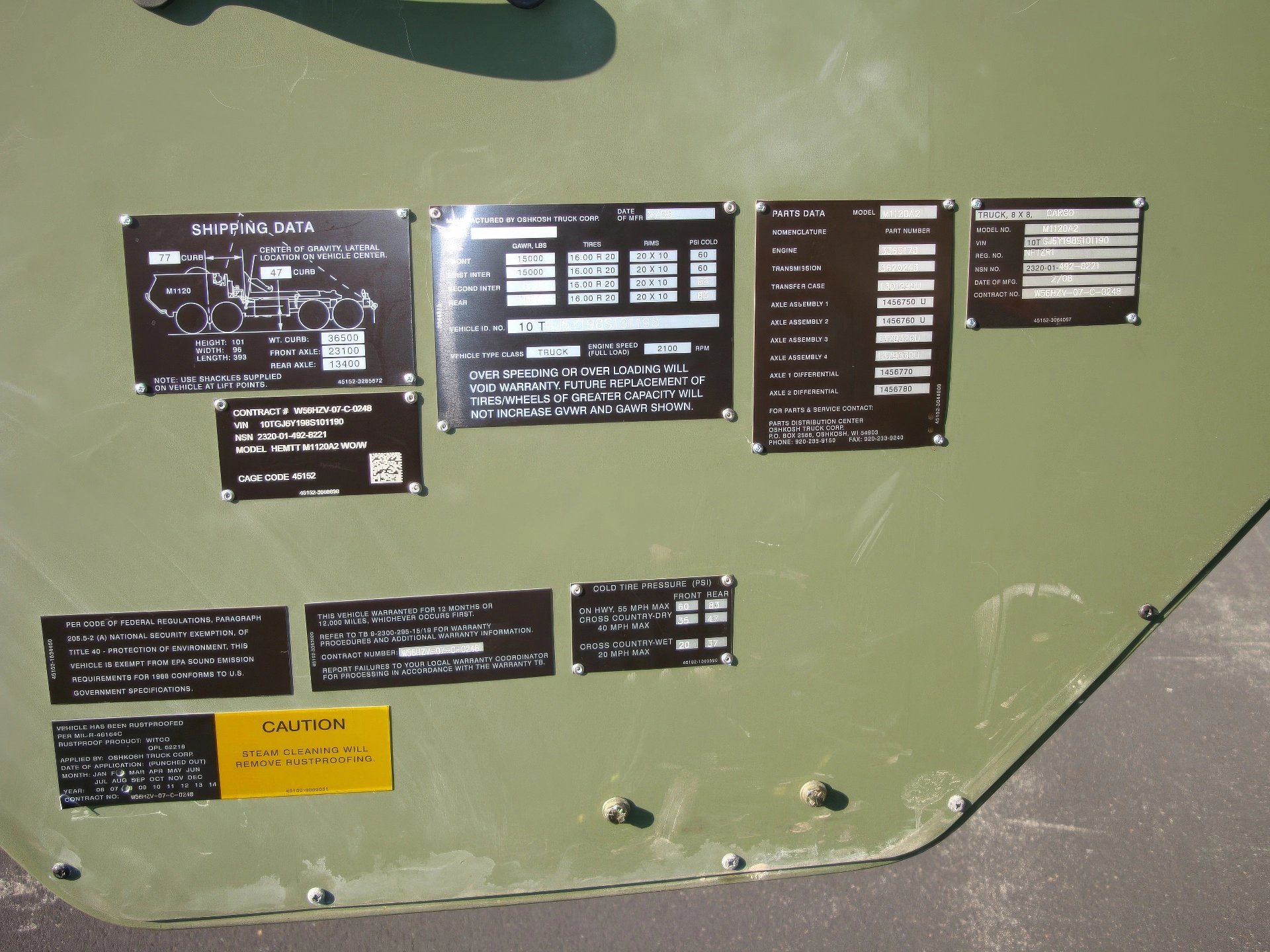

M1120 HEMTT LHS 06

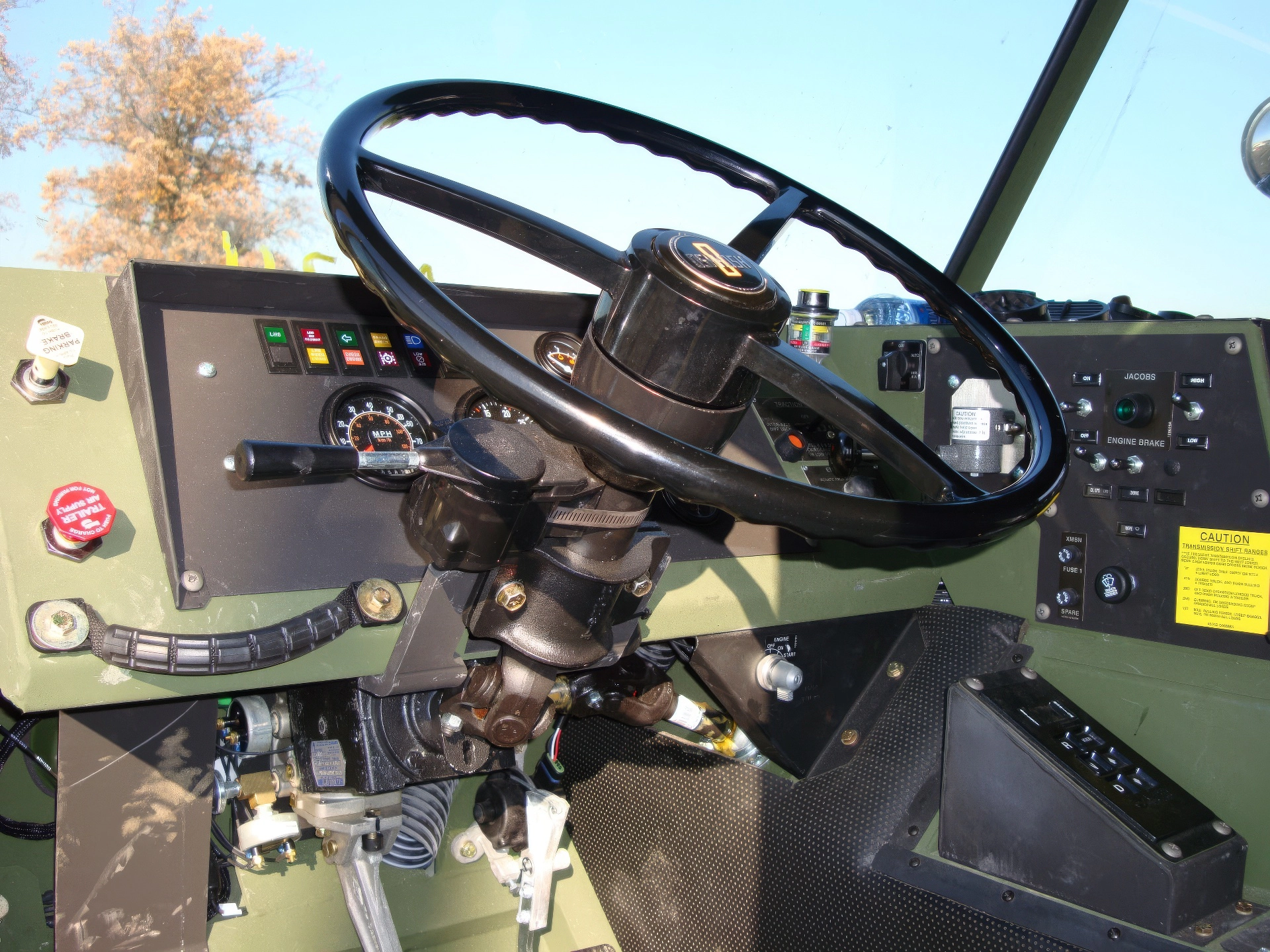

M1120 HEMTT LHS 07

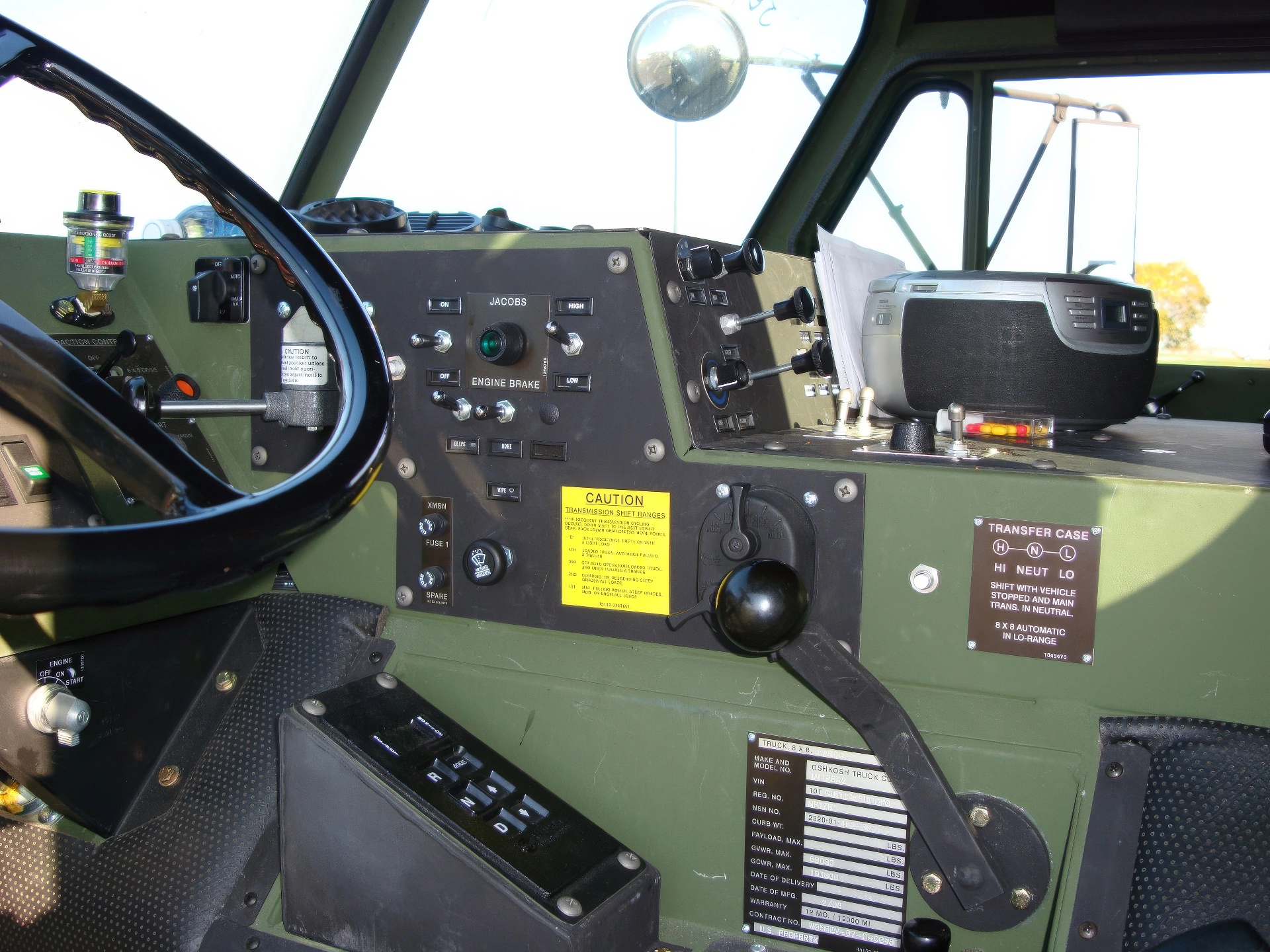

M1120 HEMTT LHS 08

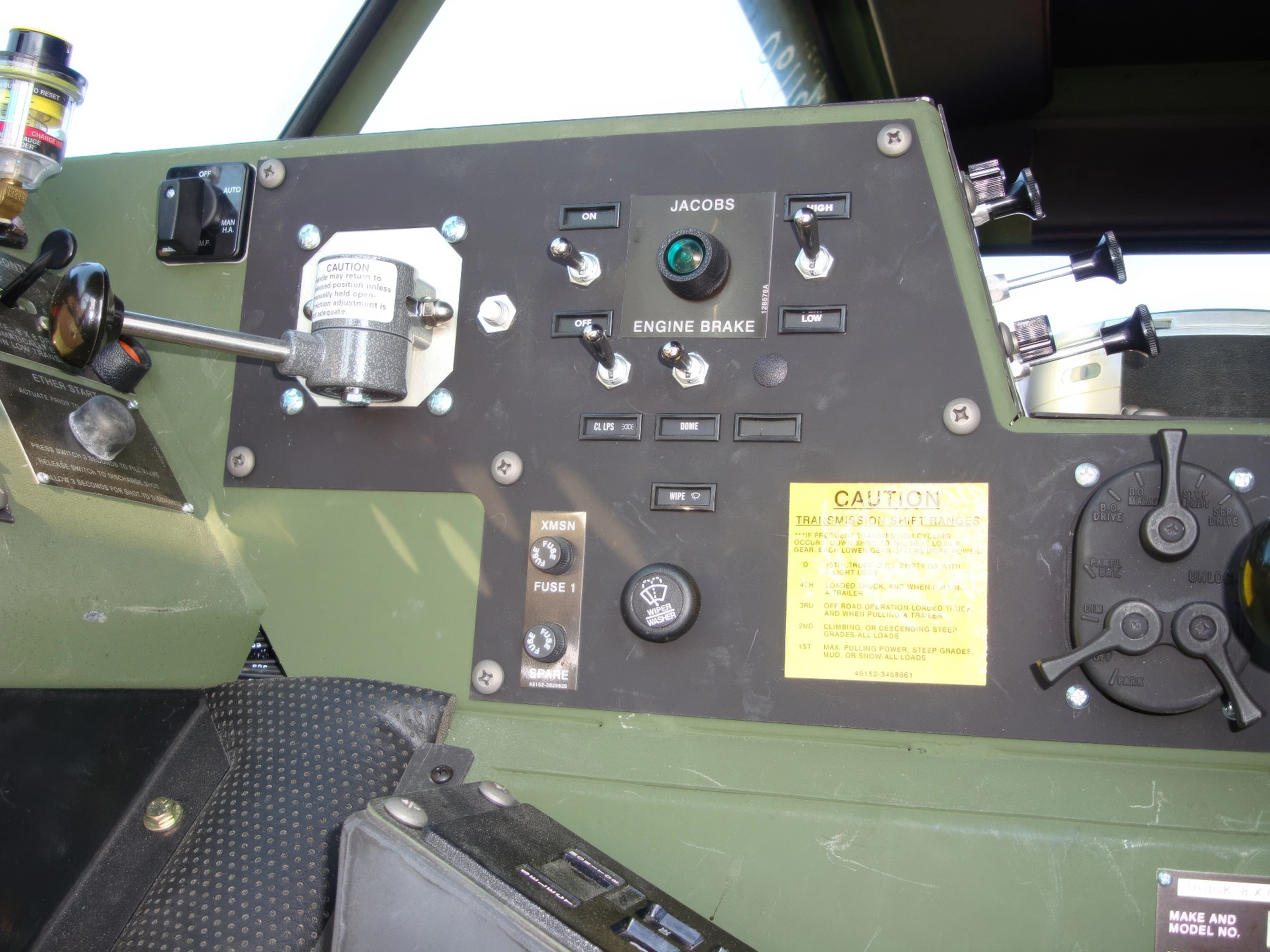

M1120 HEMTT LHS 09

Click on a photo and use the mouse scroll to view all photos

Aspetta, cerca B-18 Bolo per te...

Vedi anche:

General Characteristics and Role

The Oshkosh M1120 is the Load Handling System (LHS) variant of the Heavy Expanded Mobility Tactical Truck (HEMTT), an 8×8 diesel-powered off-road truck designed and built by Oshkosh Corporation for the U.S. Army and allied forces. The HEMTT family replaced the older 5-ton trucks and serves as the backbone of the U.S. Army’s logistic and resupply efforts in combat theaters. The M1120 LHS is distinguished by its primary feature: a hydraulically operated hook-and-cable system that allows the vehicle to load and offload various flat racks, containers, and specialized equipment pallets without external assistance, drastically increasing the speed and efficiency of battlefield logistics.

Property	Typical Value (M1120)
Ruolo	Heavy Tactical Cargo and Logistics (Load Handling System)
National Origin	Stati Uniti
Produttore	Oshkosh Corporation
Service Entry (HEMTT)	1982 (M1120 later retrofit/production)
Equipaggio	2 (Driver, Commander)
Payload Capacity	11,000 kg (11 short tons / 24,250 lb)
Length Overall	10.03 m (32 ft 11 in)
Larghezza	2.59 m (8 ft 6 in)
Altezza	3.33 m (10 ft 11 in) (Empty)
Weight (Mass)	Approx. 19,000 kg (Empty)

Powerplant and Mobility

Engine: Caterpillar C15 6-cylinder diesel engine.
Power Output: 400 kW (535 hp).
Transmission: Allison 4500 SP automatic transmission.
Drivetrain: All 8 wheels are driven (8×8) with a transfer case providing high-low range gearing.
Maximum Speed: 100 km/h (62 mph).
Operational Range: 650 km (400 mi).
Tire System: Features a Central Tire Inflation System (CTIS), allowing the driver to adjust tire pressure for optimal traction on pavement, mud, sand, or snow.

Load Handling and Features

Load Handling System (LHS): Equipped with a Palletized Load System (PLS) hook-arm system for rapid load/offload of PLS flatracks and containers.
Flatrack Compatibility: The M1120 is designed to lift standard M1077 (or similar) flatracks and is often used to resupply ammunition, water, fuel, and other supplies.
Armament: Typically unarmed, but can be fitted with a ring mount for a 7.62 mm or 12.7 mm machine gun on the cab roof for self-defense (often through Field Service Modification (FSM) Kits).
Survivability: Modern versions and upgrades often include Add-on Armor Kits (A-Kits) and features to protect the crew against small arms fire, mines, and IEDs.
Fuel Capacity: Equipped with a large fuel tank, enabling it to travel long distances without refueling.
