Northrop Gamma

Northrop Gamma
Ország	Egyesült Államok
Szerepet	Polgári/támadási
Bevezetés	1932
Beépített	60

A Northrop Gamma was a single-engine all-metal monoplane cargo aircraft used in the 1930s. Towards the end of its service life, it was developed into the A-17 light bomber. The Gamma was a further development of the successful Northrop Alpha and shared its predecessor’s aerodynamic innovations with wing fillets and multicellular stressed-skin wing construction. Like late Alphas, the fixed landing gear was covered in distinctive aerodynamic spats, and the aircraft introduced a fully enclosed cockpit.

Forrás: Northrop Gamma a Wikipédián

Northrop Gamma ‘Polar Star’ Walk Around
Fotós	Unknow
Lokalizáció	Ismeretlen
Fénykép	18

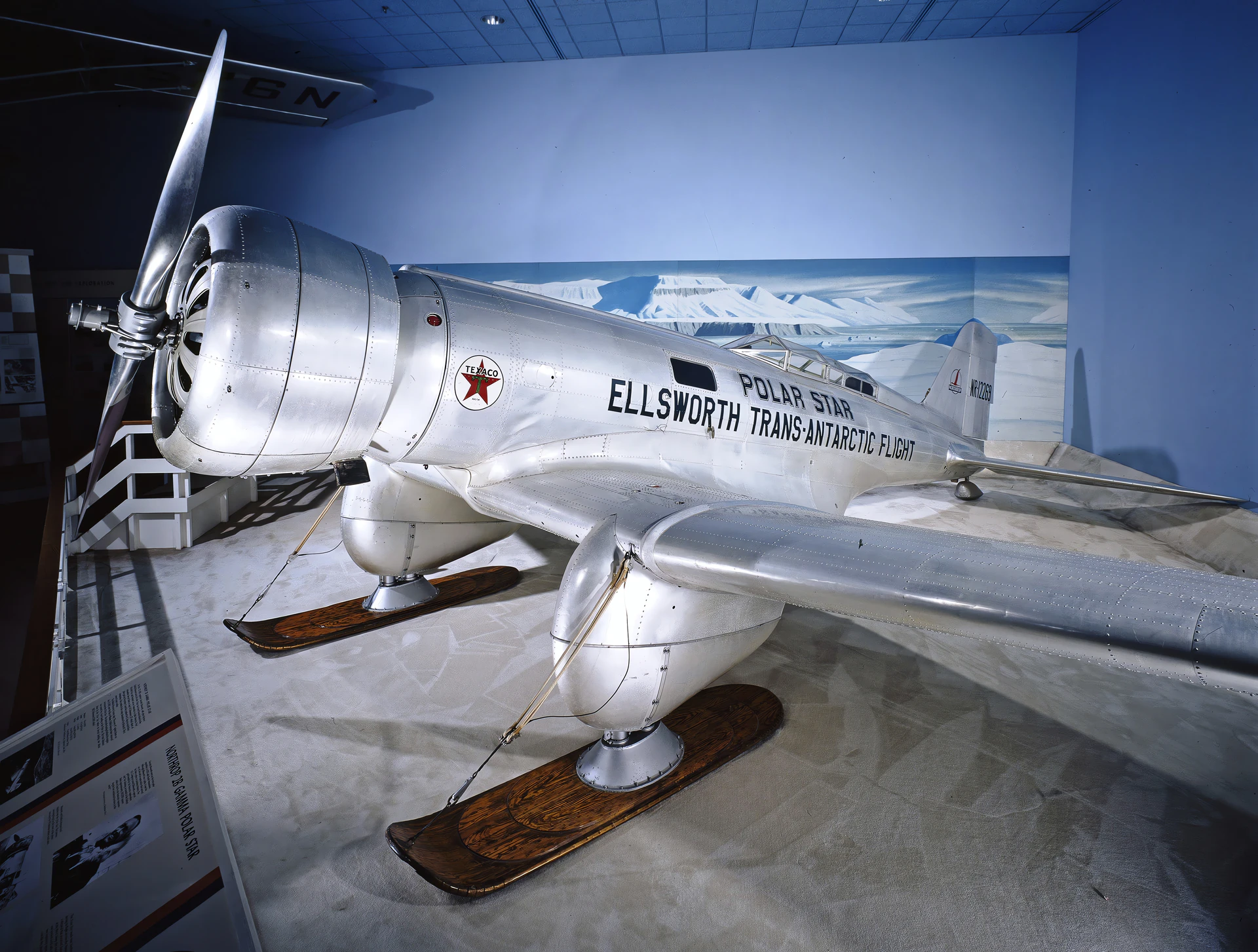

Northrop Gamma 1

Northrop Gamma 2

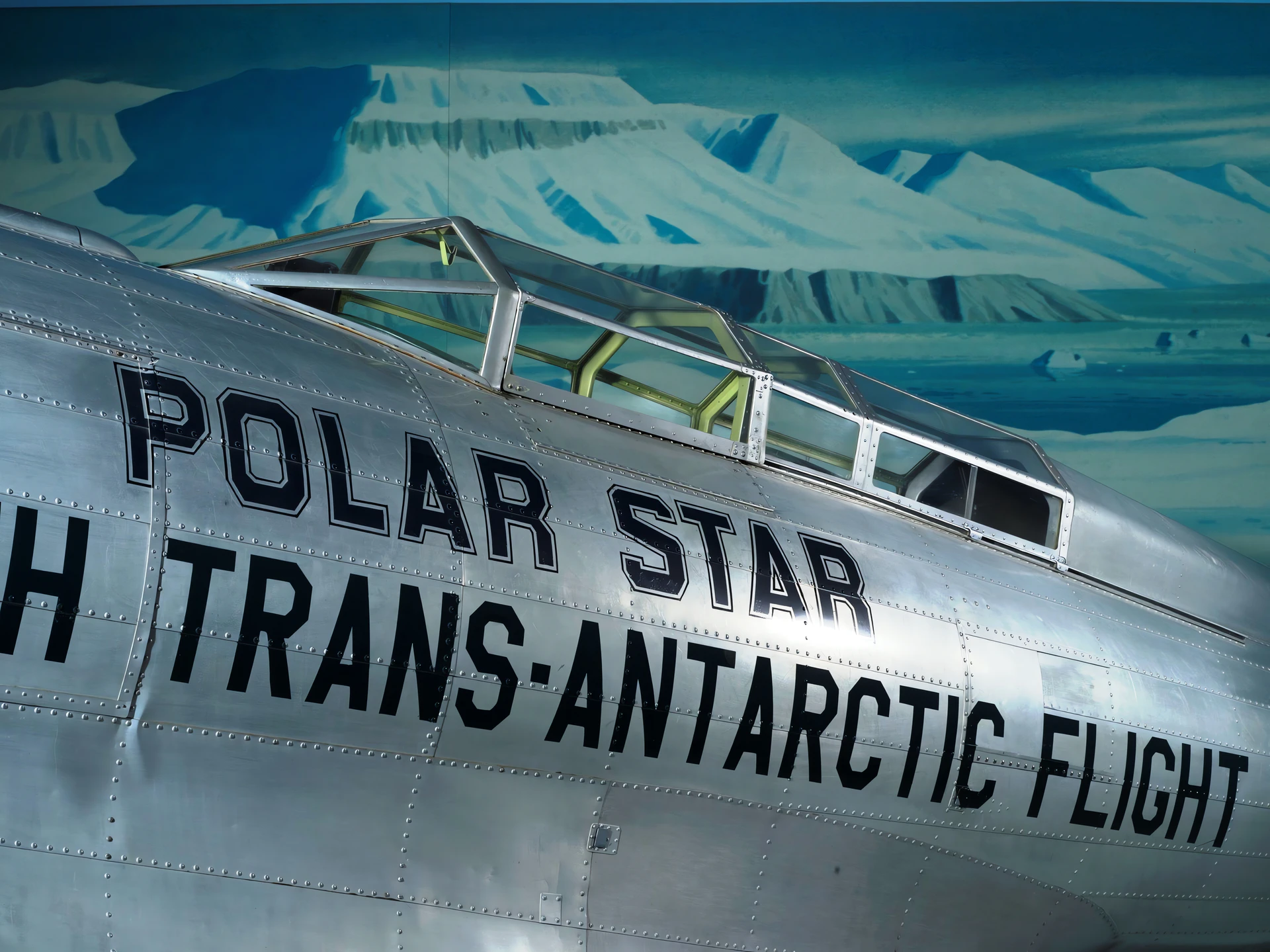

Northrop Gamma 3

Northrop Gamma 4

Northrop Gamma 5

Northrop Gamma 6

Northrop Gamma 7

Northrop Gamma 8

Northrop Gamma 9

Click on a photo and use the mouse scroll to view all photos

There is no gallery selected or the gallery was deleted.

Várj, keress neked Northrop Gamma fotókat ...

Lásd még:

General Characteristics (Gamma 2B)

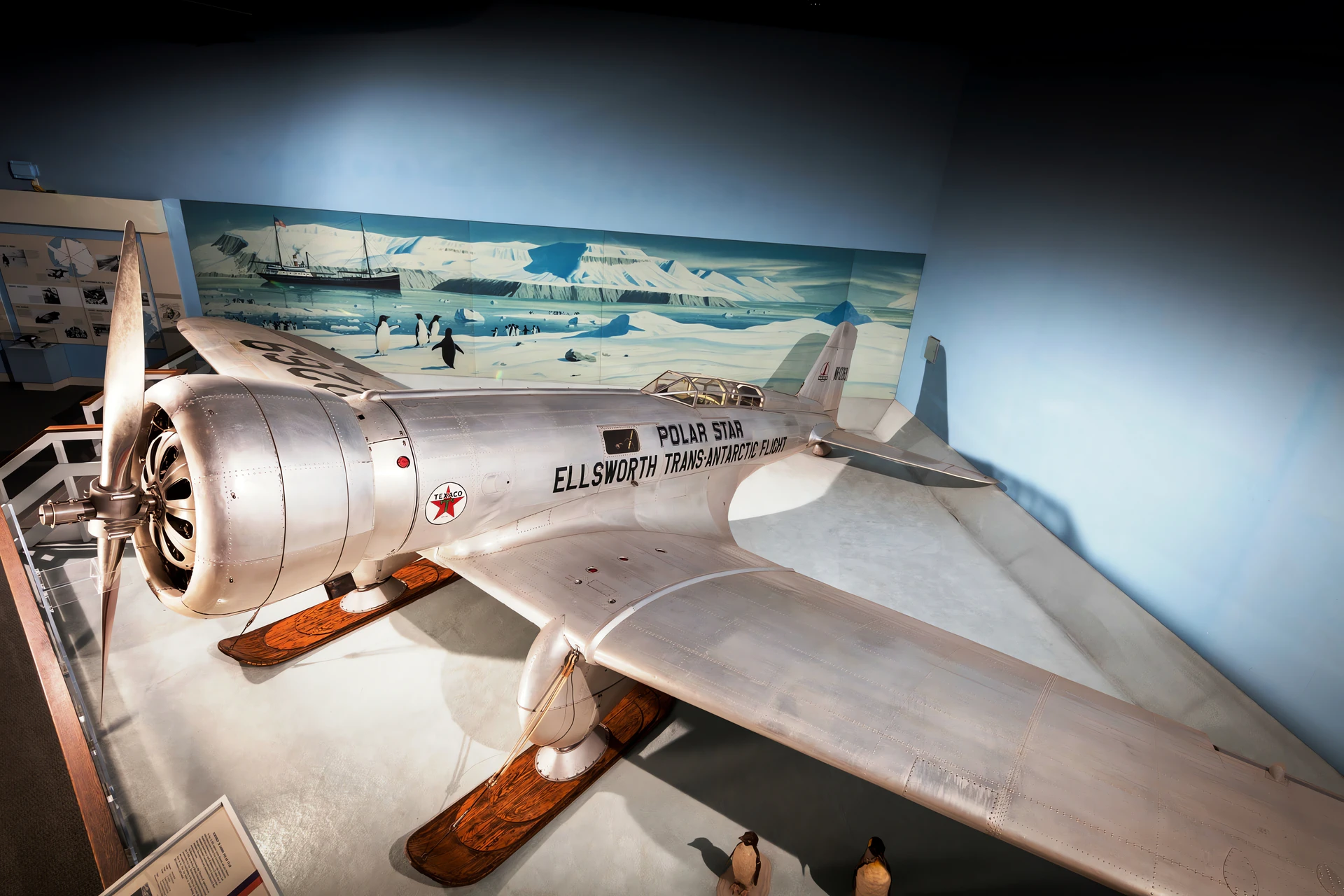

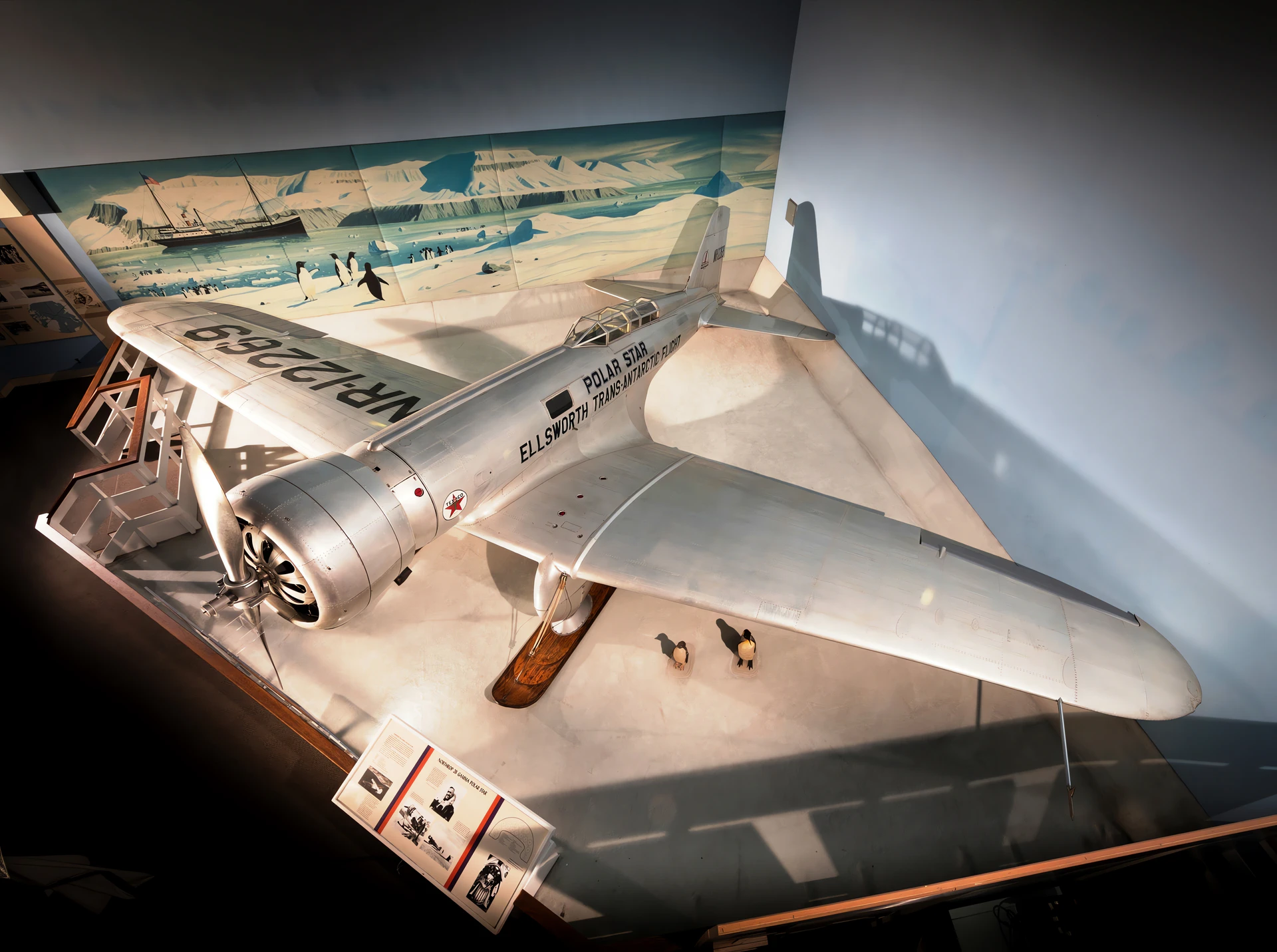

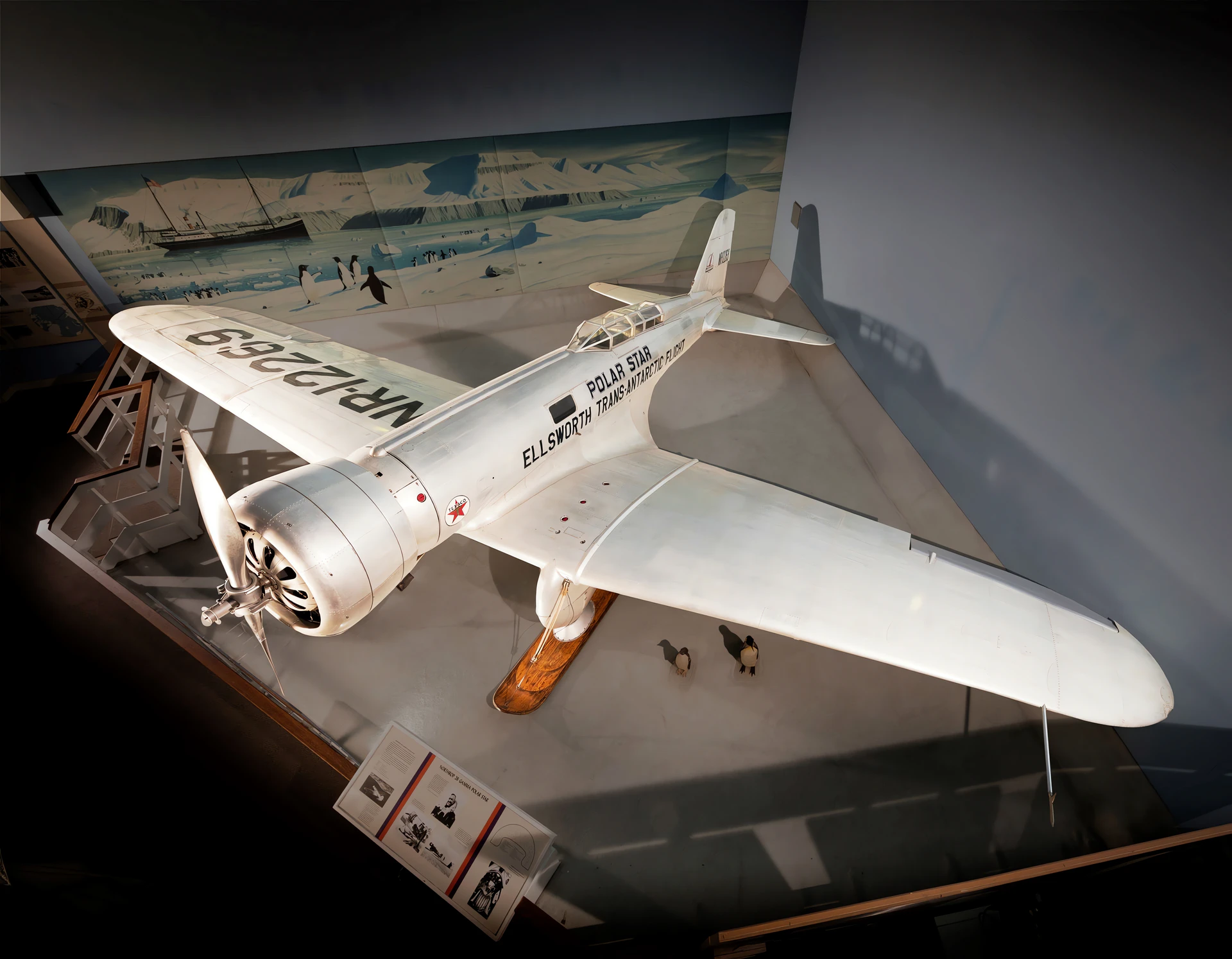

The Northrop Gamma was a cutting-edge, all-metal, low-wing cantilever monoplane of the 1930s. The specific aircraft, the Gamma 2B, was custom-built for polar explorer Lincoln Ellsworth and named the Polar Star. It was famous for being the aircraft that successfully achieved the first aerial crossing of Antarctica in 1935, although the crew was forced to land just 40 km (25 mi) short of their destination due to fuel exhaustion.

Property	Typical Value (Gamma 2B ‘Polar Star’)
Szerepet	Exploration / Long-Range Record Setting
Gyártó	Northrop Corporation
First Flight (Gamma Series)	December 1932
Legénység	2 (Pilot and Observer/Explorer)
Hossza	9.50 m (31 ft 2 in)
Szárnyfesztávolsága	14.63 m (47 ft 12 in)
Empty Weight	1,588 kg (3,501 lb)
Max Takeoff Weight	3,175 kg (7,000 lb)

Design and Powerplant

Engine: One Pratt & Whitney Wasp S3H-1 or similar 9-cylinder air-cooled radial piston engine (The Gamma series used various engines; the Polar Star was originally fitted with a 500 hp Pratt & Whitney Wasp).
Power Output: 500 hp (373 kW) to 710 hp (529 kW) depending on the engine configuration over time.

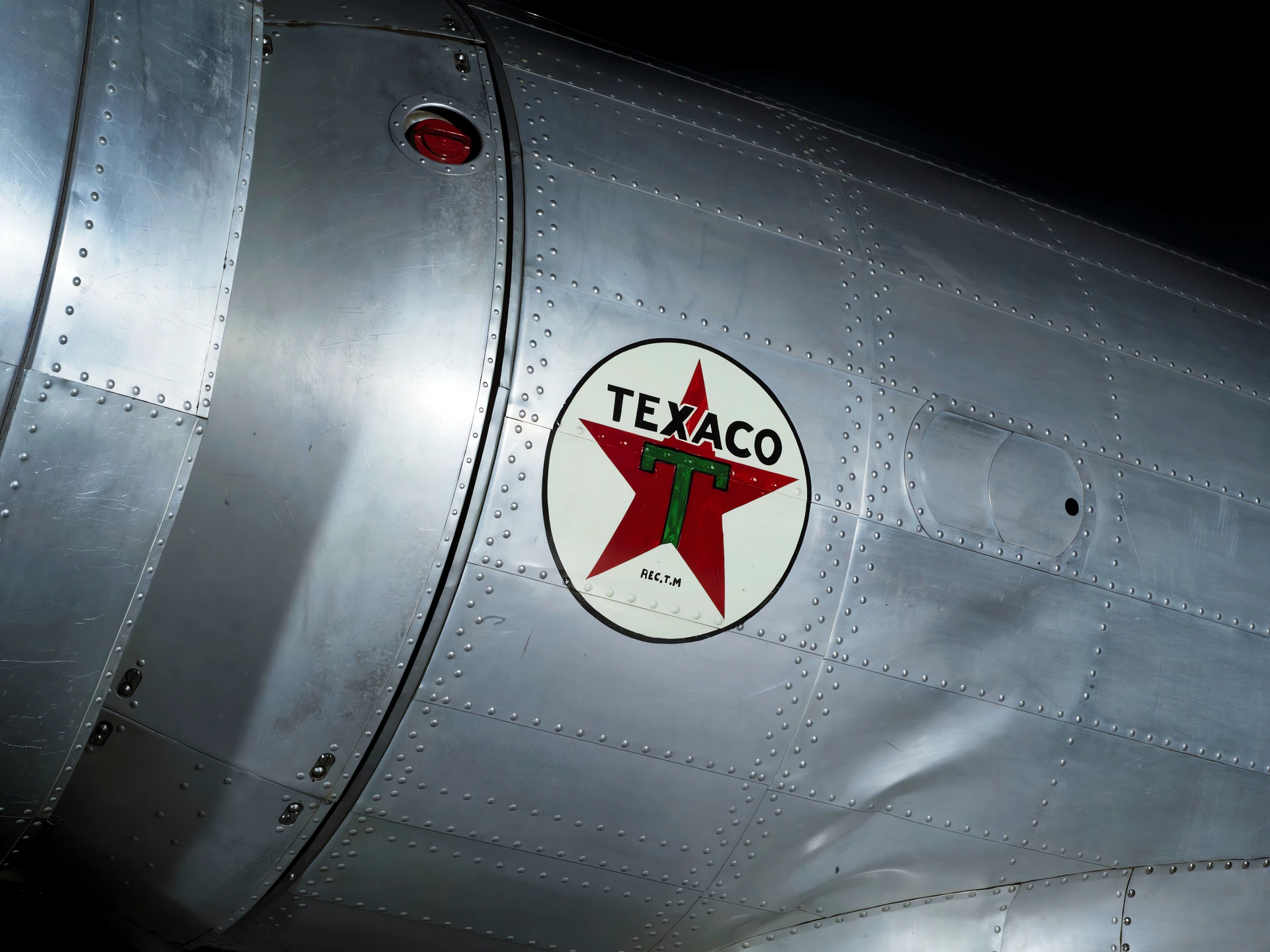

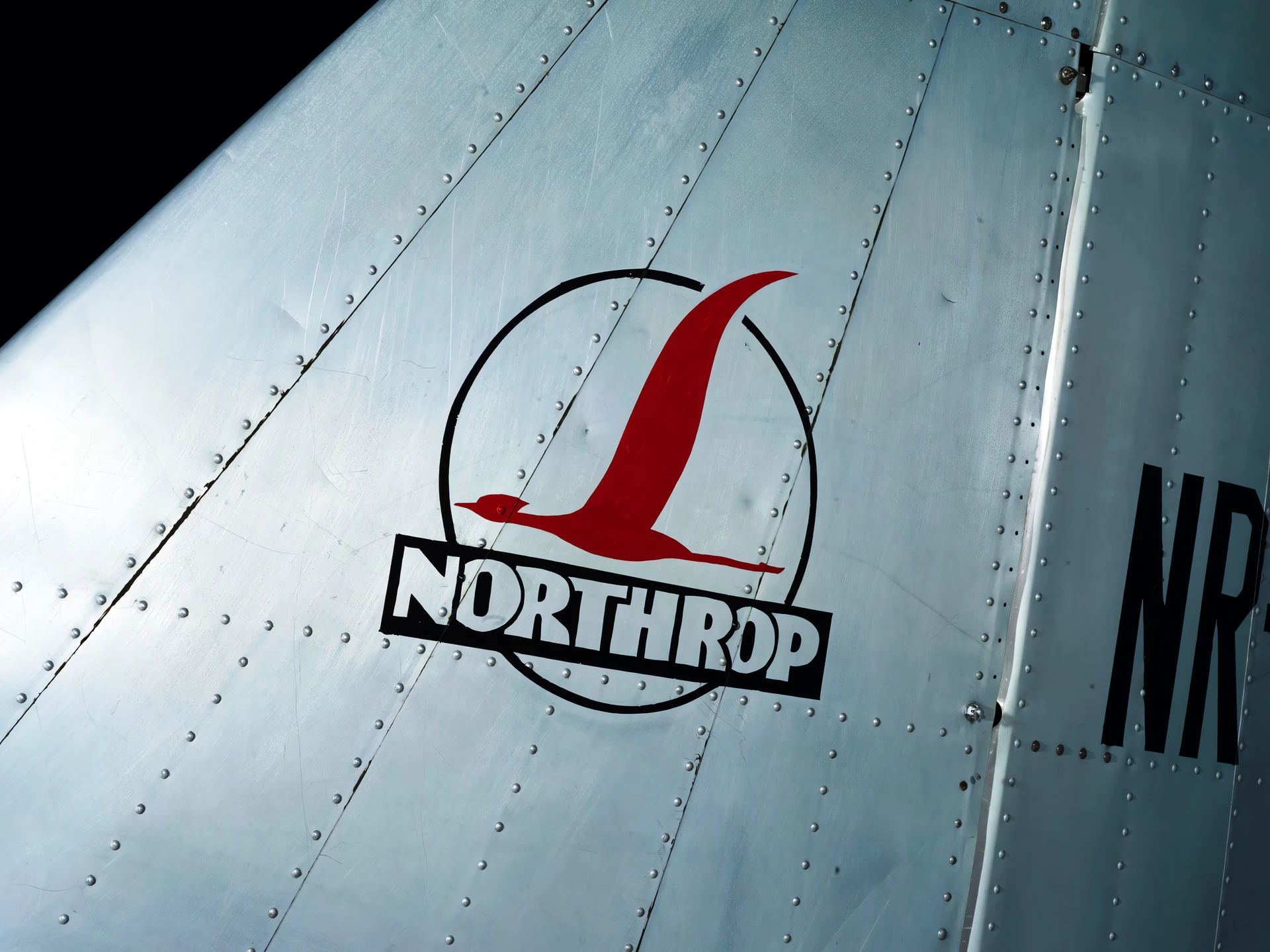

Structure: All-metal construction with Northrop’s pioneering multicellular stressed-skin wing structure, which later influenced designs like the Douglas DC-3.

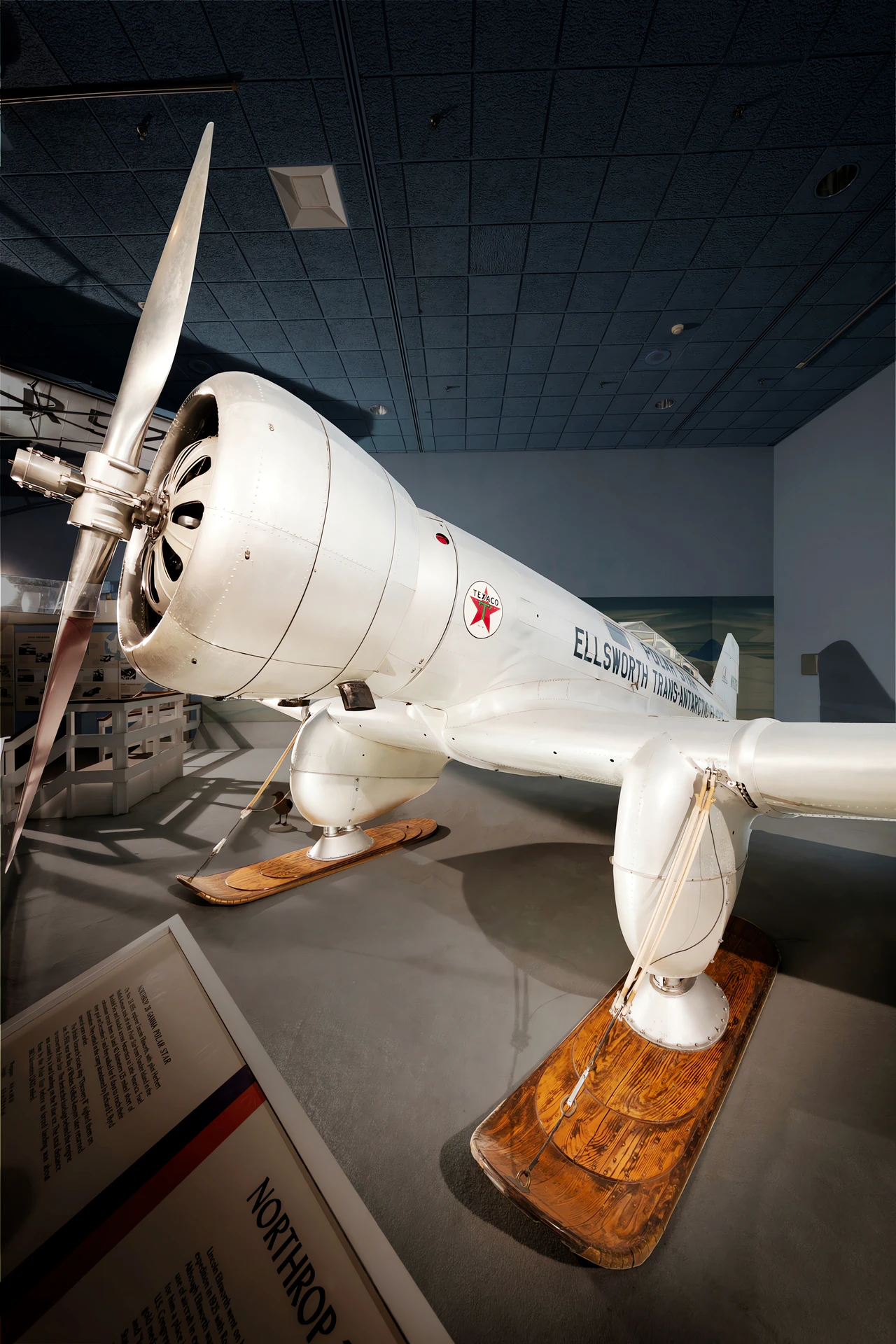

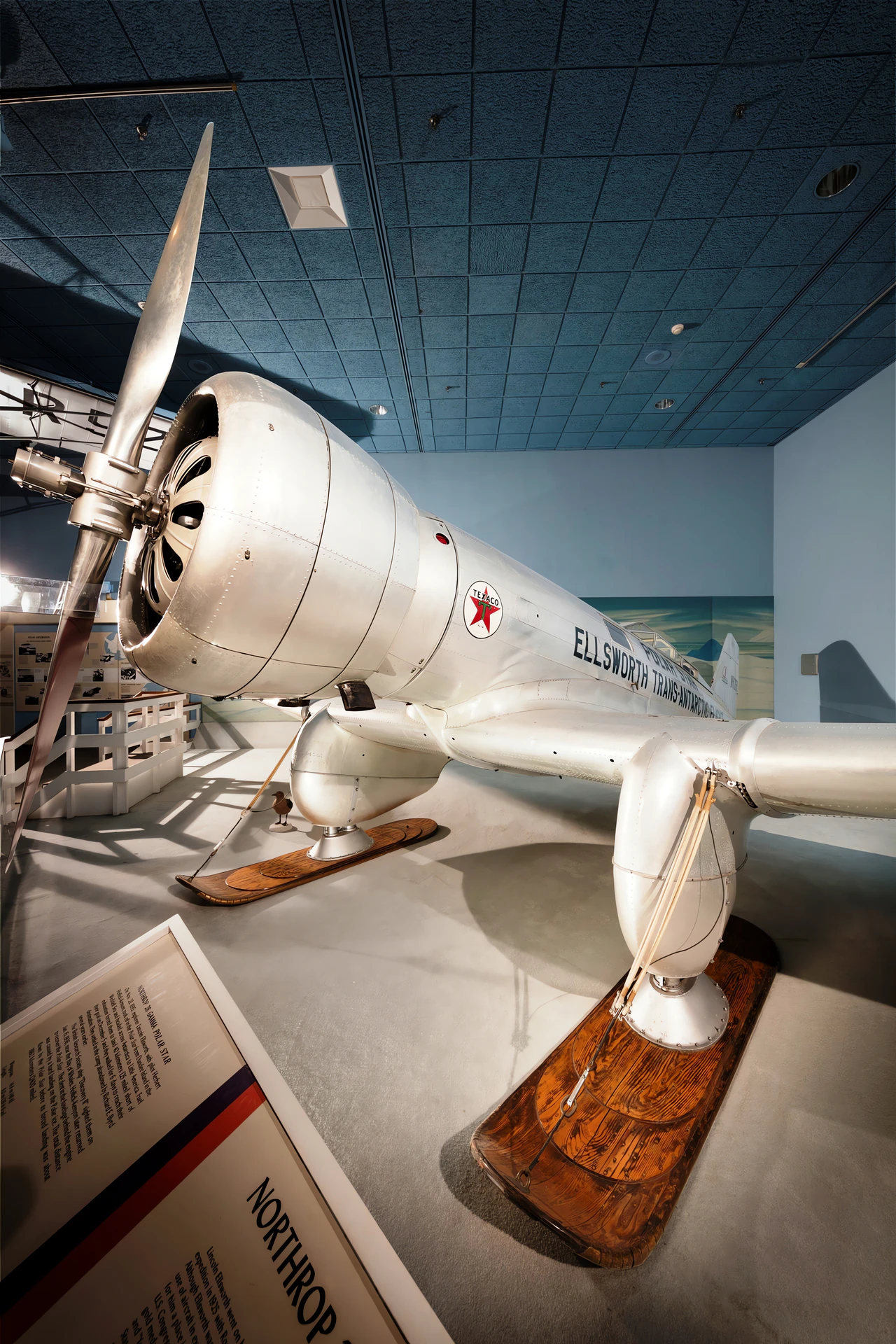

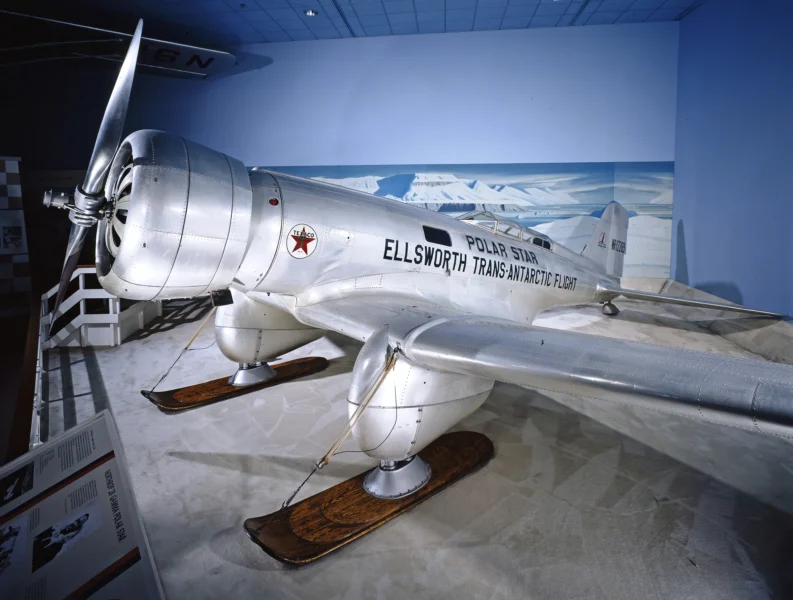

Landing Gear: Equipped with wide landing skis for polar operations, which could be swapped for wheels or floats.
Fuselage: Two-seat tandem configuration with dual controls and a fully enclosed cockpit, unlike some earlier Northrop designs.
Endurance: Modified to carry substantial fuel for long-range expeditionary flights, achieving a practical range of over 3,862 km (2,400 mi).

Performance and Historical Role

Maximum Speed: Approximately 400 km/h (249 mph, 216 knots) (General Gamma performance).
Range: 4,023 km (2,499 mi, 2,172 NM) on typical expedition configuration.
Service Ceiling: 7,132 m (23,400 ft).
Historical Significance: The ‘Polar Star’ (Gamma 2B) and the ‘Sky Chief’ (Gamma 2A) were the first two aircraft built by the newly formed Northrop Corporation.
Antarctic Flight: Piloted by Herbert Hollick-Kenyon with Lincoln Ellsworth as the explorer, the ‘Polar Star’ successfully flew across Antarctica in late 1935, pioneering the use of modern all-metal aircraft in polar exploration.
