Lockheed C-121 csillagkép | |
|---|---|
| Ország | Usa |
| Szerepet | Katonai szállítás |
| Első repülés | March 14 1947 |
| Beépített | 332 |
A Lockheed C-121 Constellation was a military transport version of the Lockheed Constellation. A total of 332 aircraft were constructed for both the United States Air Force and United States Navy for various purposes.
| VC-121 Bataan séta | |
|---|---|
| Fotós | Cees Hendriks |
| Lokalizáció | Fame Repülőmúzeum |
| Megjegyzés | Ez a "Bataan" nevű "Connie" Douglas MacArthur tábornok szövetséges erők főparancsnokának személyi repülőgépe volt a koreai háború alatt |
| Fénykép | 32 |

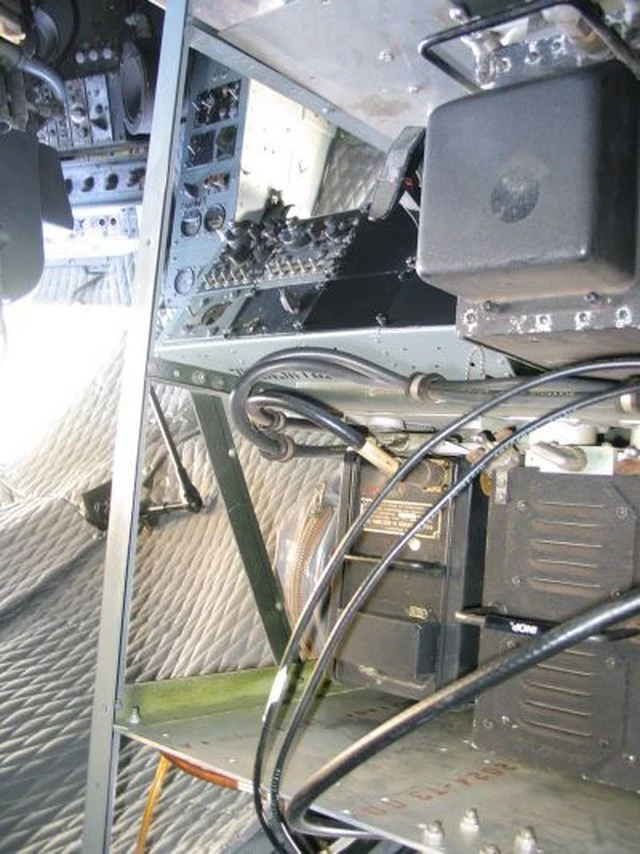

Lockheed VC-121 Bataan 19

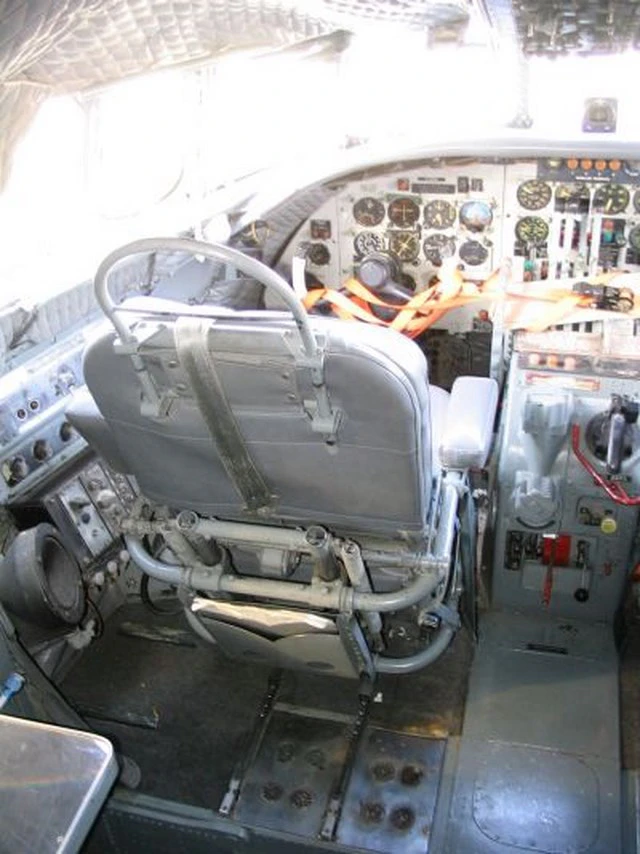

Lockheed VC-121 Bataan 20

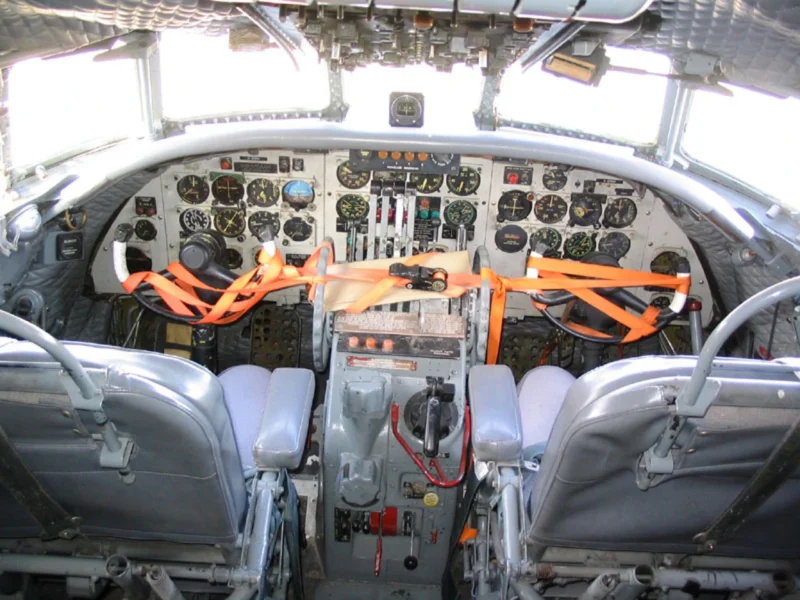

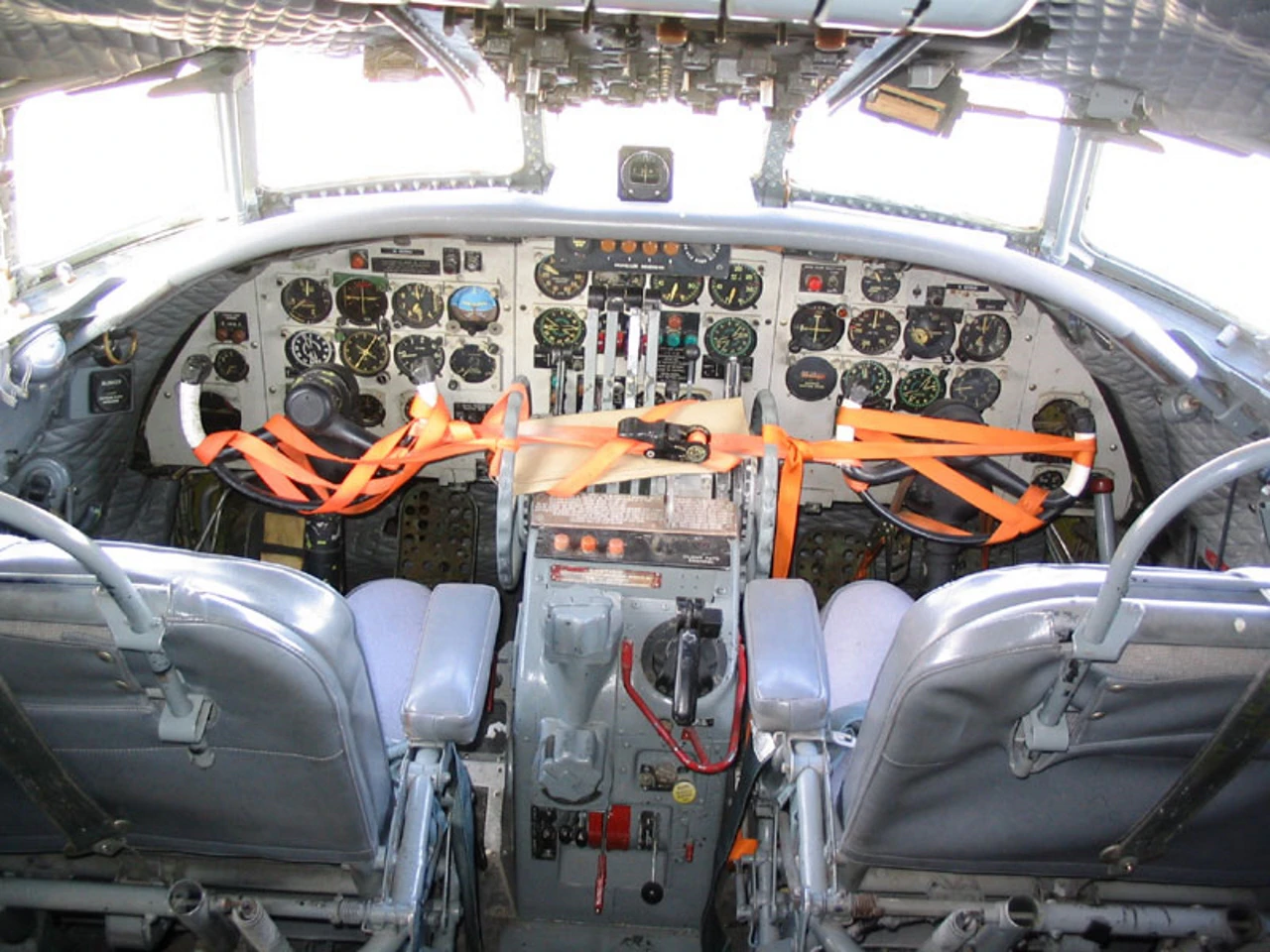

Lockheed VC-121 Bataan 22

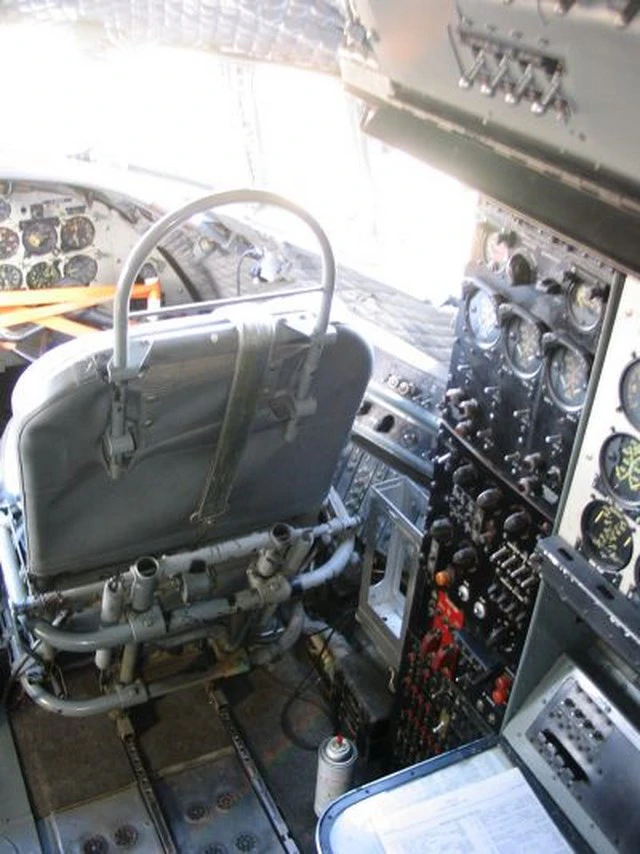

Lockheed VC-121 Bataan 21

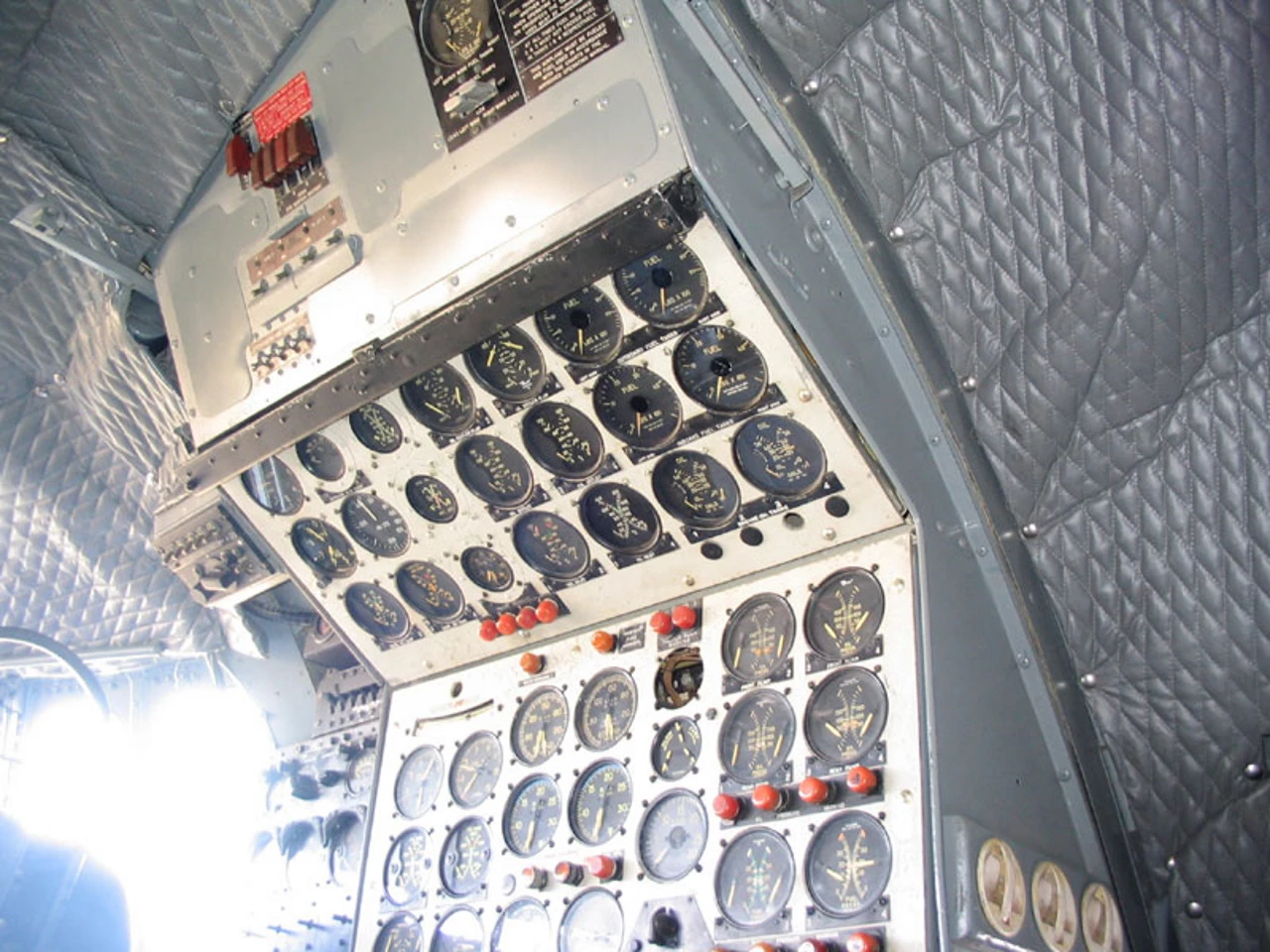

Lockheed VC-121 Bataan 23

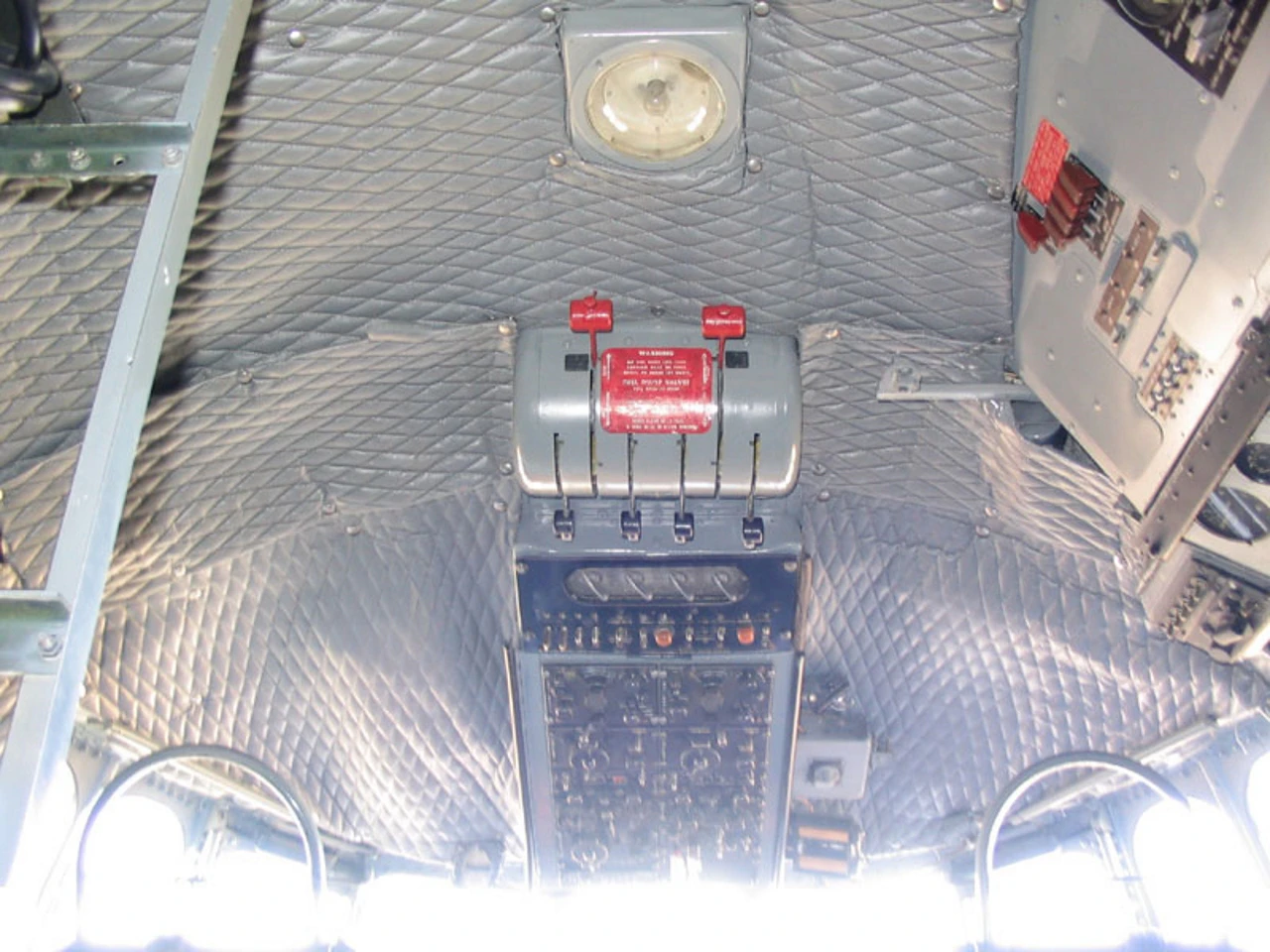

Lockheed VC-121 Bataan 24

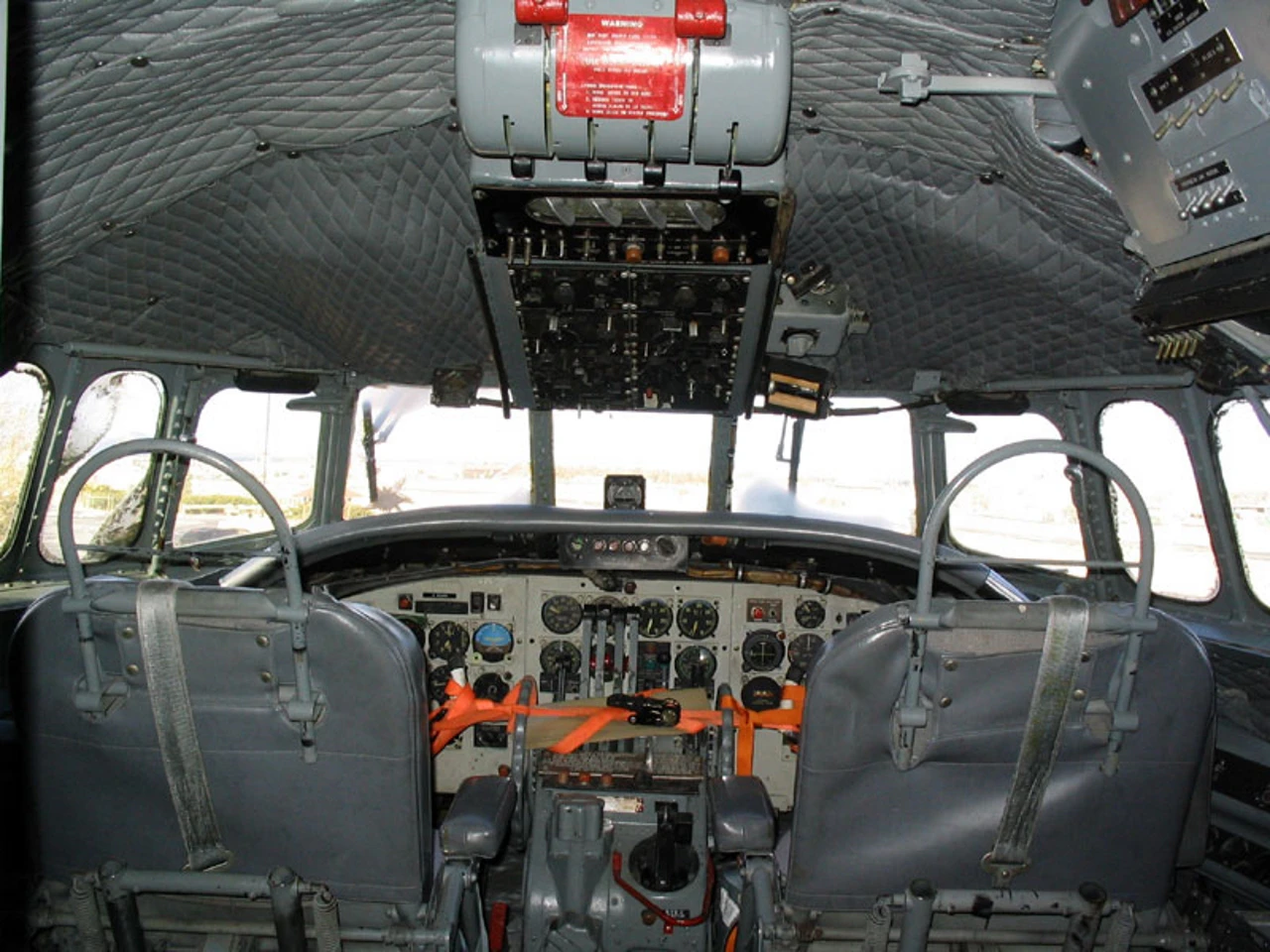

Lockheed VC-121 Bataan 25

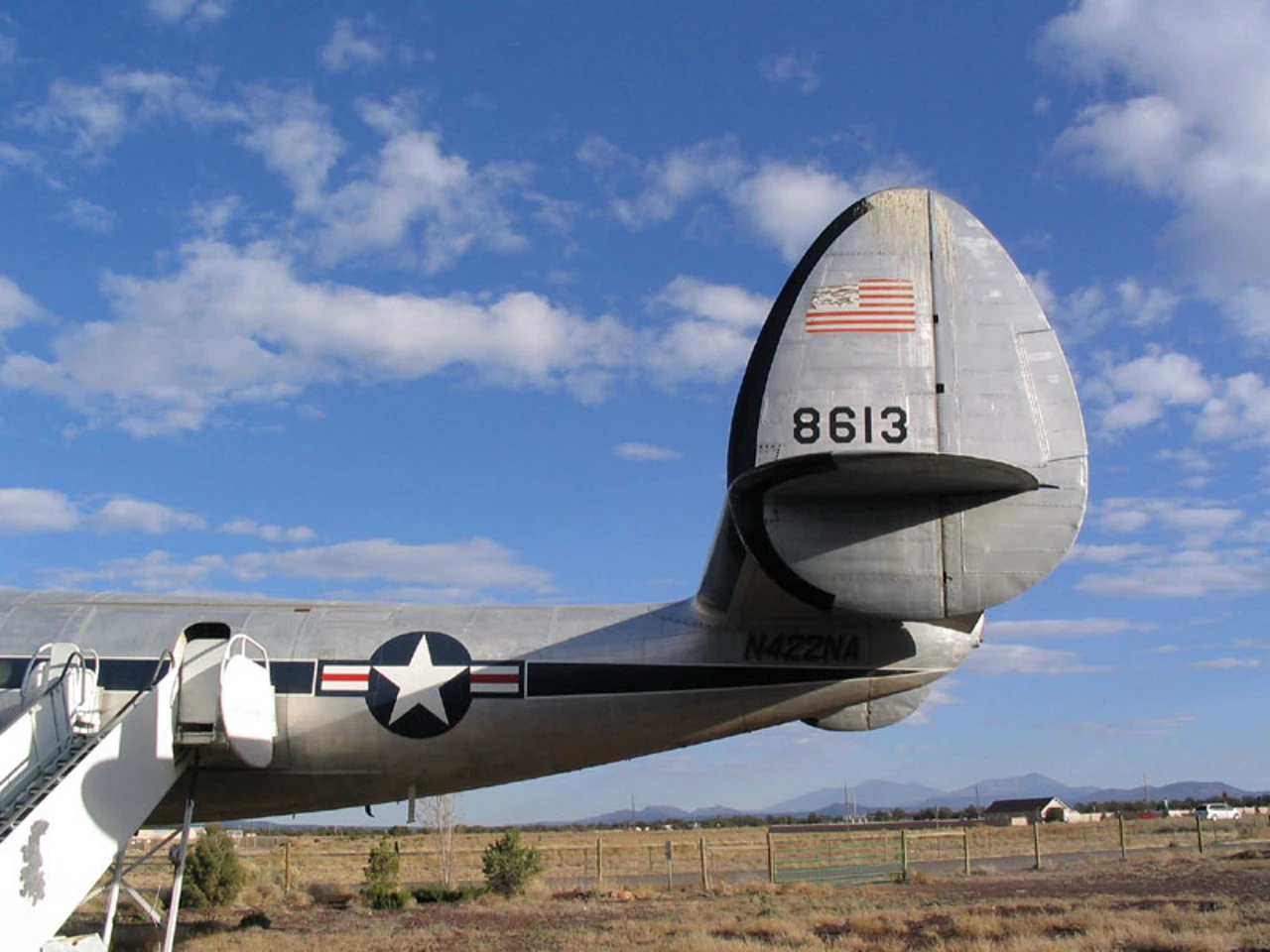

Lockheed VC-121 Bataan 26

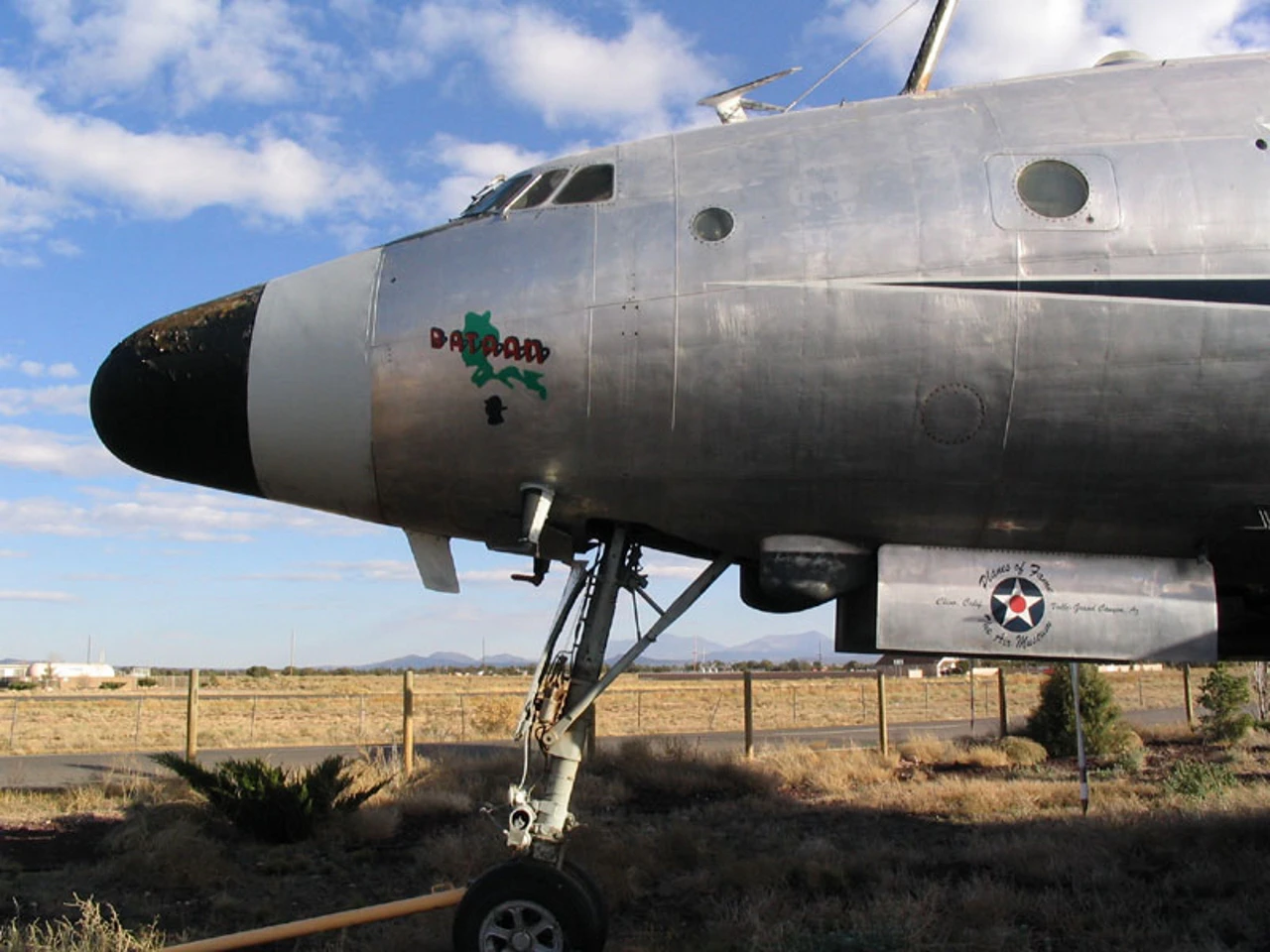

Lockheed VC-121 Bataan 28
Wait, Searching Lockheed C-121 Constellation for you…
| Lockheed VC-121E Super Constellation Columbine III Walk Around | |
|---|---|
| Fotós | Vlagyimir Jakubov |
| Lokalizáció | Az USAF Nemzeti Múzeuma |
| Fénykép | 192 |
| Lockheed Constellation | |
|---|---|
| Fotósok | Uknow |
| Lokalizáció | Uknow |
| Fénykép | 86 |
Wait, Searching Lockheed C-121 Constellation for you…
Lásd még:
The Aerodynamic Masterpiece
A Lockheed C-121 csillagkép was the military version of the revolutionary L-749 and L-1049 Super Constellation airliners. Known for its distinct “dolphin-shaped” fuselage and triple-tail design, the “Connie” was one of the most advanced piston-engine aircraft ever built. While it began as a high-speed VIP and troop transport, its massive internal volume allowed it to evolve into the world’s first true Airborne Early Warning (AEW) platform, serving as a vital sentinel during the Cold War.
| Attribute | Technical Specification (C-121C / Super Connie) |
|---|---|
| Szerepet | Heavy Transport / AEW & Reconnaissance |
| Legénység | 5 (Flight crew) + up to 106 troops or 26 sensor operators |
| First Flight (C-121A) | March 14, 1948 |
| Hajtómű | 4 × Wright R-3350-34 Duplex-Cyclone turbo-compound radials |
| Horsepower | 3,250 hp (2,424 kW) per engine |
| Maximum Speed | 340 mph (547 km/h) |
| Service Ceiling | 25,000 feet (7,620 m) |
| Tartomány | 4,300 miles (6,920 km) |
Design Innovation: The Triple-Tail and Turbo-Compounds
- The Triple Tail: The distinctive triple vertical stabilizers weren’t just for style. By splitting the tail into three smaller fins, Lockheed kept the aircraft’s overall height low enough to fit into existing military hangars while still providing enough surface area to control the plane if an engine failed.
- Turbo-Compound Engines: The later C-121s used “Turbo-Compound” versions of the R-3350 engine. These recovered energy from the exhaust gases to turn the crankshaft, providing incredible fuel efficiency for long-range oceanic crossings.
- Variable Camber Wing: The Constellation’s wing was effectively a scaled-up version of the wing found on the P-38 Lightning fighter, giving it exceptional lift and speed characteristics for a transport of its size.
- The Curved Fuselage: The “dolphin” shape ensured that no two bulkhead sections were the same size. This aerodynamic curvature reduced drag and ensured that the fuselage remained perfectly pressurized at high altitudes.
Command, Control, and VIP Service
- Columbine II & III: The C-121 served as the first official “Air Force One.” President Dwight D. Eisenhower’s personal aircraft, Columbine III, is preserved today and remains a symbol of 1950s prestige.
- The Warning Star (EC-121): Modified with massive radar “humps” on the top and bottom of the fuselage, the EC-121 Warning Star became a flying radar station. In Vietnam, these aircraft provided early warning of MiG attacks and guided US pilots to intercepts.
- The Berlin Airlift: Early C-121As played a supporting role in the 1948 Berlin Airlift, proving the aircraft’s ability to move large quantities of cargo and personnel under high-pressure operational tempos.
- End of the Line: The Constellation was the pinnacle of piston-driven technology, but the arrival of the Boeing C-135 (jet) and the C-130 (turboprop) ultimately signaled the end for the complex and maintenance-heavy R-3350 engines.
