Galería de fotos de un Tanque de San Valentín, El Tanque, Infantería, Mk III, San Valentín fue un tanque de infantería producido en el Reino Unido durante la Segunda Guerra Mundial. Más de 8.000 de este tipo se produjeron en once marcas, además de varias variantes especializadas, lo que representa aproximadamente una cuarta parte de la producción de tanques británicos en tiempos de guerra. Las muchas variantes incluían construcción remachada y soldada, plantas eléctricas de gasolina y diésel y un aumento progresivo del armamento. Se suministró en gran número a la URSS y se construyó bajo licencia en canadá. Desarrollado por Vickers, demostró ser fuerte y fiable.
el Valentínwas unique because it wasn’t requested by the British War Office; it was a private design byVickers-Armstrongs. Submitted on Valentine’s Day 1938 (hence the name), it was a hybrid that used the reliable suspension and transmission of a “Cruiser” tank but was wrapped in the thick armor of an “Infantry” tank. While it was cramped and slow, its mechanical reliability was legendary—at a time when other British tanks were breaking down in the desert, the Valentine just kept going. It eventually became the most-produced British tank of WWII, with over 8,000 built across 11 major variants.
Attribute
Technical Specification (Late-War Mk XI)
Papel
Tanque de infantería
Equipo
3 (Comandante, Artillero, Conductor)
Motor
GMC 6004 diesel (165 hp)
Velocidad máxima
24 km/h (15 mph) on road
Armamento principal
75 mm OQF Mk V (45 rounds)
Armamento secundario
1 × 7.92 mm Besa machine gun
Armadura
60 mm to 65 mm (Maximum on front)
Rango de operación
140 km (90 miles)
Design Engineering: Small, Strong, and Simple

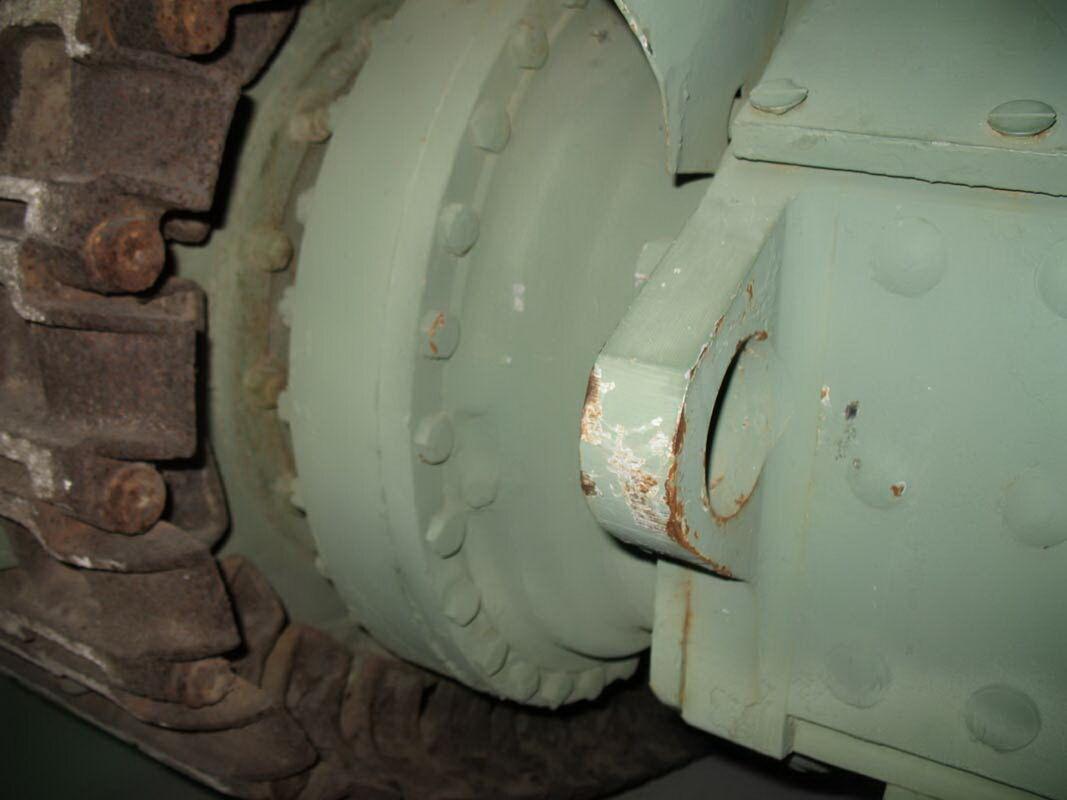

The “Slow Motion” Suspension:The Valentine used a modified Horstmann suspension with two large assemblies per side. While it wasn’t built for speed, it provided a very stable ride and was incredibly easy to maintain in the muddy or sandy conditions of North Africa and the Eastern Front.

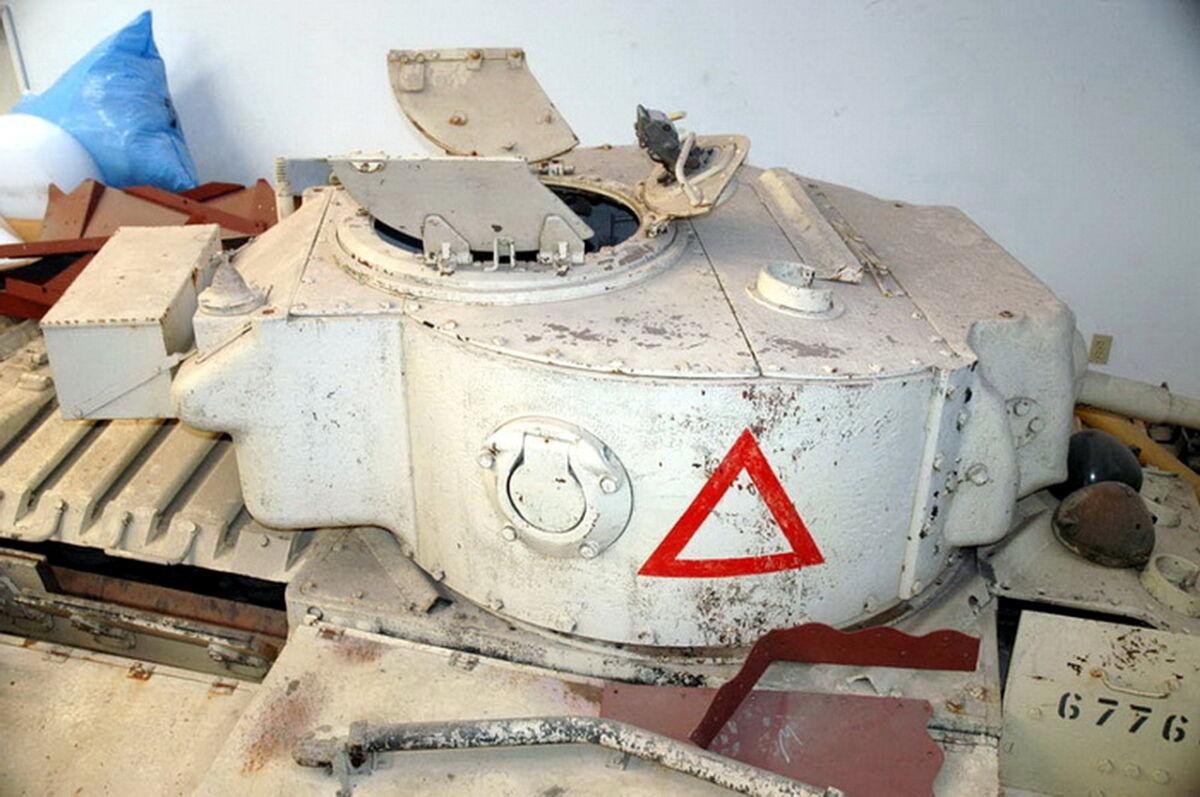

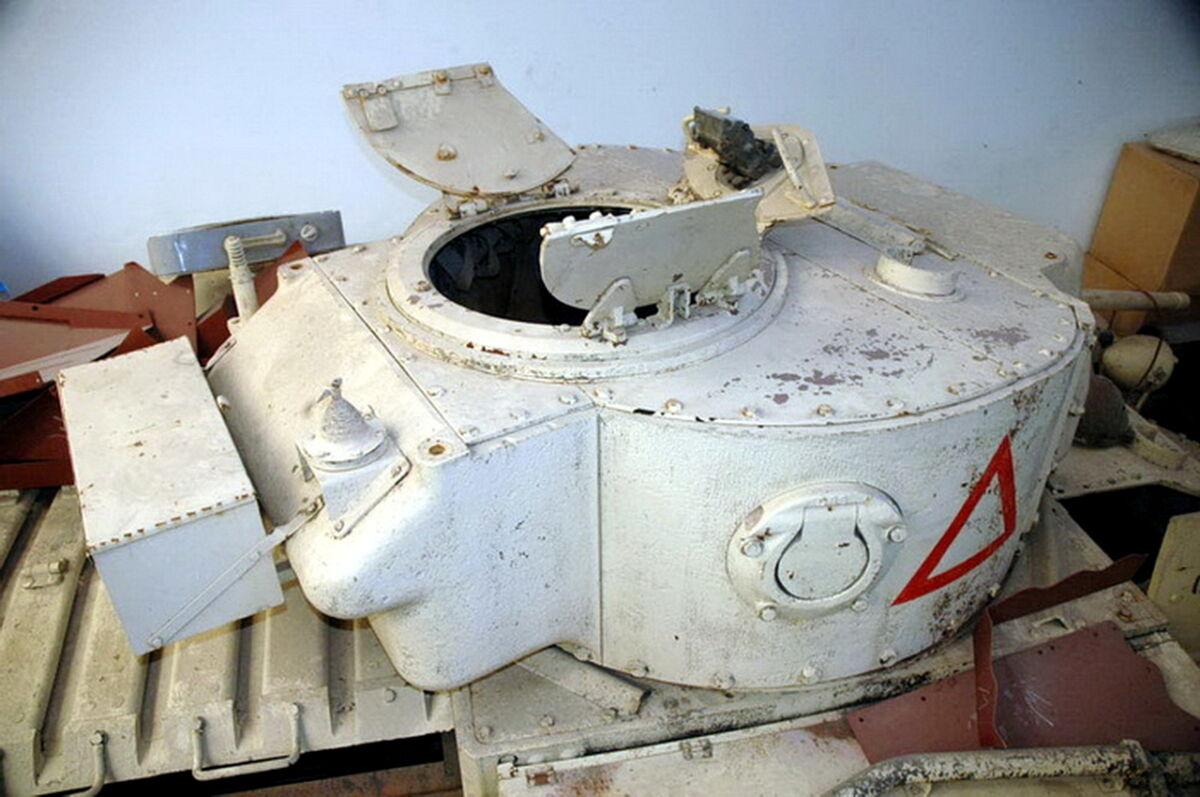

The Turret Squeeze:The biggest design flaw was the tiny turret ring. Originally a 2-man turret (Mk I/II), it was expanded to a 3-man turret (Mk III) to give the commander a loader, but when the larger 6-pounder and 75mm guns were added later, it had to revert back to a 2-man crew because the guns took up so much space.
Low Silhouette:The Valentine was exceptionally low to the ground (only 2.27 meters high). This made it a difficult target to hit and allowed it to hide behind small folds in the terrain that taller tanks like the Sherman or Matilda II couldn’t use.
Diesel Pioneer:Most Valentines used AEC or GMC diesel engines. Not only were these less likely to explode when hit compared to petrol engines, but they also provided the torque needed to move 17 tonnes of steel at a steady, reliable pace.
Operational History: From El Alamein to Berlin
The “Underrated” Lend-Lease:Nearly half of all Valentines produced (over 3,700) were sent to theUnión Soviética. While the Soviets hated the tiny 2-pounder gun, theylovedthe tank’s reliability and low profile, using them as reconnaissance and support vehicles all the way into the streets of Berlin in 1945.
Desert Endurance:In the North African Campaign, Valentines once drove 3,000 miles (4,800 km) from El Alamein to Tunisia under their own power—a feat of mechanical endurance that few other tanks of the era could match.
The “Archer” Tank Destroyer:Because the 17-pounder gun was too big to fit in a turret, engineers mounted it on a Valentine chassisfacing backwards. This created the Archer, a quirky but effective “shoot-and-scoot” weapon that could fire and then immediately drive away forward (technically backward) into cover.
Pacific Jungle Fighter:The New Zealand Army used Valentines in the Pacific. Its small size and weight allowed it to be transported to islands where heavier tanks simply couldn’t land, proving effective against the light defenses of the Japanese.
