BMD-1 | |
---|---|
Země | Sovětský svaz |
Typ | Vzdušné obojživelné pásové bojové vozidlo pěchoty |
Období | 1969–současnost |
Postaven | Neznámé |
Tá BMD-1 je sovětské vzdušné obojživelné pásové bojové vozidlo pěchoty, které bylo představeno v roce 1969 a poprvé spatřeno Západem v roce 1970. BMD je zkratka pro Boyevaya Mashina Desanta (Боевая Машина Десанта, doslova "Bojové vozidlo výsadku"). Může být shozen padákem a přestože se podobá BMP-1, je ve skutečnosti mnohem menší. BMD-1 byl používán jako IFV výsadkovými divizemi sovětské armády. Byla vyvinuta vylepšená varianta BMD-1, BMD-2. BMD-1 také poskytl základ pro BTR-D vzdušný víceúčelový pásový obrněný transportér.
Zdroj: BMD-1 na Wiki

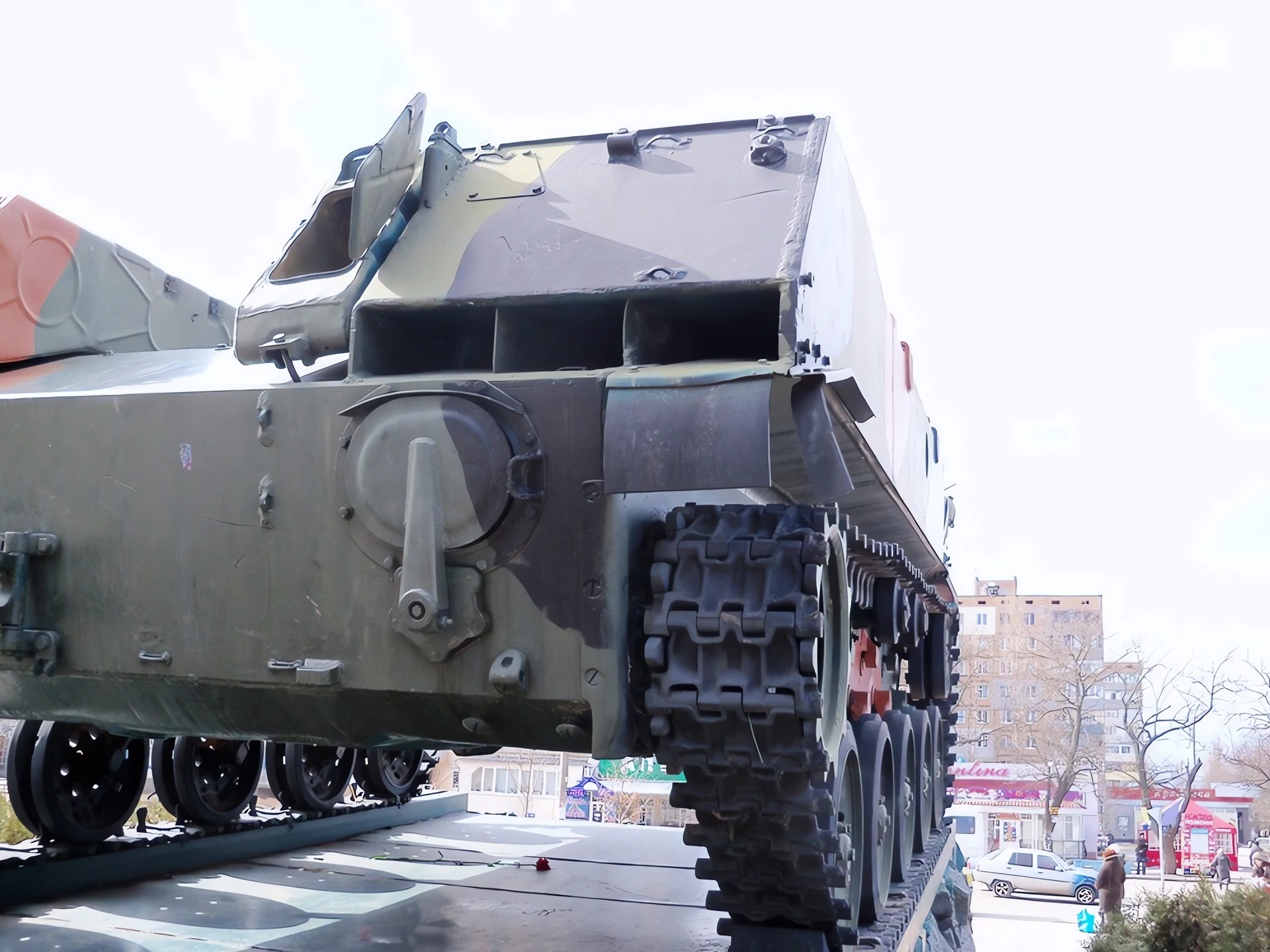

BMD-1 Procházka kolem | |
---|---|
Fotograf | Neznámé |
Lokalizace | Neznámé |
Fotografie | 28 |
BMD-1 Walk Around | |
---|---|
Fotograf | Neznámé |
Lokalizace | Neznámé |
Fotografie | 67 |
Související sady:
Najděte sady na eBay:
Viz také:
Tá BMD-1 is a Soviet airborne amphibious tracked infantry fighting vehicle, which was introduced in 1969 and first seen by the West in 1970. It was designed to support the Soviet airborne forces (VDV) as a rapid deployment force. The acronym BMD stands for Boyevaya Mashina Desanta (Боевая Машина Десанта), which literally translates to “Combat Vehicle of the Airborne”.
The BMD-1 has a welded aluminium armor hull, which provides protection against small arms fire and shell fragments. It can be dropped by parachute from military cargo aircraft and is fully amphibious. It has a crew of two (driver and gunner) and can carry six troopers, including the commander and the machine gunner.
The BMD-1 is armed with a 73 mm 2A28 “Grom” low pressure smoothbore semi-automatic gun, which can fire both high-explosive anti-tank (HEAT) and high-explosive fragmentation (HE-FRAG) rounds. It also has a launcher for the 9M14M Malyutka (AT-3 Sagger) anti-tank guided missile (ATGM), which can be replaced by newer models such as the 9M113 Konkurs (AT-5 Spandrel) or the 9M111 Fagot (AT-4 Spigot). The BMD-1 also has three 7.62 mm PKT machine guns, one coaxial with the main gun and two in the front hull. A 30 mm AGS-17 automatic grenade launcher can be mounted on a tripod for dismounted use.
The BMD-1 is powered by a 5D-20 6-cylinder diesel engine, which develops 240 hp. It has a maximum road speed of 80 km/h and a cross-country speed of 45 km/h. It can swim at 10 km/h with minimal preparation. It has an operational range of 600 km on road and 116 km on water. It has an adjustable ground clearance of 100 to 450 mm and can overcome various obstacles such as trenches, steps and slopes.
Tá BMD-1 was used by the Soviet Army’s airborne divisions and exported to several countries such as Cuba, India, Iran and Iraq. It saw combat in various conflicts such as the Soviet-Afghan War, the Iran-Iraq War, the First Chechen War and the Nagorno-Karabakh War. It was later replaced by the improved BMD-2 and BMD-3 models, but some are still in service with some former Soviet republics and other operators.
