Airbus Military A400M Grizzly - Photos & Videos

Еърбъс Военни A400M Гризли
Страна	Франция – Германия
Роля	Стратегически/тактически въздушен лифт
Първи полет	11 декември 2009
Номер построен	88

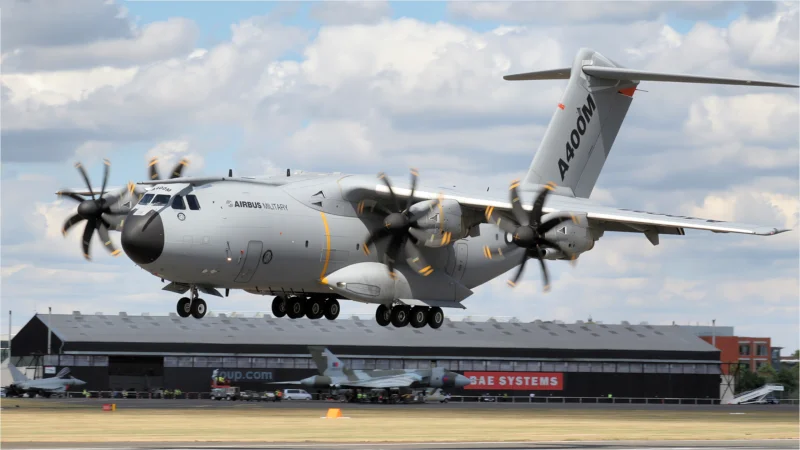

1. Еърбъс А400М Атлас е европейски четиримоторен турбовитлов военно-транспортен самолет. Той е проектиран от Airbus Military (сега Airbus Defence and Space) като тактически въздушен превозвач със стратегически възможности за замяна на по-стари транспортни самолети, като Transall C-160 и Lockheed C-130 Hercules. A400M е между C-130 и Boeing C-17 по размер; той може да носи по-тежки товари от C-130 и може да използва груби писти. Наред с транспортната роля, A400M може да извършва зареждане с гориво във въздуха и медицинска евакуация, когато е оборудван с подходящо оборудване.

Източник: Еърбъс Военни A400M Гризли на Уики

Airbus Military A400M Grizzly (EC-402) Walk Around
Фотограф	Burhand Donke
Локализация	Не знам
Снимки	38

Airbus Military A400M Grizzly 01

Airbus Military A400M Grizzly 02

Airbus Military A400M Grizzly 03

Airbus Military A400M Grizzly 04

Airbus Military A400M Grizzly 05

Airbus Military A400M Grizzly 06

Airbus Military A400M Grizzly 07

Airbus Military A400M Grizzly 08

Airbus Military A400M Grizzly 09

Click on a photo and use the mouse scroll to view all photos

Wait, Searching Airbus Military A400M for you…

Вижте също:

General Characteristics

The Airbus A400M Atlas (originally named “Grizzly”) is a multi-national four-engine turboprop military transport aircraft. Developed by Airbus Military (now Airbus Defence and Space), it was designed to bridge the gap between smaller tactical airlifters, like the C-130 Hercules, and larger strategic airlifters, like the C-17 Globemaster III. The A400M combines the capability to carry oversized loads (strategic) with the ability to land on rough, short unprepared strips (tactical). Its unique feature is the use of powerful Europrop TP400-D6 turboprop engines, which drive eight-bladed scimitar propellers. It is a key asset for European and international armed forces, fulfilling transport, air-to-air refueling, and medical evacuation roles.

Property	Typical Value (A400M Atlas)
Роля	Tactical/Strategic Airlifter, Tanker, MEDEVAC
National Origin	Multinational (Europe)
Производителя	Airbus Defence and Space
First Flight	December 11, 2009
Service Entry	2013
Екипажа	3 or 4 (2 Pilots, 1 Loadmaster/Optional Flight Engineer)
Дължина	45.1 m (147 ft 11 in)
Размах	42.4 m (139 ft 1 in)
Max Takeoff Weight	141,000 kg (310,852 lb)

Powerplant and Performance

Engine: 4 x Europrop International TP400-D6 turboprop engines.
Power Output: 8,250 kW (11,060 hp) each (the most powerful turboprop outside of Russia).
Propellers: 8-bladed composite, variable pitch propellers. Two propellers rotate clockwise and two rotate counter-clockwise (outboard propellers spin in the opposite direction to the inboard ones) for improved handling.
Maximum Speed: Mach 0.72 (Approx. 780 km/h or 485 mph).
Cruise Speed: Mach 0.68 to 0.72.
Service Ceiling: 11,300 m (37,000 ft).
Range: 3,300 km (2,050 mi) with max payload (37 tonnes).
Ferry Range: 8,900 km (5,530 mi).

Cargo and Logistics

Maximum Payload: 37,000 kg (81,600 lb).
Cargo Hold Dimensions: Length 17.7 m; Width 4.0 m; Height 3.85 m.
Transport Capability Examples:
- Troops: Up to 116 fully equipped paratroopers or 66 stretchers (for MEDEVAC).
- Vehicles: Can carry one CH-47 Chinook helicopter (fuselage only), one Eurocopter Tiger attack helicopter, or one Aérospatiale SA 330 Puma helicopter (fully assembled).
- Heavy Armor: Can transport heavy vehicles like the Puma Infantry Fighting Vehicle or the Patria AMV (Armored Modular Vehicle).
Operational Feature: The aircraft can deploy a full cargo load via parachute and is equipped for air-to-air refueling of compatible fixed-wing aircraft and helicopters.
