Stearman Hammond Y-1S | |
|---|---|
| 国家 | 美国 |
| 作用 | 实用单翼飞机 |
| 首次飞行 | 未知 |
| 建立 | 20 |
这 斯蒂尔曼-哈蒙德 Y-1 是 1930 年代的美国多用途单翼飞机，由 Stearman-Hammond 飞机公司制造，并由美国海军和英国皇家空军进行评估
源： 斯蒂尔曼·哈蒙德 Y-1S 在维基百科上

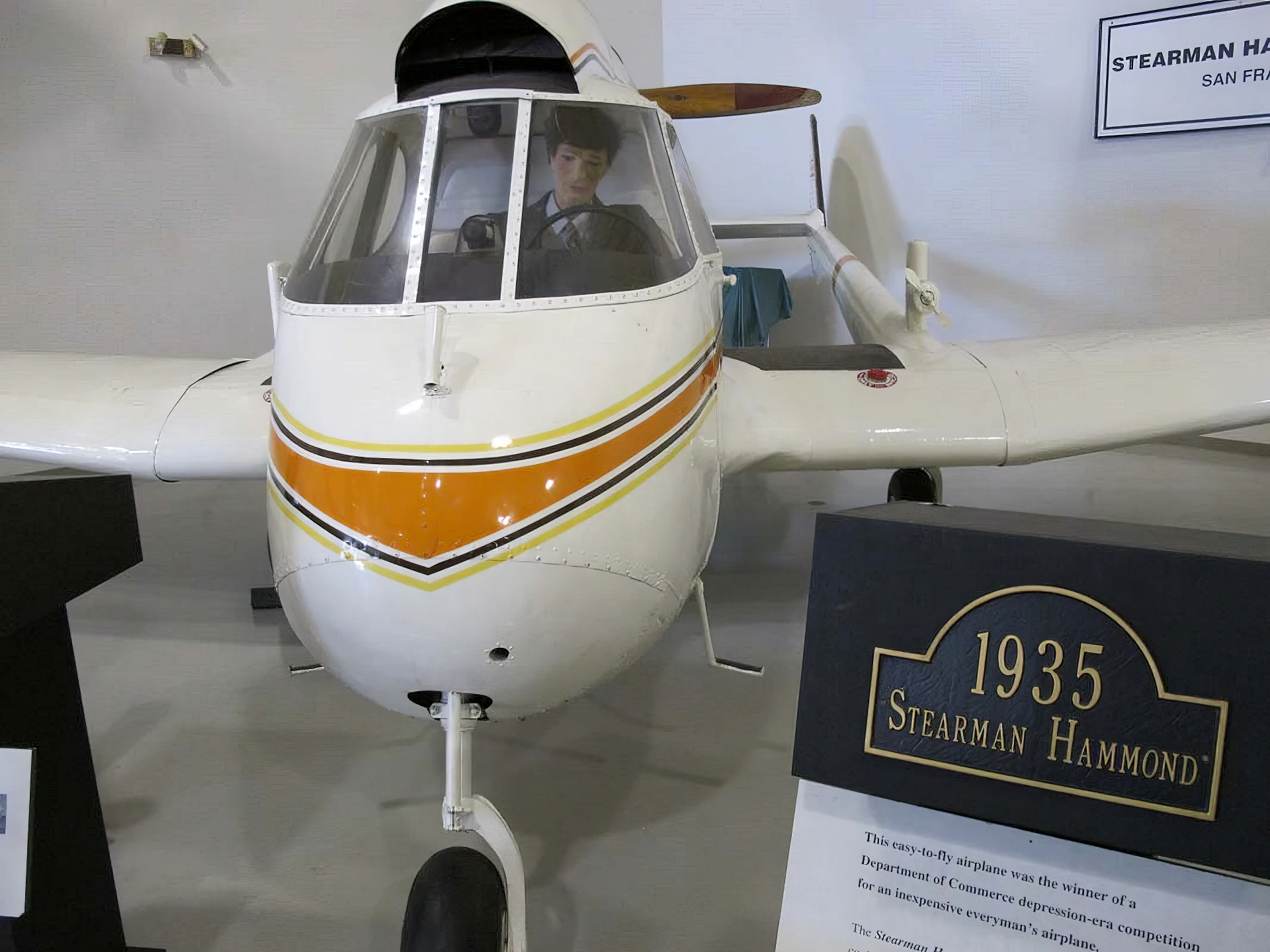

| Stearman Hammond Y-1S Walk Around | |
|---|---|
| 摄影师 | 弗拉基米尔·亚库博夫 |
| 本地化 | 希勒航空博物馆，加利福尼亚州圣卡洛斯 |
| 照片 | 47 |
等等，为您搜索 Stearman Hammond Y-1S......
另请参阅：
General Characteristics
The Stearman-Hammond Y-1S was a unique, two-seat experimental aircraft designed in the mid-1930s with safety and ease of control as its primary goals. Its unusual pusher propeller configuration and tricycle landing gear were radical for the time.
| Property | Value (Y-1S Production Model) |
|---|---|
| 作用 | Experimental Light Aircraft, Safety Design |
| 制造商 | Stearman-Hammond Aircraft Corporation |
| First Flight | 1934 |
| 船员 | 1 pilot |
| Passenger Capacity | 1 passenger (side-by-side seating) |
| Maximum Take-Off Weight | 950 kg (2,090 lb) |
| 已构建数量 | 20 (Approximate) |
Design and Powerplant
- Engine: One Menasco B6S six-cylinder air-cooled inverted in-line engine.
- Power Output: 150 hp (112 kW).
- Propeller: Two-bladed propeller mounted behind the wing trailing edge in a pusher configuration.

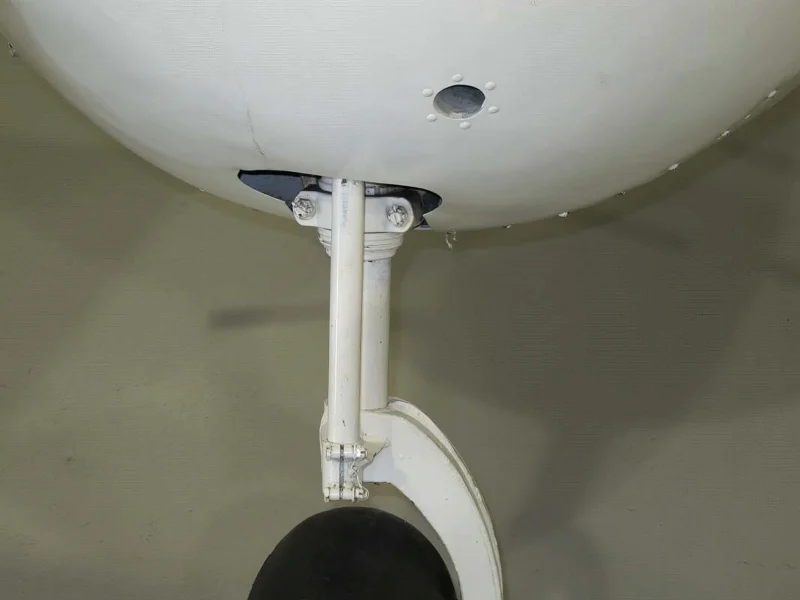

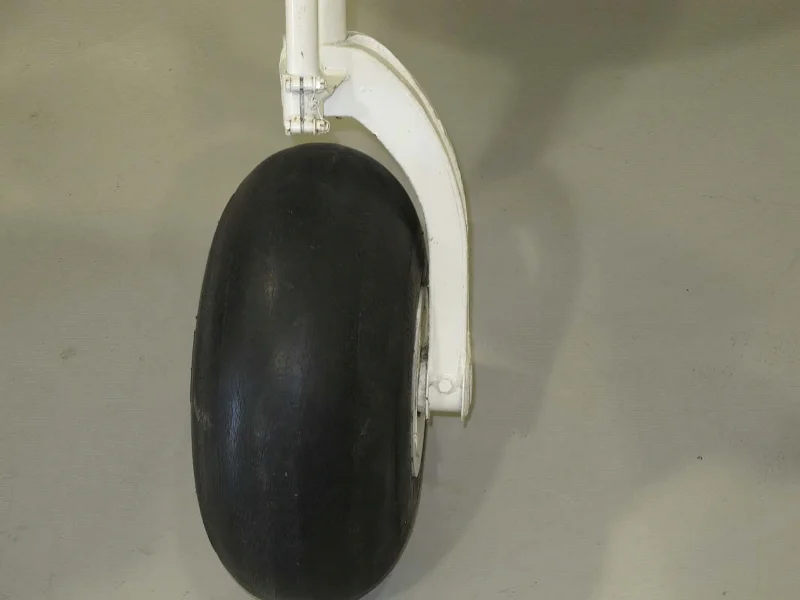

- Landing Gear: Featured a tricycle landing gear (nose wheel and two main wheels), a highly advanced and rare feature in the 1930s, designed to prevent ground looping.
- Flight Controls: Simplified three-control system. Notably, yaw and roll were controlled by combined rudders/ailerons (“rudderons”), intended to be easier for non-professional pilots.
- Configuration: High-wing, twin-boom monoplane.
Performance and History
- Maximum Speed: 204 km/h (127 mph).
- Cruise Speed: 185 km/h (115 mph).
- Operational Range: Approximately 725 km (450 miles).
- Historical Note: The Y-1S won the U.S. Bureau of Air Commerce’s competition for a safe, low-cost private aircraft, but poor sales due to its high price and unusual configuration led to the company’s collapse.
- Legacy: Although a commercial failure, its innovative design elements, particularly the pusher engine and tricycle gear, influenced later aircraft safety and general aviation design.
