洛克希德C-121星座 | |
|---|---|
| 国家 | 美国 |
| 作用 | 军事运输 |
| 首次飞行 | 1947年3月14日 |
| 建立 | 332 |
这 洛克希德C-121 星座是洛克希德星座的军事运输版本。总共为美国空军和美国海军建造了332架飞机，用于各种目的。

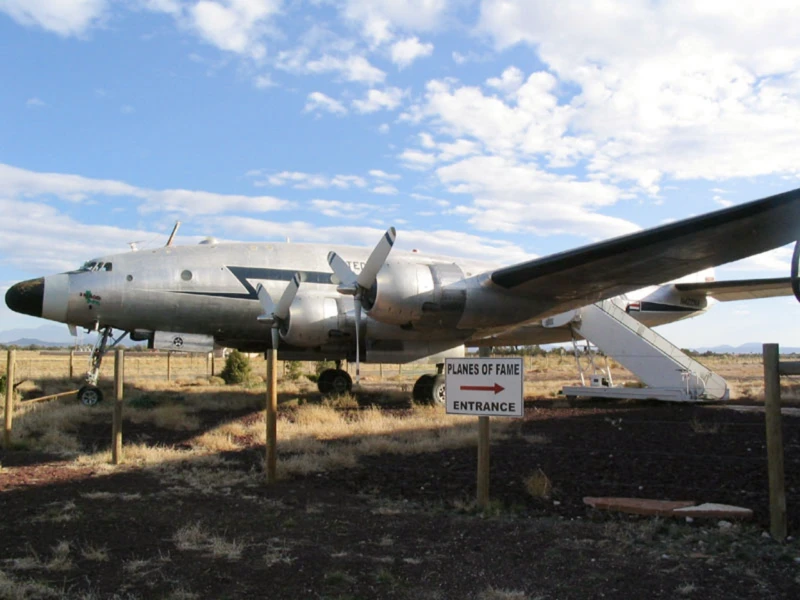

| VC-121 巴丹四处走动 | |
|---|---|
| 摄影师 | 塞斯·亨德里克斯 |
| 本地化 | 名人航空博物馆 |
| 评论 | 这个名为"巴丹"的"康妮"是朝鲜战争期间道格拉斯·麦克阿瑟将军盟军最高司令的私人飞机。 |
| 照片 | 32 |
Lockheed VC-121 Bataan 01
Lockheed VC-121 Bataan 02
Lockheed VC-121 Bataan 03
Lockheed VC-121 Bataan 05
Lockheed VC-121 Bataan 04
Lockheed VC-121 Bataan 06
Lockheed VC-121 Bataan 07
Lockheed VC-121 Bataan 09
Lockheed VC-121 Bataan 08
等等，为你搜索洛克希德C-121星座。。。
| Lockheed VC-121E Super Constellation Columbine III Walk Around | |
|---|---|
| 摄影师 | 弗拉基米尔·亚库博夫 |
| 本地化 | 美国空军国家博物馆 |
| 照片 | 192 |
| Lockheed Constellation | |
|---|---|
| 摄影师 | 乌克诺 |
| 本地化 | 乌克诺 |
| 照片 | 86 |
等等，为你搜索洛克希德C-121星座。。。
另请参阅：
The Aerodynamic Masterpiece
这 洛克希德C-121星座 was the military version of the revolutionary L-749 and L-1049 Super Constellation airliners. Known for its distinct “dolphin-shaped” fuselage and triple-tail design, the “Connie” was one of the most advanced piston-engine aircraft ever built. While it began as a high-speed VIP and troop transport, its massive internal volume allowed it to evolve into the world’s first true Airborne Early Warning (AEW) platform, serving as a vital sentinel during the Cold War.
| Attribute | Technical Specification (C-121C / Super Connie) |
|---|---|
| 作用 | Heavy Transport / AEW & Reconnaissance |
| 船员 | 5 (Flight crew) + up to 106 troops or 26 sensor operators |
| First Flight (C-121A) | March 14, 1948 |
| 动力装置 | 4 × Wright R-3350-34 Duplex-Cyclone turbo-compound radials |
| Horsepower | 3,250 hp (2,424 kW) per engine |
| 最高速度 | 340 mph (547 km/h) |
| Service Ceiling | 25,000 feet (7,620 m) |
| 范围 | 4,300 miles (6,920 km) |
Design Innovation: The Triple-Tail and Turbo-Compounds
- The Triple Tail: The distinctive triple vertical stabilizers weren’t just for style. By splitting the tail into three smaller fins, Lockheed kept the aircraft’s overall height low enough to fit into existing military hangars while still providing enough surface area to control the plane if an engine failed.
- Turbo-Compound Engines: The later C-121s used “Turbo-Compound” versions of the R-3350 engine. These recovered energy from the exhaust gases to turn the crankshaft, providing incredible fuel efficiency for long-range oceanic crossings.
- Variable Camber Wing: The Constellation’s wing was effectively a scaled-up version of the wing found on the P-38 Lightning fighter, giving it exceptional lift and speed characteristics for a transport of its size.
- The Curved Fuselage: The “dolphin” shape ensured that no two bulkhead sections were the same size. This aerodynamic curvature reduced drag and ensured that the fuselage remained perfectly pressurized at high altitudes.
Command, Control, and VIP Service
- Columbine II & III: The C-121 served as the first official “Air Force One.” President Dwight D. Eisenhower’s personal aircraft, Columbine III, is preserved today and remains a symbol of 1950s prestige.
- The Warning Star (EC-121): Modified with massive radar “humps” on the top and bottom of the fuselage, the EC-121 Warning Star became a flying radar station. In Vietnam, these aircraft provided early warning of MiG attacks and guided US pilots to intercepts.
- The Berlin Airlift: Early C-121As played a supporting role in the 1948 Berlin Airlift, proving the aircraft’s ability to move large quantities of cargo and personnel under high-pressure operational tempos.
- End of the Line: The Constellation was the pinnacle of piston-driven technology, but the arrival of the Boeing C-135 (jet) and the C-130 (turboprop) ultimately signaled the end for the complex and maintenance-heavy R-3350 engines.
