Piaggio P.166M | |
|---|---|
| Državi | Italija |
| Vrsta | Letala za pripomočke |
| Prvi let | 26. novembra 1957 |
| Zgrajena | 154 |
V Piaggio P.166 je italijansko dvomotorno potisno letalo, ki ga je razvil Piaggio Aero. Ime modela letala je bilo Portofino in je v južnoafriški vojaški službi znano tudi kot Albatross.
Vir: Wikipedija

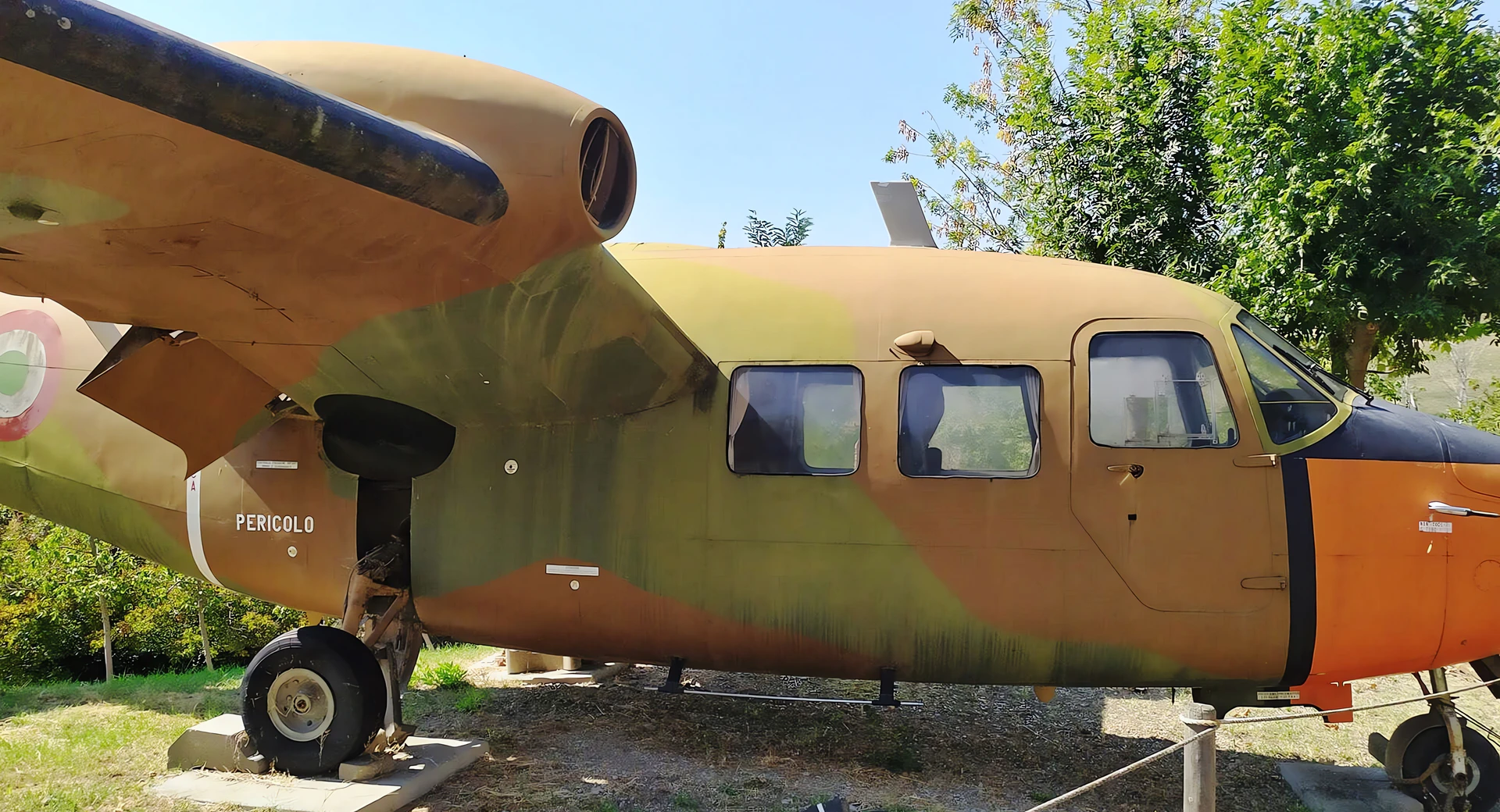

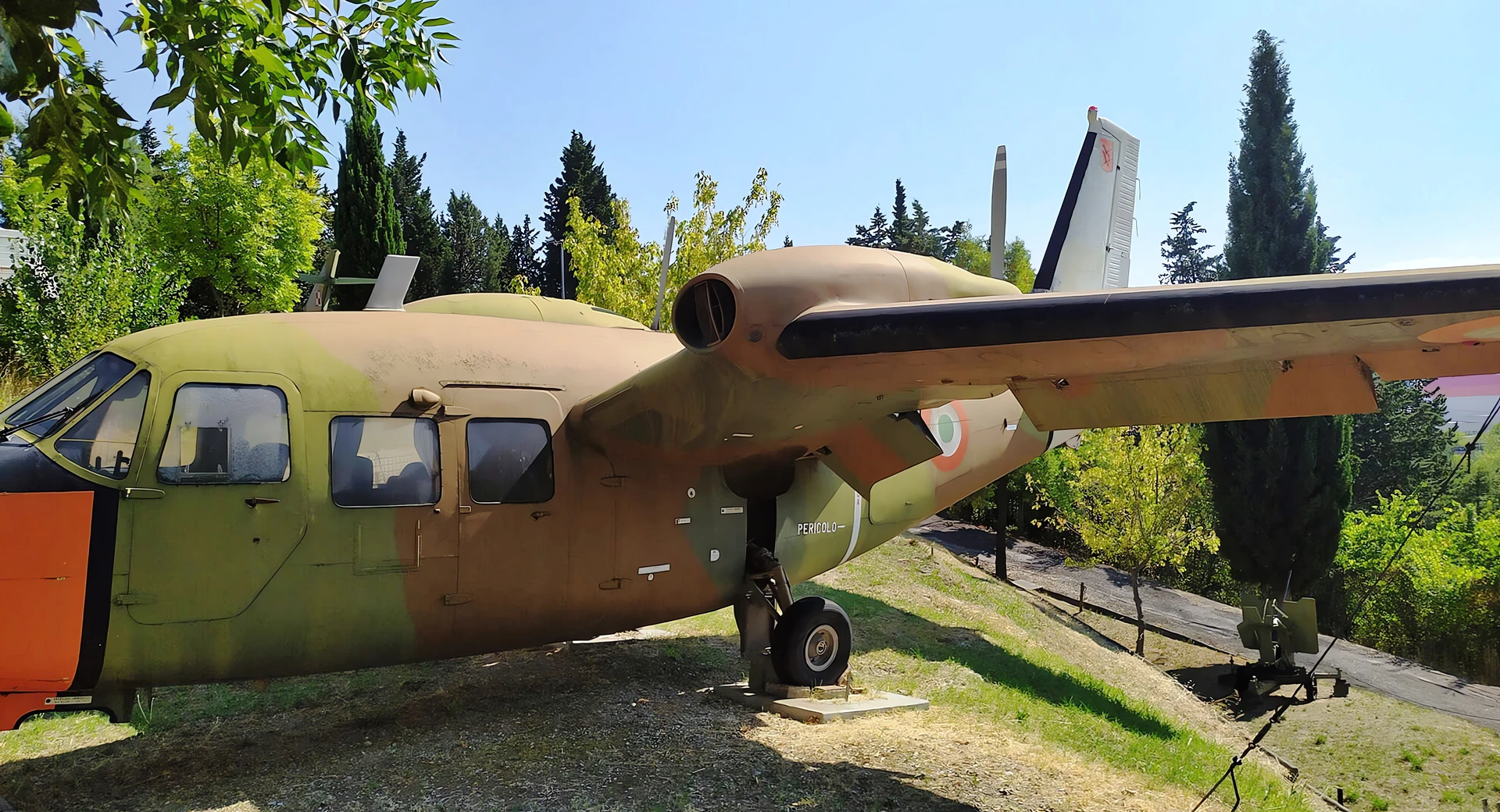

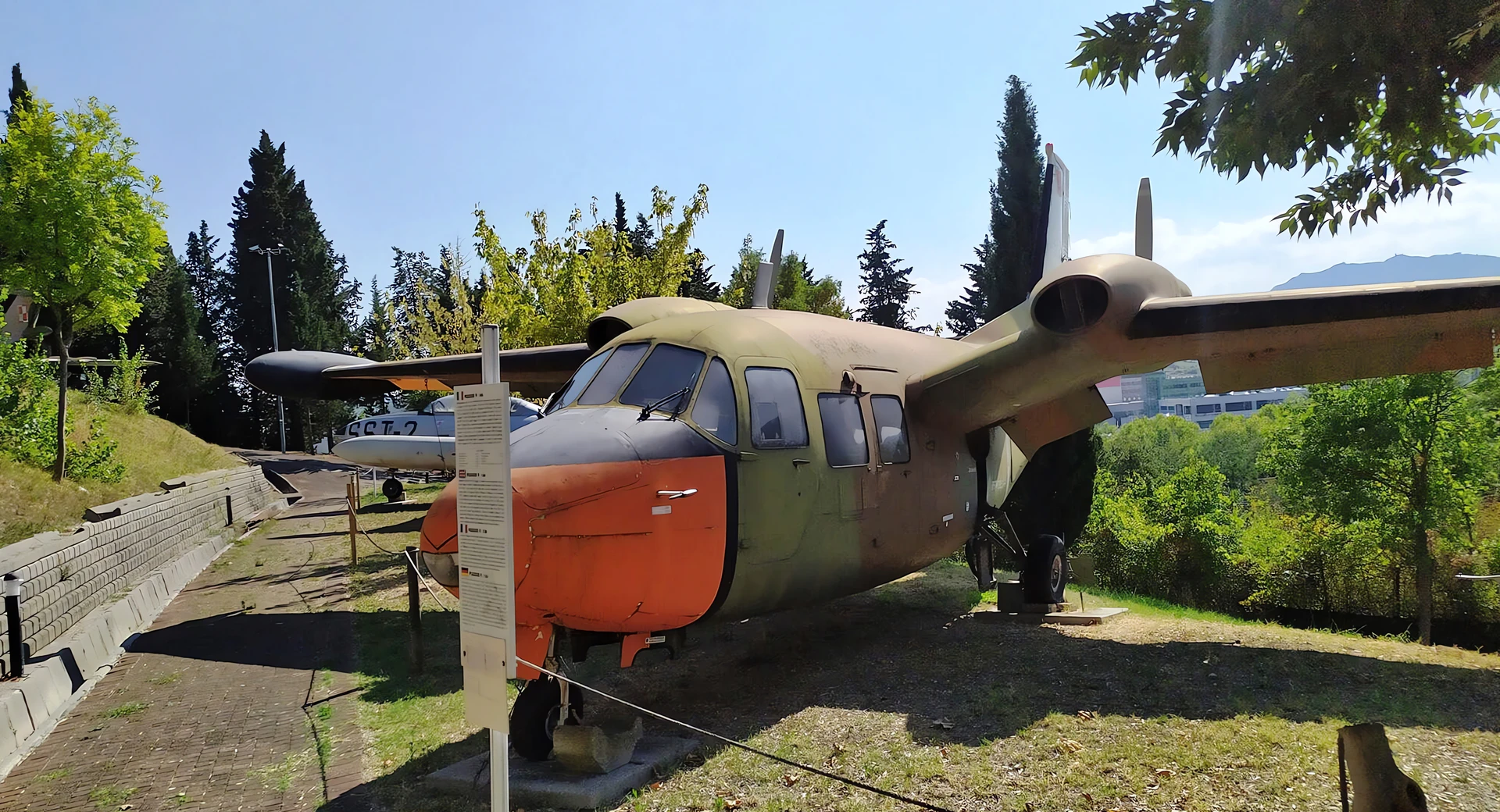

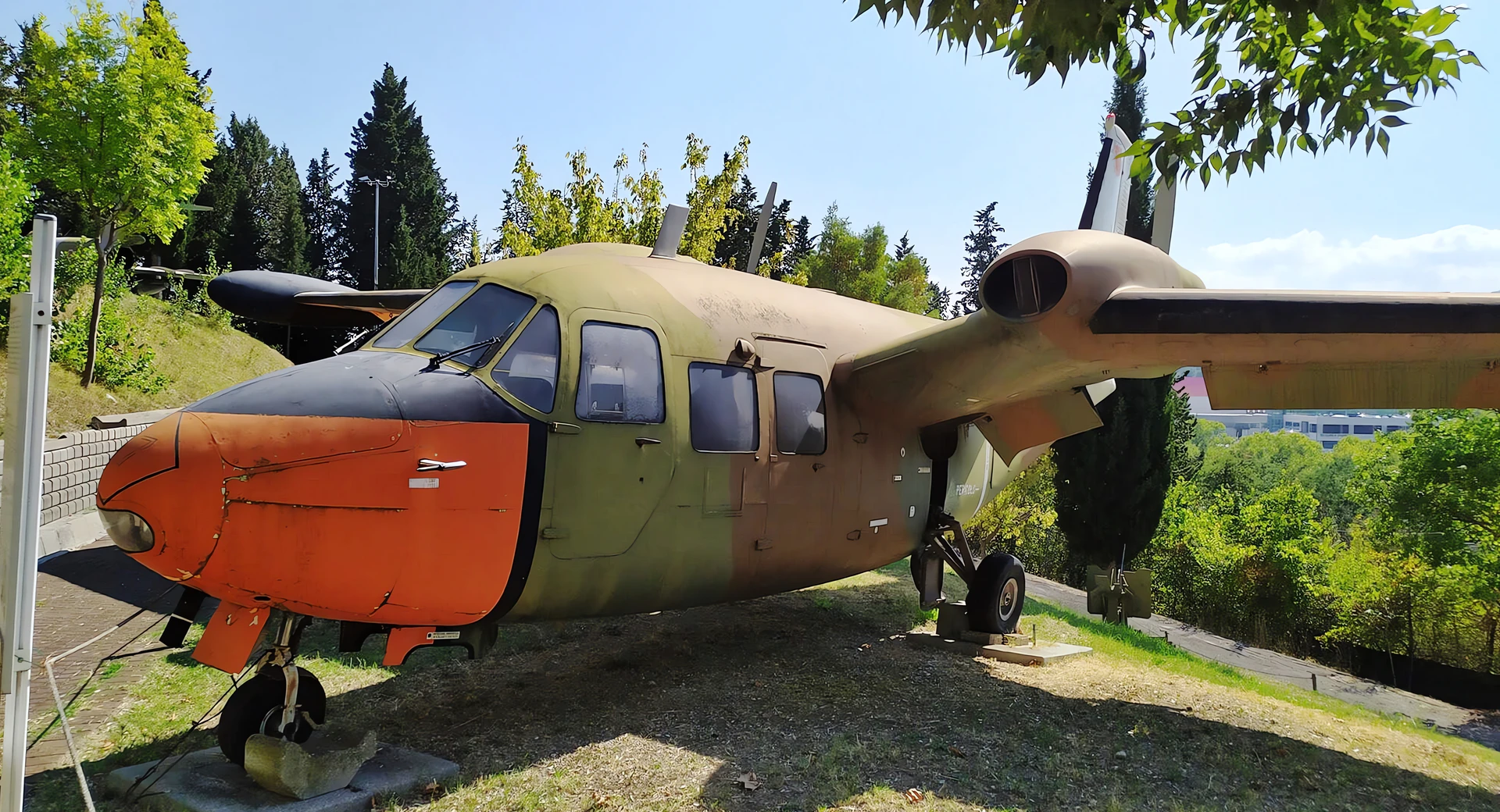

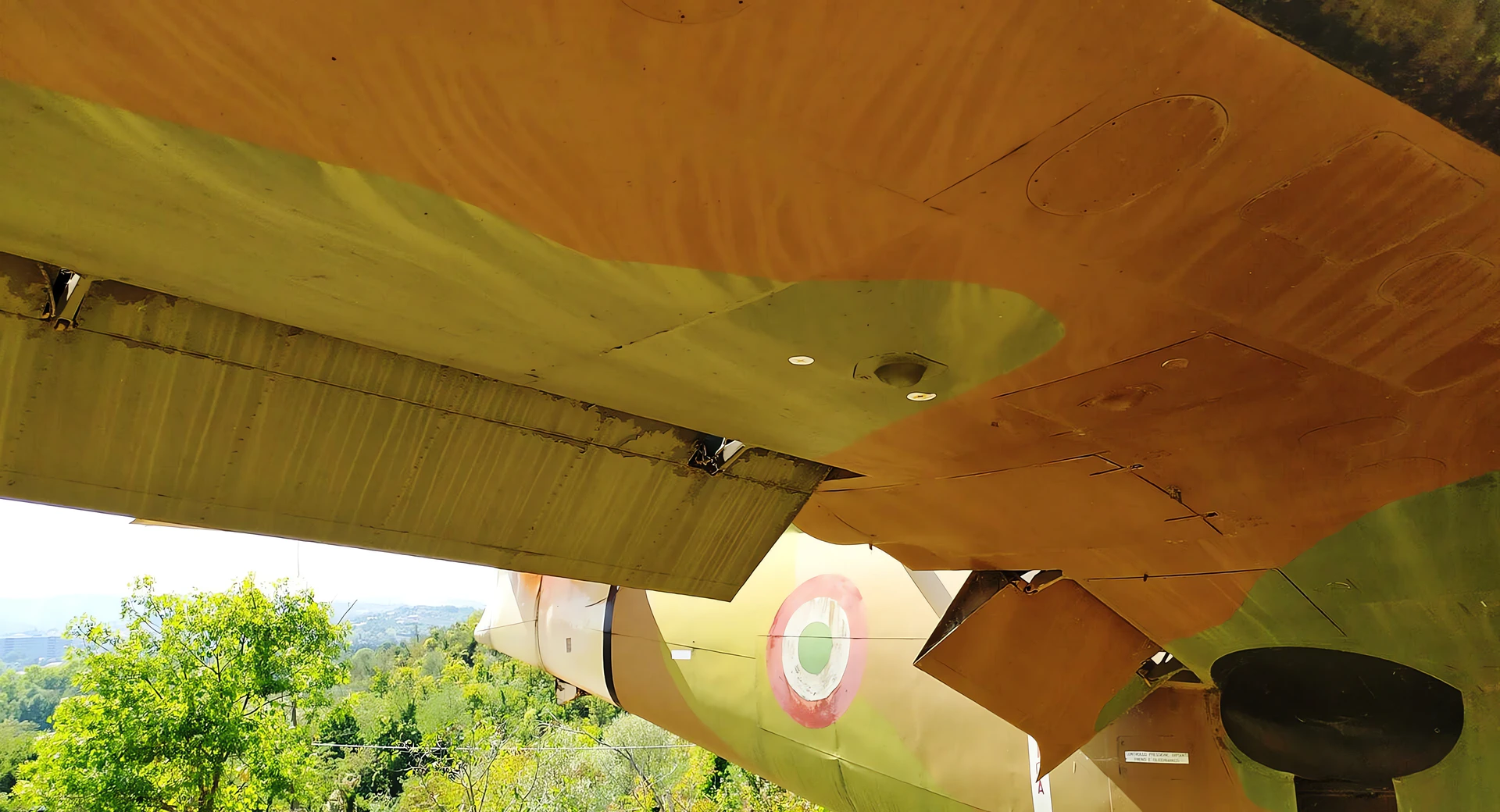

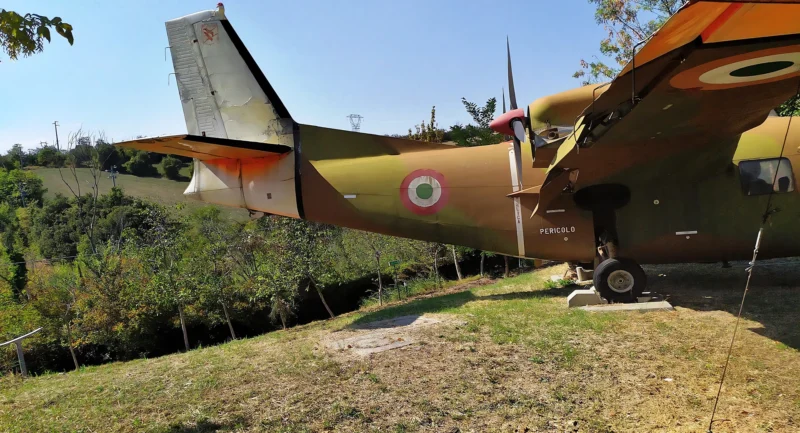

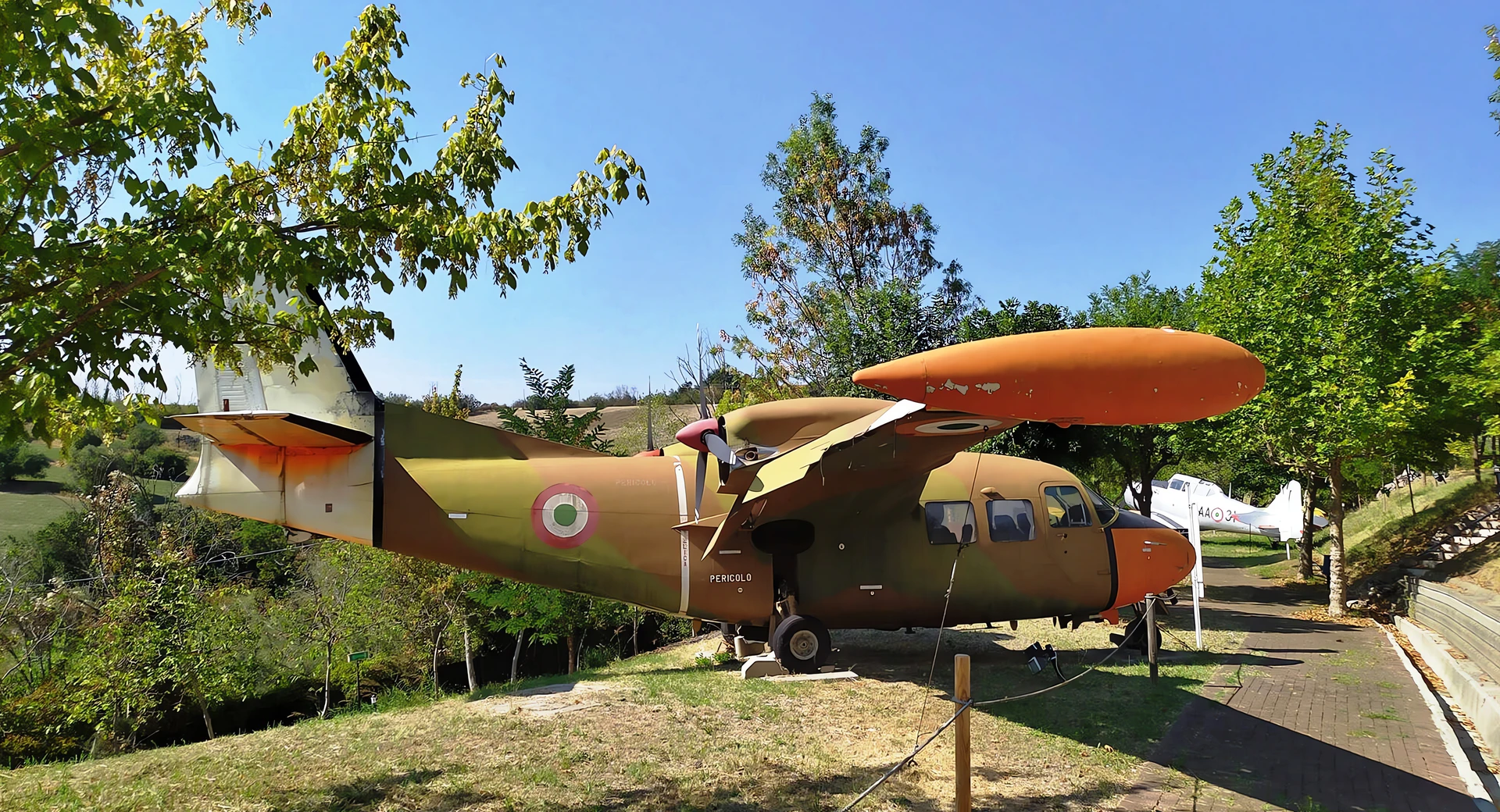

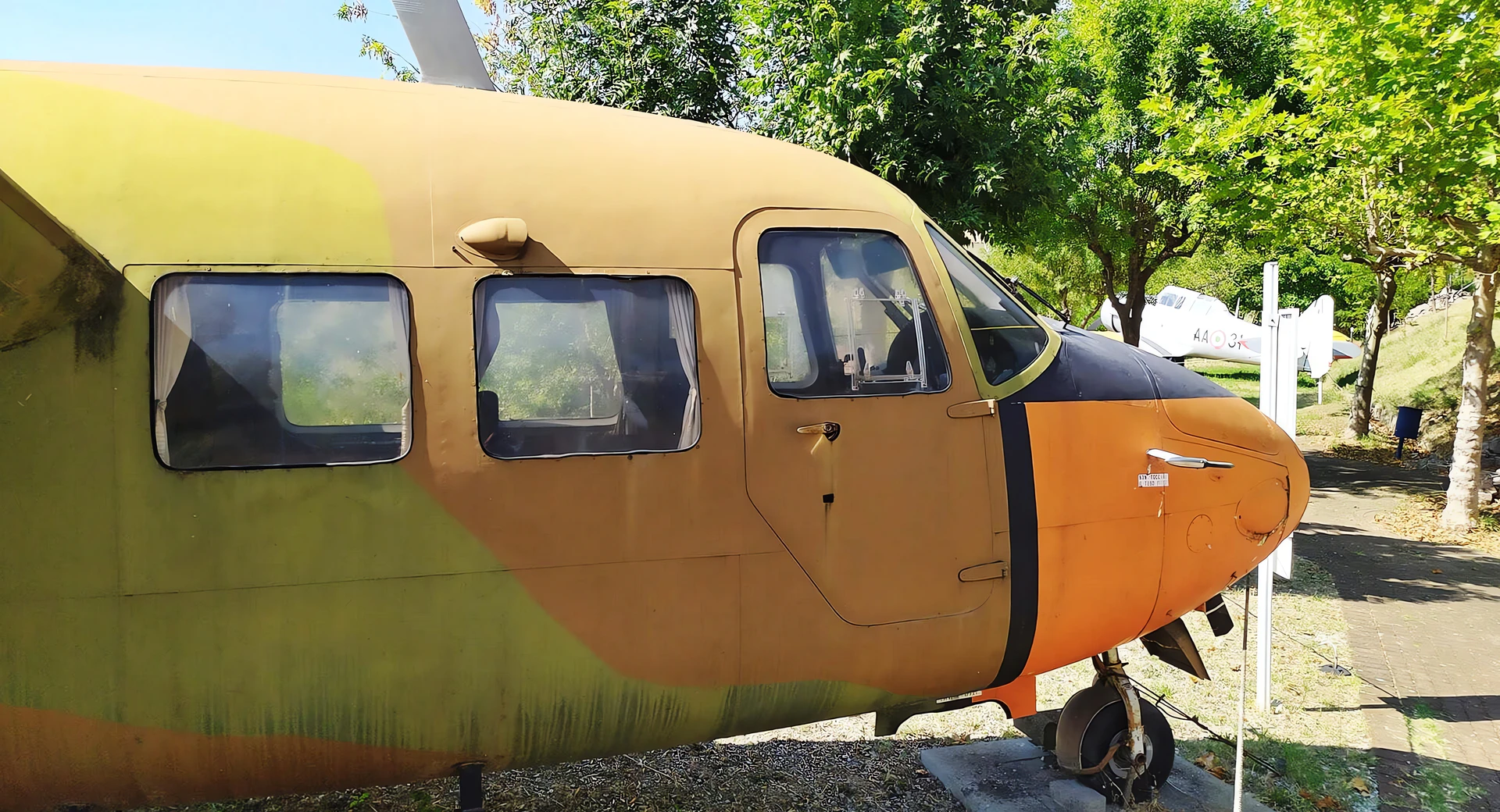

| Piaggio P.166M Walk Around | |
|---|---|
| Fotograf | Ondrej Skarka |
| Lokalizacijo | Neznano |
| Fotografije | 16 |
Počakajte, poiščite Piaggio P.166M za vas ...
Glej tudi:
General Characteristics
The Piaggio P.166 is a distinctive twin-engine, pusher-propeller utility aircraft developed in Italy. The P.166M was the main military production variant built specifically for the Italian Air Force (Aeronautica Militare) for use in liaison, light transport, and photographic survey roles. It is easily recognizable by its high-wing and unique pusher engine configuration.
| Property | Typical Value (P.166M) |
|---|---|
| Vlogo | Light Transport / Liaison / Utility |
| proizvajalec | IAM Rinaldo Piaggio |
| First Flight (P.166) | 26. novembra 1957 |
| P.166M Built | 49 (for the Italian Air Force) |
| Posadke | 2 (Pilot and Co-pilot) |
| Capacity (Passengers) | Up to 6–8 passengers / Mission crew |
| Dolžina | 11.88 m (39 ft 0 in) |
| Peruti | 14.69 m (48 ft 2.5 in) (with tip-tanks) |
| Max Takeoff Weight | 4,300 kg (9,480 lb) |
Design and Powerplant
- Engine Type: Two Lycoming GSO-480-B1C6 six-cylinder, horizontally opposed, geared, supercharged piston engines.
- Engine Power (each): 254 kW (340 hp).
- Propellers: Two pusher-type, constant-speed, fully-feathering propellers mounted on the wing trailing edge, minimizing cabin noise.
- Configuration: High-wing cantilever monoplane. The high-wing design was adapted from the earlier P.136 amphibian and kept the engines and propellers clear of the ground.

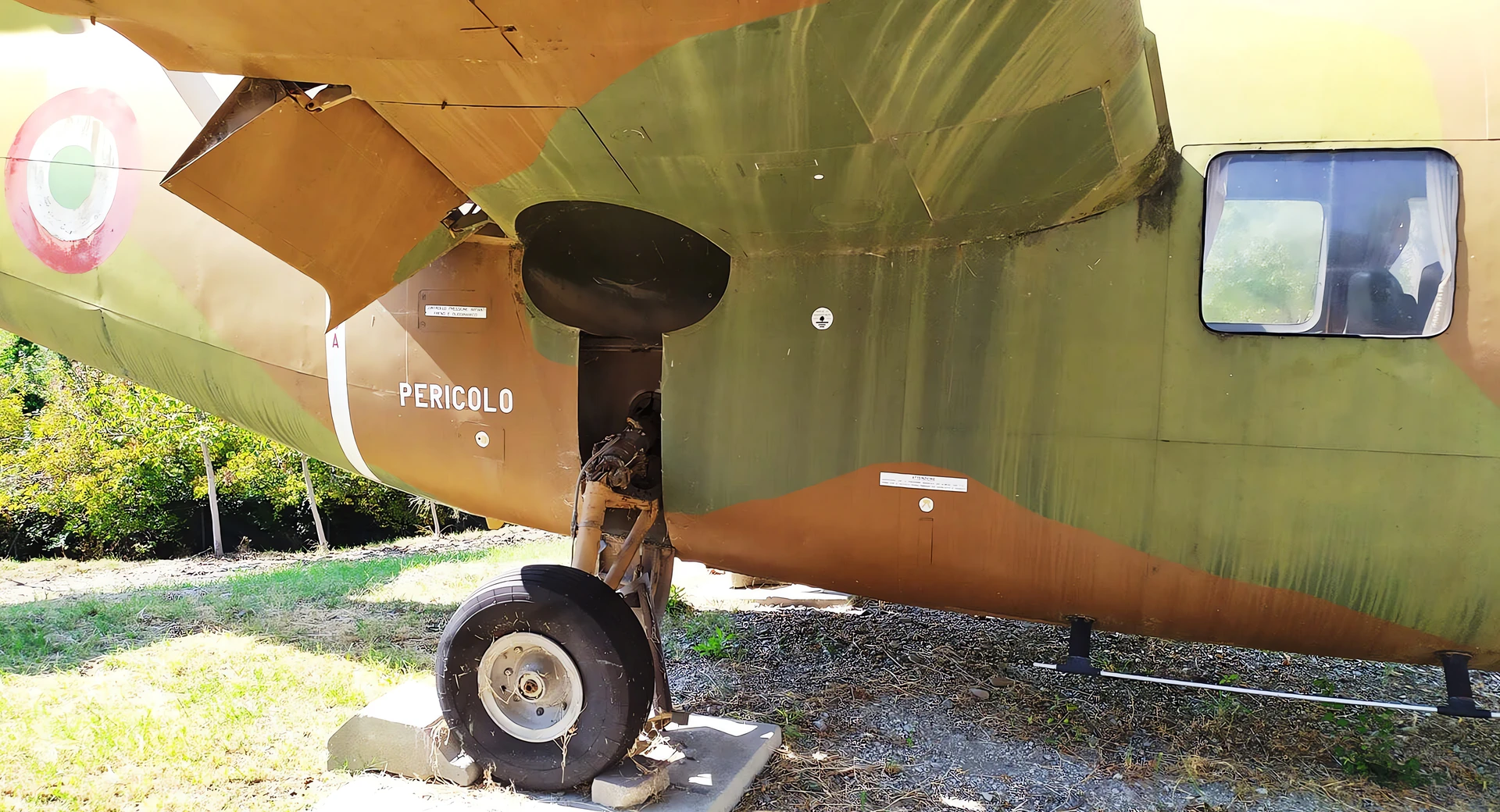

- Landing Gear: Retractable tricycle gear.
Performance and Service
- Maximum Speed: Approximately 356 km/h (221 mph, 192 knots).
- Cruise Speed: Approximately 300 km/h (186 mph, 162 knots).
- Range: Varies greatly by payload and variant, but approximately 1,390 km (860 mi, 750 nmi) with maximum payload.
- Service History: The P.166M served extensively with the Italian Air Force for logistical support, VIP transport, and reconnaissance.
- Legacy: Later variants (like the turboprop P.166DL3/SEM for the Coast Guard) used more powerful Lycoming LTP 101 or Pratt & Whitney PT6A turboprop engines and were used effectively for maritime patrol and ecological surveillance.
