de Havilland Canada DHC-4 Caribou
Krajiny	Spojené štáty americké
Úlohu	Preprava STOL
Prvý let	30. júla 1958
Postavený	307

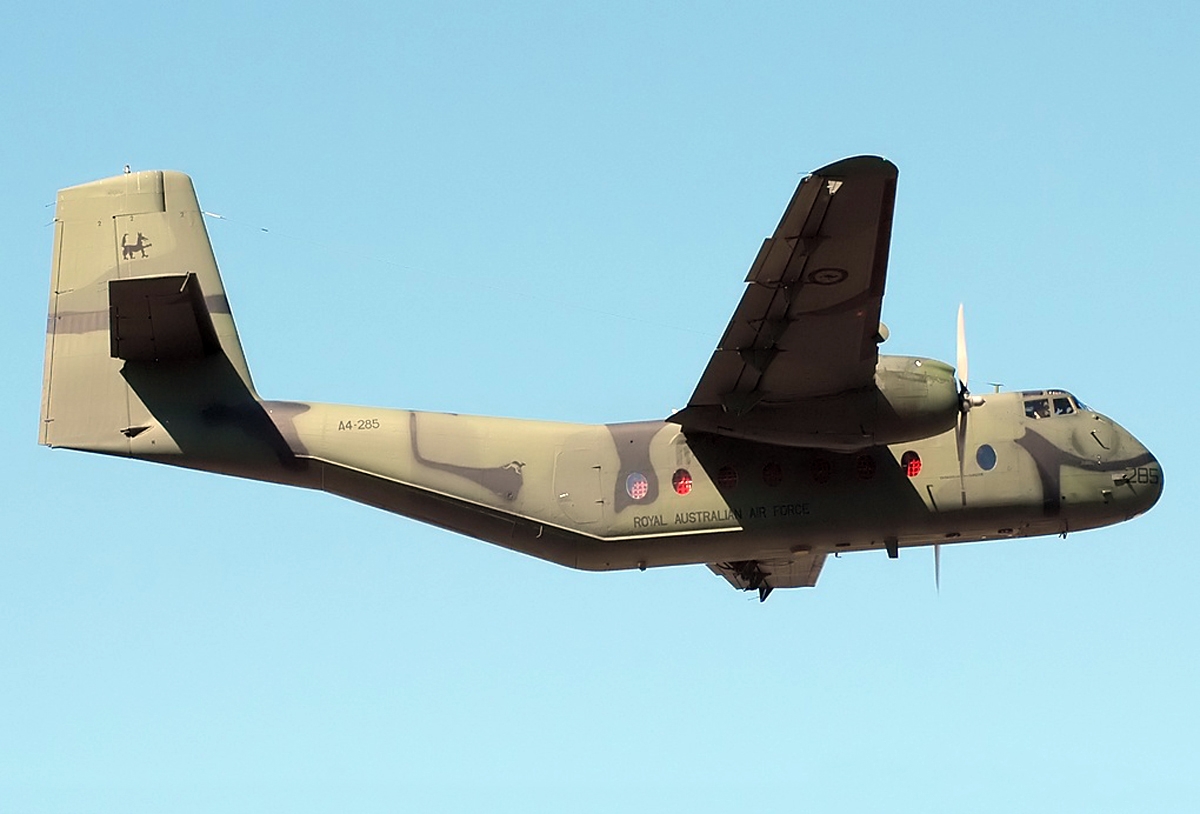

Komisia de Havilland Kanada DHC-4 Caribou (označený armádou Spojených štátov amerických ako CV-2 a neskôr C-7 Caribou) je kanadské špecializované nákladné lietadlo so schopnosťou krátkeho vzletu a pristátia (STOL). Caribou prvýkrát vzlietol v roku 1958 a hoci bol väčšinou vyradený z vojenských operácií, stále sa používa v malom počte ako robustné lietadlo "bush".

Zdrojový: de Havilland Canada DHC-4 Caribou na Wikipédii

de Haviland Canada C-7A (DHC-4) Caribou Walk Around
Fotograf	Vladimír Jakubov
Lokalizácia	Múzeum leteckej základne Travis
Fotografie	100

de Haviland Canada C-7A 01

de Haviland Canada C-7A 02

de Haviland Canada C-7A 03

de Haviland Canada C-7A 04

de Haviland Canada C-7A 05

de Haviland Canada C-7A 06

de Haviland Canada C-7A 07

de Haviland Canada C-7A 08

de Haviland Canada C-7A 09

Click on a photo and use the mouse scroll to view all photos

Wait, Searching de Havilland Canada DHC-4 Caribou for you…

DeHavilland C-7 Caribou Walk Around
Fotograf	Bill Maloney
Lokalizácia	Neznáme
Fotografie	20

C-7 Caribou Walk Around
Fotograf	Fotios Rouch
Lokalizácia	Neznáme
Fotografie	52

Pozri tiež:

DHC-4A Caribou (A4-236) Walk Around
Fotograf	Mike Hughes
Lokalizácia	Neznáme
Fotografie	52

The Master of the Short Field

Komisia de Havilland Kanada DHC-4 Caribou (designated CV-2 and later C-7 in U.S. service) was designed to do the impossible: carry the payload of a medium transport while operating from the tiny, rugged airstrips normally reserved for light bush planes. Known for its incredible Short Take-Off and Landing (STOL) capabilities, the Caribou became an indispensable asset during the Vietnam War, delivering supplies directly to remote Forward Operating Bases that no other fixed-wing aircraft could reach.

Attribute	Technical Specification (DHC-4A)
Úlohu	STOL Tactical Transport
Posádky	3 (Two Pilots, one Loadmaster)
First Flight	August 16, 1958
Pohonná jednotka	2 × Pratt & Whitney R-2000-7M2 Twin Wasp radials
Horsepower	1,450 hp (1,081 kW) each
Takeoff Distance	495 feet (151 m) at full gross weight
Landing Distance	425 feet (130 m)
Payload	32 Troops, 26 Paratroops, or 8,000 lbs of Cargo

Engineering for the Jungle Strip

Double-Slotted Flaps: The Caribou used a sophisticated full-span double-slotted flap system. This allowed the wing to generate massive lift at very low speeds, enabling the aircraft to “climb like a homesick angel” immediately after a short takeoff roll.
Upswept Tail and Rear Ramp: To facilitate rapid loading of vehicles and palletized cargo, the rear fuselage was sharply upswept. This provided a high-clearance rear loading ramp that could be opened in flight for paradrops or used on the ground for drive-on access.
Reversible Pitch Propellers: To achieve its legendary landing distances, the Caribou utilized reversible pitch propellers. Upon touchdown, the pilot could “reverse” the thrust, allowing the aircraft to stop in a distance shorter than its own wingspan.
Long-Stroke Landing Gear: The “bird-like” landing gear was designed with massive shock-absorption capabilities to handle the high sink rates and “controlled crashes” associated with landing on uneven, unpaved terrain.

Operational Legacy: The “Gravel Truck” of Vietnam

Inter-Service Rivalry: The Caribou was so successful at tactical airlift that it sparked a famous dispute between the U.S. Army and Air Force over who should operate fixed-wing transports. Eventually, the Army’s CV-2s were transferred to the USAF as C-7s.
Low-Altitude Extraction (LAPES): The Caribou was a pioneer in the Low Altitude Parachute Extraction System, where cargo was pulled out the rear ramp via parachute while the aircraft flew just feet above the runway.
Durability: The aircraft was built to be simple and maintainable in the field. Its radial engines were reliable and could be serviced with minimal tools in harsh environments.
Global Service: Beyond the US and Canada, the Caribou served with distinction in Australia, India, and Spain. Many are still used today by private contractors for specialized heavy-lift bush operations.
