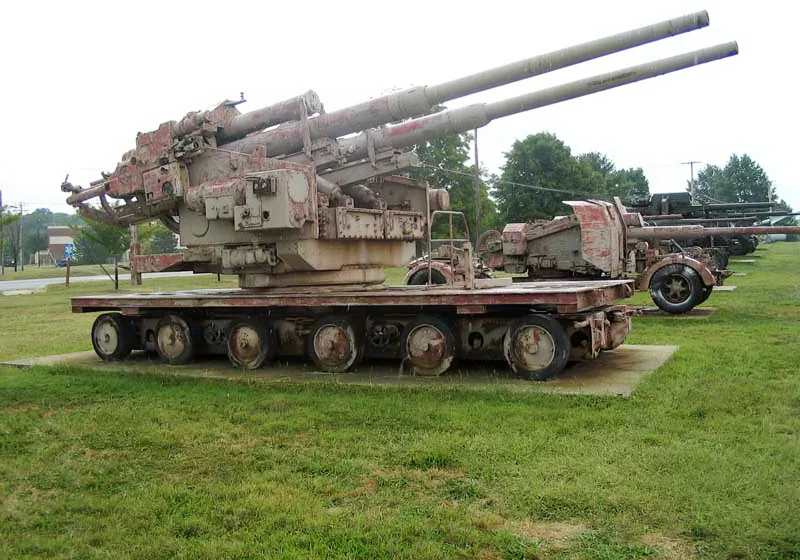

128mm FlaK 40 Zwilling | |
|---|---|
| Country | Nazi Germany |
| Role | Anti-aircraft gun |
| In service | 1942–45 |
| Built | 1125 |
The 12.8 cm FlaK 40 was a German World War II anti-aircraft gun. Although it was not produced in great numbers, it was one of the most effective heavy AA guns of its era.
12.8 cm Flakzwilling 40/2: The 12.8 cm Flak 40 ordnance on a static dual mounting with a total weight of 26 tonnes, capable of firing 20 rounds per minute. Used mainly on flak towers. Production started in 1942 with 10 twin sets produced, another eight in 1943, and in February 1945 a total of 34 were available.
Source: 128mm FlaK 40 Zwilling sur Wikipedia
| 128mm FlaK 40 Zwilling | |
|---|---|
| Photographer | Matthew Flegal |
| Localisation | Unknow |
| Photos | 38 |
See also:
Concept and Design
The 12.8 cm FlaK 40 was designed by Rheinmetall-Borsig starting in 1936 to counter anticipated high-altitude Allied bombers. It was a massive weapon, firing a 26 kg (57 lb) shell to a maximum effective ceiling of nearly 15,000 meters (48,600 ft), well above the reach of most enemy aircraft.
The immense size and weight of the FlaK 40 made it impractical for frontline use, with its total weight in a firing position being over 13,000 kg. This led to its primary deployment in static, defensive roles
The Zwilling Variant
The most recognizable and powerful version was the 12.8 cm FlaK 40 Zwilling. This variant mounted two FlaK 40 barrels side-by-side on a single, heavy, rotating platform. The *Zwilling* (German for “twin”) configuration aimed to double the gun’s volume of fire, dramatically increasing the chance of a hit against fast-moving aircraft.
The Zwilling mount was incredibly heavy, weighing about 26.5 tonnes, cementing its role as a completely immobile defense system. It was highly complex and costly to produce, with only around 34 units completed by the end of the war.
Deployment and Impact
The FlaK 40 Zwilling guns were almost exclusively mounted atop the massive, heavily fortified concrete anti-aircraft towers, known as Flaktürme (Flak Towers), constructed in major German cities like Berlin, Hamburg, and Vienna.
These guns were the heavy backbone of the *Reich’s* home defense, utilizing complex Kommandogerät fire-control systems to direct their fire. During the final battles for Germany, particularly the Battle of Berlin, the Flak Towers were used as citadels and their massive 128 mm guns were depressed to fire on Soviet ground targets, including tanks, proving highly effective in a secondary anti-tank role.
Key Specifications (Zwilling)
- Caliber: 128 mm (5.03 in)
- Rate of Fire: Up to 20 rounds per minute (total for both barrels)
- Shell Weight: 26 kg (57 lb 5 oz)
- Maximum Effective Ceiling: 14,800 m (48,560 ft)
