M18 Hellcat

M18 Hellcat
Šalies	Jav
Vaidmenį	Tankų naikintuvas
Pagamintas	1943 m. liepa – 1944 m. spalis
Pastatytas	2507

2007 M18 Hellcat (officially designated the 76 mm Gun Motor Carriage M18 or M18 GMC) was an American tank destroyer of World War II, also used in the Korean War. It was the fastest U.S. tank on the road. The speed was attained by keeping armor to a minimum, using the innovative Torqmatic automatic transmission, and by equipping the relatively light vehicle with the same main gun used on the much larger Sherman tank. The Hellcat was the most effective U.S. tank destroyer of World War II. It had a higher kill to loss ratio than any other tank or tank destroyer fielded by U.S. forces in World War II.

Šaltinis: M18 Hellcat wiki

M18 Hellcat Walk Around
Fotografas	Maiklas Benolkinas
Lokalizavimo	Nežinoti
Nuotraukos	23

M18 Hellcat 01

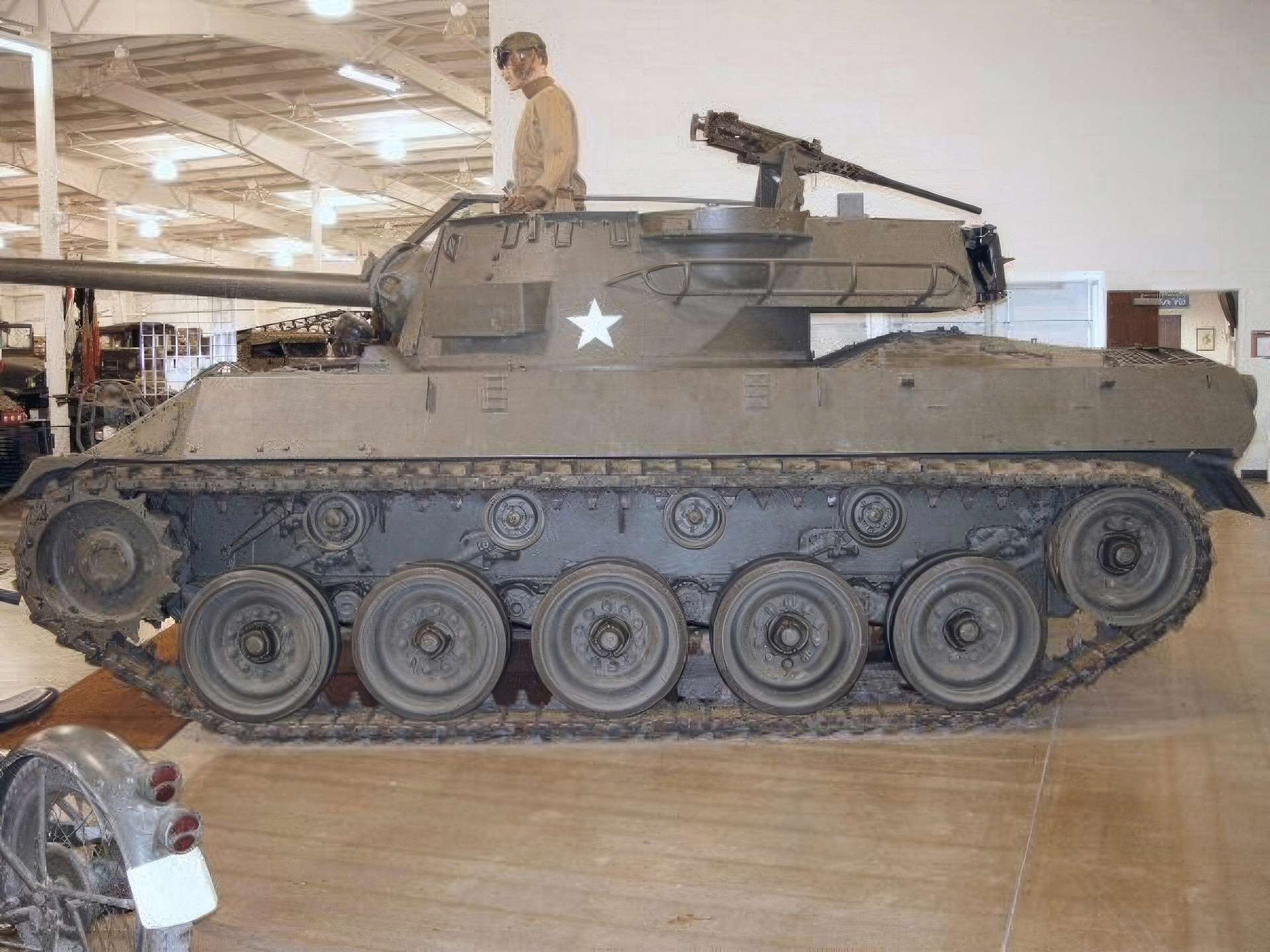

M18 Hellcat 02

M18 Hellcat 03

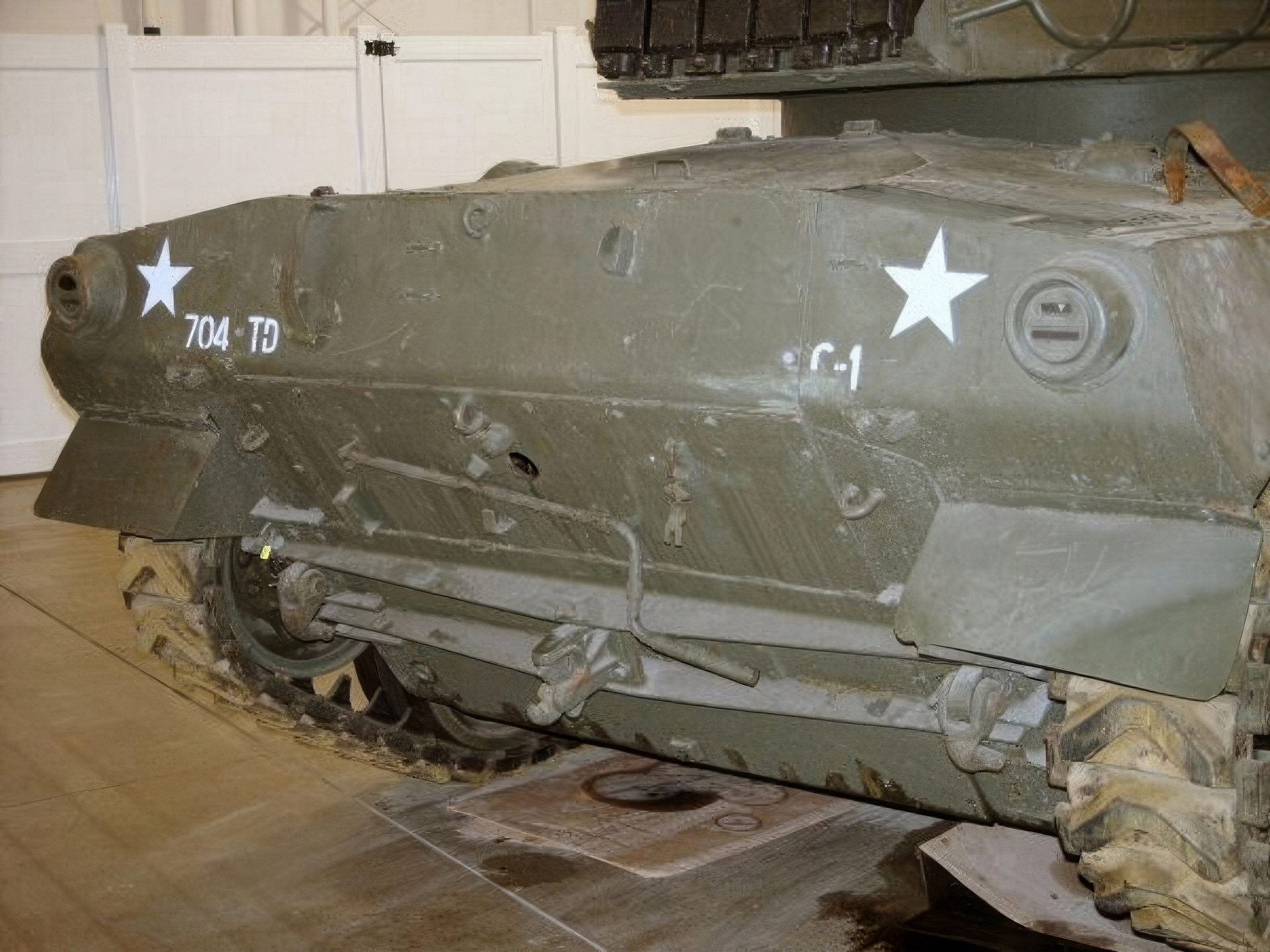

M18 Hellcat 05

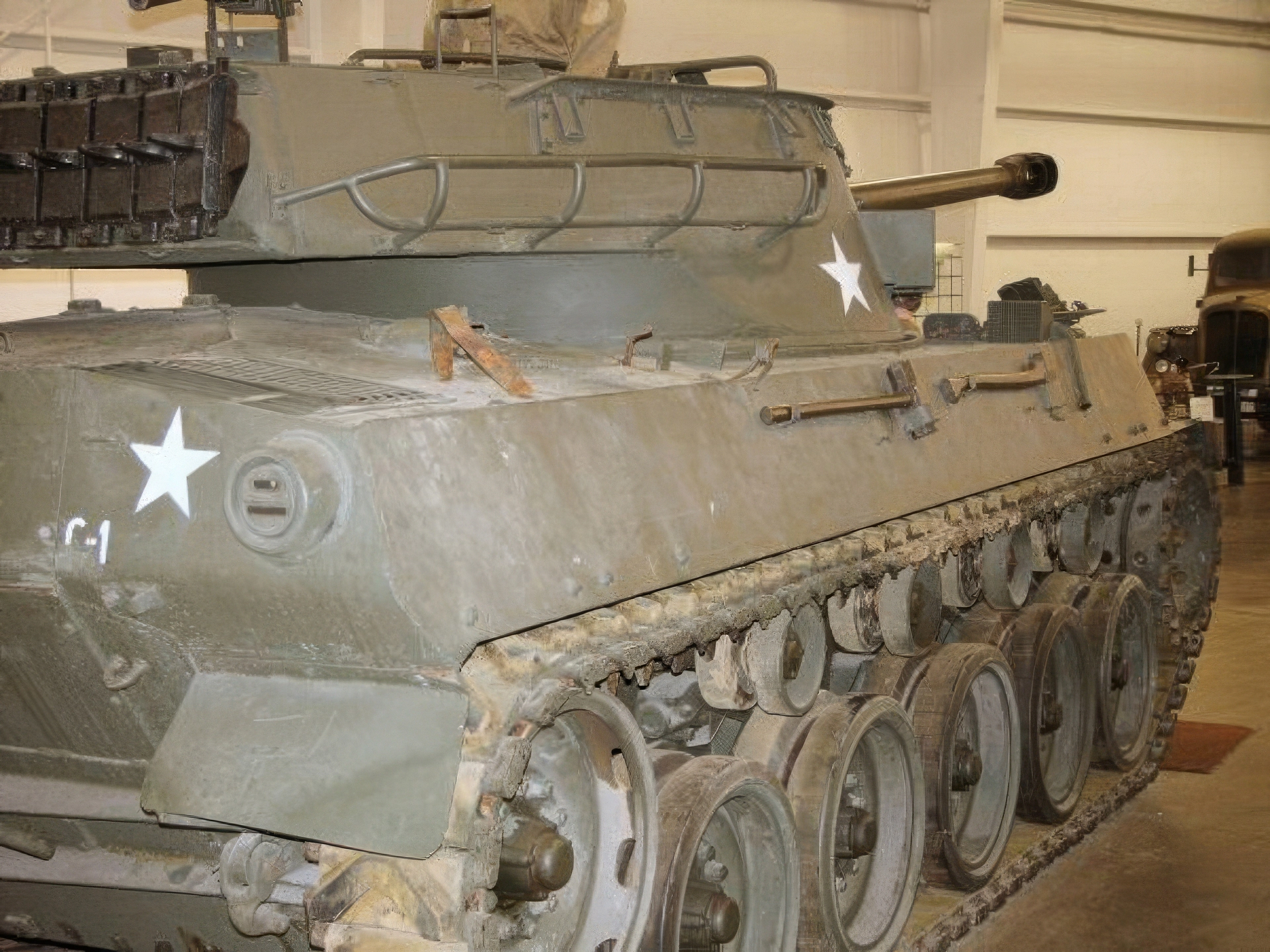

M18 Hellcat 06

M18 Hellcat 07

M18 Hellcat 08

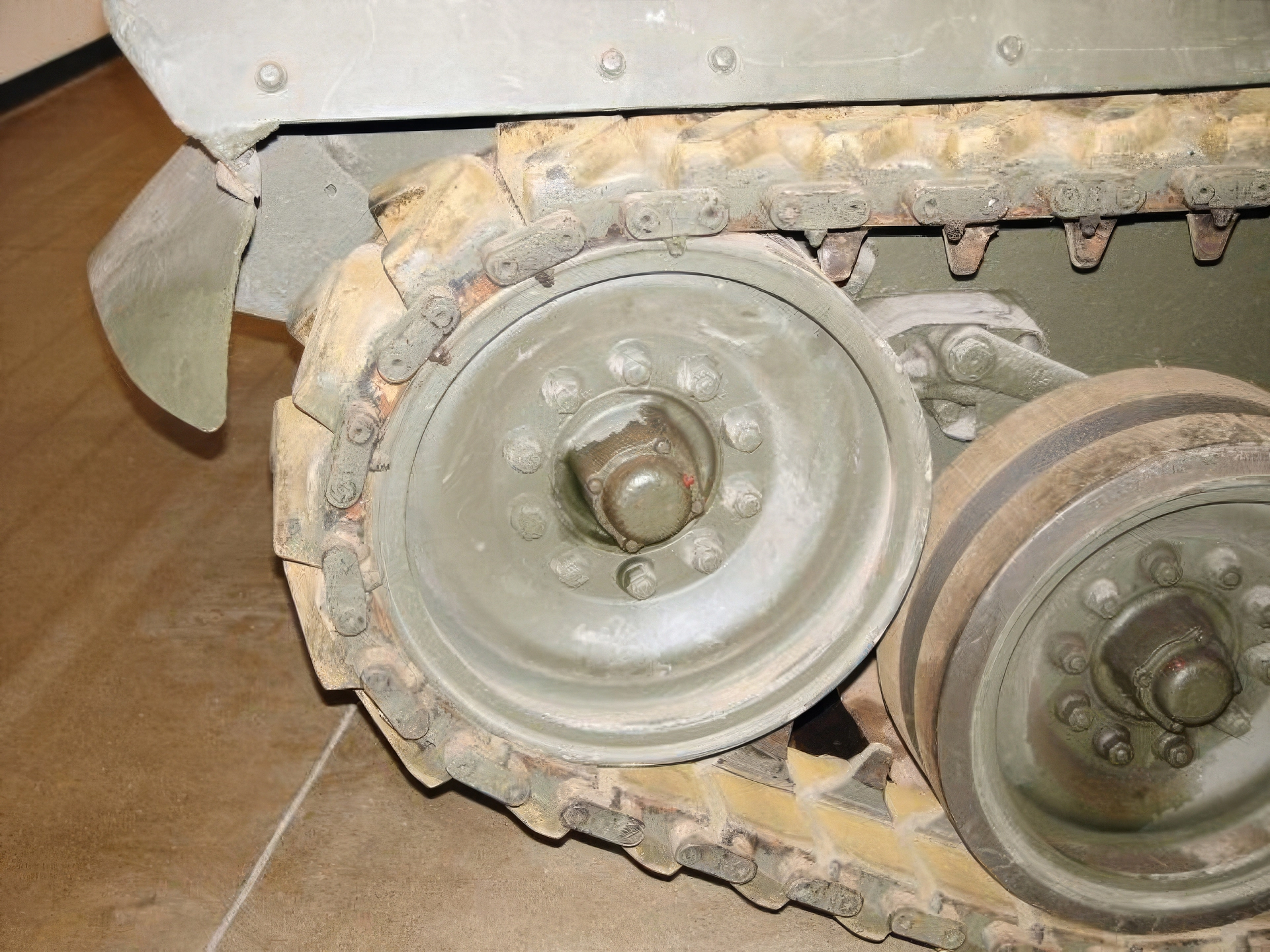

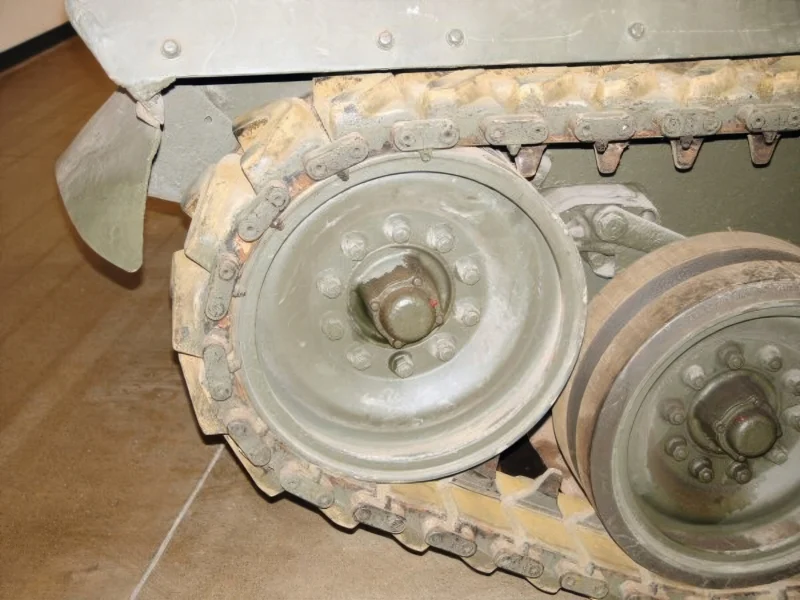

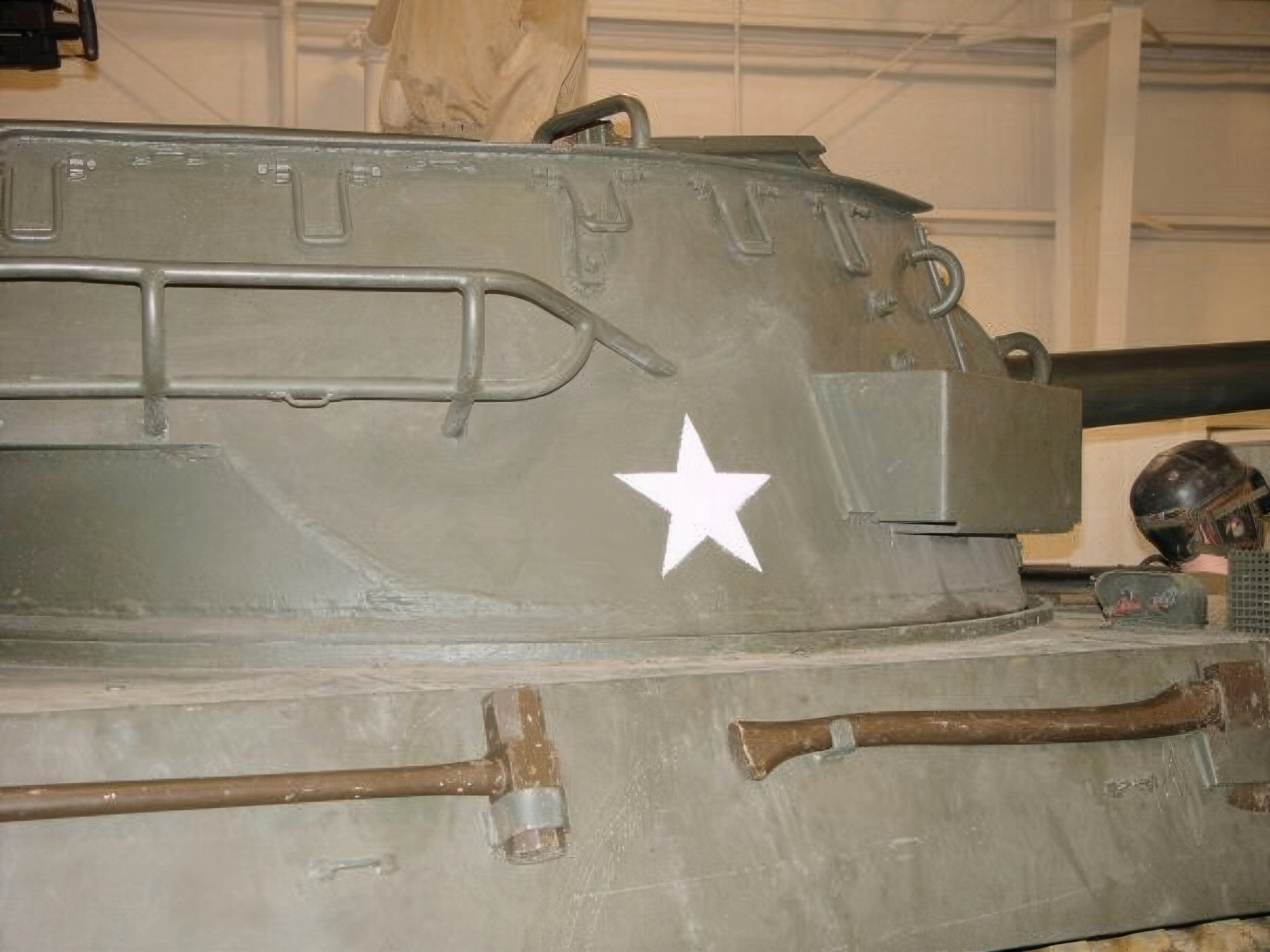

M18 Hellcat 09

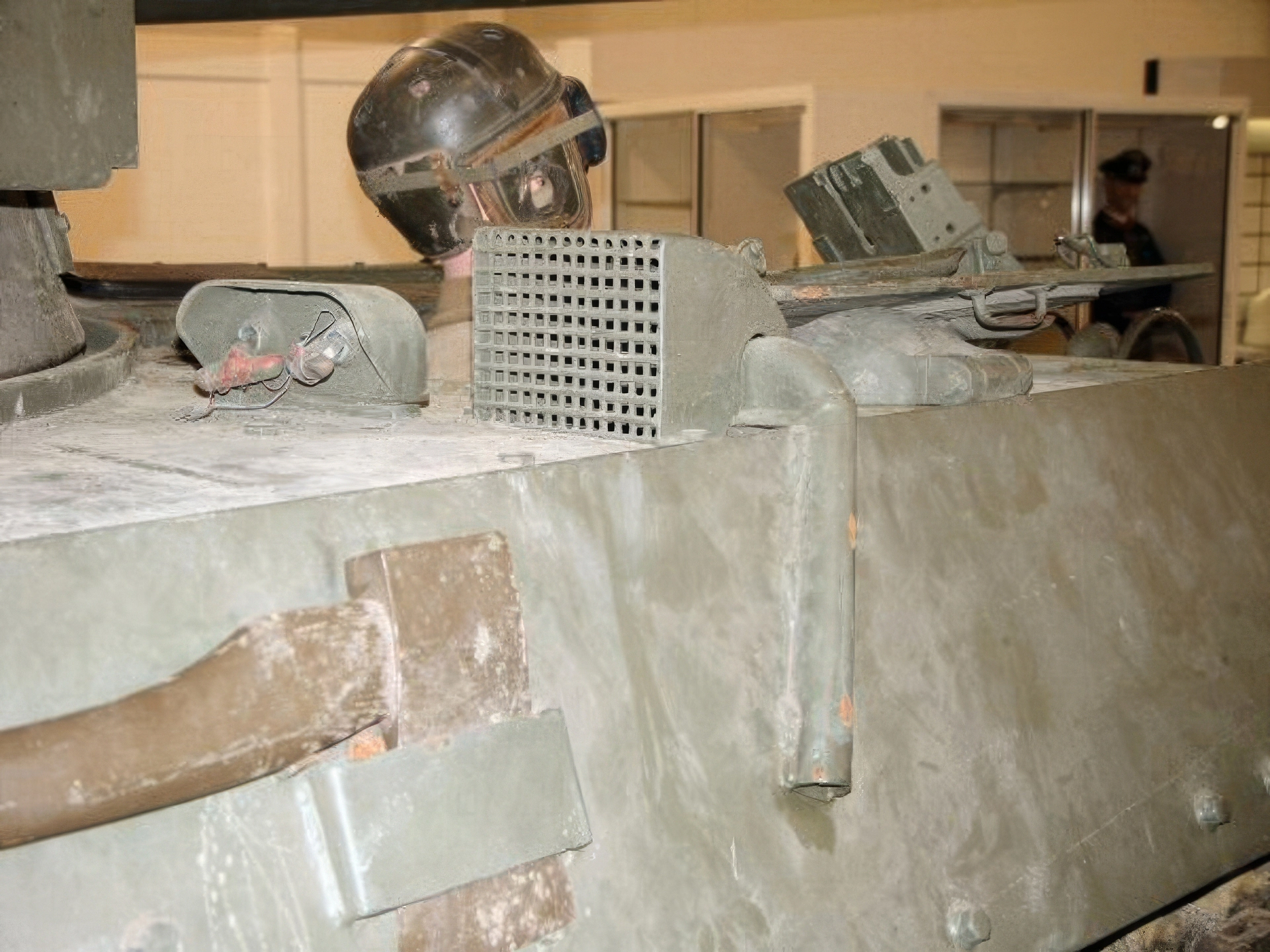

M18 Hellcat 10

Click on a photo and use the mouse scroll to view all photos

Palaukite, ieškodami M18 Hellcat už jus...

M18 Hellcat Walk Around
Fotografas	Nežinoti
Lokalizavimo	Nežinoti
Nuotraukos	81

M18 Hellcat

Įkelti daugiau...

Palaukite, ieškodami M18 Hellcat už jus...

Taip pat žiūrėkite:

Tank Destroyer M18 Hellcat Walk Around
Fotografas	Nežinoti
Lokalizavimo	Nežinoti
Nuotraukos	41

Tankų naikintuvas M18 Hellcat

Įkelti daugiau...

General Characteristics and Role

The M18 Hellcat (officially the 76 mm Gun Motor Carriage M18) was an American bako naikintuvas used during World War II. It was designed to prioritize speed and mobility over armor protection, adhering to the US Army doctrine that tank destroyers should be fast enough to maneuver around and flank heavy enemy tanks. With a top speed of over 80 km/h, the Hellcat was the fastest tracked armored vehicle in service at the time. It featured a powerful 76 mm high-velocity gun in an open-topped turret, making it highly effective against the German Panther and Tiger tanks when employed correctly. Its light armor, however, made it extremely vulnerable to enemy fire.

Property	Typical Value
Vaidmenį	Tank Destroyer (Self-Propelled Anti-Tank Gun)
National Origin	Jungtinės Amerikos Valstijos
Gamintojas	Buick (General Motors)
Service Entry	July 1943
Įgulos	5 (Commander, Gunner, Loader, Driver, Co-driver)
Length (Gun Forward)	6.68 m (21 ft 11 in)
Plotis	2.87 m (9 ft 5 in)
Aukštis	2.57 m (8 ft 5 in)
Weight (Mass)	Approx. 17,700 kg (19.5 short tons)

Powerplant and Performance

Engine: Continental R-975-C4 9-cylinder, air-cooled radial engine.
Power Output: 298 kW (400 hp).
Transmission: Torqmatic automatic transmission.
Maximum Speed: 89 km/h (55 mph) on road (Fastest tank destroyer of the war).
Operational Range: 168 km (105 mi).

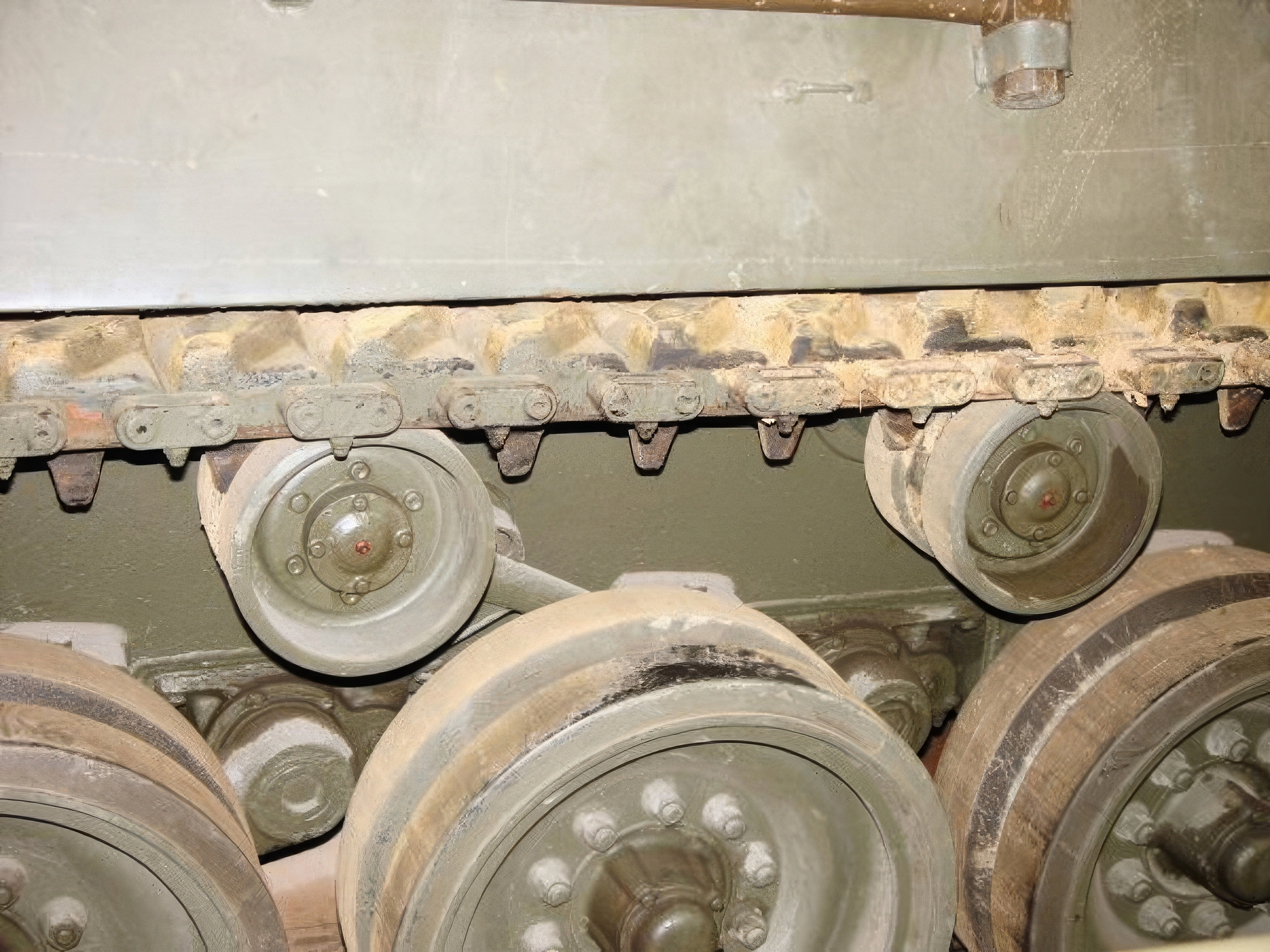

Suspension: Torsion bar suspension (unlike the VVSS of the Sherman tank), contributing to its excellent cross-country speed.

Armament and Protection

Primary Armament: 1 x 76 mm M1 high-velocity gun (open-topped turret).
Ammunition: Carried up to 45 rounds of 76 mm ammunition.

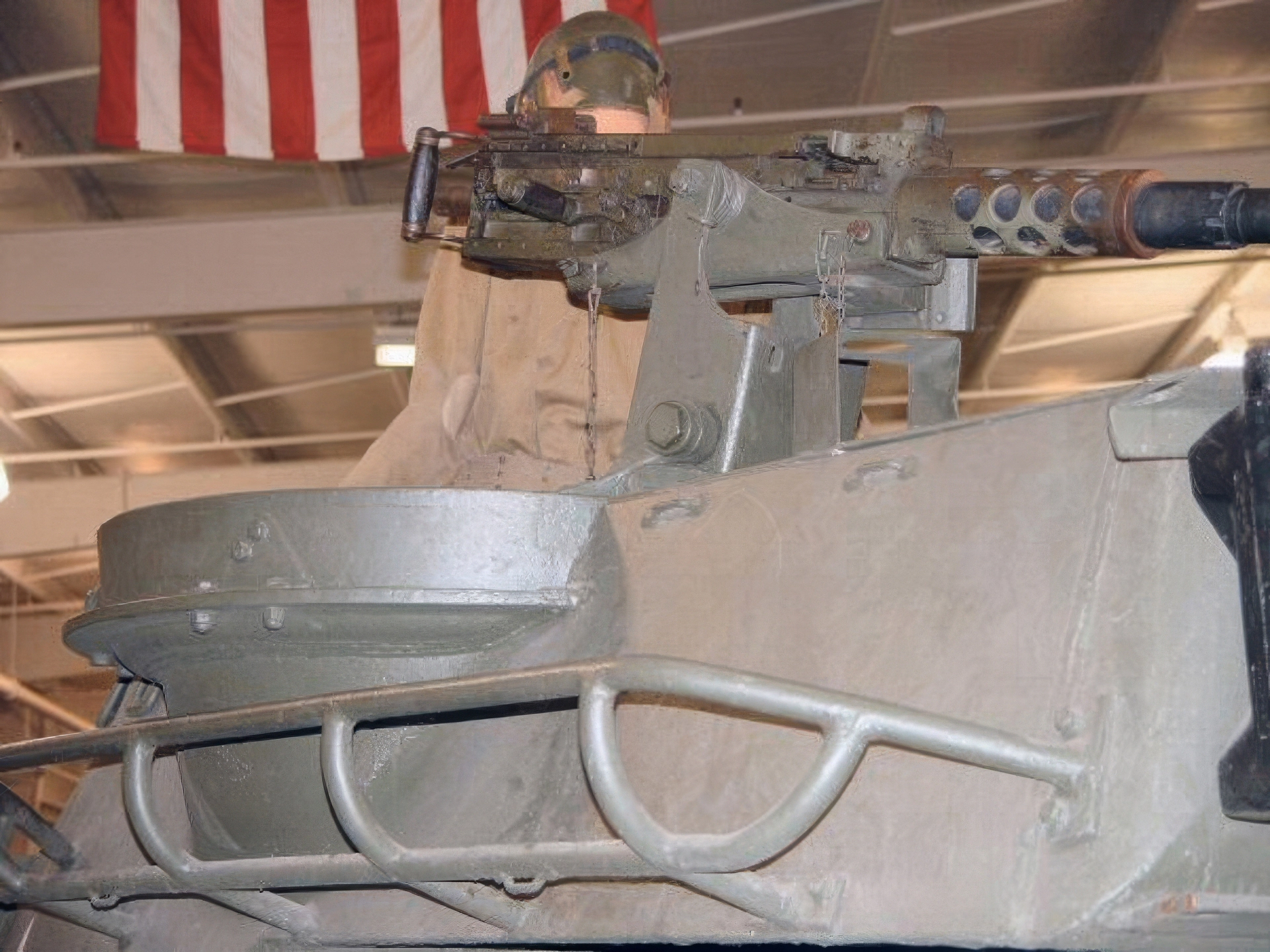

Secondary Armament: 1 x .50 in (12.7 mm) Browning M2 heavy machine gun (mounted on the turret rear).
Armor: Very light. Hull front was only 13 mm (0.5 in) thick, and the turret was 13 mm. This was a deliberate trade-off for speed and was its main vulnerability.
Open Turret: The open-topped turret provided excellent visibility for the crew and allowed for quick escape, but made the crew highly vulnerable to artillery shrapnel, snipers, and grenades.
