M110A2榴弾砲 | |
|---|---|
| 国 | 米国 |
| 役割 | 榴弾 砲 |
| 戦争 | ベトナム戦争 イラン・イラク戦争 1982 年 レバノン戦争湾岸戦争 |
写真のガレリー M110A2榴弾砲、8インチ(203ミリメートル)のM110自走榴弾砲は、アメリカ陸軍の在庫で利用可能な最大の自走榴弾砲でした。●一般支援大隊や、部隊レベルと陸軍レベルの別々の大隊で師団砲兵に配備されました。ミッションには、一般的なサポート、対バッテリー火災、敵の防空システムの抑制が含まれます。M110は多くの国に輸出されました。M110A2は二重銃口ブレーキを備えた最新バージョンで、以前のA1バージョンは無地の銃口を持っていました。
ソース： M110A2 榴弾砲オンウィキペディア
| M110A2 Howitzer | |
|---|---|
| カメラマン | 知りません |
| ローカライズ | 知りません |
| 写真 | 55 |
M110A2榴弾砲01
M110A2榴弾砲02
M110A2榴弾砲03
M110A2榴弾砲04
M110A2榴弾砲05
M110A2榴弾砲06
M110A2榴弾砲07
M110A2榴弾砲08
M110A2榴弾砲09
コーヒーを買って待って、検索M110A2榴弾砲.
| M110 Self Propelled 203mm Howitzer Walk Around | |
|---|---|
| カメラマン | ビル・マロニー |
| ローカライズ | 知りません |
| 写真 | 13 |
M110 Self Propelled 203mm Howitzer 01
M110 Self Propelled 203mm Howitzer 02
M110 Self Propelled 203mm Howitzer 03
M110 Self Propelled 203mm Howitzer 04
M110 Self Propelled 203mm Howitzer 05
M110 Self Propelled 203mm Howitzer 06
M110 Self Propelled 203mm Howitzer 07
M110 Self Propelled 203mm Howitzer 08
M110 Self Propelled 203mm Howitzer 09
| M110A1 8 Inch Self Propelled Howitzer Walk Around | |
|---|---|
| カメラマン | ビル・マロニー |
| ローカライズ | ニューイングランド南部軍事博物館 |
| 写真 | 19 |
M110A1 8 Inch Self Propelled Howitzer 01
M110A1 8 Inch Self Propelled Howitzer 02
M110A1 8 Inch Self Propelled Howitzer 03
M110A1 8 Inch Self Propelled Howitzer 04
M110A1 8 Inch Self Propelled Howitzer 05
M110A1 8 Inch Self Propelled Howitzer 06
M110A1 8 Inch Self Propelled Howitzer 07
M110A1 8 Inch Self Propelled Howitzer 08
M110A1 8 Inch Self Propelled Howitzer 09
関連項目:
| M110 Self Propelled Howitzer Walk Around | |
|---|---|
| カメラマン | Bill Maloney |
| ローカライズ | アレゲニー アームズ アンド アーマー ミュージアム |
| 写真 | 20 |
M110 Self Propelled Howitzer 01
M110 Self Propelled Howitzer 02
M110 Self Propelled Howitzer 03
M110 Self Propelled Howitzer 04
M110 Self Propelled Howitzer 05
M110 Self Propelled Howitzer 06
M110 Self Propelled Howitzer 07
M110 Self Propelled Howitzer 08
M110 Self Propelled Howitzer 09
| M110 A2 Walk Around | |
|---|---|
| カメラマン | Unknow |
| ローカライズ | 知りません | 写真 | 61 |
待って、検索M110A2榴弾砲.
Heavy Artillery for High Stakes
ザ M110A2 was the ultimate evolution of the M110 series, designed to provide long-range, heavy-fire support to NATO corps. Unlike the turreted M109, the M110A2 featured an open-mount design to accommodate its massive 8-inch (203mm) barrel. It was a weapon of extremes: it could fire a 200-pound shell over 30 kilometers with pinpoint accuracy, or deliver tactical nuclear warheads to blunt a Soviet armored thrust. By the time the A2 variant arrived in 1978, it featured a massive double-baffle muzzle brake and a longer barrel to maximize the range of the newest high-explosive projectiles.
| Attribute | Technical Specification (M110A2) |
|---|---|
| 役割 | Self-Propelled Heavy Howitzer |
| 乗組員 | 5 on vehicle (up to 8 additional in support vehicle) |
| 口径 | 203 mm (8 inches) |
| Barrel Length | M201A1 cannon (approx. L/37) |
| Maximum Range | 22,900 m (Standard) / 30,000 m (Rocket Assisted) |
| Rate of Fire | 1 round every 2 minutes (Sustained) / 1.5 per minute (Burst) |
| エンジン | Detroit Diesel 8V71T Turbocharged (405 hp) |
| Combat Weight | 28.3 tonnes |
Design Engineering: Physics of the Big Gun

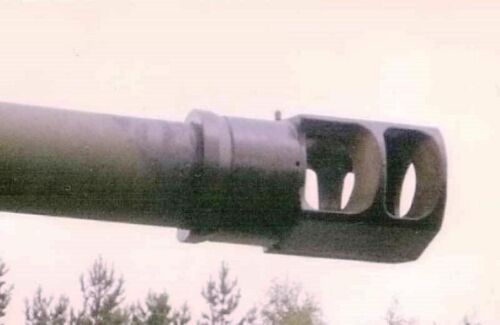

- The Double-Baffle Muzzle Brake: To handle the violent recoil of the 8-inch shells, the A2 variant was equipped with a large muzzle brake. This diverted the gasses outward and forward, pulling the barrel “away” from the vehicle during firing to reduce the stress on the chassis.
- The Rear Hydraulic Spade: Because the vehicle was relatively light compared to the size of its gun, it would literally flip over or roll backward from the recoil if not anchored. A massive hydraulic spade was lowered into the earth at the rear to transfer the energy of the shot directly into the ground.
- The Loader-Rammer: Loading a 200lb shell by hand is impossible for a sustained period. The M110A2 used a hydraulic loading arm at the rear that lifted the shell from the ground or a support truck and rammed it into the breech automatically.
- Open-Air Vulnerability: To keep the weight down and allow for the gun’s massive traverse and elevation, the crew worked in the open. They had zero protection from small arms fire, shrapnel, or NBC (Nuclear, Biological, Chemical) threats while firing, relying on speed and distance for survival.
Operational History: The Corps Level Asset
- Nuclear Capability: During the Cold War, M110 units were a key part of NATO’s tactical nuclear deterrent, trained to fire the W33 and later the W79 nuclear shells.
- Operation Desert Storm: The M110A2 saw its final major combat service during the 1991 Gulf War. British and American units used them to pulverize Iraqi fortifications, as the 8-inch shell’s explosive yield was significantly more effective than the standard 155mm for destroying deep bunkers.
- The MLRS Replacement: The US Army retired the M110A2 in the 1990s, replacing its role with the M270 MLRS (Multiple Launch Rocket System), which offered even greater range and area saturation with fewer crew requirements.
- Global Survivors: While retired by the US, the M110A2 remains in service with countries like Taiwan, Japan, and Turkey, where its massive “firepower per shot” is still highly valued for coastal and mountain defense.
