カロ・レッジェロ 3/35 | |
|---|---|
| 国 | イタリア |
| 型 | シェニレット |

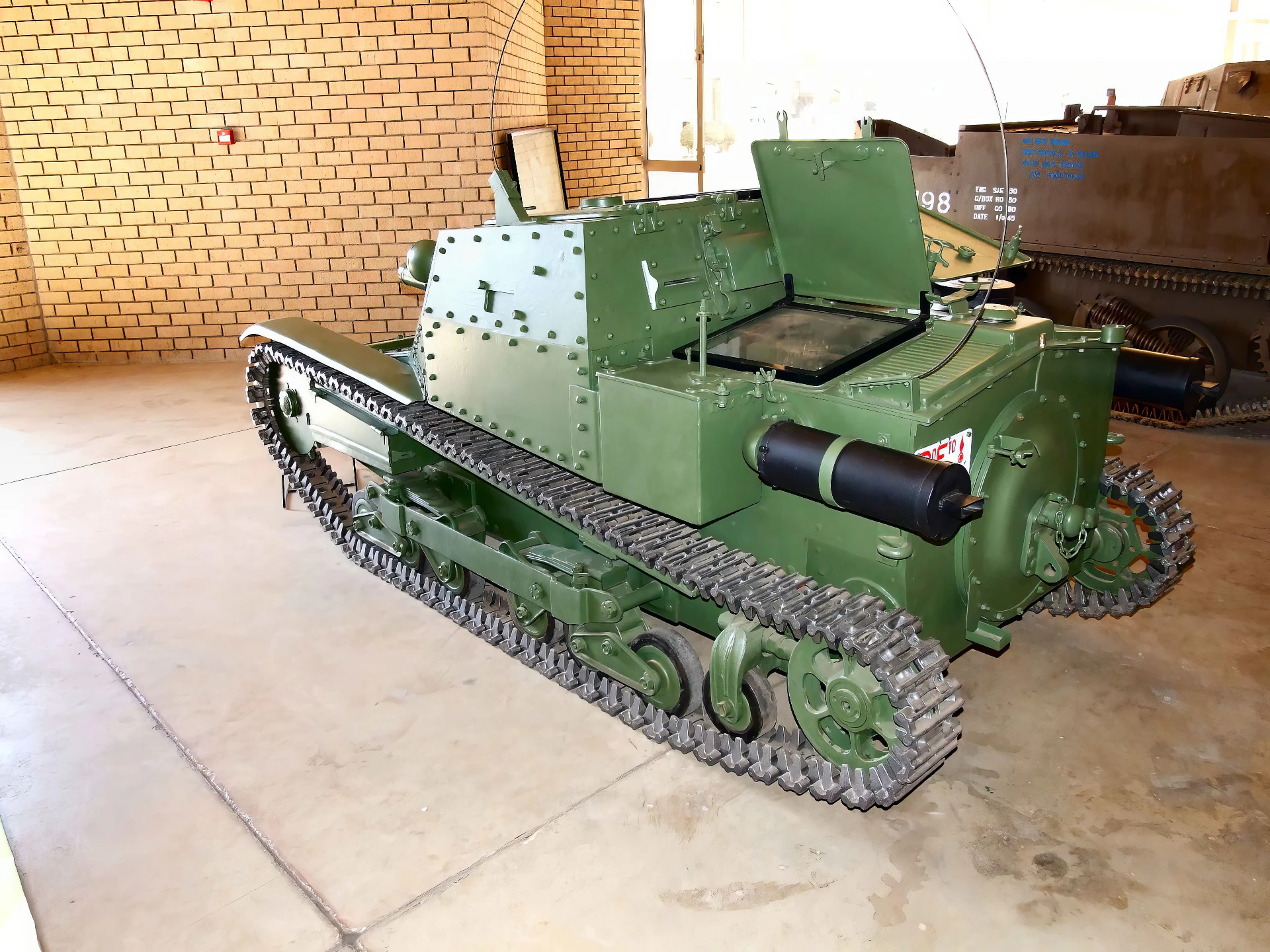

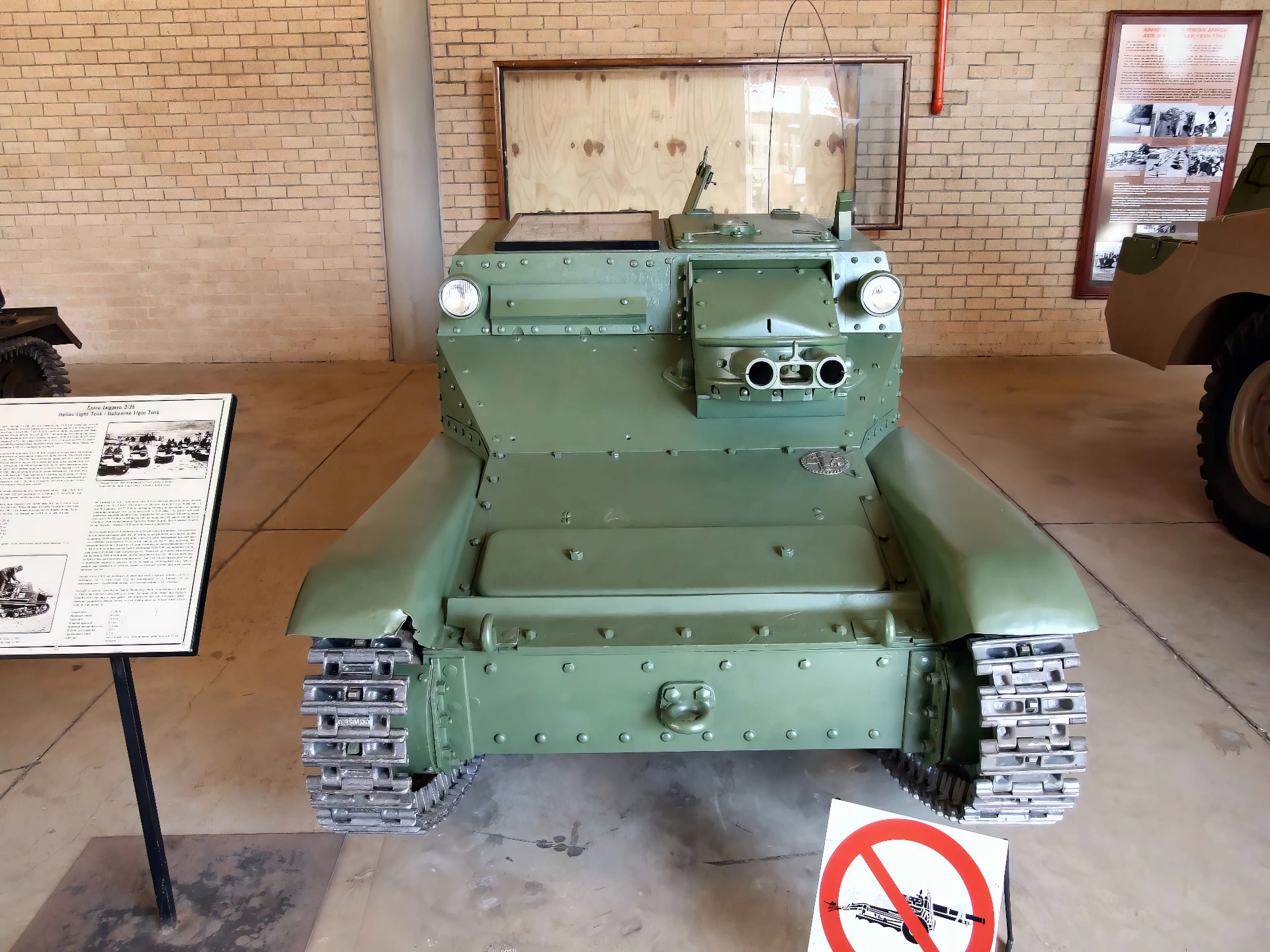

カロ・レッジェロ3/35、ラ・シェニレットのフォトギャラリー L3 は、第二次世界大戦前および第二次世界大戦中に使用されているイタリアの毛虫のシリーズです。彼らはイギリスカーデン・ロイド・マーク6世から開発されました。2人の乗組員と、重量は6から14のmm(前部)の装甲と3.2トンである。
| CV35 Lanciafiamme | |
|---|---|
| カメラマン | パオロ・ファニン |
| ローカライズ | 知りません |
| 写真 | 16 |

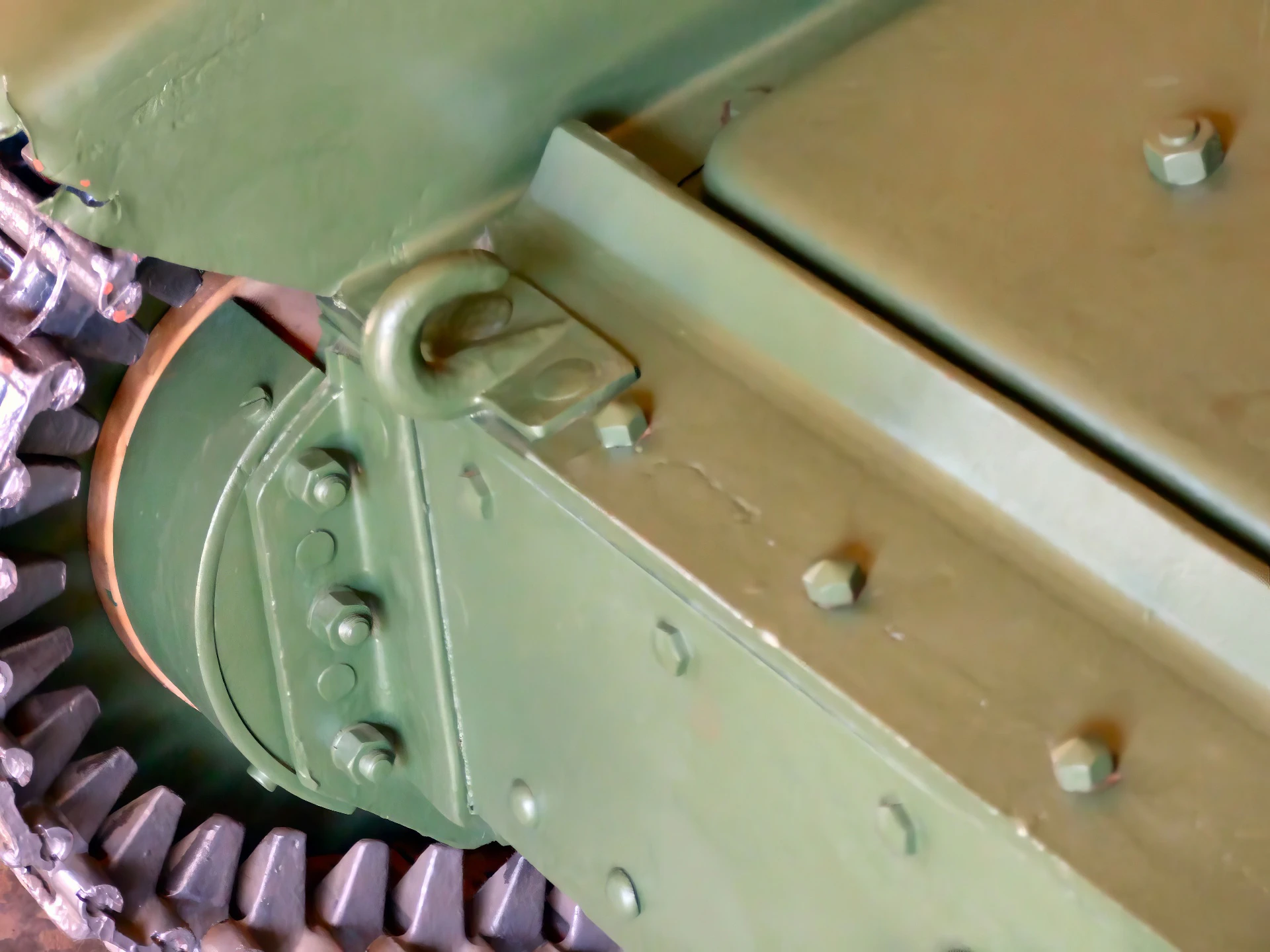

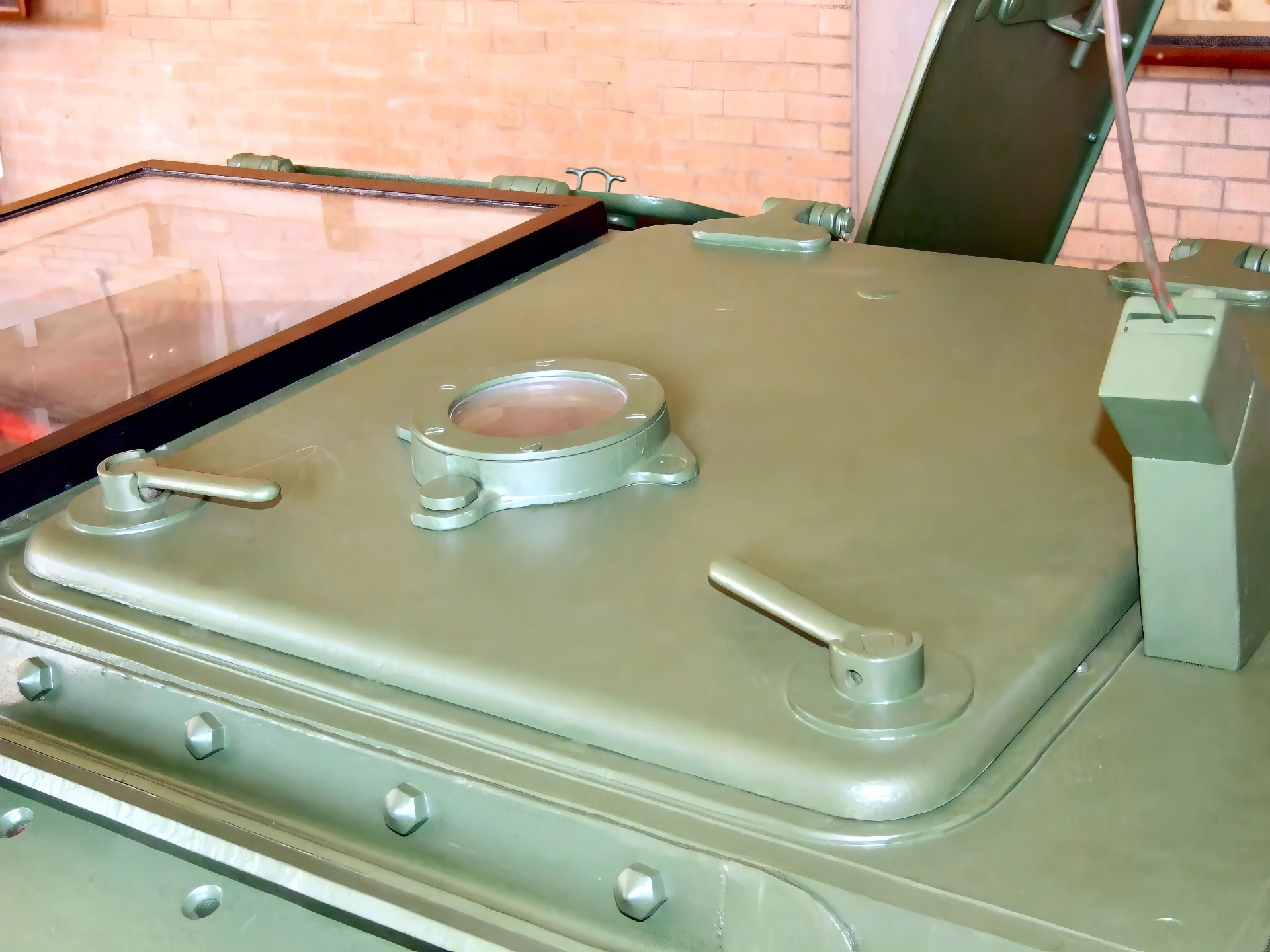

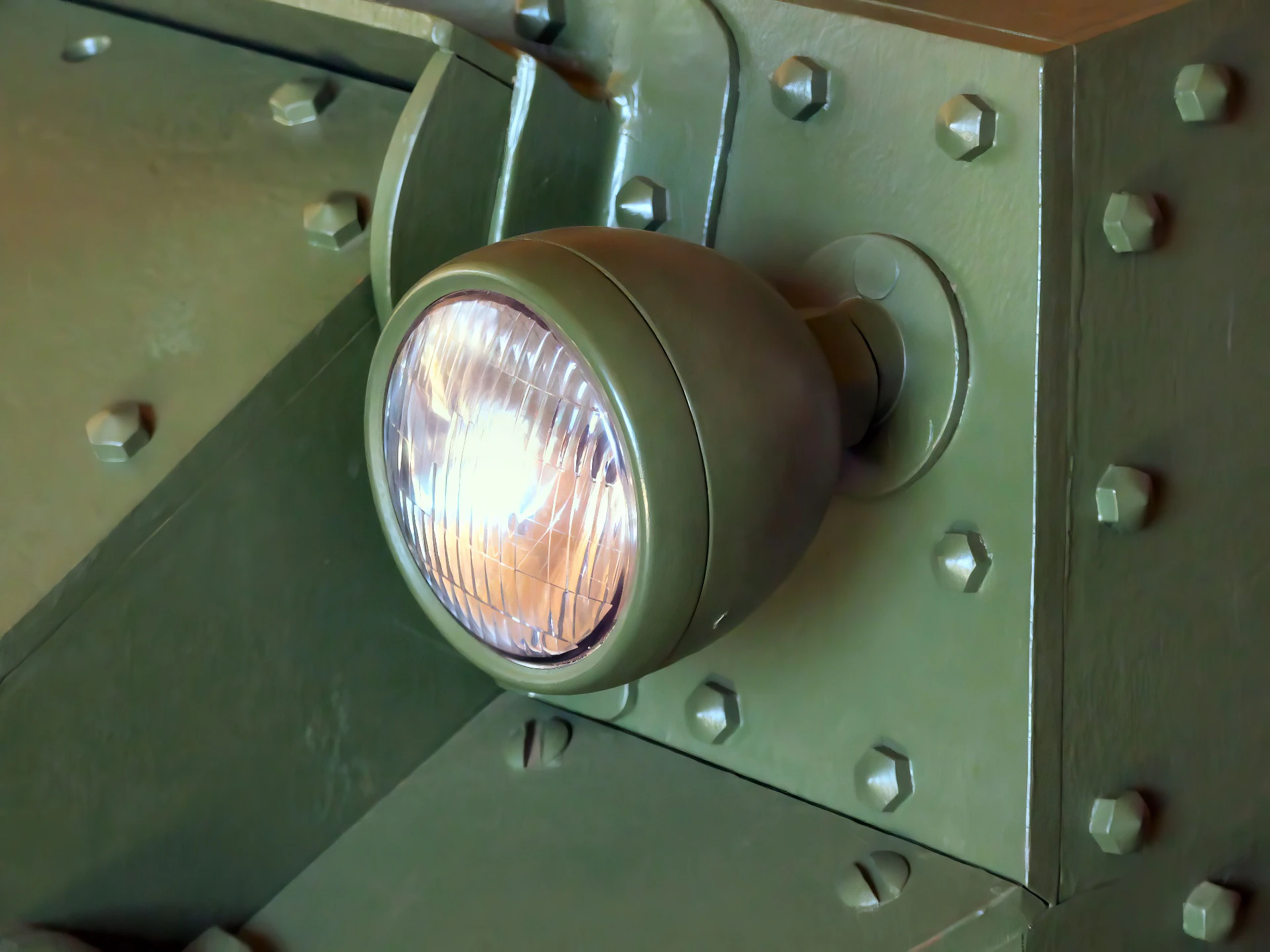

| Carro Leggero 3/35 – Walk Around | |
|---|---|
| カメラマン | 知りません |
| ローカライズ | 知りません |
| 写真 | 22 |
関連項目:
General Characteristics and Role
The CV35 Lanciafiamme (Flamethrower) was a specialized variant of the Italian L3/35 tankette, originally designated as the Carro Veloce (CV, “Fast Tank”). These tiny, two-man armored vehicles were a key part of Italy’s armored forces in the 1930s and during the early stages of World War II. The Lanciafiamme variant replaced one of the standard machine guns with a fixed flamethrower nozzle. This configuration was intended for close-quarters infantry support, particularly for clearing enemy fortifications, pillboxes, and entrenched positions where its flame weapon was devastating. Despite its heavy weapon, the L3/35 chassis was critically limited by thin armor and a lack of mobility off-road, making the flamethrower variant highly vulnerable to anti-tank fire and even heavy machine gun fire.
| Property | Typical Value (CV35 Lanciafiamme) |
|---|---|
| 役割 | Flamethrower Tankette, Close Support |
| National Origin | イタリア |
| メーカー | Fiat-Ansaldo |
| Service Entry (L3/35) | 1935 |
| 乗組員 | 2 (Driver, Gunner/Flamethrower Operator) |
| 主砲 | Flamethrower (nozzle mounted in a ball mount) |

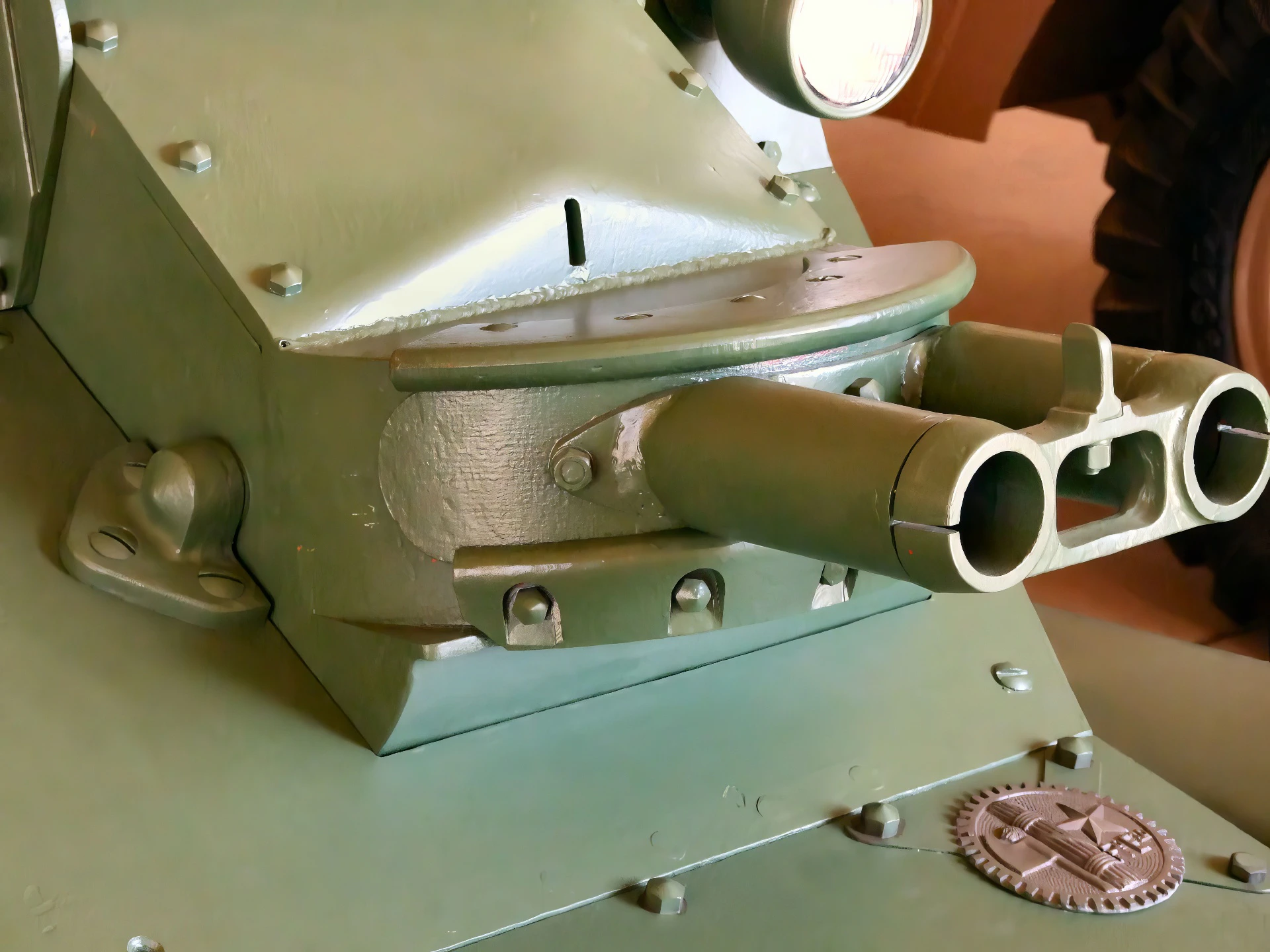

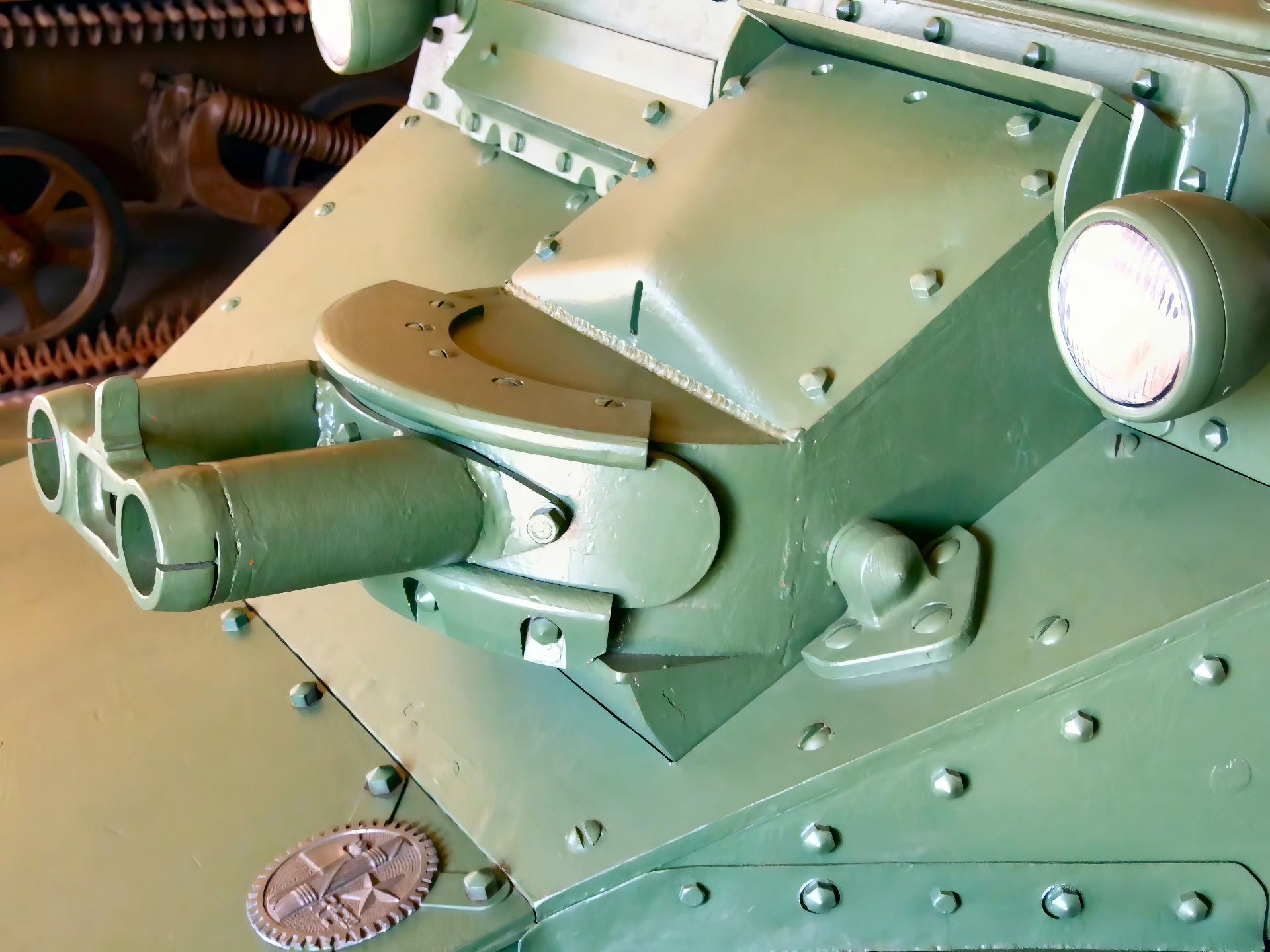

| 副武装 | 1 x 6.5 mm machine gun (sometimes fitted) |
| 長さ | 3.17 m (10 ft 5 in) |
| 幅 | 1.40 m (4 ft 7 in) |
| 高さ | 1.28 m (4 ft 2 in) |
| Combat Weight | 4.2 tonnes (4.6 short tons) |
Powerplant and Performance
- Engine: 1 x Fiat SPA CV3 4-cylinder water-cooled gasoline engine.
- Power Output: 32 kW (43 hp).
- Maximum Speed (Road): 42 km/h (26 mph).
- Range (Road): 125 km (78 mi).

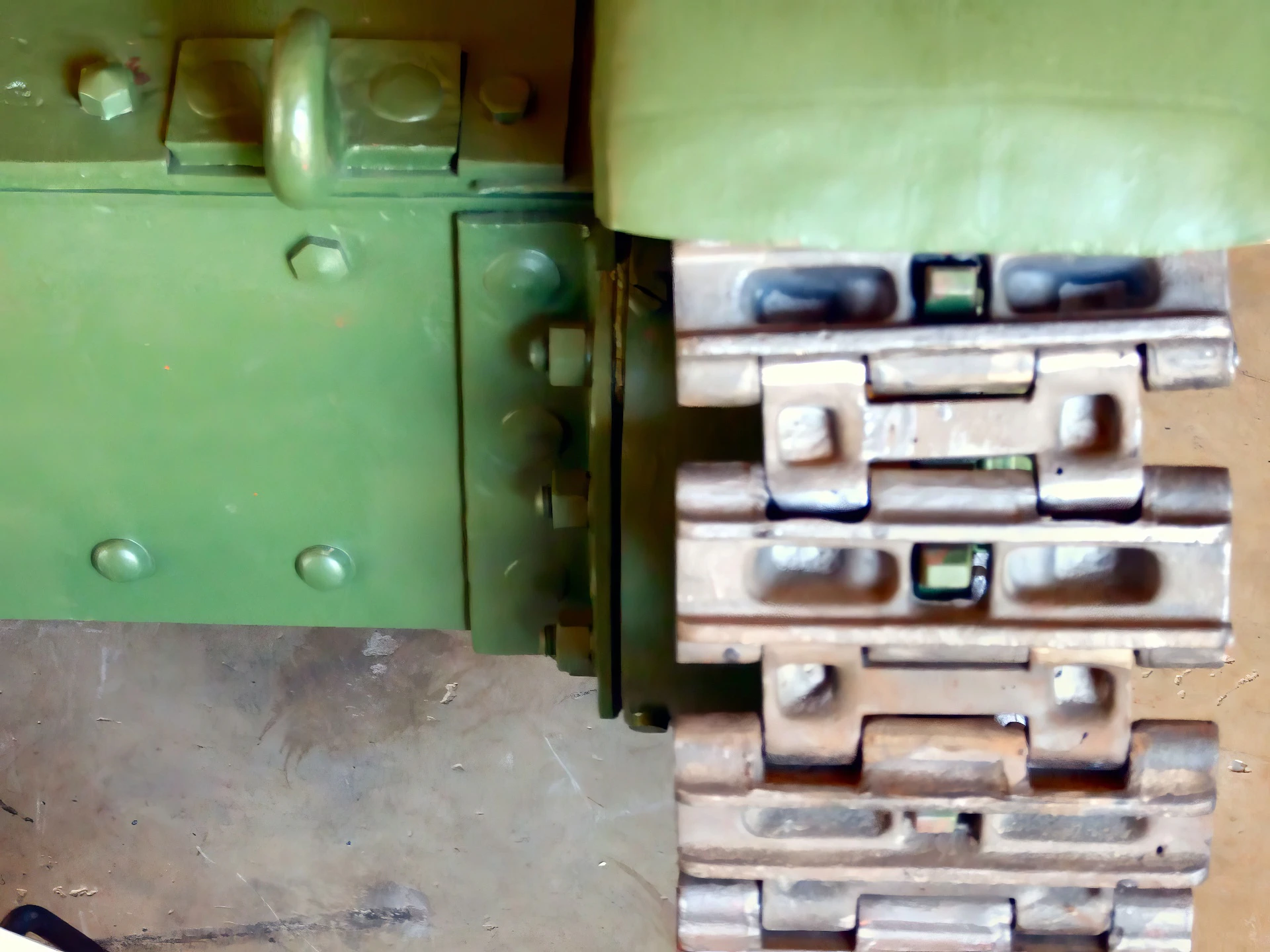

- Suspension: Bogie system on leaf springs.
Flamethrower System and Protection
- Flamethrower System: Flamethrower nozzle fed by a large armored trailer or a tank mounted on the rear deck.
- Fuel Capacity: 500 liters (132 US gallons) of fuel/tar mixture in a towed trailer; 60 liters (16 US gallons) in the vehicle-mounted tank.
- Range (Flamethrower): Up to 20 meters (66 ft) with the fuel mixture.
- Armour: Riveted steel plate, 6 mm to 12 mm thick. This provided inadequate protection, especially on the thin side armor.
- Operational Use: Used extensively in the Abyssinian campaign (Ethiopia), the Spanish Civil War, and limited use in North Africa and the Eastern Front early in WWII.
