Morane-Saulnier MS.315

Morane-Saulnier MS.315
Ország	Franciaország
Típus	Alapkiképző
Első repülés	1932
Beépített	356

A Morane-Saulnier MS.315 egy alapkiképző egysíkú repülőgép volt, amelyet Morane-Saulnier tervezett és épített Franciaországban.

Forrás: Morane-Saulnier MS.315 a Wiki

Morane-Saulnier MS.315 Walk Around
Fotós	Ismeretlen
Lokalizáció	Ismeretlen
Fénykép	12

Morane-Saulnier MS.315 1

Morane-Saulnier MS.315 2

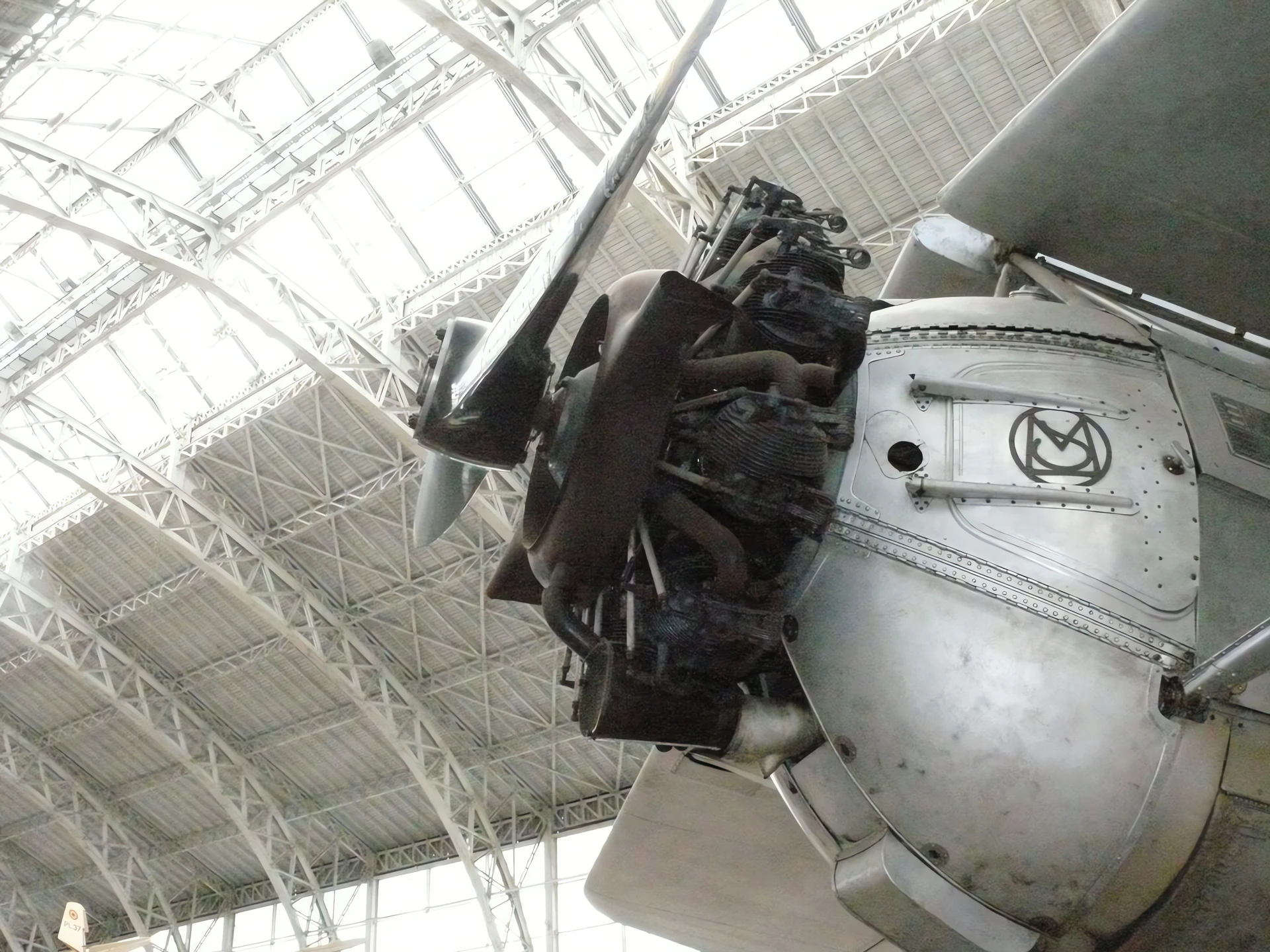

Morane-Saulnier MS.315 3

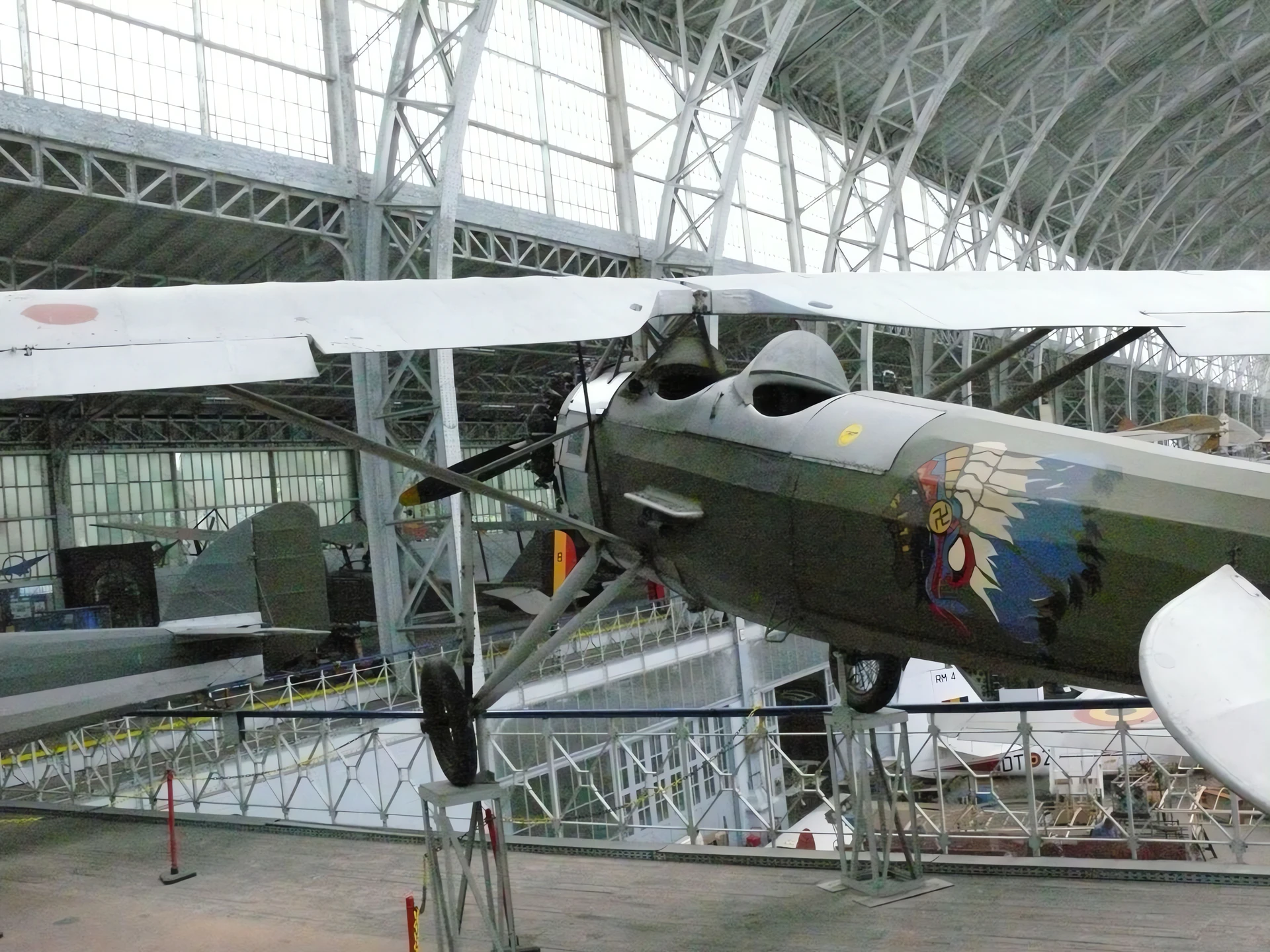

Morane-Saulnier MS.315 4

Morane-Saulnier MS.315 5

Morane-Saulnier MS.315 6

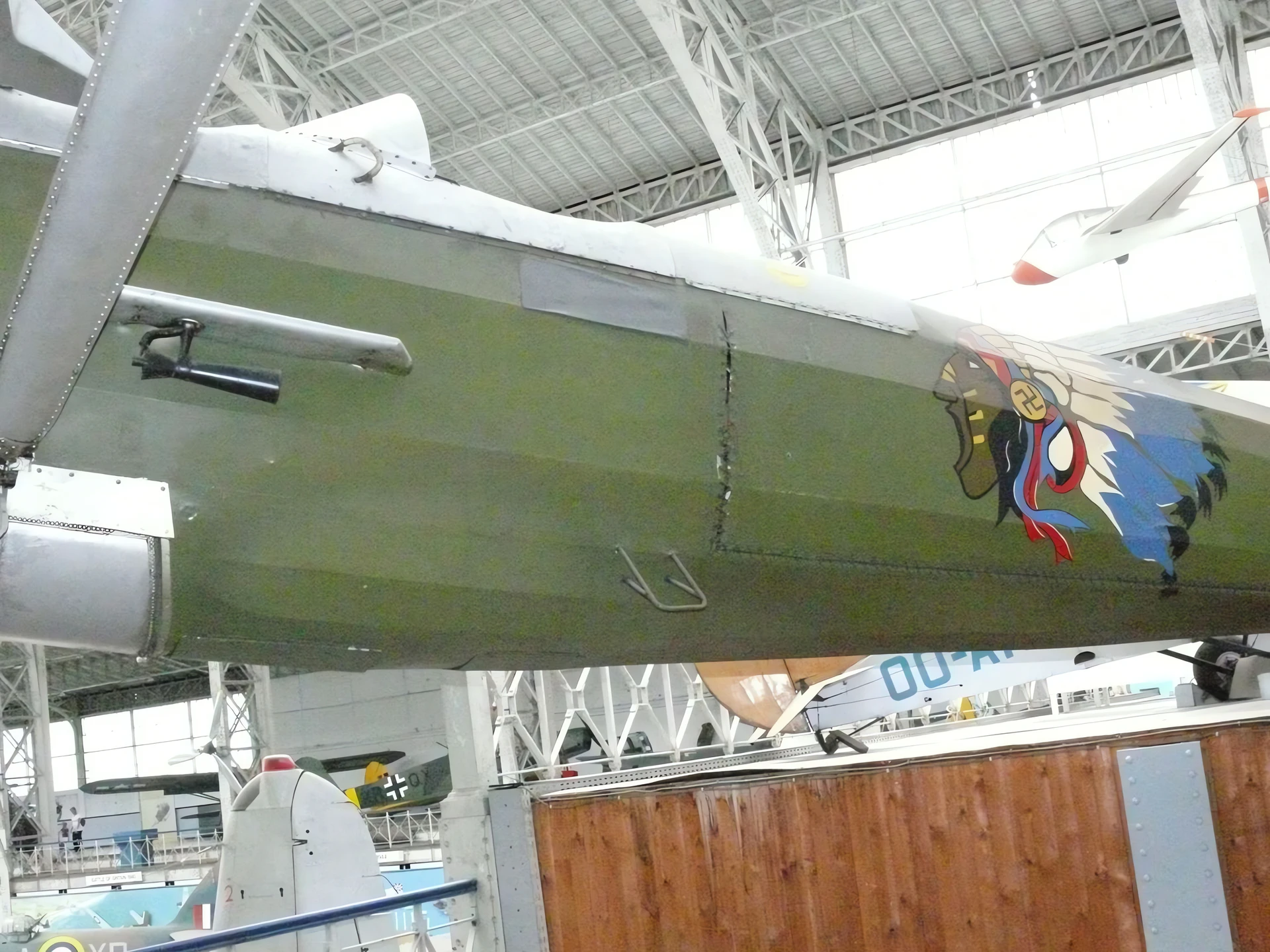

Morane-Saulnier MS.315 7

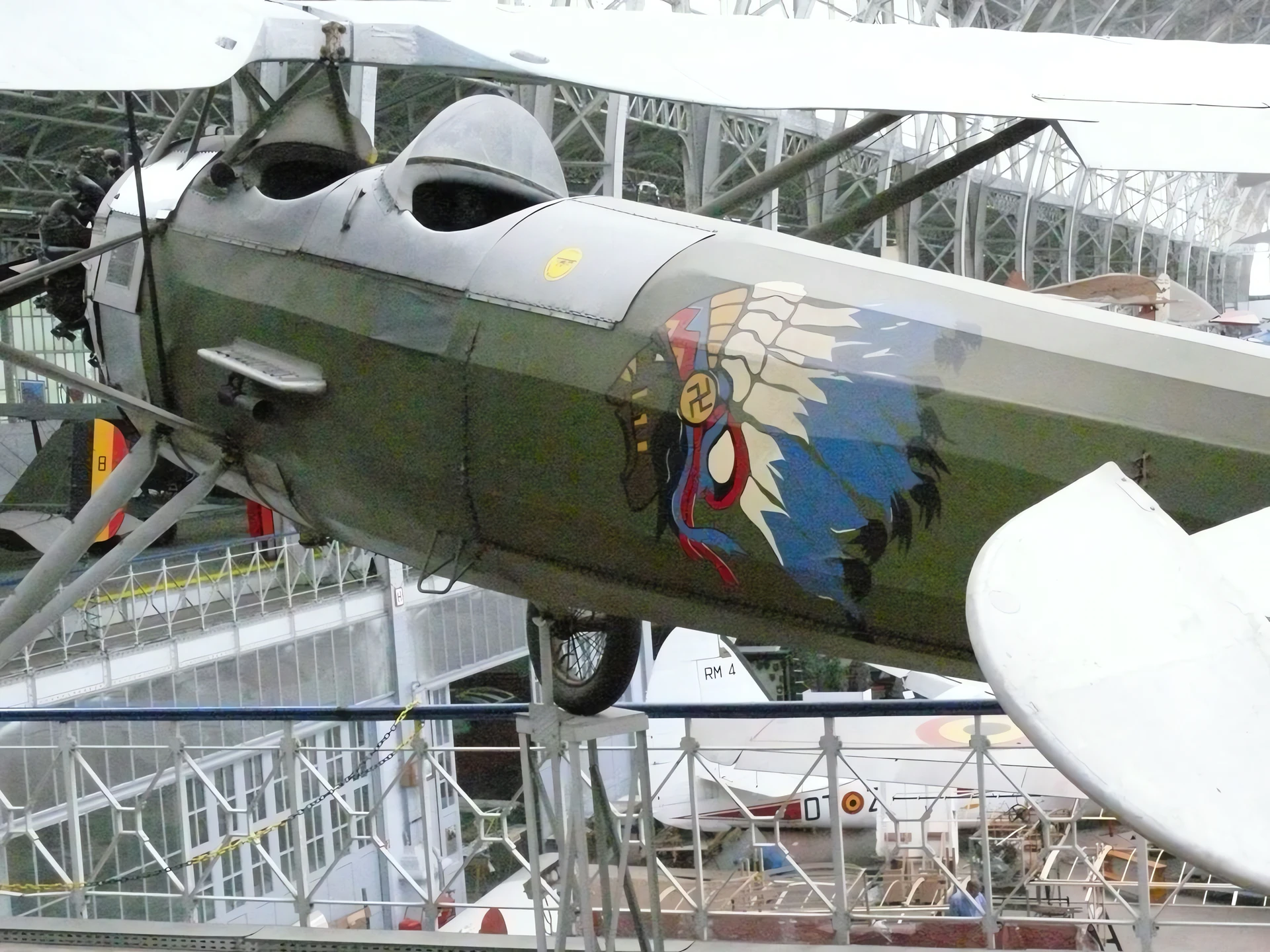

Morane-Saulnier MS.315 8

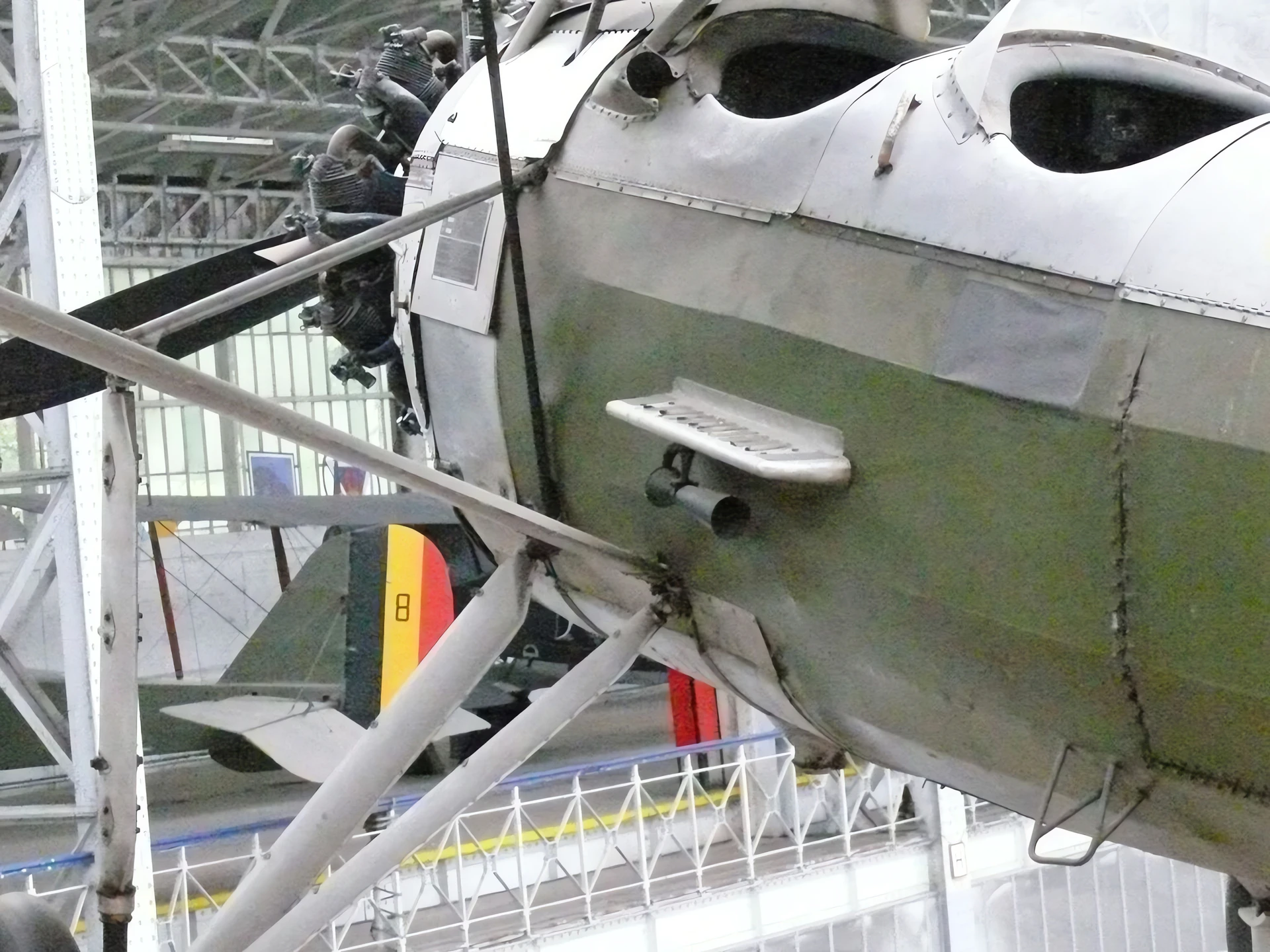

Morane-Saulnier MS.315 9

Click on a photo and use the mouse scroll to view all photos

Várj, kerestem Morane-Saulnier MS.315-öt...

Lásd még:

The “Gentle” Parasol

A Morane-Saulnier MS.315 was a primary trainer developed in the early 1930s for the French Armée de l'Air. While it looked very similar to its more powerful cousin, the MS.230, the MS.315 was specifically designed for novice pilots. It featured a lighter airframe and a less powerful engine, making it incredibly forgiving to fly. Its parasol-wing design provided the high stability and excellent downward visibility required for teaching basic maneuvers and landings to thousands of French cadets.

Attribute	Standard Specification (MS.315)
Szerepet	Primary Trainer
Legénység	2 (Student and Instructor in tandem)
First Flight	October 1932

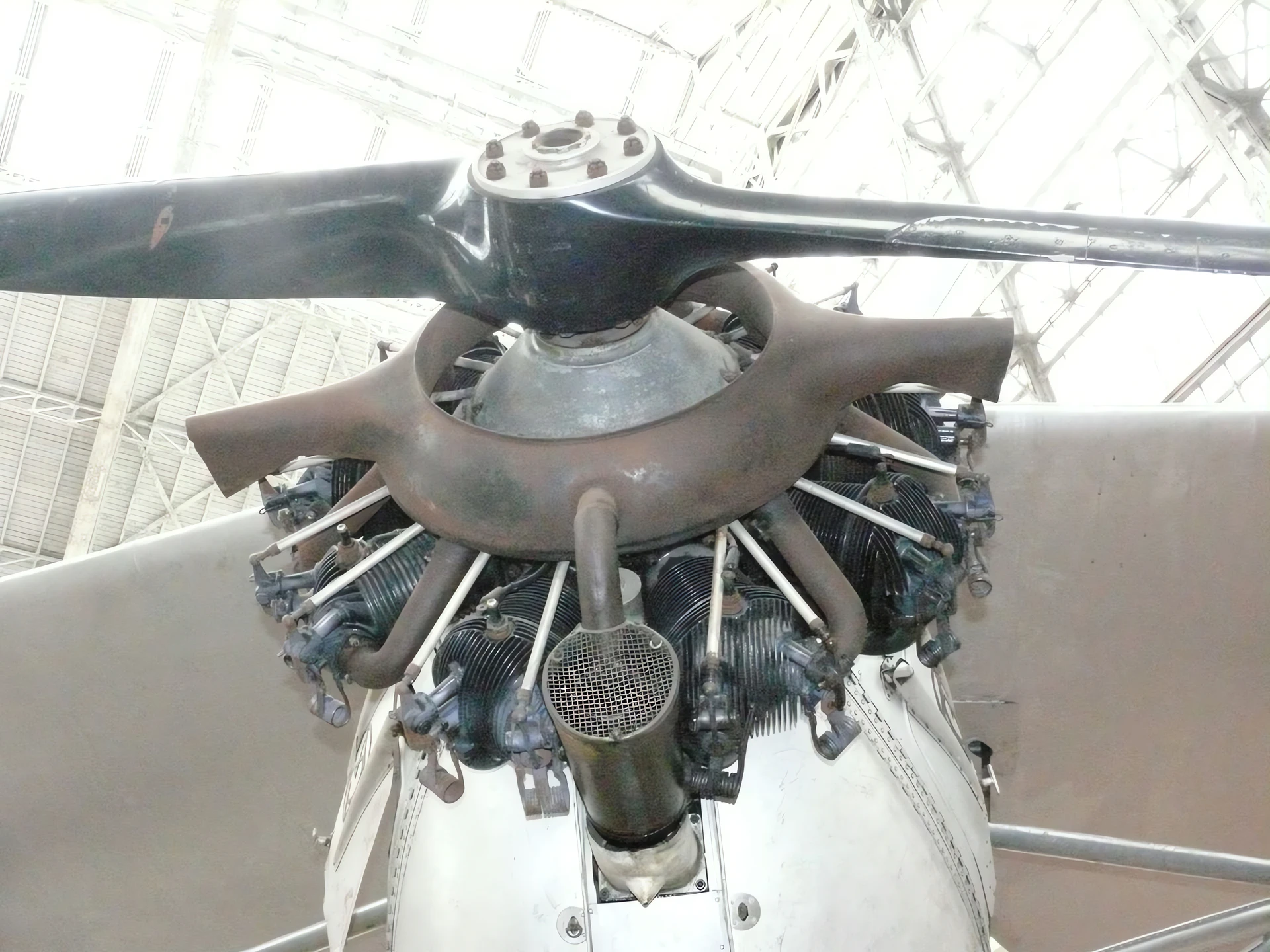

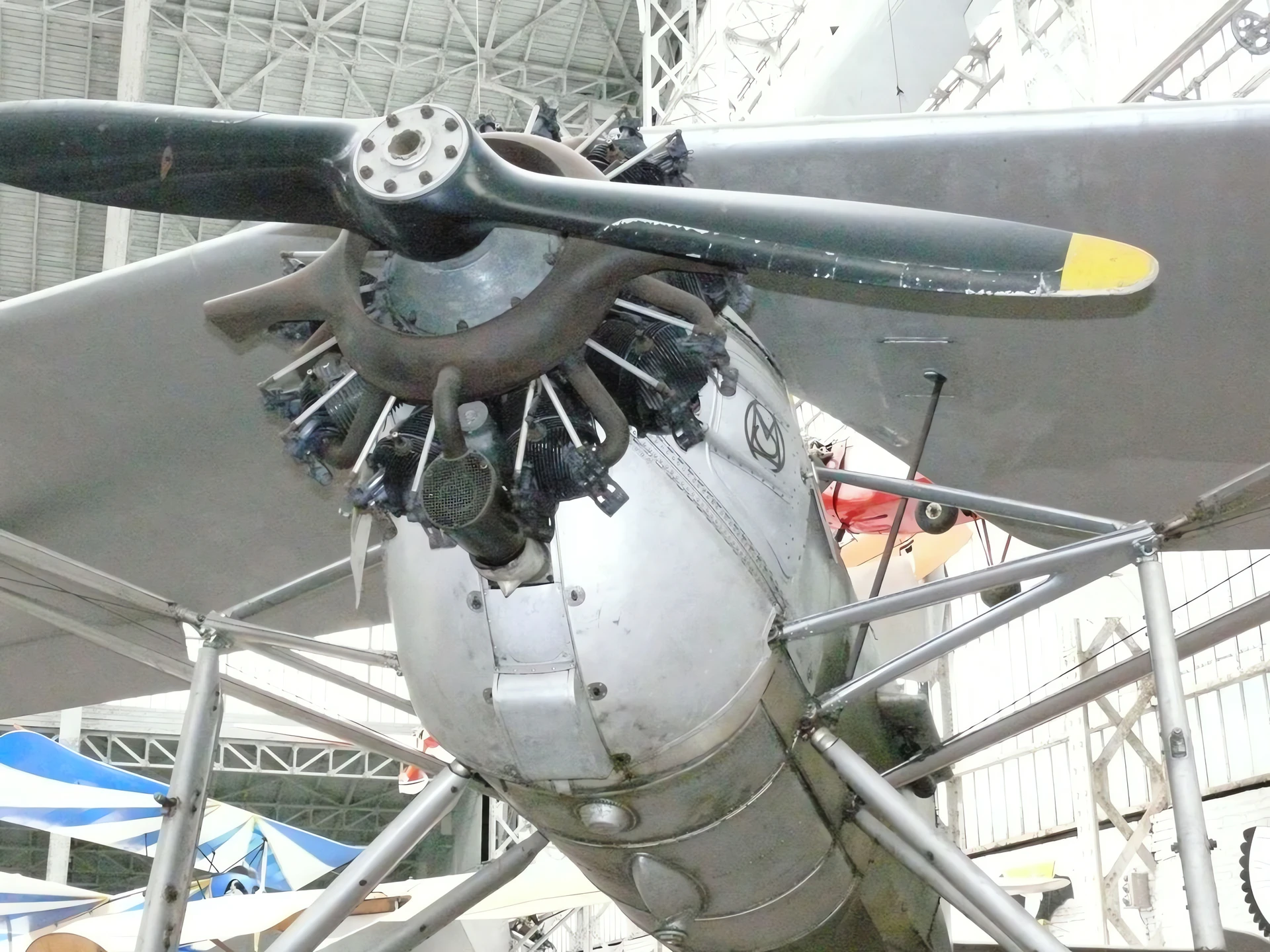

Hajtómű	1 × Salmson 9Nc 9-cylinder air-cooled radial
Horsepower	135 hp (101 kW)
Maximum Speed	170 km/h (106 mph)
Szárnyfesztávolsága	12 meters (39 ft 4 in)
Empty Weight	690 kg (1,521 lb)

Design and Engineering Philosophy

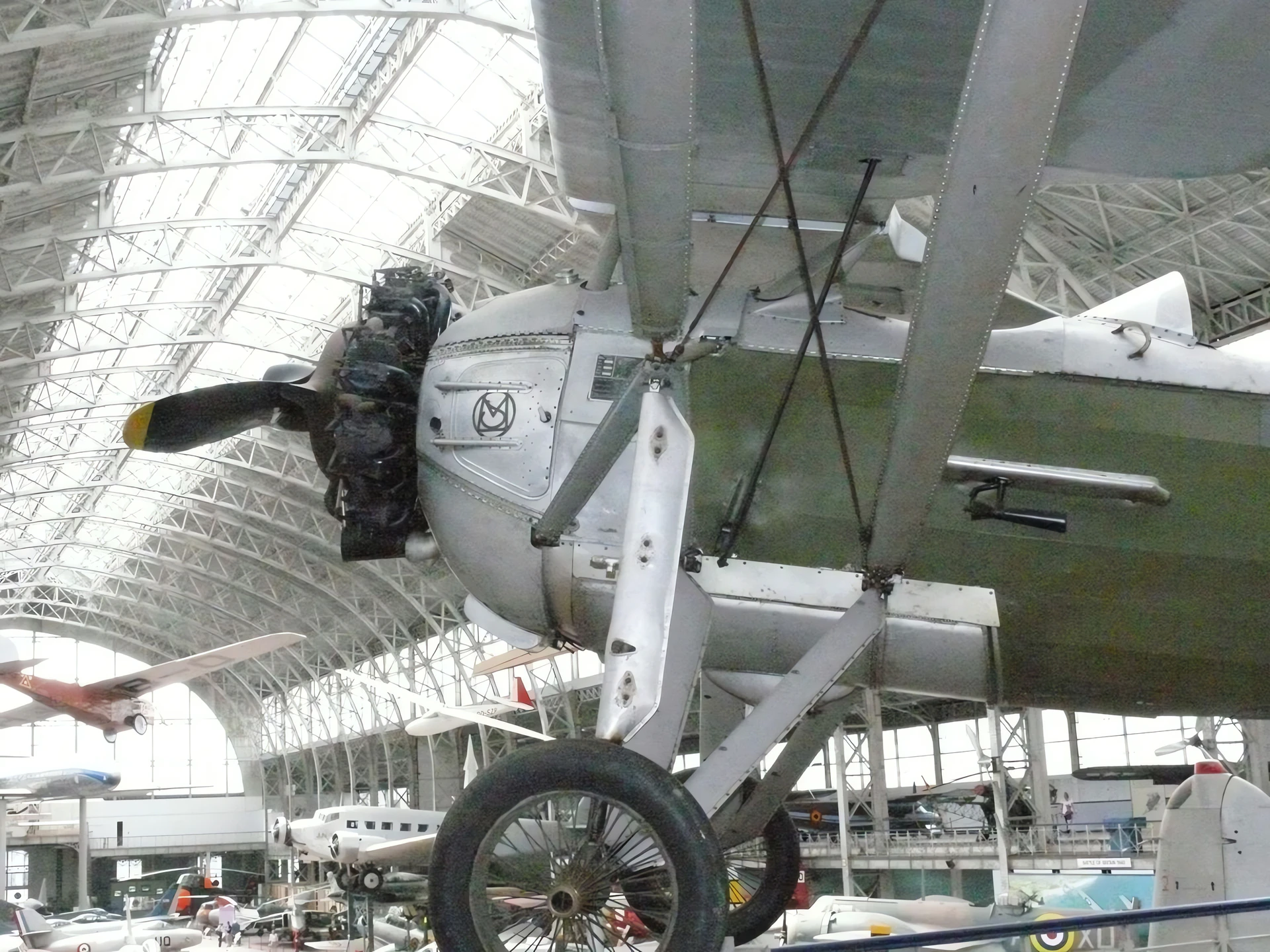

Parasol Configuration: Like many Morane-Saulnier designs of the interwar period, the wing was mounted high above the fuselage. This lowered the center of gravity relative to the wing’s lift, creating a “pendulum” effect that made the plane naturally want to return to level flight.
The Salmson 9Nc Engine: The engine was chosen for its smoothness and lower power output compared to the MS.230. This prevented student pilots from being overwhelmed by torque during takeoff, a common cause of accidents in that era.

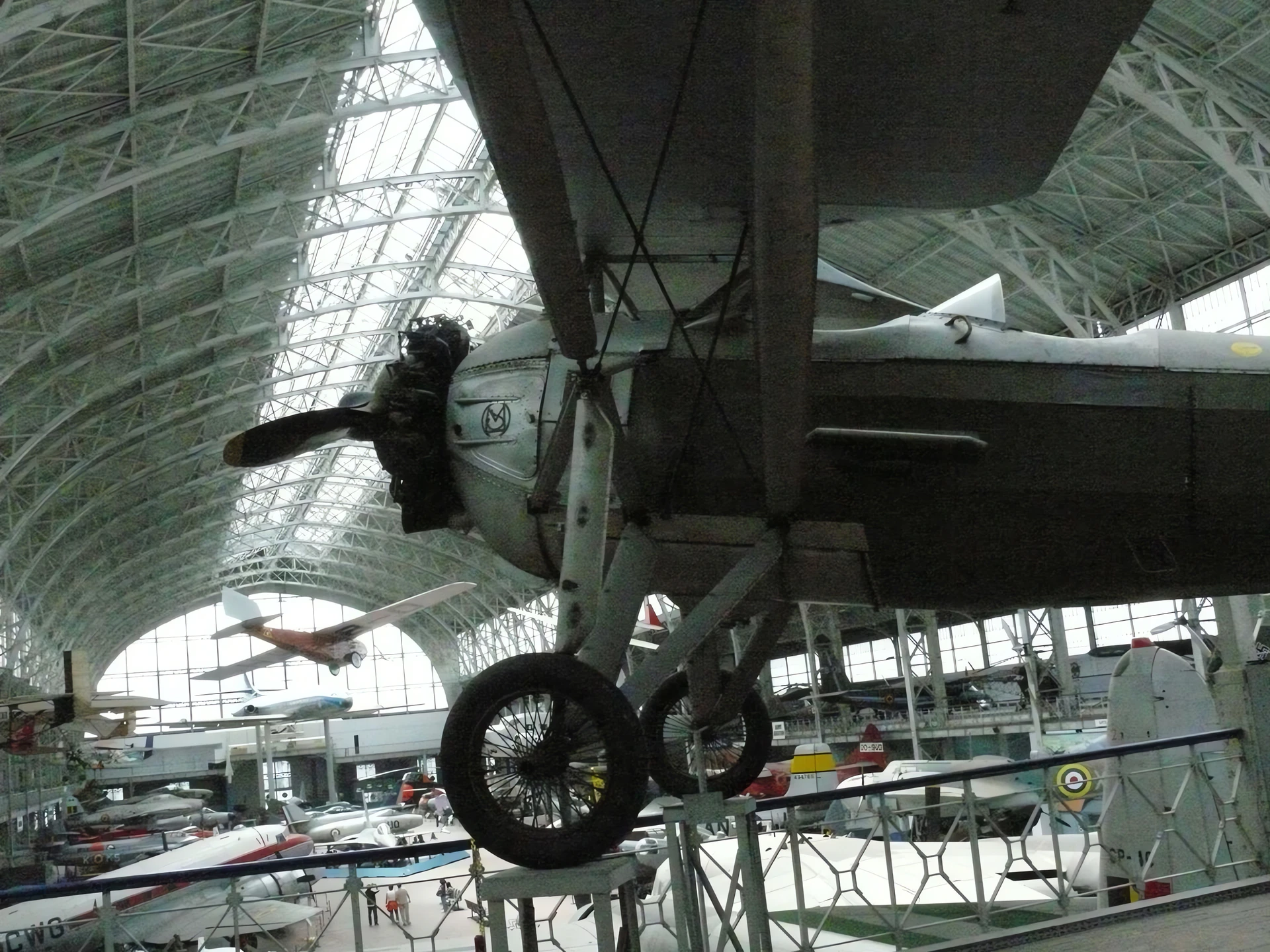

Robust Undercarriage: The MS.315 featured long-stroke oleo-pneumatic shock absorbers. These were designed to soak up the “heavy” landings typical of students without bouncing the aircraft back into the air.
Simplicity of Control: The control surfaces were light but effective, allowing students to feel the “aerodynamic feedback” of the plane without requiring significant physical strength.

Service and Post-War Utility

Massive Training Programs: Over 350 units were produced, serving as the standard entry-level trainer until the outbreak of WWII.
Glider Tug Duties: Because of its high lift and stable low-speed handling, many MS.315s were converted into glider tugs. They were used to pull heavy military gliders during exercises in the late 1930s.
Post-War Rebirth: After 1945, many surviving MS.315s were re-engined with more powerful 220 hp Continental engines and redesignated as the MS.317. These served in civilian flying clubs for decades as robust tow-planes for sailplanes.
Civilian Popularity: Its “easy-to-fly” nature made it a favorite for civilian touring and aerobatics long after its military usefulness had ended.
