BM-21 Grad

BM-21 Grad
Pays	Union soviétique
Rôle	Lance-roquettes multiples
En service	1963-présent
Construit	2000

Lla BM-21 (BM-21) « Grad » (Russe: БМ-21 « Град »Allumé. ‘Grêle’) est un lance-roquettes multiple soviétique monté sur camion de 122 mm. Le système d’armes et la fusée M-21OF qu’il tire ont évolué au début des années 1960 et ont vu leur première utilisation au combat en mars 1969 pendant le conflit frontalier sino-soviétique. BM signifie boyevaya mashina (russe: боевая машина – véhicule de combat), et le surnom grad signifie « Grêle ». Le système complet avec le lanceur BM-21 et la fusée M-21OF est désigné comme le système de fusée de campagne M-21

Source: BM-21 Grad sur Wikipedia

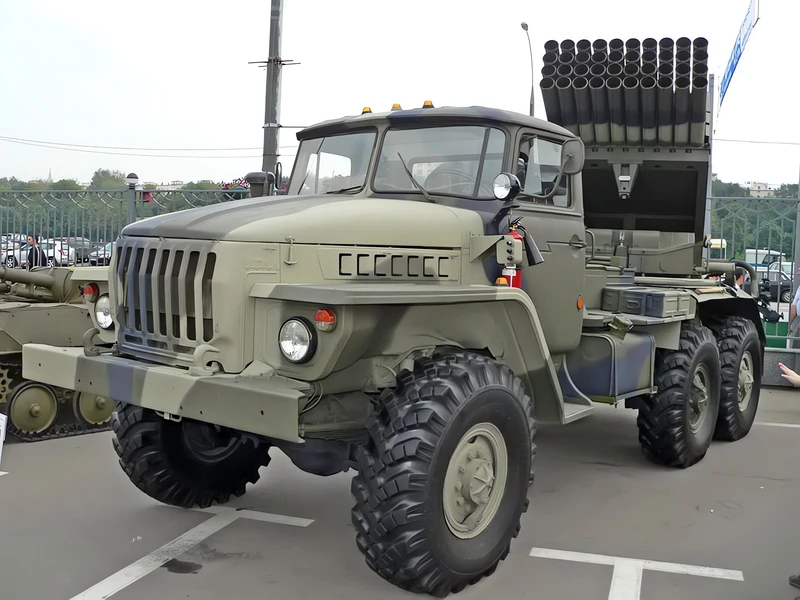

BM-21 Grad on URAL 4320 Chassis Walk Around
Photographe	Yuri Pasholok
Localisation	Inconnu
Photos	120

BM-21 Grad sur URAL 4320 1

BM-21 Grad sur URAL 4320 2

BM-21 Grad sur URAL 4320 3

BM-21 Grad sur URAL 4320 4

BM-21 Grad sur URAL 4320 5

BM-21 Grad sur URAL 4320 6

BM-21 Grad sur URAL 4320 7

BM-21 Grad sur URAL 4320 8

BM-21 Grad sur URAL 4320 9

Click on a photo and use the mouse scroll to view all photos

Attendez, Recherche BM-21 Grad pour vous...

Voir aussi :

Attendez, Recherche de lance-roquettes multiples pour vous...

General Characteristics and Role

Le BM-21 « Grad » (Russian for « Grêle ») is a Soviet-era 122 mm multiple launch rocket system (MLRS) designed to deliver large volumes of fire against enemy infantry, armored vehicles, artillery positions, and command posts. The system is mounted on a highly mobile Ural-4320 6×6 cross-country truck chassis. The combination is robust, relatively inexpensive to produce, and simple to operate, making it one of the most widely exported and utilized MLRS systems globally. It is designed to saturate a target area quickly, providing massive destructive power over a wide zone.

Property	Typical Value (BM-21 on Ural-4320)
Type	Multiple Launch Rocket System (MLRS)
National Origin	Soviet Union (currently Russia)
Service Entry	1963 (Original BM-21)
Chassis	Ural-4320 6×6 Military Truck
Crew	3-5 (Varies by user/version)
Length (Vehicle)	7.35 m (24 ft 1 in)
Width (Vehicle)	2.69 m (8 ft 10 in)
Height (Launcher Stowed)	3.09 m (10 ft 2 in)
Weight (Combat Loaded)	Approx. 13.7 metric tons

Launch System and Performance

Launcher: 40 launch tubes (4 rows of 10) mounted on the rear of the truck.
Rocket Caliber: 122 mm.
Maximum Range: Standard rockets range from about 20 km to 27 km (12.4 to 17 miles), though modern variants can reach up to 40 km.
Firing Rate: A full salvo of 40 rockets can be fired in about 20 seconds.
Re-load Time: Manual reloading typically takes 5 to 10 minutes by a trained crew.
Engine (Ural-4320): KAMAZ-740.10 V8 diesel engine or similar.
Road Speed: Up to 85 km/h (53 mph).
Cross-Country Mobility: Excellent, thanks to the 6×6 all-wheel drive and high ground clearance of the Ural truck.

Ammunition and Impact

Standard Ammunition: High-Explosive Fragmentation (HE-Frag) rockets (9M22 family).
Specialized Rounds: Can fire rounds with chemical, smoke, illumination, incendiary, and anti-tank mine-laying warheads.
Salvo Area: The 40-round salvo of a single BM-21 can effectively saturate a target area of approximately 700 meters by 700 meters, or about 32 acres.
Operational Doctrine: Typically deployed in batteries, where multiple launchers fire simultaneously to achieve devastating area saturation.
