Nanchang CJ-6B

Nanchang CJ-6B
Riik	Hiina
Tüüp	Õhusõidukite koolitamine
Foto	Vladimir Jakubov
Leida	Wings Over Wine Country Airshow
Kirjeldus	Album 23 fotod walk-around kohta «Nanchang CJ-6B»

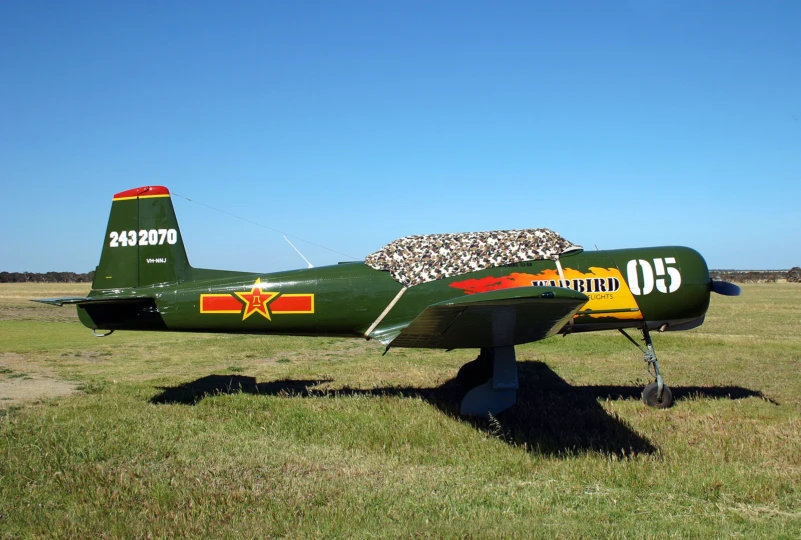

Fotogalerii Nanchang CJ-6B, The Nanchang CJ-6 is an aircraft designed and built in China for use by the People’s Liberation Army Air Force (PLAAF) as a basic trainer. CJ-6B: Two-seat armed border patrol aircraft, powered by a 300-hp Zhuzhou Huosai HS-6D radial piston engine. Small number built.

Allikas: Nanchang CJ-6B vikis

Nanchang CJ-6B 01

Nanchang CJ-6B 02

Nanchang CJ-6B 03

Nanchang CJ-6B 04

Nanchang CJ-6B 05

Nanchang CJ-6B 06

Nanchang CJ-6B 07

Nanchang CJ-6B 08

Nanchang CJ-6B 09

Click on a photo and use the mouse scroll to view all photo

Oodake, Otsides Nanchangi CJ-6B fotosid teile ...

Nanchang CJ-6A:

Spetsifikatsioonid
Rolli	Põhitreener
Tootja	Hiina Nanchangi õhusõidukite tootmise korporatsioon
Esimene lend	27. august 1958
Sissejuhatus	1960
Number on loodud	2,000+

Osta mulle kohvi

Vaata ka:

A Trainer with Teeth

2007 Nanchang CJ-6B is the specialized, armed variant of the ubiquitous CJ-6A trainer. While often mistaken for a mere copy of the Soviet Yak-18, the CJ-6 was an original Chinese design featuring a superior aluminum semi-monocoque fuselage and a tricycle landing gear. The “B” variant was specifically developed for armed border patrol and light attack roles. It featured a more powerful 300 hp engine to handle the added weight of its armament, which included wing-mounted machine guns and hardpoints for rockets or small bombs. Only a small number were produced, making it one of the rarest “Warbirds” in the CJ family.

Attribute	Technical Specification (CJ-6B)
Rolli	Armed Trainer / Border Patrol / Light Attack
Meeskonna	2 (Student and Instructor)
First Flight (CJ-6B)	1964
Jõuallikas	1 × Zhuzhou Huosai HS-6D 9-cylinder radial
Horsepower	300 hp (220 kW)
Maximum Speed	~300 km/h (186 mph)
Service Ceiling	6,250 m (20,500 ft)
Armament	2 × 7.62mm machine guns; Underwing rockets or bombs

Design Engineering: Pneumatics and Pronounced Dihedral

The “Air” Power: Like its trainer siblings, the CJ-6B makes extensive use of pneumatics (compressed air). The engine start, landing gear retraction, flaps, and brakes are all air-operated. This system is rugged and simple, though it requires a “hand-swing” start if the air tanks run dry.
Wing Geometry: The CJ-6 is easily distinguished from Soviet designs by its wings. They feature a straight center section and outer panels with a pronounced “dihedral” (upward angle), providing excellent lateral stability during low-speed maneuvers or when aiming weapons.
Engine Cooling Gills: The nose features a ring of adjustable shutters (gills) that the pilot controls from the cockpit. These allow for precise regulation of the radial engine’s temperature in China’s diverse climates—from Siberian winters to tropical jungles.
Flush-Riveted Aluminum: At a time when many trainers used fabric or steel tubes, the CJ-6 was built with a high-quality, flush-riveted aluminum alloy skin, giving it the sleek look and feel of a high-performance fighter.

From Patrol to Private Hands

Border Sentinel: The CJ-6B was utilized for patrolling remote borders where a full-sized fighter jet would be too expensive or fast to spot movement on the ground. Its ability to fly “low and slow” made it an effective COIN (Counter-Insurgency) platform.
The “Jap-Chang”: Because its radial engine and long canopy resemble WWII Japanese aircraft, many CJ-6s in the West have been painted in “Zero” or “Val” liveries for movies and airshows, earning them the affectionate nickname “Jap-Chang.”
6.5 G Strength: The airframe is notoriously over-engineered, rated for +6.5 and -2 Gs. This makes it a favorite for modern civilian pilots who want a rugged, reliable aerobatic plane with military history.
Export Success: Under the designation PT-6, this aircraft family was exported to over a dozen countries, including North Korea, Albania, and Tanzania, serving as the foundational trainer for generations of pilots.
