Beriev Be-12 - fotod ja video

Be-12P
Riik	Nõukogude Liit
Tüüp	Merepatrull-lennukid
Perioodi	1960-nüüd
Ehitatud	143

2007 Beriev Be-12 Chayka (“Seagull”, NATO reporting name: Mail) is a Soviet turboprop-powered amphibious aircraft designed for anti-submarine and maritime patrol duties. The Beriev Be-12 was a successor to the Beriev Be-6 flying boat, whose primary roles were as an anti-submarine and maritime patrol bomber aircraft. Though tracing its origins to the Be-6, the Be-12 inherited little more than the gull wing and twin oval tailfin configuration of the older aircraft. The Be-12 had turboprop engines, which gave it an improved speed and range over the Be-6. The Be-12 also had retractable landing gear, which enabled it to land on normal land runways, as well as water.

Allikas: Be-12 Vikis

Beriev Be-12 Jalutamine
Fotograaf	Teadmata
Lokaliseerimine	Teadmata
Fotod	30

Click on a photo and use the mouse scroll to view all photos

Oodake, Otsides Beriev Be-12 fotod teile...

Be-12 (täisversioon) Jalutada
Fotograaf	Teadmata
Lokaliseerimine	Teadmata
Fotod	81

Be-12

Laadige rohkem...

Beriev Be-12 Chaika Walk Around
Fotograaf	Vladimir Jakubov
Lokaliseerimine	Vene õhujõudude muuseum
Fotod	70

Click on a photo and use the mouse scroll to view all photos

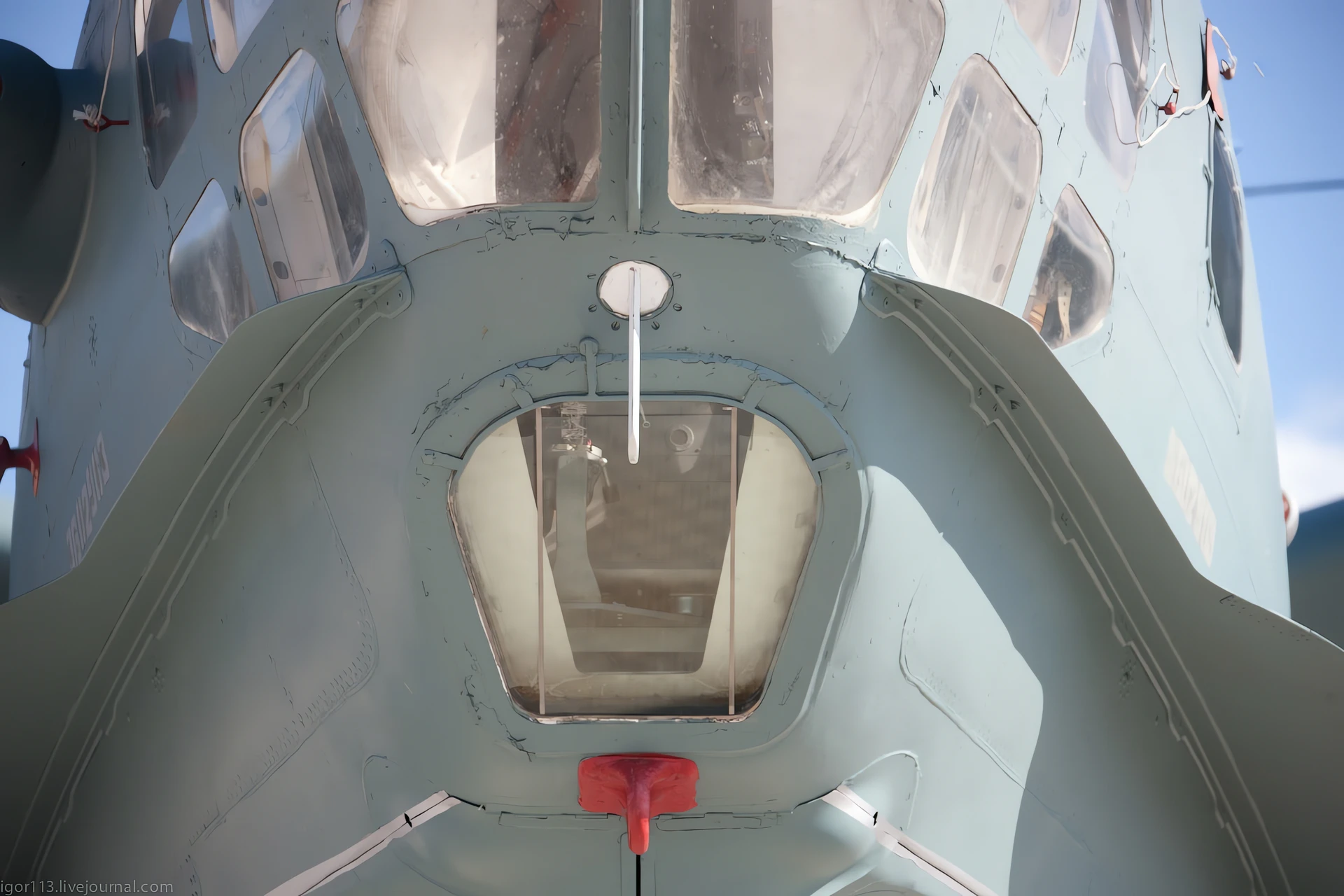

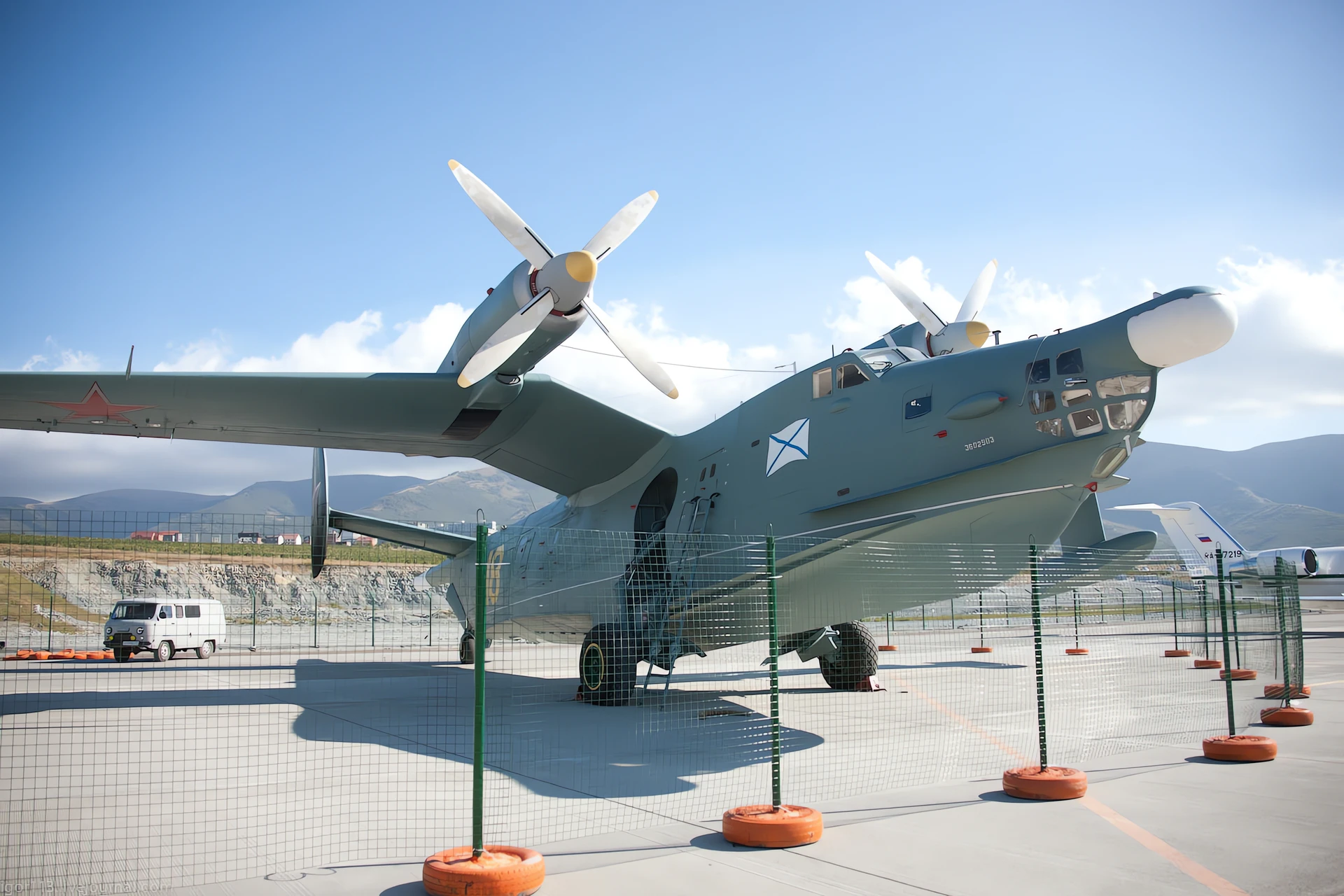

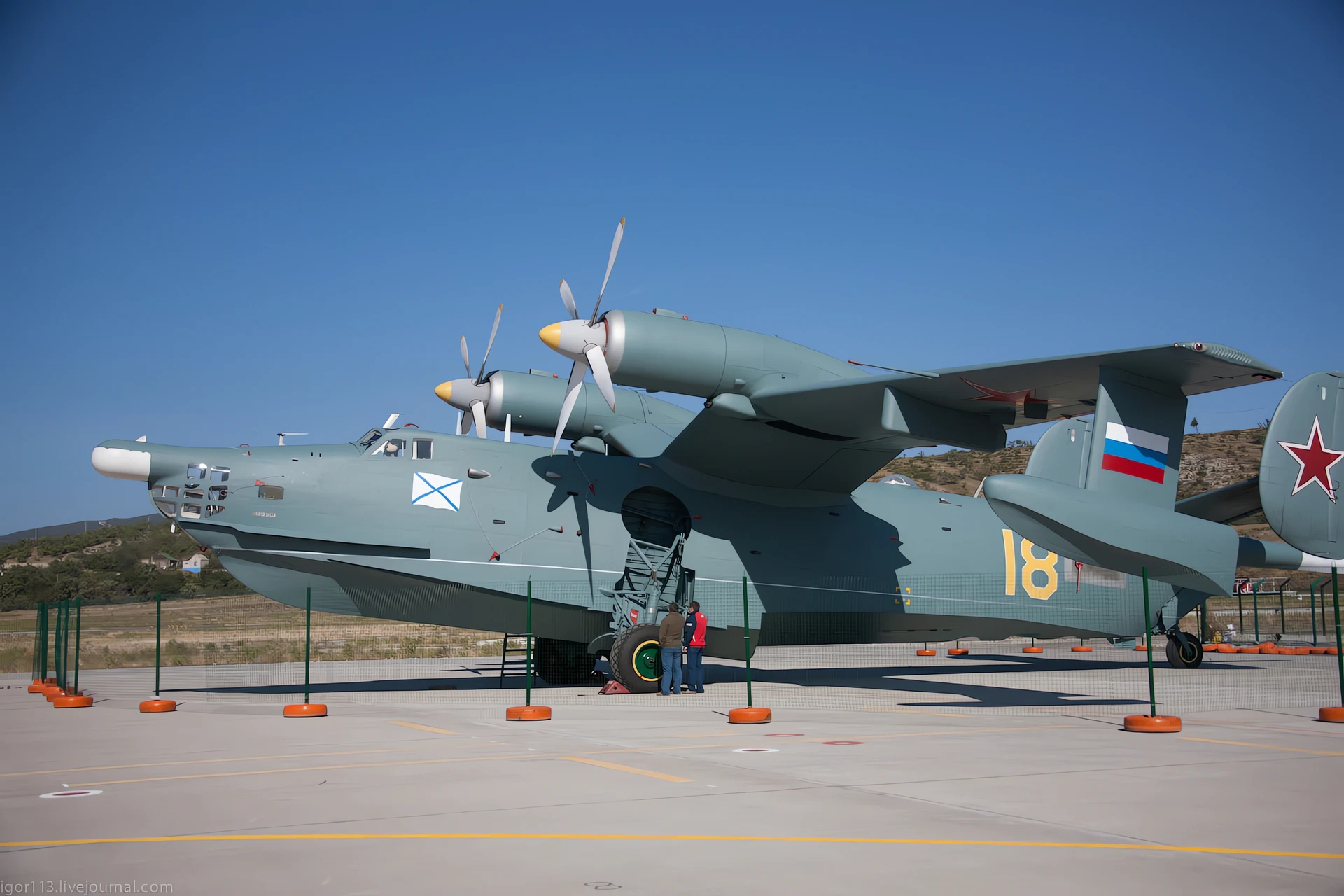

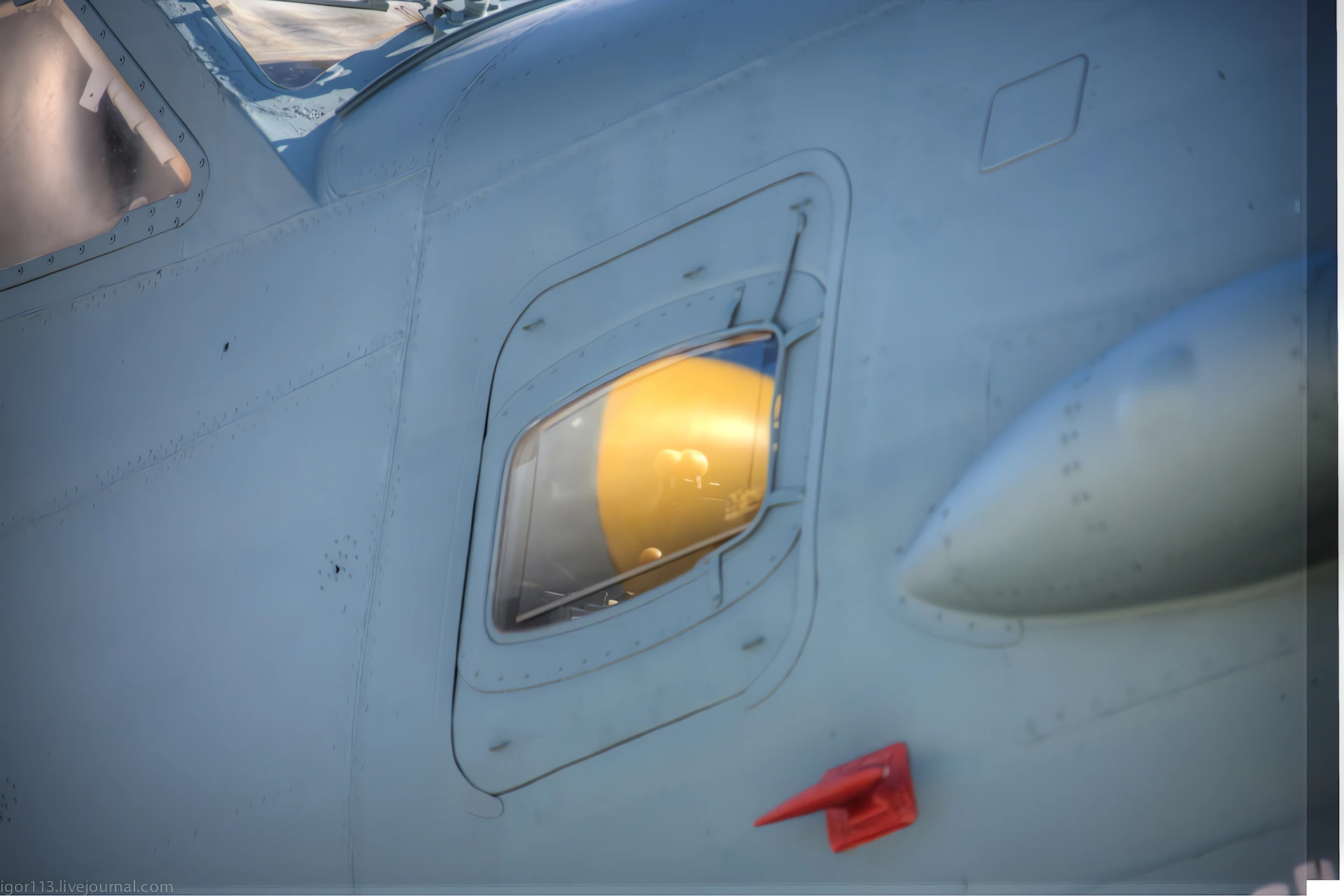

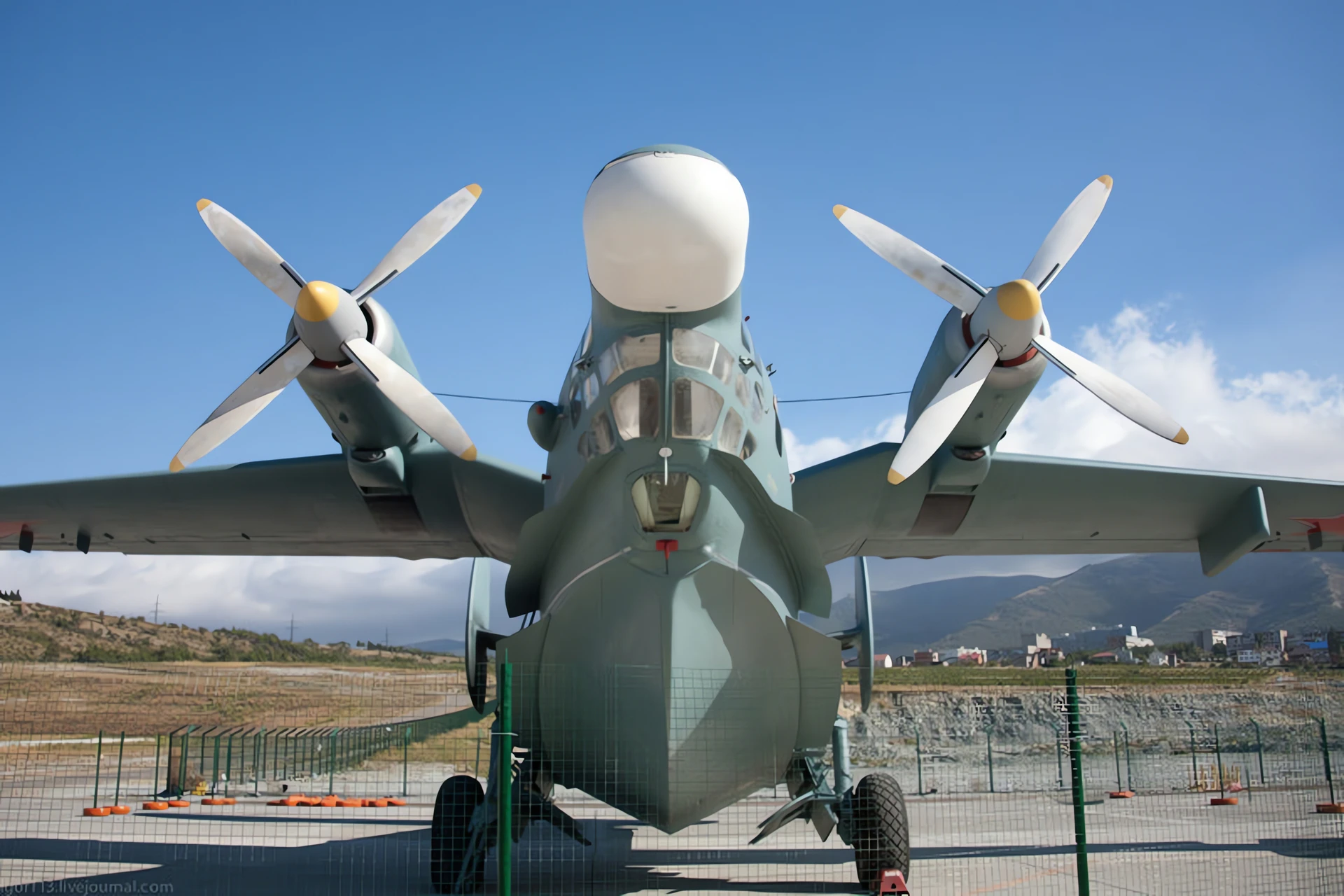

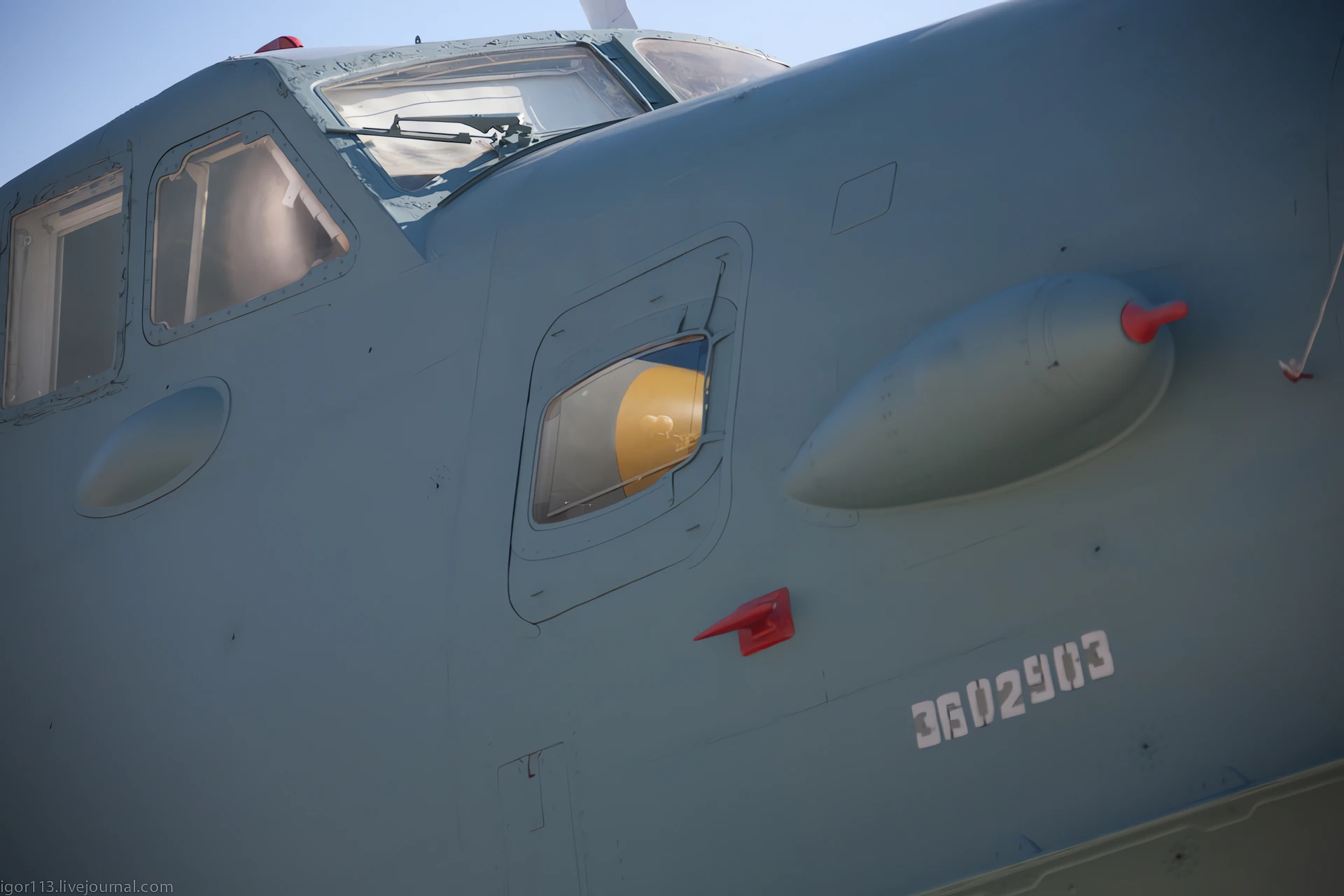

Beriev Be-12 ‘Mail’ Walk Around
Fotograaf	Igor Kolokolov
Lokaliseerimine	Teadmata
Fotod	30

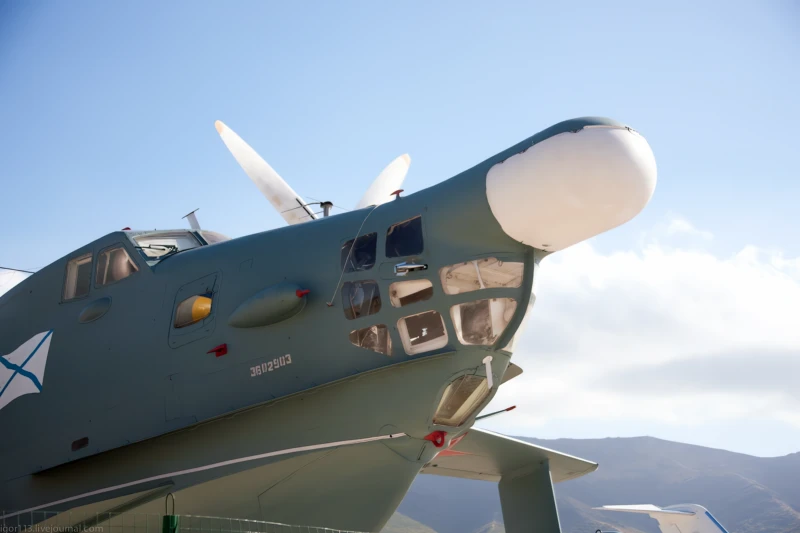

Beriev Be-12 E-post

Laadige rohkem...

Vaata ka:

The Amphibious Guardian of the Steppe and Sea

2007 Beriev Be-12 Chayka (Seagull) was the turboprop successor to the older Be-6 flying boat. Introduced in the 1960s, it was designed specifically for anti-submarine warfare (ASW) and maritime patrol. Unlike many of its predecessors, the Be-12 was a true amphibian, equipped with retractable landing gear that allowed it to operate from both concrete runways and the open sea. With its distinctive gull wings and twin-fin tail, it became a symbol of Soviet naval power, patrolling the vast coastlines of the Black Sea, the Arctic, and the Pacific for over half a century.

Attribute	Technical Specification (Be-12)
Rolli	Amphibious ASW / Maritime Patrol
Meeskonna	4 (Pilot, Co-pilot, Navigator, Radio Operator)
First Flight	October 18, 1960
Jõuallikas	2 × Ivchenko AI-20D turboprops
Horsepower	5,180 hp (3,864 kW) per engine
Maximum Speed	330 mph (530 km/h)
Service Ceiling	26,247 feet (8,000 m)
Armament	Internal weapons bay for torpedoes, depth charges, and mines

Designed for the High Seas

The Gull Wing Design: The sharply cranked “gull” wings were not just for aesthetics; they served to lift the massive turboprop engines and propellers high above the water’s surface, protecting them from corrosive salt spray and wave impact during takeoff. [Image detail of the Be-12’s cranked wing root and engine placement]
The “Sting” in the Tail: Most Be-12s feature a long, needle-like probe extending from the tail. This is a Magnetic Anomaly Detector (MAD), used to detect the massive steel hulls of submerged enemy submarines by measuring tiny distortions in the Earth’s magnetic field.
Retractable Tricycle Gear: One of its biggest upgrades over the Be-6 was the ability to “walk” out of the water. The main wheels retract into the sides of the hull, allowing the aircraft to be maintained and fueled at standard airfields rather than requiring specialized seaplane docks.

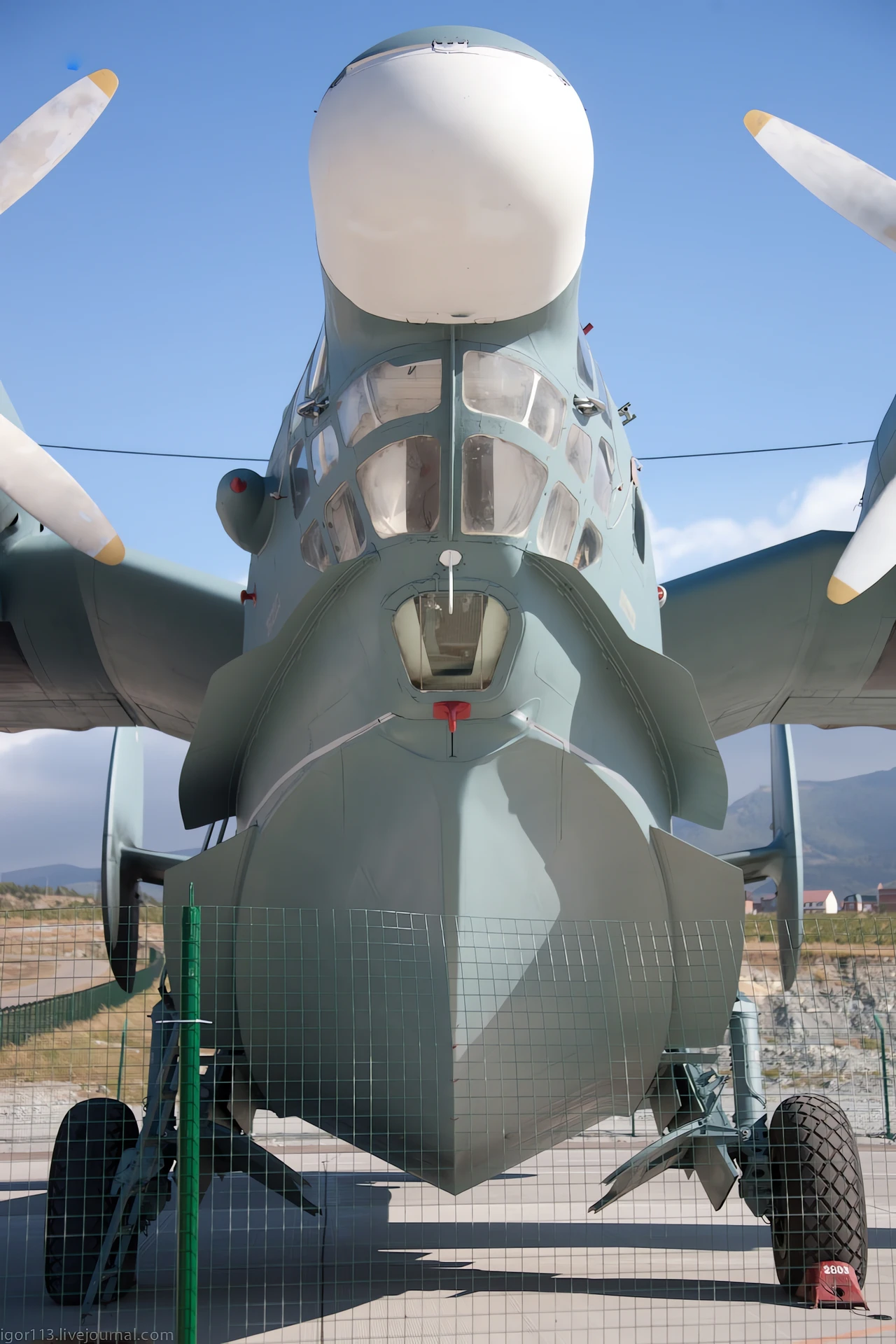

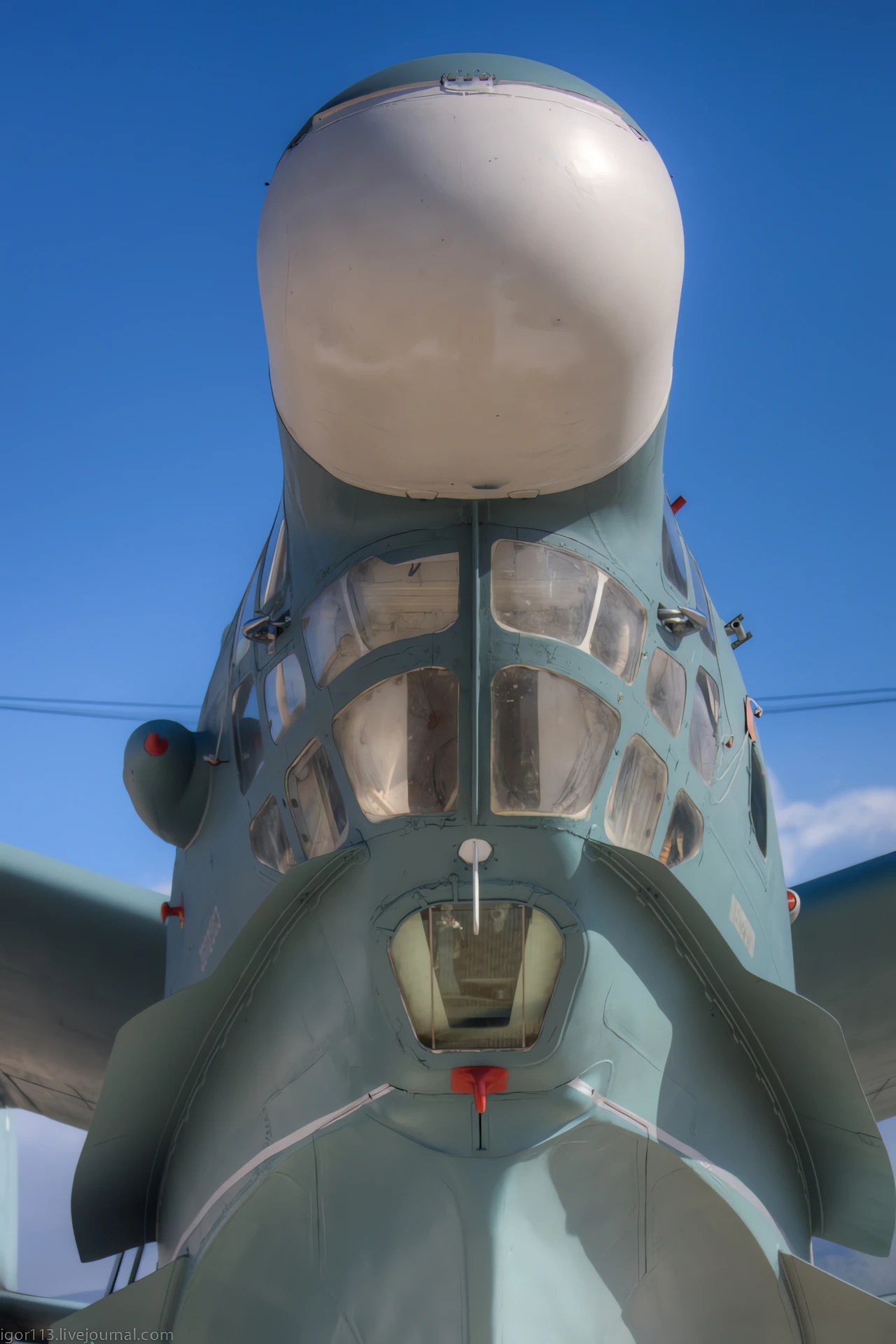

Spray Dams and Strakes: The nose of the Be-12 is fitted with “spray dams”—long metal strips that deflect water away from the cockpit windows and engine intakes during high-speed taxiing on water.

A Record-Breaking Second Life

World Record Holder: The Be-12 was a powerhouse in its weight class, at one point holding 44 world records for speed, altitude, and payload, many of which were set by the “M-12,” a stripped-down version of the airframe.
Firefighting Legend: As the Cold War ended, many Be-12s were converted into the Be-12P water bomber. These aircraft could scoop up 4.5 tons of water in seconds while skimming across a lake, a capability that directly led to the development of the modern Beriev Be-200.
Search and Rescue: The Be-12PS variant was specialized for rescue at sea, carrying life rafts, emergency medical equipment, and extra observers to spot survivors in the water.
Still Flying: While officially retired by the Russian Navy in most roles, a handful of Be-12s have remained in service well into the 2020s, recently appearing in maritime monitoring roles in the Black Sea.
