SEPECAT Jaguar GR.3

SEPECAT Jaguar GR.3
Země	Velká Británie – Francie
Období	1973-1985
Roli	Proudové útočné letadlo
První let	pondělí 8. září 1968
Postaven	543

Fotogalerie sepecat Jaguar GR.3, SEPECAT Jaguar je anglo-francouzský proudový útočný letoun, původně používaný britským královským letectvem a francouzským Armée de l'Air v roli blízké letecké podpory a jaderného úderu a stále ve službě u indického letectva.

Zdroj: SEPECAT Jaguar GR na Wikipedii

SEPECAT Jaguar GR.3
Fotograf	Neznámé
Lokalizace	Neznámé
Fotografie	29

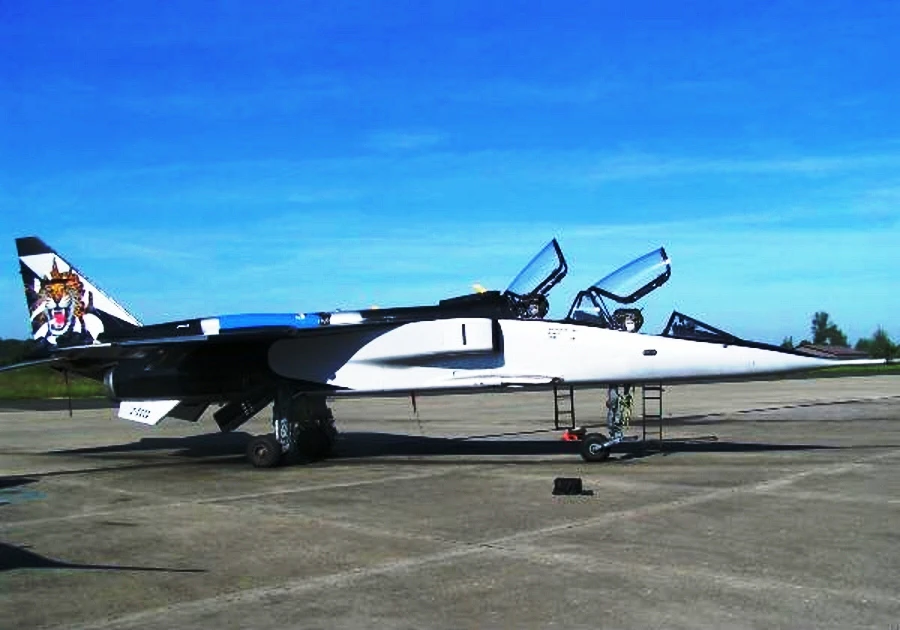

SEPECAT Jaguar E 01

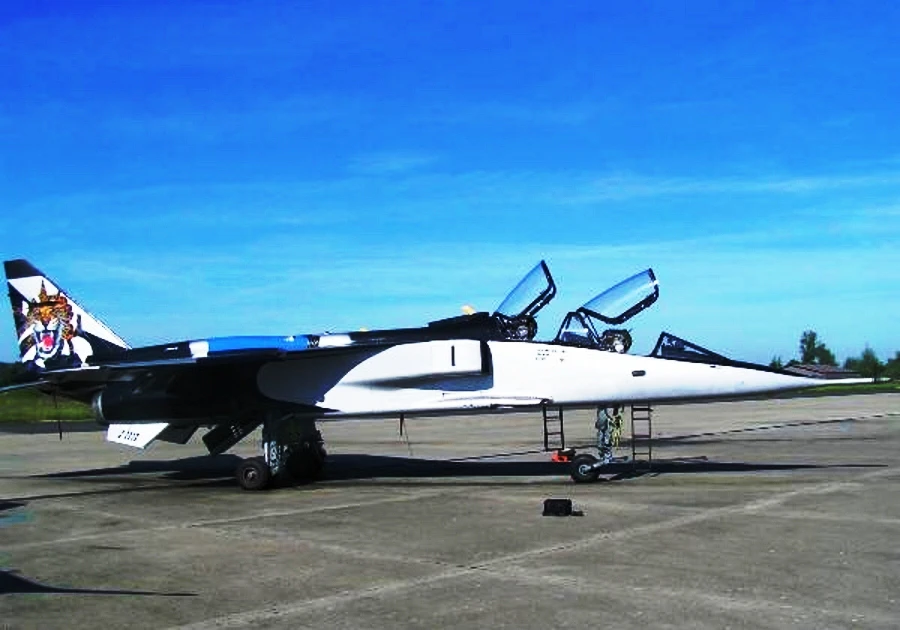

SEPECAT Jaguar E 02

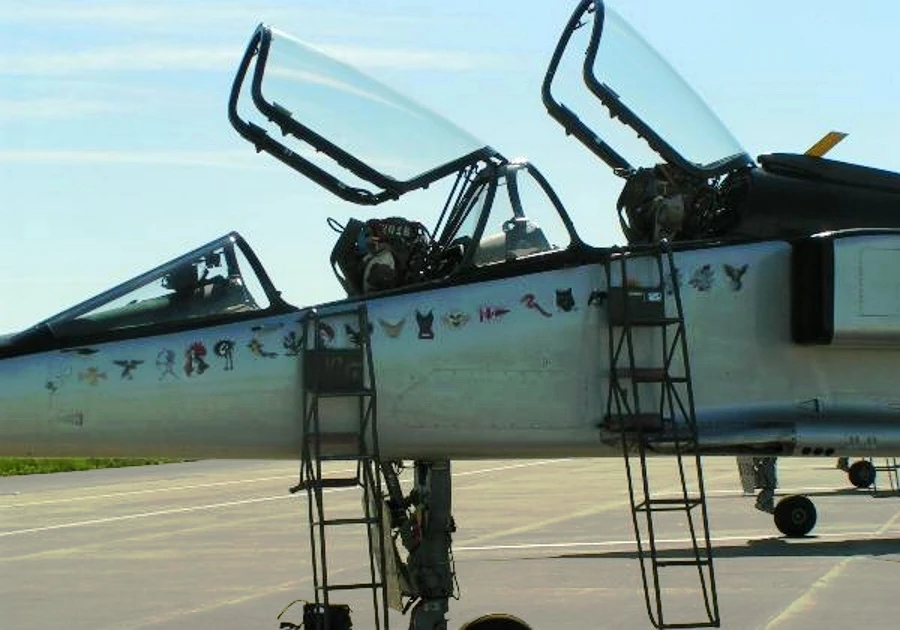

SEPECAT Jaguar E 03

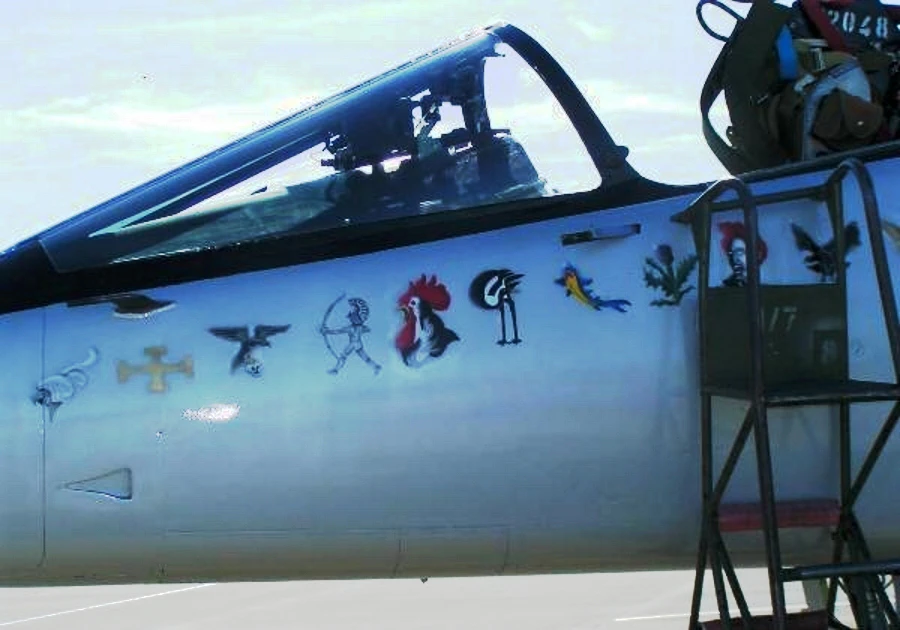

SEPECAT Jaguar E 04

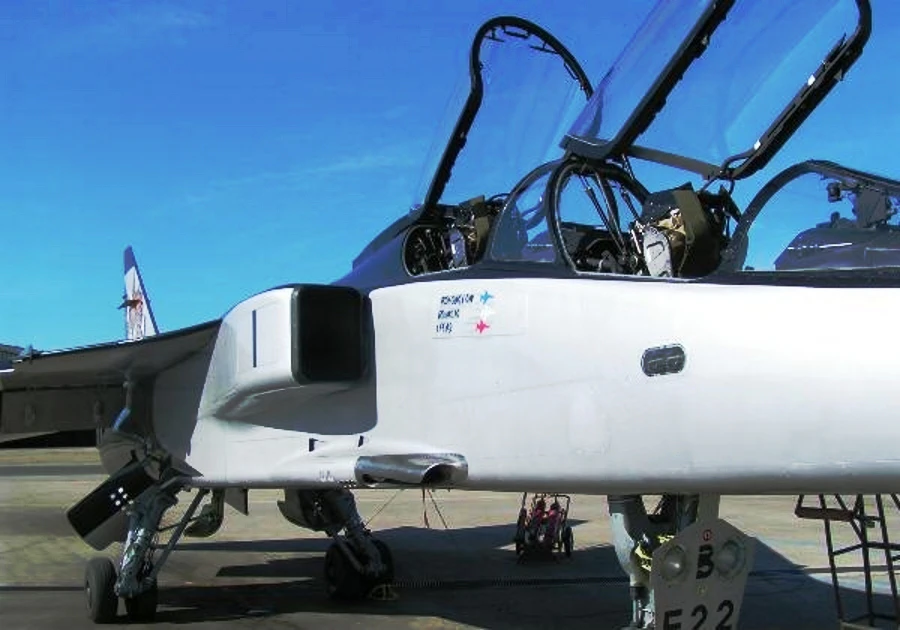

SEPECAT Jaguar E 05

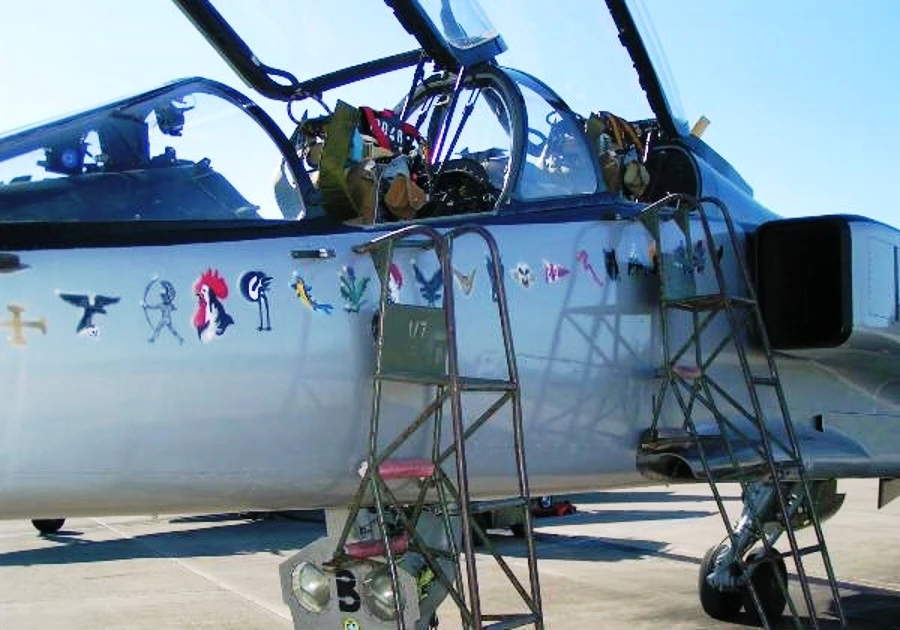

SEPECAT Jaguar E 06

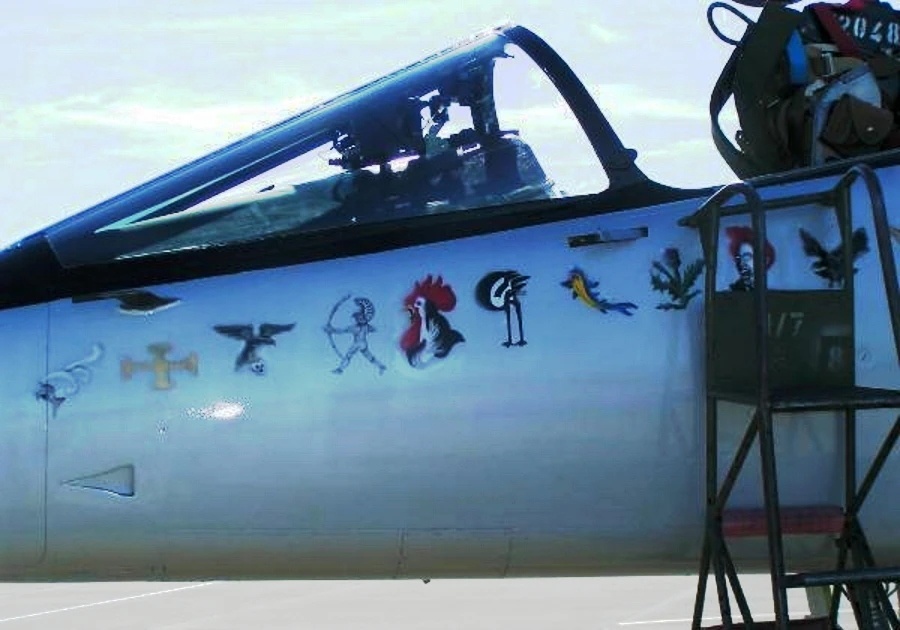

SEPECAT Jaguar E 07

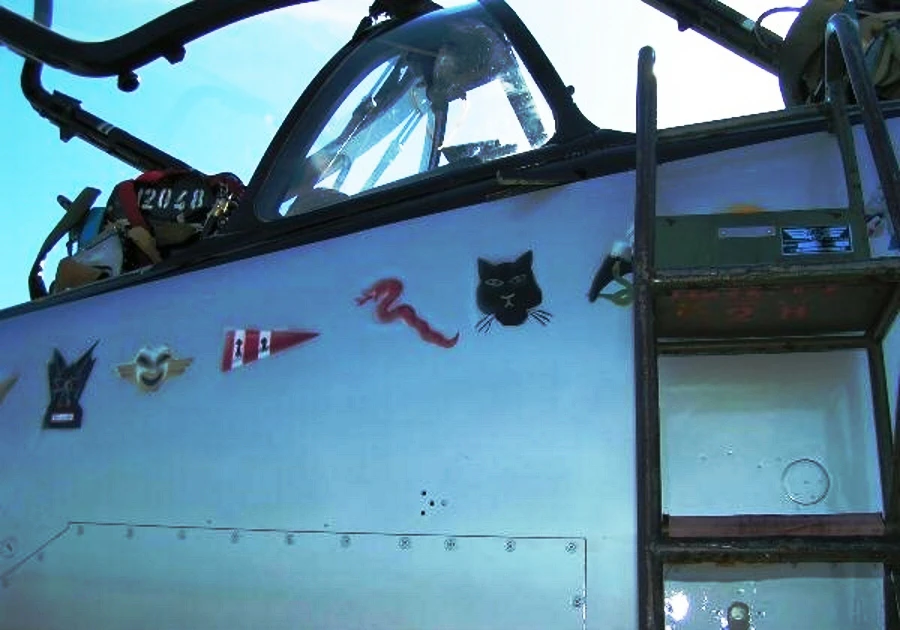

SEPECAT Jaguar E 08

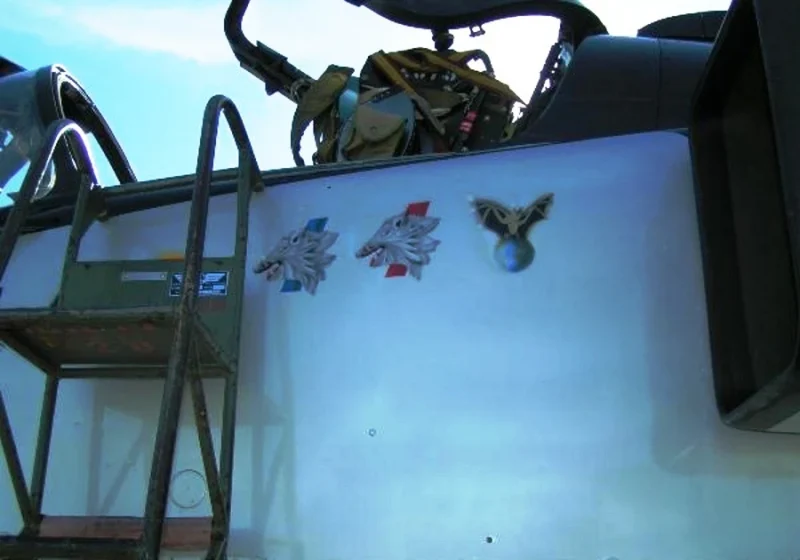

SEPECAT Jaguar E 09

Click on a photo and use the mouse scroll to view all photos

Čekání, Hledání Jaguar GR.3 fotografie pro vás...

Kupte mi kávu

SEPECAT Jaguar E Deco speciale Walk Around
Fotograf	Neznámé
Lokalizace	Neznámé
Fotografie	33

SEPECAT Jaguar E

Načíst více...

Čekání, Hledání bitevníků pro vás...

Viz také:

The Sharpened Claw of the Cold War

Tá Jaguar GR.3 was the final major upgrade of the British Jaguar strike fighter. Originally a joint Anglo-French venture (SEPECAT), the Jaguar evolved from a simple trainer into a rugged, high-speed, low-level deep penetration attacker. By the time it reached the GR.3 standard, it had been transformed into a digitally advanced platform capable of precision strikes in all weather conditions. It was famous for its ability to fly “on the deck” at transonic speeds, utilizing its narrow profile and high-wing loading to provide a stable ride through the turbulent air of low altitudes.

Attribute	Technical Specification (Jaguar GR.3)
Roli	Single-seat Tactical Support / Ground Attack
Motory	2 × Rolls-Royce/Turbomeca Adour Mk 106 turbofans
Max Speed	1,350 km/h (840 mph / Mach 1.1) at sea level
Service Ceiling	14,000 m (45,000 ft)
Internal Armament	2 × 30mm ADEN cannons (150 rounds each)
External Payload	4,500 kg (10,000 lb) across 5 hardpoints
Avionics	NAVWASS (Navigation and Weapon Aiming Sub-System), GPS, Terrain-Following Radar
Unique Feature	Overwing pylon options for Sidewinder missiles

Design Engineering: Ruggedness and Precision

The Adour Mk 106 Upgrade: The GR.3 featured uprated engines based on the Adour 871. These provided more thrust and better reliability, which was critical for a heavy aircraft often operating from short, unimproved runways or highway strips.
Overwing Pylons: One of the Jaguar’s most distinct visual features was its ability to carry AIM-9 Sidewinder missiles on pylons located above the wings. This freed up the underwing hardpoints for extra bombs, fuel tanks, or electronic jamming pods.
Rugged Undercarriage: Designed for “rough field” operations, the Jaguar featured massive, low-pressure twin tires on its main landing gear. This allowed the aircraft to land on grass or damaged runways that would tear the gear off a more delicate fighter like the Lightning.
Advanced Cockpit: The GR.3 (and GR.3A) upgrade introduced “glass cockpit” features, including a Helmet Mounted Sight (HMS), Large Area Displays, and a sophisticated Moving Map display, allowing the pilot to focus on terrain masking at high speed.

Combat History: Desert Storm and Beyond

Gulf War (1991): During Operation Granby, RAF Jaguars flew hundreds of sorties without a single loss to enemy fire. Their accuracy with “dumb” bombs and their ability to operate in the intense heat of the desert proved the airframe’s maturity.
The Reconnaissance Specialist: With the retirement of the specialized Canberra and Phantom units, the Jaguar (equipped with the GP1 pod) became the RAF’s primary tactical reconnaissance asset in the Balkans during the 1990s.
The “Last Flight”: The RAF retired its last Jaguars in 2007. While replaced by the Eurofighter Typhoon, many pilots still miss the Jaguar’s rock-solid stability during low-level high-speed flight, a characteristic the computer-controlled Typhoon finds difficult to replicate.
International Success: While retired in the UK and France, the Jaguar remains a potent force in the Indian Air Force (IAF), where it has been upgraded with modern engines and DARIN III avionics to serve as a primary deep-penetration strike aircraft.
