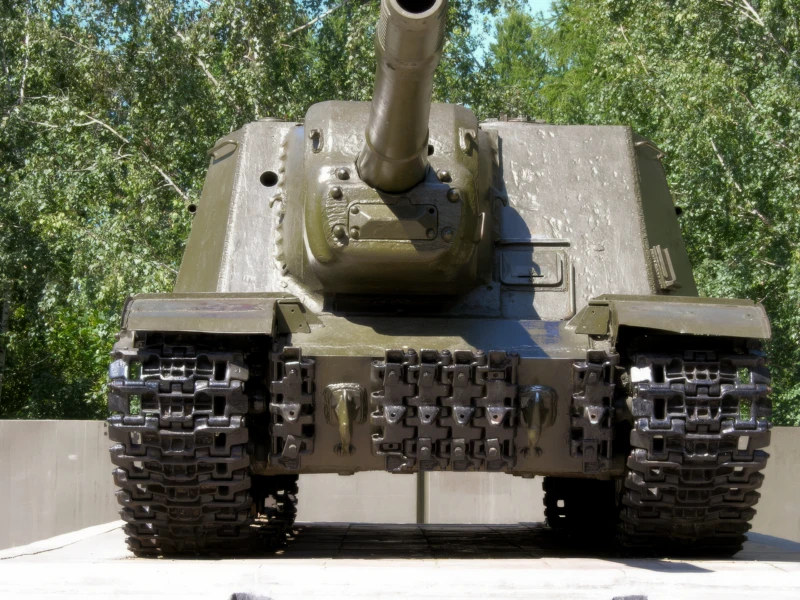

伊苏-152 | |
|---|---|
| 国家 | 苏联 |
| 类型 | 重型突击枪 |
| 时期 | 1943 – 1970年代 |
| 建立 | 4635 |
这 伊苏-152 是苏联在第二次世界大战期间开发和使用的自行火炮。它被非正式地昵称为zveroboy（俄语：Зверобой;"野兽杀手"。以回应几辆大型德国坦克和火炮投入使用。由于ISU-152没有炮塔，瞄准火炮很笨拙，必须使用履带重新定位整个车辆，因此它被用作移动火炮，以支持更多的机动步兵和装甲攻击。它一直服役到20世纪70年代，并在几个战役和国家中使用。
源： 维基上的ISU-152
| 伊苏-152 | |
|---|---|
| 摄影师 | 未知 |
| 本地化 | 未知 |
| 照片 | 58 |
等等，为您搜索ISU-152.。。
| ISU-152 四处走走 | |
|---|---|
| 摄影师 | 阿列克谢·马尔蒂年科 |
| 照片 | 47 |
| 本地化 | 未知 |
| ISU-152 四处走走 | |
|---|---|
| 摄影师 | 弗拉基米尔·亚库博夫 |
| 本地化 | 伟大的卫国战争博物馆，明斯克 |
| 照片 | 50 |
| ISU-152 四处走走 | |
|---|---|
| 摄影师 | 未知 |
| 本地化 | 未知 |
| 照片 | 20 |
| ISU-152 四处走走 | |
|---|---|
| 摄影师 | 未知 |
| 本地化 | 未知 |
| 照片 | 48 |
另请参阅：
The “Beast Hunter” of the Eastern Front
这 伊苏-152 was a massive Soviet heavy self-propelled gun deployed during World War II. Developed to replace the older SU-152 on the more reliable IS tank chassis, it was a multi-role powerhouse. Officially, it served as a heavy assault gun to smash concrete bunkers and an impromptu tank destroyer. When confronted by Germany’s late-war heavy armor, the Red Army gave the ISU-152 the legendary nickname Zveroboy (“Beast Hunter”). Its gigantic 152.4mm gun-howitzer could tear apart Tiger, Panther, and Elefant tanks. Even if the shell failed to penetrate a target’s thick front armor, the raw kinetic blast was often powerful enough to crack the weld seams, shear off the turret, or completely shatter the internal mechanics, instantly neutralizing the enemy.
| Attribute | Technical Specification (ISU-152 Baseline) |
|---|---|
| 作用 | Heavy Assault Gun / Heavy Tank Destroyer |
| 船员 | 4 or 5 (Commander, Driver, Gunner, 1 or 2 Loaders due to heavy shell weight) |
| Chassis Basis | IS-1 / IS-2 Heavy Tank hull |
| 动力装置 | V-2-IS 12-cylinder diesel engine (520 hp) |
| Max Speed | 37 km/h (23 mph) on roads | 15-20 km/h off-road |
| 工作范围 | ~120 km (75 miles) off-road | 220 km on roads |
| 主要武器装备 | 152.4mm ML-20S gun-howitzer (20 rounds carried) |
| 次要武器 | 1 × 12.7mm DShK anti-aircraft heavy machine gun (fitted to late-war/post-war models) |
| Armor Thickness | Front Casemate: 90mm (sloped) | Hull Front: 75mm | Sides: 60mm |
Design Engineering: Monolithic Casemates and Split-Loading Artillery
- The Low-Profile Fixed Casemate: To accommodate a massive 152mm weapon without making the vehicle unsafely top-heavy, Soviet engineers abandoned a rotating turret. Instead, they built a sloped, fully enclosed armored box—called a casemate—directly onto the IS tank chassis. This reduced production time, lowered the vehicle’s profile, and allowed the armor plates to be welded at sharp angles to deflect incoming enemy shells.
- The Brutal Reality of Two-Piece Ammunition: Loading a 152.4mm weapon inside a cramped armored vehicle required intense physical labor. The ammunition was split into two separate parts: the heavy projectile itself (weighing roughly 96 lbs or 43.5 kg) and the propellant casing. Two dedicated loaders had to work together to manually ram the shell into the breech first, followed immediately by the powder charge. This slow process limited the vehicle’s rate of fire to just 1 to 2 rounds per minute.
- The T-Shaped Muzzle Brake: The barrel of the ML-20S gun-howitzer featured a distinct, multi-slotted muzzle brake at its tip. When the gun fired, this system directed a portion of the escaping propellant gases backward and outward. This counteracted the massive rearward recoil force, preventing the suspension of the tank chassis from cracking under the strain of firing such a heavy artillery piece.
- Torsion Bar Suspension Strength: Borrowed from the elite IS-2 heavy tank, the ISU-152 utilized a robust torsion bar suspension system. Instead of relying on external coil springs, thick steel bars ran completely across the floor inside the hull. As the tracks rolled over rough terrain, these bars twisted to absorb the vibrations. This provided a remarkably stable platform for firing heavy artillery over muddy or frozen terrain.
Operational History: From the Steppes of Kursk to the Streets of Berlin
- Smashing the German Panzer Wedges: The ISU-152 entered full-scale production in late 1943, quickly filling out Independent Heavy Self-Propelled Artillery Regiments. These specialized shock units were deployed to key sectors of the front, acting as mobile fire brigades to blunt German armored counter-offensives and spearhead deep breakthroughs into enemy lines.
- The High-Explosive Solution: While the ISU-152 carried solid armor-piercing (AP) rounds, crews frequently preferred using the standard High-Explosive Fragmentation (HE-Frag) shell against enemy tanks. The explosive blast was so incredibly violent that it could strip a German tank’s tracks completely off, detonate its internal fuel tanks, or cause the interior armor to splinter into lethal fragments (spalling), killing the enemy crew without even punching through the steel hull.
- Urban Warfare Bunker Buster: During the final advance into Germany and the Battle of Berlin, the ISU-152 became an indispensable tool for urban combat. Operating alongside infantry assault teams, the massive vehicles would roll down debris-strewn streets to engage fortified machine-gun nests and concrete sniper strongholds at point-blank range, collapsing entire multi-story buildings with a single shot.
- A Worldwide Cold War Legacy: The ISU-152 was so fundamentally reliable and terrifyingly effective that the Soviet Union updated and maintained the fleet well into the 1970s (as the ISU-152M). They were exported across the globe, seeing active combat with the Egyptian military during the Arab-Israeli conflicts. Even more remarkably, several decommissioned units were brought out of storage in 1986 to serve as heavily shielded, mobile radiation-blocking bulldozers during the emergency cleanup operations at the Chernobyl nuclear disaster site.
