220毫米TR mle 1915/1916 | |
|---|---|
| 国家 | 法国 |
| 类型 | 榴弹炮 |
| 在服务中 | 1916-1945 |
| 制造商 | 施耐德和西 |
Mortier de 220 mm Tir Rapide modèle 1915/1916 施耐德或 220毫米TR mle 1915/1916 是第一次世界大战期间设计和生产的法国榴弹炮。在第二次世界大战期间，一些人仍然在手边，并在比利时、法国和德国服役。

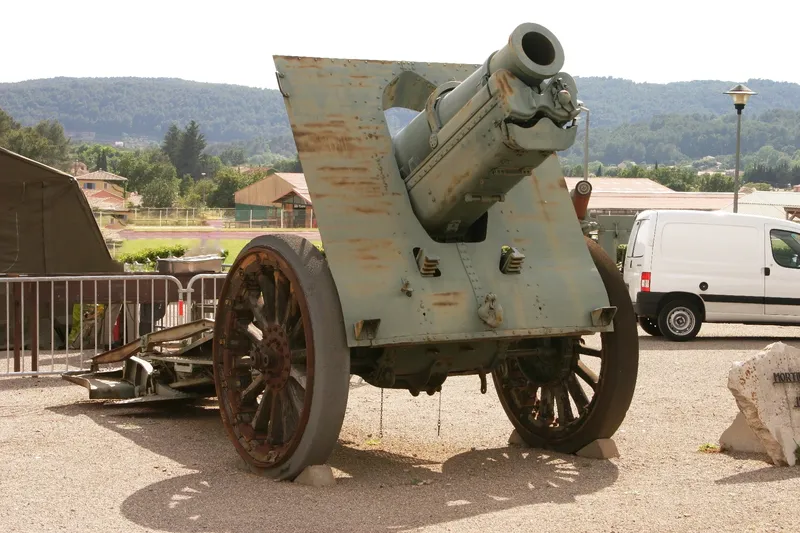

| Mortar 220 mm Mle 1916 Schneider Walk Around | |
|---|---|
| 摄影师 | 未知 |
| 本地化 | 未知 |
| 照片 | 44 |
等待，搜索 220 毫米 TR mle 1915/1916 照片为您...
另请参阅：
General Characteristics (World War I Era)
The Mortier de 220 mm Mle 1916 TR (Tir Rapide – Quick Firing) Schneider was a heavy French mortar/howitzer designed during World War I to provide the trench warfare power needed to destroy strong enemy fortifications. It was an improved version of the earlier Mle 1915, notably featuring stronger wheels with rubber tires for slightly better, though still limited, mobility.
| Property | Value (Mle 1916 Variant) |
|---|---|
| 作用 | Heavy Siege/Field Mortar (High-Angle Fire) |
| Designer/Manufacturer | 施耐德和西 |
| Entered Service | 1916 (Mle 1915/1916) |
| Calibre | 220 mm (8.66 in) |
| Barrel Length | L/10.6 (approx. 2.33 m) |
| Weight (Firing Position) | ~7,800 kg (~17,200 lb) |
| 运输 | Designed to break down into 2 loads for towing |
Design and Mechanism
- Recoil System: Utilized a hydro-pneumatic recoil system in a cradle (sled) that slid back along rails on the carriage.
- High-Angle Fire: Capable of high elevation (up to +65 degrees), which was critical for dropping heavy shells onto entrenched positions and fortifications.
- Loading: The gun had to be lowered to a low elevation for loading. To assist the crew with the heavy 100 kg shells, folding rails were often used to slide the projectile into the breech.
- Breech: Used an interrupted screw breech block with a de Bange obturator seal to allow the use of separate loading bagged propellant charges.
- Emplacement Time: Required significant site preparation, including digging a pit under the breech for high-angle fire and a minimum of 2 hours to get the gun into battery.
Performance and Usage
- Projectile Weight: 100.5 kg (221 lb) HE shell.
- Muzzle Velocity: Up to 415 m/s (1,360 ft/s) depending on the propellant charge.
- Maximum Range: Approximately 10,800 m (10.8 km, 6.7 miles).
- Rate of Fire: Relatively slow, around 2 rounds per minute (6 rounds per 5 minutes).
- Mobility Issue: Despite the “TR” (Quick Firing) designation, the gun’s heavy weight and limitations on its carriage meant its towing speed was very slow, a major deficiency once the Western Front became mobile near the end of WWI.
- Later Service: Many of these mortars were still in French service at the start of World War II, and a large number were captured by Germany and pressed into service as the 22 cm Mörser 531(f).
