Sukhoi Su-17 | |
|---|---|
| Državi | URSS |
| Vrsta | Sovjetska napadalna letala |
| Prvi let | 2. avgust 1966 |
| Zgrajena | 2867 |
Fotogalerija Sukhoi Su-17UM3.
V Sukhoi Su-17 (Nato poročevalsko ime: Fitter) je sovjetsko napadalno letalo, razvito iz lovca-bombnika Suhoi Su-7. Imela je dolgo kariero v sovjetski, kasneje ruski, službi in je bila na splošno izvožena v komunistične in bližnje vzhodne zračne sile, pod imeni Su-20 in Su-22.
| Sukhoi Su-17UM3 | |
|---|---|
| Fotograf | Neznano |
| Lokalizacijo | Neznano |
| Fotografije | 70 |
Sukhoi Su-17UM3 01
Sukhoi Su-17UM3 02
Sukhoi Su-17UM3 03
Sukhoi Su-17UM3 04
Sukhoi Su-17UM3 05
Sukhoi Su-17UM3 06
Sukhoi Su-17UM3 07
Sukhoi Su-17UM3 08
Sukhoi Su-17UM3 09
Počakajte, iskanje Sukhoi Su-17UM3 fotografije za vas ...

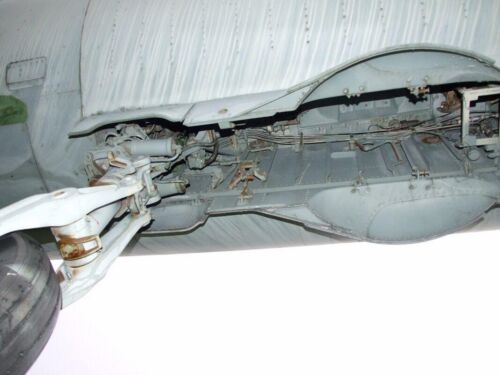

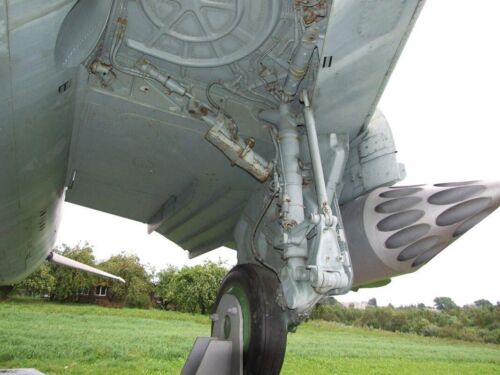

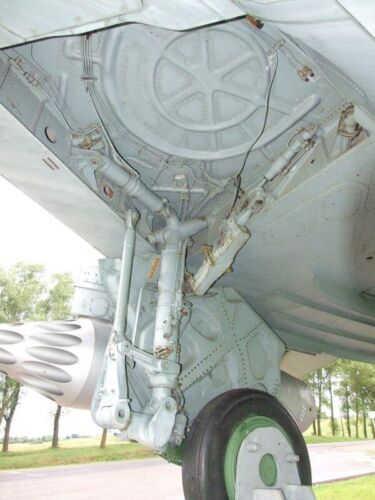

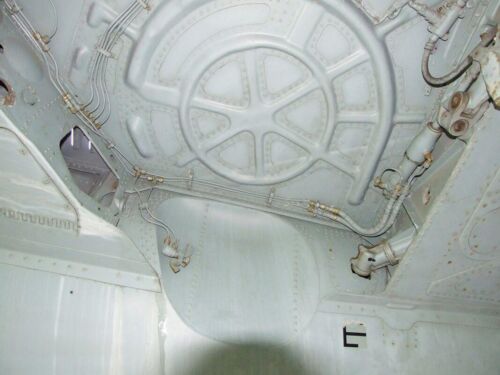

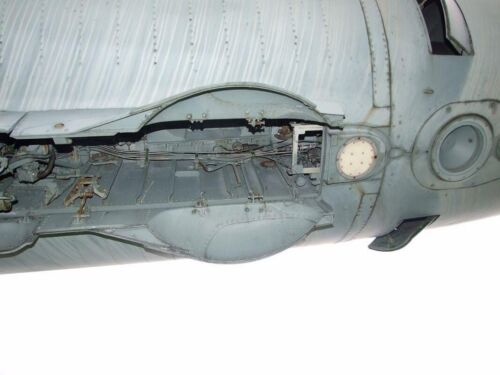

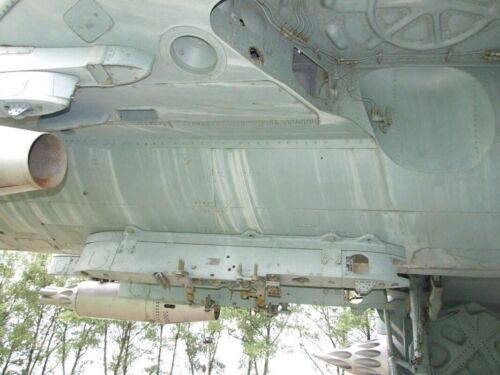

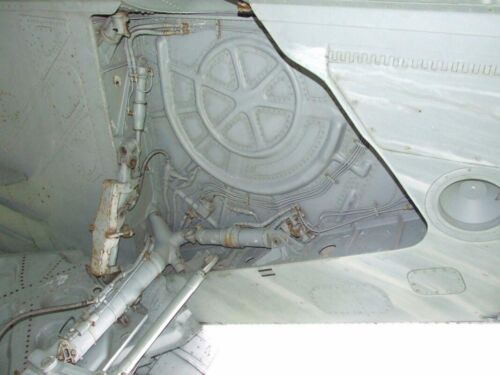

| Su-17M Fitter Sprehod Okoli | |
|---|---|
| Fotograf | Eugeny Ivanov |
| Lokalizacijo | Neznano |
| Fotografije | 52 |

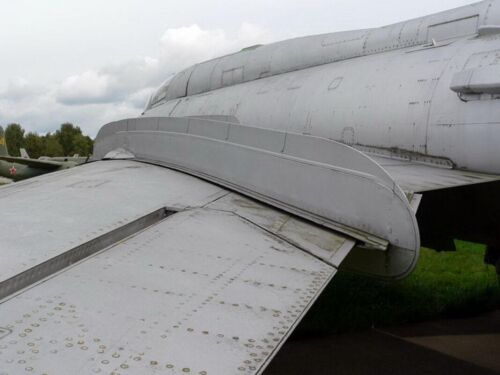

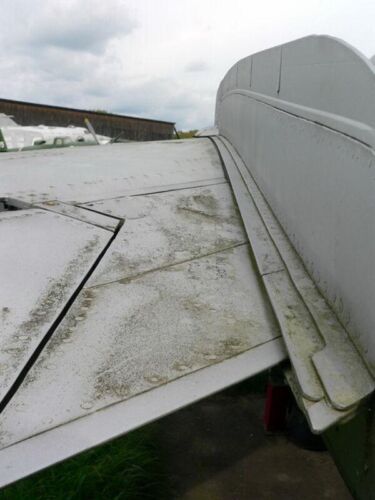

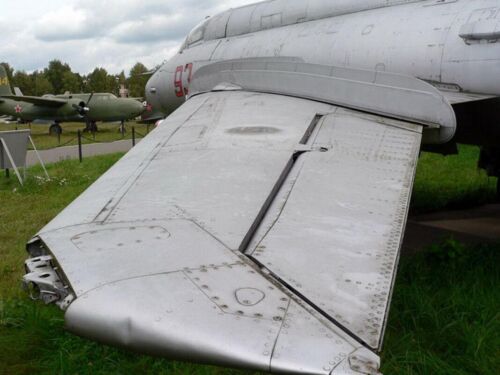

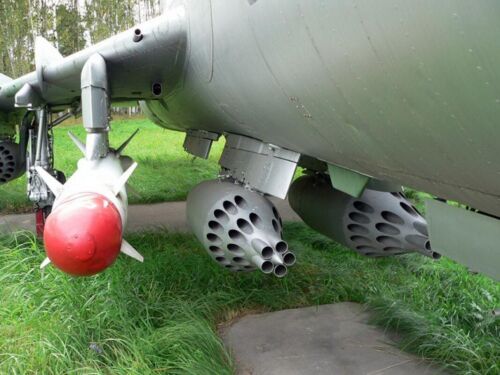

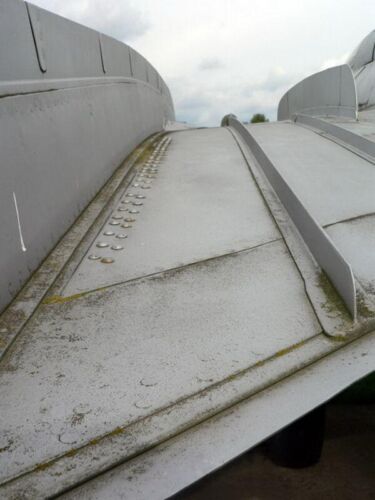

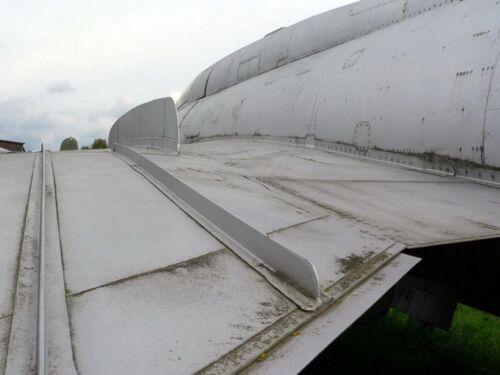

| Sukhoi Su-17M3 Walk Around | |
|---|---|
| Fotograf | Sergey Zhabin |
| Lokalizacijo | Neznano |
| Fotografije | 255 |

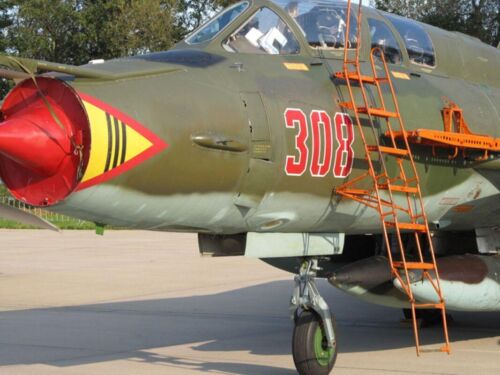

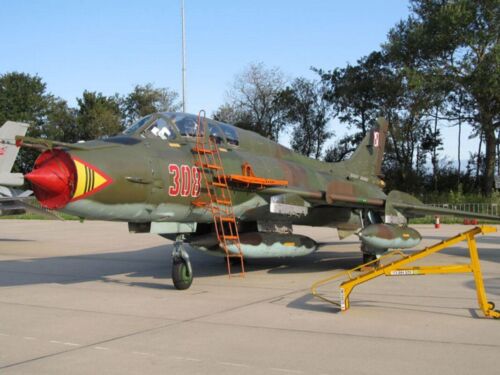

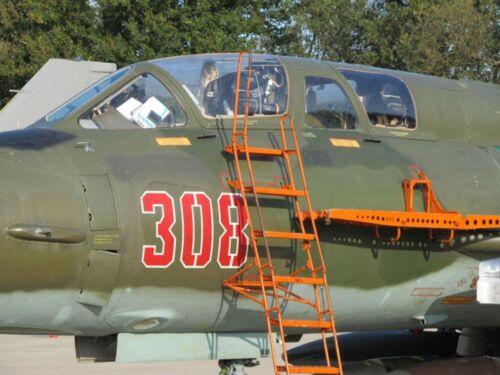

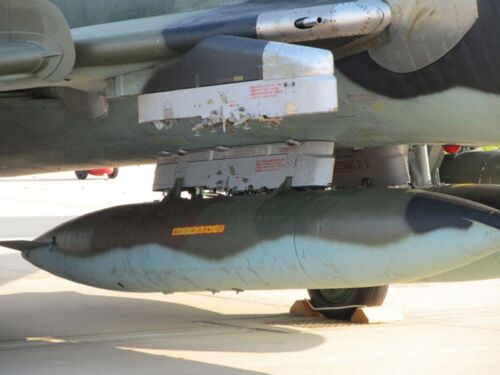

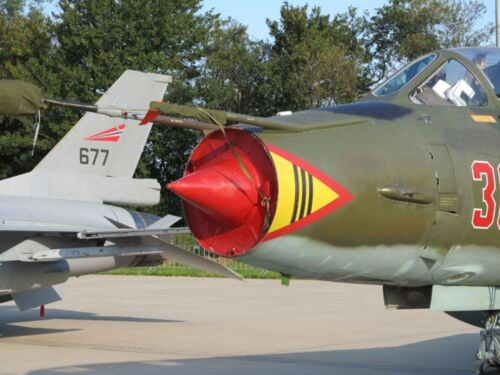

| Su-22 UM Walk Around | |
|---|---|
| Fotograf | Cees Hendriks |
| Lokalizacijo | Neznano |
| Fotografije | 59 |
Glej tudi:

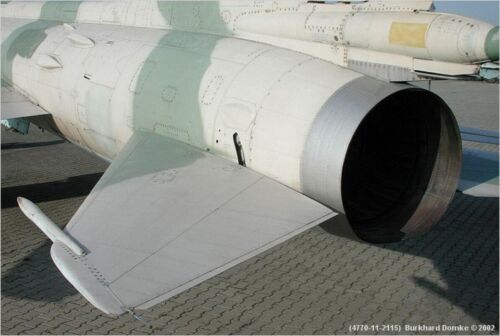

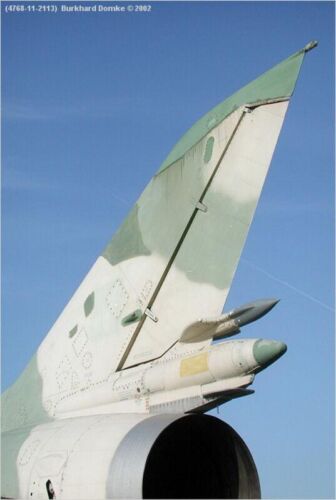

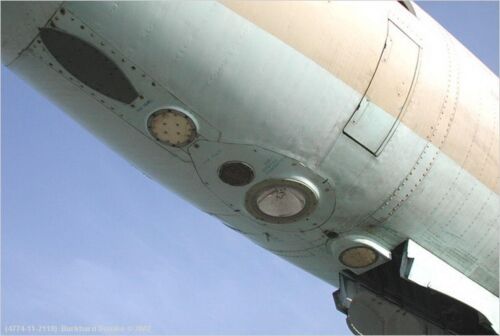

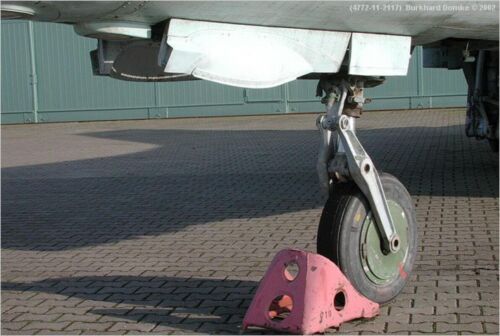

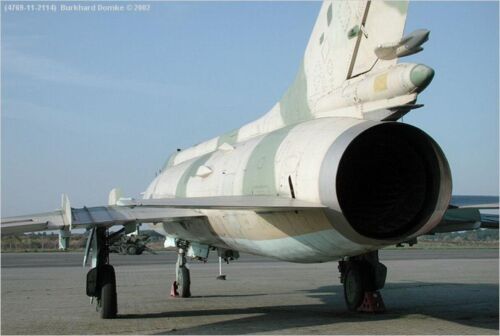

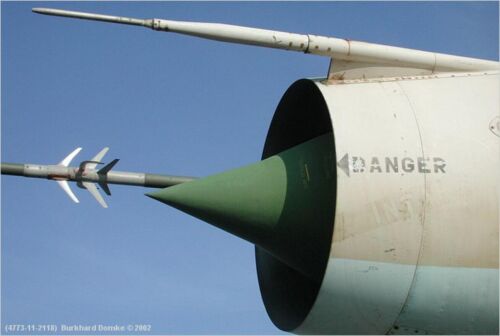

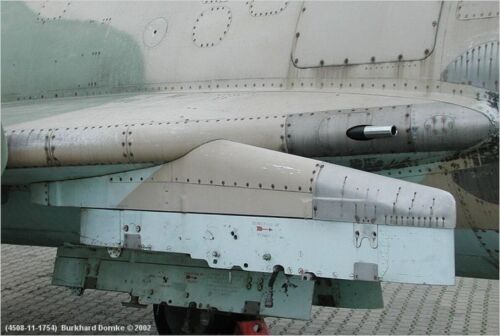

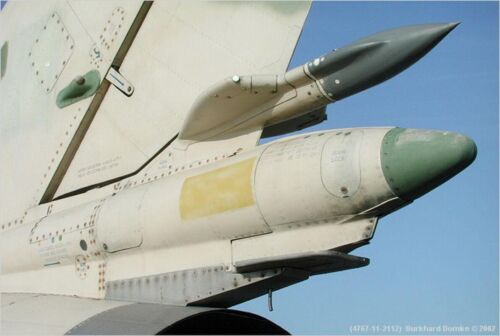

| Sukhoi Su-20 Fitter-C Walk Around | |
|---|---|
| Fotograf | Burkhard Domke |
| Lokalizacijo | Neznano |
| Fotografije | 34 |
Počakajte, iskanje Sukhoi Su-17UM3 fotografije za vas ...

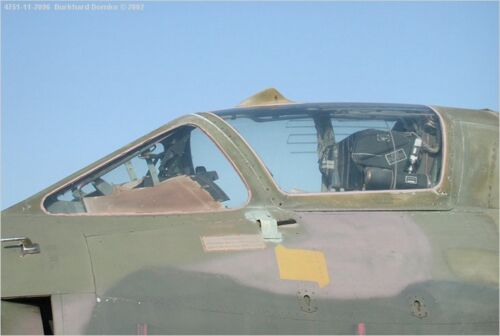

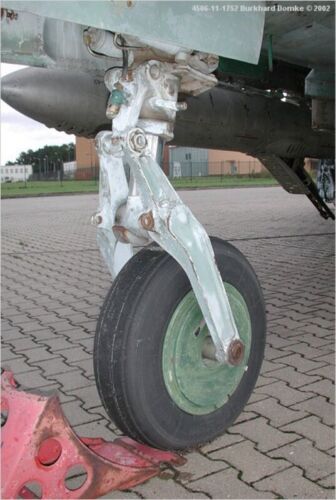

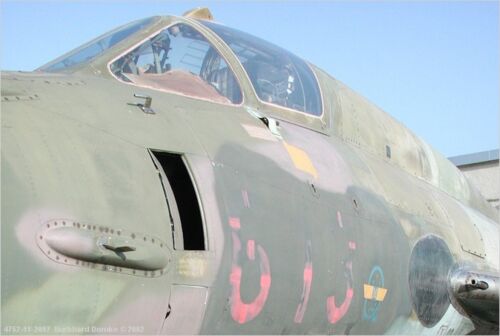

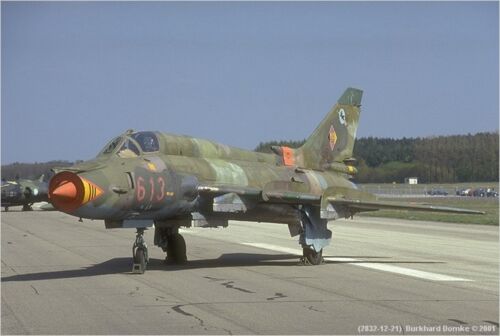

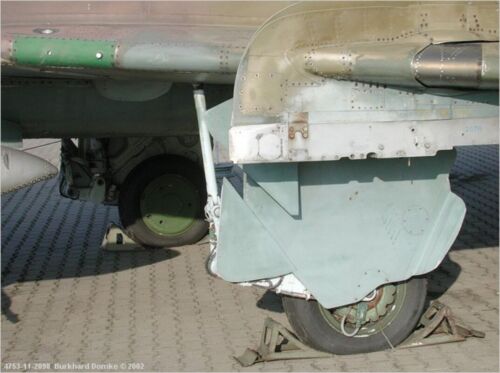

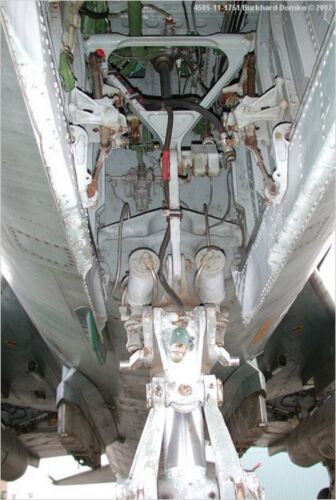

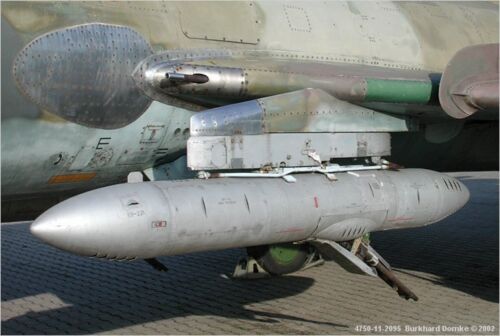

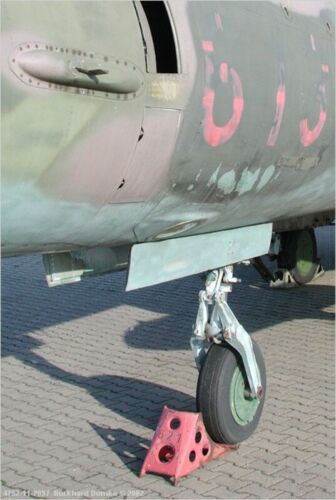

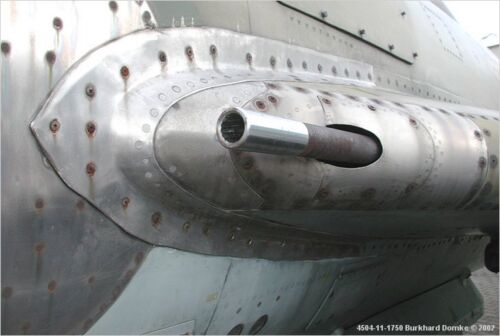

| Sukhoi Su-22M4 Fitter-K Walk Around | |
|---|---|
| Fotograf | Unknow |
| Lokalizacijo | Burhand Donke |
| Fotografije | 27 |

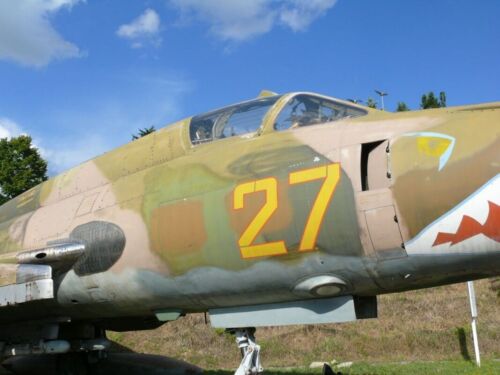

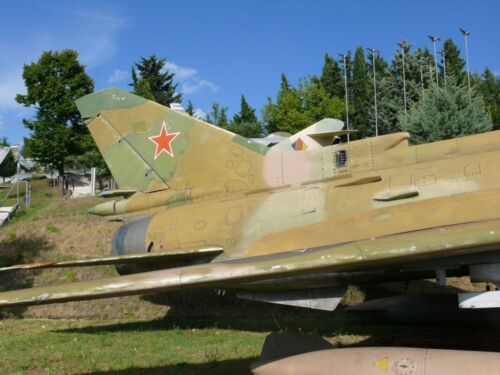

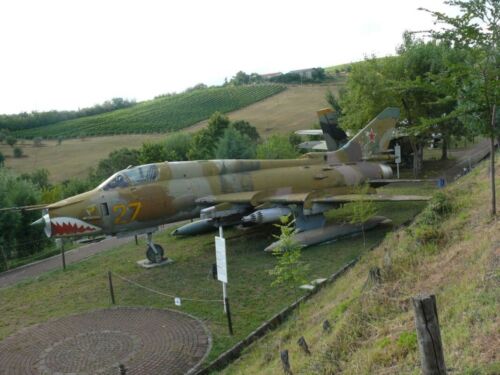

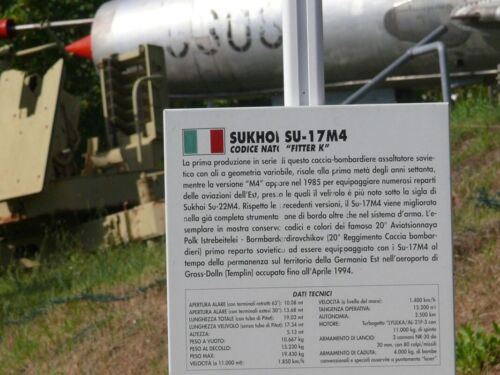

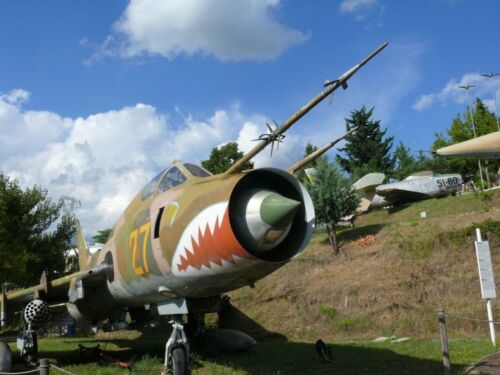

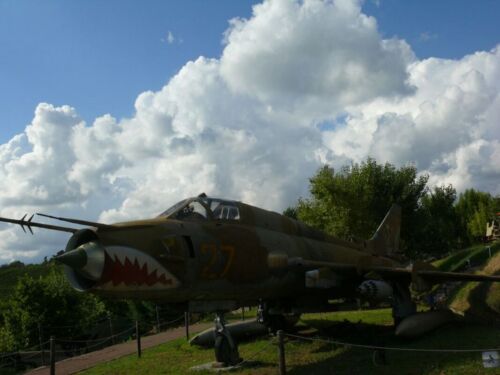

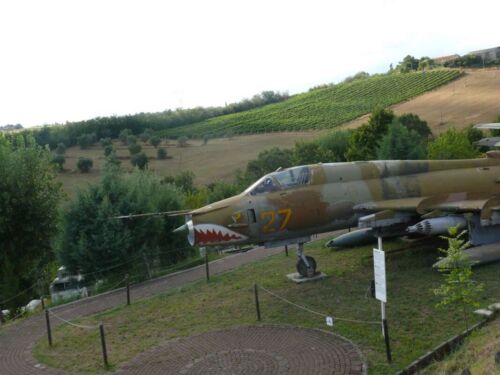

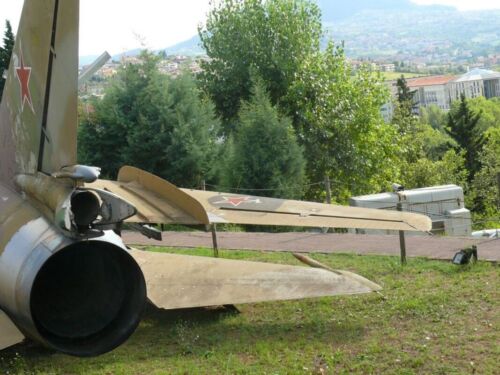

| Sukhoi Su-17M4 Fitter K Walk Around | |
|---|---|
| Fotograf | Unknow |
| Lokalizacijo | Neznano |
| Fotografije | 19 |

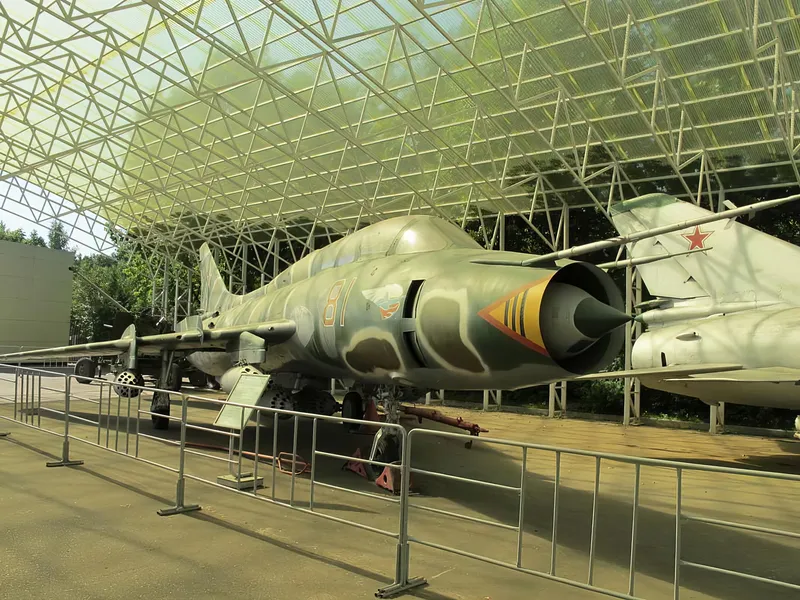

V Sukhoi Su-17UM3 is a two-seat, advanced operational trainer variant of the venerable Soviet Su-17 variable-sweep wing fighter-bomber (NATO designation “Fitter”). It was developed from the earlier Su-17UM, incorporating the improved avionics and systems of the single-seat Su-17M3 ground-attack aircraft.
Design and Role
Trainer Configuration:
- Primary role is to provide advanced training and conversion for pilots transitioning to the high-performance Su-17/22 family of attack jets.
- It features a tandem two-seat cockpit, with the instructor occupying the rear seat.
- The aircraft utilizes a raised, deeper dorsal spine (similar to the single-seat Su-17M3) to accommodate additional avionics and fuel tankage, compensating for the weight and space taken up by the second cockpit.
Variable-Sweep Wings:
- Like all Su-17 variants, the Su-17UM3 uses the signature variable-sweep outer wing panels, allowing for excellent low-speed handling (takeoff/landing) and high-speed performance (supersonic flight) in a single airframe.
- The sweep angle can be configured between approximately 30° and 63°.
Operational Capability:
- Although primarily a trainer, the Su-17UM3 retains significant combat capability, sharing the weapon hardpoints and weapon delivery systems of the single-seat variants.
- It is typically powered by the Lyulka AL-21F-3 afterburning turbojet engine (unlike some export trainers, the Su-22UM3, which used the Tumansky R-29 engine).
General Specifications (Approximate, based on Su-17M3/UM3 data)
| Funkcija | Specifikacija |
|---|---|
| Vrsta | Advanced Two-Seat Trainer / Fighter-Bomber |
| Posadke | 2 (Pilot and Instructor/Trainee) |
| Motor | Lyulka AL-21F-3 Afterburning Turbojet |
| Max Speed | Approx. Mach 1.7 (High Altitude) / Mach 1.1 (Sea Level) |
| Main Armament | Two 30 mm Nudelman-Rikhter **NR-30** cannons |
| Payload Capacity | Up to 4,000 kg (8,800 lbs) of ordnance (bombs, rockets, missiles, gun pods) |
| Wingspan (Unswept) | Approx. 13.68 m (44 ft 11 in) |
| Dolžina | Approx. 19.02 m (62 ft 5 in) |
