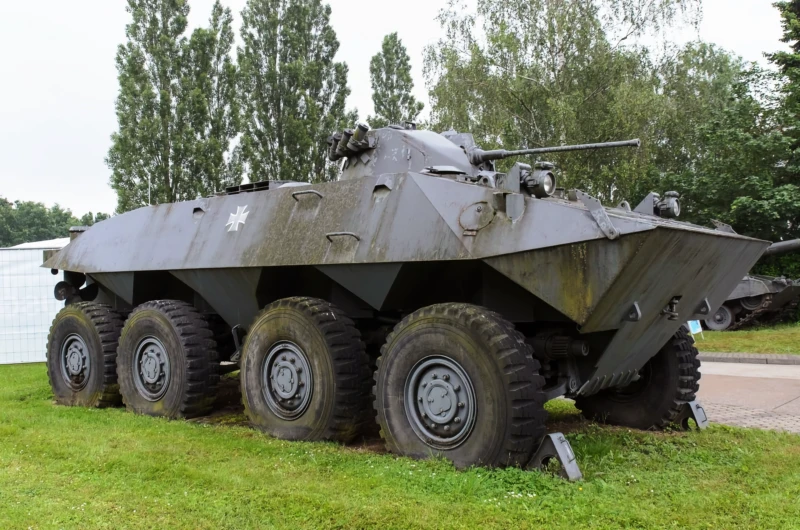

Spahpanzer 2

Spahpanzer 2
Državi	Zahodna Nemčija
Vrsta	Izvidno vozilo
Proizvaja	1975–1977
Zgrajena	408

V Spähpanzer Luchs (English: Lynx) is a German 8×8 amphibious reconnaissance armoured fighting vehicle (Spähpanzer) in service since 1975 with the German Army, who used 408 in their armoured reconnaissance battalions. It was developed by Daimler-Benz between 1968 and 1975, replacing the M41 and the Schützenpanzer SPz 11-2 Kurz. The all-wheel drive Luchs made by Thyssen-Henschel (now: Rheinmetall) is well armoured, has an NBC protection system and is characterized by its low-noise running. The eight large low-pressure tyres have run-flat properties. At speeds up to about 50 km/h, all four axles can be steered. As a special feature, the vehicle is equipped with a rear-facing driver with his own driving position. Up to the first combat effectiveness upgrade in 1986, the Luchs was fully amphibious and could surmount water obstacles quickly and independently using propellers at the rear and the fold back trim vane at the front.

Vir: Spahpanzer 2 na Wikipediji

Spahpanzer 2 Prototype
Fotograf	Ulrich Wrede
Lokalizacijo	Neznano
Fotografije	18

Spahpanzer 2 Prototype 02

Spahpanzer 2 Prototype 01

Spahpanzer 2 Prototype 03

Spahpanzer 2 Prototype 04

Spahpanzer 2 Prototype 05

Spahpanzer 2 Prototype 06

Spahpanzer 2 Prototype 07

Spahpanzer 2 Prototype 08

Spahpanzer 2 Prototype 09

Click on a photo and use the mouse scroll to view all photos

Počakajte, Iskanje Spahpanzer 2 Prototip fotografij za vas ...

Kupite mi kavo

Luch Spahpanzer 2 Walk Around
Fotograf	Thomas Hartwig
Lokalizacijo	Neznano
Fotografije	54

Luch Spahpanzer 2

Naloži več ...

Počakajte, Iskanje Spahpanzer 2 Prototip fotografij za vas ...

Glej tudi:

The Ultimate Reconnaissance Platform

V Spähpanzer 2 Luchs (Lynx) was the primary amphibious reconnaissance vehicle of the German Army during the Cold War. Introduced in the mid-1970s to replace the French-built Hotchkiss scouts, the Luchs was designed for stealth, speed, and exceptional mobility. It is famously quiet; its engine and tires were engineered to allow it to sneak up on enemy positions with almost no acoustic signature. For decades, it served as the “eyes and ears” of the West German Panzer divisions, patrolling the Iron Curtain.

Attribute	Technical Specification (Luchs A2)
Vlogo	8×8 Armored Reconnaissance Vehicle
Posadke	4 (Commander, Gunner, Driver, Rear Driver/Radio Op)
Powerplant	Multi-fuel Daimler-Benz OM 403A V10 Diesel
Horsepower	390 hp
Maximum Speed	90 km/h (56 mph) / Water: 10 km/h
Oborožitev	1 × 20mm Rheinmetall MK 20 Rh 202 autocannon
Steering	All-wheel (8-wheel) steering
Operational Range	800 km (500 miles)

Design Engineering: Symmetry and Stealth

Bi-Directional Driving: Like many elite scout cars, the Luchs has a second driver facing the rear. In an ambush, the rear driver can take control instantly, allowing the vehicle to flee at full speed in reverse without turning around.
Extreme Stealth: The Luchs was engineered with noise-reduction technology that was revolutionary for its time. At low speeds, the V10 engine is nearly inaudible from a distance, and its specialized large-volume tires minimize ground vibration.
All-Wheel Steering: All eight wheels can turn, giving this massive 19-ton vehicle a turning radius smaller than many passenger cars. This makes it incredibly agile in dense European forests or narrow village streets.
Fully Amphibious: The Luchs is propelled through water by two steerable propellers (schottel-type) at the rear. It can transition from land to water with almost no preparation, crucial for crossing the many rivers of Northern Germany.

Service History: Vigilance on the Inner German Border

The Cold War Sentry: The Luchs spent the majority of its life in the Panzeraufklärungsbataillone (Armored Reconnaissance Battalions), tasked with finding Soviet tank concentrations and calling in air strikes or artillery.
Peacekeeping in the Balkans: After the Cold War, the Luchs saw active service with KFOR in Kosovo and SFOR in Bosnia. Its high road speed and intimidating presence made it an excellent convoy escort and patrol vehicle.
Thermal Upgrade (A2): The original Luchs used an infrared searchlight. The A2 upgrade replaced this with a passive thermal imaging system, allowing the crew to see in total darkness without emitting any light that might give away their position.
Retirement: The Luchs was officially retired by the Bundeswehr in 2009. It has been replaced by the Fennek, a much smaller, 4×4 high-tech scout vehicle that emphasizes electronics over the Luchs’ heavy-duty mobility.
