Sovjetski konjenica tank BT-7 - Sprehod Okoli

BT-7
Državi	Sovjetski
Vlogo	Konjeniška cisterna
Proizvaja	1935–40

V BT-7 je bil zadnji od serije BT sovjetskih konjeništev, ki so bili proizvedeni v velikem številu med letoma 1935 in 1940. Bili so rahlo oklepni, a razumno dobro oboroženi za svoj čas in so imeli veliko boljšo mobilnost kot drugi sodobni tanki. BT tanki so bili znani po vzdevku Betka iz kratico, ali pa pomahnita betushka.

Vir: tank BT-7 na Wikipediji

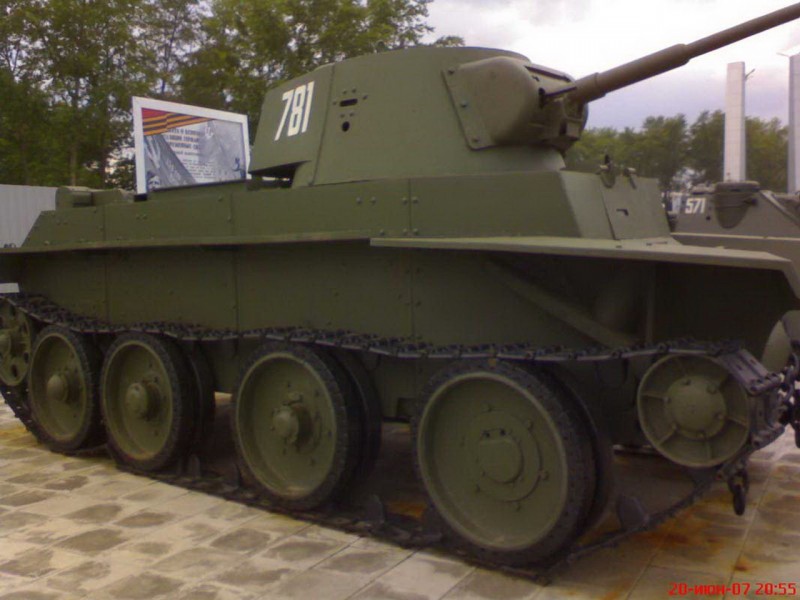

Soviet cavalry tank BT-7
Fotograf	Neznano
Lokalizacijo	Neznano
Fotografije	180

BT-7 001

BT-7 002

BT-7 003

BT-7 004

BT-7 005

BT-7 006

BT-7 007

BT-7 008

BT-7 009

Click on a photo and use the mouse scroll to view all photos

Počakajte, iskanje BT-7 fotografij za vas ...

BT-7 Walk Around
Fotograf	Aleksandr Rodionov
Lokalizacijo	Neznano
Fotografije	105

BT-7

Naloži več ...

BT-7 Model 1935 Walk Around
Fotograf	Yuri Pasholok
Lokalizacijo	Neznano
Fotografije	335

Model BT-7 1935

Naloži več ...

Glej tudi:

The **BT-7** was a Soviet light cavalry tank produced in large numbers between 1935 and 1940. It was the final and most technologically advanced of the BT series, succeeding the BT-5. The BT designation stands for **Bystrokhodnyy Tank** (Fast Tank), reflecting its core design philosophy: extreme mobility and speed, at the expense of armor protection.

Mobility: The Christie Suspension

The BT-7’s exceptional speed derived from the American-designed **Christie suspension** system, which the Soviets acquired and adapted. This feature made the BT series **”convertible”**: the tank could run on its tracks for cross-country movement or, in about 30 minutes, the tracks could be removed, and a chain drive engaged to power the rear set of large roadwheels. This allowed it to achieve very high speeds (up to 86 km/h or 53 mph) on roads, functioning essentially as an armored car.

Armament and Protection

Main Gun: The tank was typically armed with a high-velocity **45 mm 20-K anti-tank gun**. This gun was effective against most contemporary light and medium tanks of the mid-1930s.
Secondary Armament: A coaxial 7.62 mm DT machine gun was mounted in the turret.
Armor: Armor was thin, generally 6 mm to 20 mm of rolled homogeneous steel. This protection was minimal, making the BT-7 vulnerable to dedicated anti-tank weapons and heavy machine gun fire.
Variante: The later **BT-7M** (sometimes called BT-8) introduced the powerful **V-2 diesel engine**, a key innovation that improved range and significantly reduced the fire risk common to the earlier gasoline-fueled models.

Significance and Legacy

The BT-7 saw service in the Far East (against Japan at Khalkhyn Gol) and heavily during the initial stages of World War II, including the Winter War and the opening of Operation Barbarossa in 1941. While many were lost due to obsolescence, mechanical failure, and combat damage, the experience gained and the technologies developed for the BT-7, particularly the **V-2 diesel engine** and the concept of sloped armor (seen in its conical turret and later applied radically to its successor), directly paved the way for the legendary **T-34 medium tank**.
