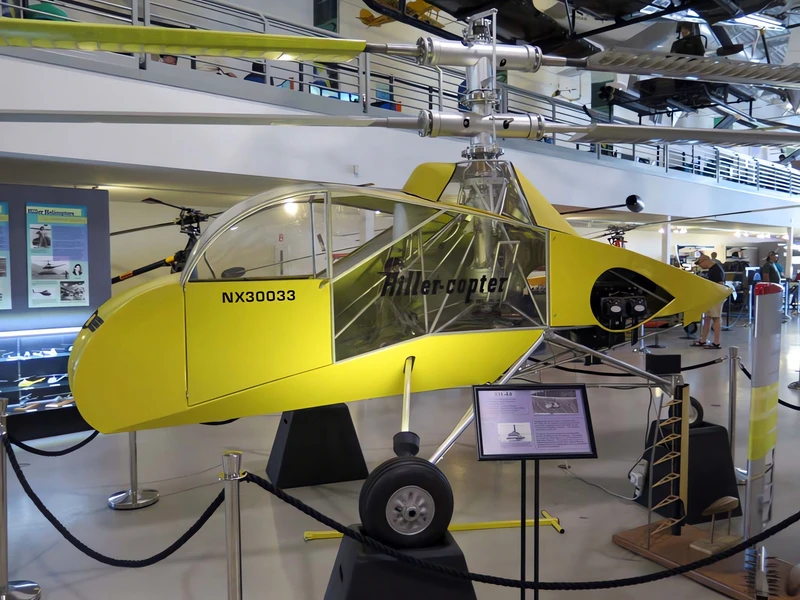

Hiller XH-44

Hiller XH-44
Državi	Zda
Vlogo	Koaksialni rotni helikopter
Prvi let	1942-1944
Zgrajena	Neznano

Hiller Aircraft Company was founded in 1942 as Hiller Industries by Stanley Hiller to develop helicopters. Stanley Hiller, then seventeen, established the first helicopter factory on the West Coast of the United States, located in Berkeley, California, in 1942, under the name “Hiller Industries,” to develop his design for the coaxial-rotor XH-44 "Hiller-Copter" za ameriško vojsko. XH-44 je začel delovati leta 1944. V sodelovanju s Henryjem J. Kaiserjem je leta 1945 postal United Helicopters. V povojnih letih je United Helicopter izdelal številne inovativne oblike helikopterjev za vojaške in civilne namene, vključno s koaksialnimi rotorji in brez repa, pa tudi bolj konvencionalnimi modeli. Januarja 1949 je Hiller 360 postal prvi civilni helikopter, ki je prečkal ZDA

Vir: Hiller XH-44 na Wikipediji

Hiller XH-44 Walk Around
Photographer	Vladimir Yakubov
Localisation	Hiller Aviation Museum, San Carlos
Photos	57

Hiller XH-44 01

Hiller XH-44 02

Hiller XH-44 03

Hiller XH-44 04

Hiller XH-44 05

Hiller XH-44 06

Hiller XH-44 07

Hiller XH-44 08

Hiller XH-44 09

Click on a photo and use the mouse scroll to view all photos

Počakajte, iščem Hiller XH-44 za vas ...

Glej tudi:

General Characteristics and Role

The Hiller XH-44 “Jet-Rotor” was an early and highly experimental American helicopter, developed by Stanley Hiller, Jr., during the 1940s. It was the first helicopter to use a unique propulsion system known as tip-jet drive, where compressed air mixed with fuel was ignited and expelled from the tips of the main rotor blades to provide thrust. The primary advantage of this “cold jet” or “hot jet” system was the elimination of the complex and heavy mechanical drivetrain and anti-torque tail rotor typically required by conventional helicopters. The XH-44 was an exceptionally simple and light aircraft for its time, and while it did successfully fly, demonstrating the tip-jet principle, the concept suffered from high fuel consumption and noise, leading to its eventual discontinuation for practical use. The XH-44 was the first helicopter produced by Hiller and helped launch the company’s career in aviation.

Property	Typical Value (XH-44 Prototype)
Vlogo	Experimental Proof-of-Concept Helicopter
National Origin	Združene države Amerike
proizvajalec	Hiller Helicopters (Hiller-Copter)
First Flight	July 1944
Posadke	1 (Pilot)
Rotor System	Two-bladed main rotor
Rotor Diameter (Approx.)	7.62 m (25 ft 0 in)
Length (Fuselage)	3.78 m (12 ft 5 in)
Empty Weight (Approx.)	145 kg (320 lb)
Gross Weight (Approx.)	300 kg (660 lb)

Powerplant and Propulsion

Engine: 1 x Franklin 4ACG-199 piston engine driving an air compressor (not driving the rotor directly).
Rotor Drive: Tip-jet system. The engine drove a compressor that sent compressed air through ducts in the rotor blades. Fuel was injected and ignited at the tip nozzles to generate propulsive jet thrust (a “hot cycle”).
Maximum Speed: Approximately 137 km/h (85 mph; 74 kn).
Range: Very short, due to the low fuel efficiency of the tip-jet concept.
Tail Rotor: None required. Torque reaction from the main rotor was eliminated because the thrust was applied at the blade tips, making the fuselage inherently stable in yaw.

Design Legacy

Significance: The XH-44 proved that the jet-powered rotor concept was feasible, attracting initial interest from the U.S. Navy.
Design Simplicity: The elimination of the heavy transmission, gears, and tail rotor simplified the design and reduced manufacturing complexity.
Successor: Hiller’s next and more successful designs, such as the Hiller 360, abandoned the jet-rotor in favor of a conventional mechanical drive but retained Hiller’s revolutionary use of a servocontrol paddle system for simplified control input.
Preservation: The original XH-44 prototype is preserved and on display at the Smithsonian National Air and Space Museum.
