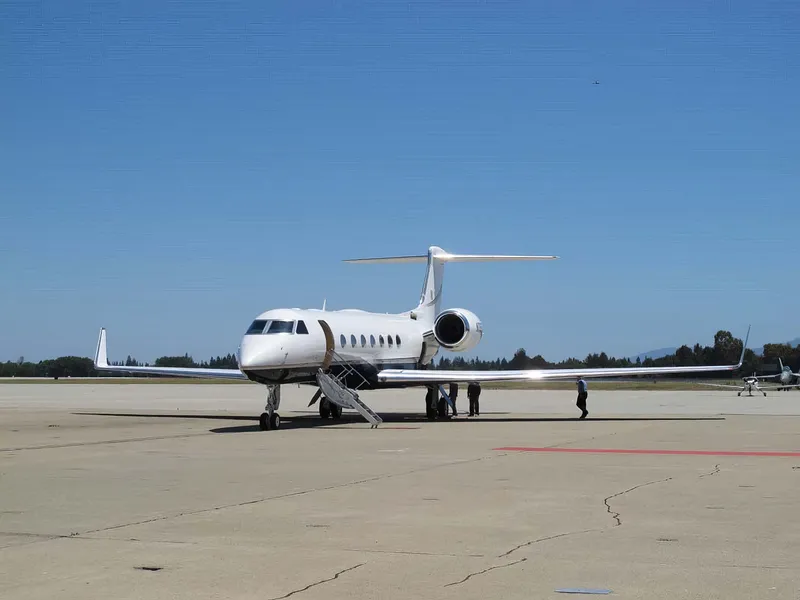

Gulfstream G550

Gulfstream G550
Country	USA
Role	Business jet
First flight	18 July 2002
Built	600+

The Gulfstream G550 is a business jet aircraft produced by General Dynamics’ Gulfstream Aerospace unit in Savannah, Georgia, US. The certification designation is GV-SP. A version with reduced fuel capacity was marketed as the G500. Gulfstream ceased production of the G550 in July 2021.

Source: Gulfstream G550 on Wikipedia

Gulfstream G550 Walk Around
Photographers	Vladimir Yakubov
Localisation	Moffett Air Field
Photos	55

Gulfstream G550 01

Gulfstream G550 02

Gulfstream G550 03

Gulfstream G550 04

Gulfstream G550 05

Gulfstream G550 06

Gulfstream G550 07

Gulfstream G550 08

Gulfstream G550 09

Click on a photo and use the mouse scroll to view all photos

Wait, Searching Gulfstream G550 for you…

General Characteristics

The Gulfstream G550 (Model GV-SP) is an ultra-long-range large-cabin business jet developed from the highly successful Gulfstream V. It is renowned for its combination of extended non-stop range, high cruise speed, and advanced safety features, establishing it as a top choice for global corporate and government transport.

Property	Value (G550 Production Model)
Role	Ultra-Long-Range Corporate/Executive Transport
Manufacturer	Gulfstream Aerospace (General Dynamics)
First Flight	August 31, 2001
Crew	2 pilots + 1–2 attendants
Capacity	14 to 19 passengers (typical configuration 8)
Wingspan	28.50 m (93 ft 6 in)
Max Takeoff Weight	41,277 kg (91,000 lb)

Design and Powerplant

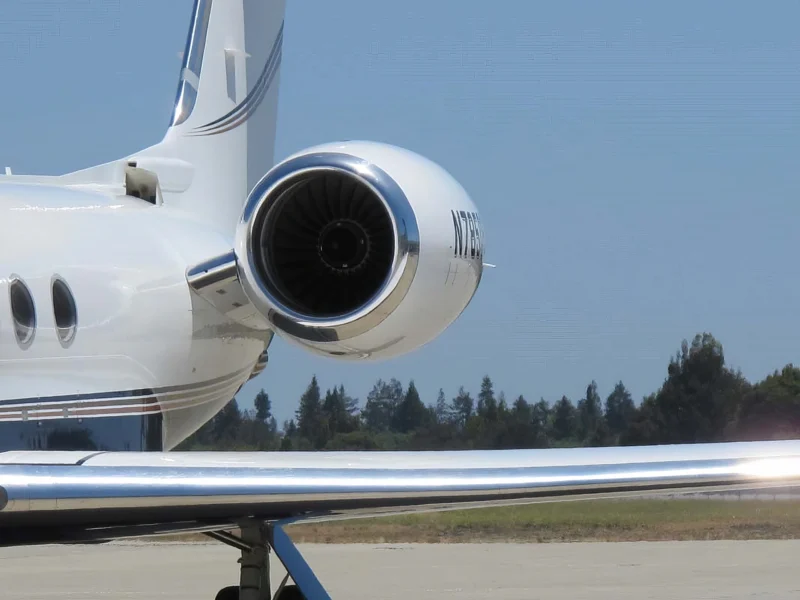

Engines: Two Rolls-Royce BR710 C4-11 turbofan engines.
Thrust: 68.4 kN (15,385 lbf) per engine.

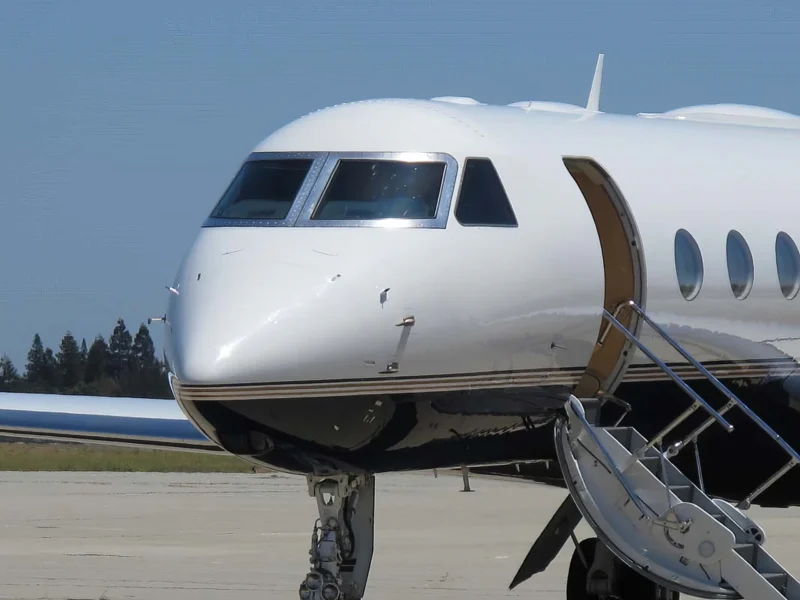

Key Improvement: The G550 introduced a redesigned nose section compared to the GV, which incorporated the next-generation PlaneView cockpit, moving the entrance door forward and adding a seventh cabin window.
Avionics: Equipped with the PlaneView integrated flight deck, based on the Honeywell Primus Epic system, featuring four large 14-inch liquid crystal displays.
Safety Feature: Includes the innovative Enhanced Vision System (EVS), which projects thermal imagery onto the Head-Up Display (HUD), allowing pilots to see runway lights and terrain in low-visibility conditions.
Cabin: Features 100% fresh air replenishment (no recirculation) and the lowest cabin pressure altitude in its class, reducing passenger fatigue on long flights.

Performance and Usage

Max Cruise Speed: Mach 0.85 (approx. 904 km/h or 488 knots).
High-Speed Cruise: Mach 0.87 (approx. 925 km/h or 500 knots).
Maximum Range: 12,501 km (6,750 nautical miles) at Mach 0.80. This allows non-stop flights between city pairs like Tokyo and Paris or New York and Dubai.
Service Ceiling: 15,545 m (51,000 ft).
Military/Special Use: The G550 airframe is extensively used by military forces (including the US, Singapore, and Australia) as a Special Mission Aircraft, such as the **C-37B** VIP transport and the Conformal Airborne Early Warning (CAEW) platform.
Design Award: The G550 team was honored with the prestigious Collier Trophy in 2003 for its technological innovation and advancement in aviation.
