9K33 Osa

9K33 Osa
Paese	Unione Sovietica
Ruolo	Sistema SAM anfibio 6×6
In servizio	N1971-oggi
Costruito	1200

Le 9K33 Osa (Inglese: wasp; SA-8 Gecko) è un sistema missilistico tattico terra-aria a corto raggio altamente mobile, a bassa quota, progettato in Unione Sovietica. Il nome della versione di esportazione è Romb.

fonte: 9K33 Osa su Wikipedia

9K33 Osa (NATO SA-8 Gecko) Walk Around
Photographer	Vladimir Yakubov
Localisation	Unknow
Photos	35

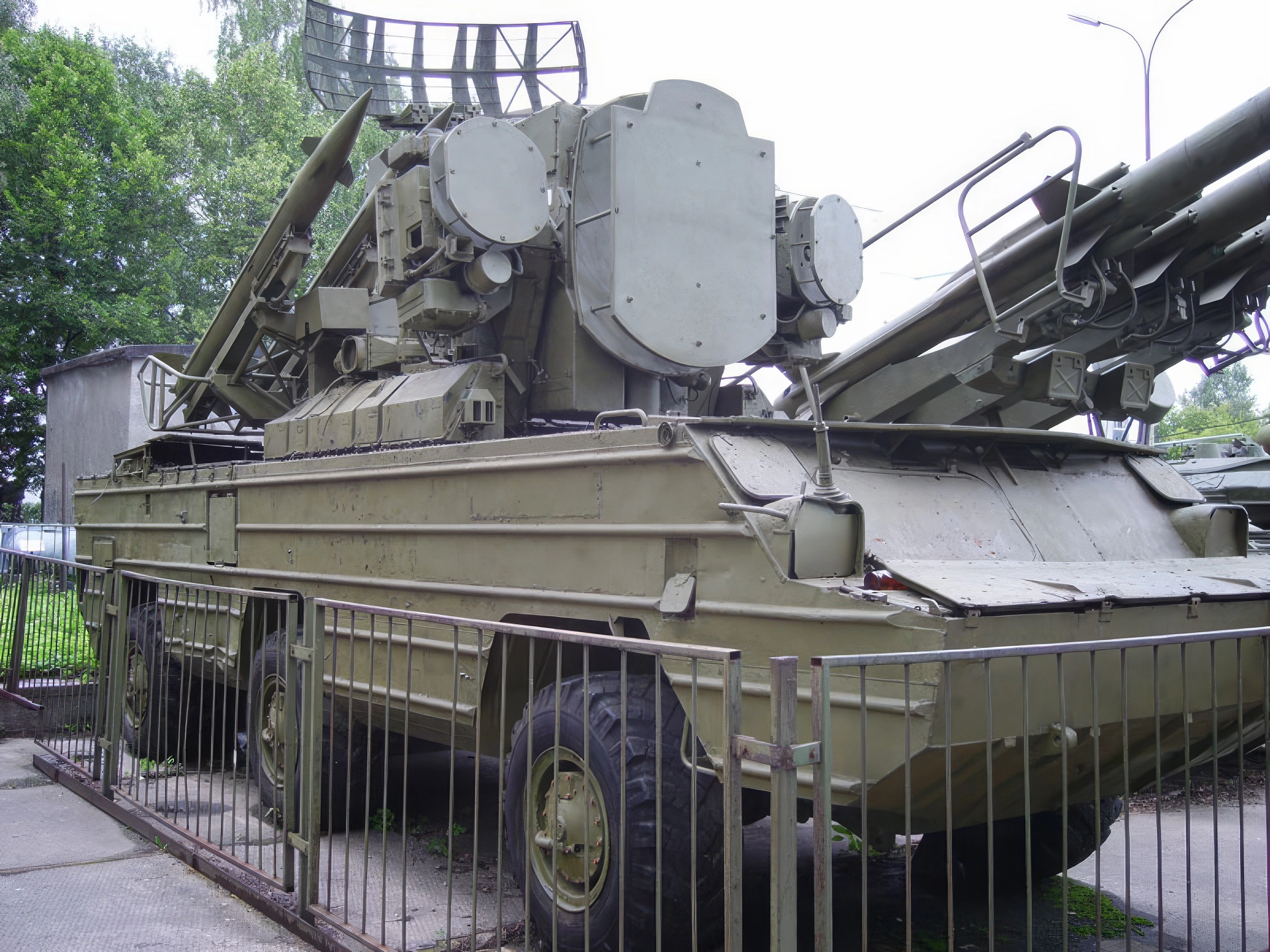

9K33 Osa 01

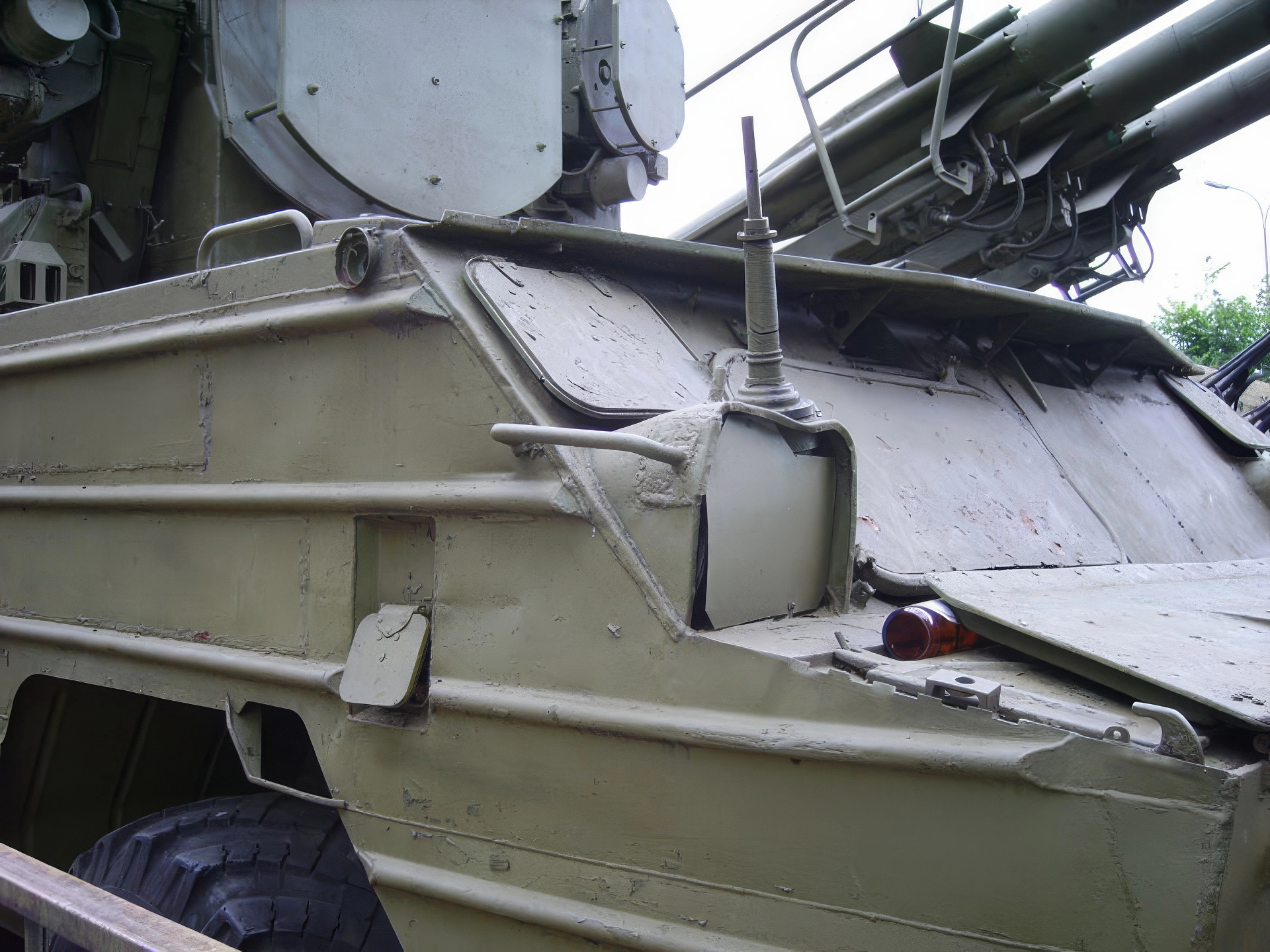

9K33 Osa 02

9K33 Osa 03

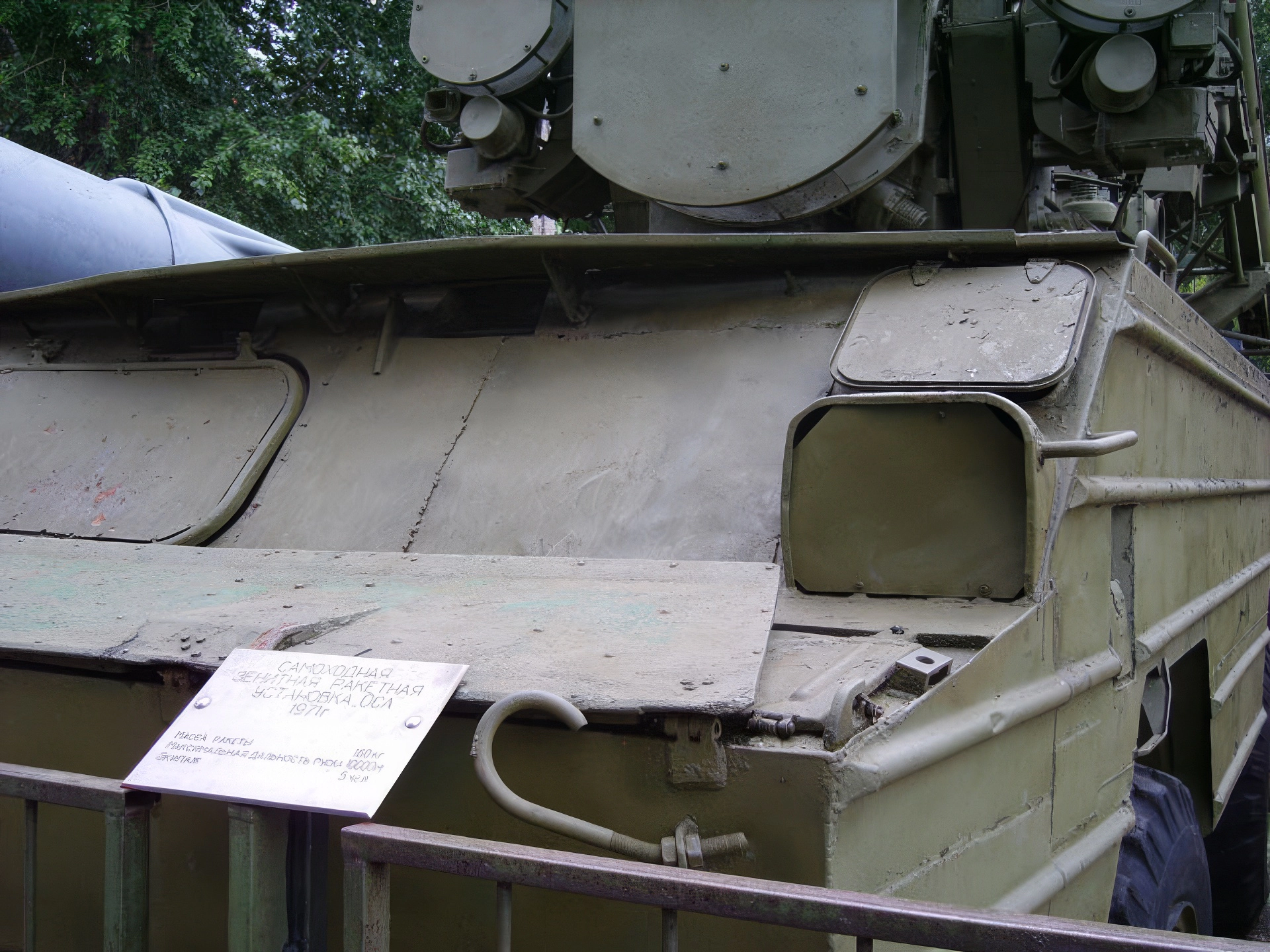

9K33 Osa 04

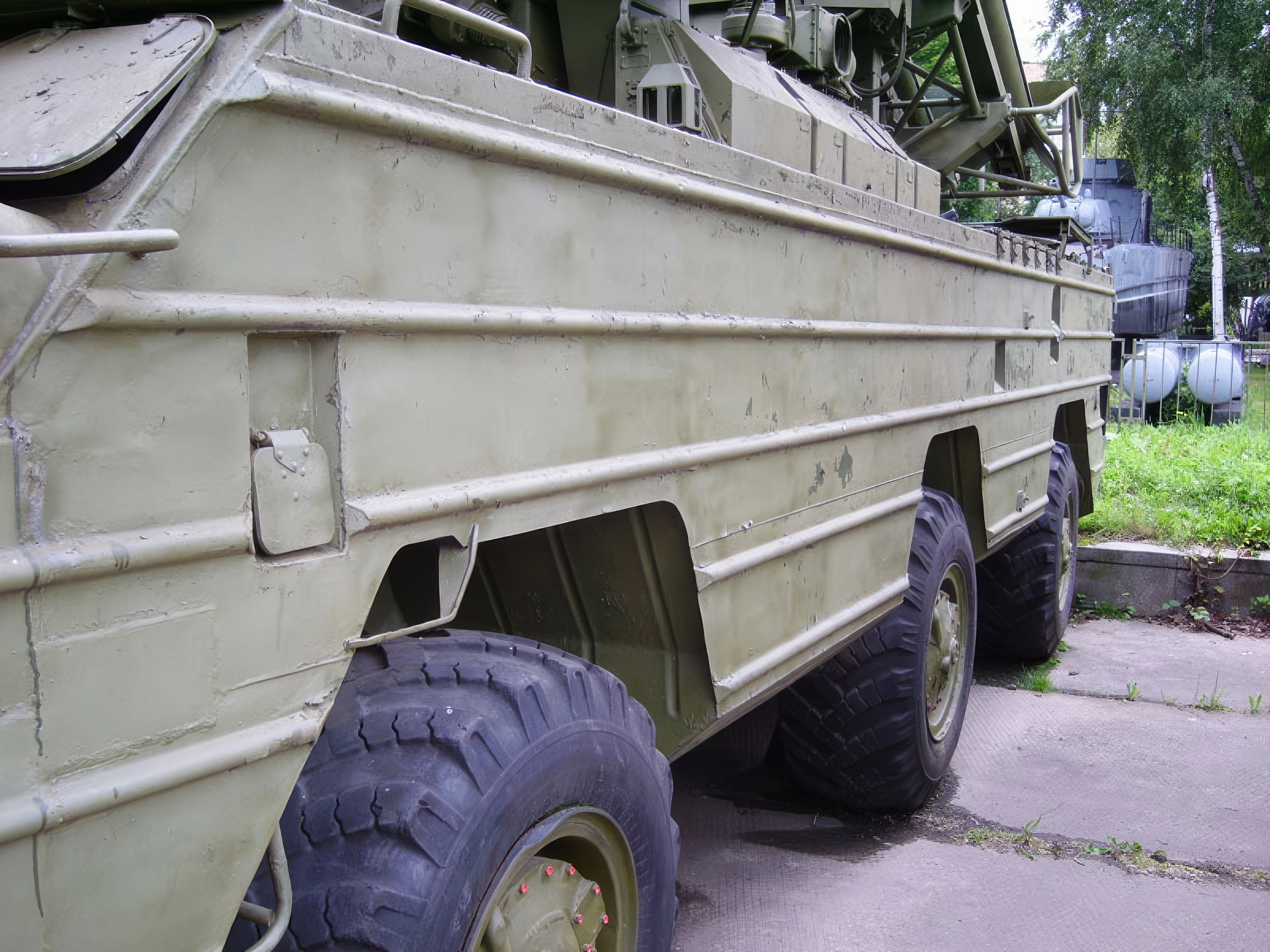

9K33 Osa 05

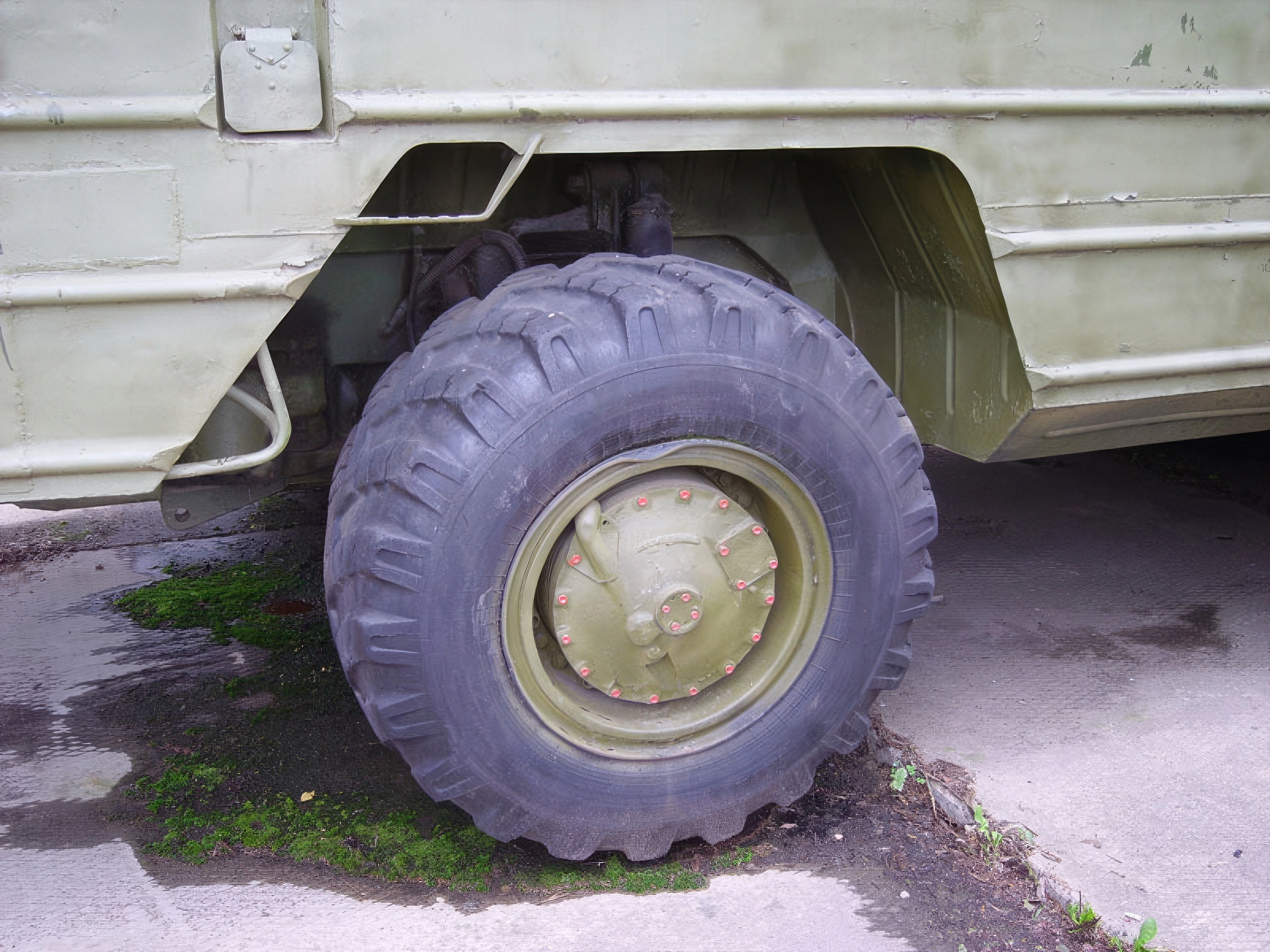

9K33 Osa 06

9K33 Osa 07

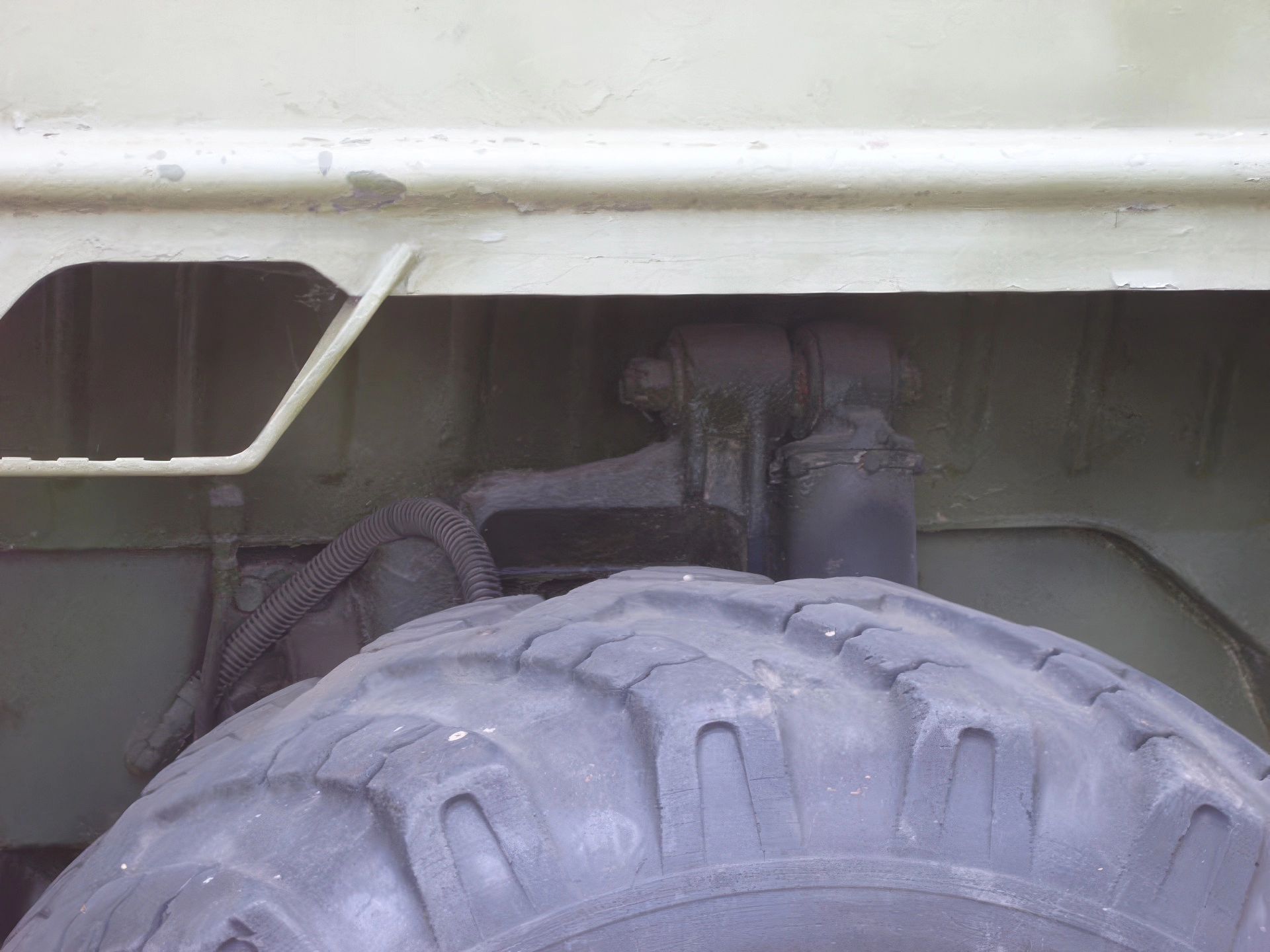

9K33 Osa 08

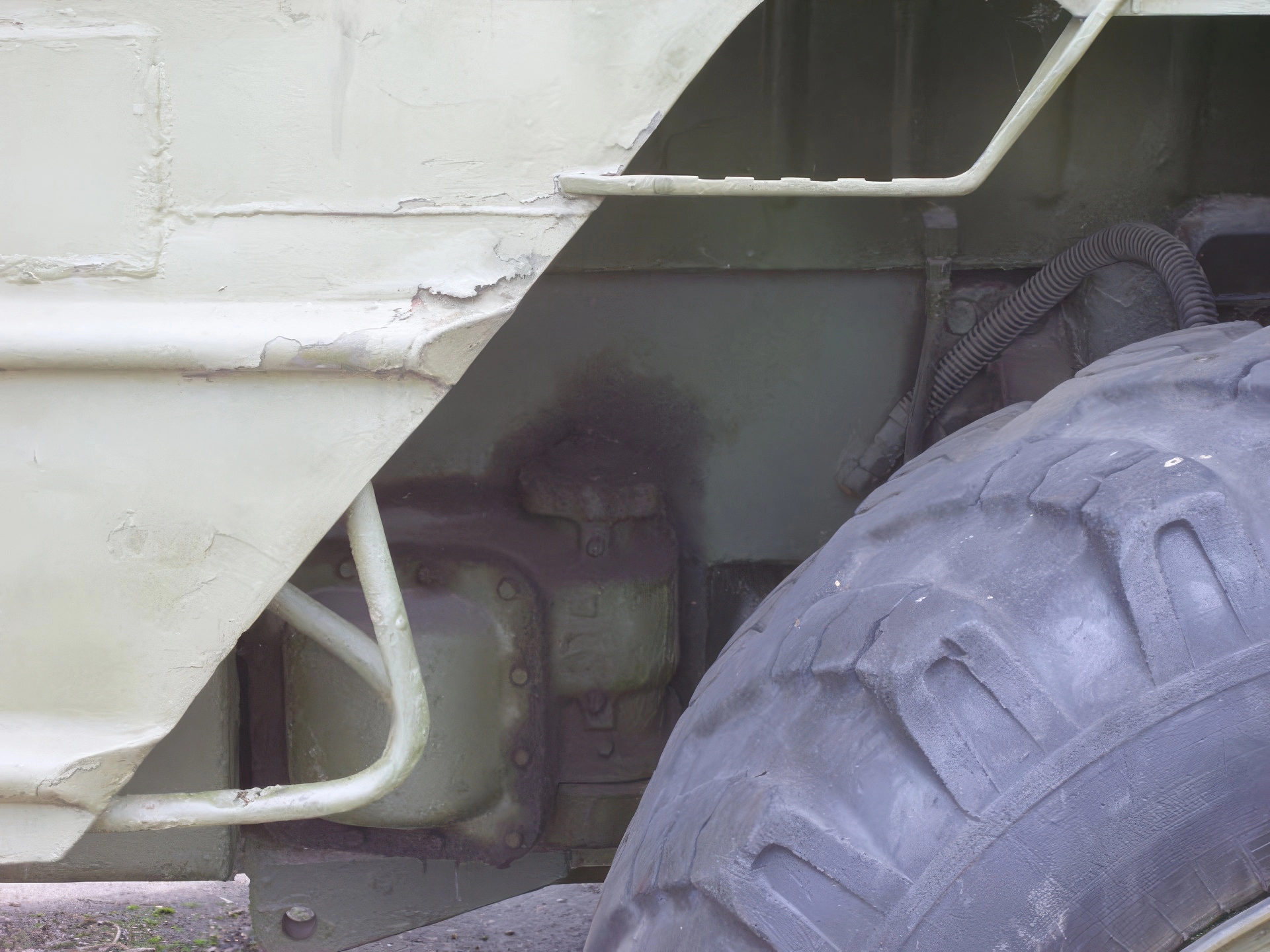

9K33 Osa 09

Click on a photo and use the mouse scroll to view all photos

Aspetta, alla ricerca di 9K33 Osa per te...

9K33 OSA (SA-8 Gecko) Walk Around
Fotografo	Michael Benolkin
Localizzazione	Inconsapevole
Foto	72

9K33 Osa 63

Click on a photo and use the mouse scroll to view all photos

Vedi anche:

General Characteristics and Role

The 9K33 Osa (Wasp) is a highly mobile, short-range, low-altitude surface-to-air missile (SAM) system developed by the Soviet Union. Its NATO designation is SA-8 Gecko. It was the first fully autonomous SAM system—meaning all elements (missiles, radar, and fire control) are mounted on a single vehicle—to enter Soviet service. This “all-in-one” design allows the Osa to quickly deploy and relocate, making it extremely difficult for enemy aircraft to suppress. It was designed to provide close-range air defense for Soviet ground forces on the move. The system is mounted on a six-wheeled, BAZ-5937 amphibious chassis, giving it excellent cross-country mobility.

Property	Typical Value (9K33 Osa)
Ruolo	Short-Range, Low-Altitude Surface-to-Air Missile (SAM)
National Origin	Unione Sovietica
Produttore	JSC Izhevsk Electromechanical Plant (IEMZ Kupol)
Service Entry	1971
Equipaggio	5 (Commander, Driver, Radar Operator, 2 Missile Guidance Operators)
Combat Weight	17,500 kg (38,580 lb)
Lunghezza	9.14 m (30 ft 0 in)
Larghezza	2.75 m (9 ft 0 in)
Height (Radar stowed)	4.2 m (13 ft 9 in)
Drive	6×6 All-Wheel Drive, fully amphibious

Radar, Missile, and Performance

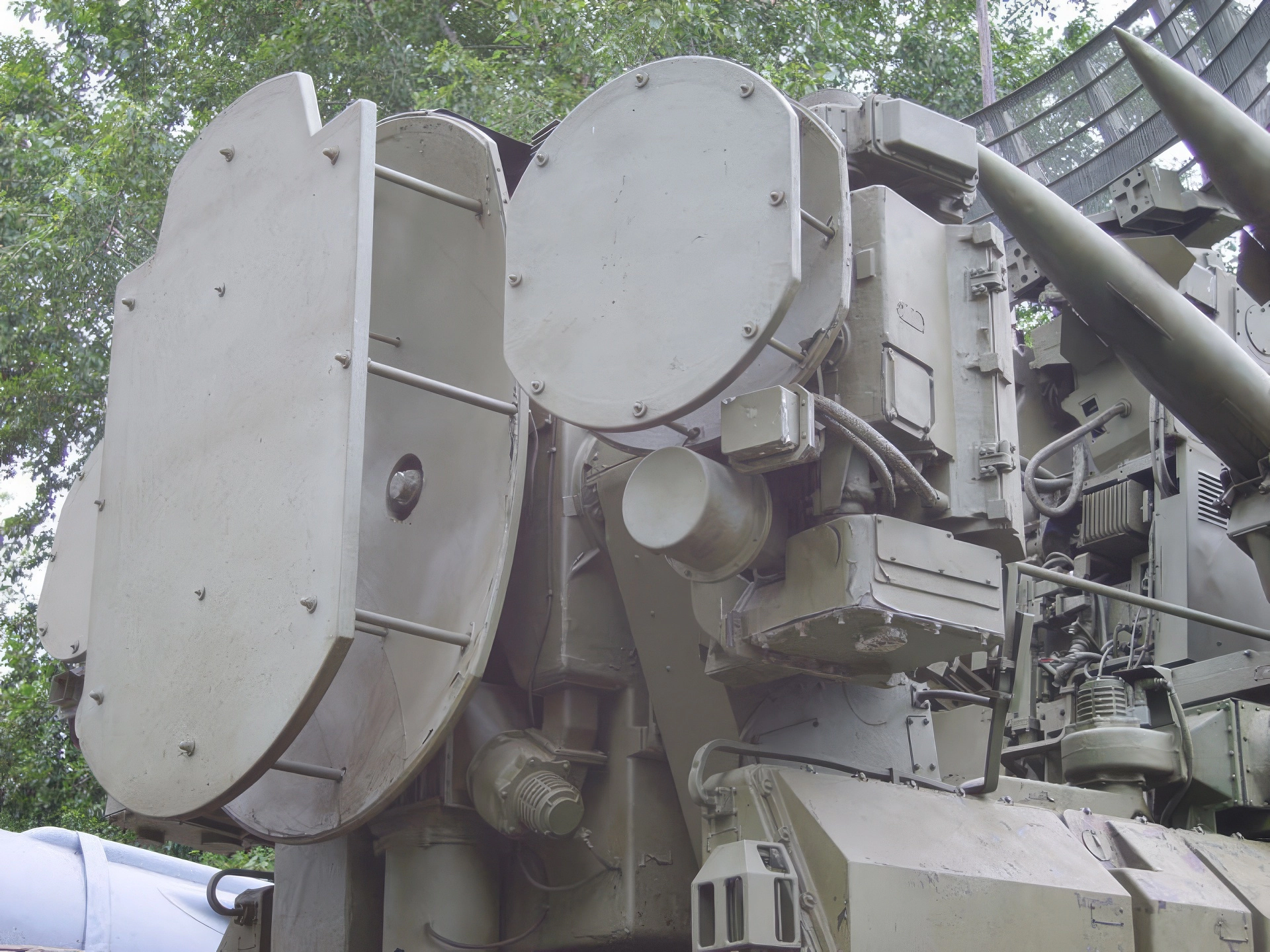

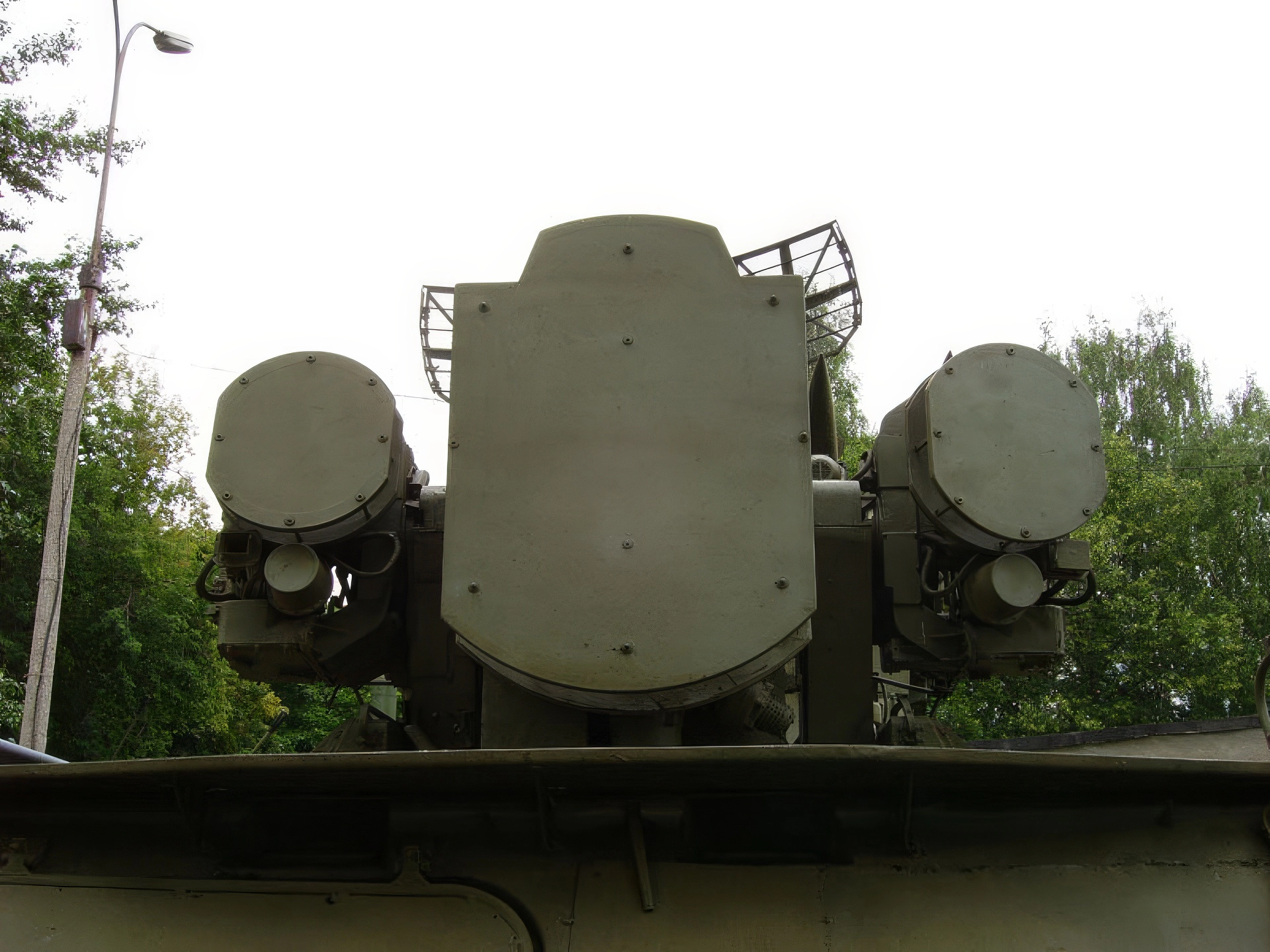

Radar System: The large turntable carries two main radars: a Target Acquisition Radar (range up to 30 km) and a Tracking/Guidance Radar (range up to 20 km).
Missile: 9M33 missile (later 9M33M2 and 9M33M3 in upgrades).
Missile Guidance: Command line-of-sight (CLOS). Operators guide the missile manually using the radar data.
Missile Range: Up to 15 km (9.3 mi) (9M33M3 variant).
Engagement Altitude: 10–12,000 m (33–39,400 ft) depending on missile variant.
Vehicle Speed (Road): 70 km/h (43 mph).
Key Feature: The system can fire missiles while stationary or moving, significantly enhancing survivability.

Armament and Variants

Ready Missiles: The standard 9K33 carries four 9M33 missiles in launch tubes. Later versions (Osa-AK/AKM) carry six missiles.
Reloads: The system is reloaded by a separate transloader vehicle (9T217).
9K33M3 (Osa-AKM): The most common variant, featuring improved radars, digital electronics, and the 9M33M3 missile, which dramatically increased the engagement range and altitude.
Service History: Widely exported and used in several conflicts, including the Iran-Iraq War and the 1982 Lebanon War, where it proved challenging for early enemy countermeasures.
