MAZ-543

MAZ-543
Pays	Union soviétique
Rôle	Véhicule porte-avions spécialisé
Entrée en service	1962
Construit	Inconnu

Lla MAZ-543/MAZ-7310 « Uragan ( Uragan ) » (Russe: МАЗ-543/МАЗ-7310 « Ураган »/Hurricane) est un camion d’artillerie soviétique/biélorusse de 8×8 conçu et développé par MAZ (Minsk Automobile Plant), dans ce qui est aujourd’hui le Bélarus.

Source: MAZ-543 sur Wikipedia

MAZ-543 SCUD B TEL Walk Around
Photographer	Tim Roberts
Localisation	Unknow
Photos	192

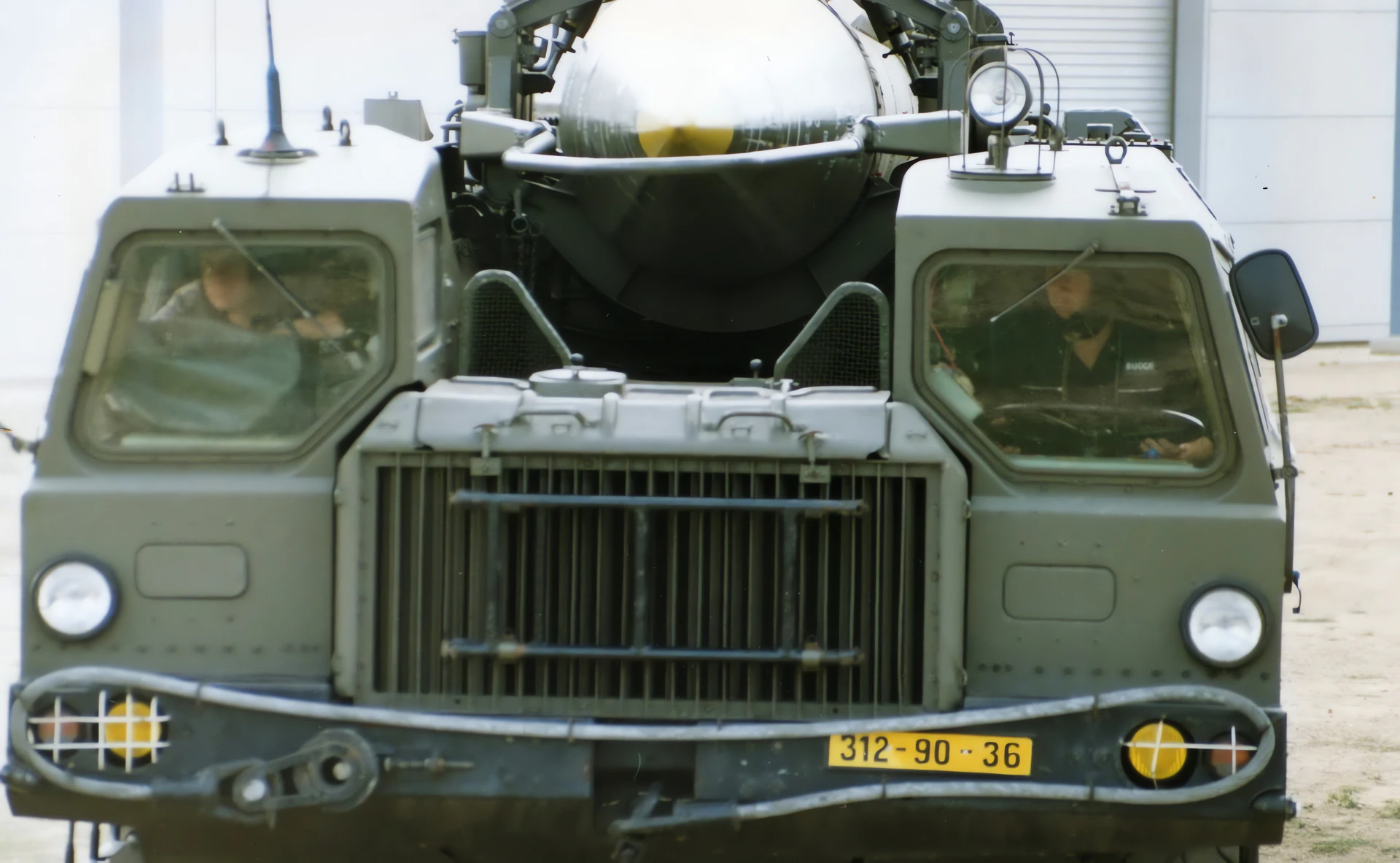

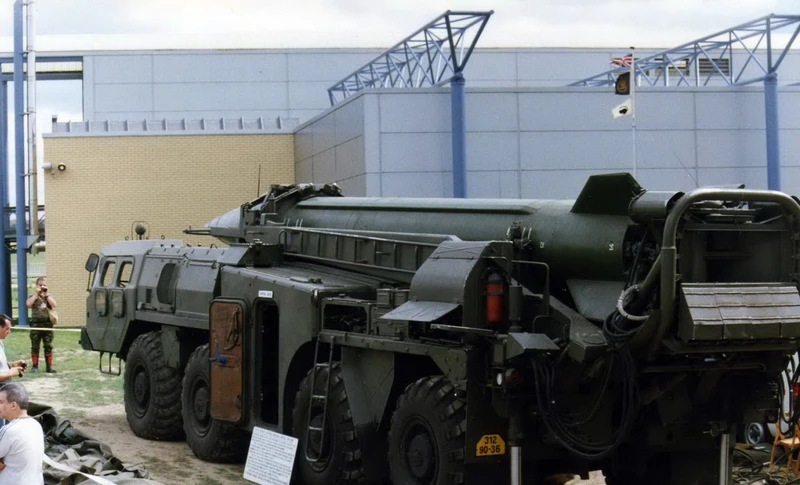

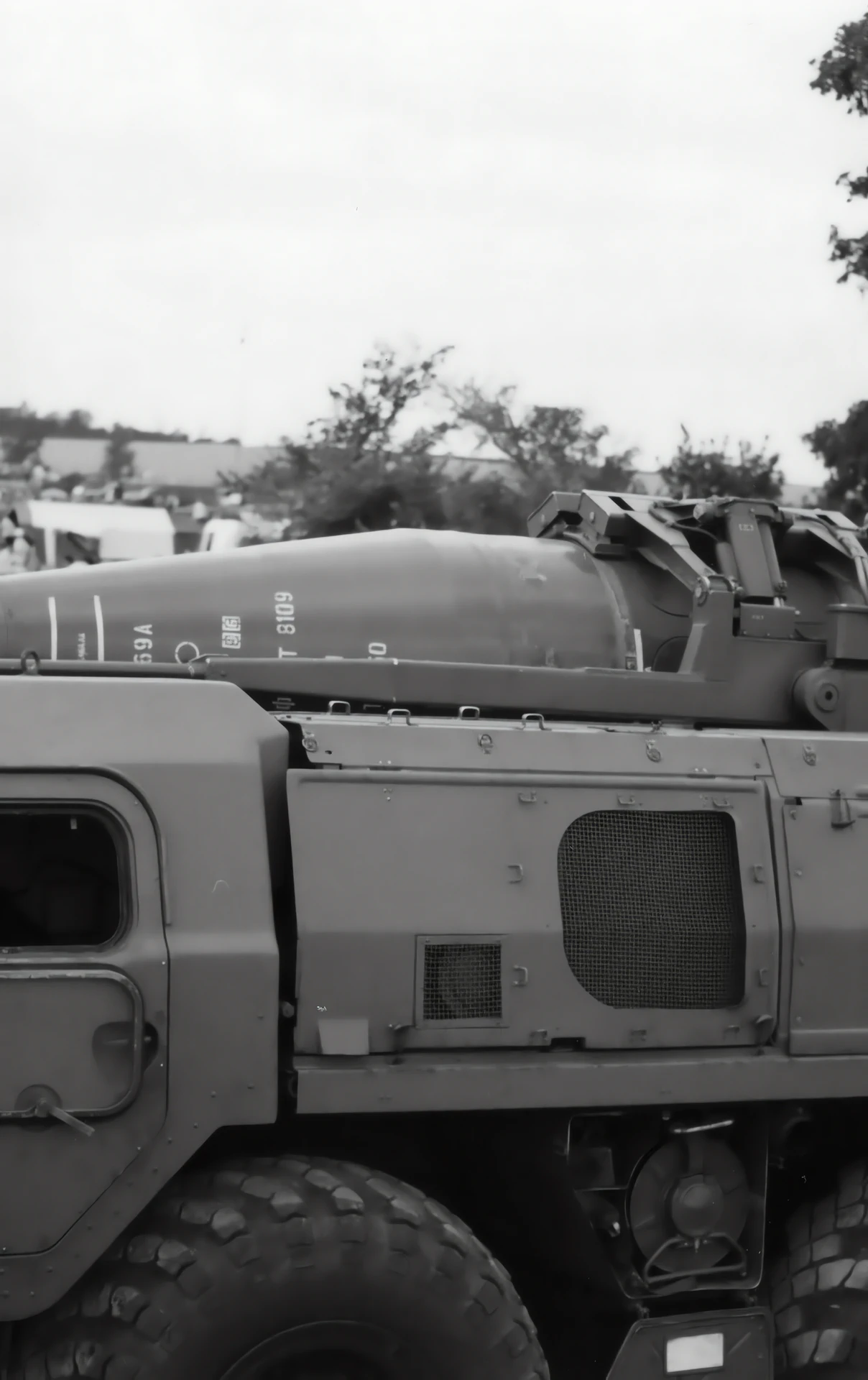

MAZ-543 SCUD B 1

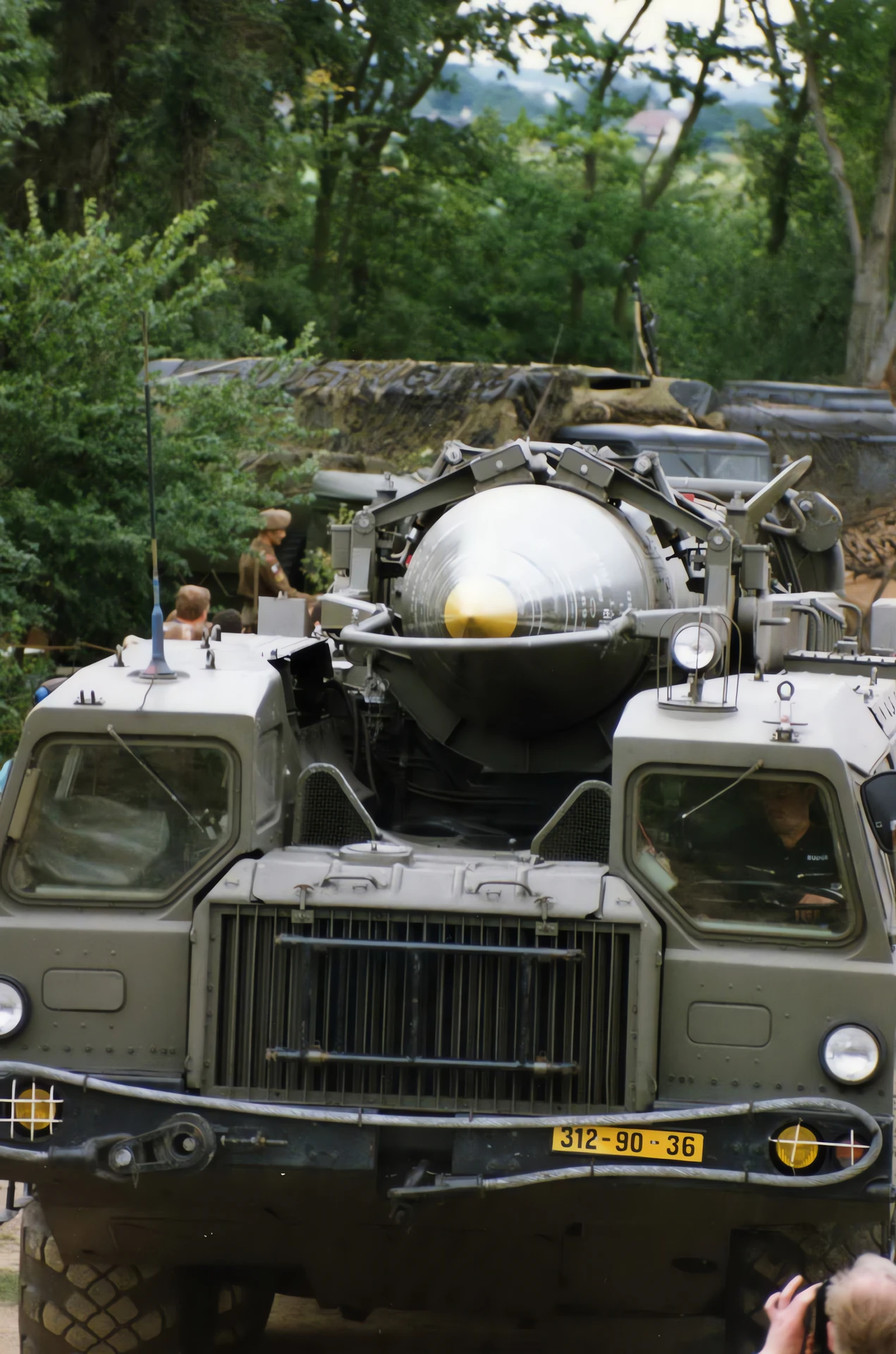

MAZ-543 SCUD B 2

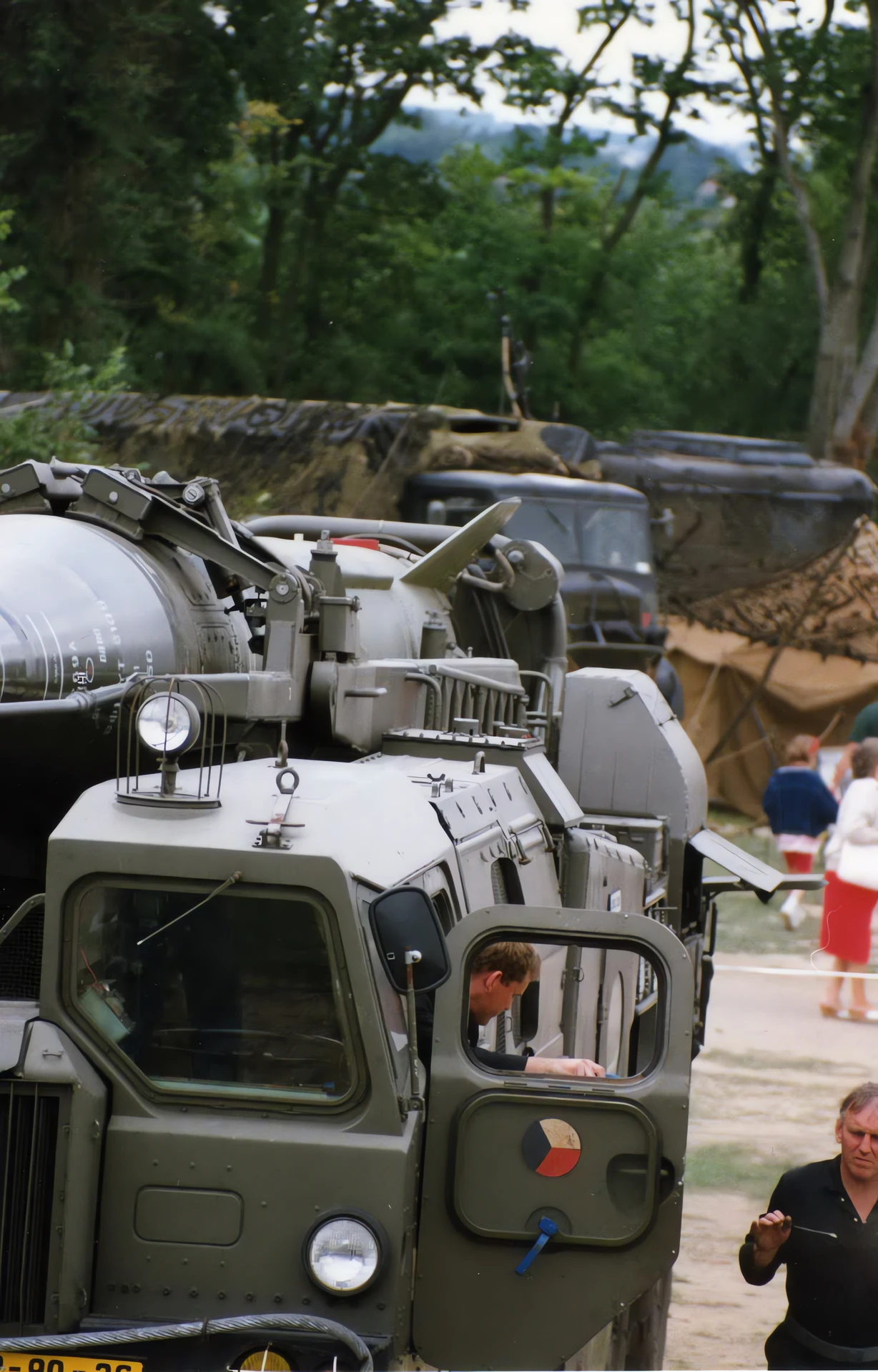

MAZ-543 SCUD B 3

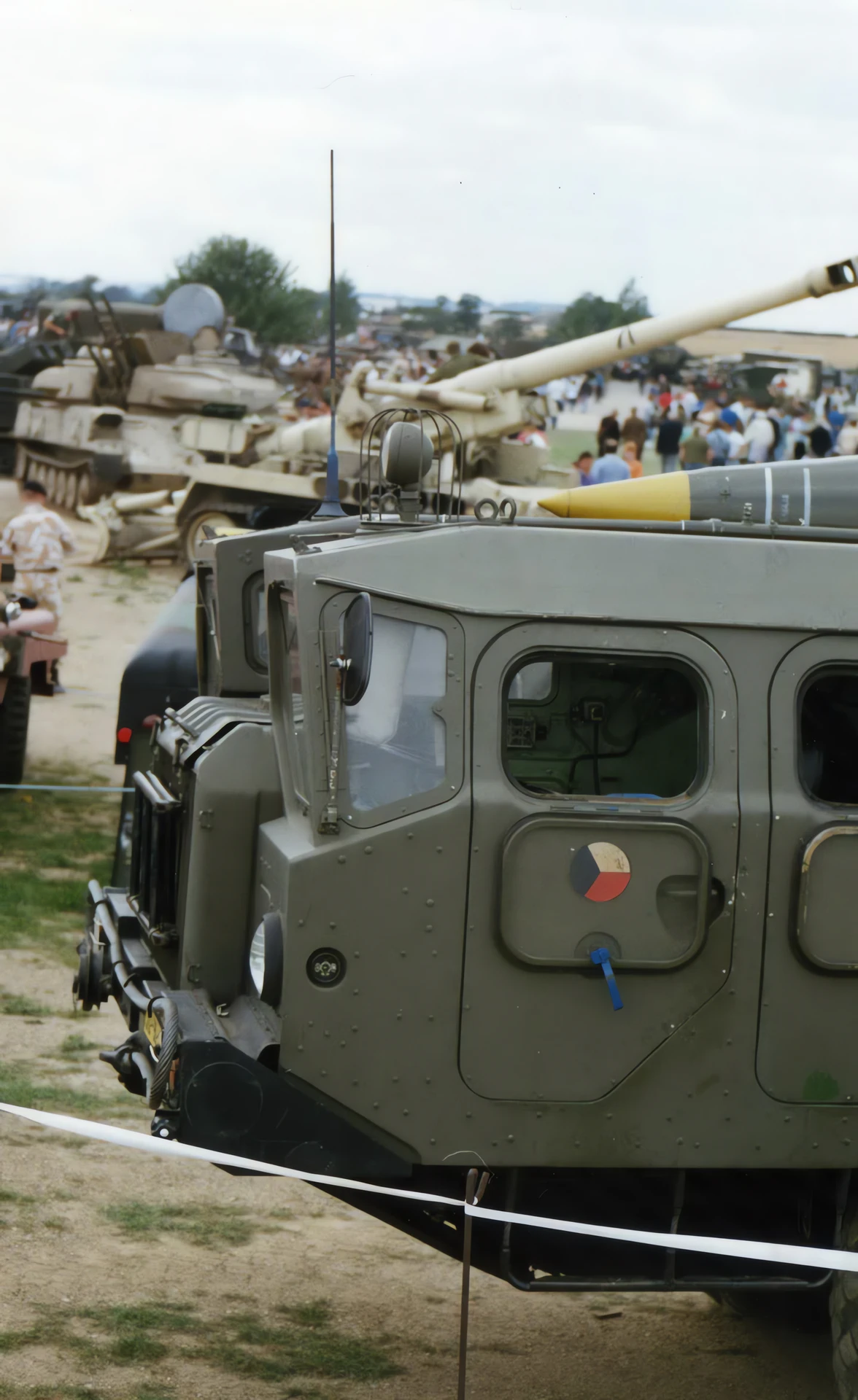

MAZ-543 SCUD B 4

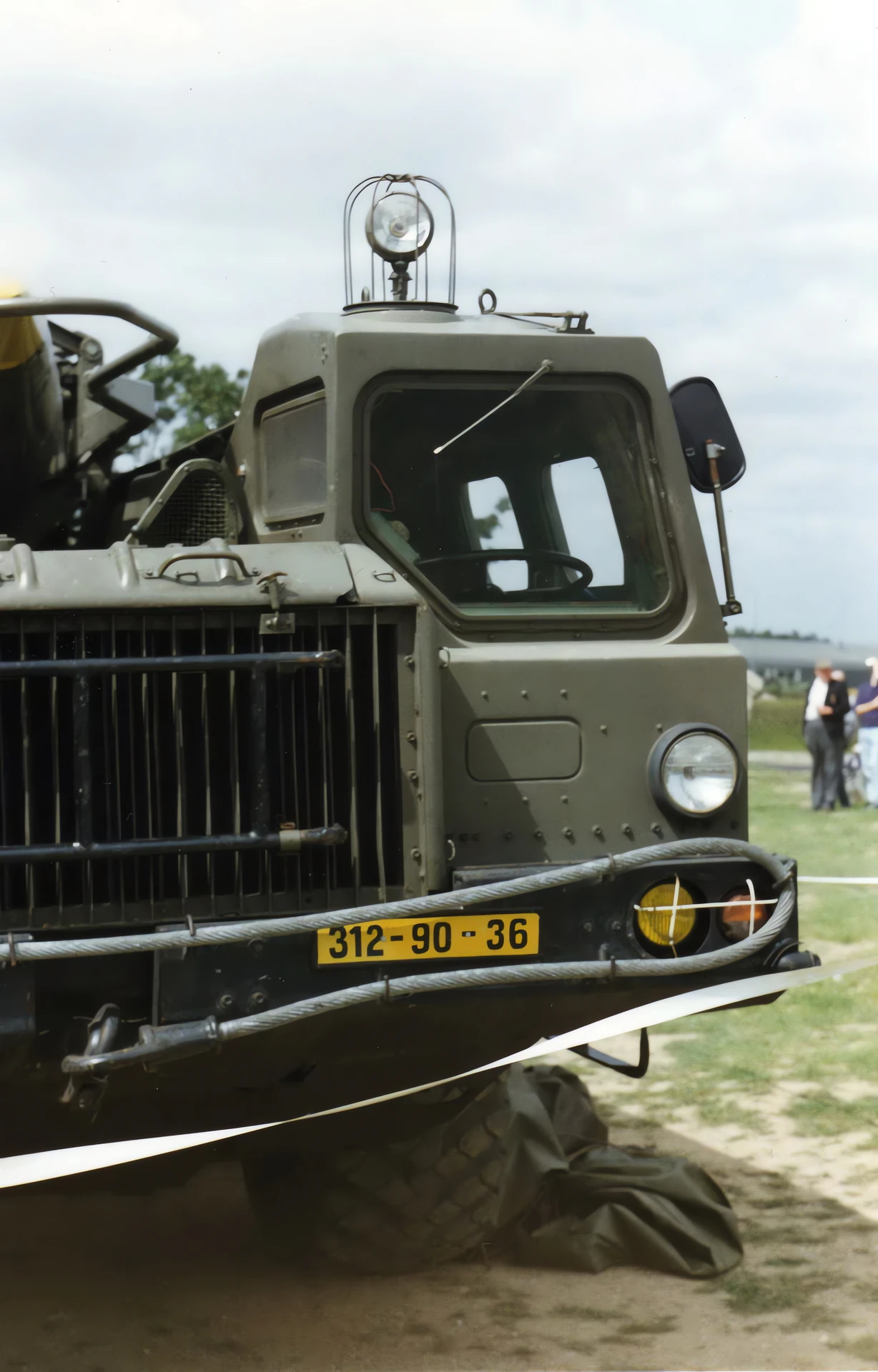

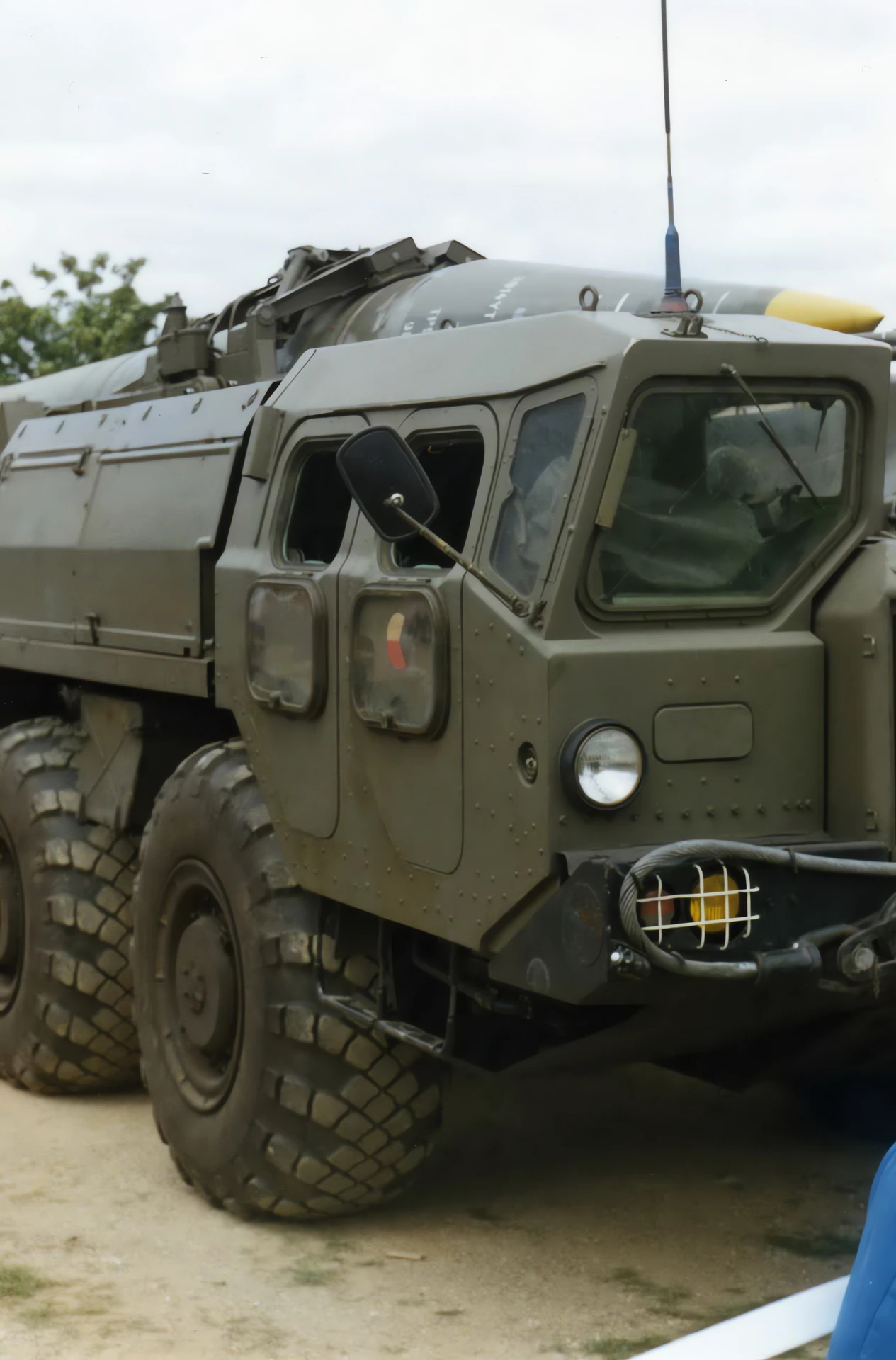

MAZ-543 SCUD B 5

MAZ-543 SCUD B 6

MAZ-543 SCUD B 7

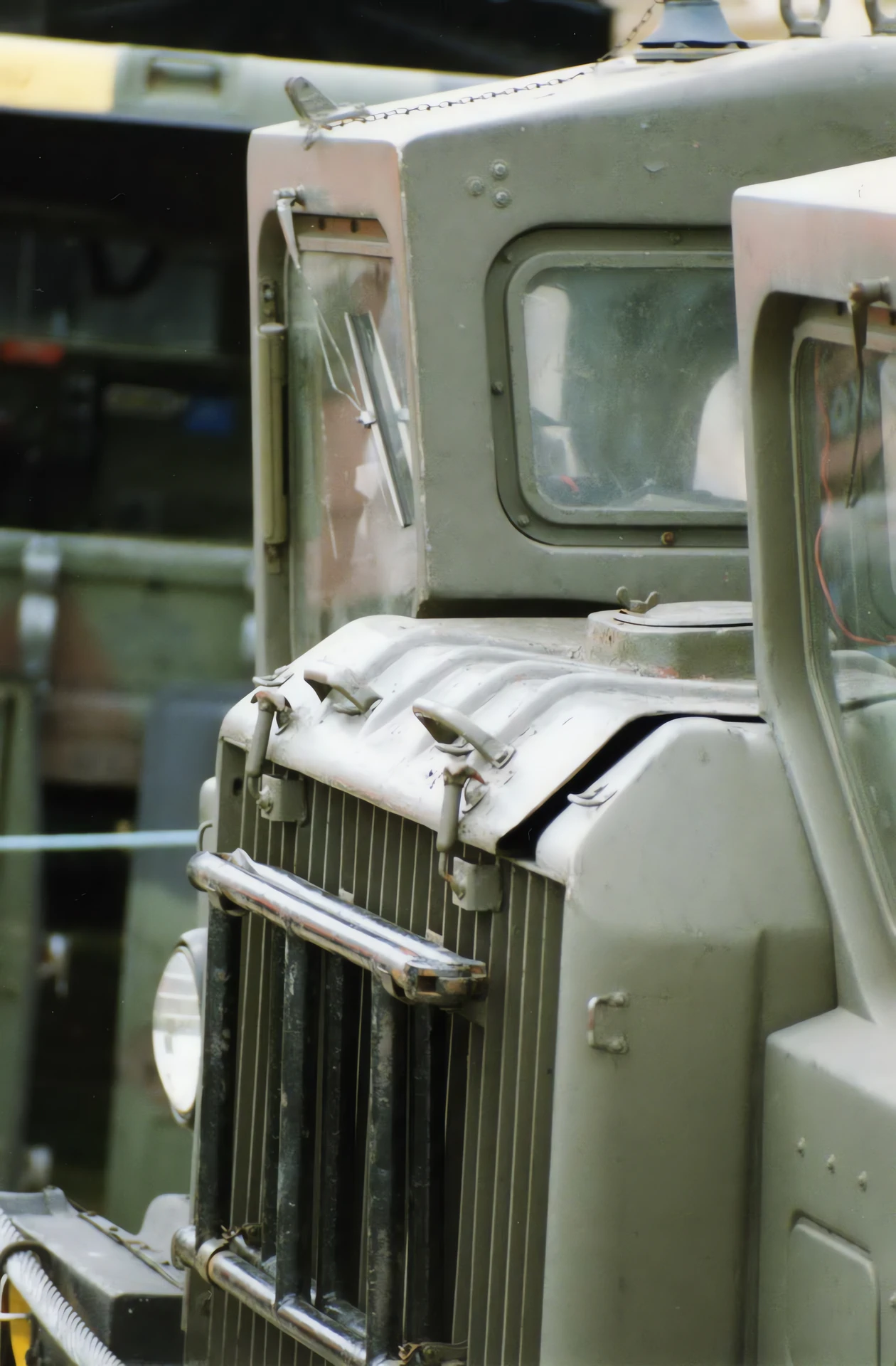

MAZ-543 SCUD B 8

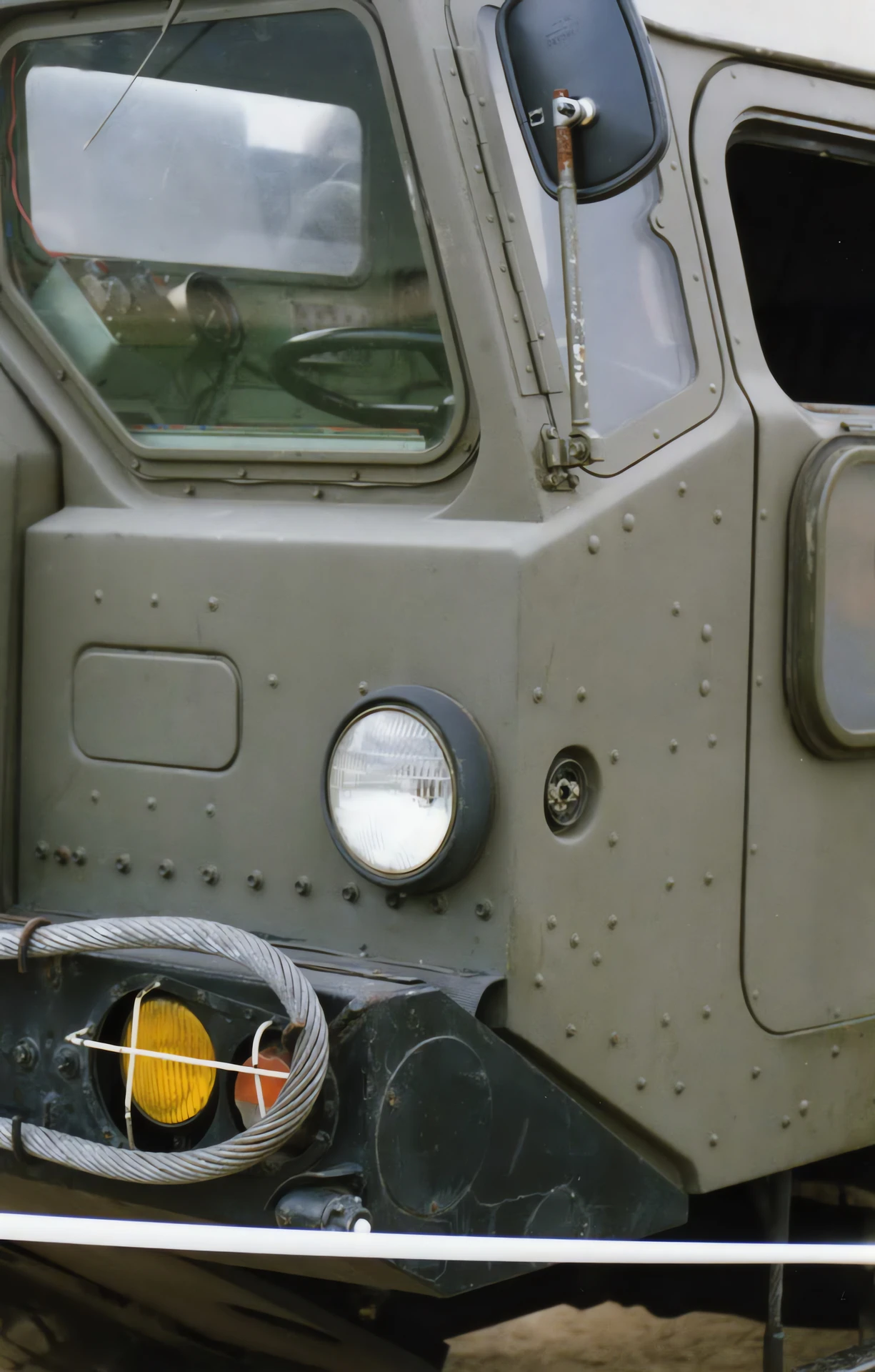

MAZ-543 SCUD B 9

Click on a photo and use the mouse scroll to view all photos

Attendez, la recherche MAZ-543 pour vous ...

MAZ-543 Scud Missile TEL Walk Around
Photographe	Michael Benolkin
Localisation	Inconnu
Photos	14

MAZ-543 Missile Scud 01

MAZ-543 Missile Scud 02

MAZ-543 Scud Missile 03

MAZ-543 Scud Missile 04

MAZ-543 Missile Scud 05

Missile MAZ-543 Scud 06

MAZ-543 Scud Missile 07

MAZ-543 Scud Missile 08

MAZ-543 Missile Scud 10

Click on a photo and use the mouse scroll to view all photos

Voir aussi :

General Characteristics and Role

The MAZ-543 is a heavy-duty, eight-wheeled Soviet military truck chassis designed and produced by the Minsk Automobile Plant (MAZ). The most famous application of this vehicle is as the 9P117 Transporter-Erector-Launcher (TEL) for the R-17 Elbrus missile, which is better known by its NATO reporting name, SCUD B. The MAZ-543 chassis is recognizable by its distinctive wide cab layout with two separate compartments, allowing for the massive missile to be housed between them. The Scud B missile system, first introduced in the 1960s, is a highly mobile, road-deployed tactical ballistic missile capable of delivering conventional, high-explosive, or nuclear warheads. Its operational mobility provided a critical advantage during the Cold War.

Property	Typical Value (MAZ-543 TEL)
Rôle	Transporter-Erector-Launcher (TEL) for SCUD B missile
National Origin	Soviet Union / Belarus
Fabricant	Minsk Automobile Plant (MAZ)
Service Entry	1962 (MAZ-543) / 1965 (SCUD B System)
Crew	4–5 (for TEL operation)
Weight (Empty)	20,500 kg (45,195 lb)
Weight (Loaded w/ missile)	42,000 kg (92,594 lb) (Approximate)
Length	11.75 m (38 ft 7 in)
Width	3.05 m (10 ft 0 in)
Height (Traveling)	3.30 m (10 ft 10 in)
Drive	8×8 All-Wheel Drive

Powerplant and Performance

Engine: 1 x D12A-525 V-12 diesel engine (variant of the V-2 tank engine).
Power Output: 388 kW (525 hp).
Maximum Speed (Road): 60 km/h (37 mph).
Range (Road): 650 km (400 miles).
Off-Road Capability: High cross-country mobility with central tire pressure regulation system, allowing the TEL to quickly relocate to new launch sites.

SCUD B Missile Characteristics (R-17 Elbrus)

Missile Length: 11.25 m (36 ft 11 in).
Warhead: Typically 985 kg (2,172 lb) of high explosive, or various nuclear/chemical warheads.
Range: 300 km (190 mi).
Guidance: Inertial guidance system, resulting in relatively poor accuracy (Circular Error Probable of 450 meters or more).
Launch Time: The MAZ-543 TEL enabled the system to be erected, aimed, and launched in as little as one hour from a concealed position.
