MAZ-537

MAZ-537
Pays	Union soviétique
Rôle	Tracteur
Production	1959-1990
Construit	Inconnu

Lla MAZ-537 is a 12-cylinder diesel engine-powered military truck artillery tractor, originally designed for loads up to 50 tons (using semitrailers such as the ChMZAP-9990 or ChMZAP-5247G, for example) with later versions providing a maximum load of 65 tons. It was manufactured by the Minsk Automobile Plant (from 1959 to 1965) and the Kurgan Wheel Tractor Plant from 1963 until halt of production in 1990. The metal cab of the MAZ-537 provides space for the driver and 3 passengers for a total of four occupants, has two access doors on the side and a roof hatch, and is equipped with additional engine-independent heating. The 537G modification version is characterized by the addition of a winch to facilitate loading and unloading, as well as enabling self-extraction when stalled in adverse terrain (like mud). The working cable length of the winch is 100 meters, and the winch is able to provide 15 tons of traction.

Source: MAZ-537on Wikipédia

MAZ-537 Heavy Prime Mover Walk Around
Photographer	Gabor Fodor
Localisation	Unknow
Photos	126

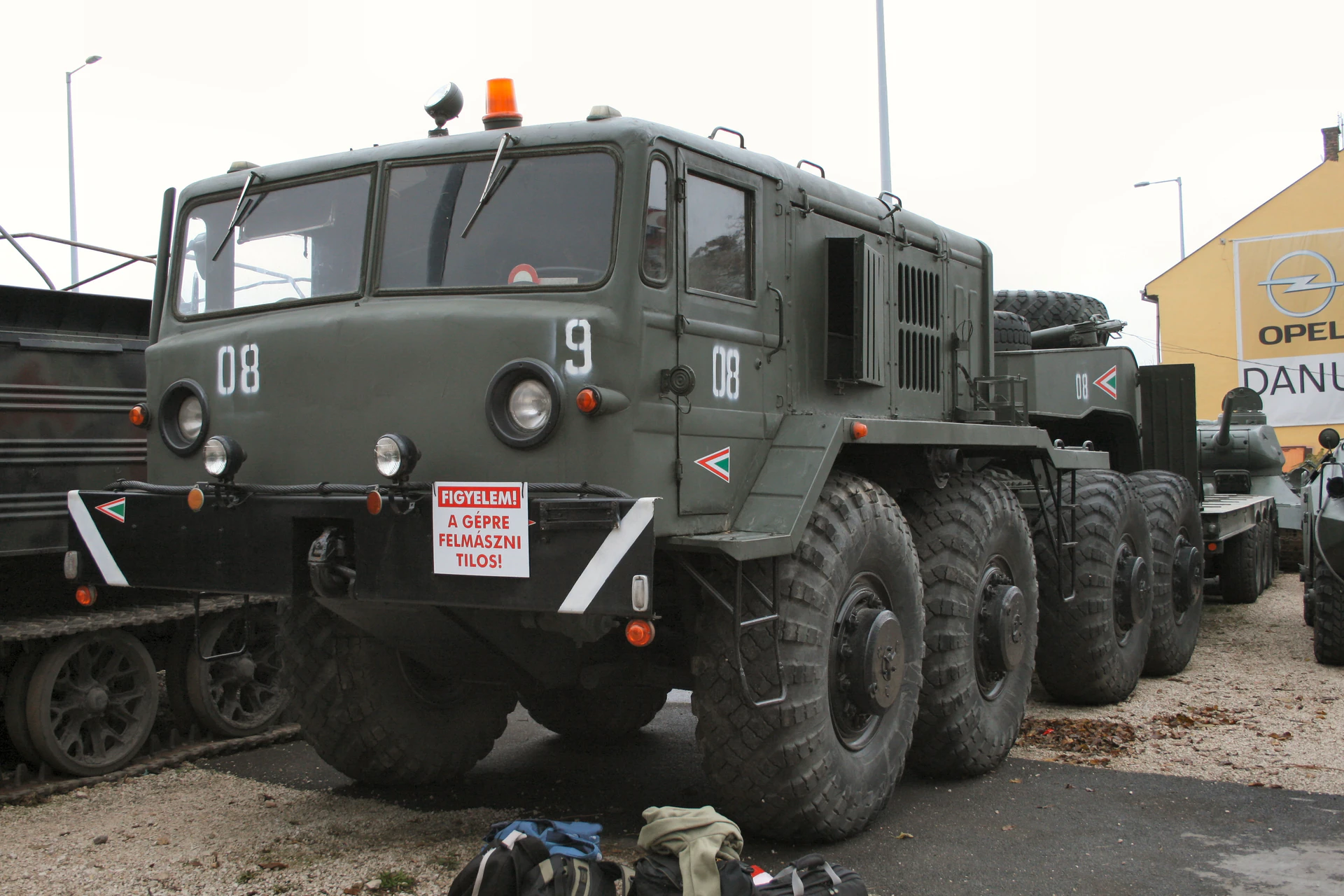

MAZ-537 Prime Mover lourd 1

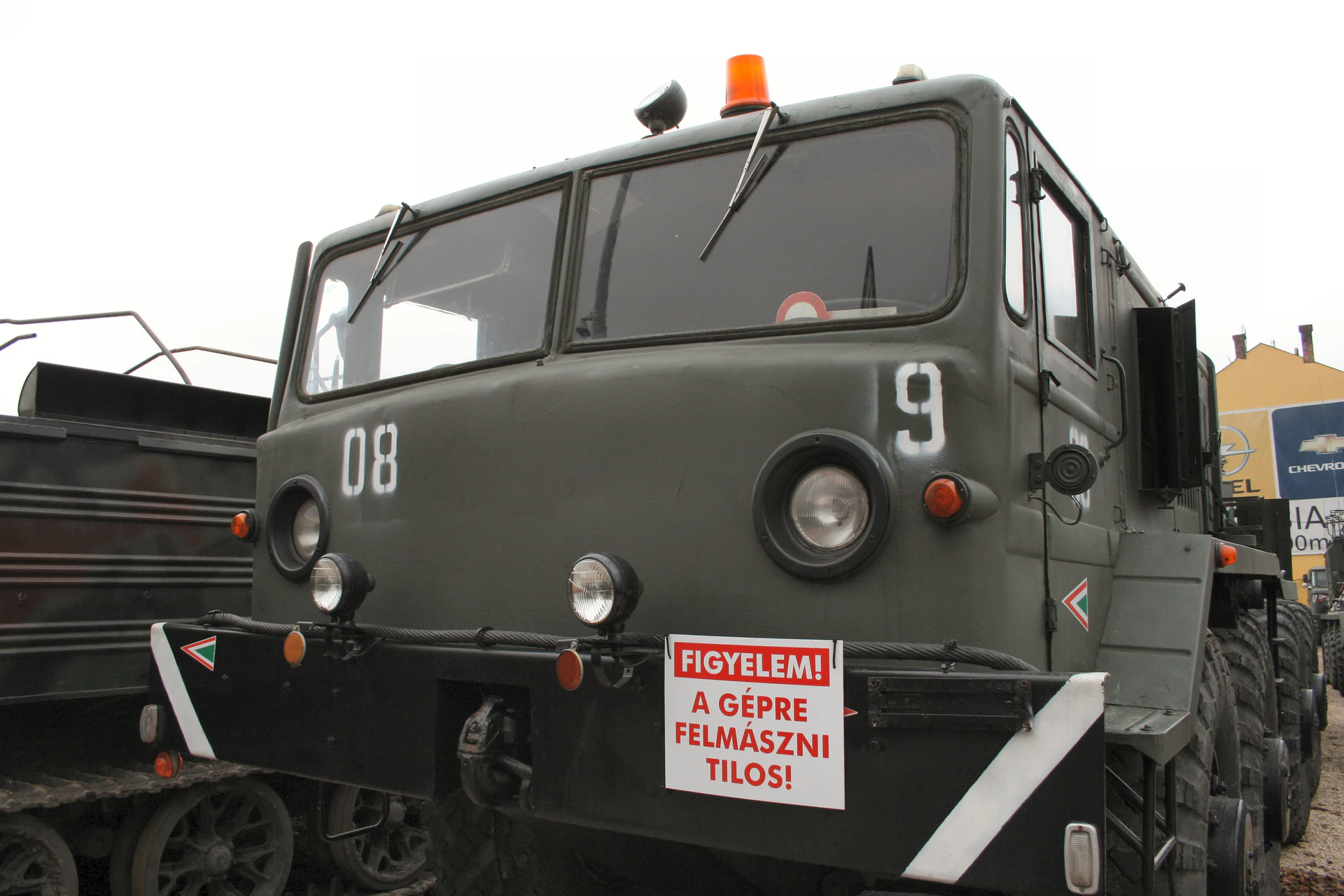

MAZ-537 Prime Mover lourd 2

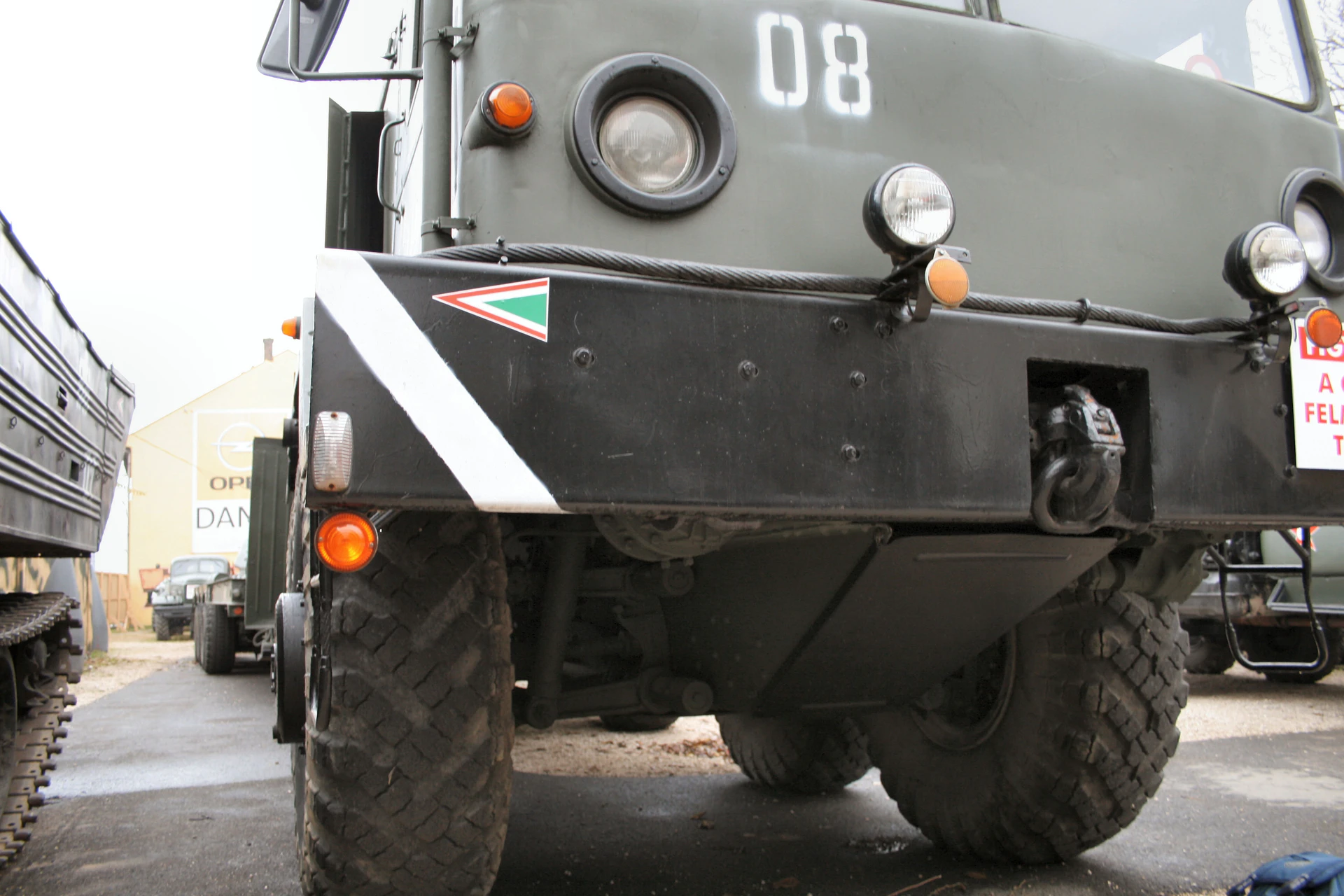

MAZ-537 Prime Mover lourd 3

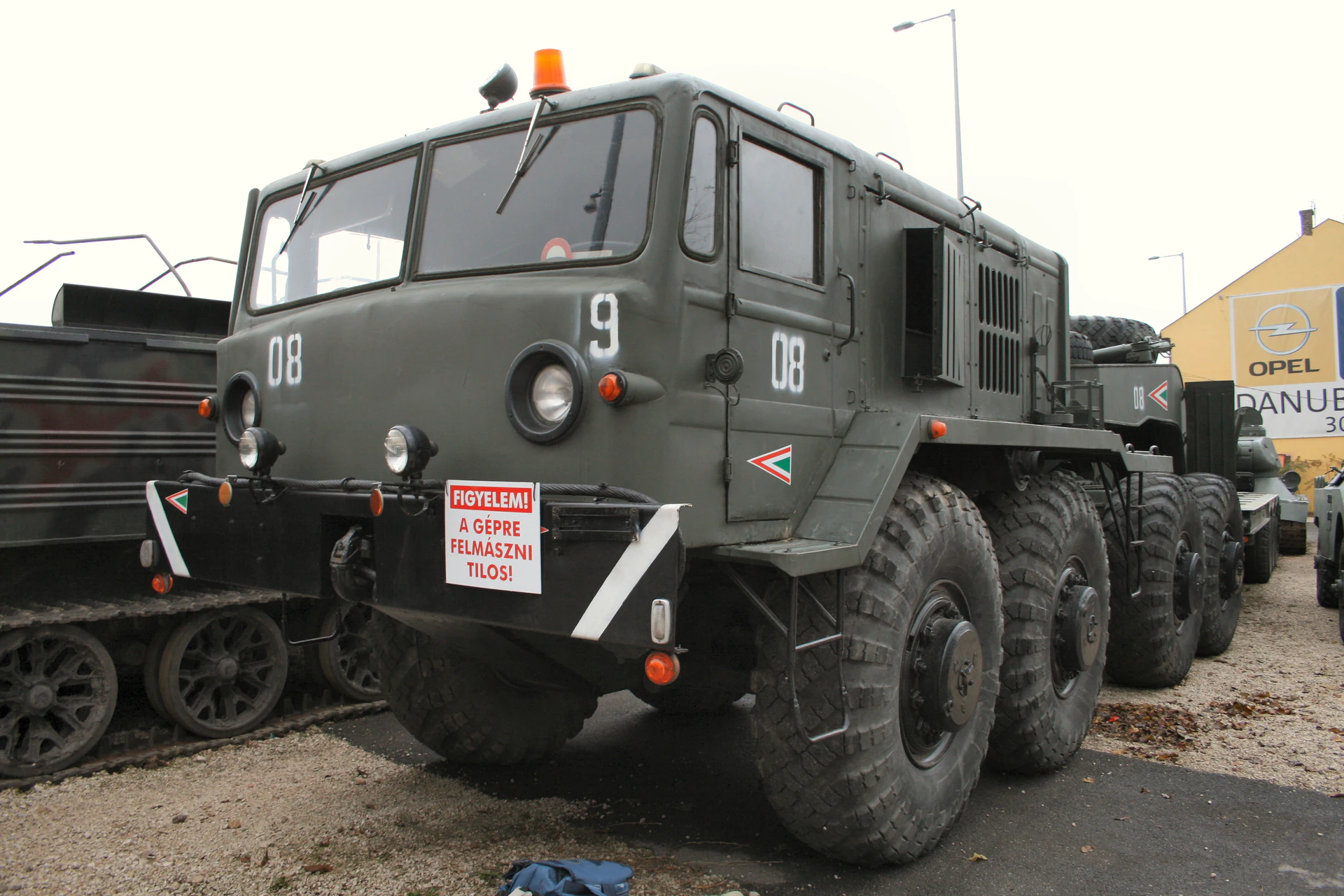

MAZ-537 Prime Mover lourd 4

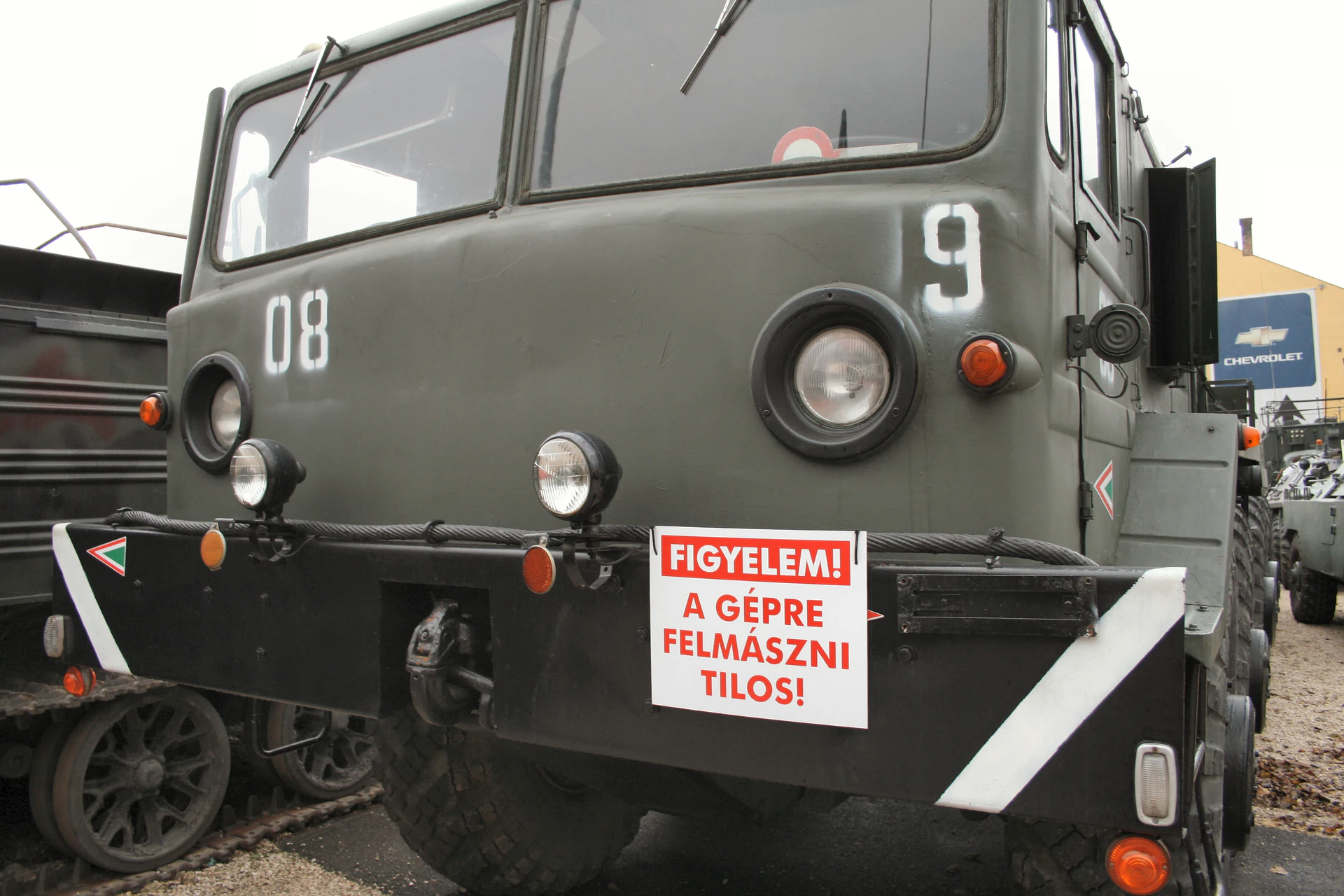

MAZ-537 Prime Mover lourd 5

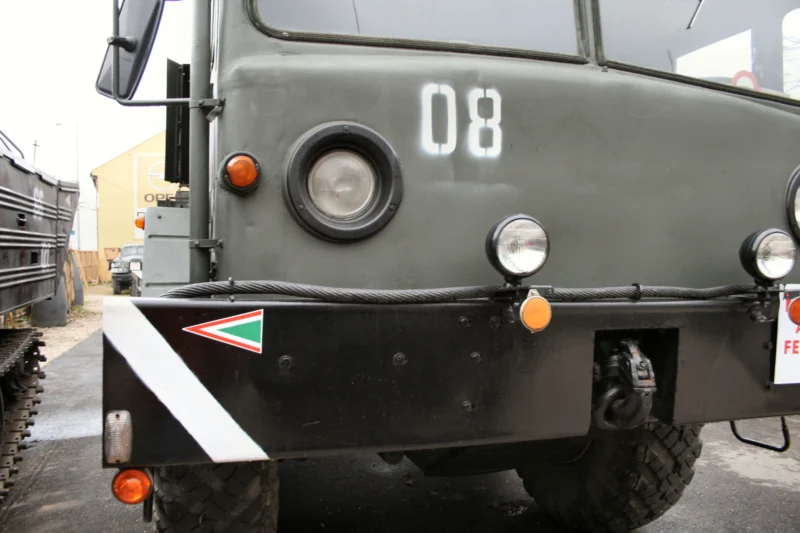

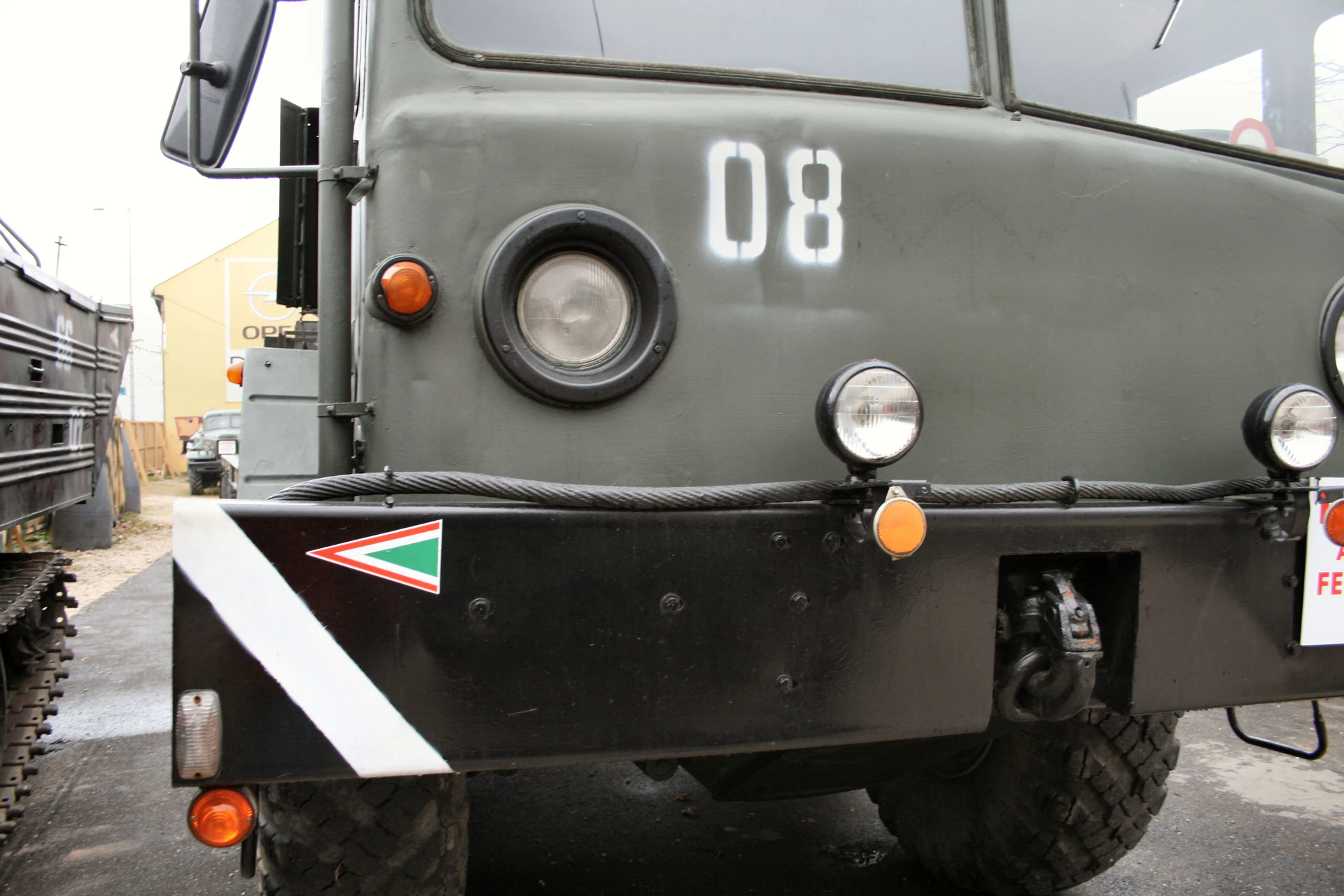

MAZ-537 Prime Mover lourd 6

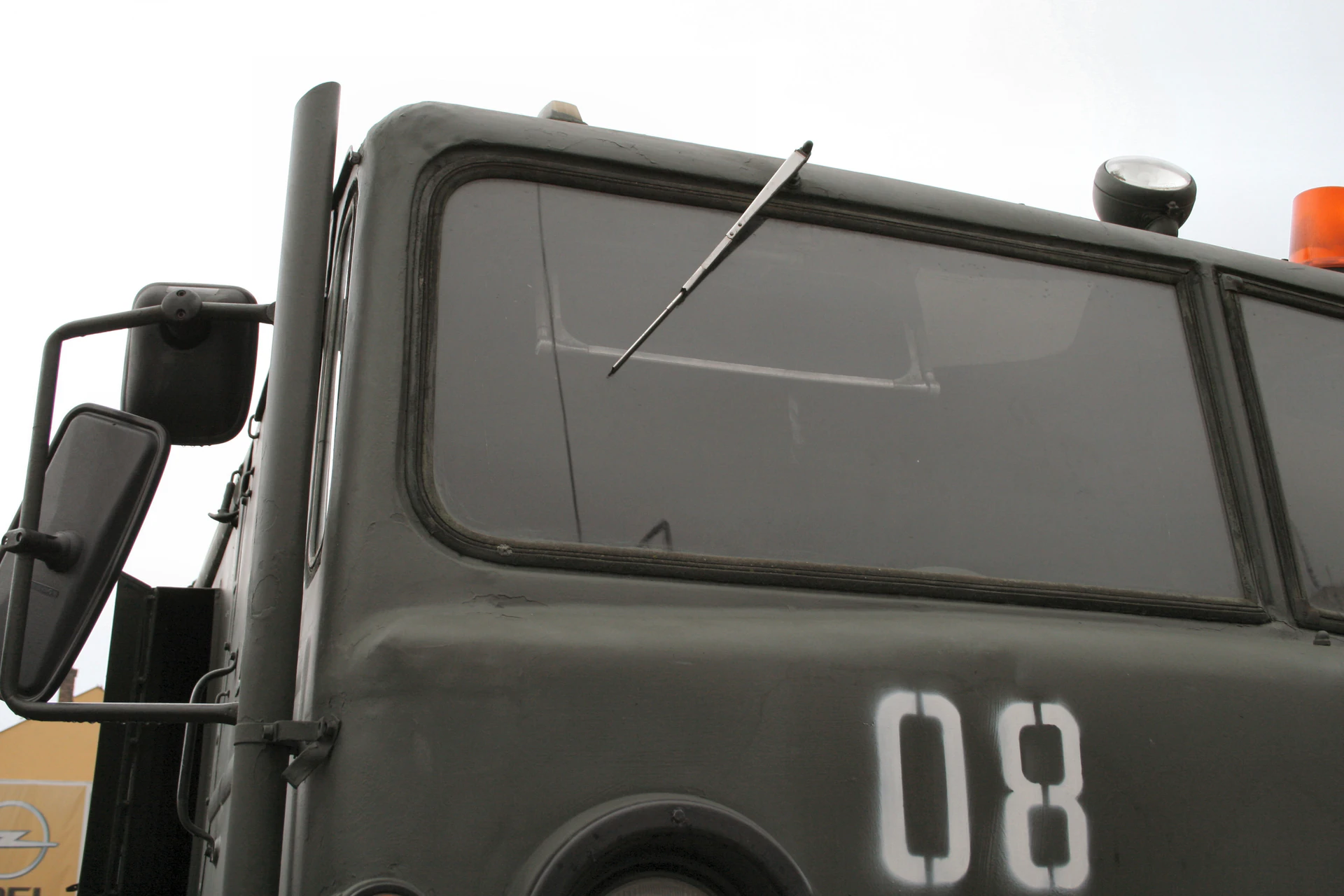

MAZ-537 Prime Mover lourd 7

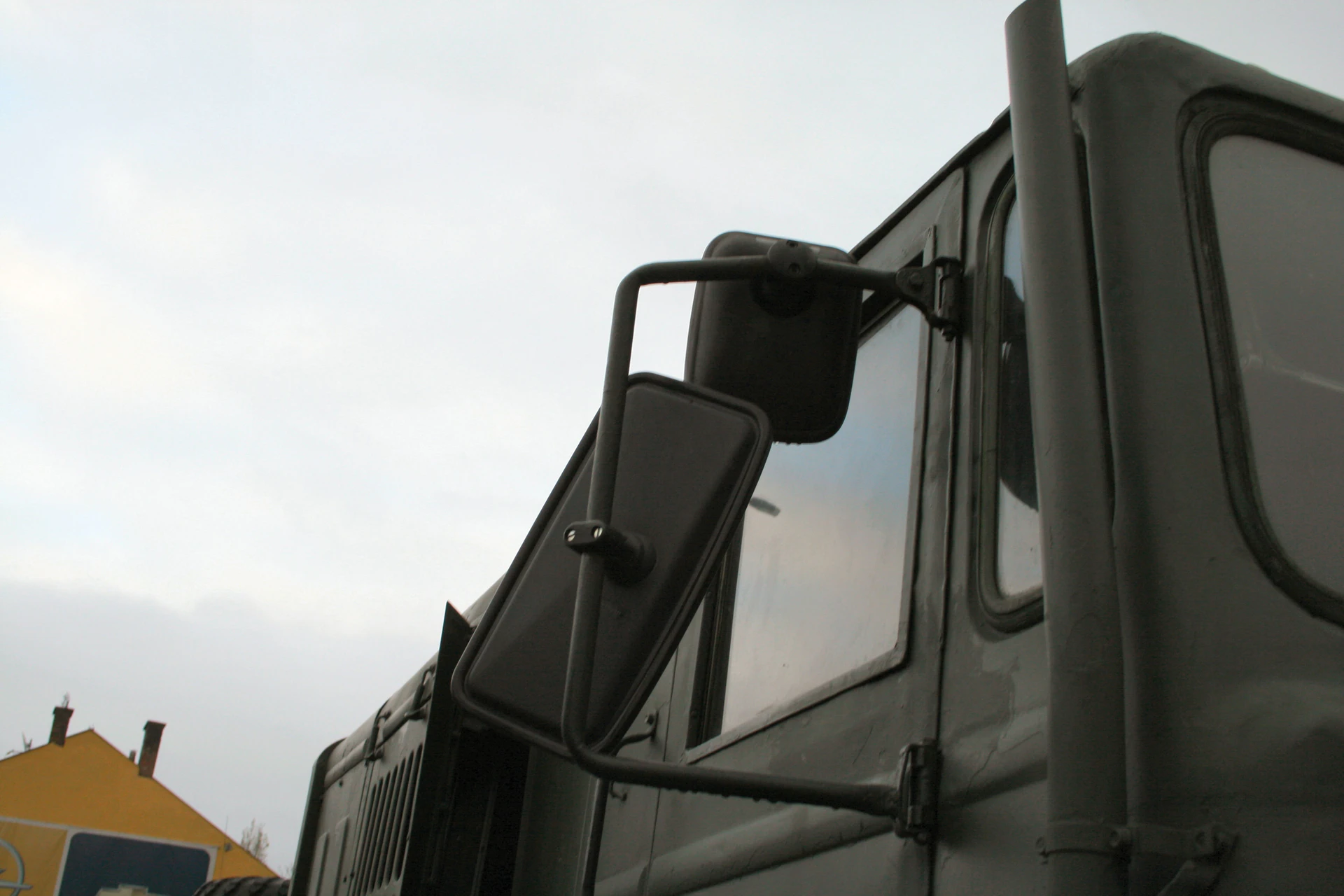

MAZ-537 Prime Mover lourd 8

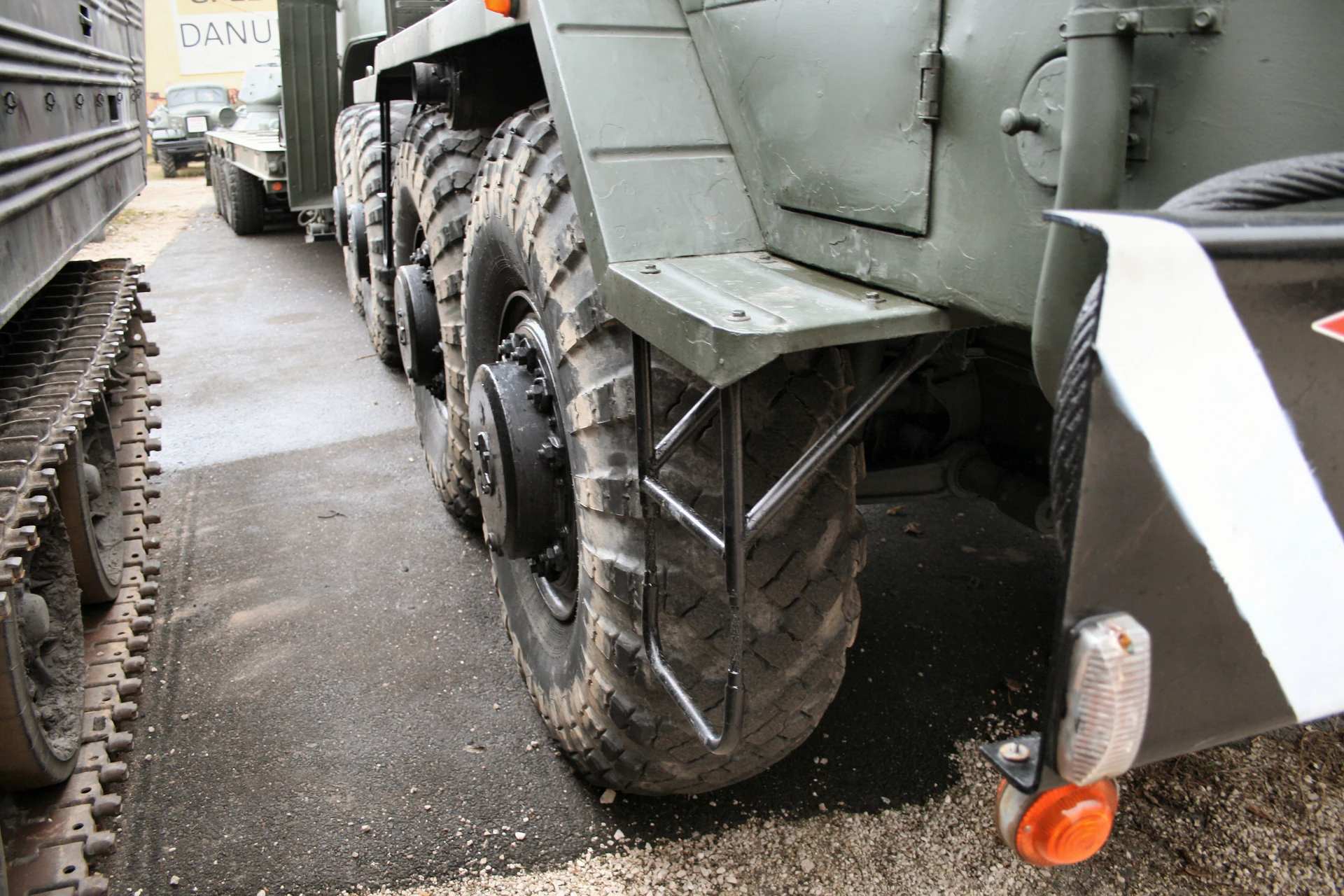

MAZ-537 Prime Mover lourd 9

Click on a photo and use the mouse scroll to view all photos

Attendez, la recherche MAZ-537 pour vous ...

Voir aussi :

Char-Transporteur soviétique et camion lourd MAZ-535 et MAZ-537

General Characteristics and Role

The MAZ-537 is a Soviet-era 8×8 heavy truck tractor designed specifically for military service as a tank transporter and missile prime mover. Developed from the earlier MAZ-535, the 537 model was introduced in 1959 and featured a more powerful engine and extended chassis. Its primary role was towing heavy semi-trailers, such as the ChMZAP-5247G, to transport main battle tanks (like the T-55, T-62, and T-72) and strategic ballistic missiles. The vehicle is known for its excellent off-road capability, thanks to its all-wheel drive and robust design. Production began at the Minsk Automobile Plant (MAZ) before shifting to the Kurgan Wheel Tractor Plant (KZKT) in the mid-1960s.

Property	Typical Value (MAZ-537G)
Rôle	Heavy Equipment Transporter (Tank/Missile Prime Mover)
National Origin	Soviet Union (USSR)
Fabricant	MAZ / KZKT
Service Entry	1960
Production End	1990
Crew Capacity	4 (Driver + 3 Passengers)
Curb Weight (Tractor)	21.6 tonnes (21,600 kg)
Maximum Semitrailer Weight	65 tonnes (65,000 kg)
Length	9.13 m (29 ft 11 in)
Width	2.89 m (9 ft 6 in)
Height (to cab roof)	2.88 m (9 ft 5 in)

Powerplant and Mobility

Engine: Transmash D-12A-525 12-cylinder, 38.8 liter, liquid-cooled diesel engine. (Similar design to Soviet tank engines).
Power Output: 386 kW (525 hp) at 2,100 rpm.
Torque: 2,200 Nm (2,200 kpm).
Transmission: Hydrodynamic (hydro-mechanical) transmission with a torque converter and a three-speed planetary gearbox.
Drive System: 8×8 All-Wheel Drive.
Maximum Speed (Road): 60 km/h (37 mph) (unladen); 55 km/h (34 mph) (with semitrailer).
Operational Range: Approx. 650 km (400 mi) (with semitrailer).
Ground Clearance: 0.50 m (20 in).
Fording Depth: 1.0 m (3 ft 3 in) (unprepared).
Key Feature (MAZ-537G): Equipped with a powerful winch mounted behind the engine compartment for loading, unloading, and self-recovery.

Payload and Variants

Fifth Wheel Load: 25 tonnes (for the MAZ-537G variant).
Payload Capacity (Tractor Unit): The MAZ-537A variant includes a small flatbed with an on-board carrying capacity of up to 15 tonnes.
Primary Towed Load: Designed to haul loads up to 50–65 tonnes, allowing for single transport of tanks like the T-72.
Common Variants:
- MAZ-537A: Tractor with small rear cargo platform.
- MAZ-537D: Equipped with an external AC generator.
- MAZ-537G: The most common version, equipped with a recovery winch.
- MAZ-537L: Airfield tug tractor.
- MAZ-537K: Adapted for crane equipment installation.
Protection: Soft-skin vehicle with no armor protection.
