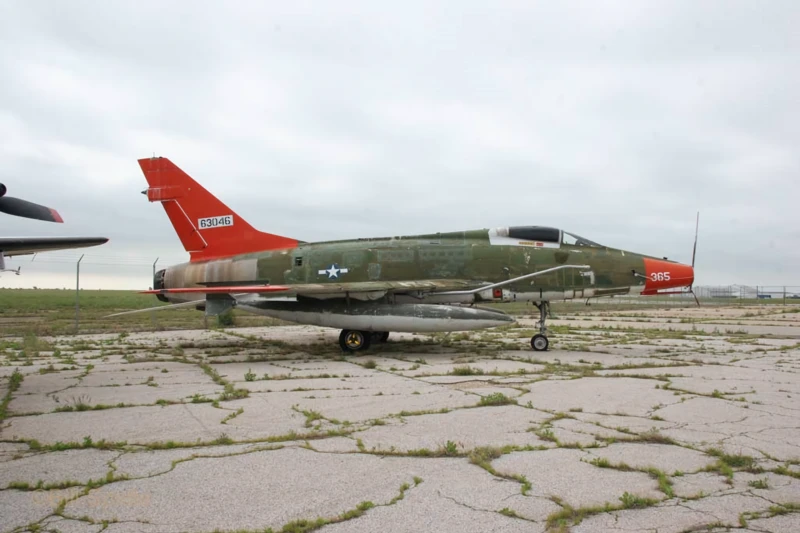

QF-100D Super Sabre

QF-100D Super Sabre
Maa	Yhdysvallat
Tyyppi	Suihkuhävittäjät
Aihe	Albumi: 46 kuvia kävelemässä «QF-100D Super Sabre»

Photo gallery of a QF-100D Super Sabre, The Pohjois-Amerikan F-100 Super Sabre oli yhdysvaltalainen yliääninen suihkuhävittäjä, joka palveli Yhdysvaltain ilmavoimissa (USAF) vuosina 1954–1971 ja Air National Guardissa (ANG) vuoteen 1979 asti. Ensimmäinen USAF-suihkuhävittäjien Century-sarjasta, se oli ensimmäinen USAF-hävittäjä, joka kykeni yliääninopeuteen tasolennossa. Pohjois-Amerikan ilmailu suunnitteli F-100:n alun perin tehokkaammaksi jatkoksi F-86 Sabre -ilmaylivoimahävittäjälle.

Lähde: Wikipedia

QF-100D Super Sabre 01

QF-100D Super Sabre 02

QF-100D Super Sabre 03

QF-100D Super Sabre 04

QF-100D Super Sabre 05

QF-100D Super Sabre 06

QF-100D Super Sabre 07

QF-100D Super Sabre 08

QF-100D Super Sabre 09

Click on a photo and use the mouse scroll to view all photos

Odota, etsimällä QF-100D Super Sabre -kuvia sinulle ...

Osta minulle kahvia

Katso myös:

From Top Cover to Target Drone

Nniiden QF-100D was the final iteration of the legendary F-100D Super Sabre, the first US fighter capable of supersonic speeds in level flight. In the 1980s, as the “Hun” became obsolete against modern Soviet fighters, the US Air Force converted hundreds of mothballed airframes into Full-Scale Aerial Targets (FSAT). These were remote-controlled robots designed to be shot down by the next generation of air-to-air missiles, providing pilots and engineers with the most realistic test of a missile’s lethality against a high-performance supersonic threat.

Attribute	Technical Specification (QF-100D)
Rooli	Remote-Controlled Target Drone (FSAT)
Control System	DFCS (Digital Flight Control System) / Vega Control
Moottori	1 × Pratt & Whitney J57-P-21A afterburning turbojet
Enimmäisnopeus	Mach 1.3 (1,390 km/h at altitude)
Tila	“NULLO” (No Upper Limit Life Onboard) or Manned
Special Equipment	Scoring systems, smoke generators, destruct charges
Combat Weight	Approx. 13,000 kg (28,000 lbs)

Design Engineering: Robotizing a Legend

The DFCS Upgrade: Converting a 1950s hydraulic fighter into a remote drone required the Digital Flight Control System. This “brain” translated radio commands from a ground station into physical movements of the flight surfaces, allowing for maneuvers that would have exceeded the safety limits of a human pilot.
Visual Augmentation: Since these aircraft were meant to be tracked from miles away, they were painted with bright “International Orange” markings. They also featured smoke generators in the tail to help ground observers and missile seekers track them visually.
Dual-Mode Capability: Most QF-100Ds could be flown by a human pilot for “ferry flights” between airbases. However, once cleared for a live-fire mission, they were flown “NULLO” (No Live Operator)—the seat was empty, and the aircraft was controlled entirely from a ground van.
The Destruct Charge: To prevent a rogue drone from flying off into civilian areas if it lost its radio link, a specialized explosive charge was installed. If the link was severed for more than a few seconds, the aircraft would self-destruct in mid-air.

The Final Mission: Testing the Eagle and Falcon

A Realistic Enemy: The QF-100D was used extensively to test the **AIM-9 Sidewinder** and **AIM-120 AMRAAM** missiles. Because the F-100 had a massive heat signature from its J57 engine, it was the perfect target for heat-seeking missiles.
Scoring, Not Always Killing: Not every mission ended in a crash. Many drones were equipped with “near-miss” scoring sensors that measured exactly how close a missile came to the fuselage without actually detonating, allowing the drone to be reused for multiple missions.
The End of the Fleet: By the early 1990s, the supply of old F-100 airframes was exhausted. The role of the supersonic drone was eventually passed on to the QF-4 Phantom II and later the QF-16 Fighting Falcon.
The Tyndall “Shoots”: Most of these final flights took place over the Gulf of Mexico near Tyndall Air Force Base, Florida. The sea floor there is a graveyard for many of the most famous aircraft in aviation history.
