Tipo 63
País	China
Papel	Tanque ligero anfibio
En servicio	1963 – presente
Construido	1550+

el Norinco Tipo 63 (Chino: 63式; pinyin: Liùsān shì) es un tanque ligero anfibio chino. Lanzado por primera vez en 1963, es en muchos sentidos similar al pt-76 soviético anterior. Sin embargo, contrariamente a la creencia popular, tiene algunas diferencias esenciales con respecto al PT-76 en el sistema de propulsión de chorro de agua del vehículo, etc. También es conocido bajo su designación industrial, el WZ-211. El tipo 63 está siendo reemplazado por el tipo 63A.

Fuente: Tipo 63 en Wikipedia

Type 63 Walk Around
Fotógrafo	Unknow
Localización	Unknow
Fotos	12

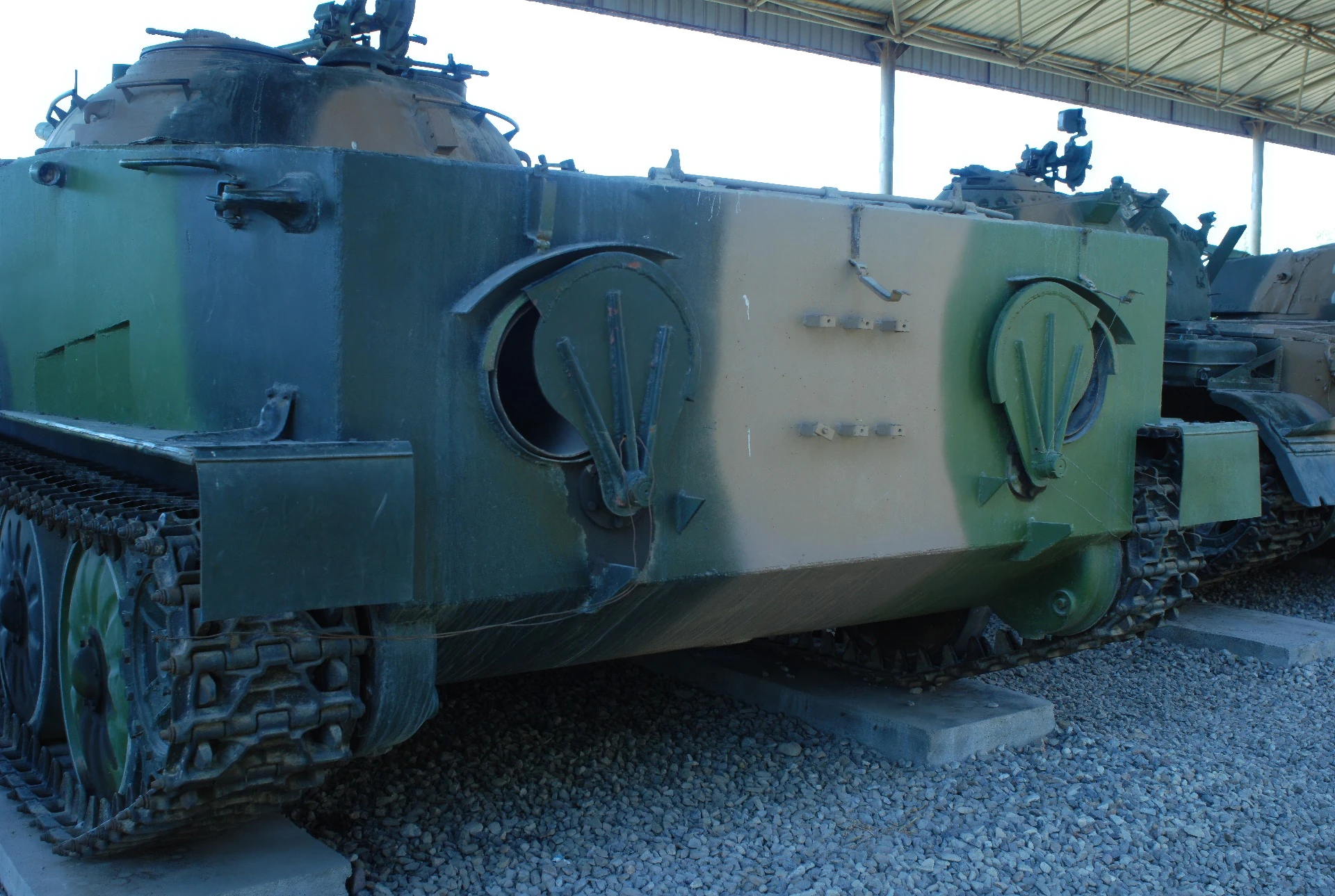

Type 63-I 01

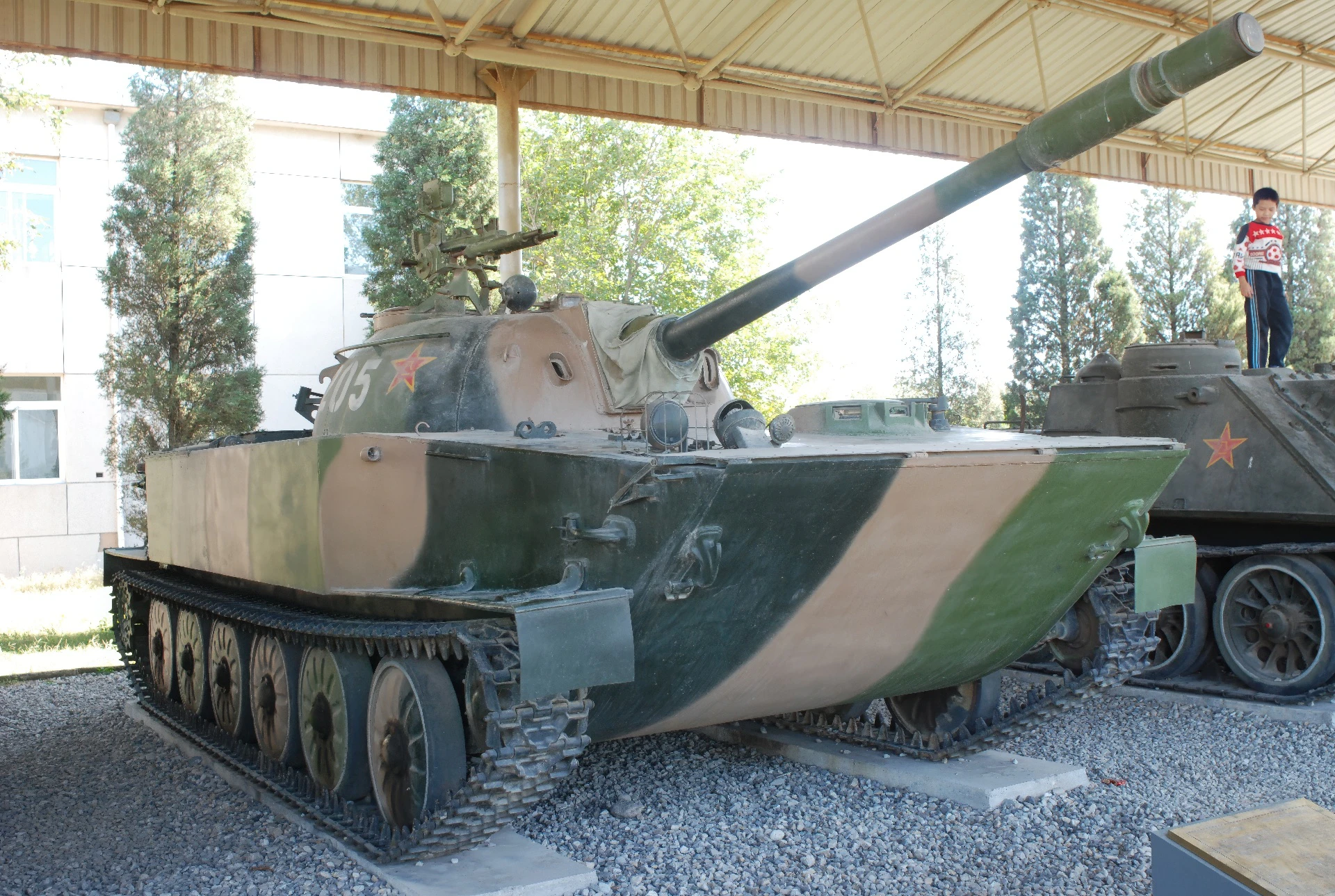

Type 63-I 02

Type 63-I 03

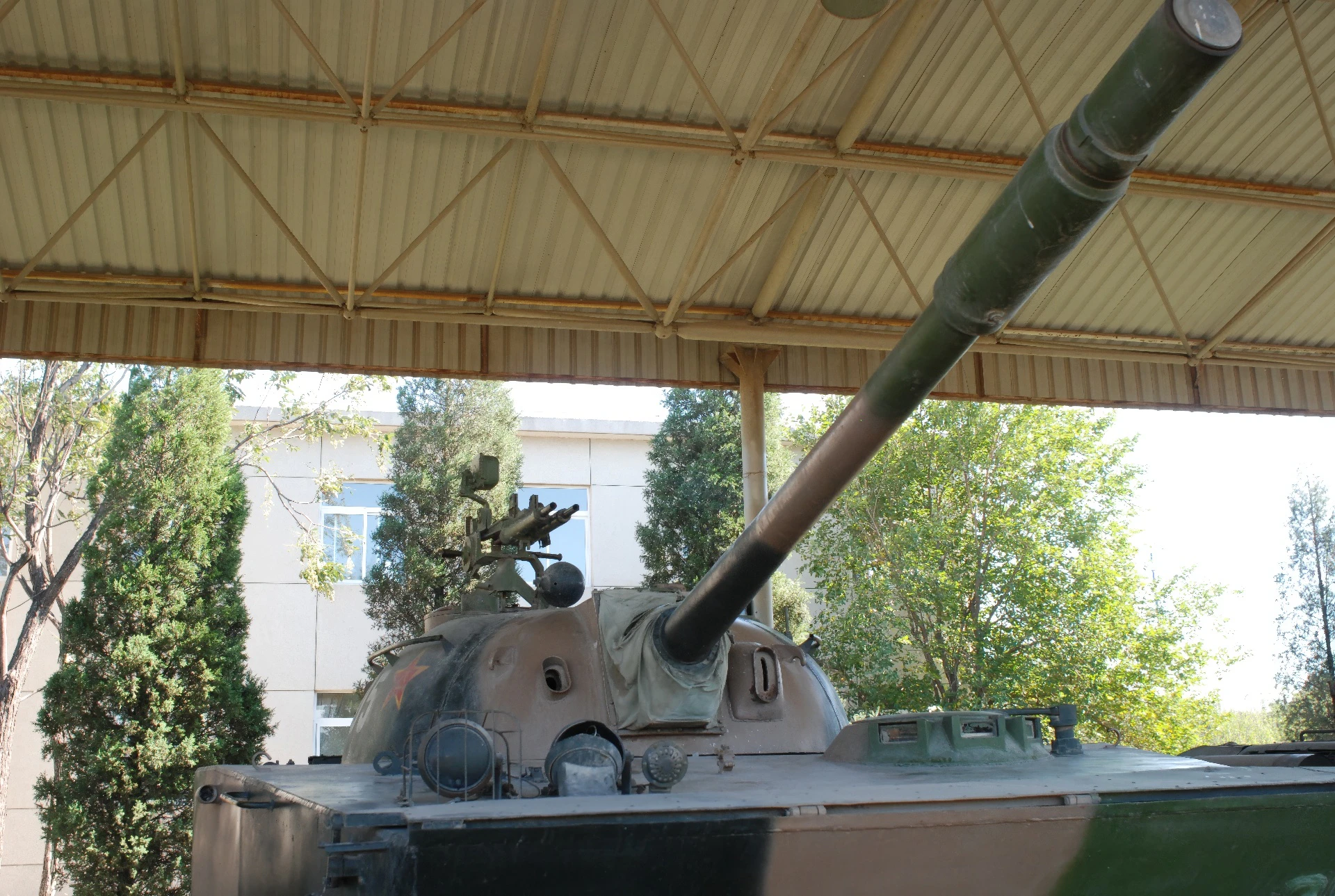

Type 63-I 04

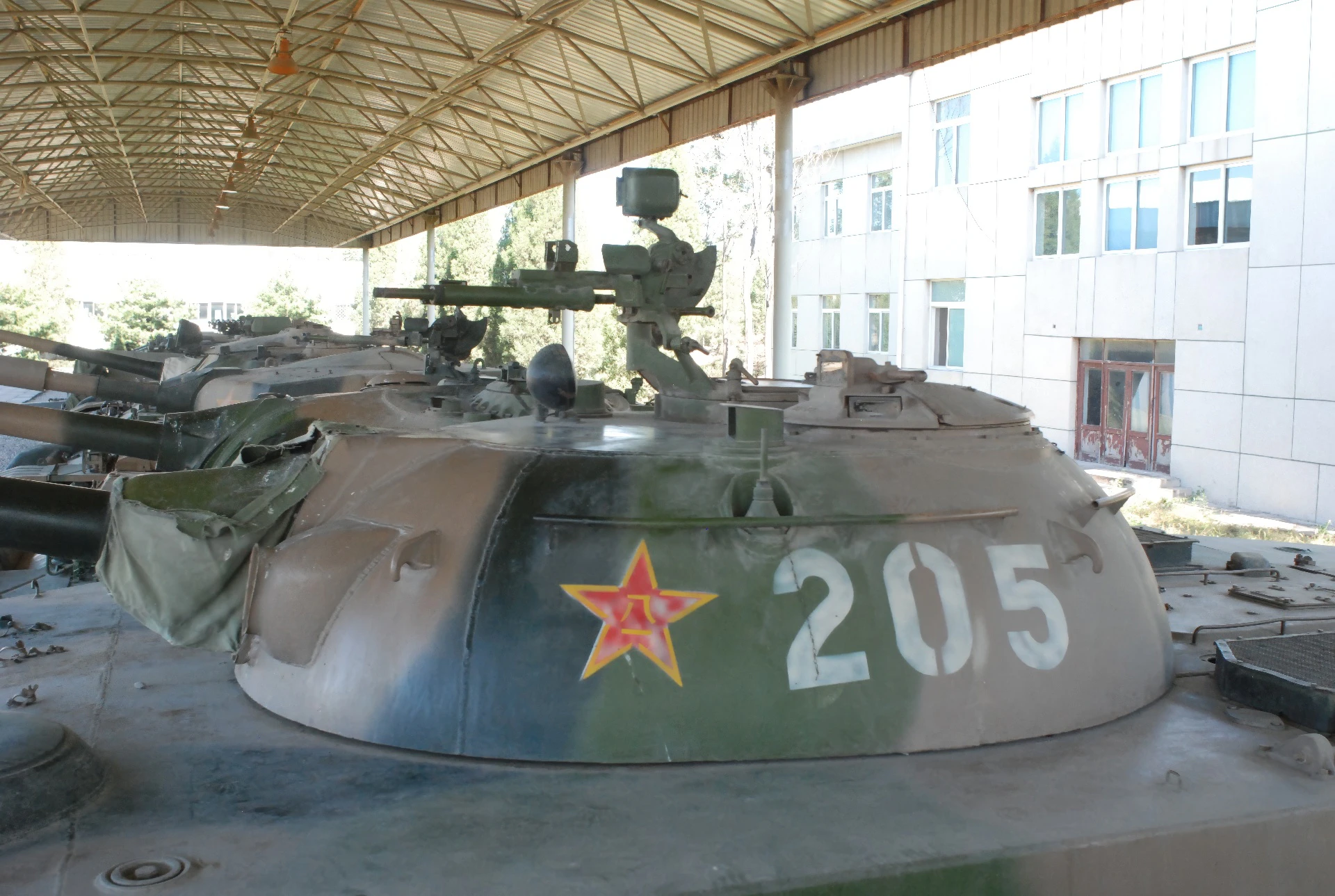

Type 63-I 05

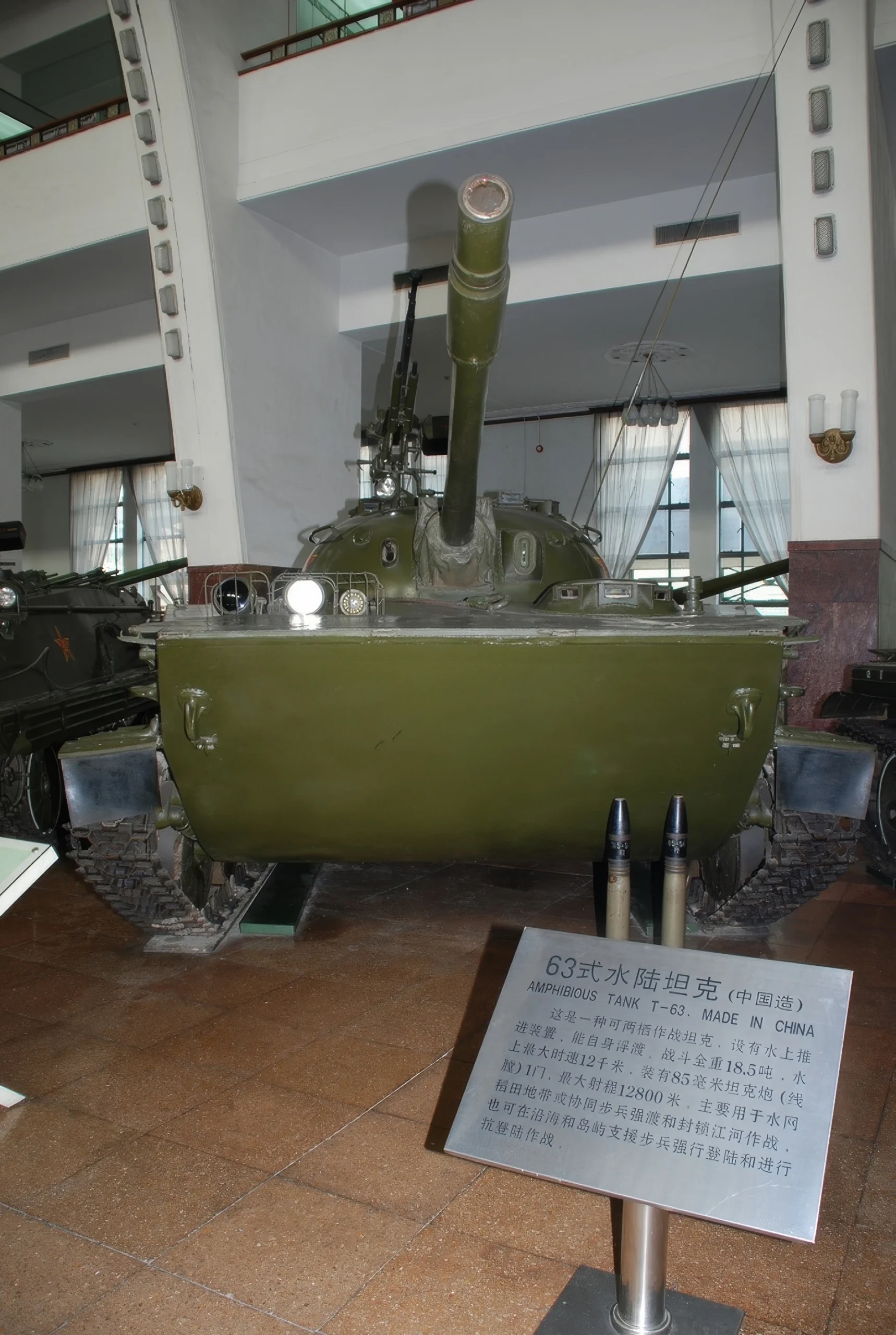

Type 63-I 07

Type 63-I 06

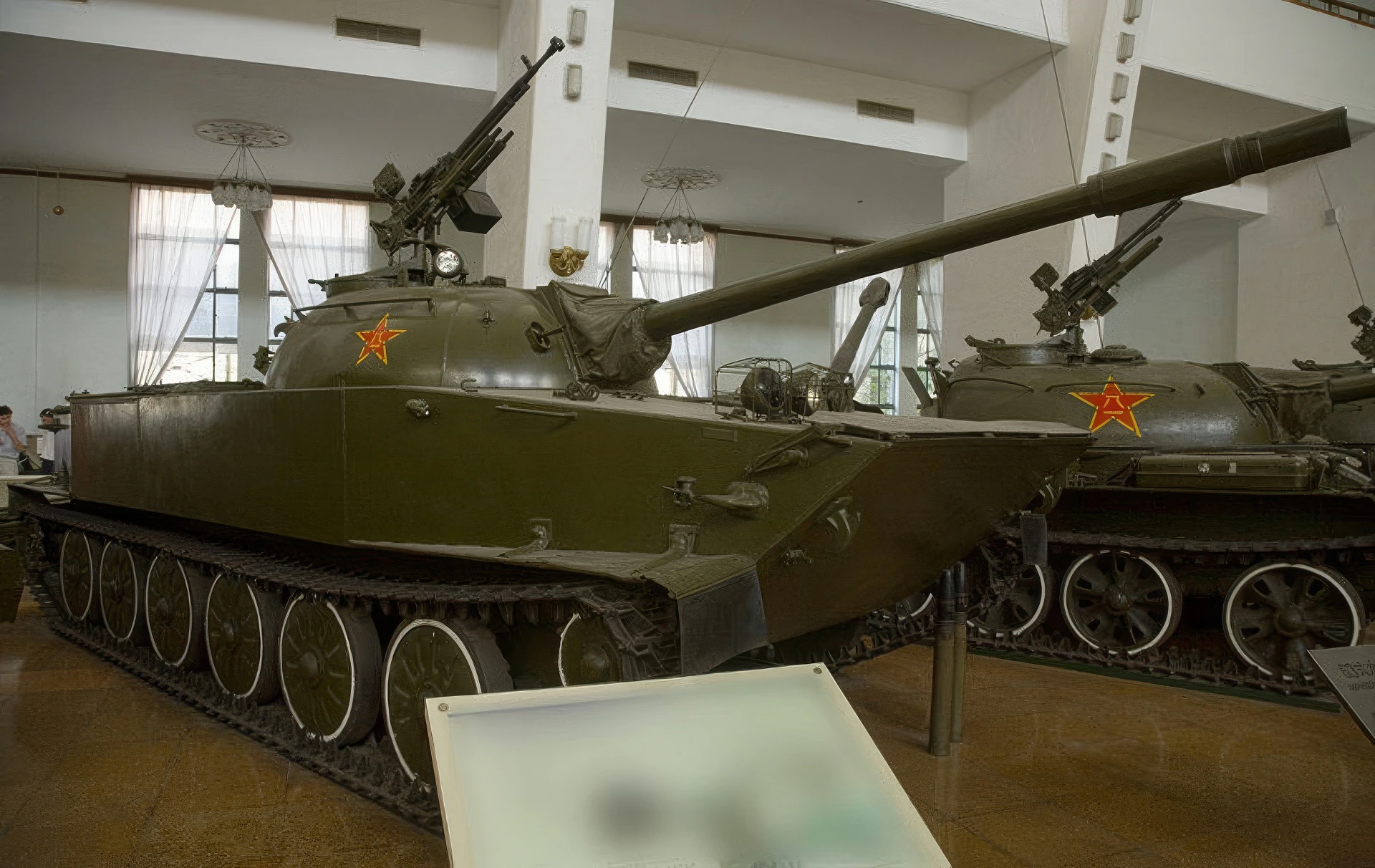

Type 63-I 08

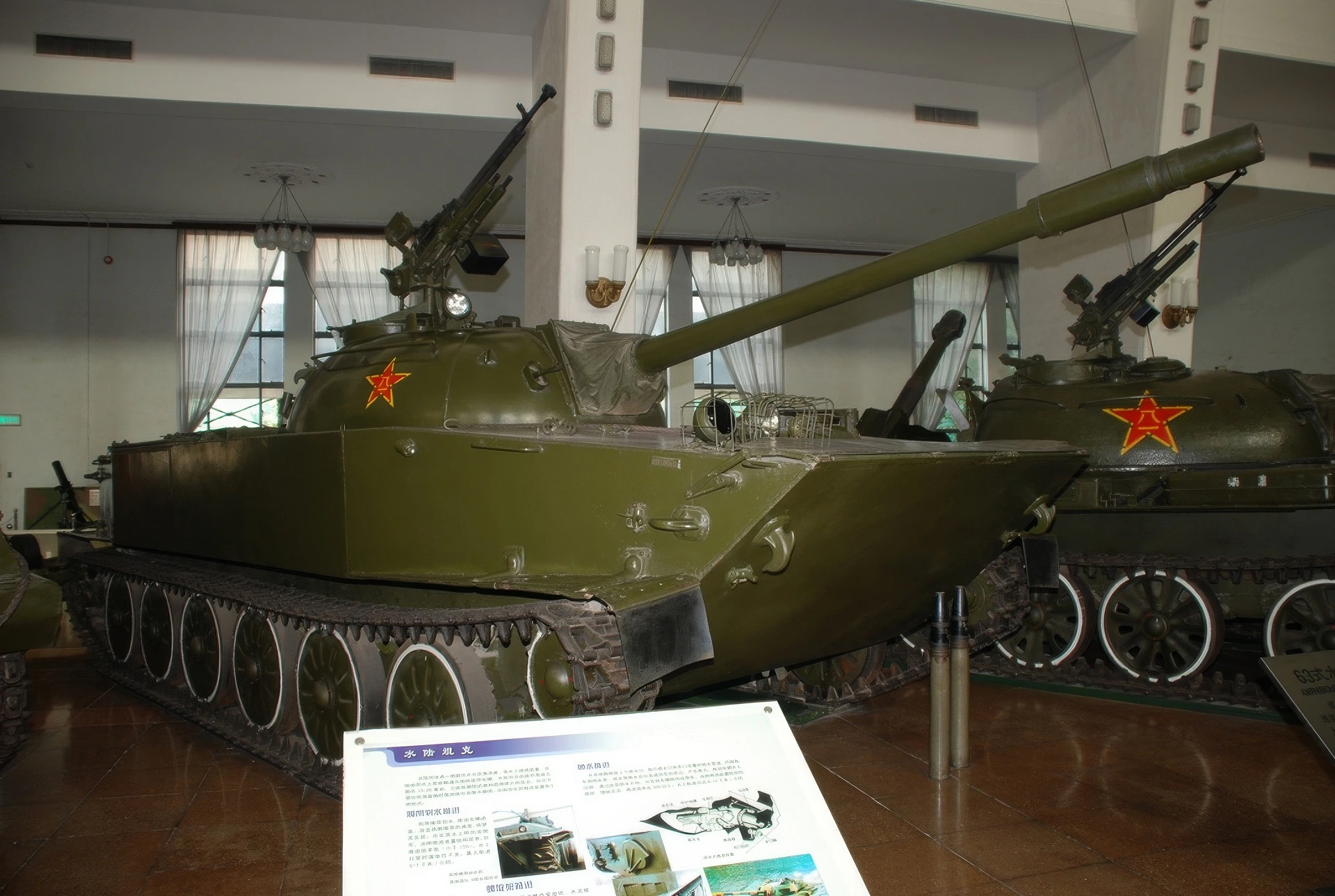

Type 63-I 10

Click on a photo and use the mouse scroll to view all photos

Espera, Buscando tipo 63 fotos para usted...

Ver también:

General Characteristics

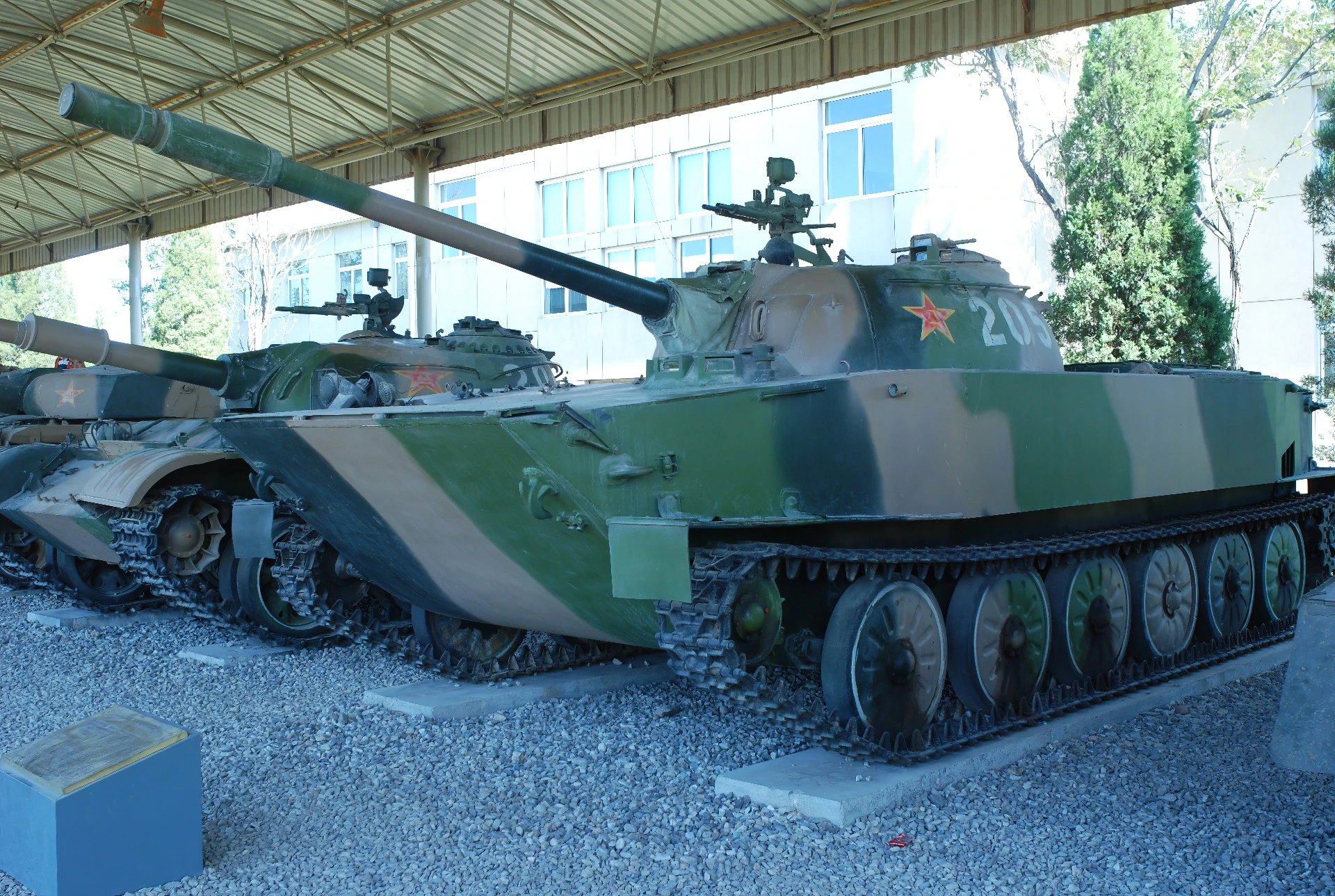

The Type 63-I is a Chinese amphibious light tank, designated as the second production run of the Type 63 family. Developed in the early 1960s, it was designed to operate in the wetland and river-crossing regions of Southern China, taking heavy inspiration from the Soviet PT-76 amphibious tank but featuring significant modifications, most notably a much more powerful engine and a larger gun. The “I” designation refers to the switch from the initial, underpowered engine to a stronger 12-cylinder diesel.

Property	Typical Value (Type 63-I)
Papel	Amphibious Light Tank, Reconnaissance
National Origin	República Popular China
Fabricante	NORINCO
Service Entry	Mid-1960s (Replacing initial Type 63)
Equipo	4 (Commander, Gunner, Loader, Driver)
Combat Weight	19.83 tonnes
Length (Gun Forward)	8.44 m (27 ft 8 in)
Hull Length	7.15 m (23 ft 5 in)
Ancho	3.2 m (10 ft 6 in)
Height (To AA Gun)	3.12 m (10 ft 3 in)

Armamento

The Type 63-I features a more powerful armament suite than its Soviet inspiration, using a gun originally designed for the Chinese Type 62 light tank.

Main Armament: 1 x 85 mm Type 62-85TC rifled gun (47 rounds carried).
- Ammunition: Fires a variety of fixed ammunition, including APHEBC, APCBC, and HEAT-FS (with penetration up to 300 mm).
- Stabilizer: Lacks a gun stabilizer, making accurate firing on the move or in water difficult.
Coaxial Armament: 1 x 7.62 mm Type 59T machine gun (2,000 rounds).
Anti-Aircraft Armament: 1 x 12.7 mm Type 54 heavy machine gun (pintle mount on turret roof, 500 rounds).

Protection and Mobility

The core feature of the Type 63 is its amphibious capability, achieved with a boat-like hull design and a propulsion system that combines tracks with two water jets at the rear.

Armor: Thin, welded rolled steel armor (similar to the PT-76).
- Hull Front: 11 mm (at high angle).
- Hull Sides: 14 mm (upper).
- Provides protection mainly against small arms fire and shell fragments, but is vulnerable to heavy machine guns and cannon fire.
Engine: 1 x 12150L-2 V-12 liquid-cooled diesel engine. (The primary upgrade of the Type 63-I over the Type 63).
- Power Output: 300 kW (402 hp).
- Power-to-Weight Ratio: ~20.3 hp/tonne.
Maximum Speed (Road): 64 km/h (40 mph).
Maximum Speed (Water): 12 km/h (7.5 mph) using water jets.
Operational Range (Road): 370 km.
Suspension: Torsion bar suspension with six large road wheels and no return rollers.

Historial de operaciones

The Type 63 and Type 63-I served extensively with the People’s Liberation Army (PLA) in China.
They were used in combat by the North Vietnamese Army during the Vietnam War and saw limited action in the Sino-Vietnamese War of 1979.
The Type 63 family was a cornerstone of Chinese amphibious doctrine until its gradual replacement by the significantly upgraded Type 63A in the late 1990s.
