Radioplane BTT

Radioplane BTT
País	E.e.u.u
Papel	Drone objetivo
Primera mosca	Unknow
Construido	7300+

el Radioplano BTT, conocido como RP-71 por la compañía, como WS-426/2 por la Armada de los Estados Unidos, y como WS-462/2 por la Fuerza Aérea de los Estados Unidos, es una familia de drones de objetivo producidos por la Radioplane Company (más tarde una división de Northrop).

MQM-57 Halconero: A variant of the BTT designated the RP-71, also known as the SD-1 Observer and later redesignated MQM-57 Falconer, was built for battlefield reconnaissance, with first flight in 1955. The Falconer was similar in appearance to the Shelduck, but had a slightly longer and stockier fuselage. It had an autopilot system with radio-control backup, and could carry cameras, as well as illumination flares for night reconnaissance. Equipment was loaded through a hump in the back between the wings. Although it only had an endurance of a little more than a half-hour, making it of limited use, about 1,500 Falconers were built and the type was used internationally with several different military forces, remaining in service into the 1970s. Over 73,000 BTT targets were built in all, and the type was used by at least 18 nations. Some may still be lingering in service.

Fuente: Radioplane BTT en Wikipedia

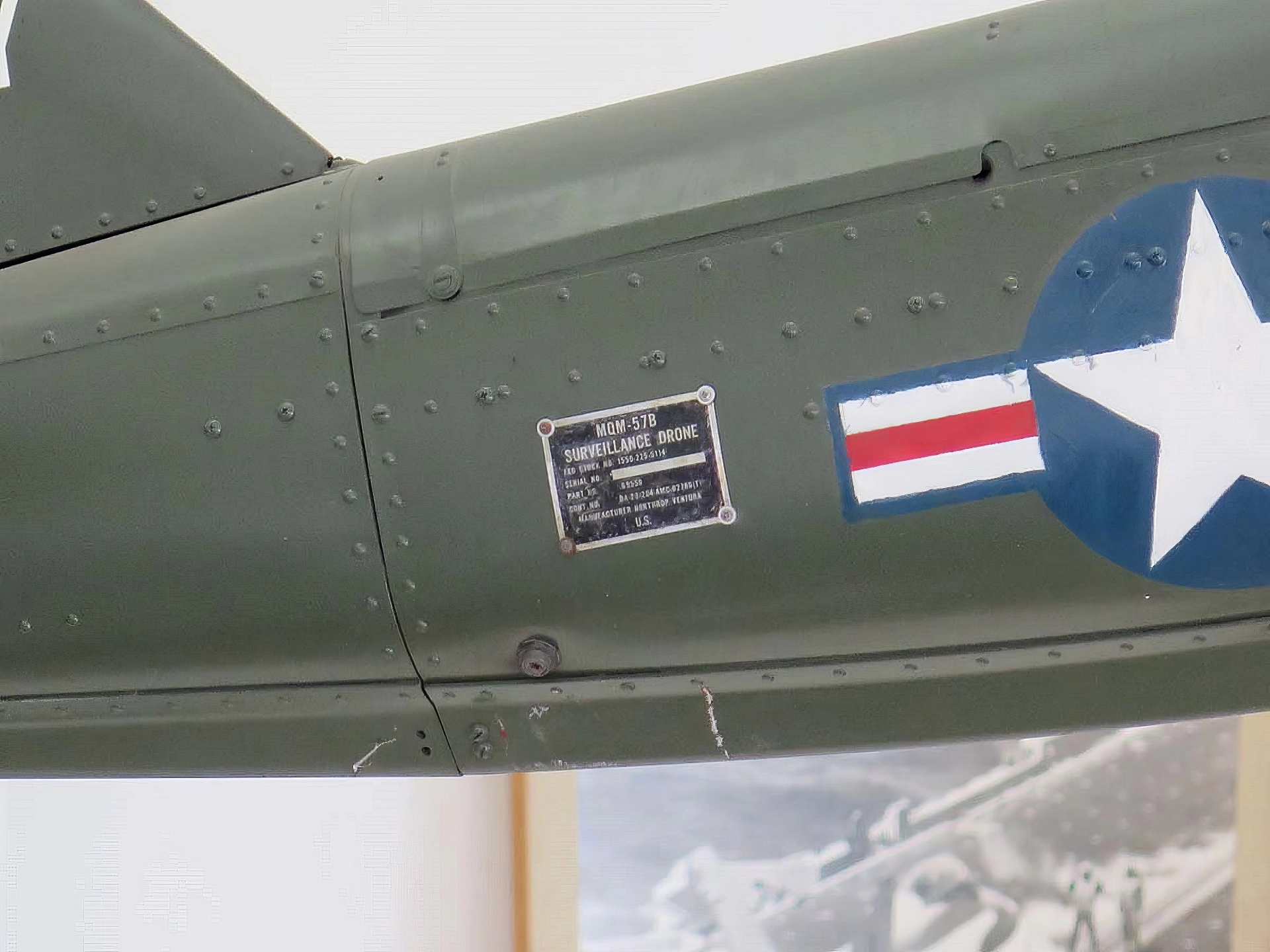

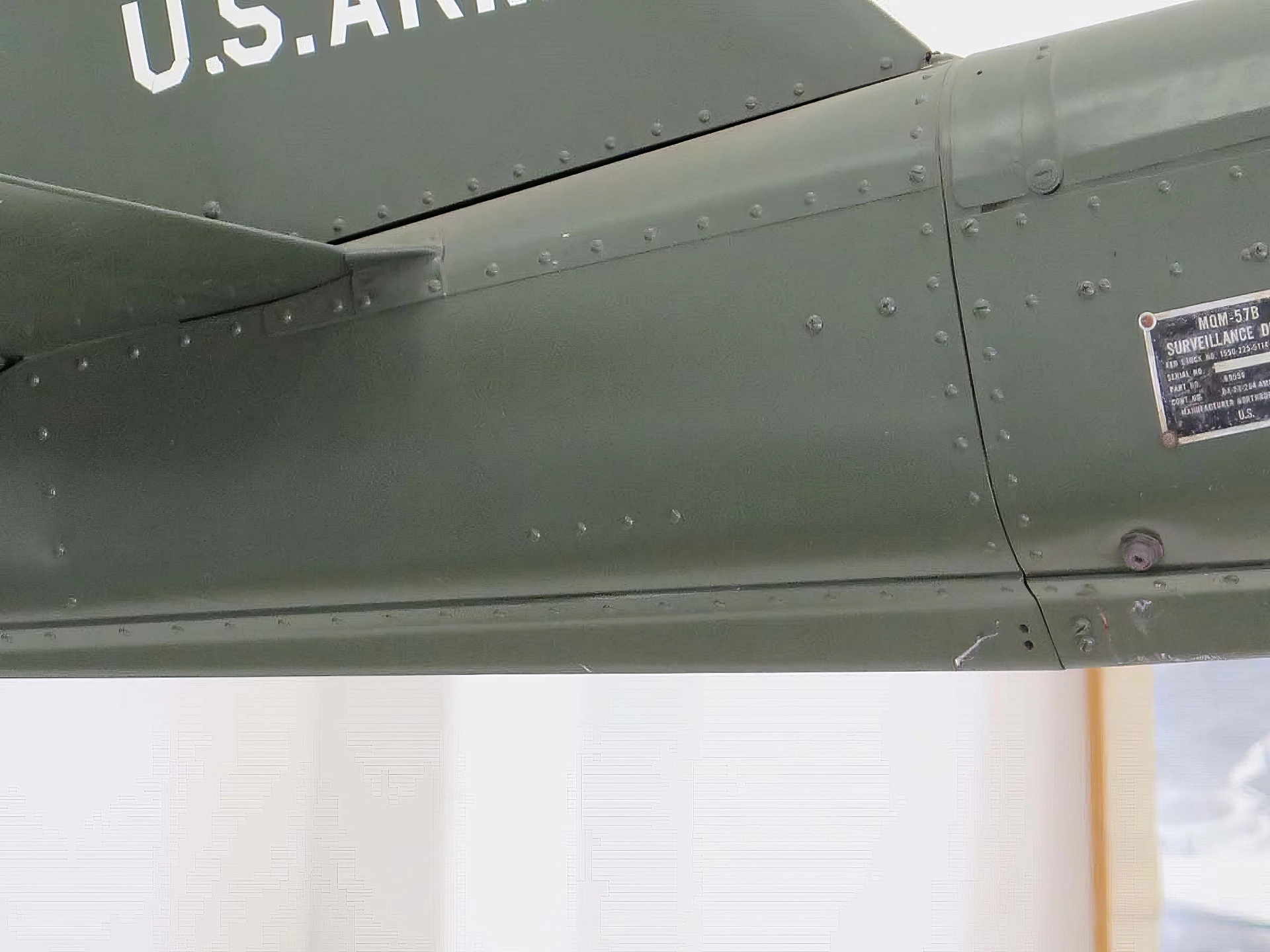

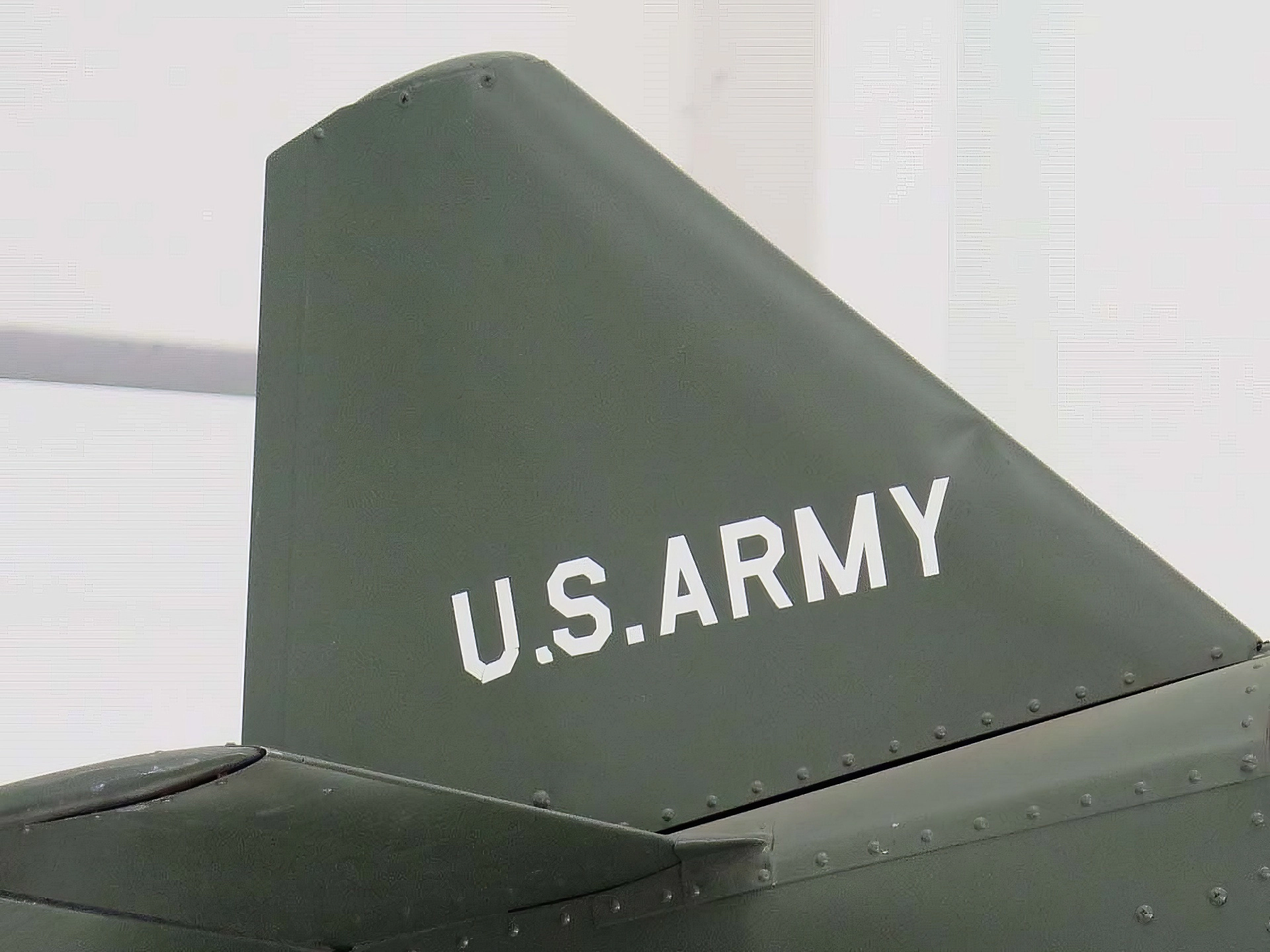

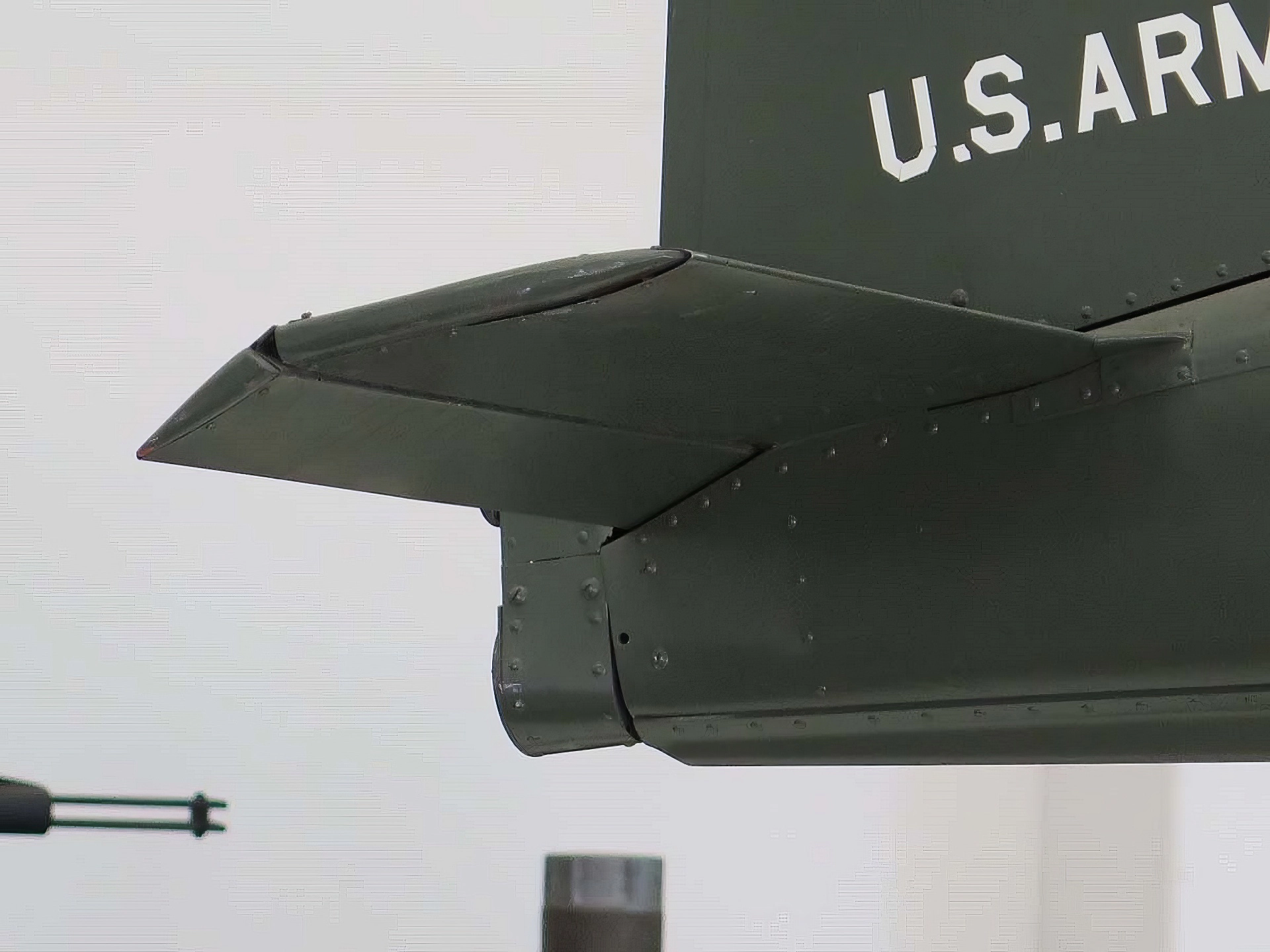

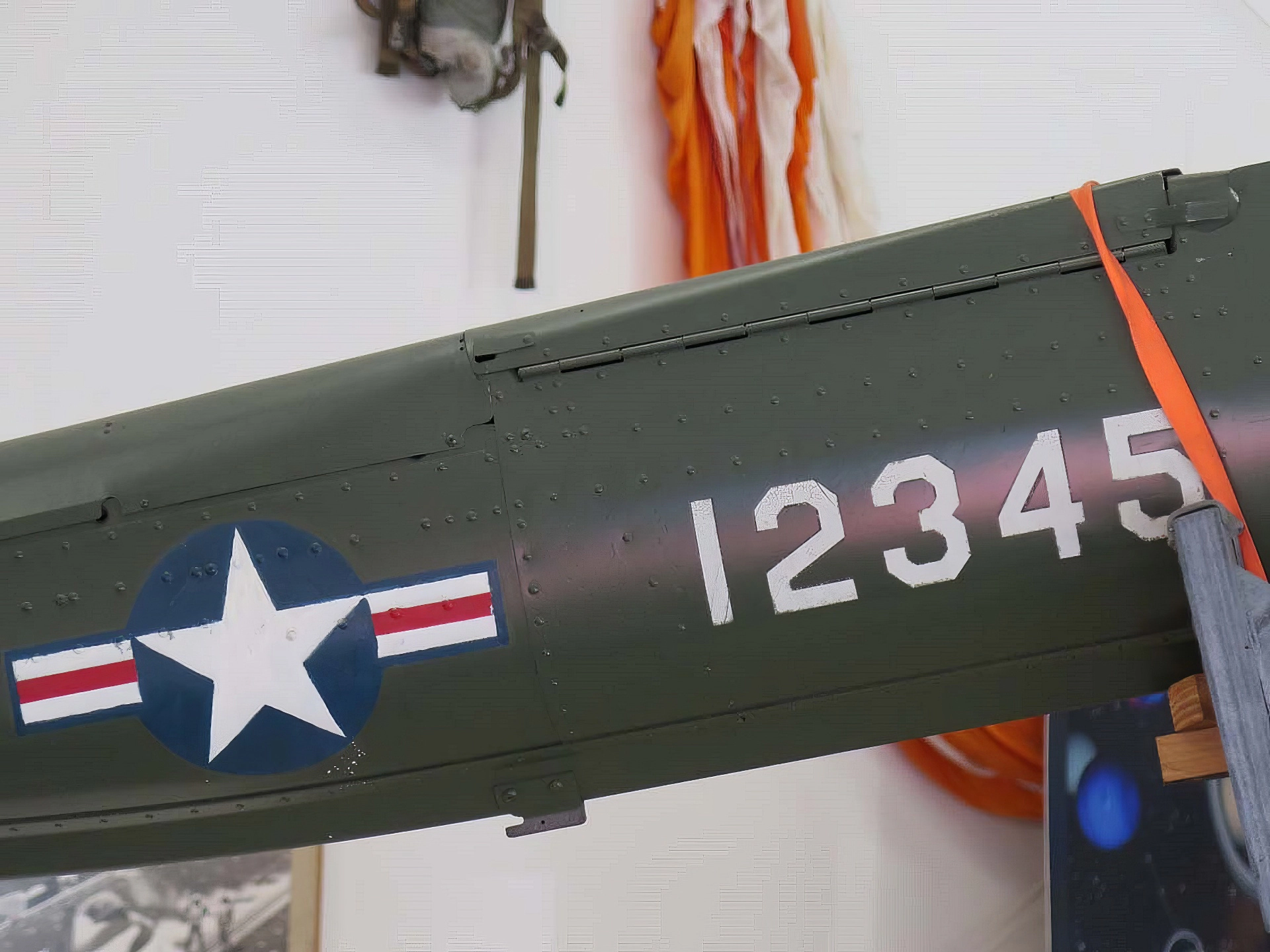

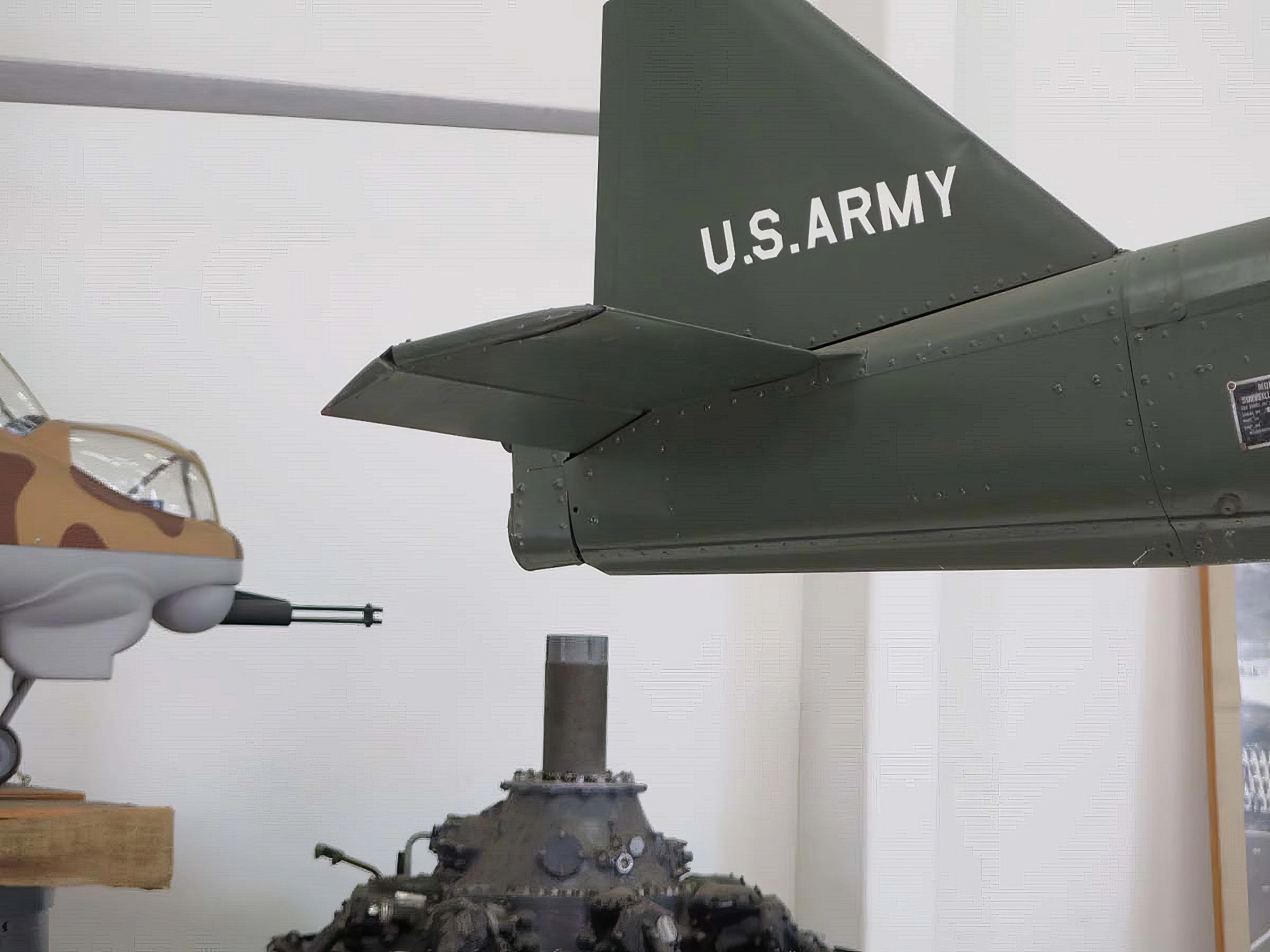

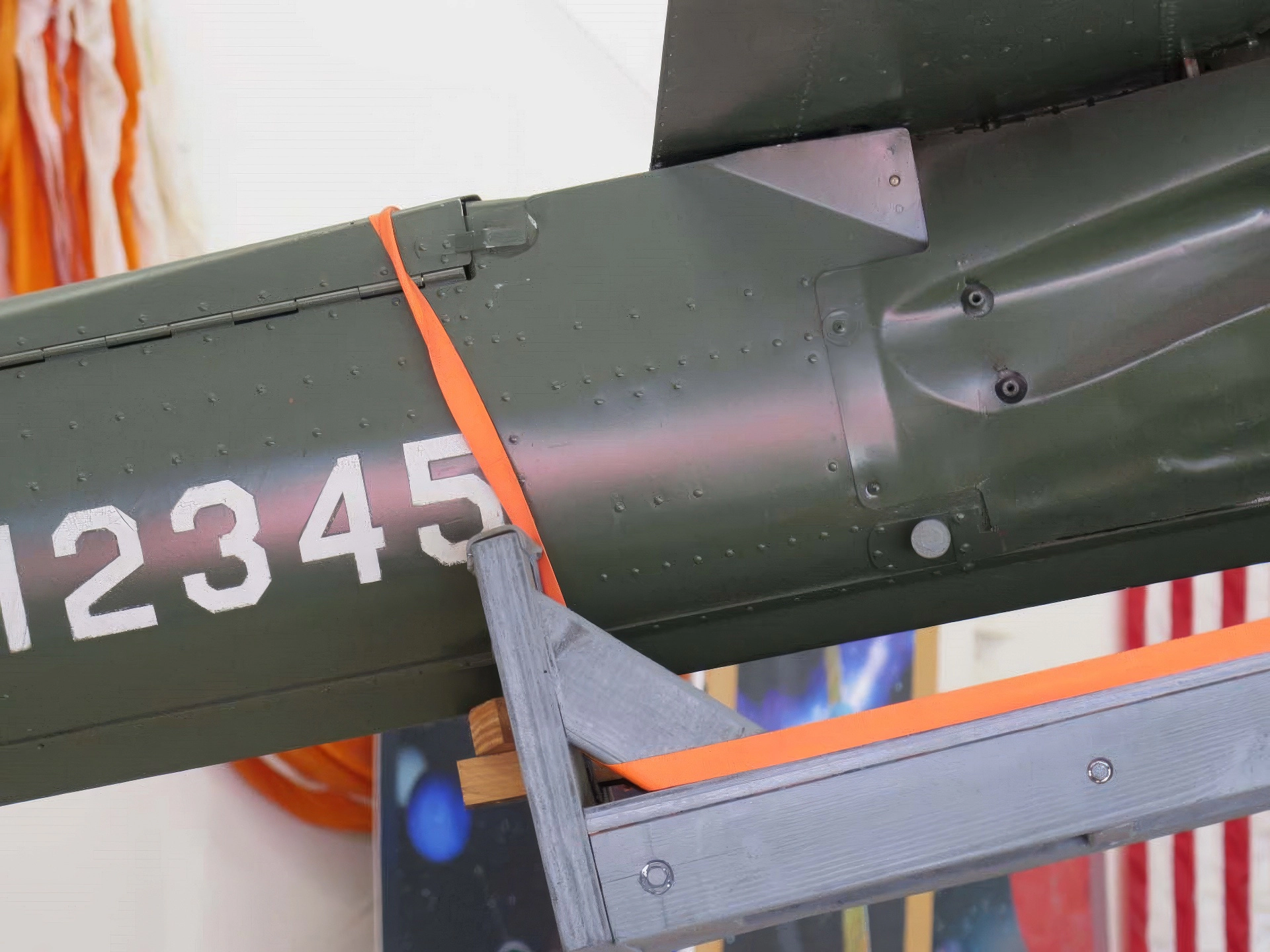

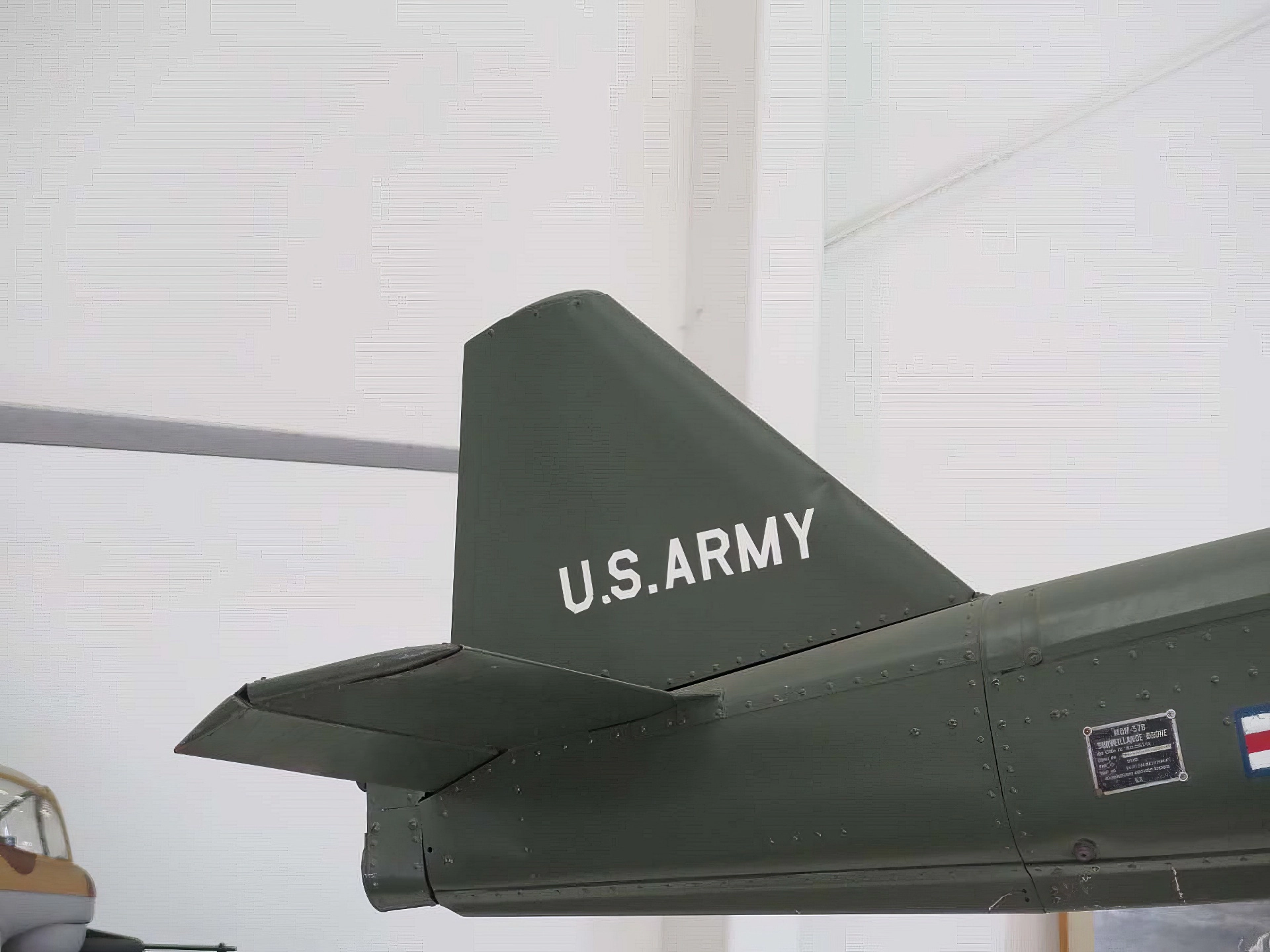

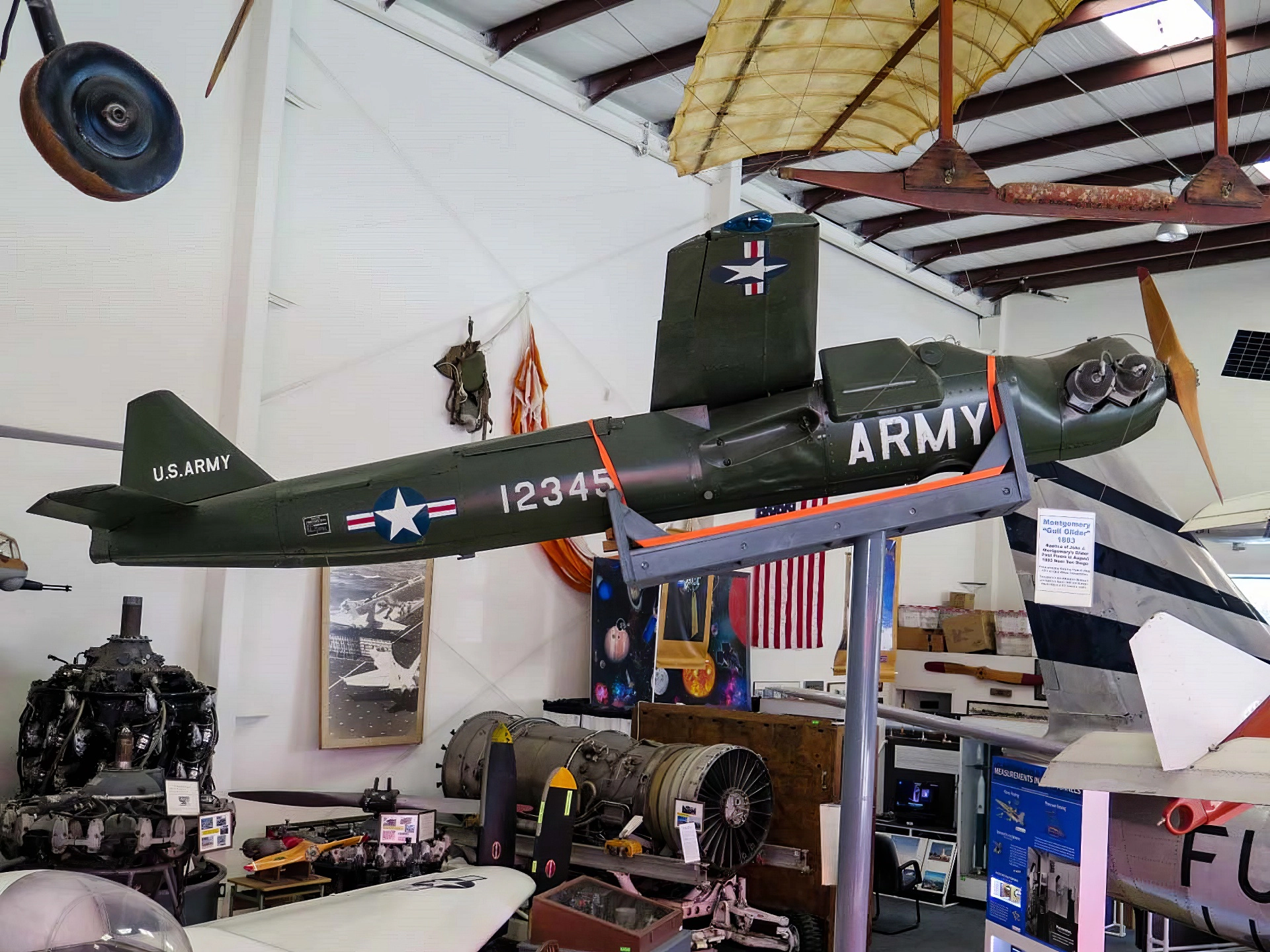

Northrop MQM-57B Falconer Walk Around
Photographer	Vladimir Yakubov
Localisation	Western Museum of Flight, Torrance
Photos	45

Click on a photo and use the mouse scroll to view all photos

Espera, buscando Radioplane BTT para ti...

Ver también:

General Characteristics and Role

The Northrop MQM-57B Falconer, originally designated the KD2R-5, was a highly successful and widely exported American target drone and light reconnaissance drone developed by the Radioplane Division of Northrop. Its primary role was to simulate the speed and maneuverability of contemporary enemy jet aircraft for the training of anti-aircraft missile crews and fighter pilots. The “MQM” designation signifies a target drone, though it was also used for unarmed aerial surveillance missions in certain variants. The Falconer was designed for simplicity, ease of launch (using a zero-length launcher), and recovery (via a recovery parachute system), making it a reliable and cost-effective training aid.

Property	Typical Value (MQM-57B)
Papel	Target Drone, Reconnaissance UAV
National Origin	Estados Unidos
Fabricante	Northrop / Radioplane Division
Service Entry (KD2R-5)	Década de 1950
Equipo	0 (Unmanned, ground-controlled)
Longitud	3.78 m (12 ft 5 in)
Envergadura	3.43 m (11 ft 3 in)
Altura	0.86 m (2 ft 10 in)
Launch Weight	300 kg (660 lb)

Powerplant and Operation

Engine: 1 x Kiekhaefer V-105-3 air-cooled, horizontally opposed piston engine (or similar power unit).
Power Output: Approximately 125 hp (93 kW).
Maximum Speed: Approximately 475 km/h (295 mph; 256 kn).
Ceiling: Designed to operate up to 12,000 m (40,000 ft).
Recovery Method: After the mission, the drone would typically shut down its engine, deploy a parachute, and descend for soft recovery and reuse.
Control: Controlled by remote ground station using a radio command link.

Service and Export

Widespread Use: The Falconer drone series was used extensively by the U.S. Army, Navy, and Air Force, as well as many NATO allies and friendly nations, for decades.
Versatility: It could carry various enhancements, including radar augmentation devices (for a larger radar signature) or infra-red flares to simulate different types of threat aircraft.
Surveillance Role: In some variants, the drone was equipped with cameras or sensors for battlefield reconnaissance, demonstrating early versatility for unmanned aircraft.
Historical Context: The MQM-57 series represents the transition era of drone technology, moving from simple aerial targets to more complex, reusable training platforms.
