Βορειοαμερικανικό T-2A Buckeye | |
|---|---|
| Χώρα | Ηπα |
| Πρώτη πτήση | 31 Ιανουαρίου 1958 |
| Ρόλο | Εκπαιδευτικά αεροσκάφη |
| Χτισμένο | 529 |
Teh Βορειοαμερικανικό T-2 Μπάκλεϊ ήταν το ενδιάμεσο εκπαιδευτικό αεροσκάφος του Πολεμικού Ναυτικού των Ηνωμένων Πολιτειών, που προοριζόταν να εισαγάγει το Πολεμικό Ναυτικό των ΗΠΑ και τους Φοιτητές Ναυτικούς Αεροπόρους του Πολεμικού Ναυτικού των ΗΠΑ και τους Αξιωματικούς Ναυτικής Πτήσης των ΗΠΑ σε αεριωθούμενα. Τέθηκε σε υπηρεσία το 1959 και αντικαταστάθηκε από το McDonnell Douglas T-45 Goshawk το 2008.
| Βορειοαμερικανικό T-2A Buckeye περπατήστε γύρω | |
|---|---|
| Φωτογράφος | Τζον Χεκ |
| Εντοπισμού | Αγνοώ |
| Φωτογραφίες | 31 |

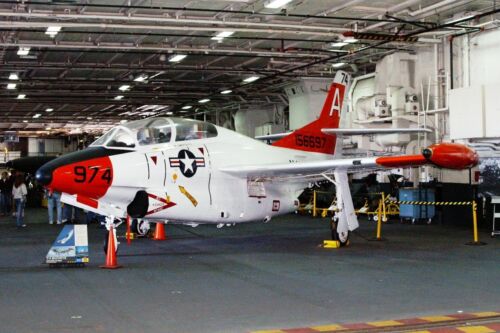

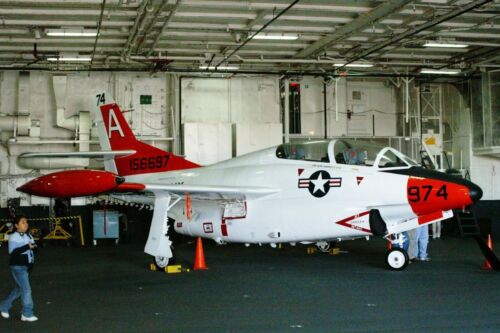

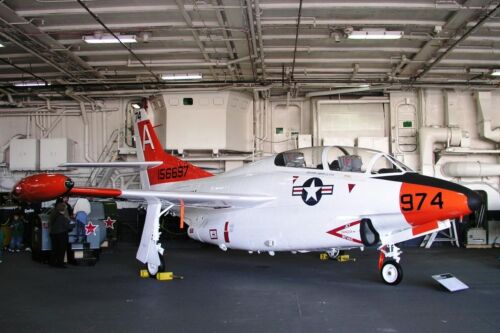

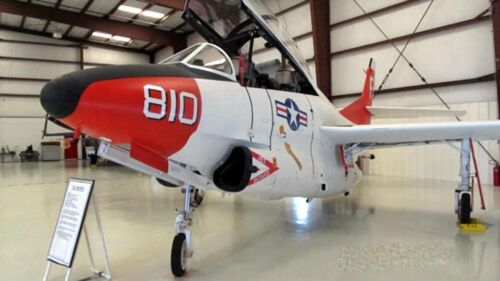

| North American T-2C Buckeye Walk Around | |
|---|---|
| Φωτογράφος | Σίες Χέντρικς |
| Εντοπισμού | Αγνοώ |
| Φωτογραφίες | 80 |
| North American T-2 Buckeye Walk Around | |
|---|---|
| Φωτογράφος | Unknow |
| Εντοπισμού | Αγνοώ |
| Φωτογραφίες | 32 |
| North American T-2C ‘Buckeye’ Walk Around | |
|---|---|
| Φωτογράφος | Unknow |
| Εντοπισμού | Αγνοώ |
| Φωτογραφίες | 14 |
Δείτε επίσης:
The Foundation of Naval Aviation

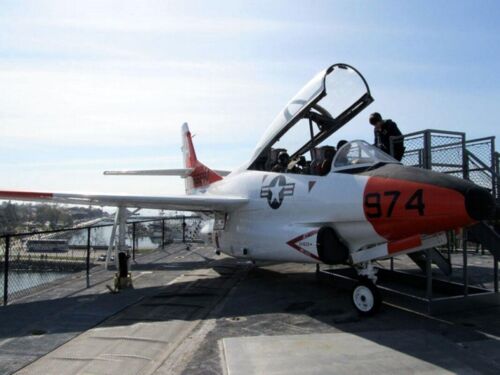

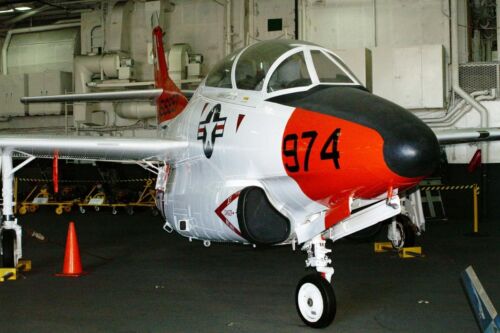

Teh Northrop T-2 Buckeye was the U.S. Navy’s primary intermediate jet trainer for nearly five decades. Entering service in 1959, it was designed specifically to bridge the gap between initial propeller training and high-performance fleet jets like the F-4 Phantom or F-14 Tomcat. Known for its rugged “all-metal” durability and remarkably forgiving flight characteristics, the Buckeye was the first jet thousands of naval aviators used to perform their first Carrier Qualifications (CQ). Its wide, tricycle landing gear and low stall speed made it the perfect tool for the violent “controlled crash” of a carrier landing.
| Attribute | Technical Specification (T-2C) |
|---|---|
| Ρόλο | Intermediate Jet Trainer |
| Πλήρωμα | 2 (Student and Instructor in tandem) |
| First Flight | January 31, 1958 (T2J-1) |
| Πλάστης ισχύος | 2 × General Electric J85-GE-4 turbojets |
| Thrust | 2,950 lbf (13.1 kN) per engine |
| Maximum Speed | 522 mph (840 km/h) |
| Service Ceiling | 40,400 feet (12,315 m) |
| Οπλισμός | Usually unarmed; wing hardpoints for practice bombs/gun pods |
Design Engineering: Built for the “Boat”
- Straight-Wing Stability: Unlike the swept-wing fighters students would eventually fly, the Buckeye used an unswept wing. This provided excellent lift and stability at the low speeds required for approaching a carrier deck, ensuring the student didn’t “stall out” during the final seconds of a landing.

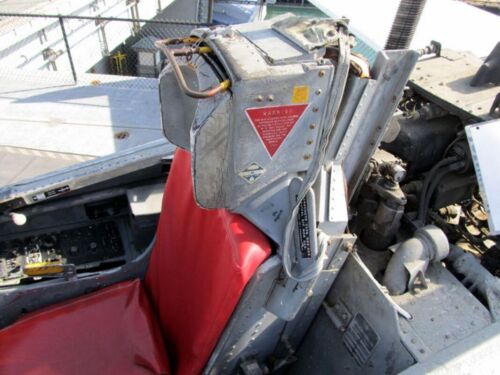

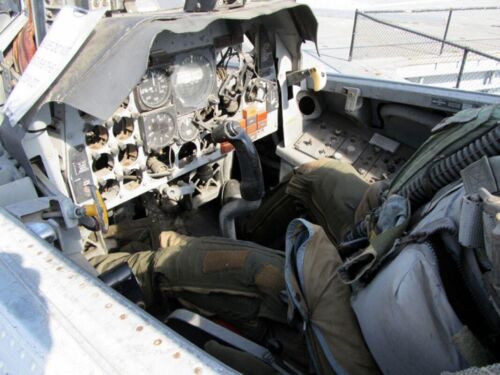

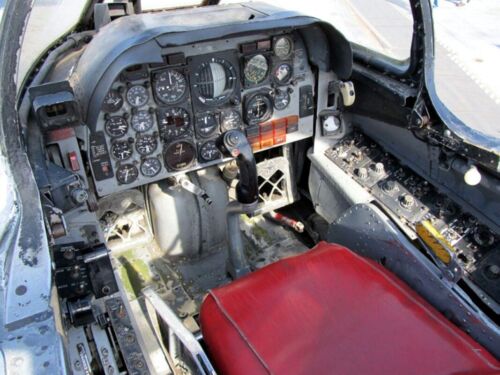

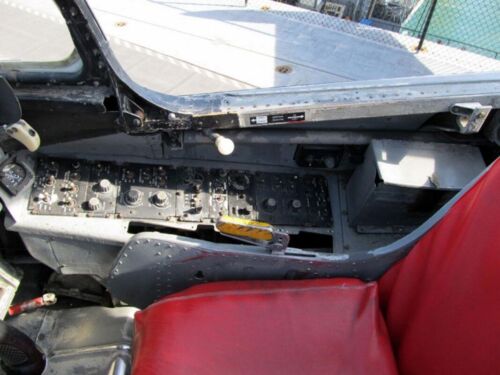

- Raised Instructor Seating: To give the instructor (sitting in the back) a clear view over the student’s head during landings, the rear cockpit was significantly elevated. This “stadium seating” became a standard feature in later trainers.

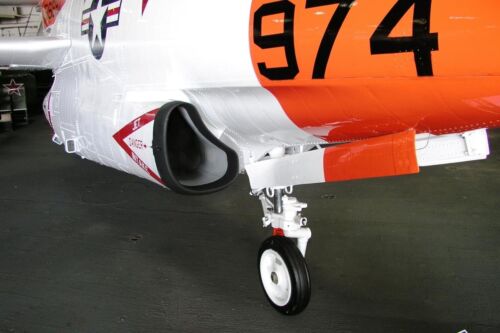

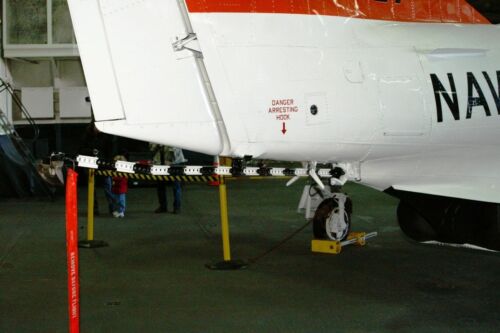

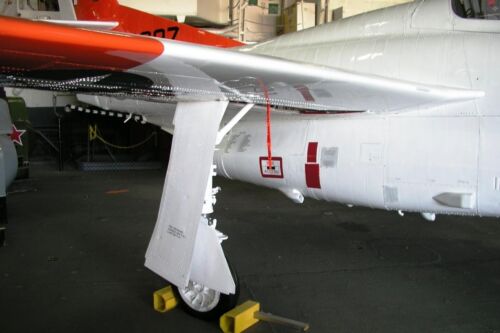

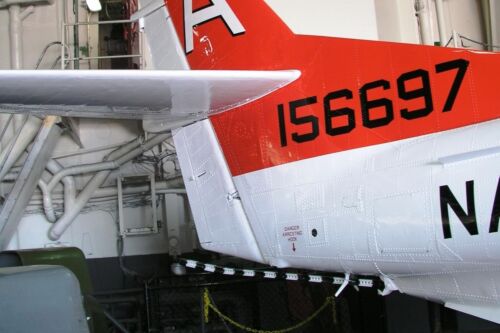

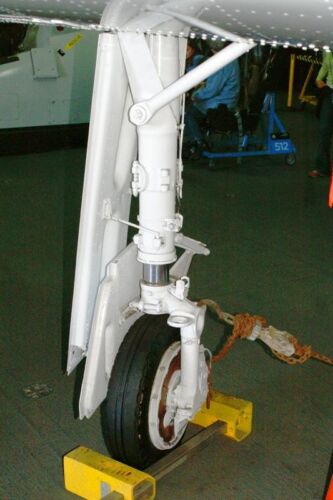

- Rugged Carrier Gear: The T-2 featured heavy-duty landing gear and a robust arresting hook designed to take the immense structural loads of catching a wire on a pitching deck thousands of times over its lifespan.
- Engine Evolution: The T-2 started as a single-engine jet (T-2A). However, the Navy preferred the safety of two engines for over-water operations. The T-2B and T-2C added a second engine, allowing the plane to fly home even if one failed.
A Half-Century Legacy
- “The Buckeye State”: The aircraft was named after the state of Ohio (the Buckeye State), as it was manufactured at North American Aviation’s plant in Columbus.
- Global Trainer: While primarily a U.S. Navy asset, the Buckeye was also exported to the Greek Air Force and the Venezuelan Air Force, where it was used for both training and light attack roles.
- NASA Chase Plane: Like the T-38, the Buckeye served NASA as a chase plane and a high-stability platform for testing various flight systems.
- End of an Era: The T-2 was officially retired from U.S. Navy service in 2008, replaced by the digital-cockpit **Boeing T-45 Goshawk**. However, its reputation for being “built like a tank” remains legendary among those who flew it.
