McDonnell Douglas F-4 Phantom II | |
|---|---|
| Land | Deutschland |
| Typ | Langstrecken-Überschall-Jet-Abfangjäger/Jagdbomber |
| Erstflug | 27. Mai 1958 |
| Gebaut | 5195 |
Fotogalerie eines McDonnell Douglas F-4 Phantom II, The McDonnell Douglas F-4 Phantom II ist ein Tandem, zweisitziger, zweimotoriger Allwetter-Langstrecken-Überschall-Jet-Abfangjäger/Jagdbomber, der ursprünglich von McDonnell Aircraft für die United States Navy entwickelt wurde.
| McDonnell Douglas F-4 Phantom II | |
|---|---|
| Fotograf | Unbekannter |
| Lokalisierung | Unbekannter |
| Fotos | 37 |

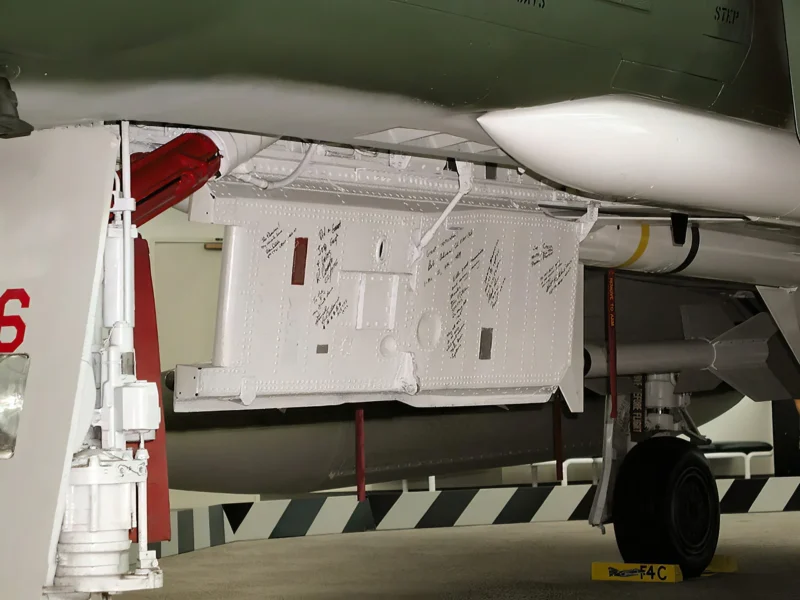

McDonnell Douglas F-4 Phantom II 01

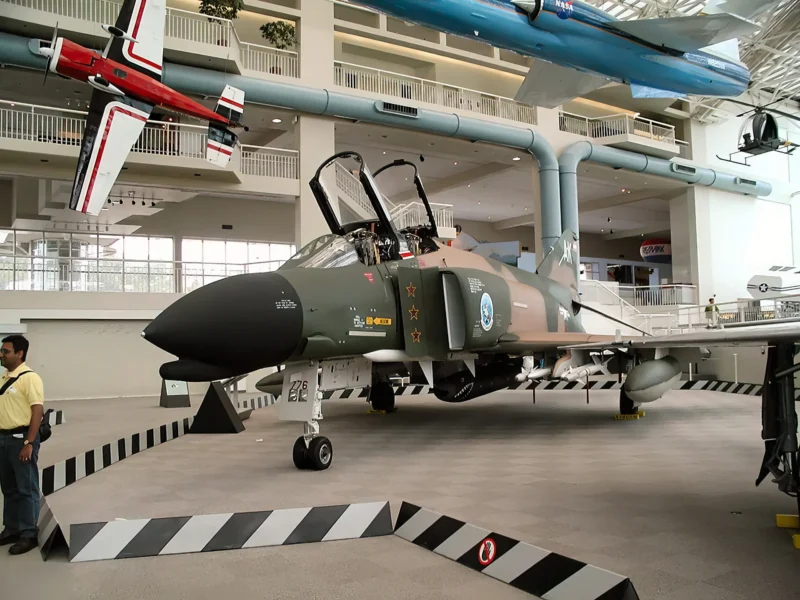

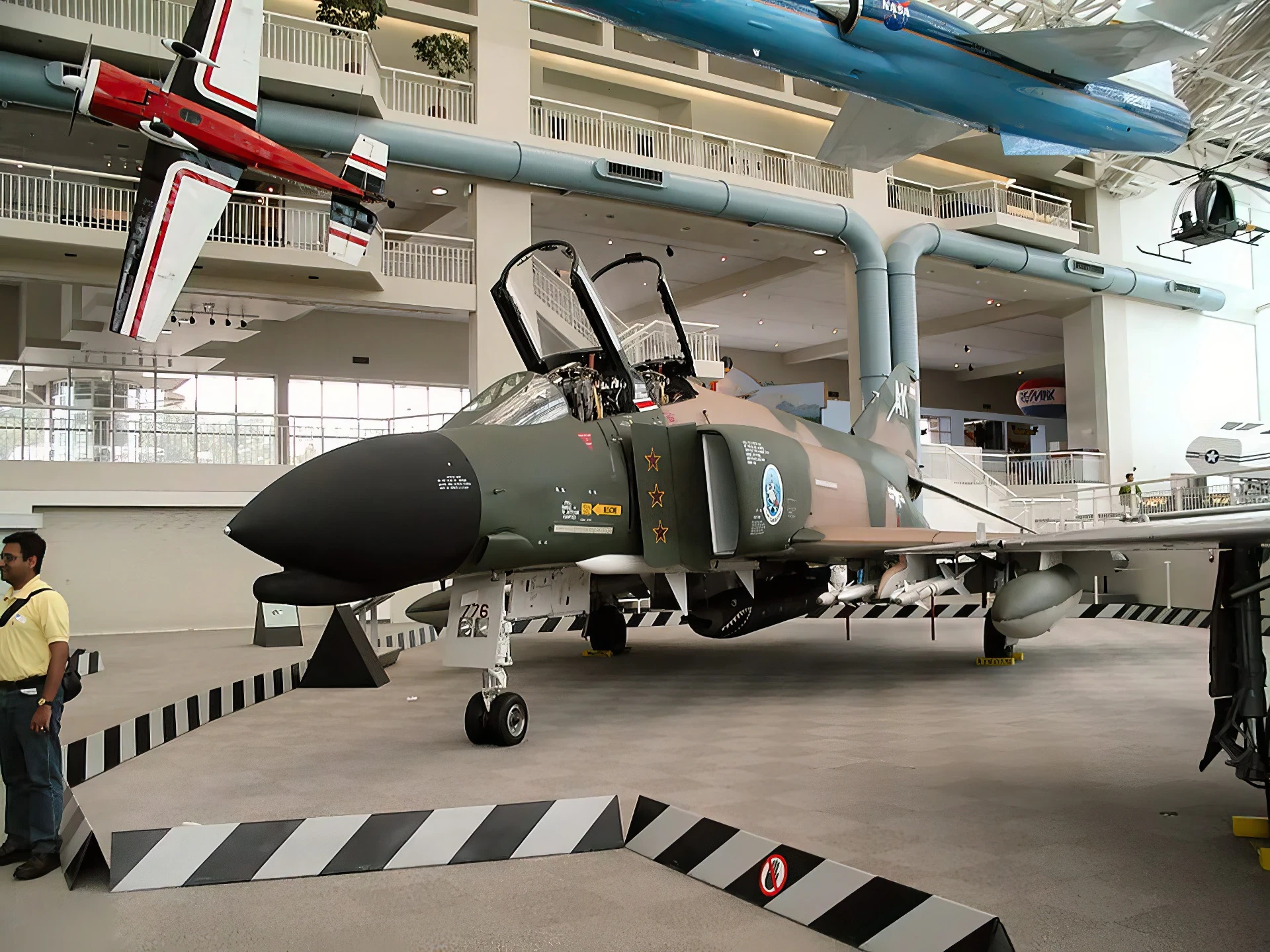

McDonnell Douglas F-4 Phantom II 02

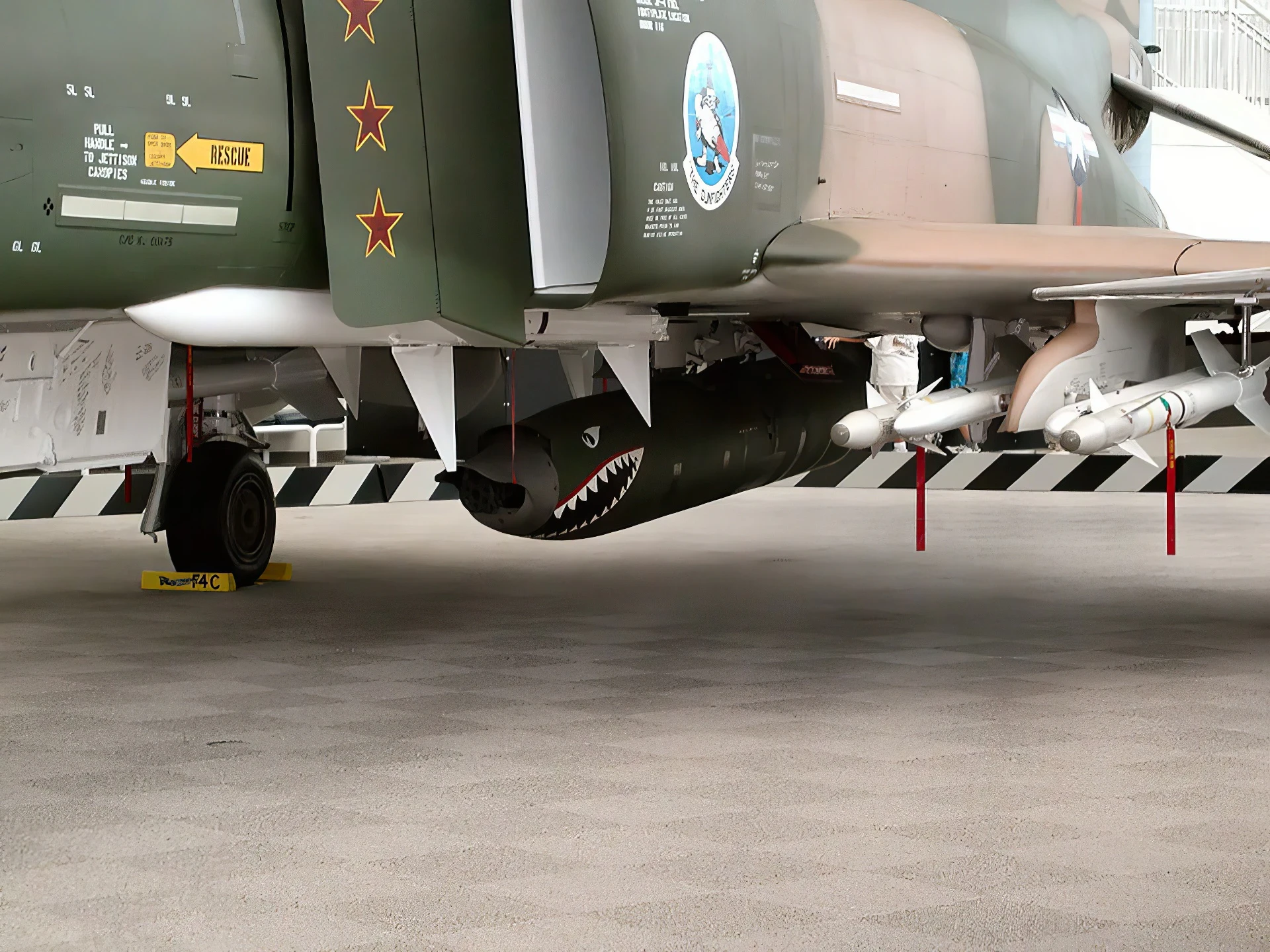

McDonnell Douglas F-4 Phantom II 03

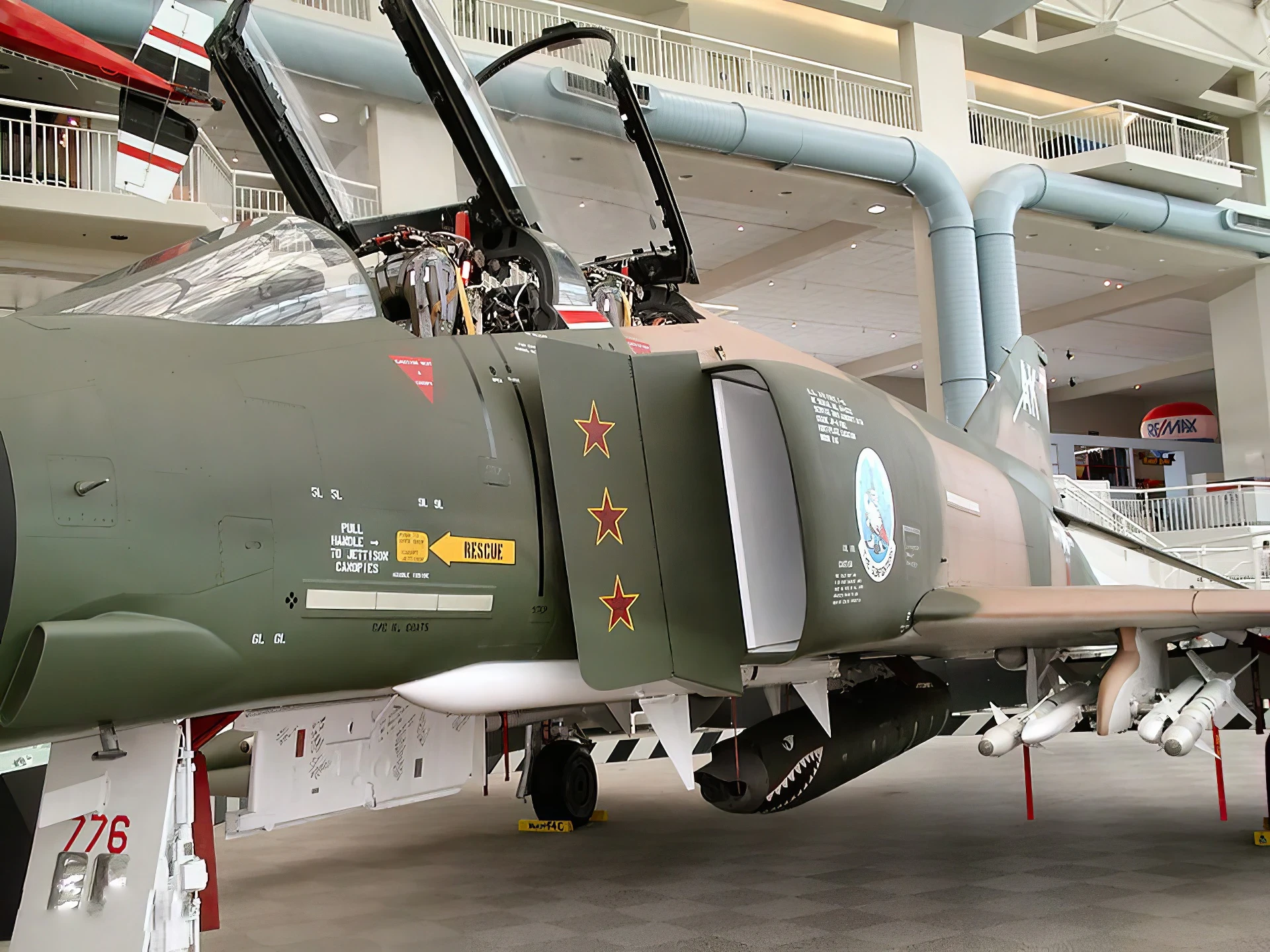

McDonnell Douglas F-4 Phantom II 04

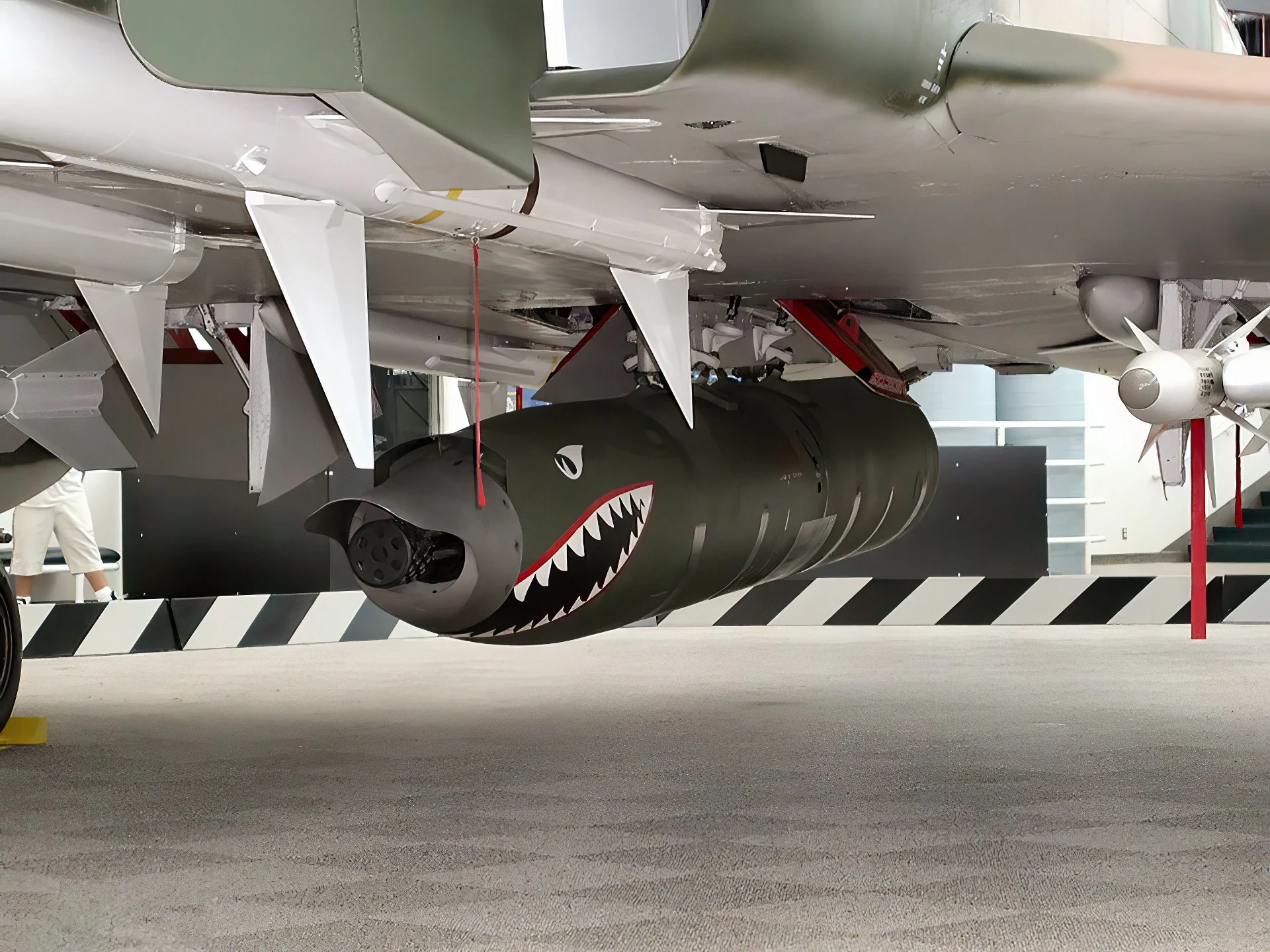

McDonnell Douglas F-4 Phantom II 05

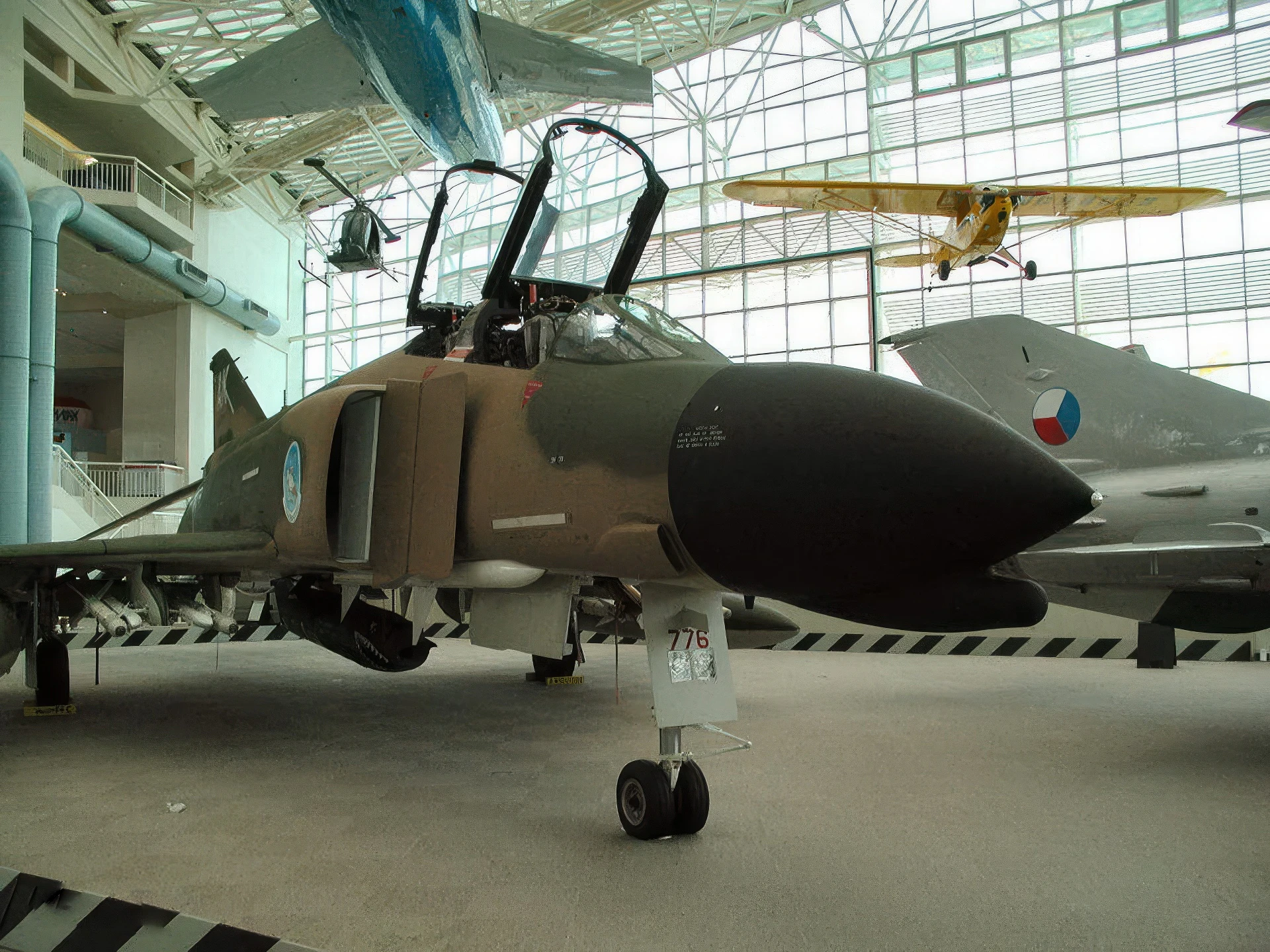

McDonnell Douglas F-4 Phantom II 06

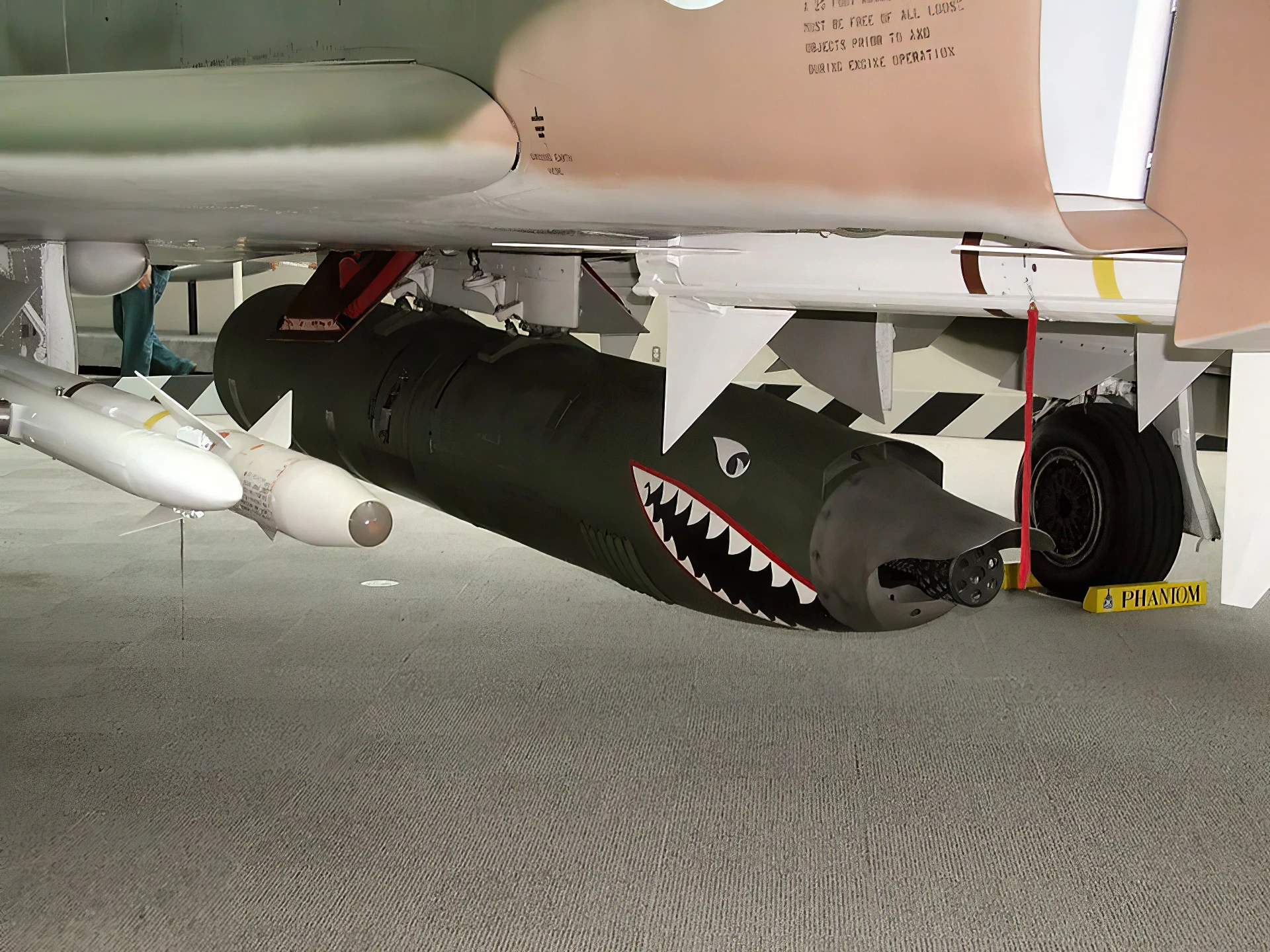

McDonnell Douglas F-4 Phantom II 07

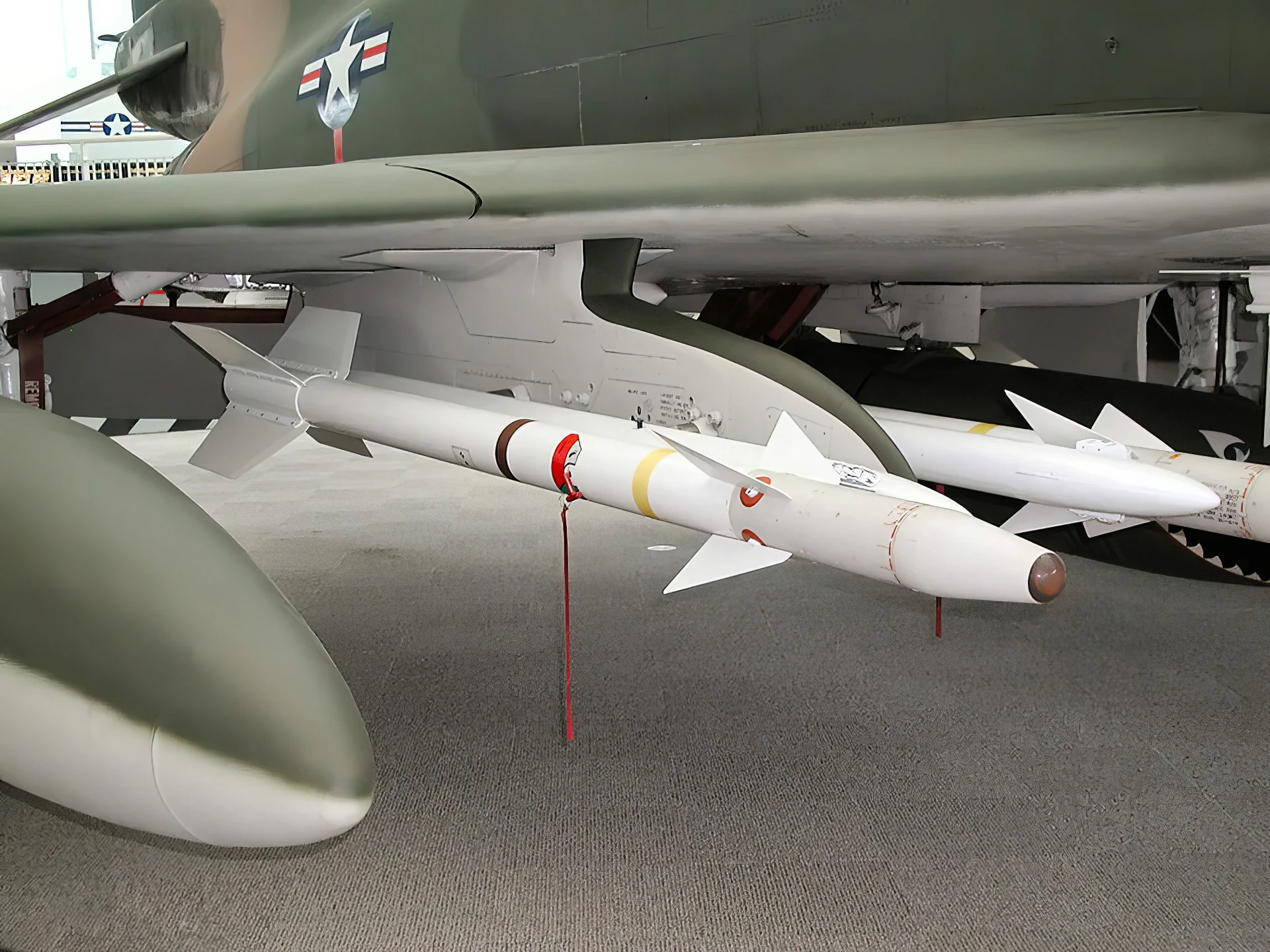

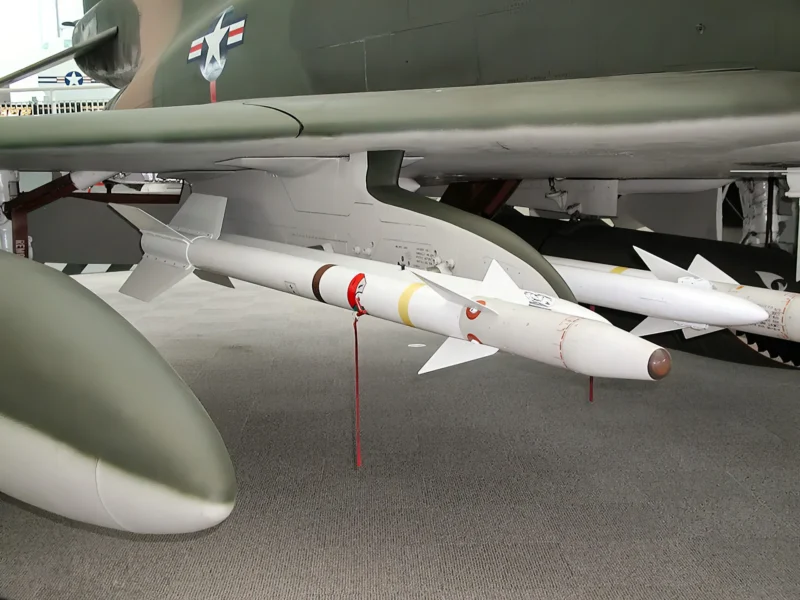

McDonnell Douglas F-4 Phantom II 08
McDonnell Douglas F-4 Phantom II 09
Warten Sie, Suche McDonnell Douglas F-4 Phantom II Fotos für Sie...
| McDonnell F-4S Phantom Walk Around | |
|---|---|
| Fotograf | Bill Maloney |
| Lokalisierung | MAPS Luftmuseum |
| Fotos | 20 |

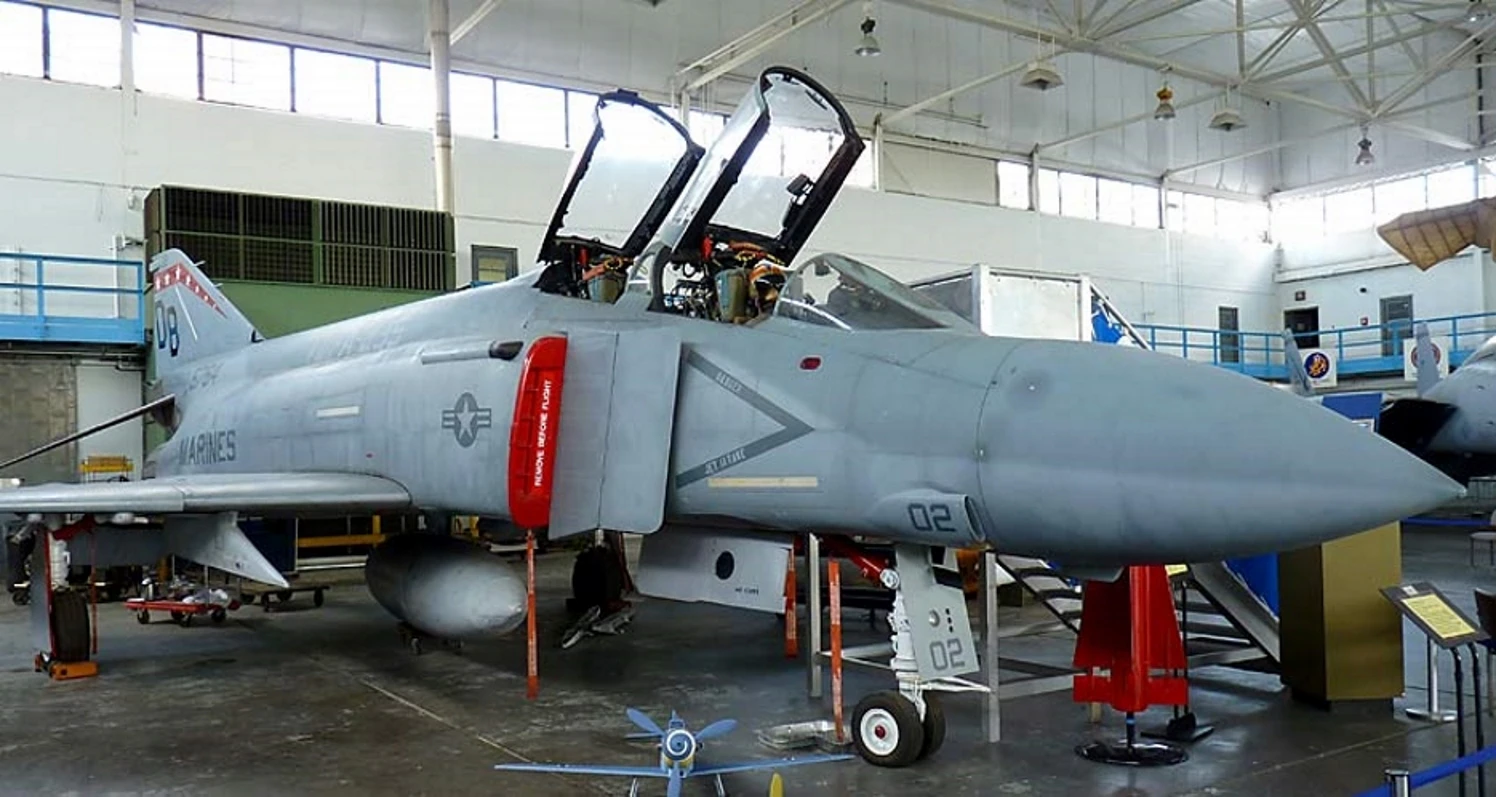

McDonnell F-4S Phantom 01

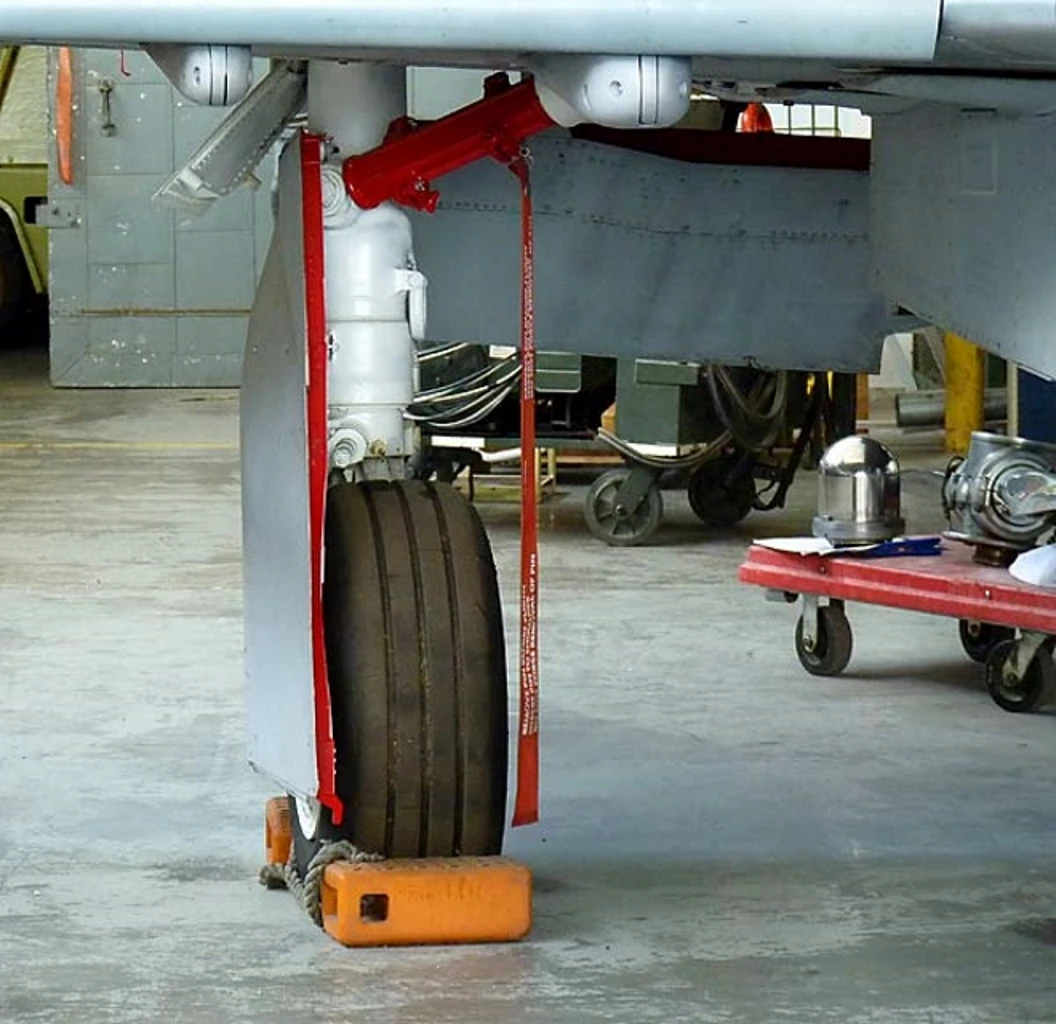

McDonnell F-4S Phantom 03

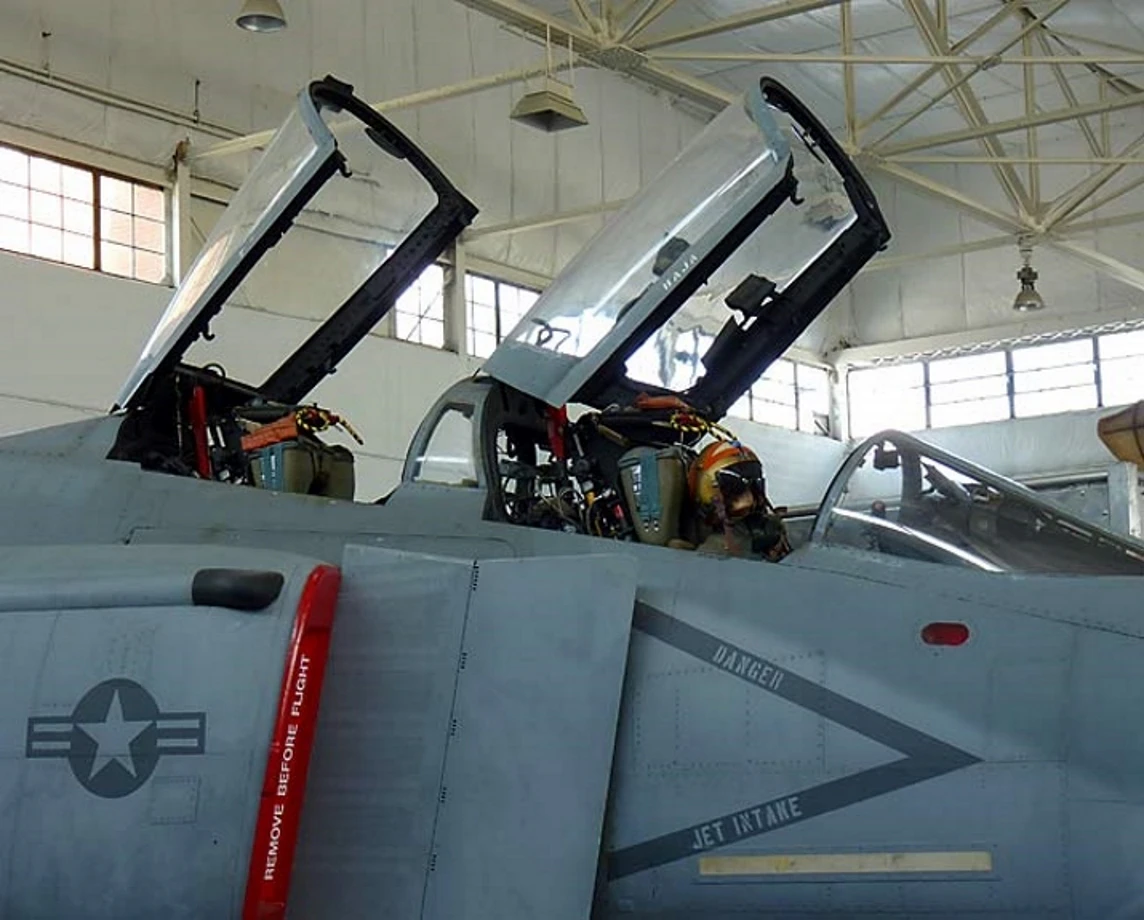

McDonnell F-4S Phantom 02

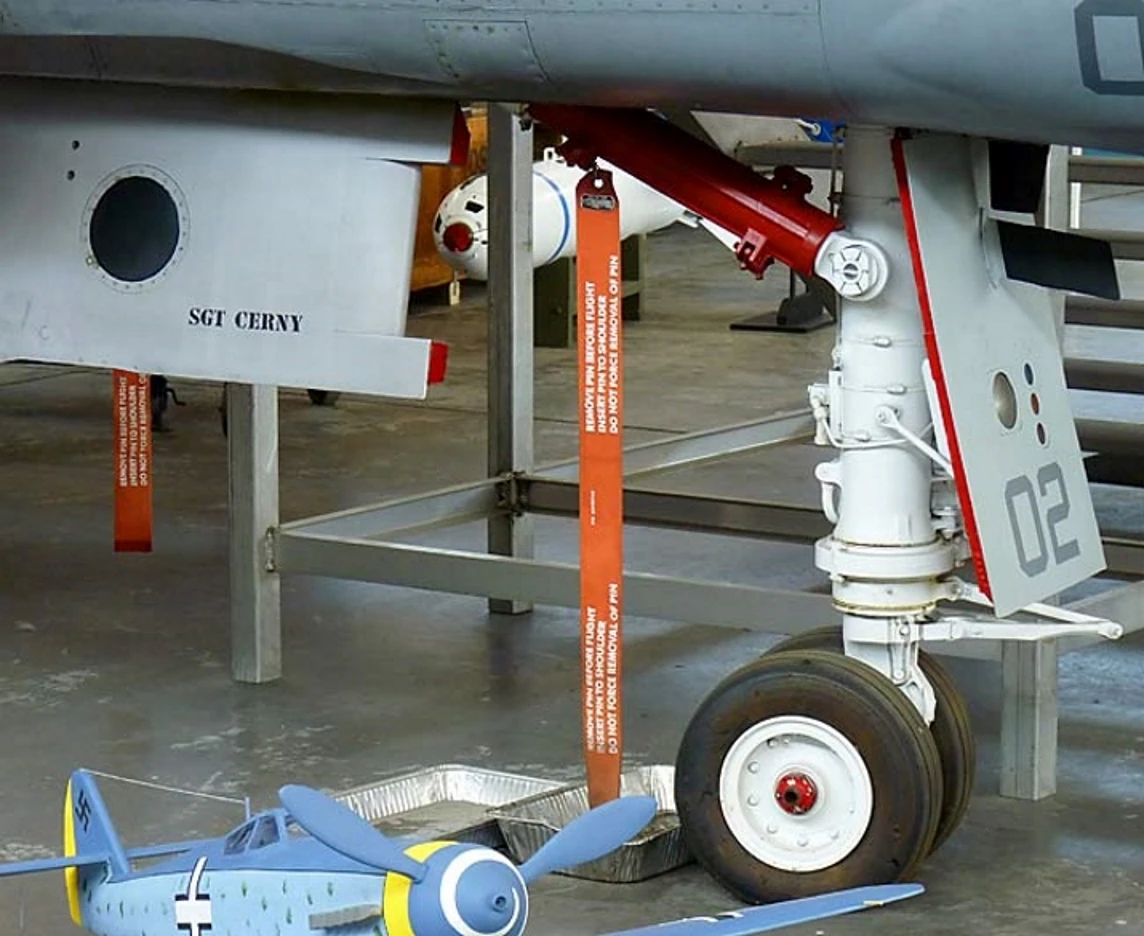

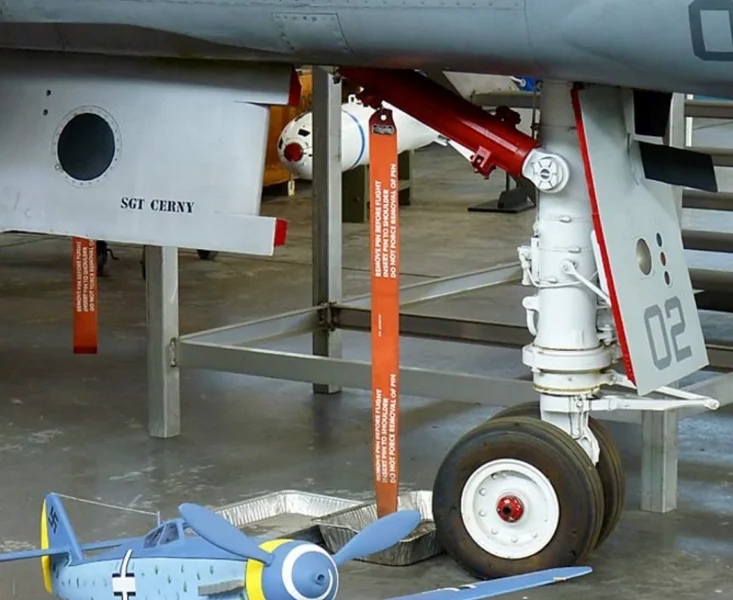

McDonnell F-4S Phantom 04

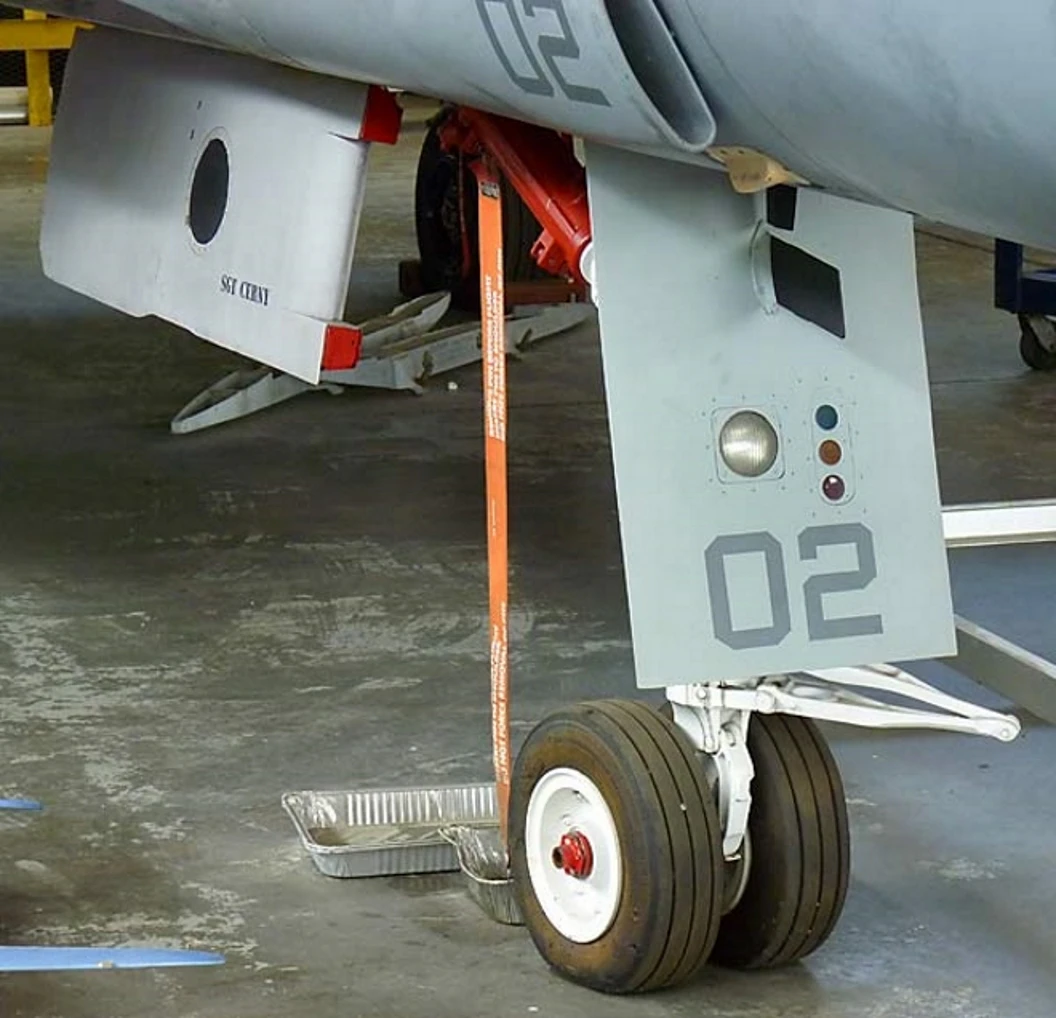

McDonnell F-4S Phantom 05

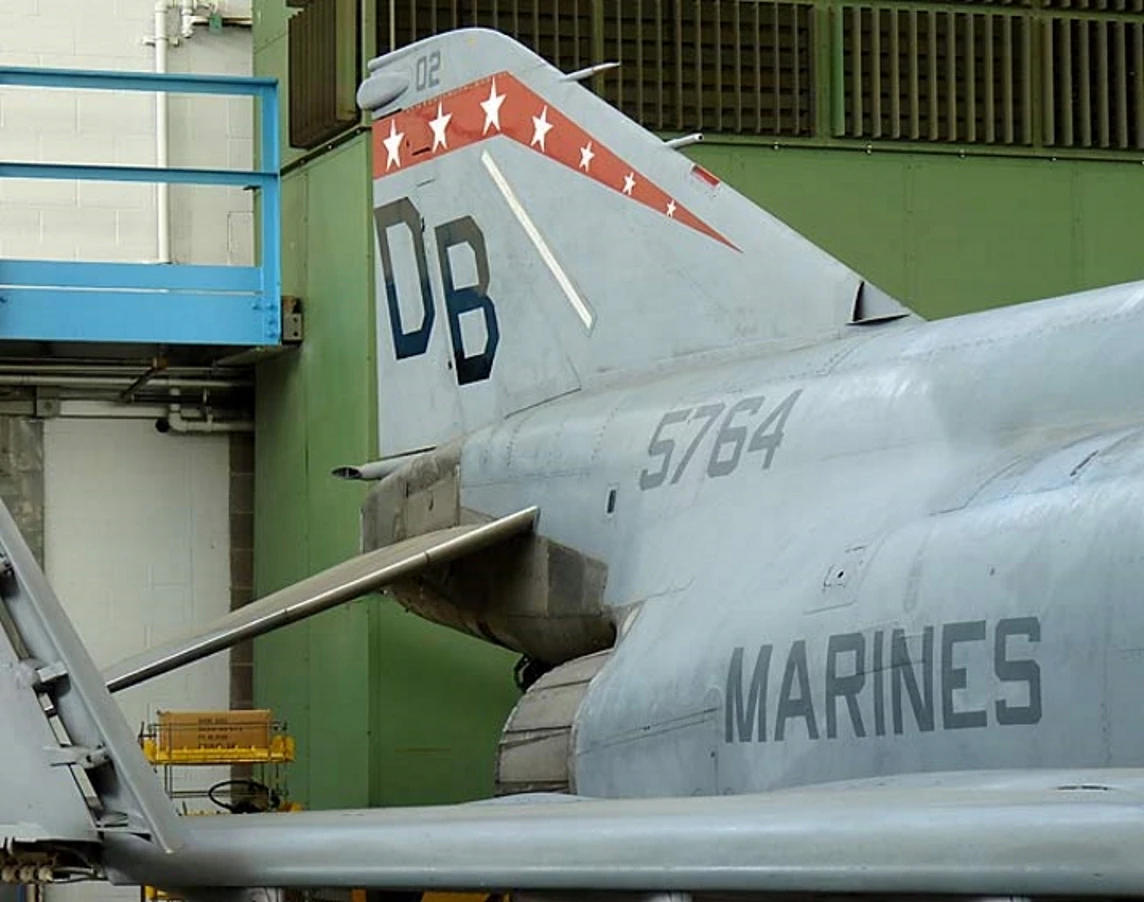

McDonnell F-4S Phantom 06

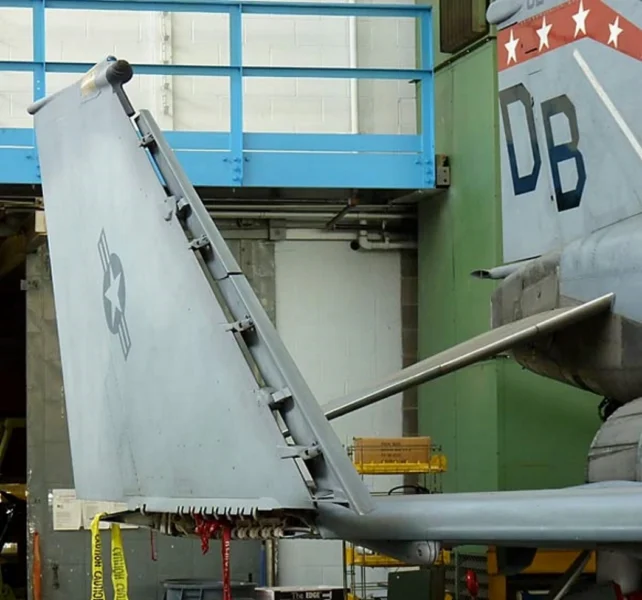

McDonnell F-4S Phantom 07

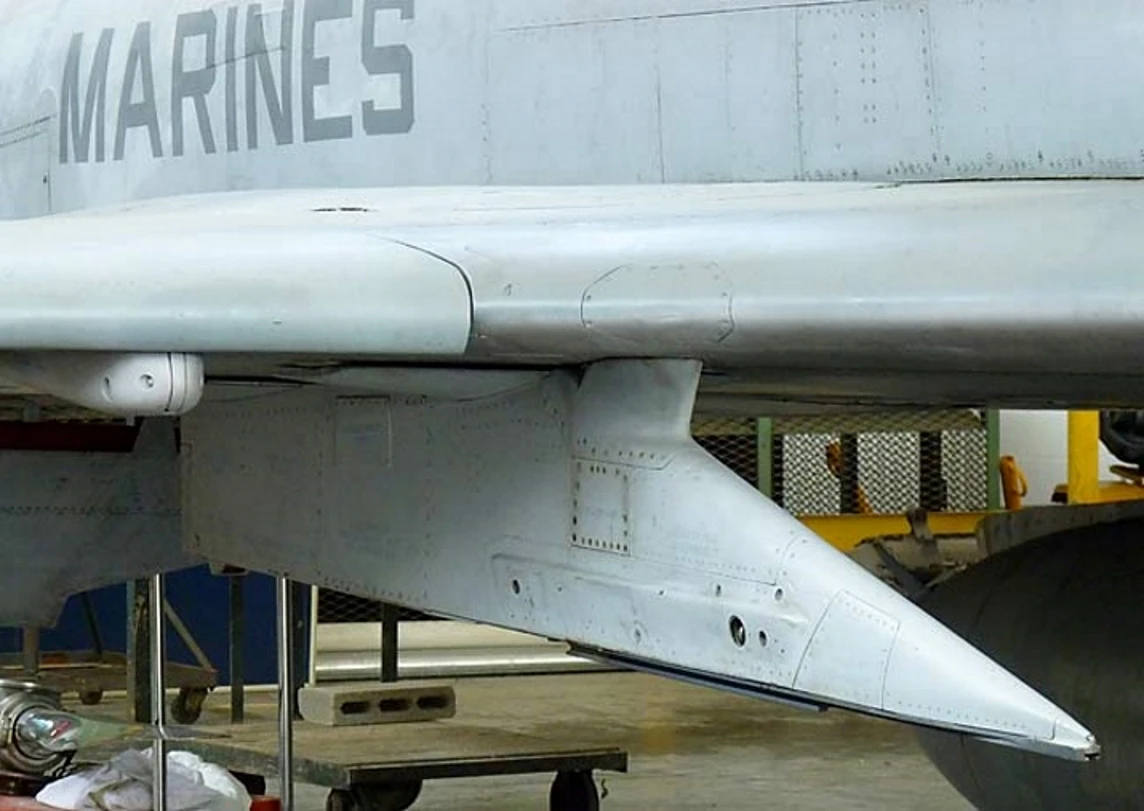

McDonnell F-4S Phantom 08

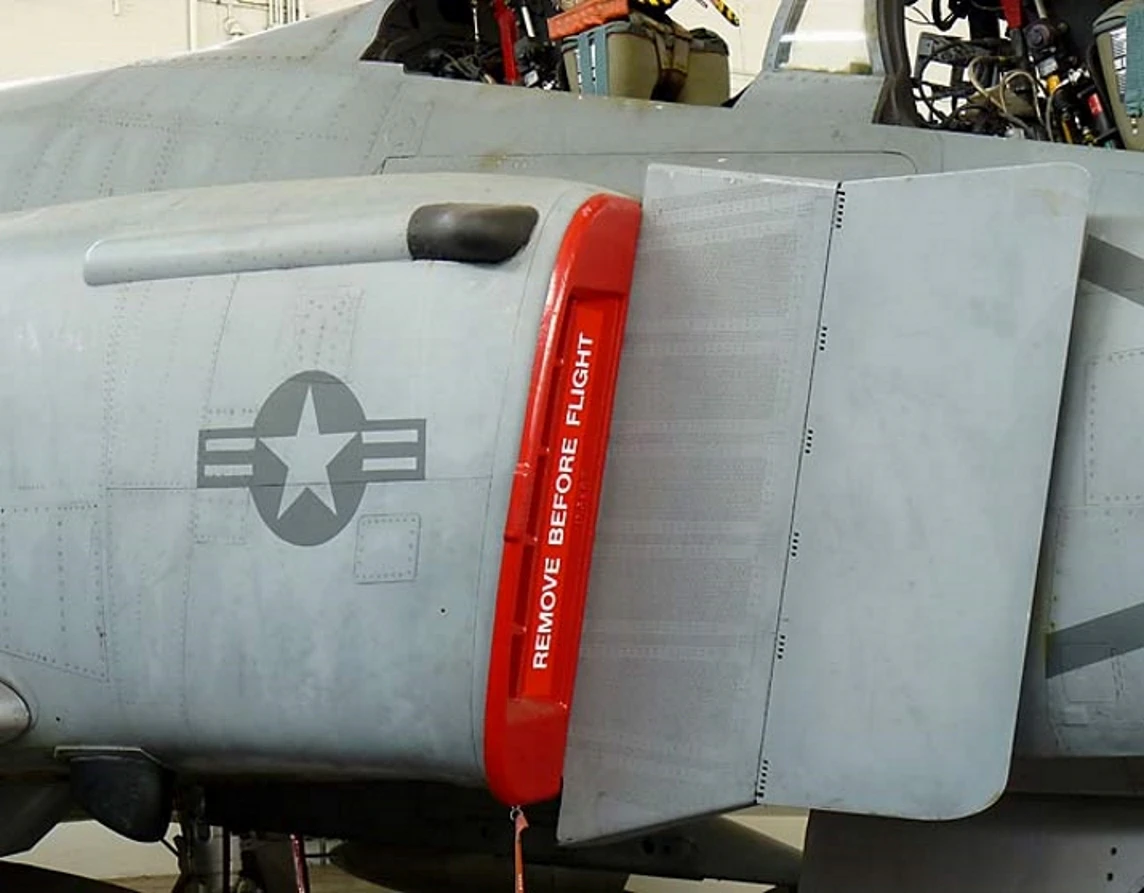

McDonnell F-4S Phantom 09
| McDonnell Douglas F-4C Phantom II Walk Around | |
|---|---|
| Fotograf | Vladimir Yakubov |
| Lokalisierung | Museum of Flight |
| Fotos | 102 |
| McDonnell Douglas F-4F Phantom II Walk Around | |
|---|---|
| Fotograf | Burhand Donke |
| Lokalisierung | Unbekannter |
| Fotos | 80 |
Siehe auch:
A Brick with Engines
das F-4 Phantom II is the ultimate example of Cold War engineering: a massive, twin-engine beast that proved if you put enough thrust behind a brick, it will fly—and it will fly at Mach 2. Originally designed for the Navy, it was so capable that it was adopted by the Air Force and Marines, becoming the only aircraft flown concurrently by both the Blue Angels and the Thunderbirds. It held 15 world records, including absolute speed and altitude. Though it famously lacked a gun in its early versions (a mistake corrected in the F-4E), it dominated the skies over Vietnam and remained a frontline icon for over three decades.
| Attribute | Technical Specification (F-4E Phantom II) |
|---|---|
| Rolle | All-Weather Interceptor / Fighter-Bomber |
| Crew | 2 (Pilot and Weapon Systems Officer / RIO) |
| Motoren | 2 × General Electric J79-GE-17A afterburning turbojets |
| Höchstgeschwindigkeit | Mach 2.23 (2,370 km/h / 1,470 mph) at 40,000 ft |
| Combat Radius | 680 km (422 miles) |
| Hauptbewaffnung | 1 × 20 mm M61A1 Vulcan Gatling cannon (640 rounds) |
| Artillerie | Up to 8,400 kg (18,650 lbs) on 9 external hardpoints |
| Total Produced | 5,195 aircraft |
Design Engineering: Aerodynamic Quirkiness
- The “Bent” Look: Wind tunnel tests showed the Phantom was unstable. Instead of redesigning the whole plane, engineers simply angled the outer wing panels up 12 degrees (dihedral) and the tailplanes down 23 degrees (anhedral). This “bent” appearance gave the F-4 its unmistakable silhouette and its “Double Ugly” nickname.
- Boundary Layer Control: To help this heavy jet land on carriers at safe speeds, the F-4 used “blown flaps.” High-pressure air from the engines was blown over the flaps to keep the airflow attached at high angles of attack, preventing stalls during the “trap.”
- Variable Intakes: The massive air intakes use movable ramps to slow supersonic air to subsonic speeds before it hits the engine. This allowed the F-4 to maintain engine efficiency from sea level all the way up to its Mach 2.2 top speed.
- The Smoke Trail: The J79 engines were legendary for their power but also for their thick, black smoke trails. Enemy pilots in Vietnam could often spot a Phantom from miles away just by looking for the “two pillars of soot” in the sky.
Operational History: The MiG-Killer and the Wild Weasel
- The “Gunless” Controversy: Early Phantoms relied entirely on Sparrow and Sidewinder missiles. When these proved unreliable in the turning dogfights of Vietnam, pilots demanded a gun. The F-4E finally integrated the Vulcan cannon internally, making it the definitive “Gunfighter.”
- The Wild Weasels: The specialized F-4G variant was the king of “Electronic Warfare.” Its job was to intentionally let North Vietnamese or Iraqi radars lock onto it, then follow that radar beam back to the source with a Shrike or HARM missile. “First In, Last Out” was their motto.
- Global Workhorse: Beyond the US, the Phantom was the backbone of air forces in Israel, Iran, Germany, Japan, and Turkey. In the 1973 Yom Kippur War, Israeli Phantoms (called Kurnass or “Sledgehammer”) performed desperate, hero-making strikes against armored columns.
- The Record Setter: In 1959, an F-4 set a world altitude record of 98,557 feet. The pilot had to shut down the engines at the top of the arc and glide back down until the air was thick enough to restart them.
