Sexton samovozna pištola - fotografije in video

SP 25pdr, sledenje, Sexton je bilo samohodno topnično vozilo 2. svetovne vojne. Temeljil je na kanadskih različicah ameriškega tankovskega šasije M3 Lee in M4 Sherman, ki je v Kanado vstopila v proizvodnjo kot Ram in Grizzly. Ko se je proizvodnja Sherman v ZDA razširila in dobava ni bila več težava, 1943. je odloženo da se zamjene kanadske proizvodne linije kako bi proizveli Sexton kako bi britanska vojska dala mobilni top top s uporabom svoje ornanciranje QF 25 pounder gun-howitzer, a to bi mogla paliti 87,6 mm (3,45 in) 11,5 kg (25 lb) HE shell or a armour-piercing shell. Našla je uporabo v kanadski in britanski vojski, pa tudi številnih drugih britanskih imperijih in pridruženih silah. Takoj po vojni so Portugalski prodali številne Grizli in Sextone, ki so jih uporabljali v 80.

Vir: Sexton Self Propelled Gun na Wikipediji

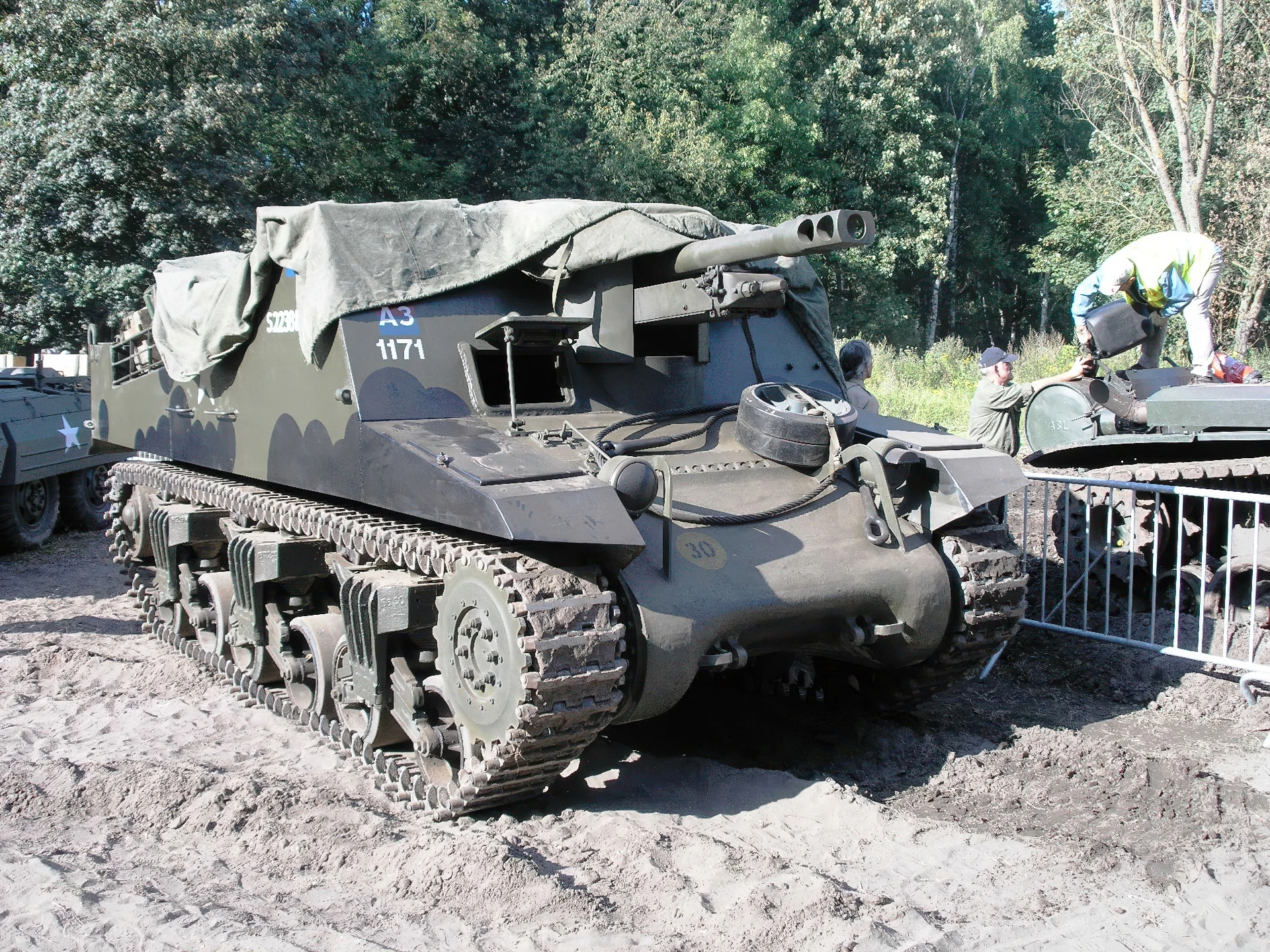

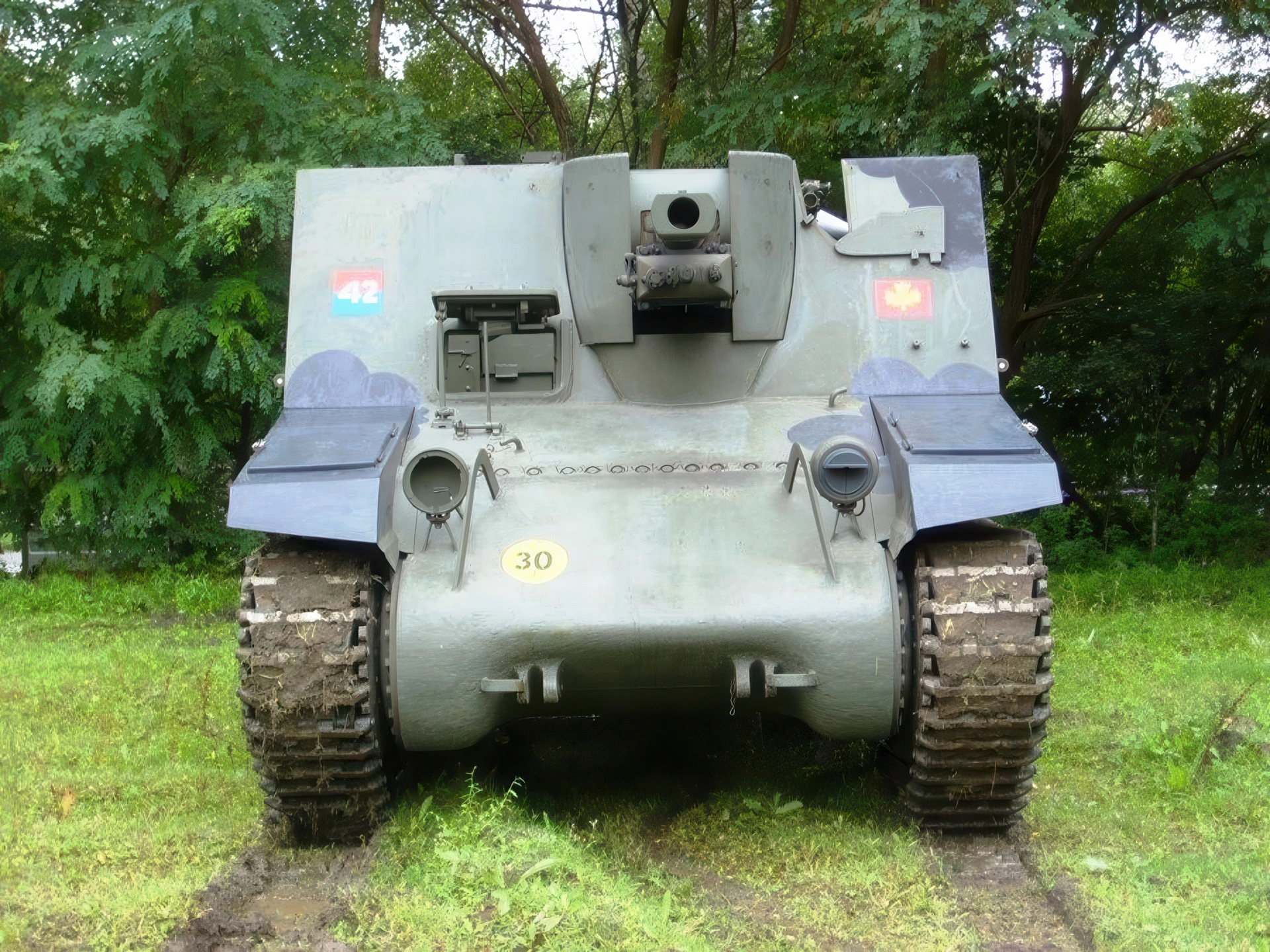

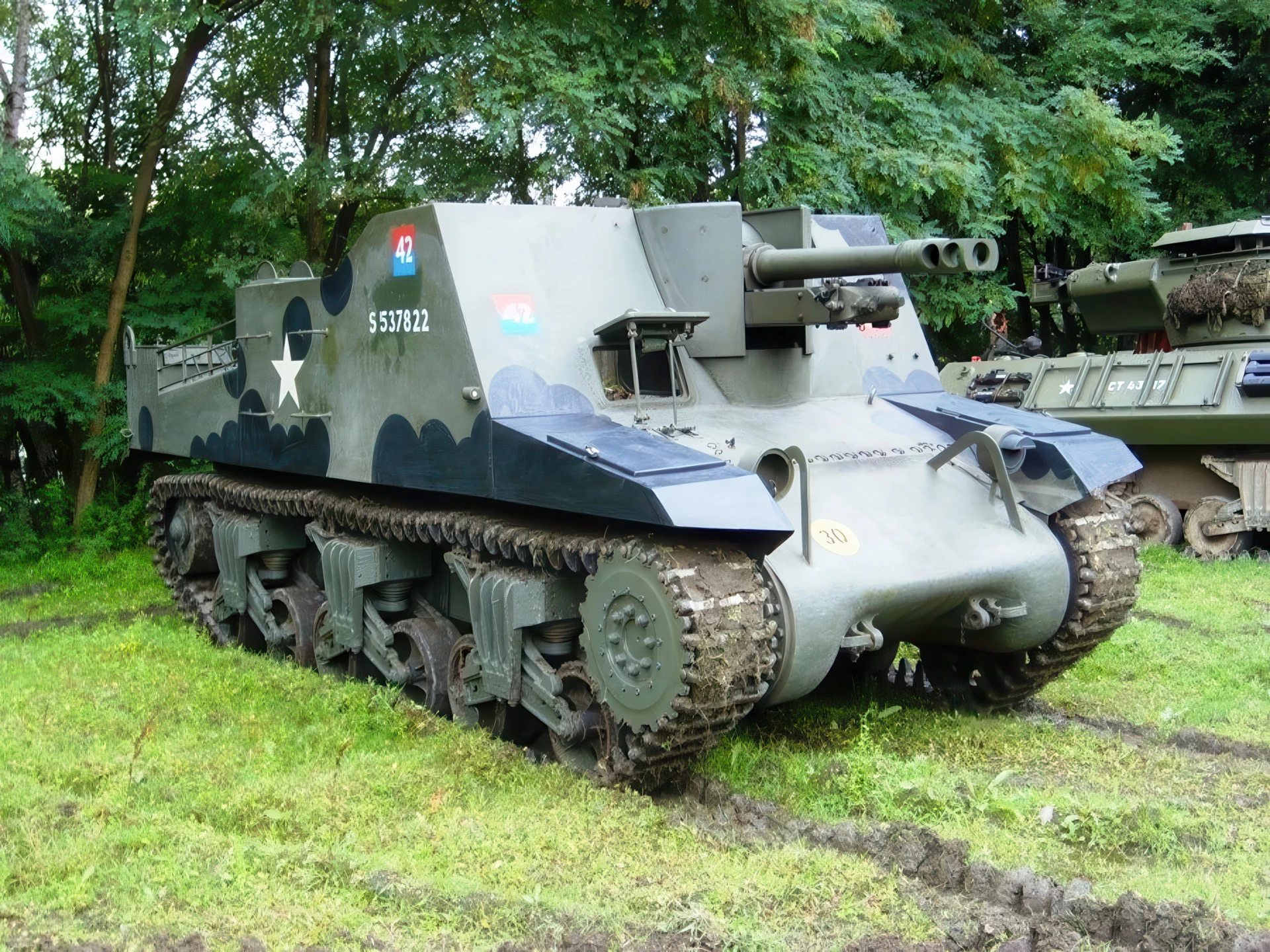

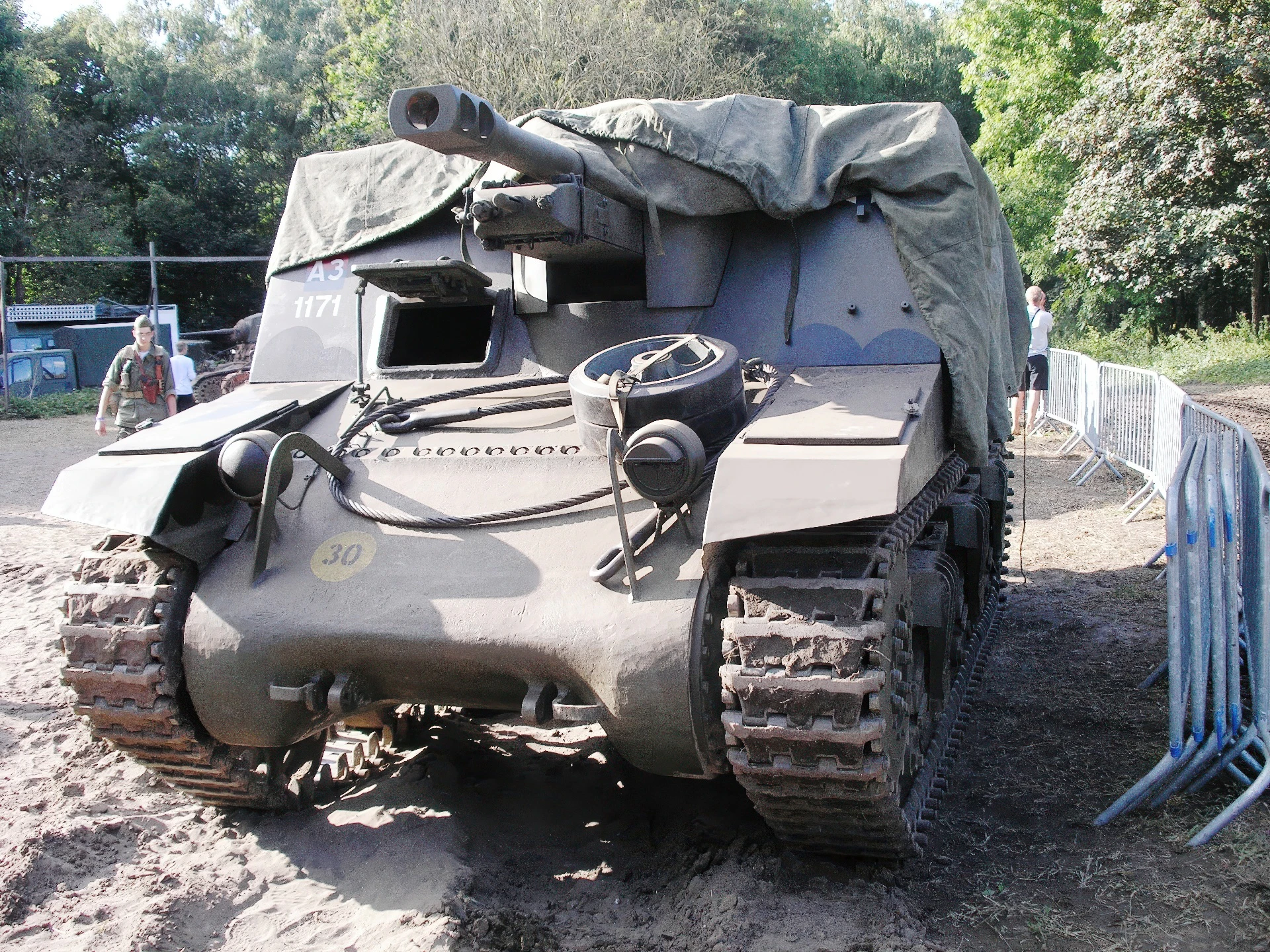

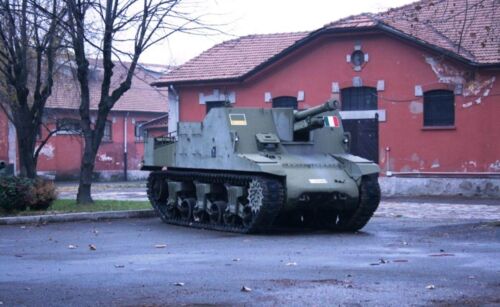

V Sexton was a Canadian-designed self-propelled artillery vehicle used during World War II. It was based on Canadian-built derivatives of the American M3 Lee and M4 Sherman tank chassis. The Sexton mounted the British 87.6 mm (3.45 in) Ordnance QF 25-pounder gun-howitzer, providing mobile artillery support for the British and Commonwealth armies.

Variante:

• Sexton I: The first 125 vehicles manufactured, based on the Ram tank hull.

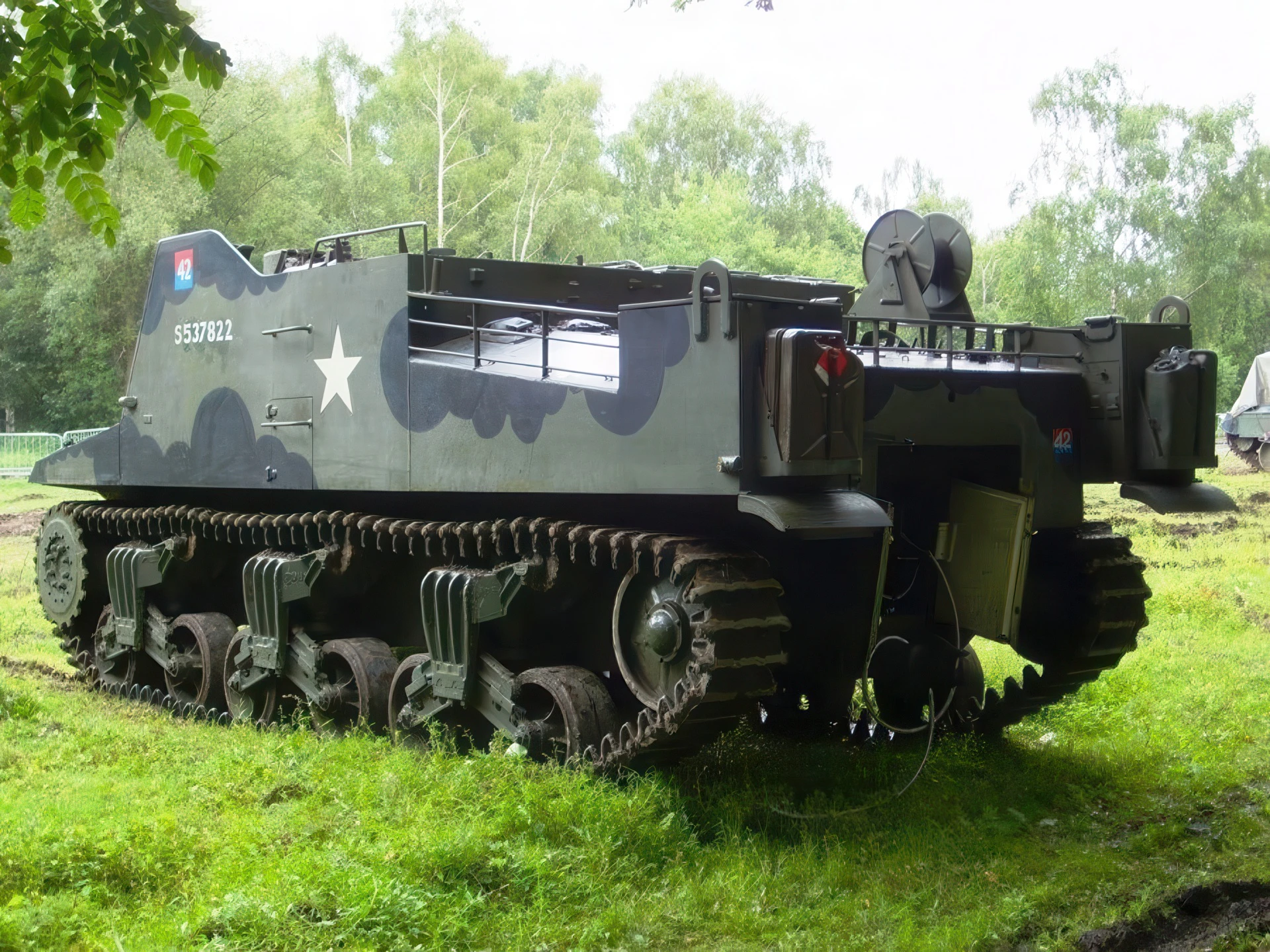

• Sexton II: Featured boxes added to the rear deck to carry batteries and an auxiliary generator. Based on the Grizzly (M4A1 Sherman) hull.
• Sexton GPO (Gun Position Officer): The 25-pounder was removed, and an extra No. 19 Wireless and map tables were added for controlling battery fire.

Specifikacije:

• Masa: 25 long tons (25 t)
• Dolžina: 20 ft 1 in (6.12 m)
• Širina: 8 ft 11 in (2.72 m)
• Višina: 8 ft (2.4 m)
• Posadke: 6 (Commander, driver, gunner, gun-layer, loader, wireless operator)
• Oklep: 15–32 mm (0.59–1.26 in)

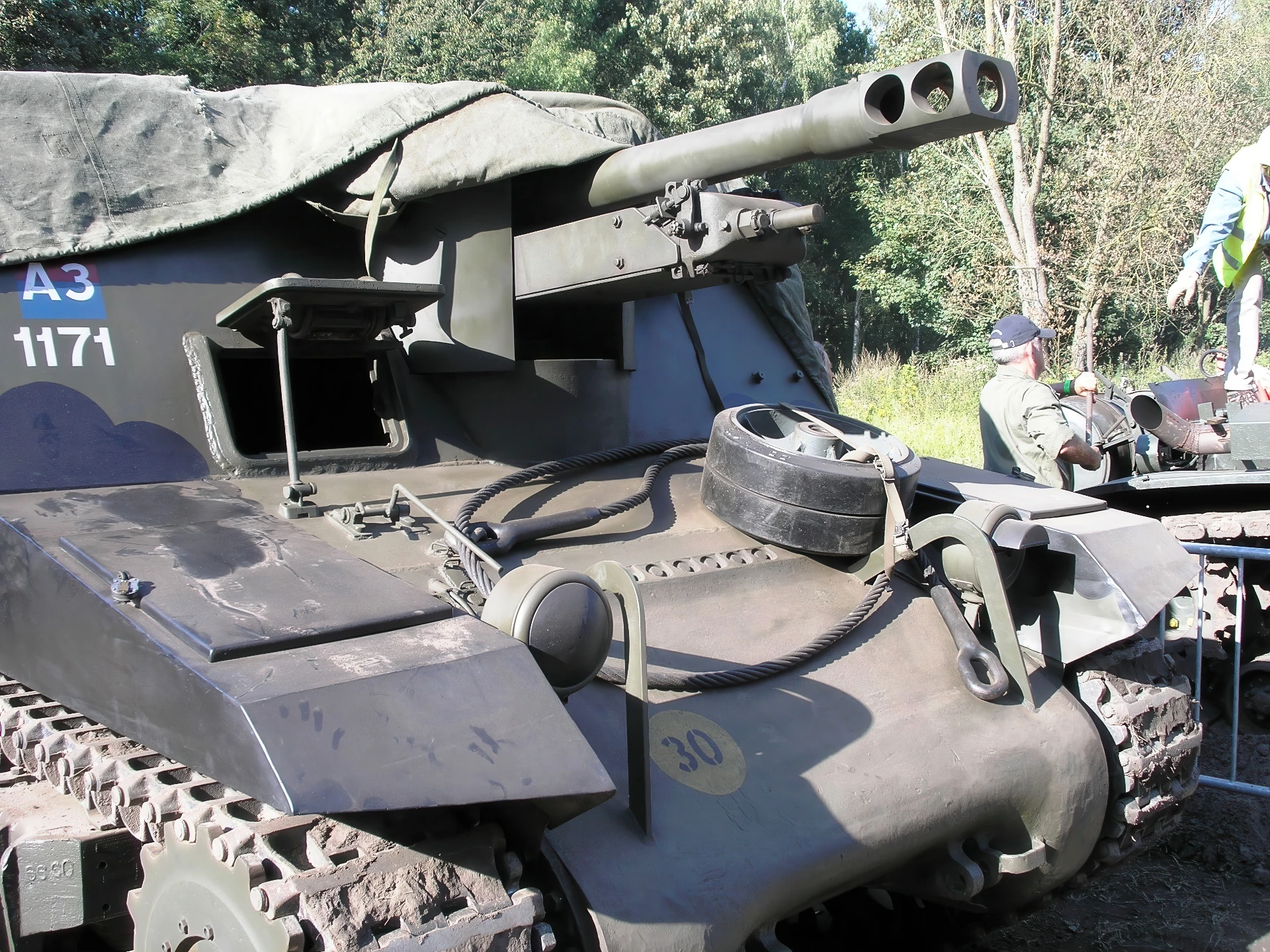

• Main Armament: Ordnance QF 25-pounder (87.6 mm) Mk II, 105 rounds (mostly HE) carried on board
• Secondary Armament: Two 0.303 (7.7 mm) Bren light machine guns for anti-aircraft defense, 50 30-round magazines
• Motor: Continental R-975 9-cylinder Radial gasoline, 400 hp (298 kW)
• Operational Range: 125 miles+ (200 km)
• Maximum Speed: 25 mph (40 km/h)

Operational Service:

V Sexton was first used in combat in Italy by the British Eighth Army. It later participated in the invasion of France, the Battle of Normandy, and the campaign in northwest Europe. During the D-Day landings, some Sextons were ordered to fire from their landing craft as they approached the beaches, although the fire was not very accurate. After the war, a number of units were equipped with the Sexton as part of the British Army of the Rhine (BAOR).

The Sexton was generally regarded as a successful project and remained in British service until 1956. Between 1943 and 1945, the Montreal Locomotive Works manufactured 2,150 Sextons for use by Canadian and British forces.
