普兹克普夫 V 奥斯夫。A - 黑豹 | |
|---|---|
| 国家 | 德国 |
| 类别 | 装甲车 |
| 类型 | 车 |
这 黑豹斯德克夫兹 171 装甲车 V 在第二次世界大战期间是德国坦克。他的第一次订婚是在1943年的库尔斯克战役中。它的设计是为了取代过时的装甲III和IV，并经得起苏联T-34，它必须除了其前身，以弥补其人手不足。
主要军备的 豹 是一个长75毫米Kwk 42 75毫米70口径长，功率相当于虎I坦克。它携带了79发炮弹，并配备了同轴MG34机枪、前方的第二支板条箱机枪和炮塔上的第三台防空机。

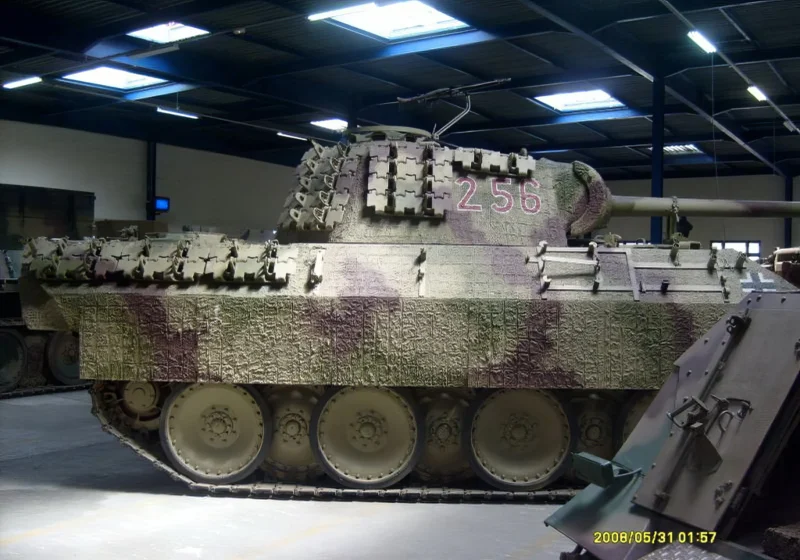

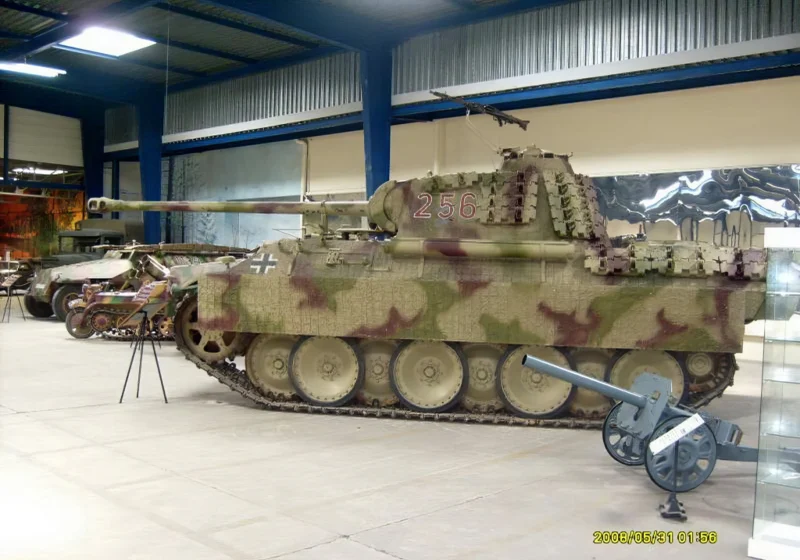

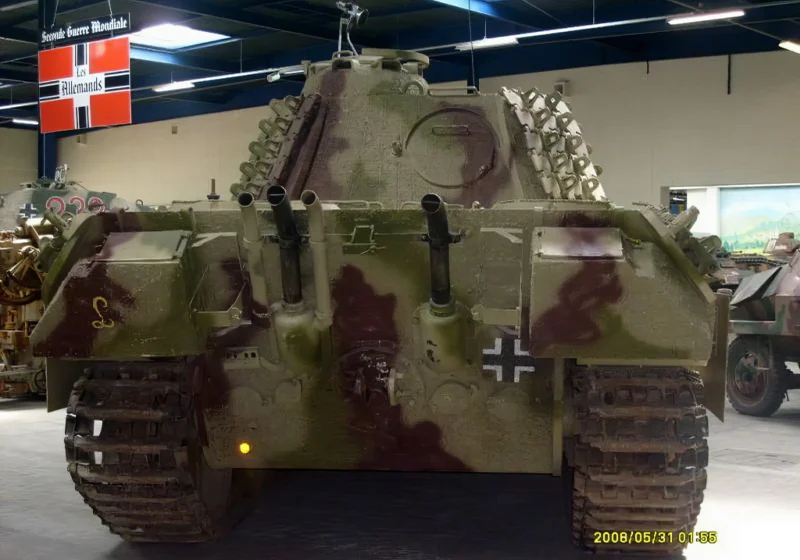

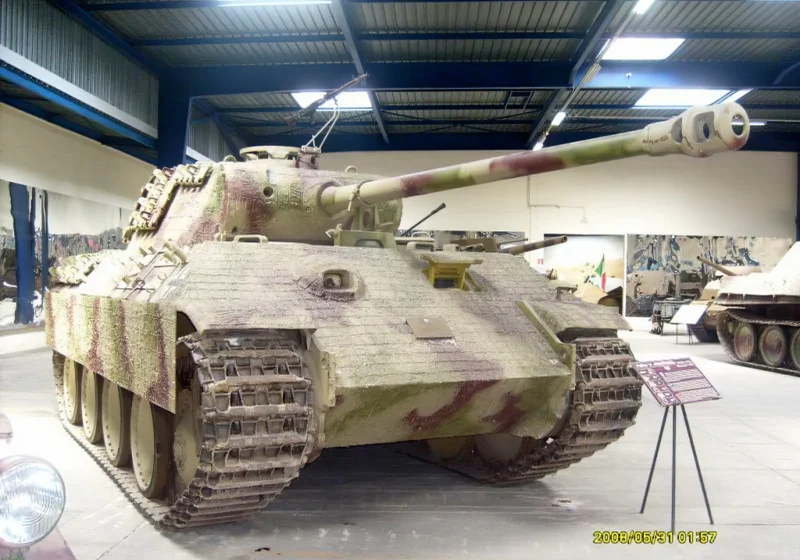

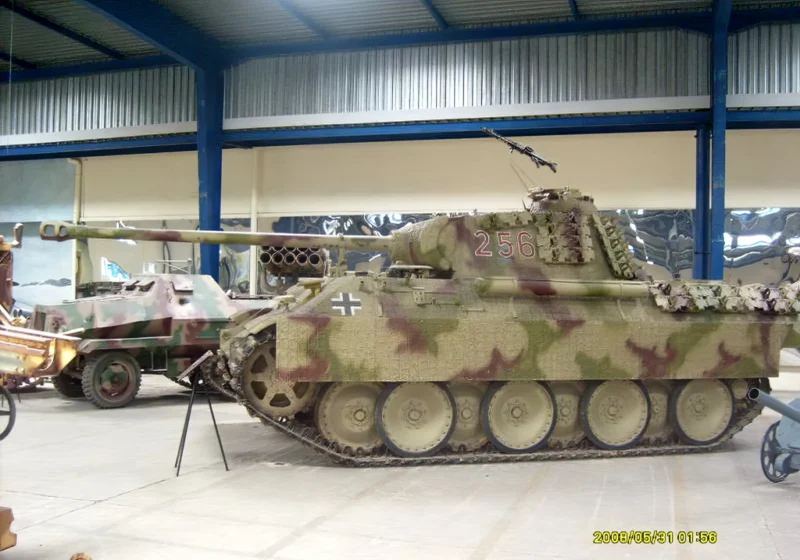

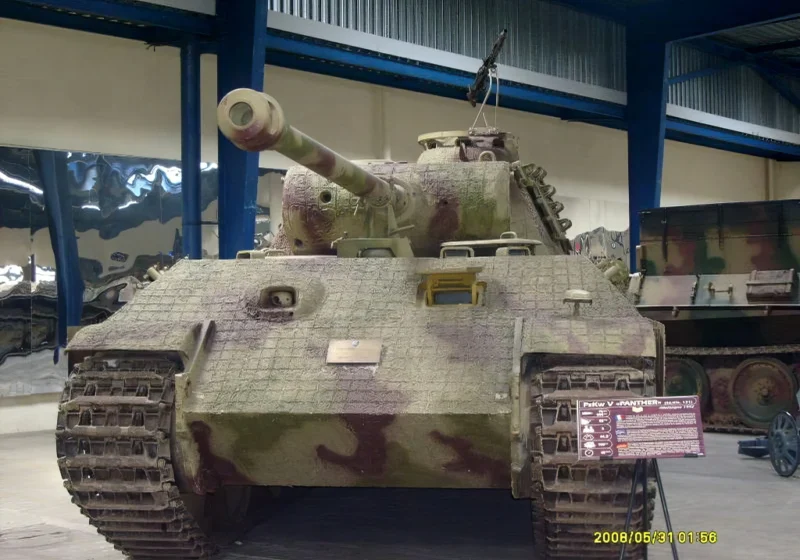

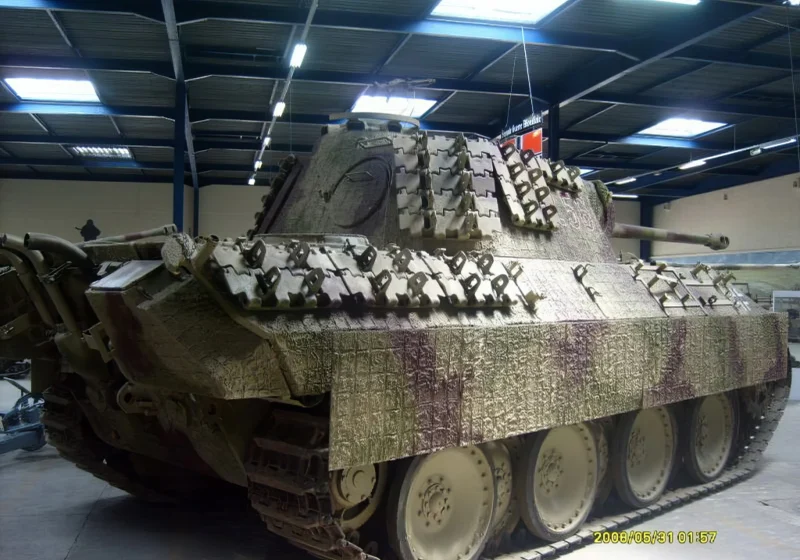

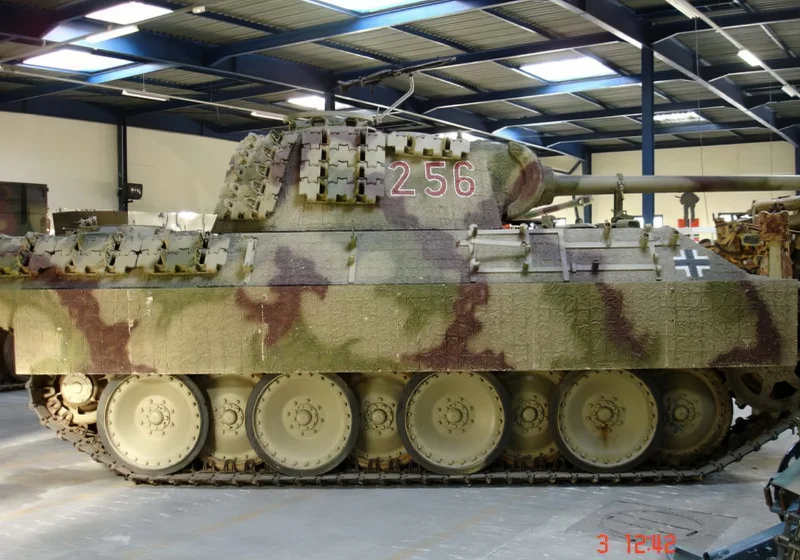

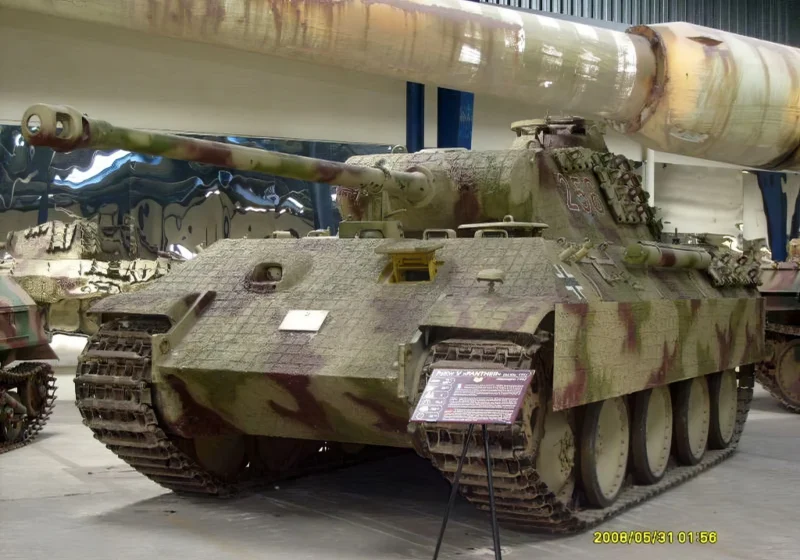

| PzKpfw V ausf.A | |
|---|---|
| 摄影师 | 未知 |
| 本地化 | 未知 |
| 照片 | 54 |
| Pzkpfw v黑豹澳大利亚 A 四处走动 | |
|---|---|
| 摄影师 | 弗拉基米尔·亚库博夫 |
| 本地化 | 雅克·利特菲尔德收藏 |
| 照片 | 87 |
另请参阅：
The **Panzerkampfwagen V Ausführung A (PzKpfw V Ausf. A)**, or **Panther Ausf. A**, was the second production model of the German Panther medium tank. It addressed significant reliability and operational flaws found in the initial Ausf. D variant and is considered one of the most effective and influential tank designs of World War II.
Core Design and Firepower
The Panther Ausf. A retained the revolutionary design features intended to counter the Soviet T-34:
- Sloped Armor: It featured highly **sloped frontal armor** (80 mm at 55 degrees on the glacis plate), which drastically increased the effective thickness and provided excellent protection against most Allied anti-tank fire at long range.
- Main Gun: The tank was armed with the high-velocity **7.5 cm KwK 42 L/70 gun**. This cannon provided superb armor penetration, allowing the Panther to engage and destroy most Allied tanks from distances exceeding 1,500 meters.
- 流动性： Powered by a **Maybach HL230 P30 V-12 gasoline engine** (700 hp), the 45-ton tank was relatively fast, capable of reaching speeds of around 46 km/h (29 mph) on roads, balancing protection with tactical speed.
Key Improvements (Ausf. A over Ausf. D)
The Ausf. A, produced from August 1943 to May 1944, incorporated several crucial modifications for improved combat effectiveness and crew functionality:
- Commander’s Cupola: The troublesome drum-shaped cupola of the Ausf. D was replaced with a **new cast, hemispherical cupola**. This offered the commander much better all-around vision via seven periscopes and greater ballistic protection.
- Hull Machine Gun Mount: The vulnerable “letterbox” flap for the hull machine gun was replaced by a more practical and better-protected **ball mount** (*Kugelblende*) for the 7.92 mm MG 34 machine gun.
- Turret Traverse: A new, **single-speed hydraulic turret traverse system** was installed, significantly improving the gunner’s ability to track and engage targets quickly.
- Anti-Magnetic Coating: Most Ausf. A tanks left the factory coated with **Zimmerit**, an anti-magnetic paste intended to prevent the attachment of magnetic anti-tank mines.
- 可靠性： Numerous mechanical and cooling system improvements were implemented to address the severe engine and transmission reliability issues that plagued the initial Panther D production.
Specifications Summary
| Category | Detail |
|---|---|
| 类型 | 中型坦克 |
| 重量 | ~45 metric tons |
| 主要武器装备 | 7.5 cm KwK 42 L/70 cannon |
| Frontal Armor (Glacis) | 80 mm @ 55° |
| 发动机 | Maybach HL230 P30 V-12 (700 hp) |
| 船员 | 5 (Commander, Gunner, Loader, Driver, Radio Operator) |
