ATS-59G 火炮牵引器 | |
|---|---|
| 国家 | 乌尔斯 |
| 类型 | 火炮牵引器 |
| 描述 | 画廊 190 照片的 ATS-59G 火炮牵引器 |
ATS-59G 火炮拖拉机的照片库， 阿蒂列里斯基·蒂亚加赫·斯雷德尼 59，或ATS-59（指中型火炮拖拉机）是苏联冷战时期的火炮拖拉机。
重量： 13，000 公斤 长度：6.28米 宽度：2.78米 高度：2.3米 发动机：柴油300hp 业务范围：350公里 速度：45公里/小时
ATS-59G Artillery Tractor 163
ATS-59G Artillery Tractor 164
ATS-59G Artillery Tractor 165
ATS-59G Artillery Tractor 166
ATS-59G Artillery Tractor 167
ATS-59G Artillery Tractor 168
ATS-59G Artillery Tractor 169
ATS-59G Artillery Tractor 170
ATS-59G Artillery Tractor 172
等等， 为您搜索 Ats - 59g 火炮拖拉机照片...
给我买杯咖啡| Tractor Artillery ATS-59 | |
|---|---|
| 摄影师 | 未知 |
| 本地化 | 未知 |
| 照片 | 12 |

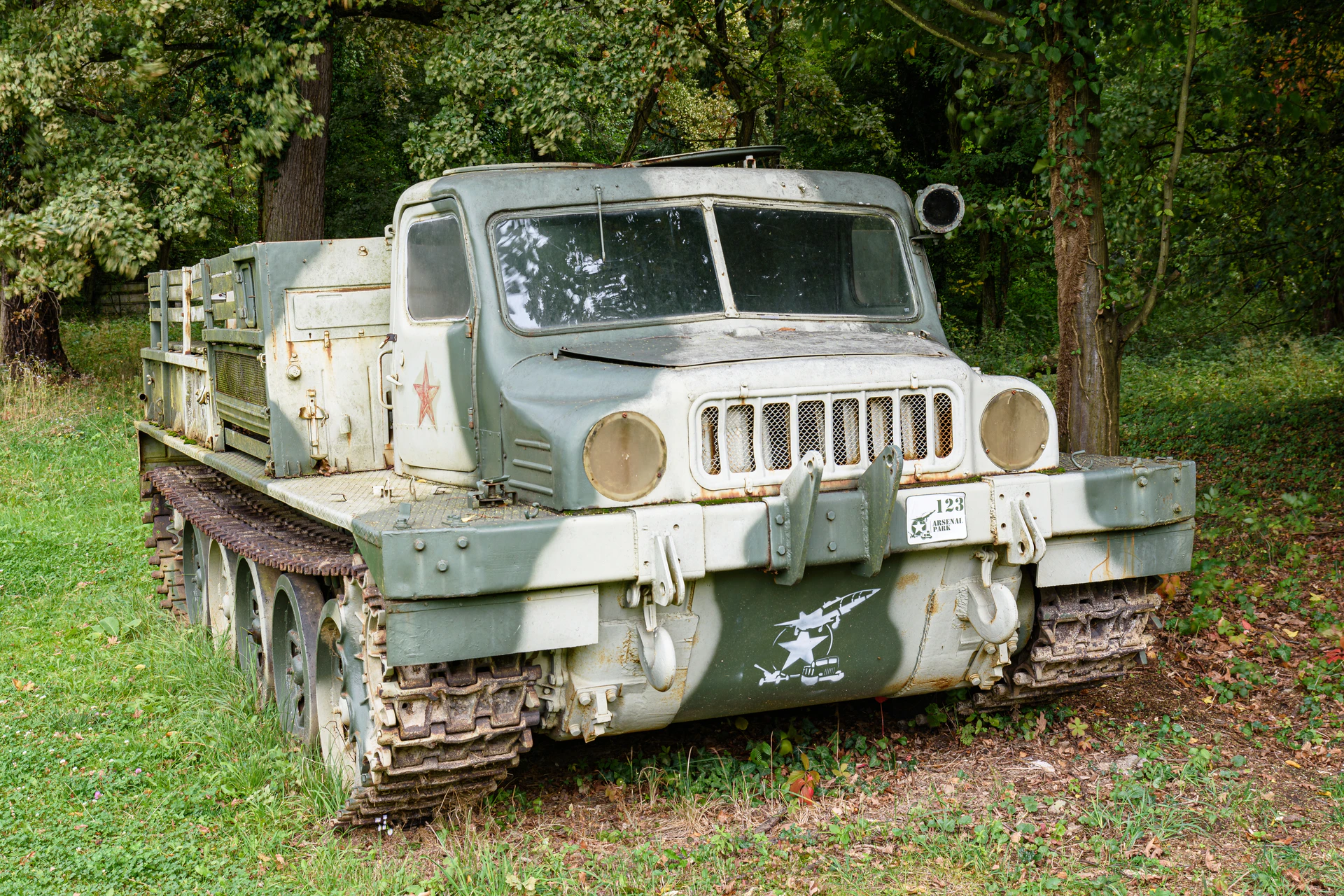

ATS-59 01
ATS-59 02

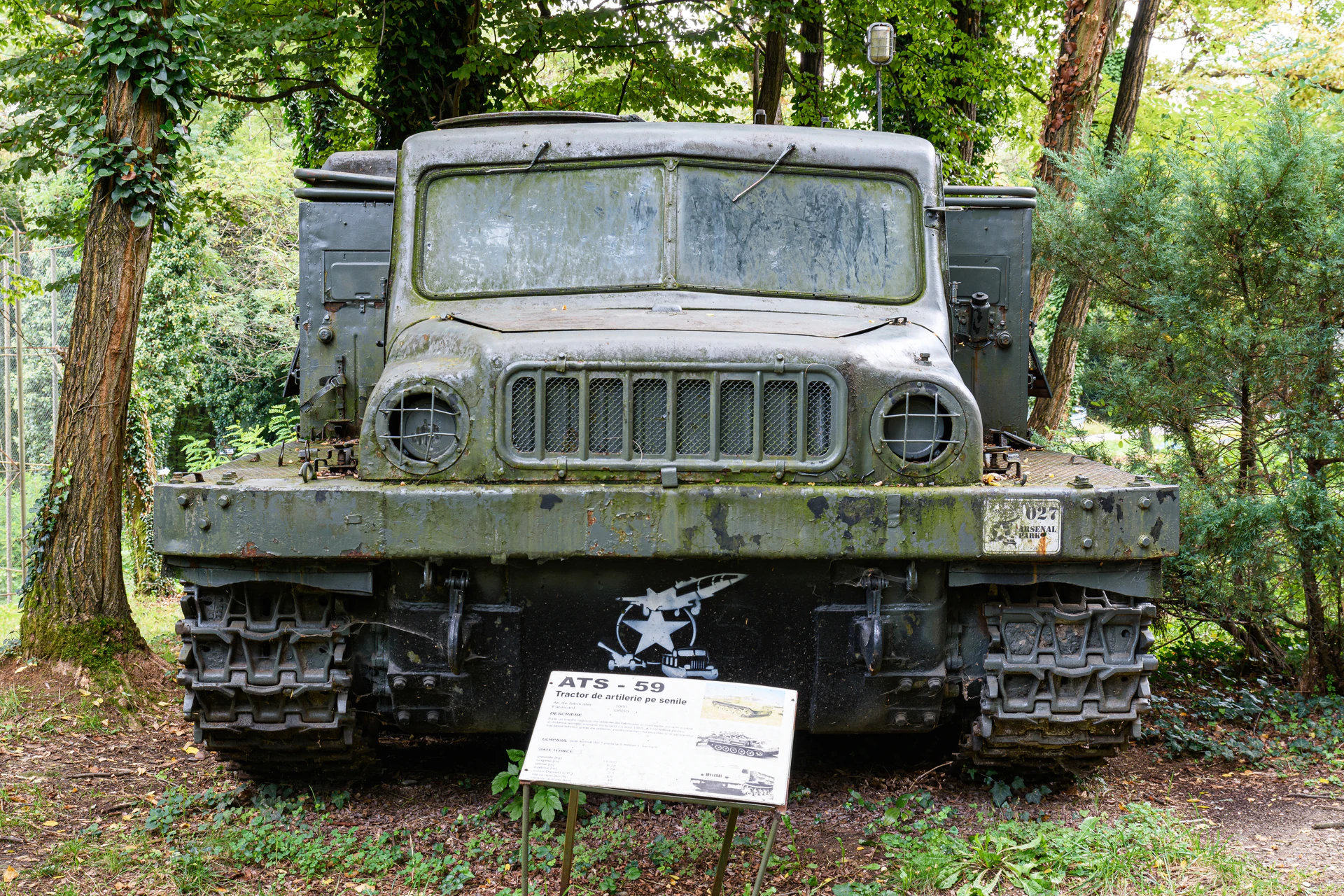

ATS-59 03

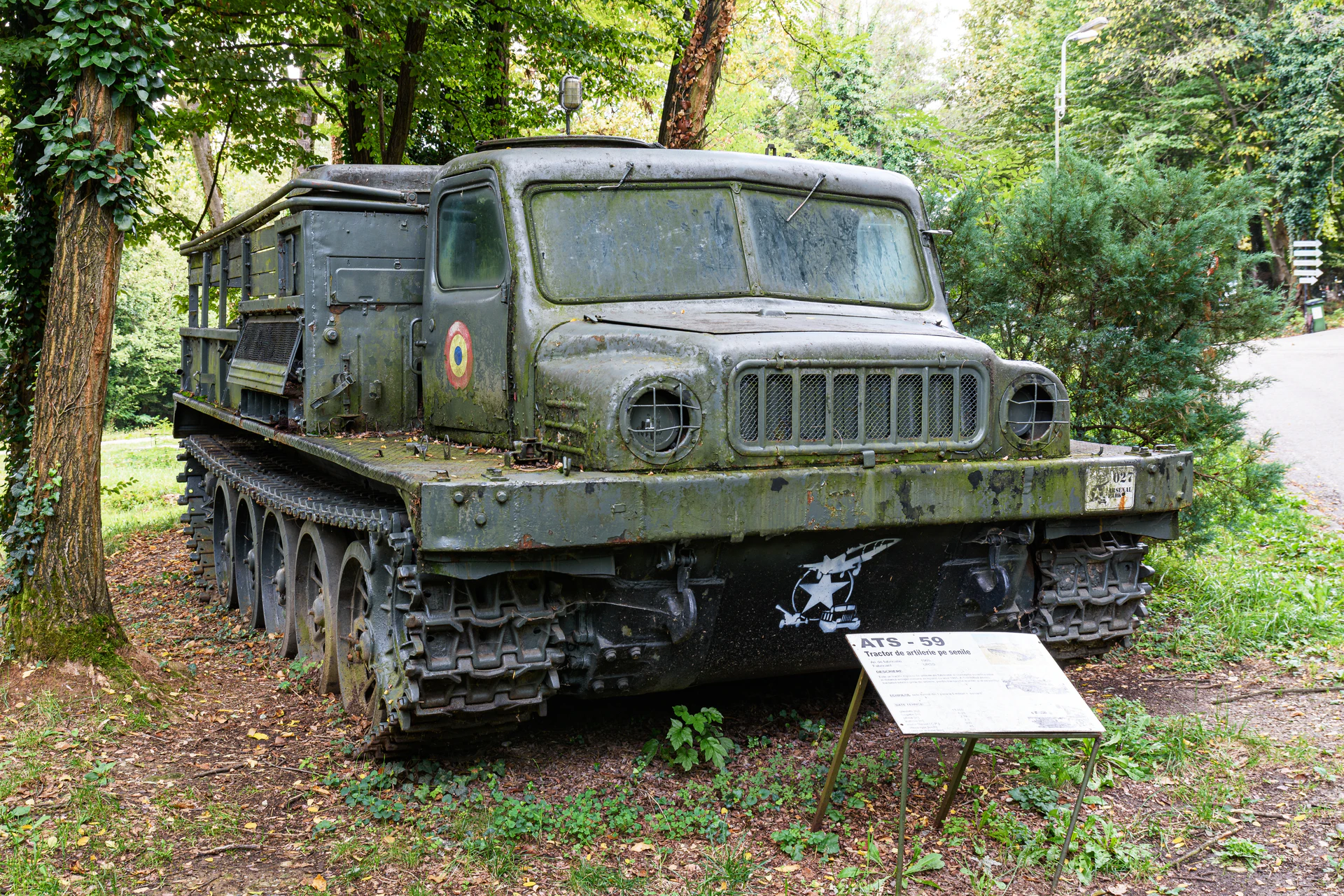

ATS-59 04

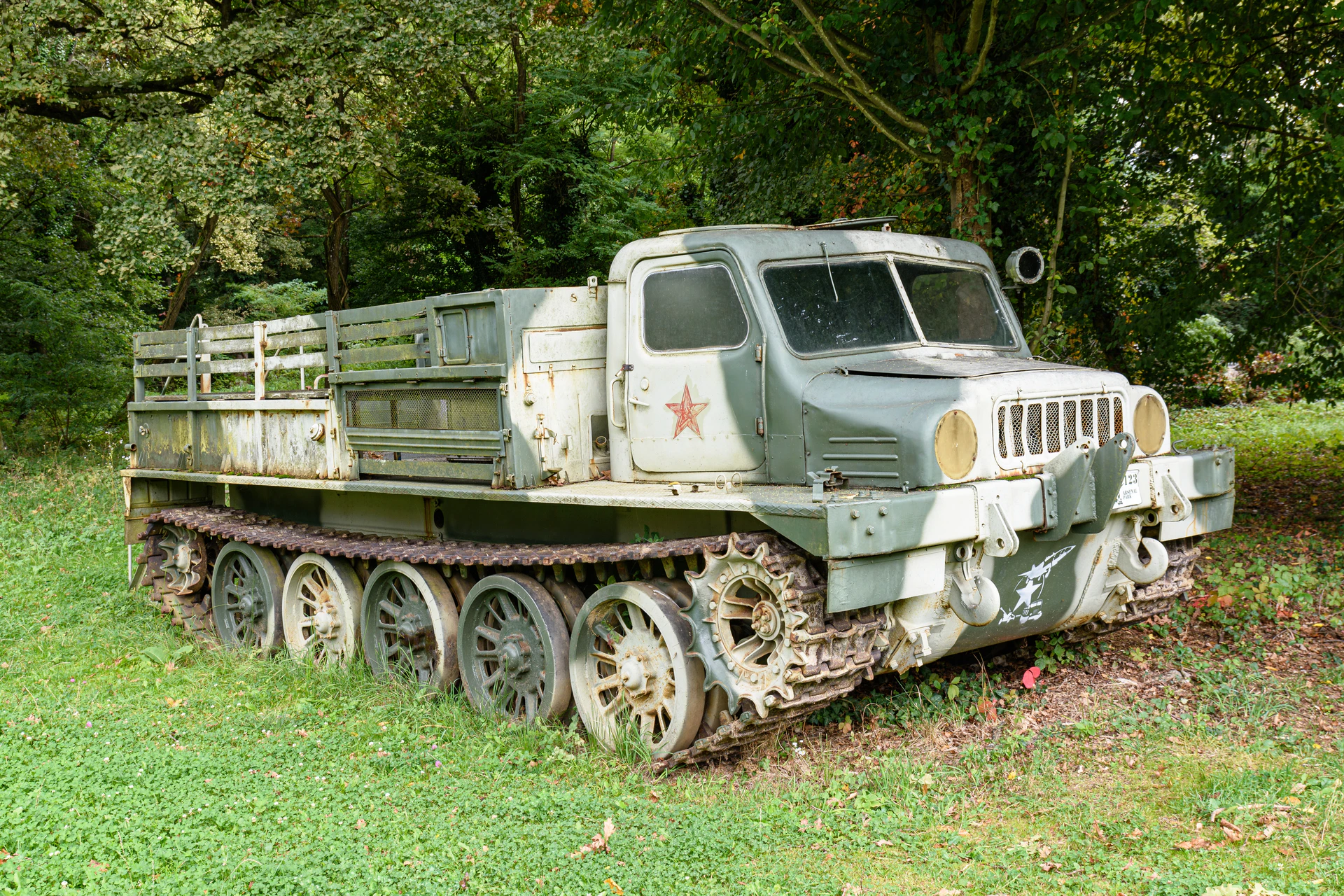

ATS-59 05

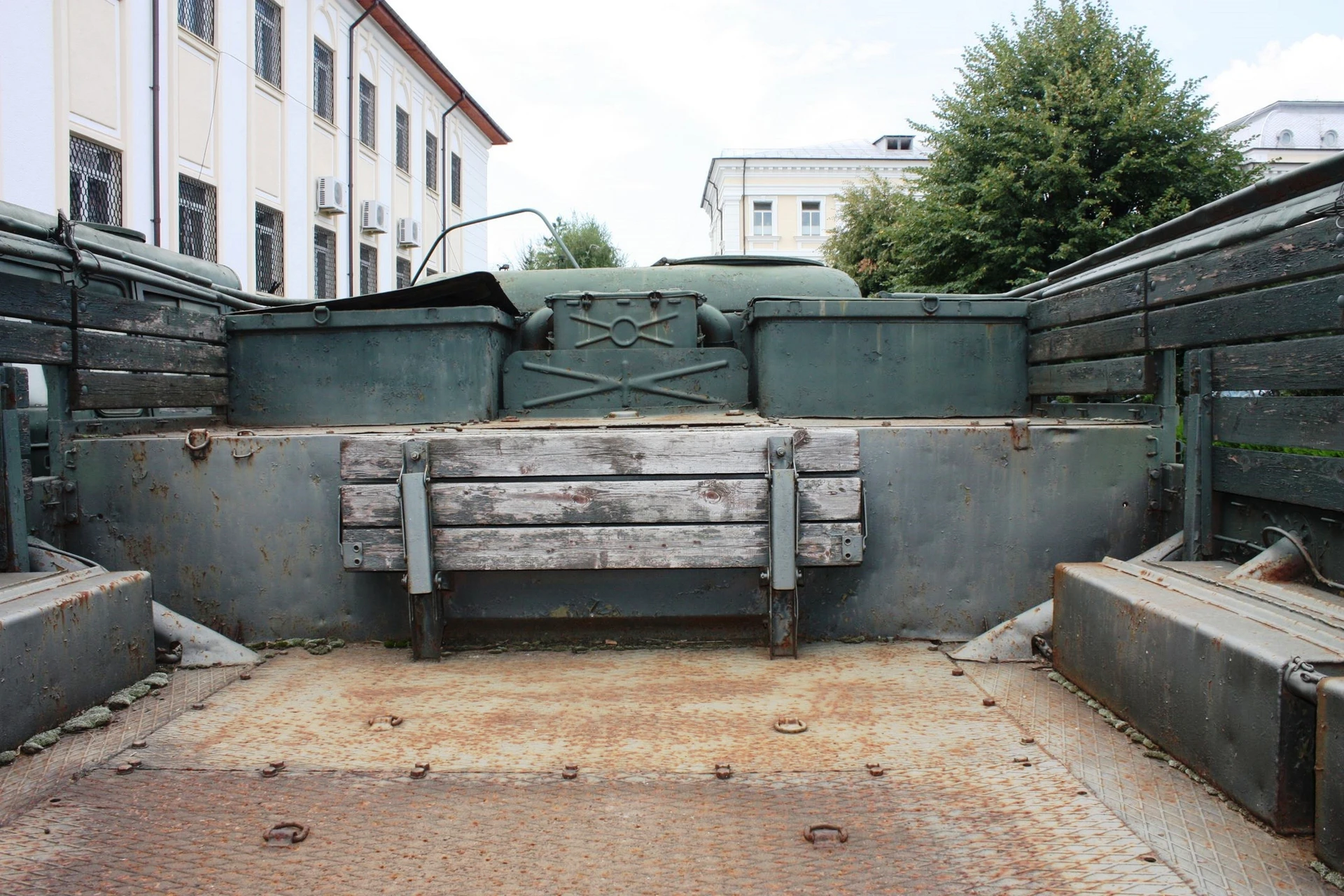

ATS-59 06

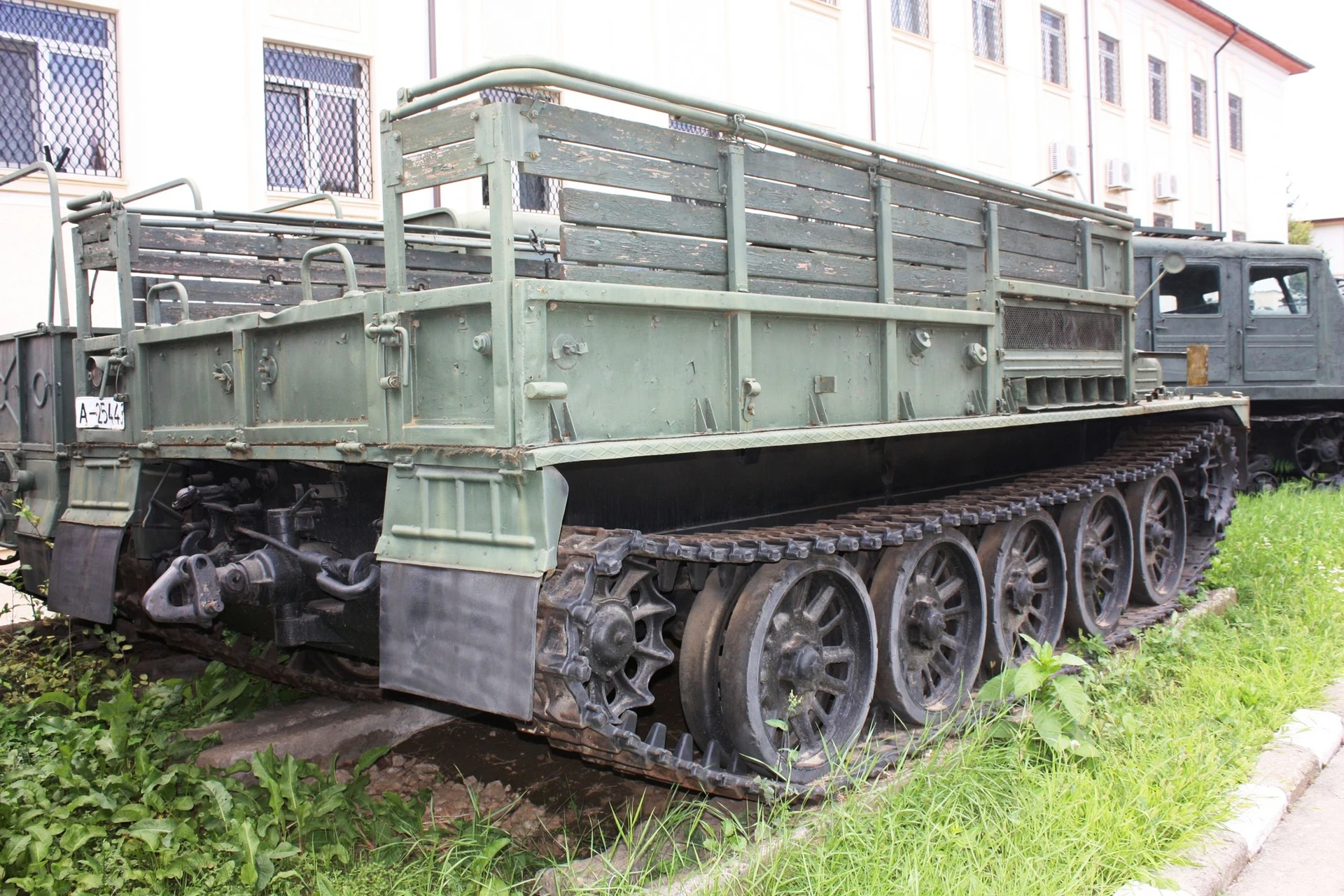

ATS-59 07
ATS-59 08

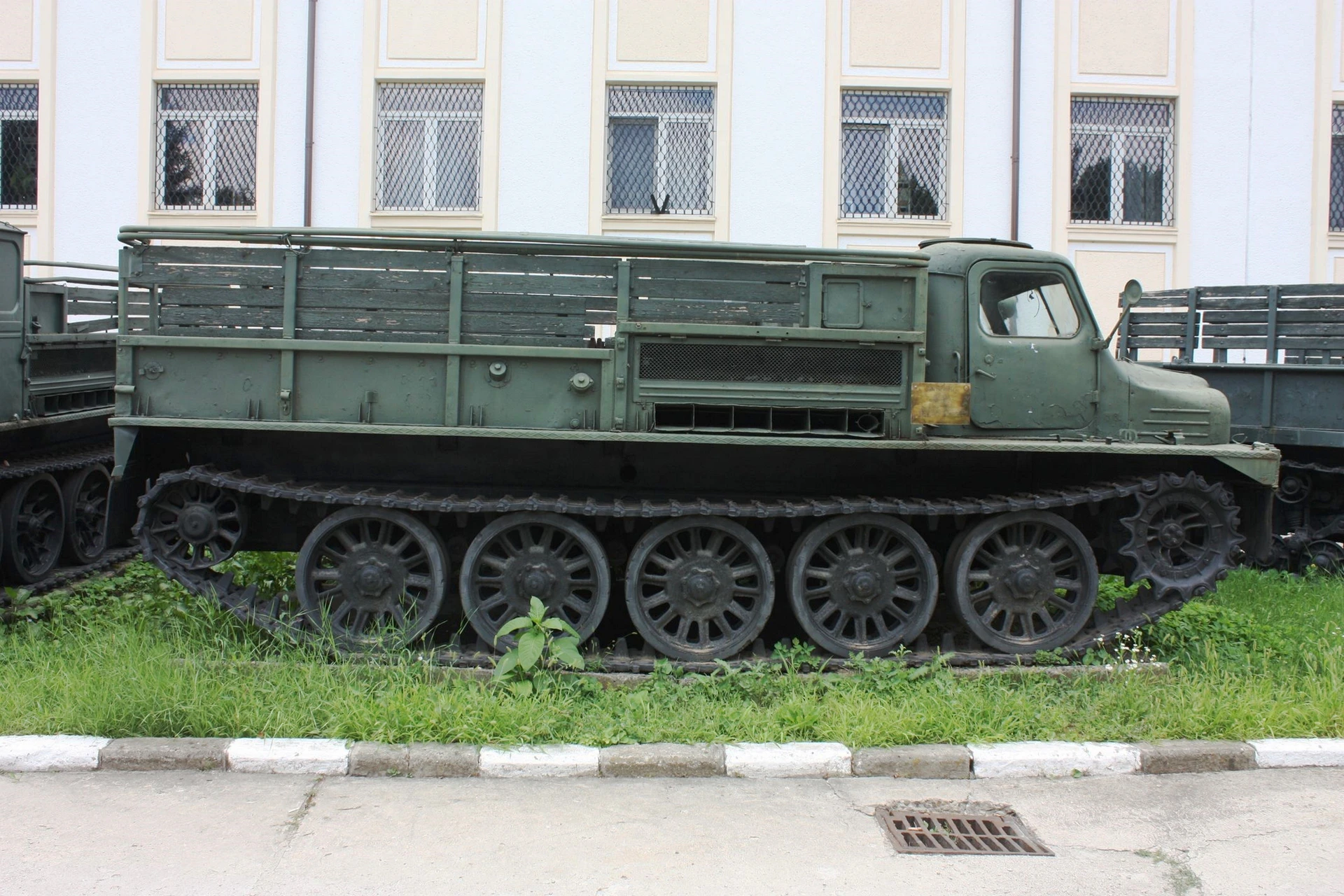

ATS-59 09
另请参阅：
General Overview
| Designation | Artilleriyskiy Tyagach Sredniy – 59G (Medium Artillery Tractor – 59G) |
|---|---|
| Place of Origin | 苏联 |
| Entry into Service | Late 1950s/Early 1960s (ATS-59); ATS-59G improved variant later |
| Primary Role | Towing heavy artillery (e.g., 130 mm M-46 gun, 152 mm howitzers) and transporting crew/supplies. |
| Crew & Passengers | 7 (including driver) in the large cab |
| Design Basis | Utilizes many components, including the engine and running gear, of the T-54 Main Battle Tank. |
Technical Specifications (ATS-59G)
| Mass (Empty) | Approx. 13.5 tonnes |
|---|---|
| 发动机 | A-650 V-12 water-cooled diesel (a throttled version of the T-54’s V-2 engine) |
| Engine Power | 300 hp at 1,700 rpm |
| Max Towed Load | 为止 14吨 |
| Payload Capacity | 3.0 tonnes (on the cargo platform) |
| Top Speed (Road) | Approx. 39–45 km/h |
| 工作范围 | 350 km (500 km with auxiliary tanks) |
| Key Feature | Equipped with a powerful **mechanical winch** (15-ton capacity). |
ATS-59G Improvements
The original ATS-59 had a small two-person cab. The ATS-59G was developed to address this and featured a significantly larger, fully enclosed cab, which could seat up to 7 people (driver + 6 passengers). This allowed the entire artillery crew to be transported with the piece they were towing, rather than sitting exposed on the cargo platform.
Additionally, the ‘G’ model included an NBC (Nuclear, Biological, Chemical) overpressure system for crew protection.
