Waco F series

Waco F series
Land	Usa
Roll	Biplan med öppen cockpit
Första flygningen	1930
Byggd	Unknow

Den Waco F-serien is a series of American-built general aviation and military biplane trainers of the 1930s from the Waco Aircraft Company.

Källkod: Waco F-serien på Wikipedia

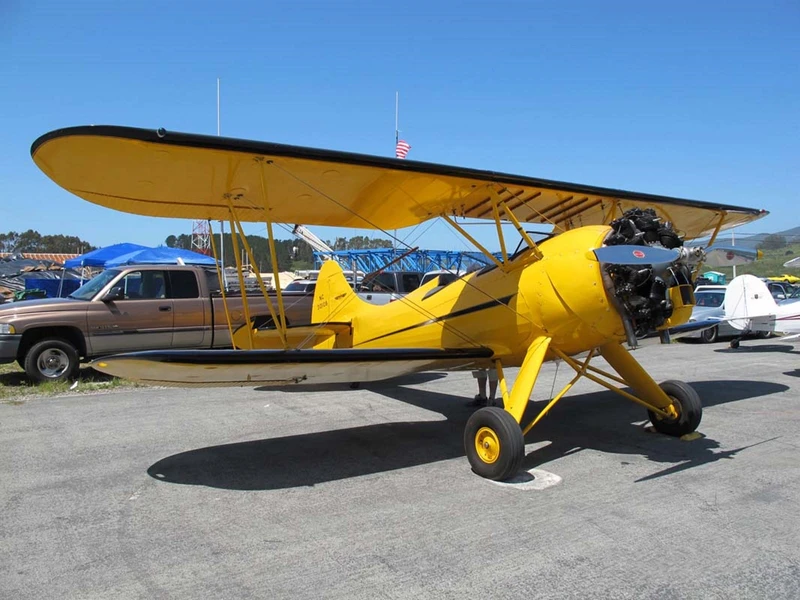

Waco UPF-7 Promenad Runt
Fotograf	Vladimir Yakubov
Lokalisering	Stillahavskusten Dream Machines 2010
Bilder	72

Waco UPF-7 01

Waco UPF-7 02

Waco UPF-7 03

Waco UPF-7 04

Waco UPF-7 05

Waco UPF-7 06

Waco UPF-7 07

Waco UPF-7 08

Waco UPF-7 09

Click on a photo and use the mouse scroll to view all photos

Wait, Searching Waco F series for you…

Waco UPF-7 Promenad Runt
Fotograf	Vladimir Yakubov
Lokalisering	Hollister Air Show 2012
Bilder	140

Se även:

General Characteristics

The Waco UPF-7 was the final and most numerous model of the Waco “F” series of biplanes. Introduced in the late 1930s, its primary role became serving as a primary trainer aircraft for the US government’s Civilian Pilot Training Program (CPTP) just before and during the early years of World War II.

Property	Value (UPF-7)
Roll	Primary Trainer, Personal Biplane
Tillverkare	Waco Aircraft Company (Troy, Ohio)
Entered Production	1937 (with the ‘7’ designation)
besättning	1 pilot
Capacity	1 trainee or up to 2 passengers (in front cockpit)
Spännvidd	9.14 m (30 ft 0 in)
Max Takeoff Weight	1,202 kg (2,650 lb)
Byggda nummer	Over 600 (UPF-7 variant)

Design and Powerplant

Engine: One Continental W-670-6A 7-cylinder, air-cooled radial engine (the “U” in UPF-7 refers to this engine model).
Power Output: 164 kW (220 hp).
Construction: Typical of the era, featuring a welded steel-tube fuselage truss and wooden wings, all covered in fabric.
Cockpit: Open, tandem (front and rear) cockpits. The front cockpit was wide enough to seat two passengers side-by-side when the flight controls were removed.
Landing Gear: Fixed tailwheel landing gear. The UPF-7 featured a wider and stronger landing gear track compared to earlier F-series models, improving ground handling.

Performance and History

Maximum Speed: 206 km/h (128 mph, 111 knots).
Cruise Speed: 183 km/h (114 mph, 99 knots).
Range: Approximately 640 km (400 mi).
Service Ceiling: 4,500 m (14,800 ft).
Military Designation: A small number of UPF-7s were impressed into US Army Air Corps service during WWII and designated as the PT-14.
Handling: The UPF-7 is highly regarded by antique aircraft enthusiasts for its gentle, well-balanced handling characteristics, especially compared to some of its competitors, making it an excellent trainer.
Legacy: Although the original company folded, the Waco design was later revived by Waco Classic Aircraft, which produces modern, FAA-certified replicas of the closely related YMF-5 model.
