ERC-90

Panhard ERC 90 Sagaie

KrajinyFrancúzsko
TypŠesťkolesové pancierové terénne vozidlo
V prevádzke1980 - súčasnosť
Postavený411

Komisia Panhard ERC 90 (Engin à Roues, Canon de 90 mm) je francúzske šesťkolesové pancierové terénne vozidlo, ktoré je vysoko mobilné a obojživelné s možnosťou odolnosti voči NBC. Zatiaľ čo boli testované rôzne modely, boli vyvinuté a vyrobené iba dve verzie ERC: Lynx a Sagaie. Hlavným rozdielom medzi týmito dvoma verziami je typ namontovanej veže a 90 mm pištole. Sagaie je francúzsky pre assegai, druh afrického oštepu.

Zdrojový: Panhard ERC 90 Sagaie na Wiki

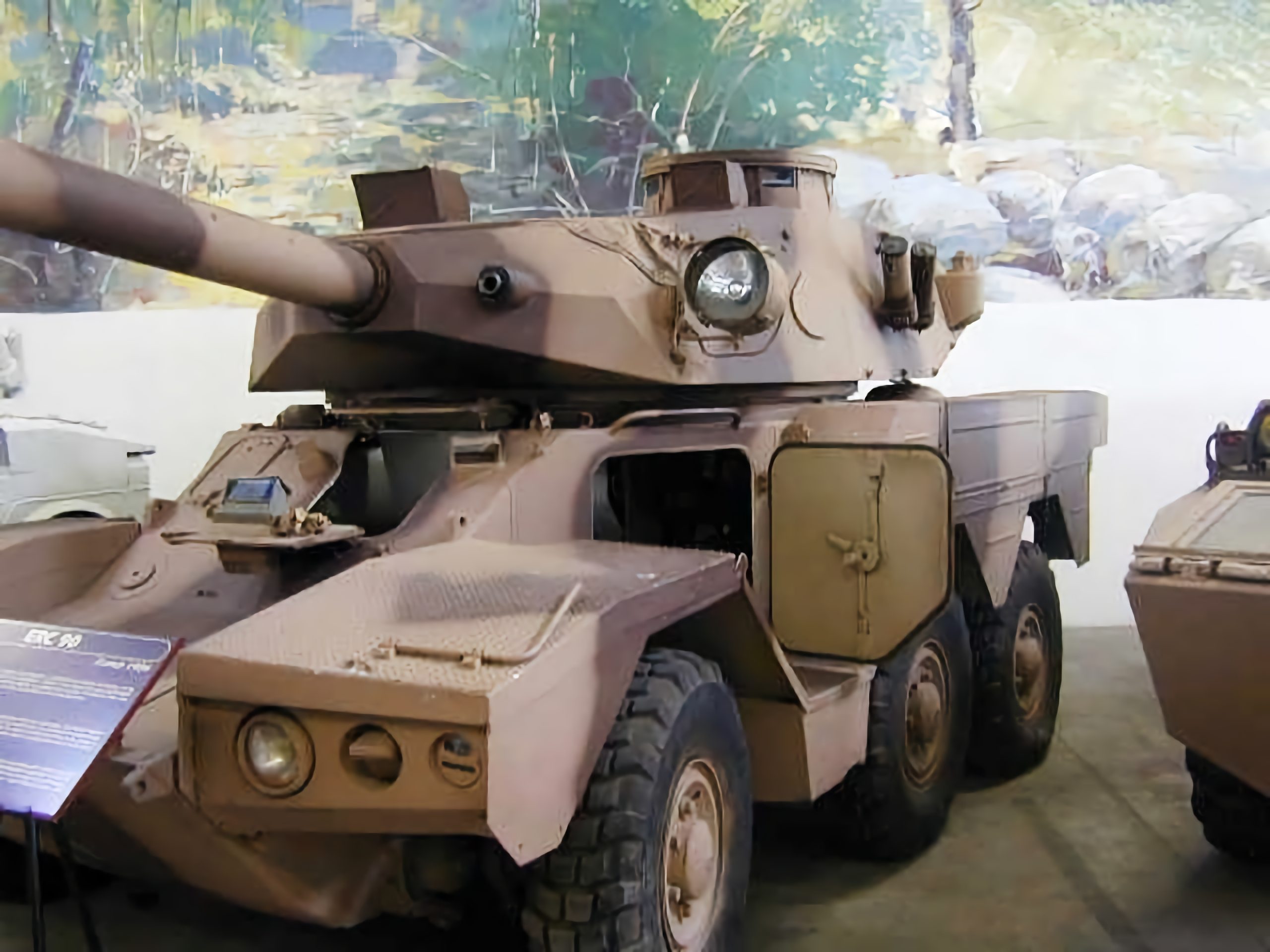

Panhard ERC 90 Sagaie
FotografVladimír Jakubov
LokalizáciaMusee des Blindés, Saumur
Fotografie116
Počkajte, hľadáte fotografie Panhard ERC 90 Sagaie pre vás ...

Špecifikácie
TypObrnené auto
Hmotnosť8,3 tony
Dĺžka7,7 metra
Šírka2,50 metra
Výška2,25 metra
Posádky3
Prevádzkový rozsah730 kilometrov
rýchlosť90 km/h

Súvisiace súpravy:

ERC 90 Mk.II Walk Around
FotografVladimír Jakubov
LokalizáciaNeznáme
Fotografie8

Kúp mi kávuKúpte mi kávu

Nájdite súpravy na eBay:

Hľadať na eBay
Hľadajte, čo potrebujete, navrhujeme to, ale ste to vy, kto sa rozhodne
Počkajte, hľadáte fotografie Panhard ERC 90 Sagaie pre vás ...
ERC-90 Walk Around
FotografNeznáme
LokalizáciaNeznáme
Fotografie43
...
Viac info:

The Panhard ERC 90 Sagaie is a French six-wheeled armored reconnaissance vehicle that was developed in the late 1970s. It is based on the Panhard ERC 90 Lynx, but features a more powerful 90 mm cannon and improved mobility. The name Sagaie means assegai, a type of African spear.
The ERC 90 Sagaie was designed to meet the requirements of the French Army for a light and fast vehicle that could operate in various terrains, especially in Africa. The vehicle has a modular design that allows it to be fitted with different turrets and weapons systems. The main armament is a GIAT TS 90 turret with a F4 90 mm low-pressure gun that can fire high-explosive, armor-piercing and smoke rounds. The secondary armament consists of a coaxial 7.62 mm machine gun and two four-barrel smoke grenade launchers.
The ERC 90 Sagaie has a crew of three: a driver, a commander and a gunner. The driver sits in the front left of the hull, while the commander and the gunner are located in the turret. The vehicle has an all-welded steel armor that provides protection against small arms fire and shell splinters. The vehicle is also equipped with a central tire inflation system, a fire suppression system, a nuclear, biological and chemical (NBC) protection system and night vision devices.
The ERC 90 Sagaie has a six-wheel drive configuration that gives it good mobility and agility. The vehicle can reach a maximum speed of 95 km/h on road and 60 km/h off-road. It can also swim across water obstacles at a speed of 9 km/h with minimal preparation. The vehicle has a range of 900 km on road and 600 km off-road.
The ERC 90 Sagaie was first introduced in 1980 and entered service with the French Army in 1984. It was mainly used for reconnaissance, fire support and anti-tank missions. The vehicle saw combat in several conflicts, such as the Gulf War, the Somali Civil War, the Rwandan Civil War and the Ivorian Civil War. The vehicle is still in service with the French Army and several other countries, such as Argentina, Chad, Djibouti, Gabon, Ivory Coast, Mexico and Nigeria.
