C-17A Глобусмастер III - Прогулка

C-17A Глобмастер III
Страны	США
Роль	Военно-транспортные самолеты
Первый полет	15 сентября 1991
Построен	279

Фотогалерея C-17A Globemaster III, Boeing C-17 Globemaster III является крупным военно-транспортным самолетом. Он был разработан для ВВС США (USAF) с 1980-х до начала 1990-х годов Макдоннеллом Дугласом; позже компания объединилась с Boeing. C-17 используется для быстрой стратегической переброски войск и грузов на основные оперативные базы или передовое оперативное базирование по всему миру. Он также может выполнять тактические воздушные перевозки, медицинскую эвакуацию и десантные миссии. C-17 носит название двух предыдущих, но не связанных поршневых двигателей, военных грузовых самолетов США, Douglas C-74 Globemaster и Douglas C-124 Globemaster II.

Источник: C-17A Globemaster III в Википедии

C-17A Globemaster III
Фотограф	Unknow
Локализации	Неизвестная
Фотографии	61

С-17А Globemaster III 01

С-17А Глоубмастер III 02

С-17А Globemaster III 03

С-17А Глоубмастер III 04

С-17А Глоубмастер III 05

С-17А Глоубмастер III 06

С-17А Globemaster III 07

С-17А Globemaster III 08

С-17А Globemaster III 09

Click on a photo and use the mouse scroll to view all photos

Подождите, поиск фотографий C-17A Globemaster III для вас...

C-17A Globemaster III Walk Around
Фотограф	Michael Benolkin
Локализации	Неизвестная
Фотографии	37

C-17A Globemaster III 1

C-17A Globemaster III 2

C-17A Globemaster III 3

C-17A Globemaster III 4

C-17A Globemaster III 5

C-17A Globemaster III 7

C-17A Globemaster III 6

C-17A Globemaster III 8

C-17A Globemaster III 9

Click on a photo and use the mouse scroll to view all photos

Bridging the Gap

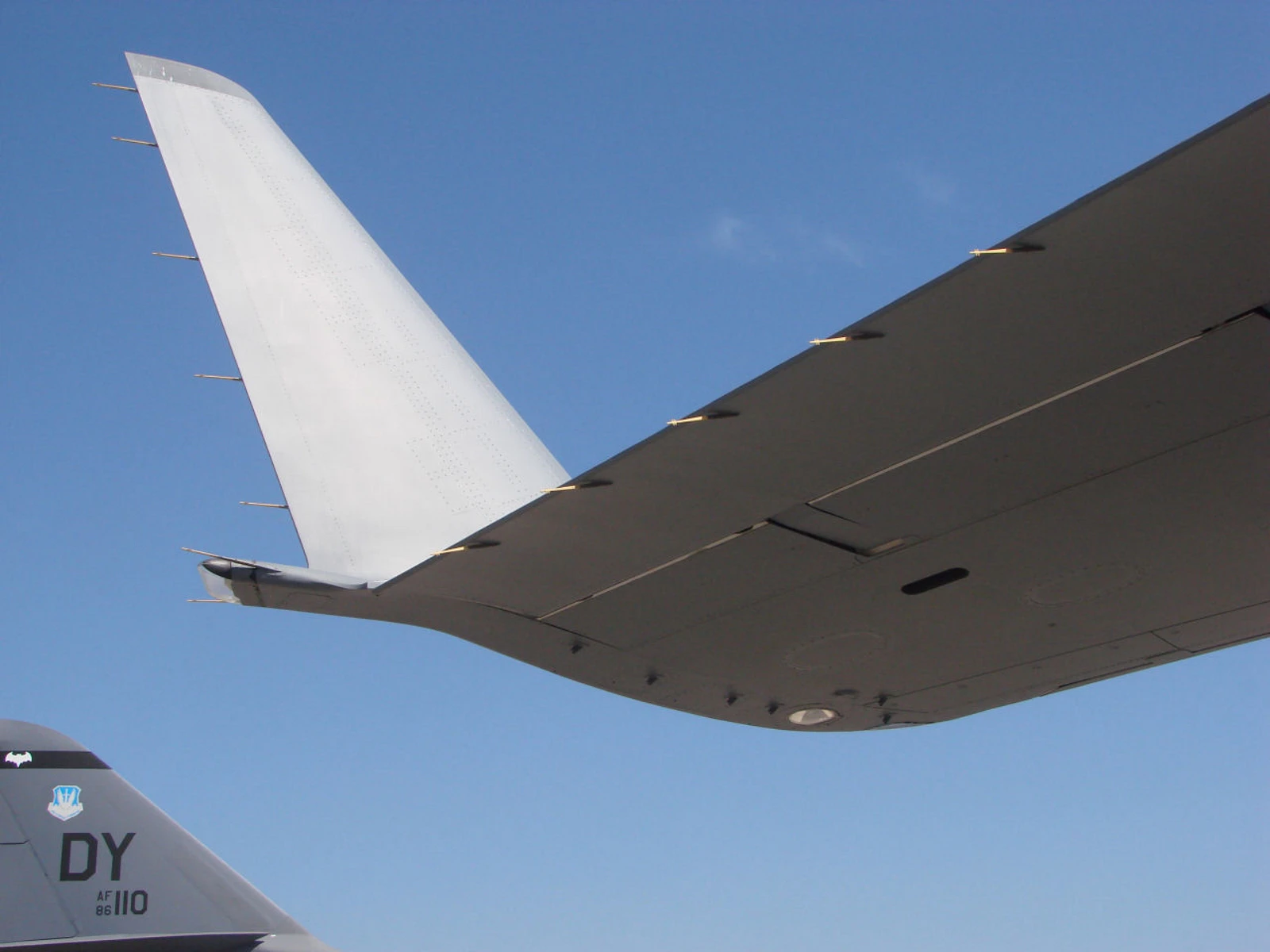

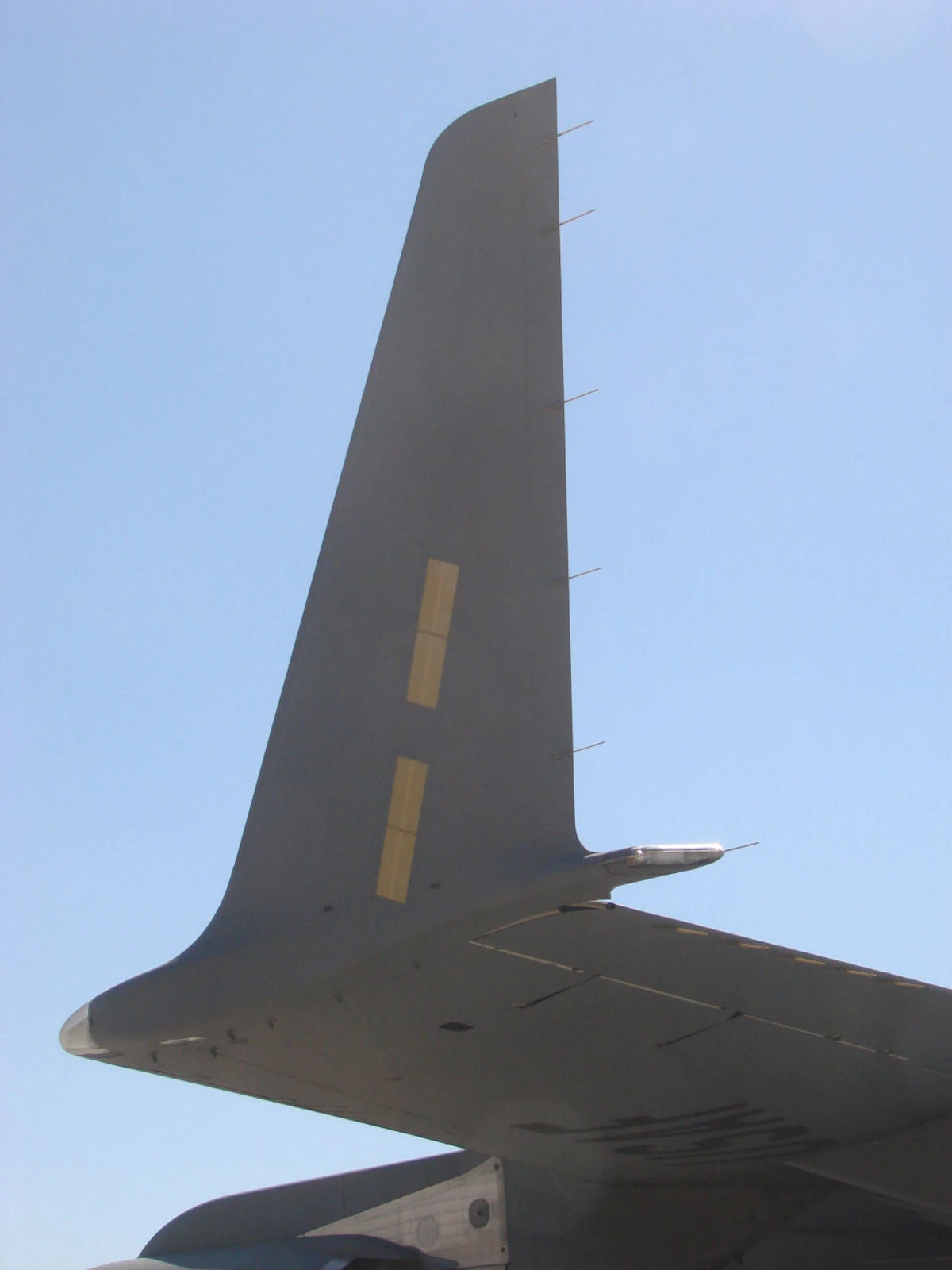

Teh C-17 Globemaster III is the most flexible cargo aircraft in the world. Before the C-17, the military had to choose: use the massive C-5 Galaxy for long hauls to big airports, or the C-130 Hercules for short hauls to dirt strips. The C-17 was designed to do both. It can carry an M1 Abrams tank across the Atlantic Ocean and land it directly on a short, unpaved runway near the front lines. Its massive T-tail and “winglets” make it unmistakable in the sky, serving as the primary backbone for U.S. and Allied global power projection.

Attribute	Technical Specification (C-17A)
Роль	Strategic / Tactical Military Transport
Экипажа	3 (Pilot, Co-pilot, Loadmaster)

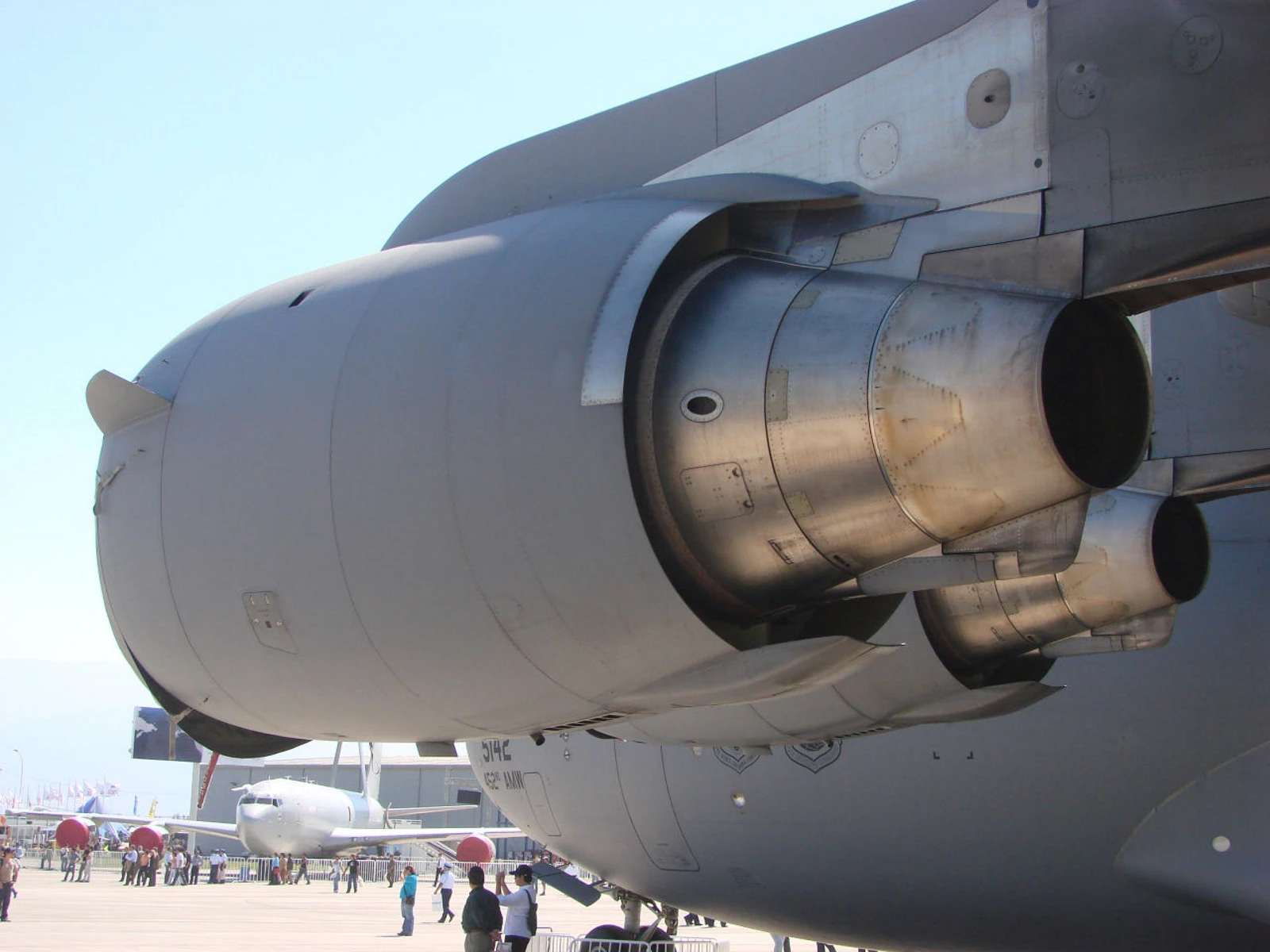

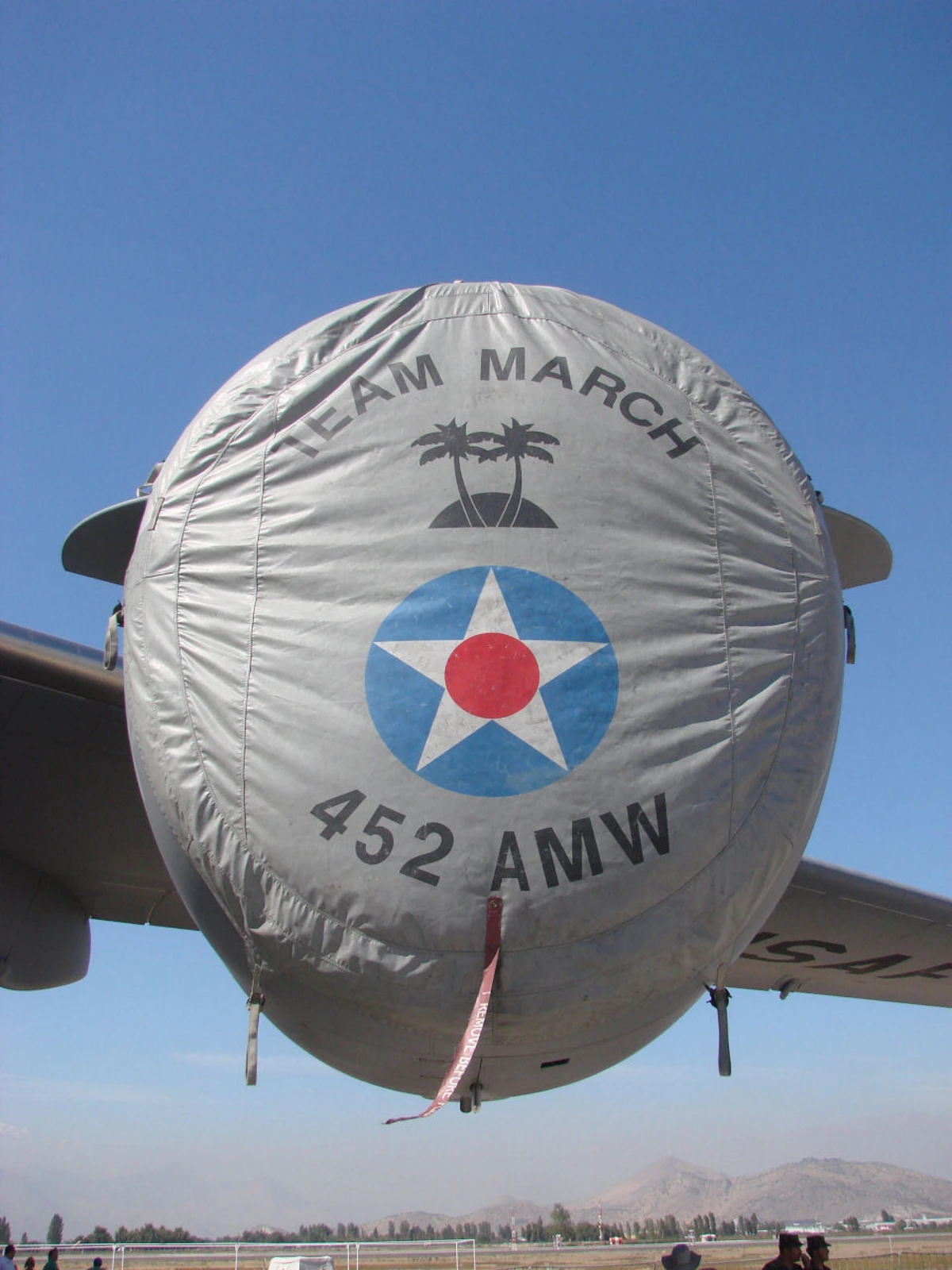

Двигателей	4 × Pratt & Whitney F117-PW-100 turbofans (40,440 lbf each)
Maximum Payload	77,519 kg (170,900 lbs)
Максимальная скорость	Mach 0.74 (830 km/h / 515 mph)
Диапазон	4,445 km (2,400 nautical miles) with full payload
Service Ceiling	13,716 meters (45,000 feet)
Landing Distance	Approx. 1,067 meters (3,500 feet) with full load

Design Engineering: Blown Flaps and Reverse Thrust

Externally Blown Flaps: To land on short runways, the C-17 uses a “powered lift” system. The engine exhaust is directed directly onto the massive flaps when they are extended, doubling the lift and allowing the plane to fly at remarkably slow speeds during approach.
Full Reverse Thrust: The C-17 can engage its thrust reversers in flight to descend rapidly (up to 15,000 feet per minute). On the ground, the reversers can push the plane backwards up a 2% grade, allowing it to “three-point turn” on narrow airfields.
The “Moose” Nickname: It earned the name “Moose” because of the distinct groaning sound it makes during ground refueling and the venting of its pressure relief valves, which sounds like a moose call.
The Integrated Cargo System: The floor features rows of rollers that can be flipped over by a single loadmaster. One side is flat for vehicles (like the Stryker or Abrams), and the other side has rollers for standard pallets.

Operational History: The World’s 911 Call

The Kabul Airlift (2021): The C-17 became a global symbol of humanitarian effort during the evacuation of Afghanistan. One flight, “Reach 871,” famously carried 823 passengers in a single sortie—over three times its standard troop capacity.
Special Operations: Because it is surprisingly quiet for its size and can land on unprepared surfaces, the C-17 is often used for covert night-time insertions of Special Forces units and their specialized vehicles.

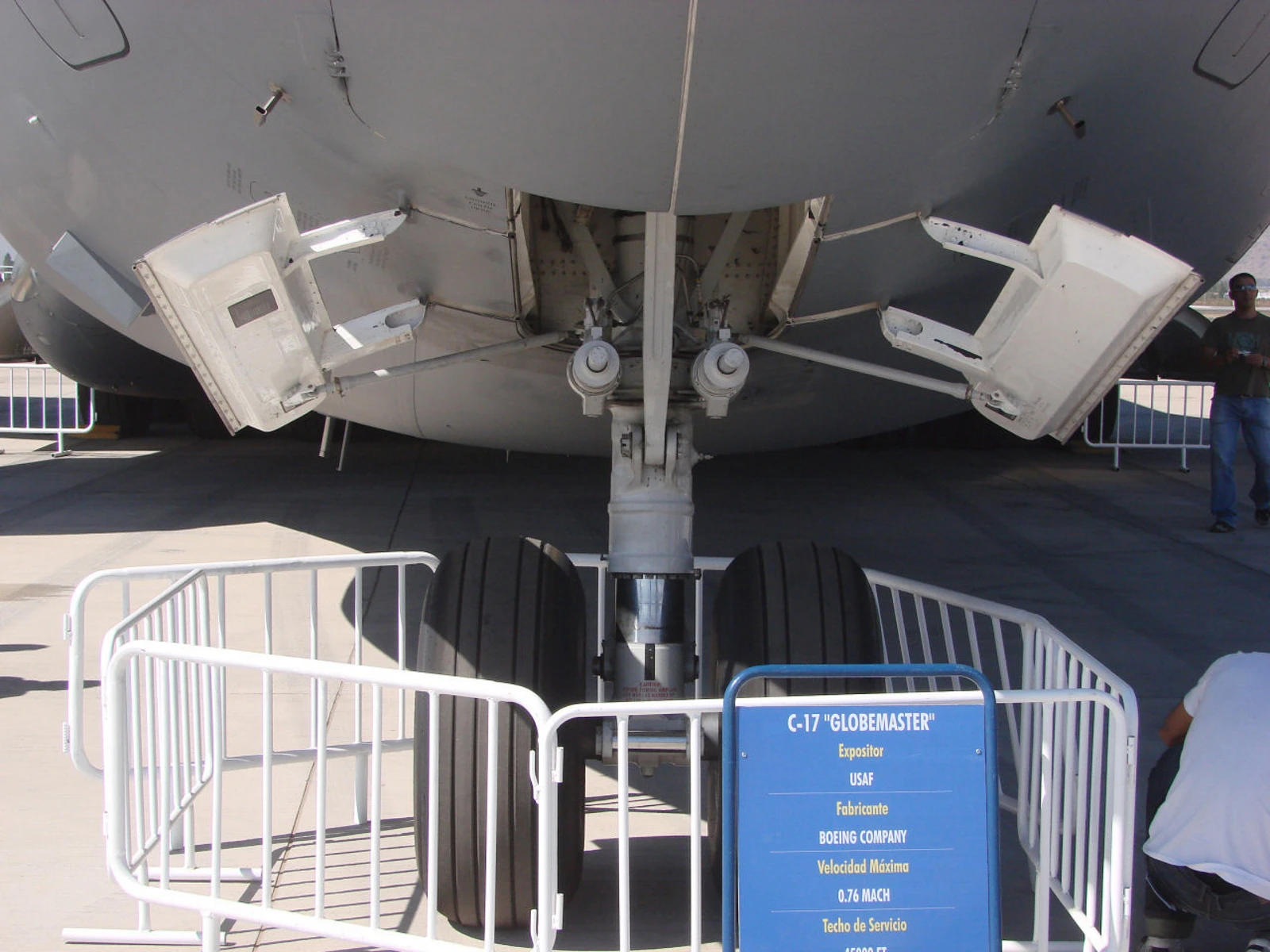

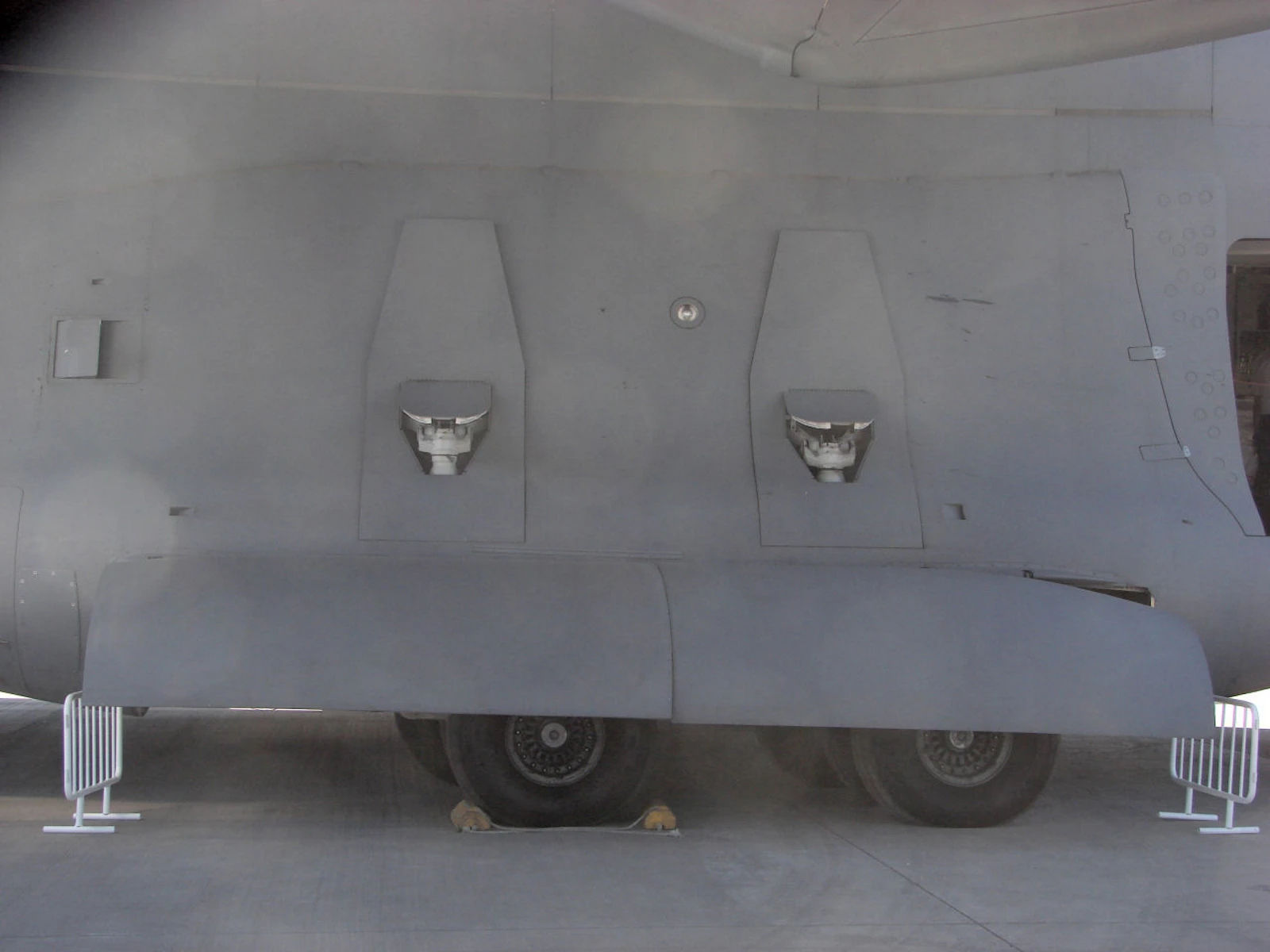

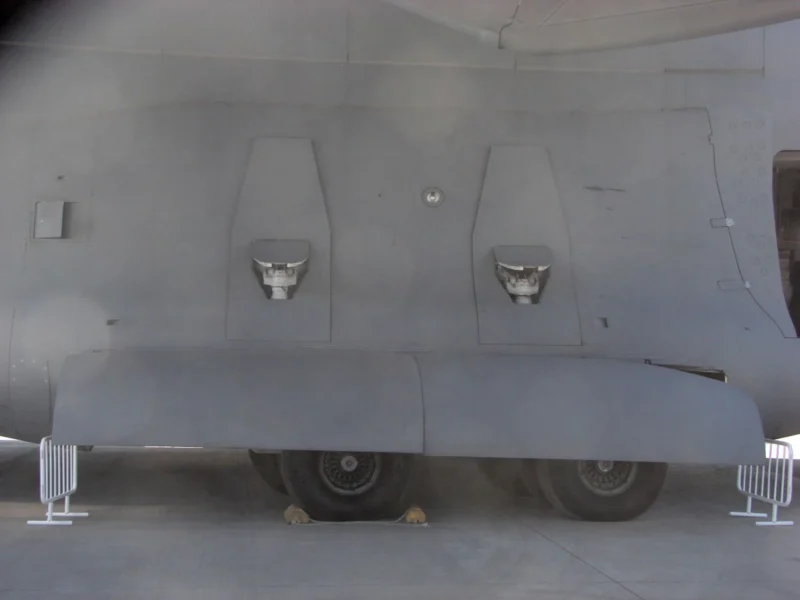

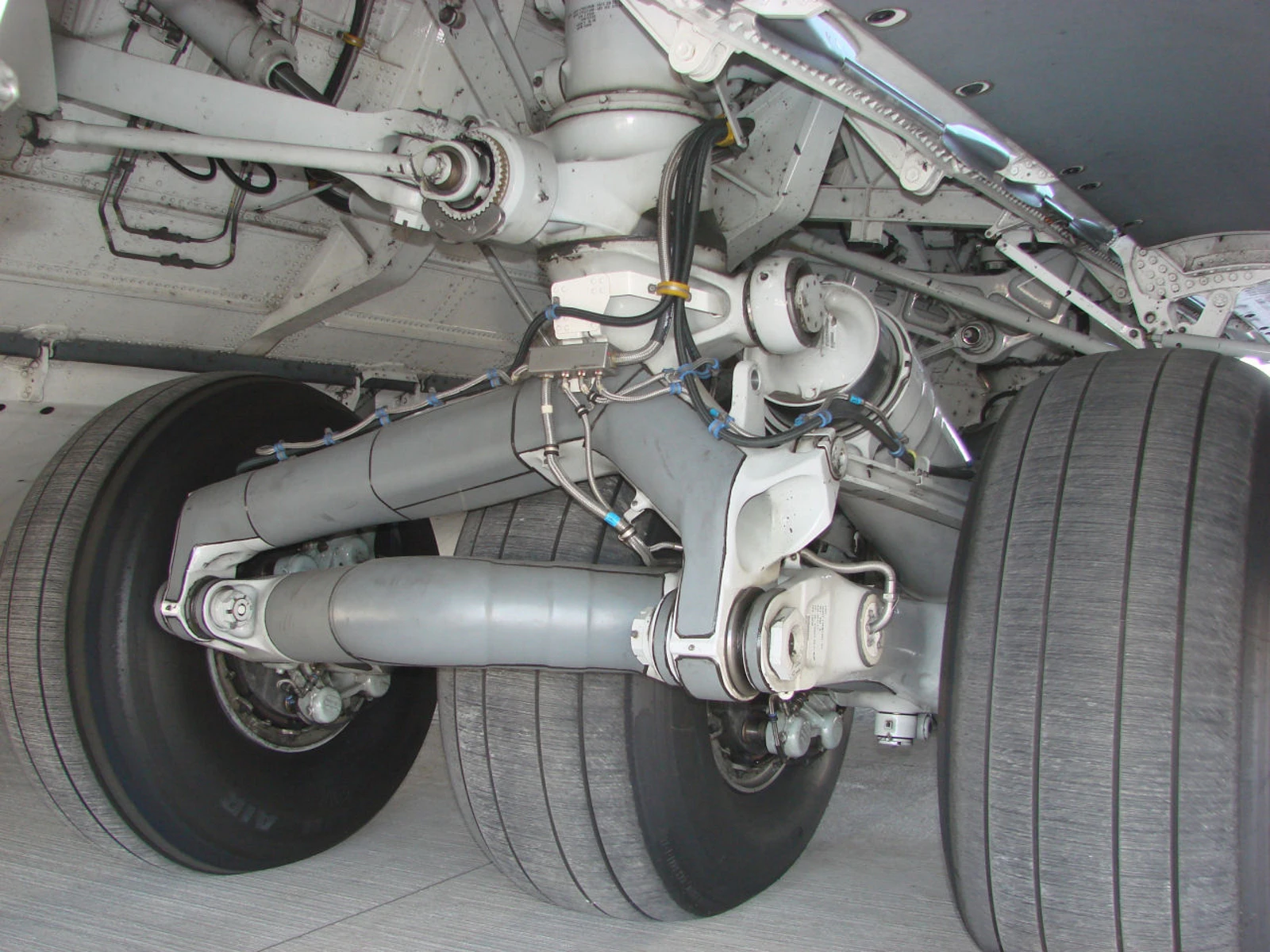

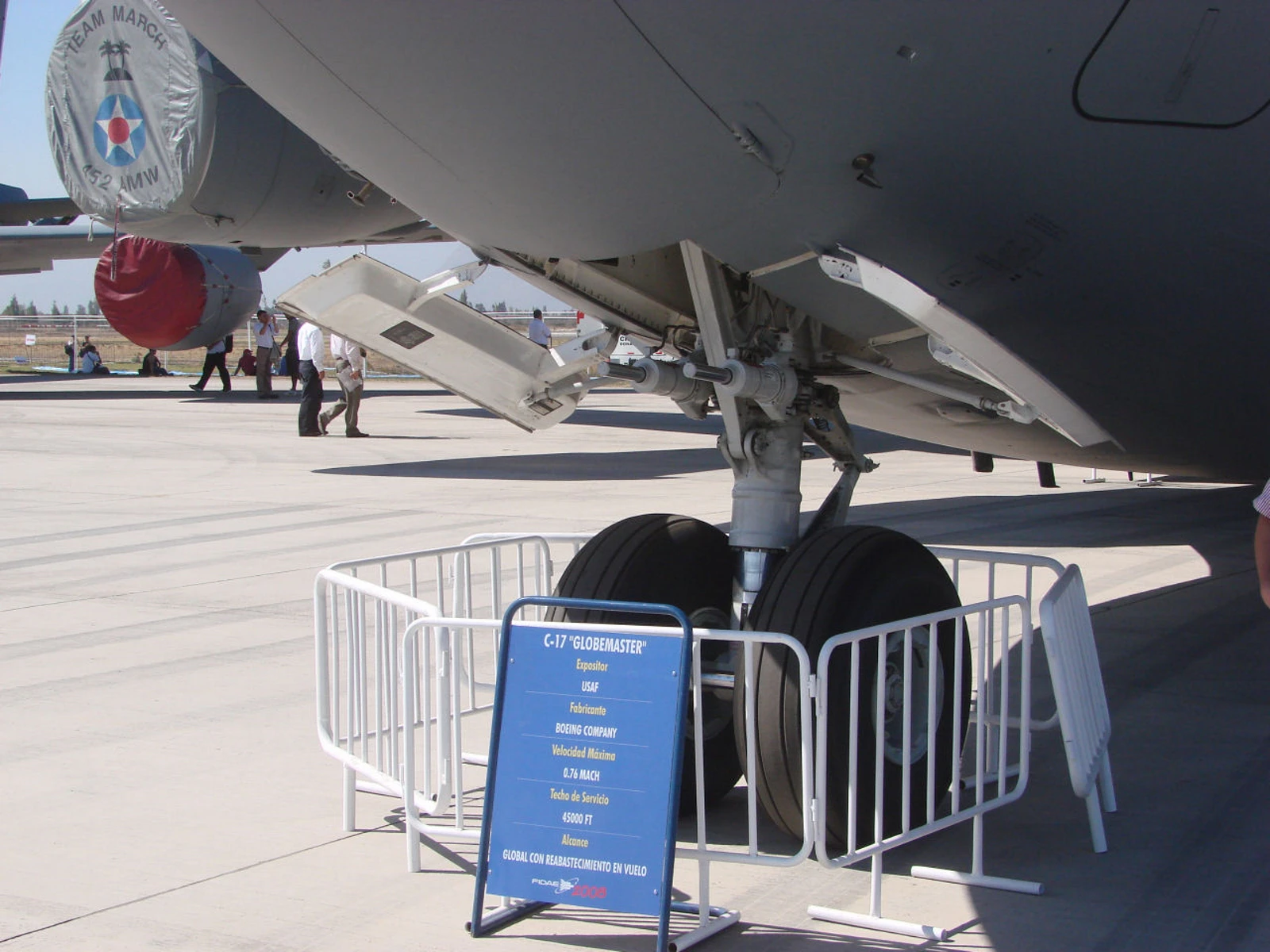

Antarctic Support: The C-17 is a frequent visitor to McMurdo Station in Antarctica. It can land on “ice runways” that would shatter the landing gear of most other heavy jets, thanks to its rugged, multi-wheel main gear.
Global Partnership: While built by Boeing in the U.S., the C-17 is operated by the UK, Australia, Canada, India, Kuwait, Qatar, the UAE, and a joint NATO wing in Hungary, making it the international gold standard for heavy lift.
