Dornier Do-24

Dornier Do-24
Kraju	Nazistowskie Niemcy
Roli	Łódź lotnicza, zwiadowcza i ratownicza powietrzno-morska
Pierwszy lot	3 lipca 1937 roku
Zbudowany	279

Tthe Dornier Do 24 To niemiecka trzysilowa łódź latająca z lat 30-tych XX-tych, zaprojektowana przez Dornier Flugzeugwerke do patrolowania morskiego oraz poszukiwań i ratownictwa. Według danych Dorniera, około 12.000 osób zostało uratowanych przez Do 24s podczas swojej kariery latającej. W latach 1937-1945 w kilku fabrykach zbudowano łącznie 279.

Źródła: Dornier Do-24 na Wikipedii

Dornier Do-24 Spacer
Fotograf	Meindert de Vreeze
Lokalizacja	Niewiedzy
Zdjęcia	39

Dornier Do-24 01

Dornier Do-24 02

Dornier Do-24 03

Dornier Do-24 04

Dornier Do-24 05

Dornier Do-24 06

Dornier Do-24 07

Dornier Do-24 08

Dornier Do-24 09

Click on a photo and use the mouse scroll to view all photos

Czekaj, wyszukiwanie Dornier Do-24 dla Ciebie ...

Kup mi kawę

Dornier Do 24K Spacer
Fotograf	Niewiedzy
Lokalizacja	Niewiedzy
Zdjęcia	49

Dornier Do-24 Spacer
Fotograf	Maurice Sagius
Lokalizacja	Niewiedzy
Zdjęcia	29

Dornier Do-24

Załaduj więcej...

Zobacz też:

A Dutch Design with a German Heart

Tthe Dornier Do 24 was an exceptionally seaworthy flying boat originally designed for the Dutch Naval Air Service (MLD) to protect the East Indies. When Germany occupied the Netherlands in 1940, production continued for the Luftwaffe. It became famous for its incredible durability in rough water, often landing in heavy seas to rescue downed airmen that other flying boats could not reach. It was so successful that it remained in service for decades after the war, notably with the Spanish Air Force for Search and Rescue (SAR).

Attribute	Technical Specification (Do 24T)
Roli	Maritime Reconnaissance / Search and Rescue (SAR)
Załogi	6
First Flight	July 3, 1937
Zespół napędowy	3 × Bramo 323R-2 Fafnir 9-cylinder radials
Horsepower	1,000 hp (746 kW) per engine
Prędkość maksymalna	210 mph (340 km/h)
Zakres	1,800 miles (2,900 km)
Uzbrojenie	1 × 20mm Hispano-Suiza cannon; 2 × 7.92mm MG 15 machine guns

Unique Maritime Engineering

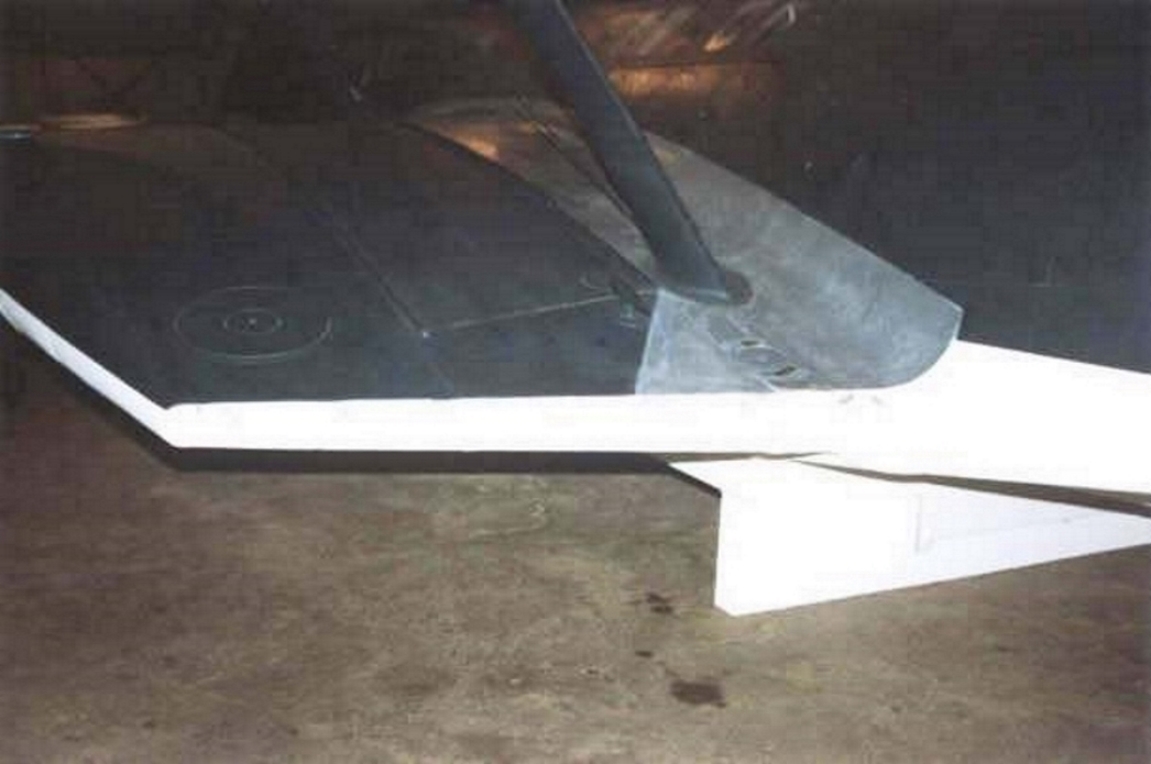

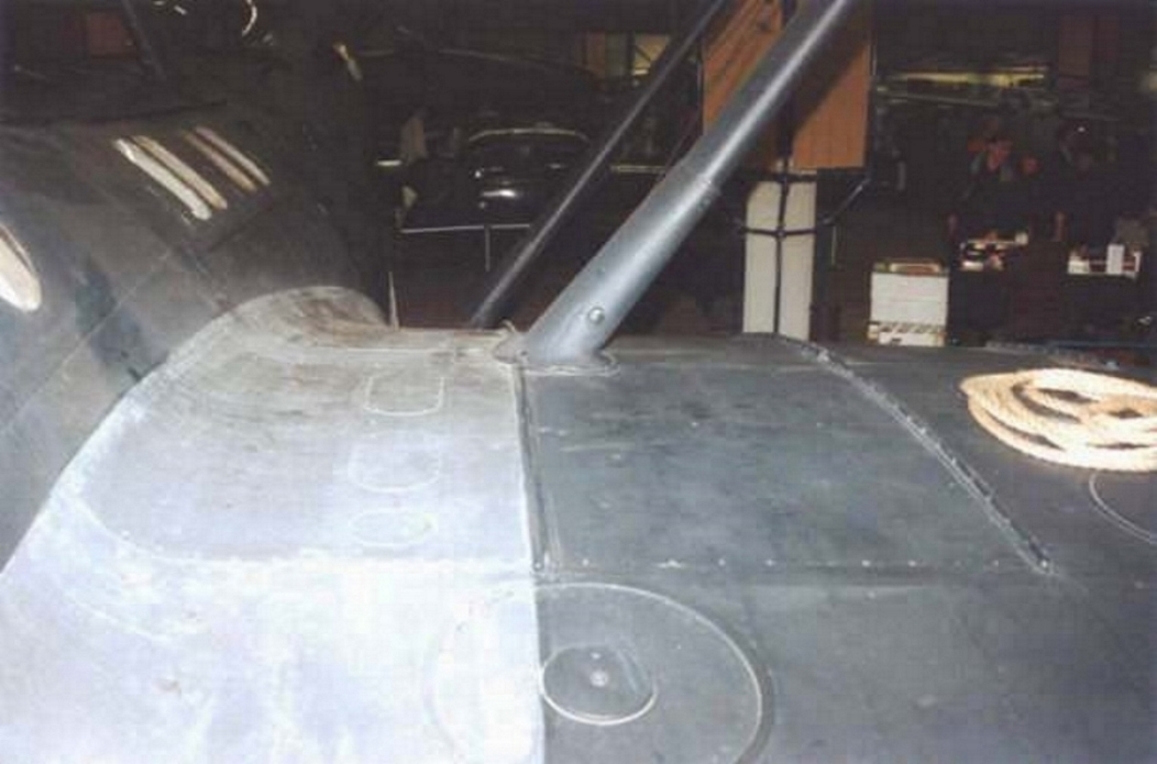

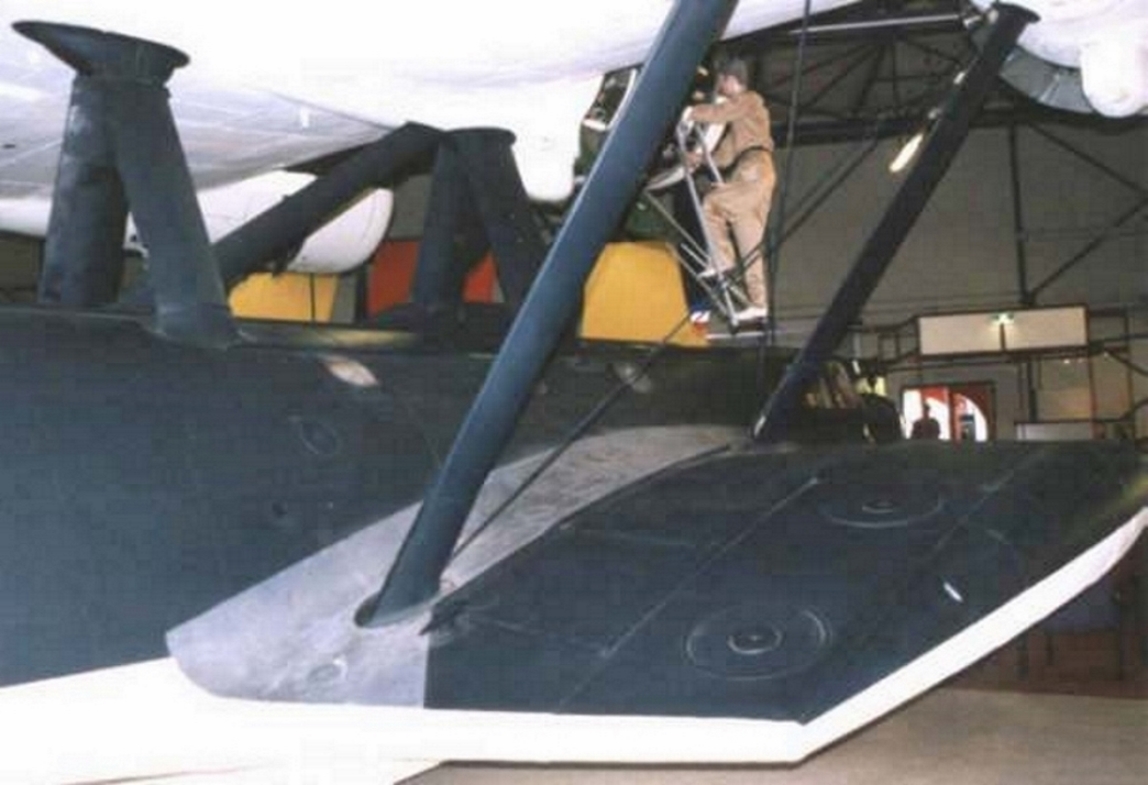

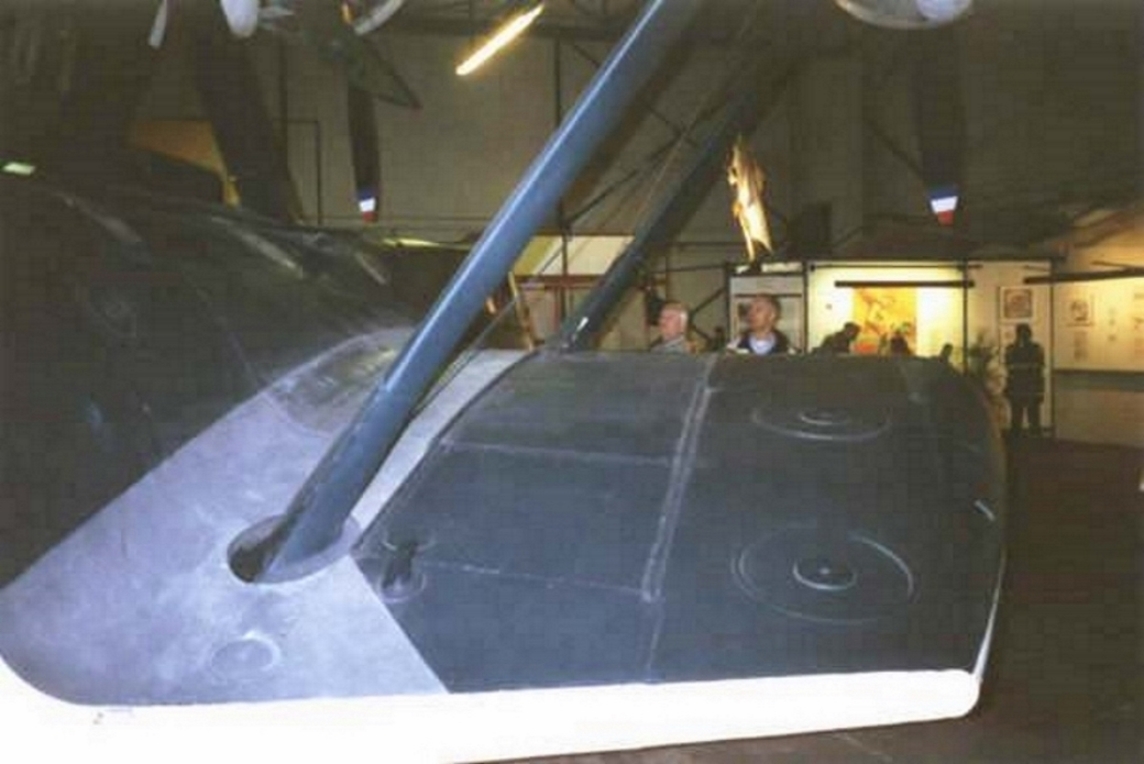

The “Sponson” Stability: Instead of using wing-mounted floats that could easily break in rough waves, Dornier used “stub-wings” or sponsons protruding from the hull. These provided lateral stability on the water and acted as boarding platforms for rescued crews.

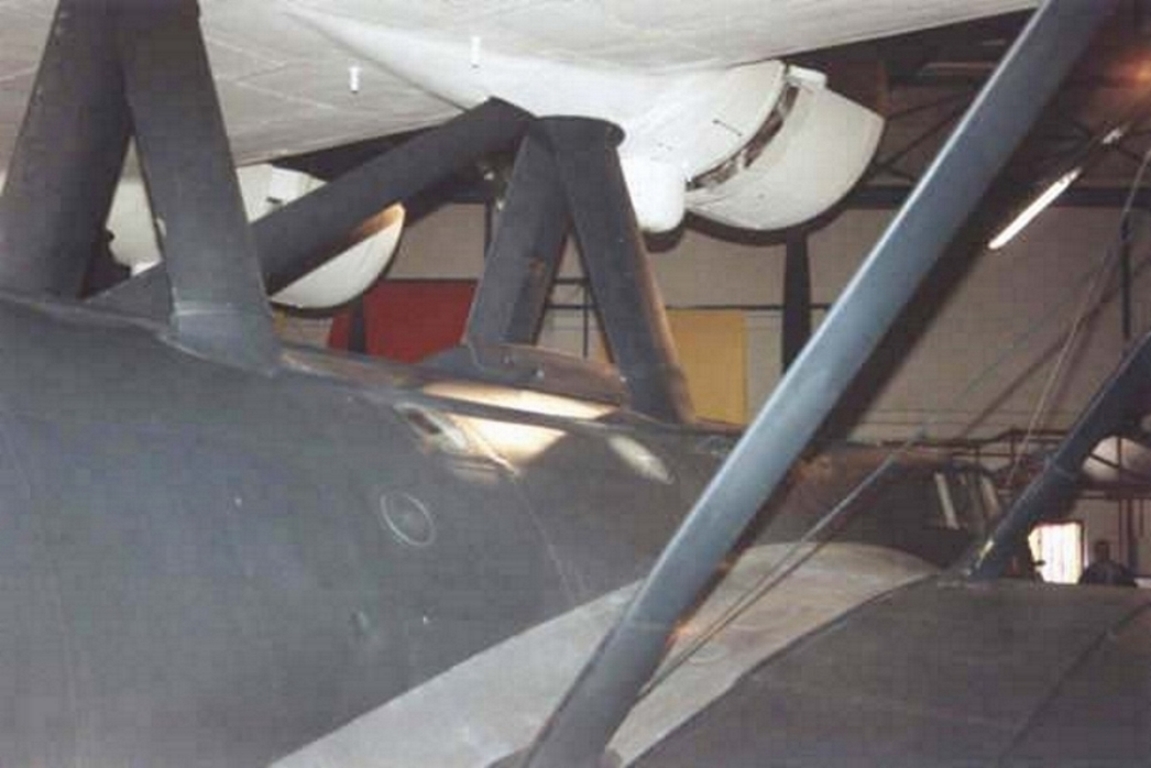

Triple-Engine Reliability: The three engines were mounted on a parasol wing high above the fuselage to keep the propellers clear of sea spray. The center engine was positioned slightly higher than the outer two to further reduce water ingestion during takeoff.
The “Two-Step” Hull: The underside of the fuselage featured a sophisticated “stepped” design. This broke the suction of the water during takeoff, allowing the heavy boat to “unstick” and transition to flight much faster in choppy conditions.
Broad-Tail Fin: The twin-tail design was specifically chosen to provide excellent directional control during water taxiing and to remain clear of the heavy engine exhaust and wake.

Combat Service & Humanitarian Legacy

Tthe Seenotdienst: During WWII, the Do 24 was the backbone of the German Sea Rescue Service. It is estimated that Do 24 crews rescued over 12,000 airmen from the sea throughout the conflict, often operating under fire.
Spanish Service: Spain operated the Do 24 until the late 1960s. Their aircraft were painted in bright yellow and green “SAR” colors and were legendary among Mediterranean sailors for their ability to land in almost any weather.
The Do 24 ATT: In the early 1980s, a surviving hull was fitted with modern turboprop engines and a new wing. This “Amphibian Technology Testbed” (ATT) proved the timeless efficiency of the original hull design.
Seaworthiness: While the American PBY Catalina was more numerous, many historians and pilots consider the Do 24 to be the finest open-ocean flying boat ever built due to its superior hull strength and rough-water handling.
