Mi-24 Hind

Mi-24 Hind
Country	Soviet Union
Role	Attack helicopter
First flight	19 September 1969
Built	2648

The Mil Mi-24 (Russian: Миль Ми-24; NATO reporting name: Hind) is a large helicopter gunship, attack helicopter and low-capacity troop transport with room for eight passengers. It is produced by Mil Moscow Helicopter Plant and has been operated since 1972 by the Soviet Air Force and its successors, along with more than 30 other nations.

Source: Mi-24 Hind on Wikipedia

Mi-24 Hind
Photographer	Unknow
Localisation	Unknow
Photos	95

Mi-24 Hind 01

Mi-24 Hind 02

Mi-24 Hind 03

Mi-24 Hind 04

Mi-24 Hind 05

Mi-24 Hind 06

Mi-24 Hind 07

Mi-24 Hind 08

Mi-24 Hind 09

Click on a photo and use the mouse scroll to view all photos

Wait, Searching Mi-24 Hind for you…

Mi-24V Walk Around
Photographer	Unknow
Photos	80

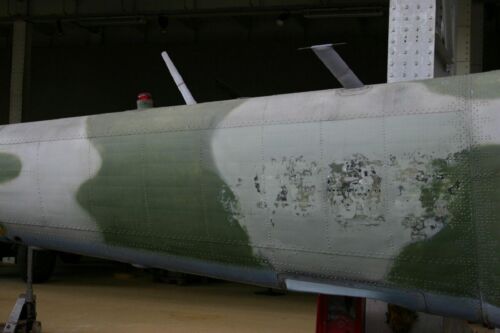

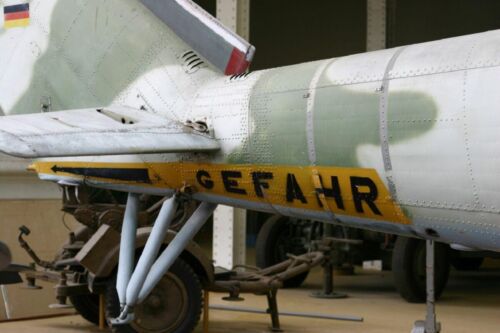

Mi-24D Hind-D Walk Around
Photographer	Dmitri Sribnyi
Photos	65

Mi-24D Hind-D

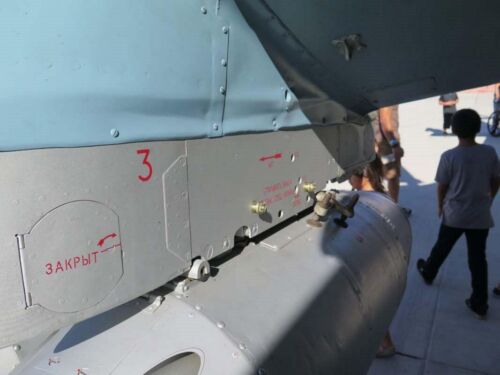

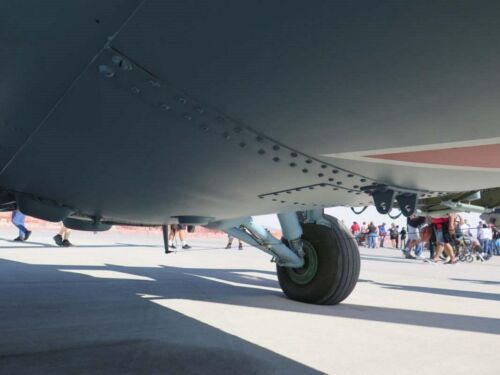

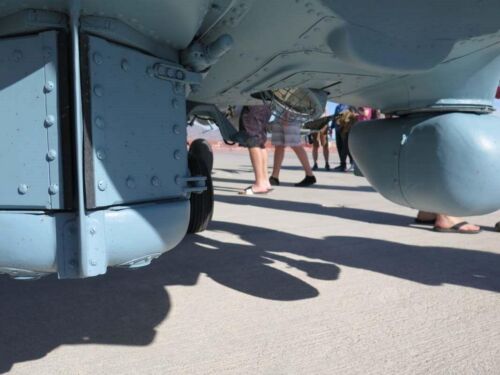

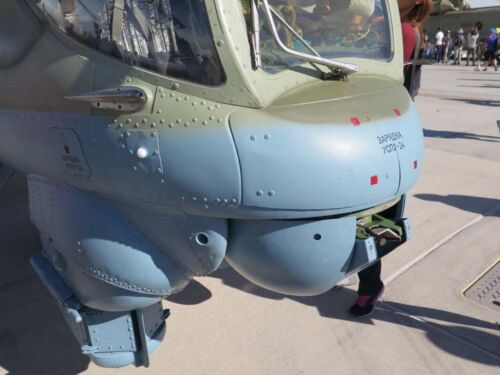

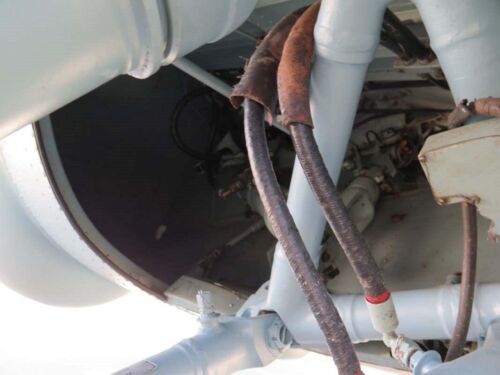

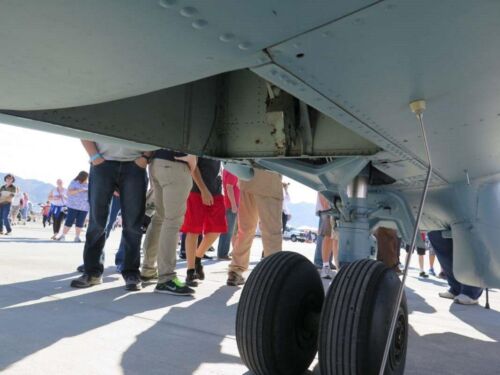

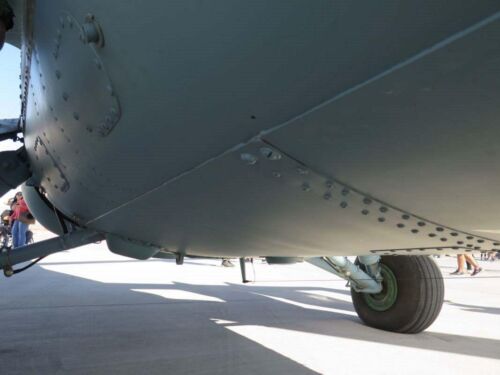

Mil Mi-24D Hind Walk Around
Photographer	Vladimir Yakubov
Localisation	Nellis Air Force Base
Photos	319

A Class of One

The Mil Mi-24 is one of the most menacing aircraft ever built. While the West developed specialized attack helicopters like the AH-1 Cobra, the Soviet Union created a “flying tank” that could do it all. It is a unique hybrid: a heavily armed gunship that also features a cabin large enough to carry eight fully equipped paratroopers. Its silhouette—with its sloping “double-bubble” cockpits and insect-like wings—is an icon of Cold War power. Whether it’s hunting tanks or dropping Spetsnaz behind enemy lines, the Hind remains a formidable presence on modern battlefields.

Attribute	Technical Specification (Mi-24V / Hind-E)
Role	Assault Gunship / Troop Transport
Crew	2-3 (Pilot, Weapons Officer, optional Technician)
Troop Capacity	8 Soldiers or 4 Stretchers
Engines	2 × Klimov TV3-117 turboshafts (2,200 shp each)
Maximum Speed	335 km/h (208 mph)
Armament (Nose)	1 × 12.7mm Yak-B Gatling gun or fixed 30mm GSh-30-2K cannon
External Load	1,500 kg (3,300 lbs) of rockets, bombs, and ATGMs
Main Rotor Dia.	17.3 meters (56 ft 9 in)

Design Engineering: Brutality Meets Physics

The Lift-Generating Wings: Unlike most helicopters, the Hind’s stub wings aren’t just for holding weapons. At high speeds, they provide up to 25% of the aircraft’s total lift. This allows the Hind to reach speeds that would cause other helicopters to stall.
Titanium “Bathtub”: The crew sits in a titanium-armored tub capable of withstanding hits from 12.7mm rounds. Even the rotor blades are titanium-tipped to survive impacts with branches or light anti-aircraft fire.
The “Crocodile” Lean: If you look at a Hind from the front, you’ll notice the entire fuselage is tilted 2.5 degrees to the left. This was an engineering fix to counteract the “translating tendency” of the massive main rotor, helping the pilot keep the aircraft stable during a hover.

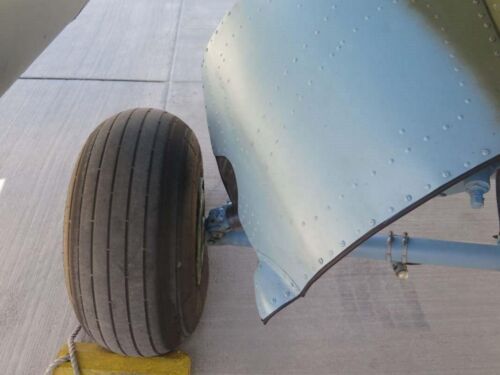

Retractable Gear: To squeeze out every bit of speed, the Mi-24 features retractable landing gear—a rarity for helicopters—which tucks away to reduce drag during high-speed “dashes.”

Operational History: “Satan’s Chariot”

The Afghan Icon: During the Soviet-Afghan War, the Mujahideen nicknamed the Mi-24 Shaitan-Arba (Satan’s Chariot). It was the only weapon they truly feared until the arrival of the American Stinger missile, which forced Hind pilots to change their tactics to ultra-low-level “nap-of-the-earth” flying.
The Flying Tanker: In a pinch, the Hind’s troop cabin can be fitted with extra fuel tanks, giving it a massive ferry range for long-distance deployments across the Siberian wilderness or African deserts.
Chernobyl Hero: Specialized Mi-24R (Hind-G1) variants were the first on the scene at the Chernobyl disaster. Equipped with “pincer” arms on the wingtips to take soil samples and lead-shielded cockpits, they mapped the radiation levels around the failing reactor.
Global Warrior: The Hind has fought in over 40 conflicts, from the Iran-Iraq War (where it famously engaged in dogfights with Iranian AH-1 Cobras) to modern-day missions in Ukraine and Syria.
