M75 APC

M75 APC
Land	Norge , Norge
Rolle	Pansret personellbærer
I tjeneste	1952-slutten av 1980-tallet
Bygget	1700+

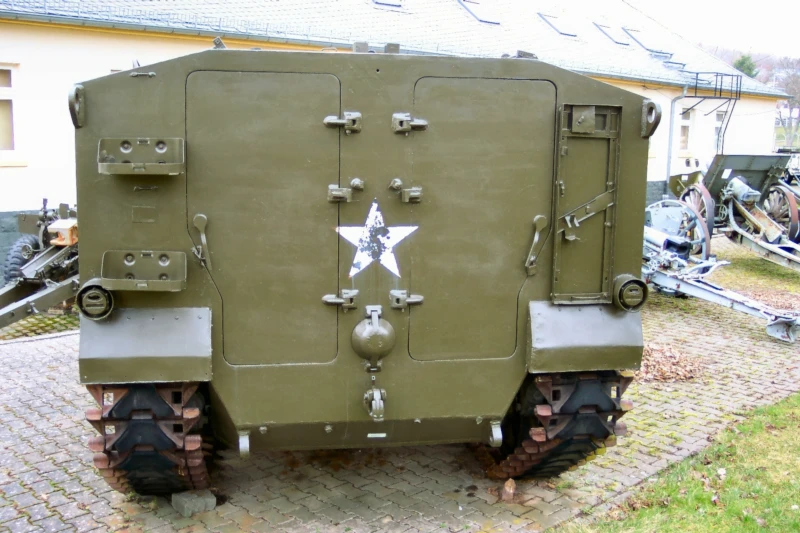

Photo gallery of a M75 APC, The M75 pansret infanterikjøretøy er et amerikansk pansret personellkjøretøy som ble produsert mellom desember 1952 og februar 1954, og var i tjeneste under Koreakrigen. Den ble erstattet i amerikansk tjeneste av den mindre, billigere, amfibiske M59. M75 ble gitt som militær hjelp til Belgia, hvor de ble brukt til tidlig på 1980-tallet. 1 729 M75 ble bygget før produksjonen ble stanset.

Kilde: M75 APC på Wikipedia

M75 APC
Fotograf	Unknow
Lokalisering	Unknow
Bilder	33

Click on a photo and use the mouse scroll to view all photos

Vent, søker M75 APC bilder for deg ...

Tjenestehistorikk In service : 1952-late 1950s Used by : United States, Belgium Wars : Korean War Produksjonshistorikk Manufacturer : International Harvester Corporation Number built : 1,729

Spesifikasjoner Weight : 18,800kg Length : 5.2m Width : 2.85m Height : 2.75m Main armament : M2 Browning machine gun Operational range : 185km Speed : 69km/h

M75 Armored Infantry Vehicle Walk Around
Fotograf	Ron Bollen
Lokalisering	Artillerieschool Brasschaat, Belgium
Bilder	25

Click on a photo and use the mouse scroll to view all photos

layout=’masonry’]

Kjøp meg en kaffe

M75 Armored Infantry Vehicle Walk Around
Fotograf	Vladimir Yakubov
Lokalisering	Stiftelsen Militær kjøretøyteknologi
Bilder	87

Click on a photo and use the mouse scroll to view all photos

Les også:

The Blueprint for Modern Infantry Mobility

Den M75 was the missing link between the half-tracks of WWII and the iconic M113. Developed in the early 1950s, it was designed to give infantry a vehicle that could keep up with the fast-moving M41 Walker Bulldog tanks. While it was highly mobile and well-armored for its time, it was also incredibly expensive and mechanically complex. Though its production run was short, the M75 established the “battle taxi” doctrine that would define Western mechanized warfare for the rest of the 20th century.

Attribute	Technical Specification (M75)
Rolle	Armored Personnel Carrier (APC)
Mannskapet	2 (Commander/Gunner, Driver) + 10 Infantry
Motor	Continental AO-895-4 6-cylinder petrol (295 hp)
Maximum Speed	71 km/h (44 mph)
Main Armament	1 × .50 caliber M2HB machine gun
Rustning	9.5mm to 38mm Steel
Vekt	18.8 tonnes (Combat Loaded)
Transmission	Allison CD-500-3 cross-drive

Design Engineering: High Speed, High Cost

Cross-Drive Steering: Borrowing technology from the M41 tank, the M75 featured a sophisticated cross-drive transmission that combined steering, braking, and shifting into one unit. This made it incredibly fast and agile on the battlefield, but also a nightmare for mechanics to repair in the field.
The “High-Top” Silhouette: Unlike the later M113, the M75 was very tall. This provided plenty of internal room for 10 fully equipped soldiers, but it also made the vehicle a massive target on the horizon.
Steel Construction: Before the military moved to aluminum with the M113, the M75 was built from heavy welded steel. This offered better protection against heavy machine guns than its successors, but the weight meant it could not “swim” and was difficult to transport by air.
The Commander’s Cupola: The commander sat in a dedicated cupola with a 360-degree view, manning the .50 caliber machine gun. This provided excellent situational awareness but left the commander partially exposed during combat.

Combat History: The Trial in Korea

The Korean War: The M75 saw limited but vital action in the later stages of the Korean War. It proved that tracked carriers were far superior to half-tracks in the rugged, muddy Korean terrain, successfully delivering troops directly into “hot” landing zones.
The Cost of Excellence: An M75 cost roughly $72,000 in 1952 dollars (nearly $800,000 today). Because the Army wanted a cheaper, amphibious alternative, production was halted after only about 1,700 units.
The Belgian Connection: After being retired from US service in the mid-50s, many M75s were handed over to the Belgian Army. They remained a staple of Belgian mechanized units until the 1980s, outlasting their US service life by decades.
Evolutionary Step: The lessons learned from the M75’s mechanical complexity and high cost led directly to the development of the M59, and eventually, the legendary M113.
