Globe GC-1 Swift

Globe GC-1 Swift
Ország	Usa
Szerepet	Polgári légi járművek
Első repülés	1946
Beépített	1521

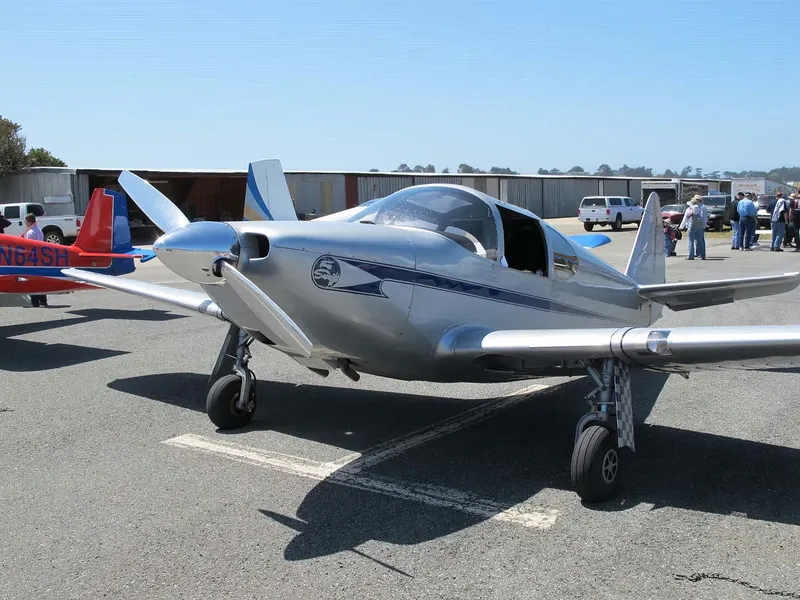

A Globe GC-1B Swift is a light, two-seat sport monoplane that was designed by R.S. Johnson and K.H. Knox in 1940 and produced by Globe Aircraft and TEMCO from 1946 to 1951. It is powered by a Continental C125 engine that delivers 125 hp and allows the aircraft to reach a maximum speed of 150 mph and a cruise speed of 140 mph. The Swift has a metal structure and a retractable landing gear. It was one of the first post-war civil aircraft to enter the market and it attracted many pilots with its sleek appearance and performance. The Swift was also developed into a military trainer version called the TEMCO T-35 Buckaroo, which served in several foreign air forces.

Forrás: Globe GC-1 Swift a Wikipédián

Grumman Globe GC-1 Swift Walk Around
Photographers	Vladimir Yakubov
Localisation	Pacific Coast Dream Machines 2010
Photos	56

Click on a photo and use the mouse scroll to view all photos

Várj, keress neked Grumman Ag macskát ...

Lásd még:

General Characteristics

The Globe Swift, later produced by TEMCO, is a classic American light, two-seat, all-metal sport monoplane from the post-World War II period. It was known for its sleek, fighter-like appearance and complex features, such as retractable landing gear, distinguishing it from simpler competitors of the era.

Property	Typical Value (GC-1B Variant)
Szerepet	Sport/Personal Light Aircraft
Gyártó	Globe Aircraft Company / TEMCO Aircraft
First Flight (GC-1A)	January 1945
Legénység	1 pilot
Kapacitás	1 passenger
Szárnyfesztávolsága	8.94 m (29 ft 4 in)
Hossza	6.35 m (20 ft 10 in)
Max Takeoff Weight	776 kg (1,710 lb)

Design and Powerplant

Original Designer: R.S. “Pop” Johnson (1940).
Construction: All-metal low-wing cantilever monoplane (except for early fabric-covered ailerons).
Landing Gear: Retractable, hydraulically operated conventional (tailwheel) landing gear.
GC-1A Engine: Continental C-85 (4-cylinder, 85 hp). This initial version was often considered underpowered.
GC-1B Engine: Continental C-125 (6-cylinder, 125 hp). This more powerful version became the primary production model, offering much improved performance.
Mods/Super Swift: Due to the robust airframe, many Swifts have been heavily modified with engines up to 210 hp or more, earning them the unofficial “Super Swift” designation.

Performance (GC-1B) and Legacy

Maximum Speed: 240 km/h (150 mph, 130 knots) at sea level.
Cruise Speed: 222 km/h (138 mph, 120 knots).
Stall Speed: 69 km/h (43 mph, 37 knots) with flaps down.
Range: Approximately 680 km (420 miles, 360 nautical miles).
Rate of Climb: 305 m/min (1,000 ft/min).
Service Ceiling: 4,877 m (16,000 ft).
Military Variant: TEMCO developed a tandem-seat military trainer version called the **T-35 Buckaroo**, based on the Swift, though it lost out to the Beechcraft T-34 Mentor for the USAF contract.
Legacy: Despite short production runs by Globe (due to insolvency) and TEMCO (ending in 1951), the Swift remains a popular and actively supported classic aircraft today.
