EBRC Jaguar

EBRC Jaguar
Pays	France
Type	Véhicule de reconnaissance
Produit	Depuis 2020
Construit	Inconnu

L’Engin Blindé de Reconnaissance et de Combat Jaguar (anglais : Armoured Reconnaissance and Combat Vehicle Jaguar) ou EBRC Jaguar est un véhicule blindé de reconnaissance Français qui remplacera l’armée Français’Les véhicules de reconnaissance et d’appui-feu AMX 10 RC et ERC 90 Sagaie ainsi que le VAB Mephisto.

Source: EBRC Jaguar sur Wiki

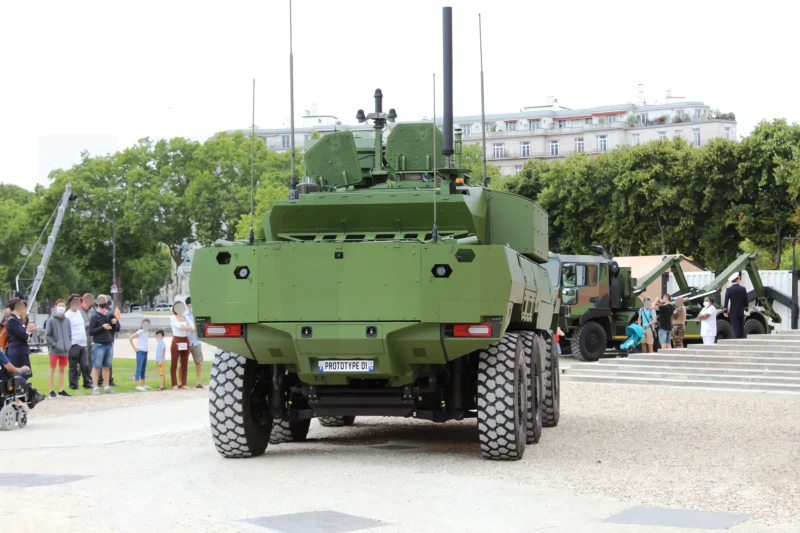

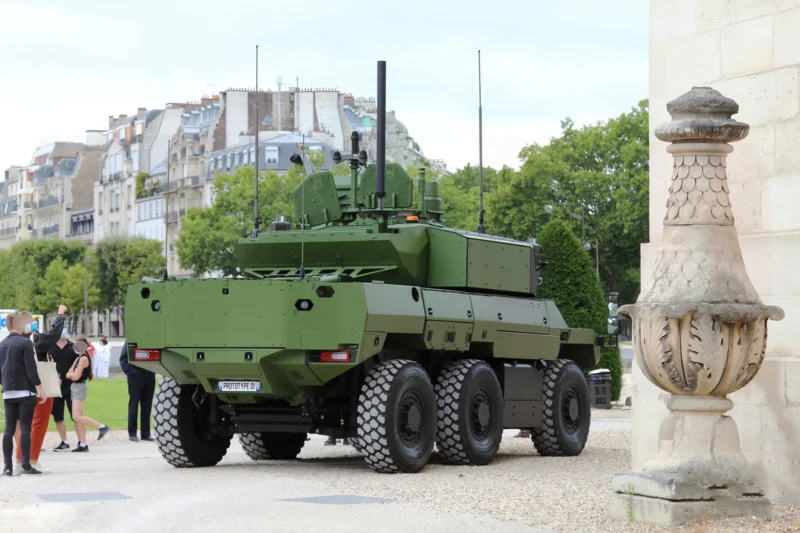

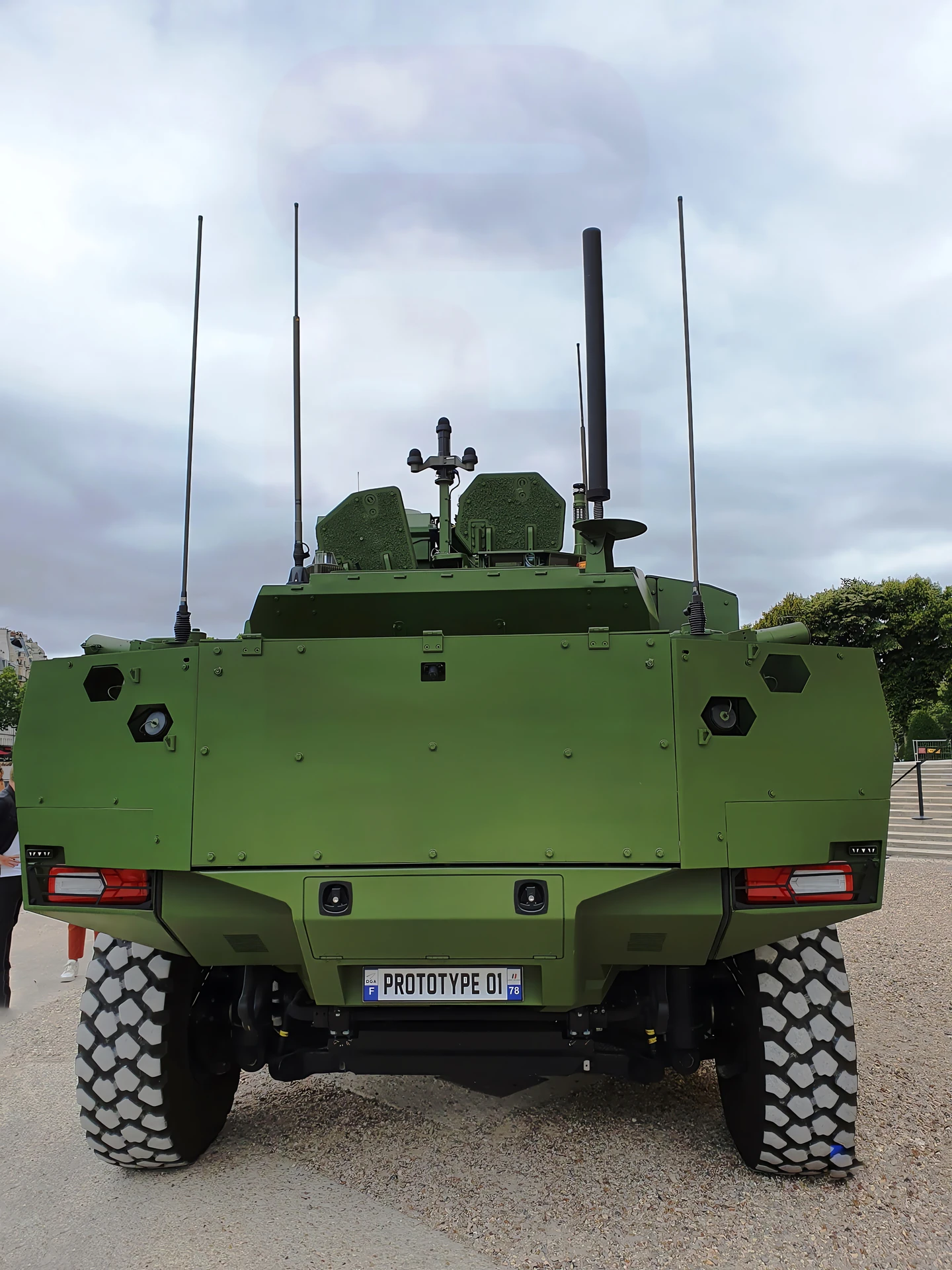

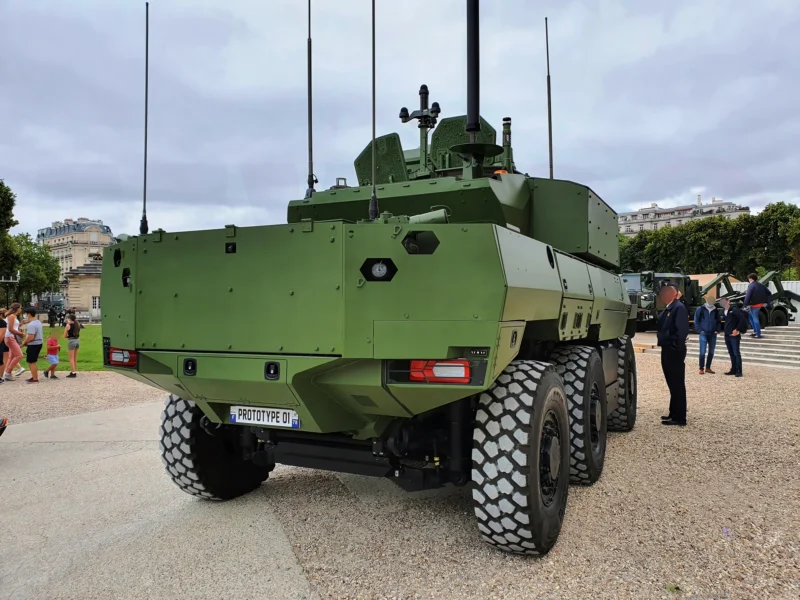

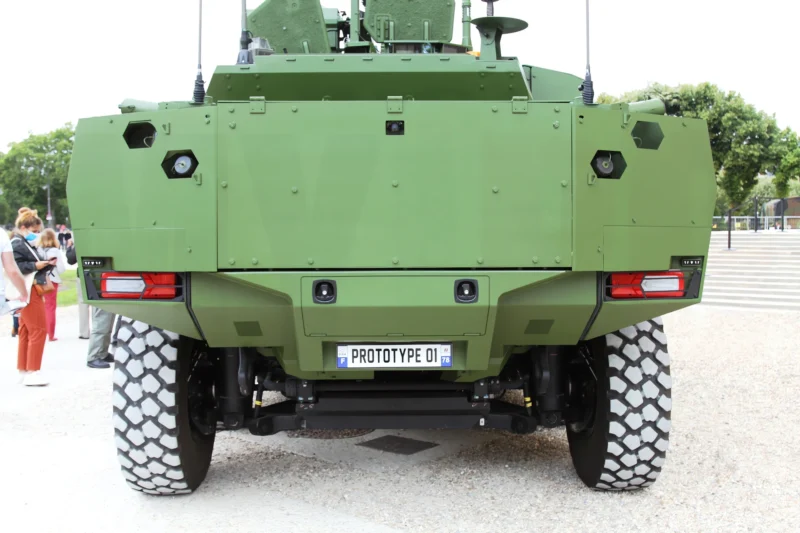

EBRC Jaguar Proto 1 Walk Around
Photographe	Chadi Rachid
Localisation	Inconnu
Photos	32

Click on a photo and use the mouse scroll to view all photos

Attendez, Recherche de photos EBRC Jaguar pour vous...

EBRC Jaguar Walk Around
Photographe	Inconnu
Localisation	Inconnu
Photos	17

EBRC Jaguar

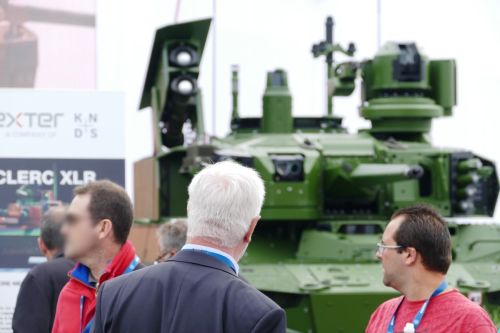

EBRC-Jaguar-13

EBRC Jaguar

Charger plus...

Attendez, à la recherche d’un véhicule de reconnaissance pour vous...

Voir aussi :

The EBRC Jaguar is a new-generation, six-wheel drive armored fighting vehicle developed by a French industrial consortium (Nexter, Arquus, and Thales) as part of the SCORPION modernization program for the French Army. It is designed for armored reconnaissance and combat, replacing older vehicles like the AMX-10 RC and ERC 90 Sagaie.

Key Features and Armament

The Jaguar is heavily armed for a reconnaissance vehicle, focusing on versatility and anti-armor capability.

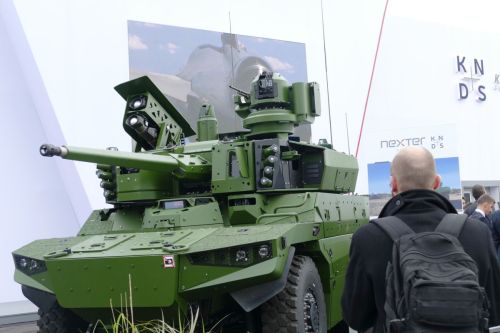

Main Gun: 40 mm Cased Telescoped Armament System (CTAS) autocannon.
Rate of Fire: Up to 200 rounds per minute.
Anti-Tank Weapon: Two launchers for Akeron MP (MMP) Medium-Range Anti-Tank Guided Missiles (ATGMs).
Missile Range: Up to 4,000 meters, with « fire-and-forget » capability.

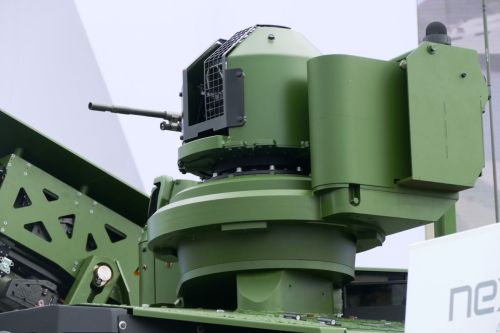

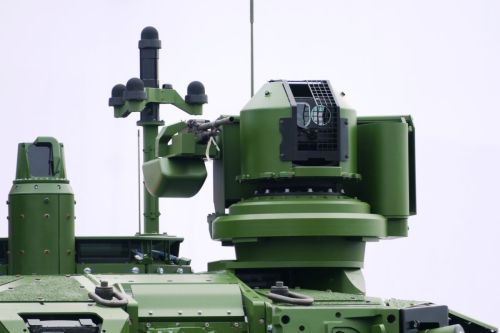

Secondary Armament: 7.62 mm machine gun mounted in a Remote Controlled Weapon Station (RCWS) on the turret.

General Specifications

Property	Valeur
Type	Armored Reconnaissance and Combat Vehicle
Crew	3 (Driver, Gunner, Commander)
Configuration	6×6 Wheeled Chassis (with rear-axle steering)
Combat Weight	Up to 25 tonnes (GVWR)
Engine Power	~500 hp (Militarized Volvo D11 Turbo-Diesel)
Vitesse maximale	90 km/h (on road)
Portée opérationnelle	800 km
En service	2022 (French Army)

Protection and Mobility

Protection Level: STANAG 4569 Level 4 (standard), providing protection against 14.5 mm armor-piercing rounds and 155 mm shell fragments at 30 m.
Additional Protection: Can be fitted with modular add-on armor kits, including slat armor against RPGs (optional).

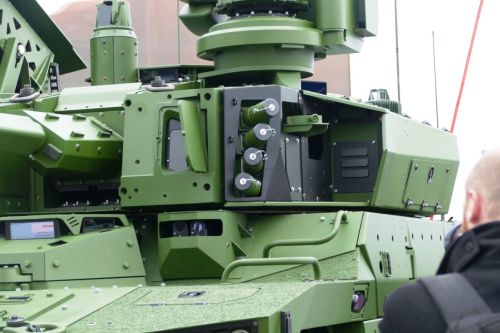

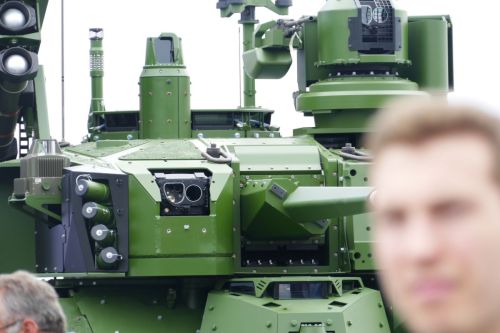

Survivability: Equipped with a Laser Warning System, missile detection system, and GALIX automatic smoke grenade launchers.
Mobility Features: Features variable ground clearance, independent suspension, a tire pressure variation system, and a run-flat system for excellent cross-country performance.

Role and Users

The Jaguar combines a high degree of firepower, protection, and C4ISTAR (Command, Control, Communications, Computers, Intelligence, Surveillance, Target Acquisition, and Reconnaissance) capabilities, making it a powerful platform for modern, networked warfare.
