Sacerdote M7B1 | |
|---|---|
| País | Reino Unido |
| Tipo | Carro de motor de obús |
| Tema | Álbum de 51 fotos de un arma Sacerdote M7B1 |
el Carro de motor de obús de 105 mm M7 fue un vehículo de artillería autopropulsado estadounidense producido durante la Segunda Guerra Mundial. Se le dio el nombre de servicio oficial 105 mm Self Propelled Gun, Priest por el ejército británico, debido al anillo de ametralladora similar a un púlpito, y siguiendo al Bishop y los cañones autopropulsados contemporáneos Deacon.
M7B1 : Completando el turno, el M7B1 estaba totalmente basado en el chasis M4A3 Sherman. Fue estandarizado en septiembre de 1943, y declarado estándar sustituto en enero de 1945.
Fuente: Wikipedia
Ver también:
The Evolution of Mobile Artillery
el Sacerdote M7B1 was the refined, mid-war iteration of the U.S. Army’s primary self-propelled howitzer. While the original M7 was built on the chassis of the M3 Lee, the B1 variant transitioned to the more reliable and standardized M4A3 Sherman chassis. It earned its nickname from British crews, who noted that the cylindrical machine gun mount resembled a church pulpit. Unlike towed guns, the Priest could keep pace with fast-moving tank columns and deliver devastating fire support within minutes of stopping—a capability that redefined Allied blitzkrieg tactics.
| Attribute | Technical Specification (M7B1) |
|---|---|
| Papel | Self-Propelled Howitzer (105 mm) |
| Equipo | 7 (Commander, Driver, 5 Gun Crew) |
| Motor | Ford GAA V8 petrol (450–500 hp) |
| Velocidad máxima | 39 km/h (24 mph) on road |
| Armamento principal | 105 mm Howitzer M2A1 (69 rounds) |
| Armamento secundario | 1 × .50 cal (12.7 mm) M2 Browning MG |
| Armadura | 12 mm to 62 mm |
| Chassis Base | Medium Tank M4A3 (Sherman) |
Design Engineering: The Power of the V8
- The Ford GAA V8: The biggest technical shift from the M7 to the M7B1 was the engine. Replacing the temperamental Wright Continental radial with the massive, all-aluminum Ford GAA V8 provided more torque and simplified maintenance, as it shared parts with the most common US tanks of the late war.

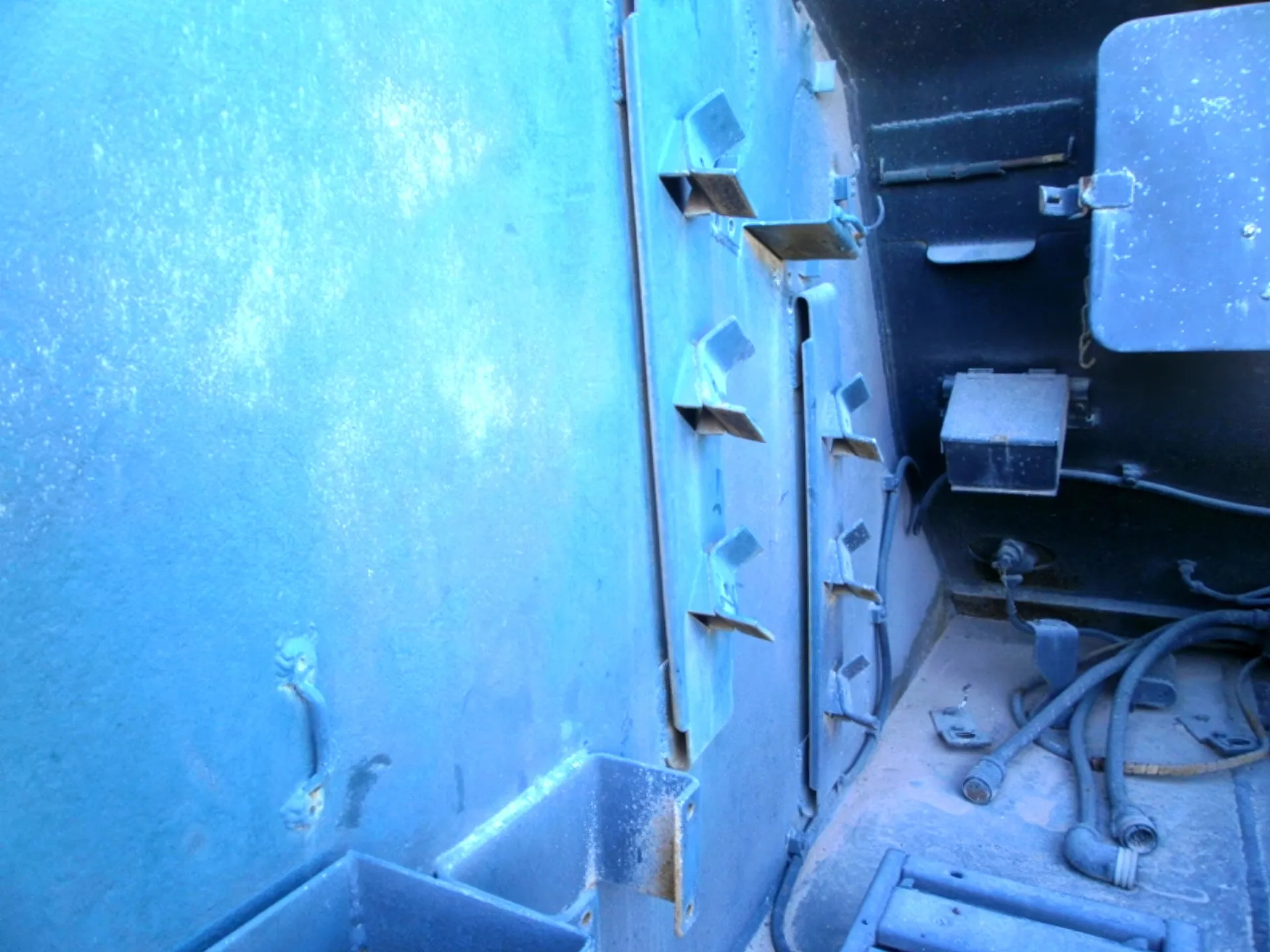

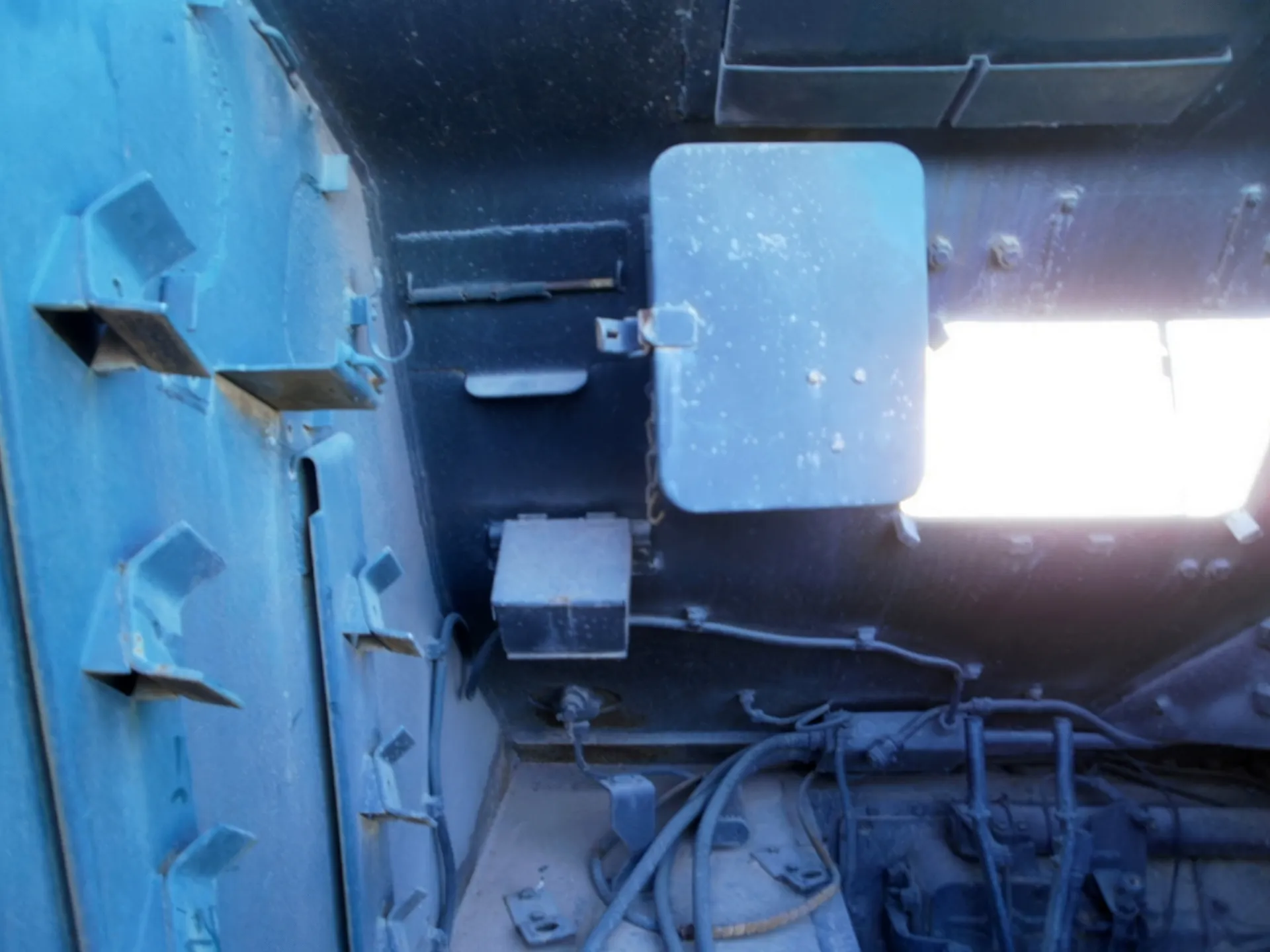

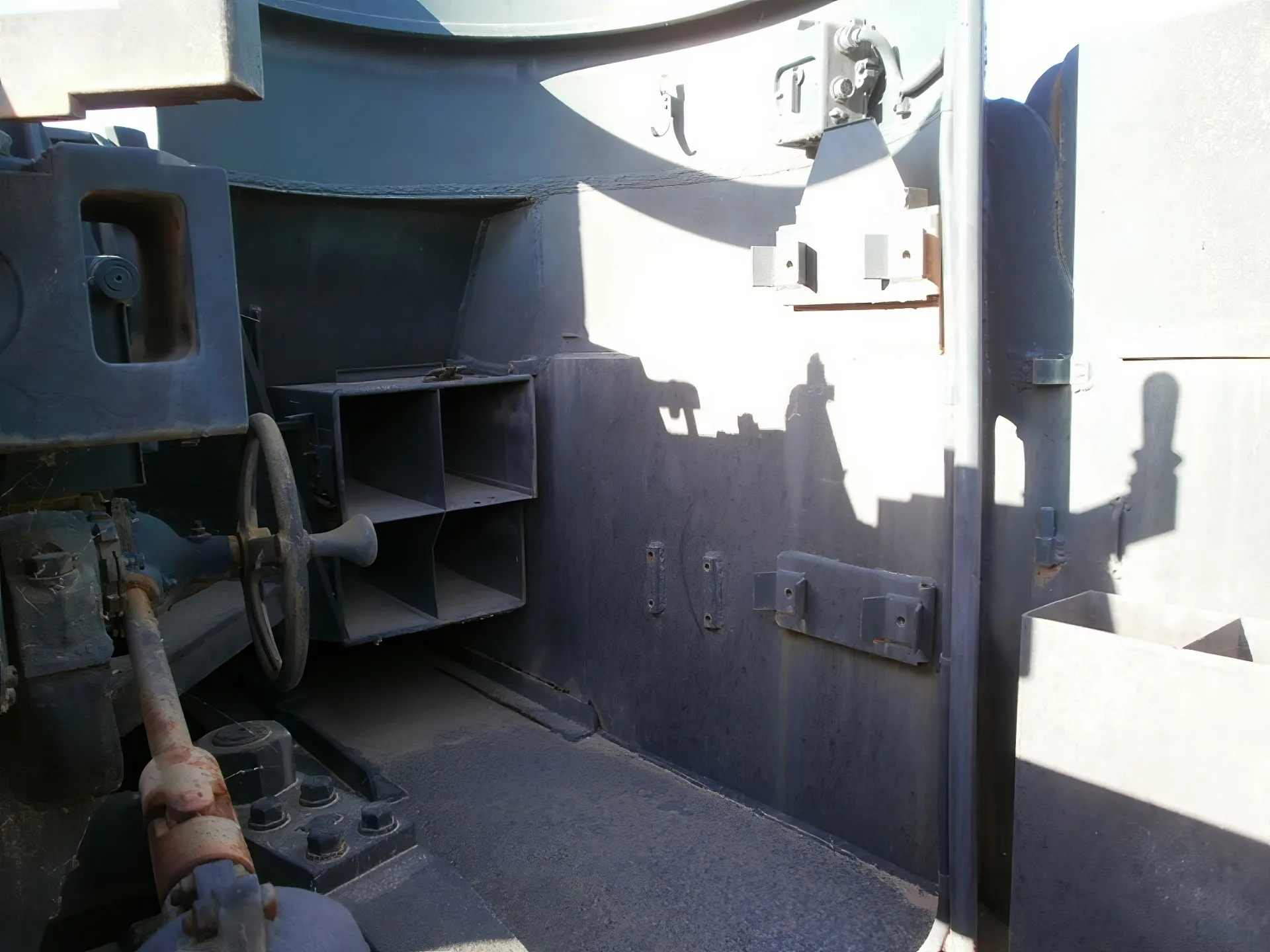

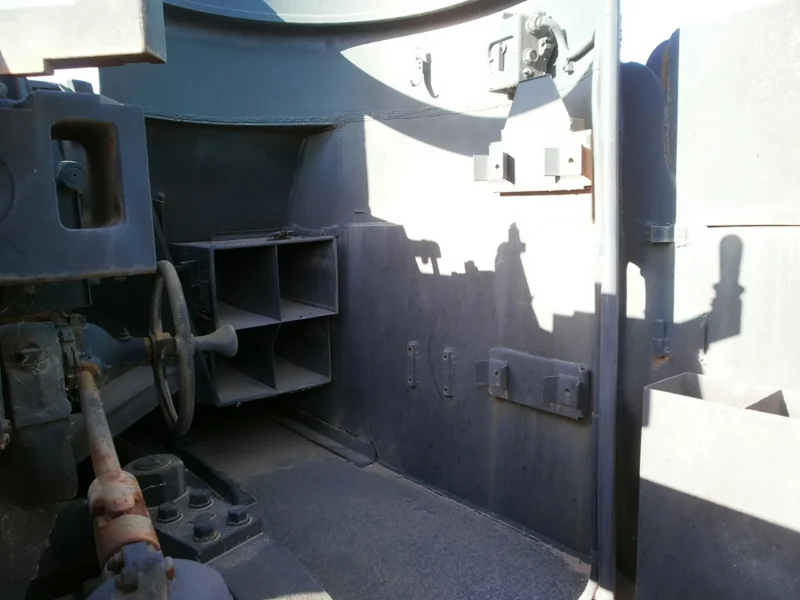

- Open-Topped Versatility: The open fighting compartment offered the crew 360-degree situational awareness and made reloading from ammunition trucks much faster. However, it left the crew vulnerable to mortar fire, airbursts, and snipers—a trade-off accepted for the sake of artillery efficiency.

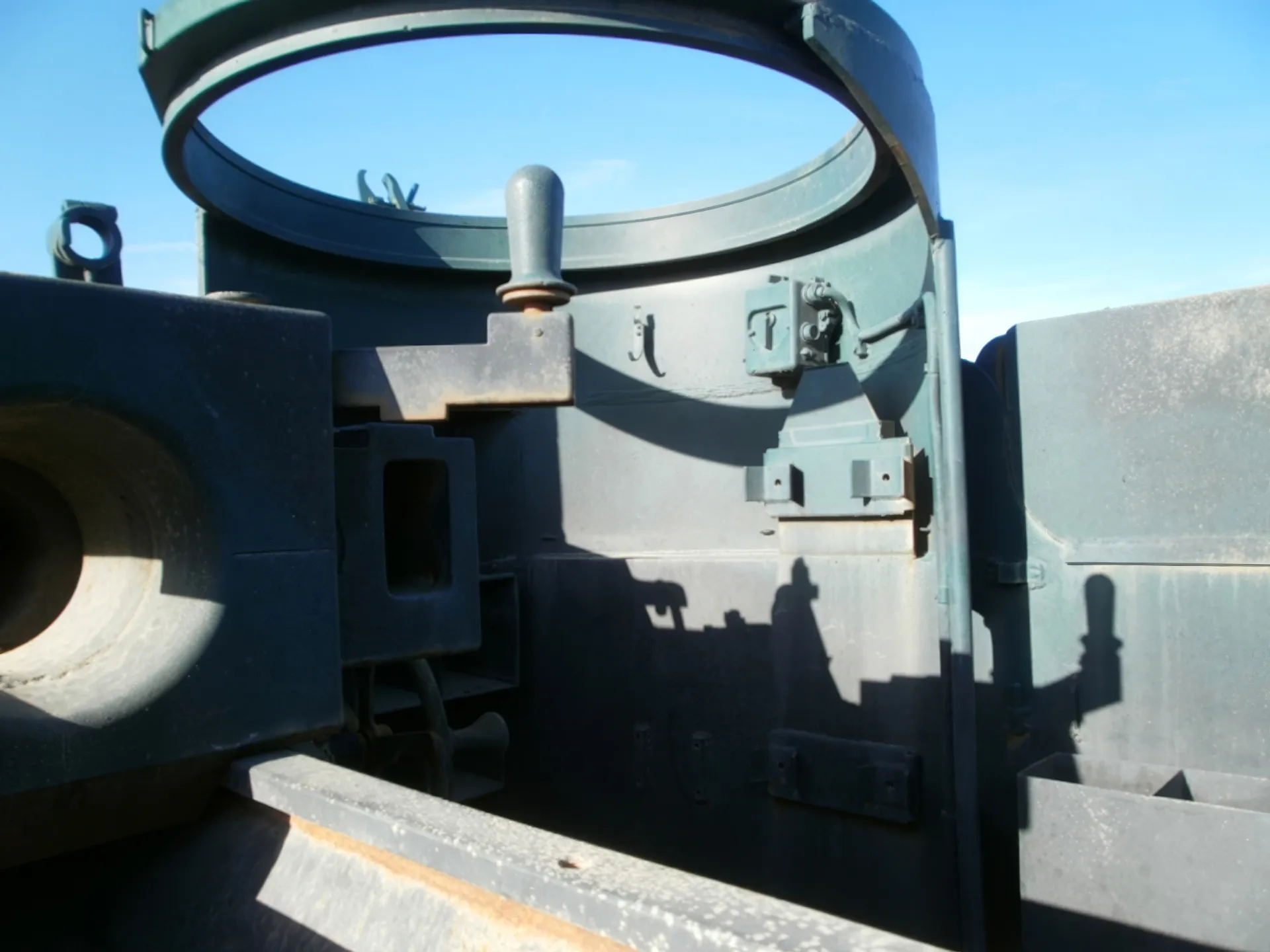

- The “Pulpit” MG Mount: Positioned at the front right, the .50 caliber machine gun ring gave the vehicle a formidable defense against infantry and low-flying aircraft. Its high position allowed for a clear field of fire even when the vehicle was hull-down in a firing pit.
- Indirect & Direct Fire: While primarily an indirect fire weapon (lobbing shells over hills), the 105mm howitzer was terrifyingly effective in a direct-fire role against bunkers or buildings. It could even knock out heavy tanks with a well-placed High-Explosive (HE) or HEAT round at close range.
Operational History: From Normandy to Korea
- The “Kangaroo” Conversion: In Normandy, some Priests had their guns removed to become “Defrocked Priests” or Kangaroos—early armored personnel carriers used to ferry infantry through heavy fire.
- Logistical Standardization: The British eventually replaced their Priests with the sacristán (which used the 25-pounder gun) to simplify their ammunition supply lines. This allowed the US to monopolize 105mm production for their own rapidly expanding armored divisions.
- The Korean War and the M7B2: During the Korean War, the steep mountains required higher gun elevation. This led to the M7B2, which featured a raised howitzer mount and a taller “pulpit” to allow the gun to reach the 65-degree elevation needed for mountain warfare.
- Worldwide Service: After WWII, the M7B1 was widely exported. It served in the militaries of over 15 nations, including Israel, where it played a significant role in the armored battles of the mid-20th century.
