| Lockheed YO-3 | |
|---|---|
| Страна | Сащ |
| Роля | Reconnaissance — Night |
| Първи флайт | 1969 |
| Построен | 11 |
1. Lockheed YO-3 “Quiet Star” was an American single-engined, propeller-driven aircraft that was developed for battlefield observation during the Vietnam War. It was designed to be as quiet as possible, and was intended to observe troop movements in near-silence during the hours of darkness.
Източник: Lockheed YO-3 on Wikipedia

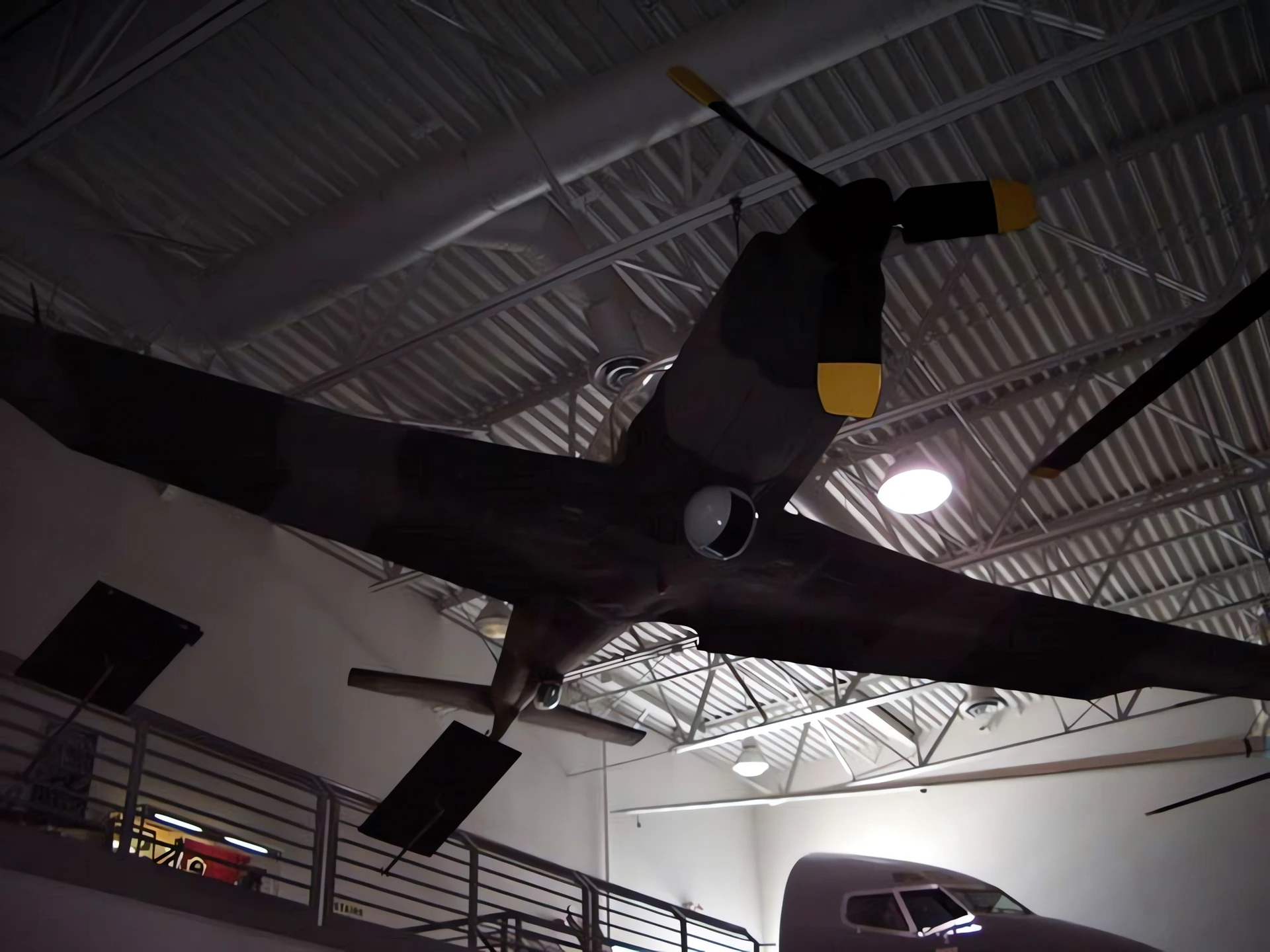

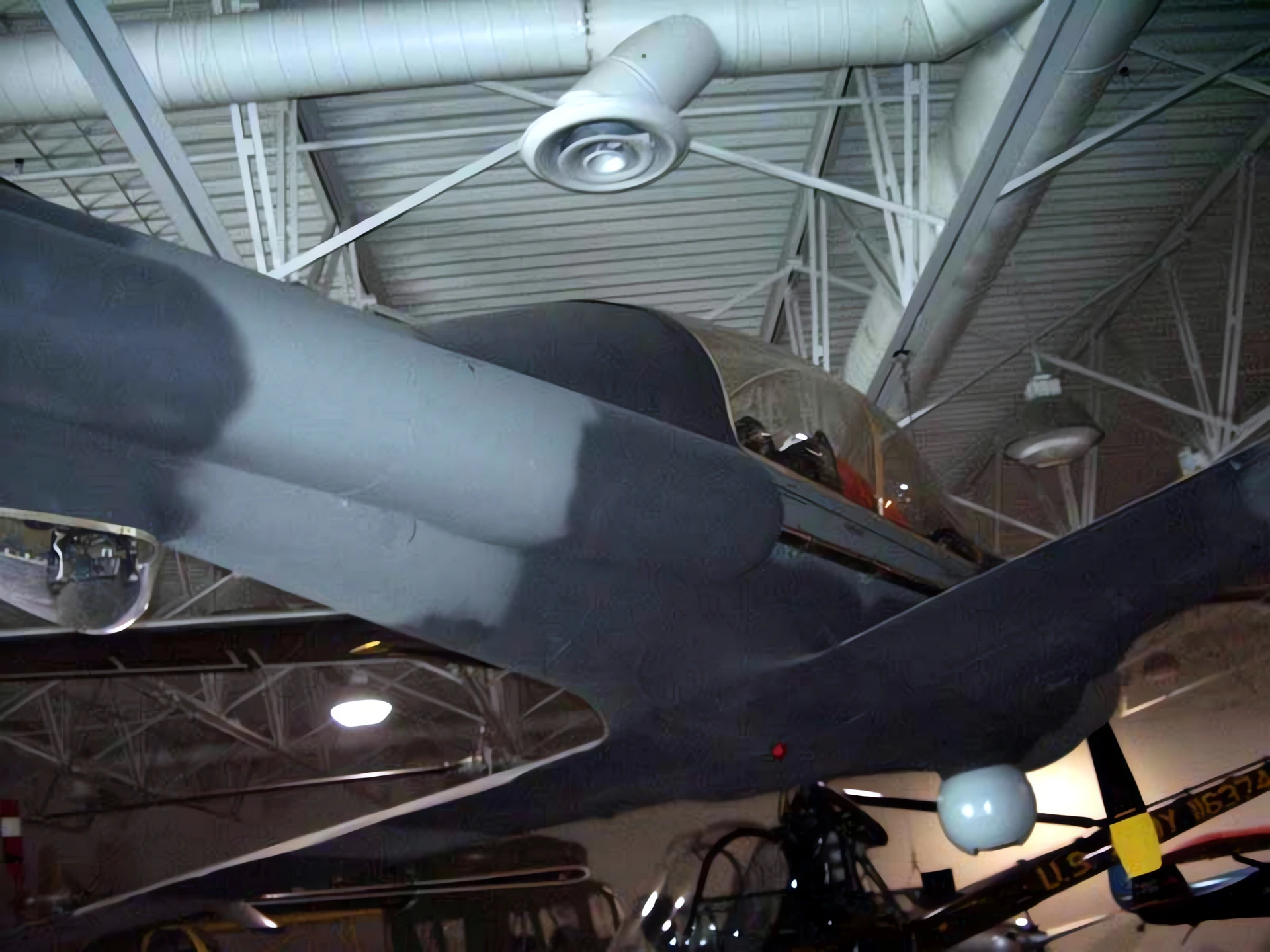

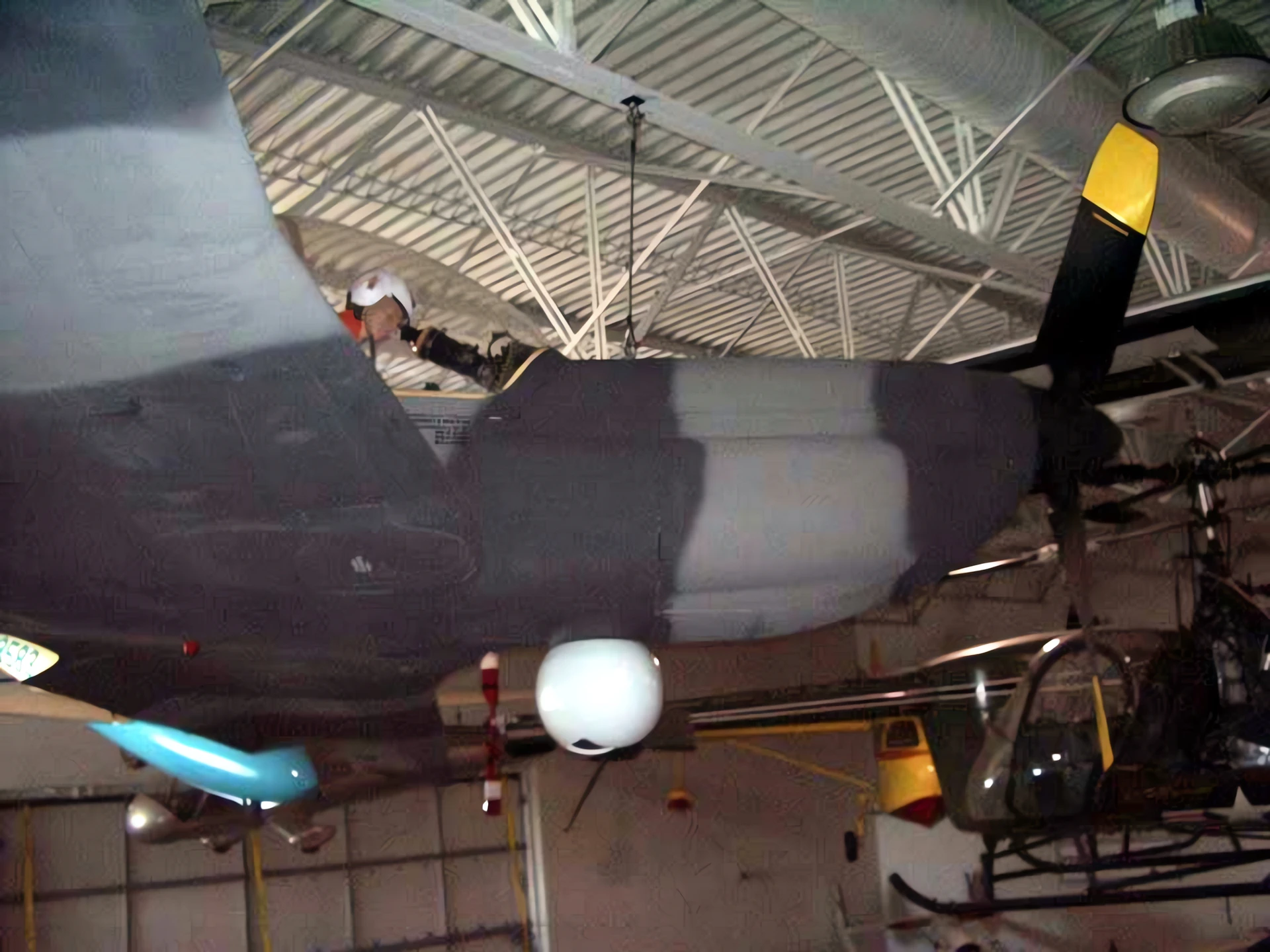

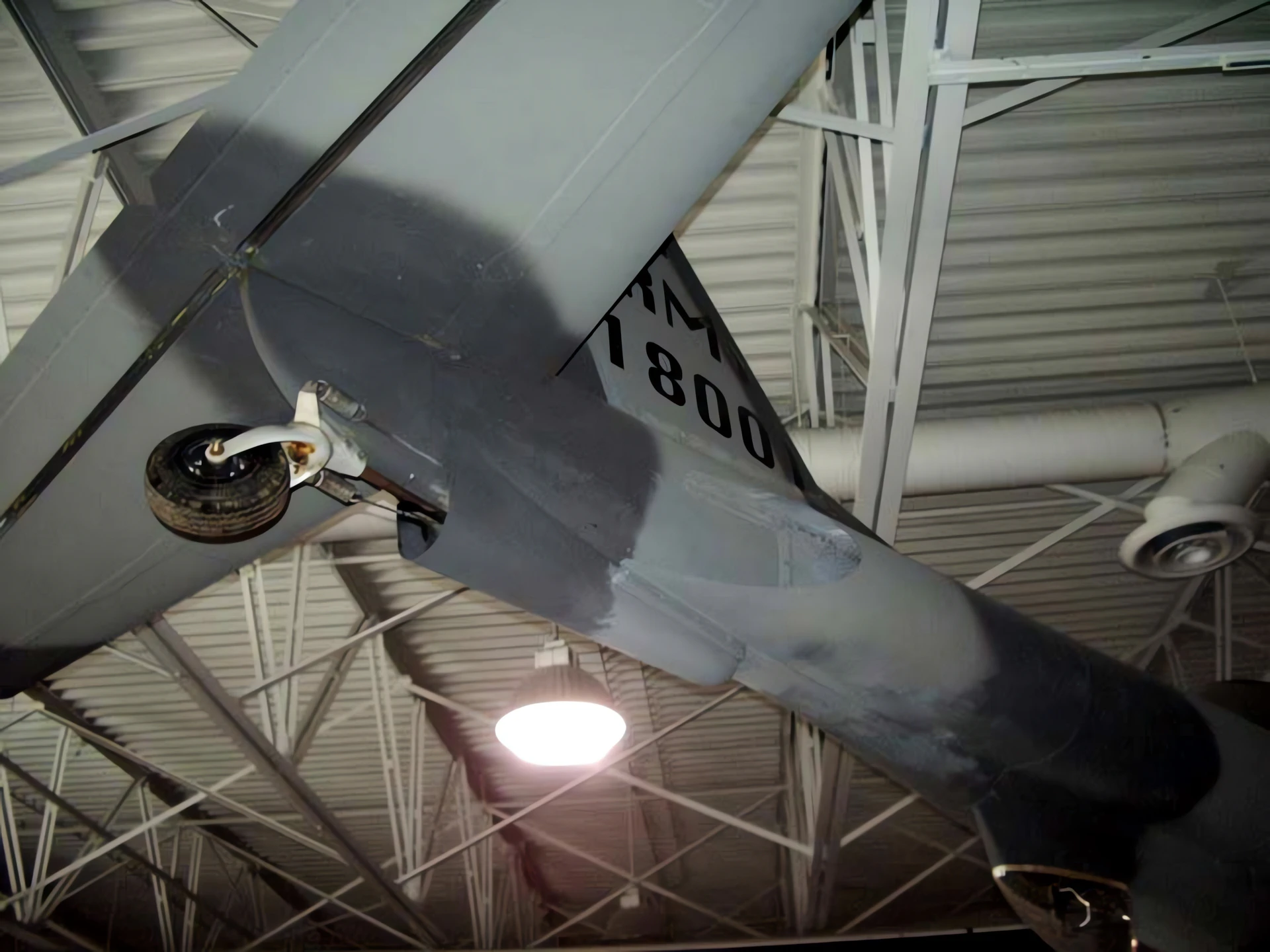

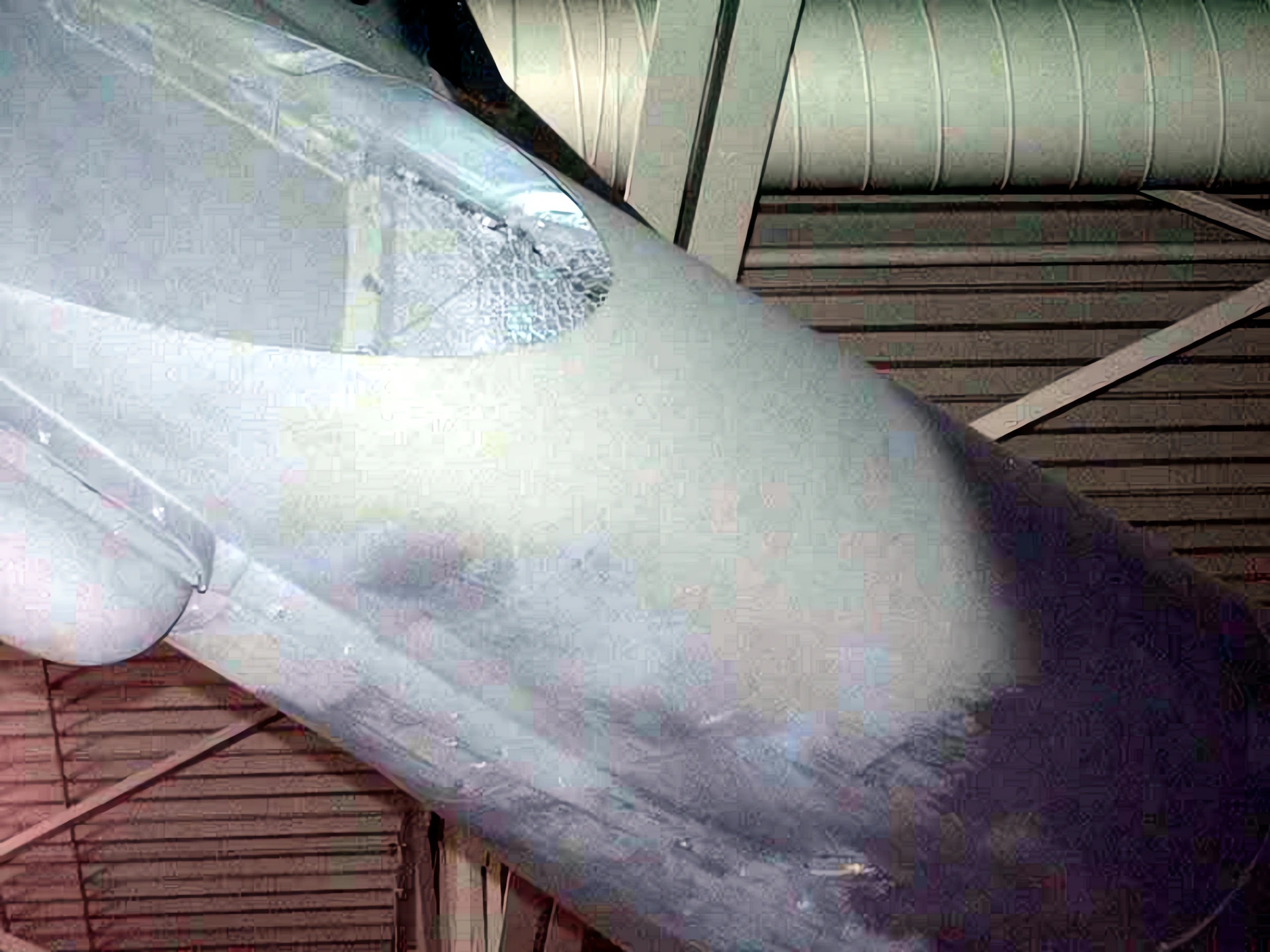

| Lockheed YO-3A Quiet Star Walk Around | |
|---|---|
| Фотограф | Владимир Якубов |
| Локализация | Hiller Museum, Redwood City |
| Снимки | 37 |
Вижте също:
Acoustic Stealth: Before Radar was the Enemy
1. Локхийд YO-3A Тиха звезда was a specialized reconnaissance aircraft developed during the Vietnam War to observe enemy movement at night without being heard. While modern stealth focuses on radar, the YO-3A was all about acoustic stealth. It was designed to fly at altitudes as low as 1,000 feet, where it was virtually silent to people on the ground. Built using the wings of a Schweizer sailplane and a heavily modified engine, it remains one of the quietest powered aircraft ever flown.
| Attribute | Technical Specification (YO-3A) |
|---|---|
| Роля | Acoustic Stealth Reconnaissance |
| Екипажа | 2 (Pilot in rear, Observer in front) |
| First Flight | 1969 |
| Силова установка | 1 × Continental I0-360D six-cylinder engine |
| Horsepower | 210 hp (157 kW) |
| Maximum Speed | 103 mph (166 km/h) |
| Cruise Speed | Approx. 80 mph (129 km/h) |
| Размах | 57 ft (17 m) |
The Engineering of Silence
- Slow-Turning Propeller: The most significant source of aircraft noise is the propeller tip speed. The YO-3A used a massive, slow-turning wooden propeller (originally 6 blades, later 3) driven by a belt-reduction system rather than a loud gearbox.
- Exhaust Muffling: The engine exhaust was routed through a massive, high-performance muffler that ran along the entire right side of the fuselage, terminating at the tail to direct any remaining noise upward and away from the ground.
- Glider DNA: The aircraft utilized the high-aspect-ratio wings of a Schweizer SGS 2-32 sailplane. This allowed it to maintain altitude with very little engine power (and thus very little noise) while cruising over target areas.

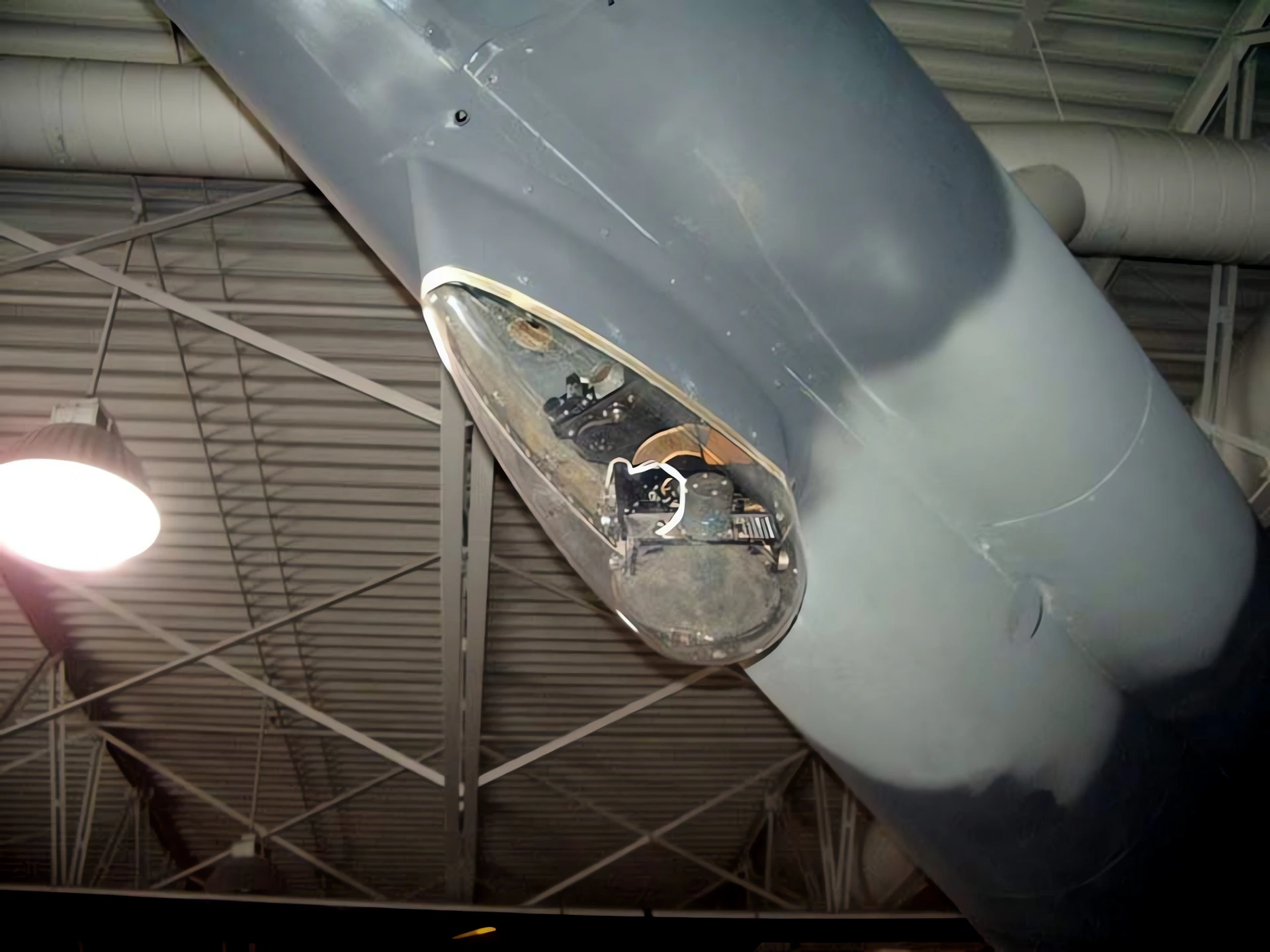

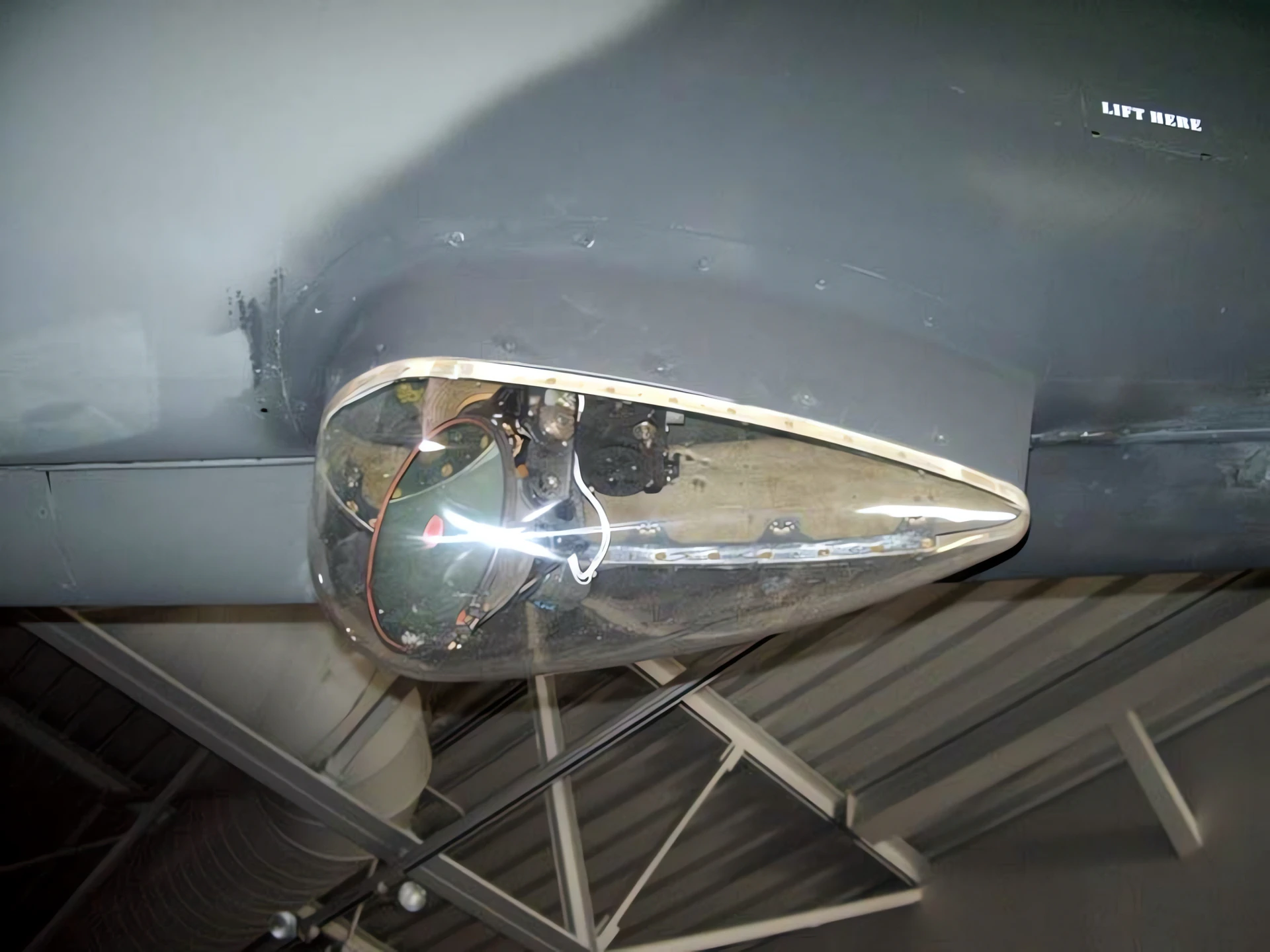

- Sensors over Weapons: The YO-3A carried no armament. Instead, the observer in the front used a night vision periscope and an infrared illuminator to spot Viet Cong movements under the jungle canopy.
Combat History and NASA Service
- The “Midnight” Missions: In Vietnam, the YO-3A operated almost exclusively at night. Pilots reported that they could often hear the conversations of people on the ground over the sound of their own engine.
- Undefeated in Service: Of the 11 aircraft deployed to Vietnam between 1970 and 1971, none were ever lost to enemy fire, largely because the enemy never knew they were there until it was too late.
- NASA Research: After the war, NASA acquired several YO-3As to use as “microphone platforms.” Because the aircraft was so quiet, researchers could fly it alongside other aircraft to record their acoustic signatures without the YO-3A’s own noise contaminating the data.
- Current Status: Only a few survive today; one is prominently displayed at the Музей на полета in Seattle, and another at the U.S. Army Aviation Museum at Fort Rucker.
