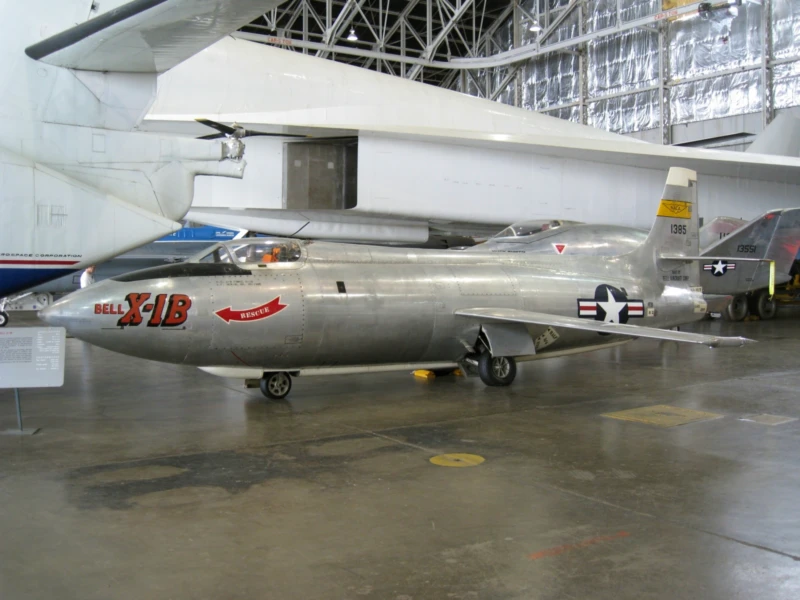

Galeria zdjęć Dzwon X-1B, The Bell X-1, designated originally as XS-1, was a joint National Advisory Committee for Aeronautics-U.S. Army Air Forces-U.S. Air Force supersonic research project built by the Bell Aircraft Company. Conceived during 1944 and designed and built during 1945, it achieved a speed of nearly 1,000 miles per hour (1,600 km/h; 870 kn) during 1948. A derivative of this same design, the Bell X-1A, having greater fuel capacity and hence longer rocket burning time, exceeded 1,600 miles per hour (2,600 km/h; 1,400 kn) during 1954. The X-1 was the first manned airplane to exceed the speed of sound in level flight and was the first of the so-called X-planes, a series of American experimental rocket planes designated for testing of new technologies and often kept secret.

Źródła: Bell X-1 na Wikipedii

Bell X-1B

Fotograf	Howard Mason
Lokalizacja	Niewiedzy
Zdjęcia	21

Bell X-1B 01

Bell X-1B 02

Bell X-1B 03

Bell X-1B 04

Bell X-1B 05

Bell X-1B 07

Bell X-1B 06

Bell X-1B 08

Bell X-1B 09

Click on a photo and use the mouse scroll to view all photos

Czekaj, wyszukiwanie Bell X-1B zdjęcia dla Ciebie ...

Bell X-1B Walk Around
Fotografów	John Heck, Władimir Yakubov
Lokalizacja	Muzeum Narodowe USAF
Zdjęcia	30

Bell X-1B 01

Bell X-1B 02

Bell X-1B 04

Bell X-1B 03

Bell X-1B 05

Bell X-1B 06

Bell X-1B 07

Bell X-1B 08

Bell X-1B 09

Click on a photo and use the mouse scroll to view all photos

Kup mi kawę

Zobacz też:

The Dawn of the Supersonic Era

Tthe Dzwon X-1 was a rocket-powered research aircraft that changed history on October 14, 1947. Designed specifically to investigate the “transonic” region, it was the first aircraft to exceed the speed of sound in level flight. Piloted by Chuck Yeager, the orange, bullet-shaped craft proved that the “sound barrier” was not a physical wall that would destroy an aircraft, but an aerodynamic challenge that could be conquered through engineering.

Attribute	Technical Specification (X-1-1)
Roli	Experimental Research Rocket Plane
Załogi	1 (Pilot)
Silnika	1 × Reaction Motors XLR11-RM-3 liquid-fuel rocket
Thrust	6,000 lbf (27 kN) from four chambers
Top Speed	1,540 km/h (957 mph / Mach 1.45)
Maximum Altitude	21,900 m (71,900 ft)
Launch Method	Air-drop from a B-29 Superfortress
Fuel	Liquid Oxygen (LOX) and Alcohol-Water mix

Design Engineering: A Bullet with Wings

Shape of a .50 Caliber Bullet: Designers knew that a .50 caliber bullet was stable at supersonic speeds. They modeled the X-1’s fuselage directly after this shape to ensure it wouldn’t tumble when it hit Mach 1.
The “All-Moving” Tail: During early tests, the X-1’s elevators became useless as it approached the speed of sound due to shockwaves. The solution was the moving horizontal stabilizer (the whole tail plane tilted). This “flying tail” is now a standard feature on nearly every modern supersonic fighter.
The XLR11 Rocket: The engine didn’t have a throttle. Instead, it had four separate chambers that the pilot could turn on or off individually. To save fuel, Yeager would often climb using only two or three chambers, igniting the fourth only for the final dash.
Nitrogen Pressure System: Because the early X-1 lacked fuel pumps, it used highly pressurized nitrogen gas to force the fuel into the engine. This required thick, heavy spherical tanks that limited the amount of fuel the plane could carry.

Operational History: Breaking the Barrier

The Mach 1.06 Flight: Despite having two broken ribs from a horse-riding accident two days prior, Chuck Yeager flew the X-1 to Mach 1.06 at 43,000 feet. The world below heard the first-ever man-made sonic boom.
Mother Ship Operations: The X-1 was too fuel-hungry to take off from the ground. It was carried to 20,000 feet in the modified bomb bay of a B-29 Superfortress and dropped like a bomb before igniting its engine.
The X-1A and Beyond: Later versions featured a conventional canopy (the original was flush with the fuselage) and turbine pumps for fuel. The X-1A eventually reached a staggering Mach 2.44 (over 1,600 mph) in 1953.
The Legacy: The data gathered by the X-1 program directly informed the design of the century-series fighters (like the F-100 Super Sabre) and even the Space Shuttle. The original “Glamorous Glennis” now hangs in the Smithsonian National Air and Space Museum.
